Hyundai H-AR19-09H/I Guide

RU
Электрический
кондиционер воздуха
Cплит-система
Руководство по эксплуатации
Гарантийный талон
EN
Electric air conditioner
Split system
Instruction manual
Warranty card
Модели / Models
Внутрениий блок
Indoor unit
Наружный блок
Outdoor unit
H-AR19-07H/I
H-AR19-09H/I
H-AR19-12H/I
H-AR19-18H/I
H-AR19-24H/I
H-AR19-30H/I
H-AR19-36H/I
H-AR19-07H/O
H-AR19-09H/O
H-AR19-12H/O
H-AR19-18H/O
H-AR19-24H/O
H-AR19-30H/O
H-AR19-36H/O
www.hyundai-home.ru

2Electric air conditioner (split system)
EN
Contents
1. Important information
2. Safeguards
3. Specifi cations
4. Appliance description
5. Delivery set
6. Appliance control
Control panel for indoor unit
Remote control board
7. Operating modes
8. Maintenance
9. Recycling, lifetime, warranty period
10. Transportation and storage
Dear Customer!
Thank you for a shrewd choice and purchase of Hyundai portable electric air
conditioner. It will serve you for a long time.
1. IMPORTANT INFORMATION
The appliance is designed for air cooling in domestic premises. The

and processing of the article with a view to improve its properties without

digital notations of the present manual.

and operation of the appliance, please, refer to a shop assistant or to a

The article has a label with all the needed technical data and other useful
information about the appliance. Use the appliance only for its intended
purpose indicated in this manual.
2
3
4
6
7
7
7
8
9
10
11
11

3
Electric air conditioner (split system)
EN
2. SAFEGUARDS
1. 
installation specialist.
2. While using the air conditioner, it is necessary to observe several
precautions. Incorrect operation due to ignoring of precautions may
result in personal injury of a user and other people, as well as in
damaging of their property.
3. The electric appliance should be under observation while operated,
especially if there are any children near it.
4. 
indoor and outdoor units, since it may result in a trauma caused by a
revolving fan.
5. Don’t let children turn the conditioner on by themselves. Children may
turn the conditioner on only under the care of adults.
6. Don’t try to repair the conditioner by yourself. Internal units of the
conditioner carry a voltage and it is life-threatening! For repair of the
appliance refer to an authorized service center.
7. Don’t use the appliance if it is faulty, or if it was dropped or damaged.
8. Don’t open a front panel of the appliance during its work.
9. Don’t dismantle and modify the appliance.
10. Unplug the conditioner immediately, if it emits strange odours or smoke.
11. 
12. Always unplug the conditioner during a thunderstorm.
13. Always unplug the conditioner, when it is not used.
14. Before cleaning and maintenance of the conditioner unplug it. Cleaning
and maintenance should be performed in accordance with instructions of
this manual.
15. 
described in the present manual.
16. Don’t use dangerous chemicals for cleaning of the appliance and don’t let
them on the appliance.
17. 
18. 
electric network, don’t change the length of a power cord and don’t

19. To avoid electrical hazards, damaged power cord must be changed only at

20. To avoid risk of electric shock, do not place the power cord near a heater

21. Do not start or stop the unit by connecting or disconnecting electrical
power.
22. Don’t press the buttons of the remote control board by anything but your

23. Don’t use the appliance for purposes not intended by this user manual.

4Electric air conditioner (split system)
EN
Indoor unit
Outdoor unit Units H-AR19-07H/I H-AR19-07H/О H-AR19-09H/I H-AR19-09H/О
Capacity (cooling) BTU (W) 7291 (2137) 9144 (2680)
Capacity (heating) BTU (W) 7633 (2237) 9315(2730)
Rated power consumption
(cooling/heating) W 662/608 832/743
Power source V/Hz 220~/50 220~/50
Amperage (cooling/heating) A/A 2.99/2.7 3.66/3.29
Air consumption (indoor unit/
outdoor unit) m³/h 420/1100 450/1300
Noise level (indoor unit/outdoor
unit) dB 33/29/27/24 48 33/30/27/24 50
Ingress Protection Rating (indoor
unit/outdoor unit) - IPX0/IPX4 IPX0/IPX4
Refrigerant R410A R410A

(indoor unit) - A/A A/A

(outdoor unit) - A/A A/A
IEC protection class (indoor unit/
outdoor unit) - I/I I/I

Gas side) inch 1/4 & 3/8 1/4 & 3/8
 m 10 10
 m 7 7
Operating temperature range
(cooling) °C 18-47 18-47
Operating temperature range
(heating) °C 0-24 0-24
Filling of Freon g 400 540
Net/gross weight (indoor unit) kg 6.8/8.53 7.3/8.5
Net/gross weight (outdoor unit) kg 21.28/23.28 22.1/23.9
Net dimensions (indoor unit/
outdoor unit) mm 690*283*199/ 663*254*421 690*283*199/ 663*254*421
Packing dimensions (indoor unit/
outdoor unit) mm 740*343*264/ 760*343*478 740*343*264/ 760*343*478
Distance between brackets
(outdoor unit) mm 430 430
3. SPECIFICATIONS
Tab.1

5
Electric air conditioner (split system)
EN
The technical parameters can be changed without compromising product

H-AR19-12H/I
H-AR19-12H/О H-AR19-18H/I H-AR19-18H/О H-AR19-24H/I H-AR19-24H/О H-AR19-30H/I H-AR19-30H/О H-AR19-36H/I H-AR19-36H/О
12590(3690) 19796(5802) 25460(7462) 27675(8111) 32946(9656)
12931(3790) 20363(5968) 26259(7696) 29289(8584) 33414(9793)
1148/1008 1802/1638 2322/2118 2456/2365 2830/2698
220~/50 220~/50 220~/50 220~/50 220~/50
5.16/4.61 8.03/4.61 10.53/10.05 11.4/10.3 14.9/14.3
550/1500 800/2500 1050/2700 1200/2700 1200/2900
36/33/30/27
52 38/35/32/29 54 40/37/34/31 55 48/44/40/34 58 48/44/40/34 58
IPX0/IPX4 IPX0/IPX4 IPX0/IPX4 IPX0/IPX4 IPX0/IPX4
R410A R410A R410A R410A R410A
A/A A/A A/A A/A A/A
A/A A/A A/A A/A A/A
I/I I/I I/I I/I I/I
1/4 & 3/8 1/4 & 1/2 1/4 & 1/2 1/4 & 5/8 1/4 & 5/8
10 15 20 22 22
7 10 10 12 12
18-47 18-47 18-47 18-47 18-47
0-24 0-24 0-24 0-24 0-24
610 1000 1560 1690 2100
8.02/9.26 11/13 11/15 18.75/22 19/22.5
25.91/28.59 34/38 44/48.5 60.6/65.6 61/66.5
750*285*200/
710×500×240 900×310×225/ 795×525×290 900×310×225/ 800×690×300 1082*330*233/ 800×690×300 1082*330*233/ 900×700×350
850*345*265/
780×570×345 950×380×290/ 907*382*600 950×380×290/ 940×420×750 1130*395*300/ 940×750×420 1130*395*300/ 
500 545 540 540 630

6Electric air conditioner (split system)
EN
The conditioner consists of indoor and outdoor units connected by pipelines.
The conditioner may be controlled from a remote control board or from an
indoor unit control panel.
1. Conditioner unit for indoor installation.
2. Front panel.


6. Copper tube of gas (freon). Connecting line.*
7. Condensate drain pipe.*
8. Copper tube for gas (freon),connection line.
9. Tube for condensate removal*.
10. Air-intake grille of the outdoor unit.
11. Button power (auto).
12. Hidden display.
Fig. 1
8
9
10
1
2
3
4
5
6
7
4. APPLIANCE DESCRIPTION
* not supplied
11
12

7
Electric air conditioner (split system)
EN
5. DELIVERY SET
Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation 1 piece
Conditioner unit for outdoor installation 1 piece
Remote control board 1 piece
Batteries for remote control board 2 pcs.
User manual 1 piece
Warranty card 1 piece
Packing of indoor-installation unit 1 piece
Packing of outdoor-installation unit 1 piece
6. DEVICE CONTROL
Emergency operation
If the remote controller is lost or broken, use force switch button to operate
the air conditioner.
If this button is pushed with the unit OFF, the air conditioner will operate in
Auto mode.
If this button is pushed with the unit ON, the air conditioner will stop running.
Emergency operation

tion. Refer to the operation manual of the remote controller for detail.

NOTЕ!

might be injured. Never place your hand into the air inlet or
outlet when the air conditioner is in operation.

tional module, for controlling the air conditioner via Wi-Fi.

(sold separately).


manual for the Wi-Fi module.

8Electric air conditioner (split system)
EN
1. POWER

2. MODE
Selecting the operating mode: AUTO -
COOLING - DRYING - HEATING - VEN-
TILATION.
3. SPEED
Selection of the ventilation speed ac-
cording to the scheme: LOW - MEDIUM -
HIGH - AUTO.
Note: AUTO air speed is not available
in ventilation mode.
4,5. Buttons up, down
The «up» button (4) - the temperature
will rise by 1 °C. The «down» button
(5) - the temperature will drop by 1 °C.
The temperature setting range is from
16 °C (60 °F) to 32 °C (90 °F).
6. SWING - Horizontal rotation mode
(in this model the function is not
provided)
Fig. 2


7. SWING (Vertical rotation mode)

activate up / down in the «SWING» mode and re-set the «SWING» mode.
8. TURBO mode

heating (in heating mode).
9. TIMER

10. iFAVOR
Return the device to the user’s previous personal settings (option is not
supplied in this model).
11. iFEEL
Click this button to display temperature settings in the control panel for a
comfortable temperature, and press again to adjust the pre-set temperature.

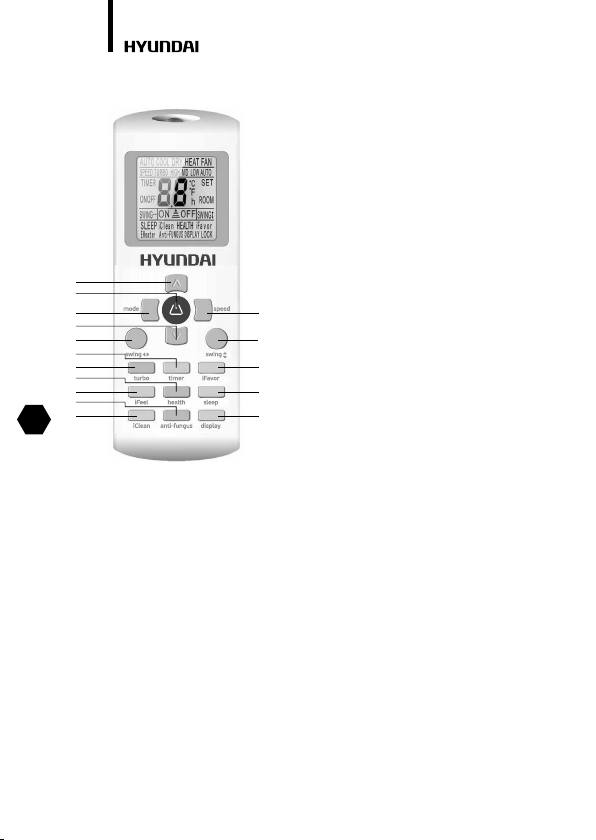

Remote control
3
7
10
13
16
4
2
6
8
15
14
11
12
9
5
1

9
Electric air conditioner (split system)
EN
12. HEALTH
Activating the ionization function (option is not supplied in this model).
13. SLEEP

hours and will reboot to the previous state.
14. iCLEAN
Click it and the device will be cleaned auromatically of dust and will increase the

15. ANTI-FUNGUS
Starting the automatic drying mode of the indoor unit.
16. DISPLAY

7. OPERATING MODES
Automatic operation mode
1. Press the «MODE» button, select the automatic operation mode.
2. By pressing the «SPEED» button, you can select the fan speed from LOW,
MID, HIGH, AUTO.
3. Press the «ON/OFF» button, the air-conditioner starts to operate.
4. Press the «ON/OFF» button again, the air-conditioner stops.
Note:
Cooling/Heating operation mode
1. Press the «MODE» button, select the Cooling or Heating operation mode.
2. By pressing the « » or « » button, you can set the temperature range

3. By pressing the «SPEED» button, you can select the fan speed from LOW,
MID, HIGH, AUTO.
4. Press the «ON/OFF» button, the air-conditioner starts to operate.
5. Press the «ON/OFF» button again, the air-conditioner stops.
Note: The fan operation mode has no heating function.
Fan operation mode
1. Press the «MODE» button, select the fan operation mode.
2. By pressing the «SPEED» button, you can select the fan speed from LOW,
MID, HIGH.
3. Press the «ON/OFF» button, the air-conditioner starts to operate.
4. Press the «ON/OFF» button again, the air-conditioner stops.
Note: 

10 Electric air conditioner (split system)
EN
Drying operation mode
1. Press the «MODE» button, select the drying operation mode.
2. Press the «ON/OFF» button, the air-conditioner starts to operate.
3. Press the «ON/OFF» button again, the air-conditioner stops.
Backlight function (for remote controllers with such function only)
The remote controller has a backlight which can be turned on by pressing
any button for the convenience of operation in darkness. The backlight will be

8. MAINTENANCE
Before cleaning unplug the conditioner.
Cleaning of the indoor unit and remote control board:
• 
• If the indoor unit is too unclean, moisten the cloth with cold water.
• In order to avoid the damage of paint or details of the conditioner, do not
clean it with brushes and do not leave them on the surface of indoor unit.
• In order to avoid the damage of surface or deformation of the conditioner
details, do not clean it with petrol, solvents, cleaning powders or other
chemically active substances.
Before a sustained interruption in the conditioner work:
• Turn the conditioner on for several hours in the FAN mode. It will allow you
to dry its inner cavities.
• Unplug the conditioner.
• Remove the batteries from the remote control board.
Cheks before starting:
• 
• Make sure that air inlet and outlet grilles of the outdoor unit are not
blocked by foreign objects.
Cleaning of air fi lter.
• 

• 
once per two weeks.
• If the conditioner is installed in a room with dusty atmosphere, then the air

• 
• 

wash in diluted washing solution, then dry it in a cool place.

11
Electric air conditioner (split system)
EN
• 

surface down.
• 
• 
9. RECYCLING, LIFETIME, WARRANTY PERIOD

with the laws, rules and methods in region of recycling. Detailed information
about the recycling of the device, you can receive from a representative

device. The manufacturer and authorized person of the manufacturer do not

egislation on utilization and methods of utilization of the device selected by
the Buyer. The lifetime of the device is indicated in the warranty card.

warranty card. The warranty card is an integral part of the documentation
supplied with this unit. If there is no warranty card in the delivery set, ask for
it from the Seller. The warranty card provided by the Seller must conform to
the manufacturer’s form.
The manufacturer and the authorized person of the manufacturer remove
responsibility for any possible harm which can be caused to people, animals
or property directly or indirectly, if this harm occurred as a result of non-
compliance with the rules and operating conditions, installation of the device,
intentional or reckless actions of the user- and / or third parties, as well as in
situations caused by natural and / or anthropogenic force majeure.
10. TRANSPORTATION AND STORAGE
1. During transportation, any possible impacts and movements of the

2. Transporting and storage should be provided in strictl accordance to the
manipulation marks.
3. Outdoor unit should be transported strict vertical.



* This product must have storage in dry, well-ventilated space of warehouse at
the temperature not lower than -30°C.
Temperature require-
ments* Transportation and
storage
From -30°C to +50°C
Humidity require-
ments* From 15% to 85% (without a condensate)

12 
RU
Содержание
1. Важная информация
2. Меры предосторожности
3. Технические характеристики
4. Описание прибора
5. Комплект поставки
6. Управление прибором
Панель управления внутреннего блока
Пульт дистанционного управления (ПДУ)
7. Режимы работы
8. Уход и обслуживание
9. 





12
13
14
16
17
17
17
18
19
20
21
21
22
23
24
38
Уважаемый покупатель!


1. ВАЖНАЯ ИНФОРМАЦИЯ












13

RU
2. МЕРЫ ПРЕДОСТОРОЖНОСТИ
1. 

2. 



3. 

4. 


5. 

6. 



7. 

8. 
9. 
10. 

11. 
12. 
13. 

14. 


15. 


16. 

17. 

18. 


19. 


20. 


21. 

22. 


14 
RU
23. 

3. ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

Внутренний блок
Внешний блок Ед. изм. H-AR19-07H/I H-AR19-07H/О H-AR19-09H/I H-AR19-09H/О
  7291 (2137) 9144 (2680)
  7633 (2237) 9315(2730)

  662/608 832/743
  220~/50 220~/50

 2.99/2.7 3.66/3.29

  420/1100 450/1300

  33/29/27/24 48 33/30/27/24 50

 - IPX0/IPX4 IPX0/IPX4
 - R410A R410A


 - A/A A/A

 - I/I I/I
  1/4 & 3/8 1/4 & 3/8
  10 10

 7 7

 °C 18-47 18-47

 °C 0-24 0-24
  400 540

  6.8/8.53 7.3/8.5

  21.28/23.28 22.1/23.9

  690*283*199/ 663*254*421 690*283*199/ 663*254*421

  740*343*264/ 760*343*478 740*343*264/ 760*343*478

  430 430

15

RU


H-AR19-12H/I
H-AR19-12H/О H-AR19-18H/I H-AR19-18H/О H-AR19-24H/I H-AR19-24H/О H-AR19-30H/I H-AR19-30H/О H-AR19-36H/I H-AR19-36H/О
12590(3690) 19796(5802) 25460(7462) 27675(8111) 32946(9656)
12931(3790) 20363(5968) 26259(7696) 29289(8584) 33414(9793)
1148/1008 1802/1638 2322/2118 2456/2365 2830/2698
220~/50 220~/50 220~/50 220~/50 220~/50
5.16/4.61 8.03/4.61 10.53/10.05 11.4/10.3 14.9/14.3
550/1500 800/2500 1050/2700 1200/2700 1200/2900
36/33/30/27
52 38/35/32/29 54 40/37/34/31 55 48/44/40/34 58 48/44/40/34 58
IPX0/IPX4 IPX0/IPX4 IPX0/IPX4 IPX0/IPX4 IPX0/IPX4
R410A R410A R410A R410A R410A
A/A A/A A/A A/A A/A
I/I I/I I/I I/I I/I
1/4 & 3/8 1/4 & 1/2 1/4 & 1/2 1/4 & 5/8 1/4 & 5/8
10 15 20 22 22
7 10 10 12 12
18-47 18-47 18-47 18-47 18-47
0-24 0-24 0-24 0-24 0-24
610 1000 1560 1690 2100
8.02/9.26 11/13 11/15 18.75/22 19/22.5
25.91/28.59 34/38 44/48.5 60.6/65.6 61/66.5
750*285*200/
710×500×240 900×310×225/ 795×525×290 900×310×225/ 800×690×300 1082*330*233/ 800×690×300 1082*330*233/ 900×700×350
850*345*265/
780×570×345 950×380×290/ 907*382*600 950×380×290/ 940×420×750 1130*395*300/ 940×750×420 1130*395*300/ 
500 545 540 540 630

16 
RU















8
9
10
1
2
3
4
5
6
7
4. ОПИСАНИЕ ПРИБОРА
11
12


17

RU
5. КОМПЛЕКТ ПОСТАВКИ









6. УПРАВЛЕНИЕ ПРИБОРОМ
Аварийный метод эксплуатации.





Регулировка направления воздушного потока.






ВНИМАНИЕ!













18 
RU
1. Power (Питание)

2. MODE (Режим)




3. SPEED (Скорость)




Примечание:

4, 5.








6. SWING (Режим поворота по горизонтали) 

7. SWING (Режим поворота по вертикали)


8. TURBO (Турбо режим)


9. TIMER (Таймер)


10. Функция iFAVOR


Пульт дистанционного управления
3
7
10
13
16
4
2
6
8
15
14
11
12
9
5
1

19

RU
11. Функция iFEEL



12. Функция HEALTH


13. SLEEP (Режим сна)


14. Функция iCLEAN




15. Функция ANTI-FUNGUS


16. DISPLAY (Экран)

7. РЕЖИМЫ РАБОТЫ
Автоматический режим работы





Примечание:
Режим работы в режиме охлаждения/обогрева








Примечание:

20 
RU
Режим работы вентилятора





Примечание:
Режим осушения



Функция подсветки



8. УХОД И ОБСЛУЖИВАНИЕ

Чистка внутреннего блока и пульта дистанционного управления
• 
• 
• 


• 


Перед длительным перерывом в работе кондиционера
• 

• 
• 
Предпусковые проверки
• 
• 

Чистка воздушного фильтра
• 


• 
