Hyundai H-PAC-07C1UR7 Guide

RU
Электрический кондиционер
воздуха мобильного типа
Руководство по эксплуатации.
Гарантийный талон.
Electric air conditioner
portable type
Instruction manual.
Warranty card.
EN
Модели / Models H-PAC-07C1UR7
www.hyundai-hvac.com

2.
EN
Electric air conditioner
portable type
CONTENTS
1. Important information
2. Precautions
3. Technical characteristics
4. Scoope of delivery
5. Divice description
6. Control of portable air conditioner
7. Function buttons
8. Indicators on LCD
9. How to use the buttons
10. Example of timer setting
11. Maintenance
12. Trouble Shooting
3
3
8
9
9
10
14
16
17
19
22
23

3.
EN
Electric air conditioner
portable type
Dear Customer!
Thank you for a shrewd choice and purchase of Hyundai portable electric air conditioner.
It will serve you for a long time.
1. IMPORTANT INFORMATION
1. Please read this instruction manual carefully prior to installation and operation of a portable
air conditioner.
2. To avoid damage to the air conditioner and voiding your guarantee, before start using the
air conditioner put the device in a vertical position (as shown on the cover of this instruction
manual) for at least 2 hours prior to operation.
3. There may be misprints in the text and digital symbols in this manual.
4. If aer reading the manual you would still have questions regarding functioning and opera-
tion of the device, please contact the seller or a specialized service center for clarications.
5. The device has a tag indicating all necessary technical data and other useful information
about the device.
6. Use the device only as designated by this manual.
7. Prior to installation of the portable air conditioner, not connecting it to the mains, check and
make sure that the mains socket for the air conditioner has a grounding pin and is properly
grounded.
8. In case there is no grounding pin in your mains, operation of the portable air conditioner is
life-threatening.
9. Do not use adapters and extension cords to connect your portable air conditioner.
10. Improper installation and use of this air conditioner may lead to severe injuries or damage to
your property.
11. Any maintenance must be performed by a specialized company and qualied specialists.
2. PRECAUTIONS
1. Do not block vents!
2. Make sure the inlet and outlet vent is not blocked.
3. Do not insert foreign objects into the air diuser of the air conditioner. It is very dangerous
since the fan rotates at high speed.
4. Install the device only on a horizontal surface to prevent condensed water leakage.
5. Do not install the oor-mounted air conditioner in the following places:
- in places exposed to direct sunlight;
- in the vicinity of open re sources;
- in the vicinity of other operating heating devices;
- in places where water or steam splashes can contact the device;
- in rooms with increased humidity;
- close to swimming pools, bathrooms and shower rooms.
6. Do not use the device in an explosive or corrosive environment. Do not store gasoline and
other volatile ammable liquids near the air conditioner – it is very dangerous!
7. Use the device to cool down air at ambient temperature 17-32°C.
8. Regularly clean lters to ensure ecient operation of the device.
9. To ensure reliable operation of the compressor, do not tilt the air conditioner.
10. If the device is disconnected, restarting must be performed not sooner than in 3.5 minutes to
prevent the compressor failure.
11. At least 10 A current is required for the compressor to operate. To avoid overheating and
re risk, as well as damage to the inner electrical circuit, do not connect the device through
extension cords.
12. The device is designed to cool and dry air only in residential conditions and cannot be used
for industrial purposes.

4.
EN
Electric air conditioner
portable type
13. To avoid electric shock, a damaged power cord must be replaced only by an authorized
service center and qualied specialists.
14. Prior to disposal of the device, it is necessary to remove batteries from it, aer that they can
be safely disposed.
15. Connect the air conditioner only to 220-240 V 50 Hz mains. If necessary, ask your power
suppliers to give characteristics of your mains.
16. The appliance is not intended for use by children and persons with reduced physical, sensory
or mental capabilities, or a lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by an individual responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
IMPORTANT!
1. Place the machine on at and dry ground, and keep it far from
around things at least 50cm.
2. It is forbidden to fold the hose!
Warning and Installation
Fig. 1
Before the machine work, please connect the exhaust pipe to the machine and put the other end
of exhaust pipe out to the window. (Note the installation method as following)
INSTALLATION INSTRUCTIONS
Location
• The air conditioner should be placed on a rm
foundation to minimize noise and virbration. For
safe and secure positioning, place the unit on a
smooth, level oor strong enough to support the unit.
• The unit has casters to aid placement, but it should
only be rolled on smooth, at surfaces. Use caution
when rolling on carpet surfaces. Do not attempt to
roll the unit over objects.
• The unit must be placed within reach of a properly
rated grounded socket.
• Never place any obstacles around the air inlet or
outlet of the unit.
• Allow at least 30 cm of space from the wall for
ecient air-conditioning.

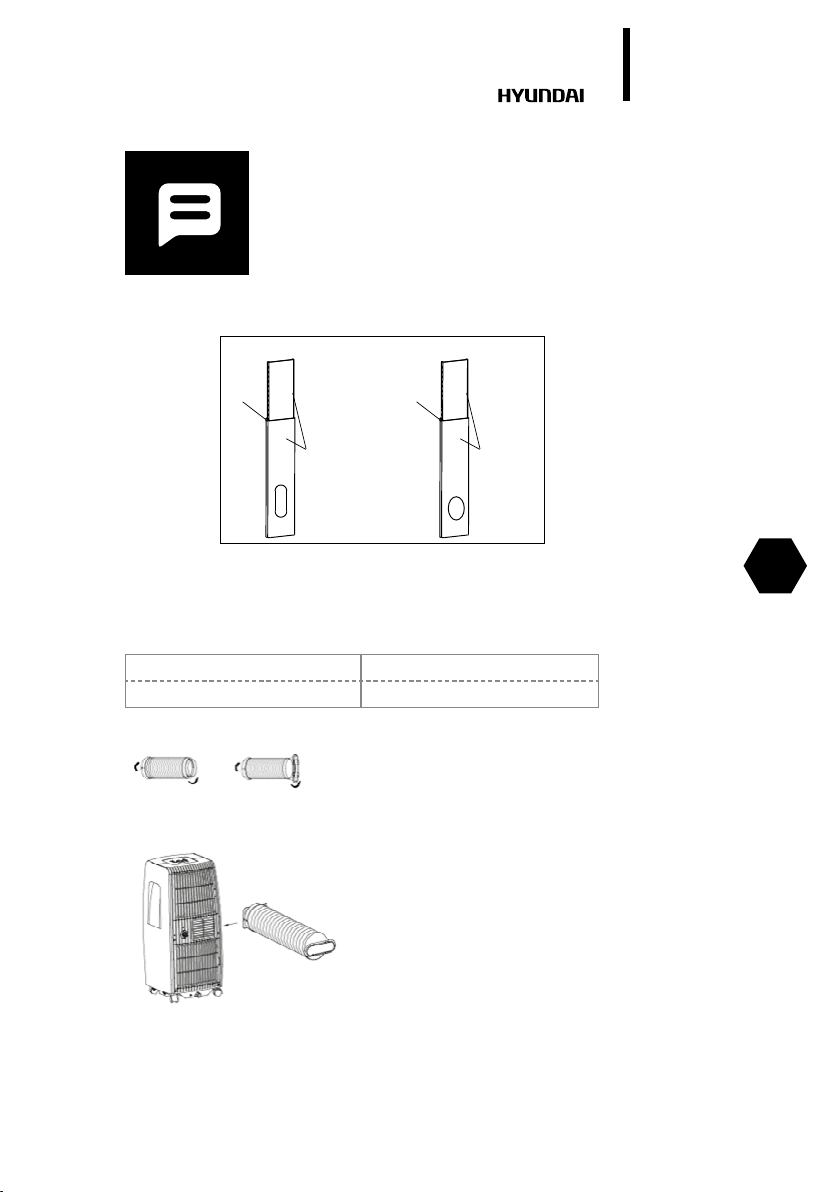

Window Slider kit Installation
Your window slider kit has been designed to t most
standard “Vertical” and “horizontal”window
applications, However, it may be necessary for you to
improvise/modify some aspects of the installation
procedures for certain types of window. Please refer
to Fig. 1.3& Fig.1.2 for minimum and maximum window
openings.Window slider kit can be xed with a bolt
(see Fig.1).
Fig. 1.1
Fig. 1.2
Fig. 1.3

5.
EN
Electric air conditioner
portable type
Fig. 2
NOTE:
If the window opening is less than the mentioned
minimum length of the window slider kit, cut that one
with a hole in it short to t for the window opening. Do
never cut out the hole in window slider kit.
bolt
Window slider kit
bolt
Window
slider kit
or
Fig.7a
Exhaust hose installation
The exhaust hose and adaptor must be installed or removed
in accordance with the usage mode.:
• COOL, AUTO mode • Install
• FAN,DEHUMIDIIFY mode • Remove
1. Install the window Exhaust adaptor B onto the
exhaust hose as shown in Fig.3. or Fig.4. Refer to
the previous pages for window kit installation.
2. Push the Exhaust hose into the airoutlet opening
along the the arrow direction (See Fig.5).
The exhaust hose can be installed into the wall
(Not applicable to the units without adaptor A, ex-
pansion plugs and wooden screws of Accessories ).
1. Prepare a hole in the wall. Install the wall
Exhaust adaptor A onto the wall(outside) by using 4
expansion plugs and wooden screws, be sure to x
thoroughly. (See Fig.6)
2. Attach the Exhaust hose installed adaptor
B(round mouth) to wall Exhaust adaptor A.
Note:
Cover the hole using the adaptor cap when not in
use.
Fig. 3 Fig. 4
Fig. 3

6.
EN
Electric air conditioner
portable type
Fig. 4
Fig. 4
The duct can be compressed or extended moderately
according to the installation requirement, but it is
desirable to keep the duct length to a minimum.
IMPORTANT!
DO NOT OVER BEND THE DUCT.
NOTE:
Make sure that there is no obstacle around the air outlet of
the exhaust hose (in the range of 500mm) in order to the
exhaust system works properly.

7.
EN
Electric air conditioner
portable type

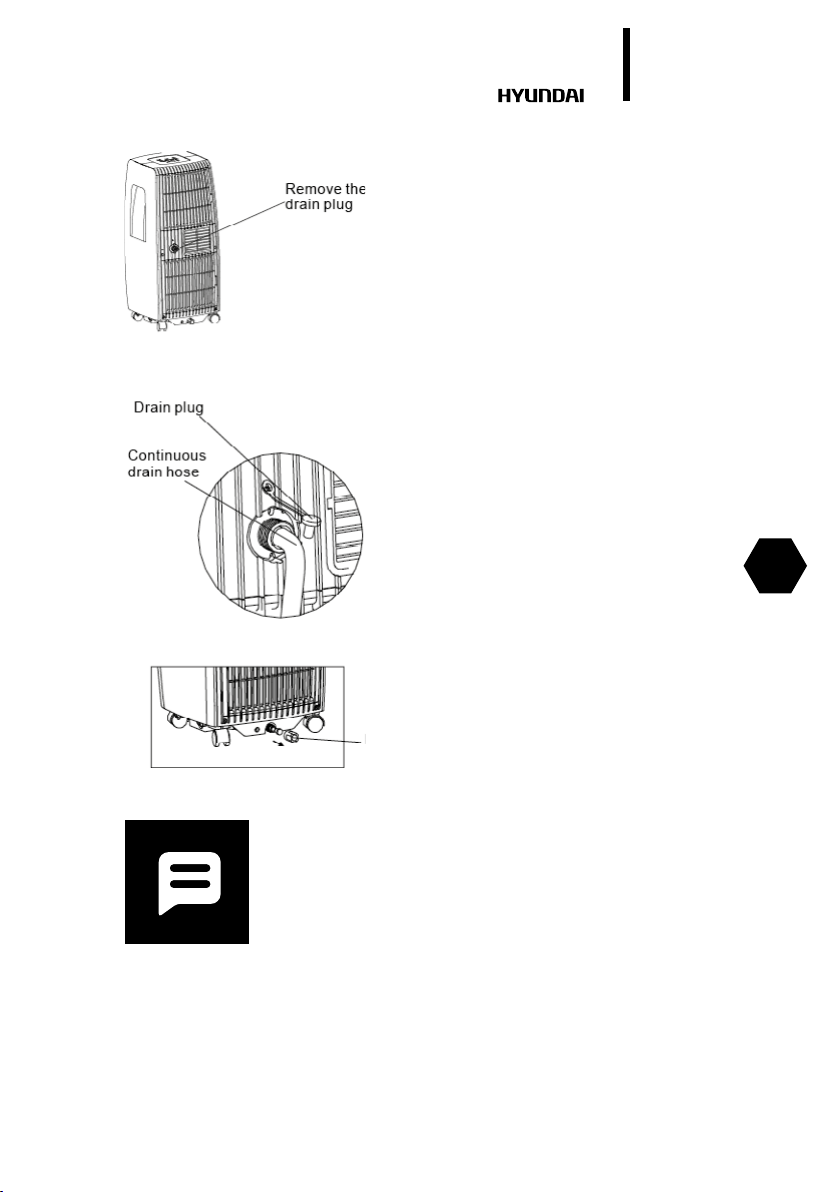

Water drainage
During dehumidifying modes, remove the drain
plug from the back of the unit, install the drain
connector(5/8 universal female mender) with
3 4 hose(locally purchased). For the models
without drain connector, just attach the drain
hose to the hole. Place the open end of the
hose directly over the drain area in your
basement oor. Please refer to Fig.8 & 9
.
When the water level of the bottom tray reaches
a predetermined level, Carefully move the unit
to a drain location,remove the bottom drain plug
and let the water drain away (Fig.10). Re-install
the bottom drain plug and Restart the machine
until the “P1” symbol disappears. If the error
repeats, call for service. the unit beeps 8 times,
the digital display area shows “P1”. At this time
the air conditioning/dehumidication process will
immediately stop. However, the fan motor will
continue to operate(this is normal).
NOTE:
Be sure to reinstall the bottom drain plug before using the unit.
Fig. 6
Fig. 7
Fig. 8
Bottom drain plug

8.
EN
Electric air conditioner
portable type
3.TECHNICAL CHARACTERISTICS
Tab.1
Capacity (cooling) kW
Rated power consumption (cooling) W
Power supply V/Hz
Rated power current (cooling) A
Air circulation m3/h
Capacity of draining (L/h)
Noise level dB(A)
Refrigerant
Energy eciency (cooling)
Electrical protection class
Filling of Freon, g
Operating temperature range: cooling, °C
Operating temperature range: heating, °C
Degree of protection against moisture
Net weight (kg)
Gross weight (kg)
Net dimensions (mm)
Packing dimensions (mm)
6500 (1,8)
720
220-240~/50
2.7
325
0,7
<64
R410A
D
I class
R410A
17~35
17~35
IPX0
22.5
26
349x381x749
388x552x820
Model H-PAC-07C1UR7
NOTE:
The manufacturer reserves the right to make changes in the design,
scope of delivery, product manufacturing technology, as well as
change its technical characteristics to improve its consumer and
technical properties without prior notice.

9.
EN
Electric air conditioner
portable type
4. SCOPE OF DELIVERY
1. Household air conditioner 1 pc.
2. Remote control* (batteries are not supplied, 1,5V UM4 AAA CR03 batteries are required) 1pc.
3. The adapter for air duct 1 pc.
4. Air outlet hose 1 pc.
5. Removable grille 1 pc.

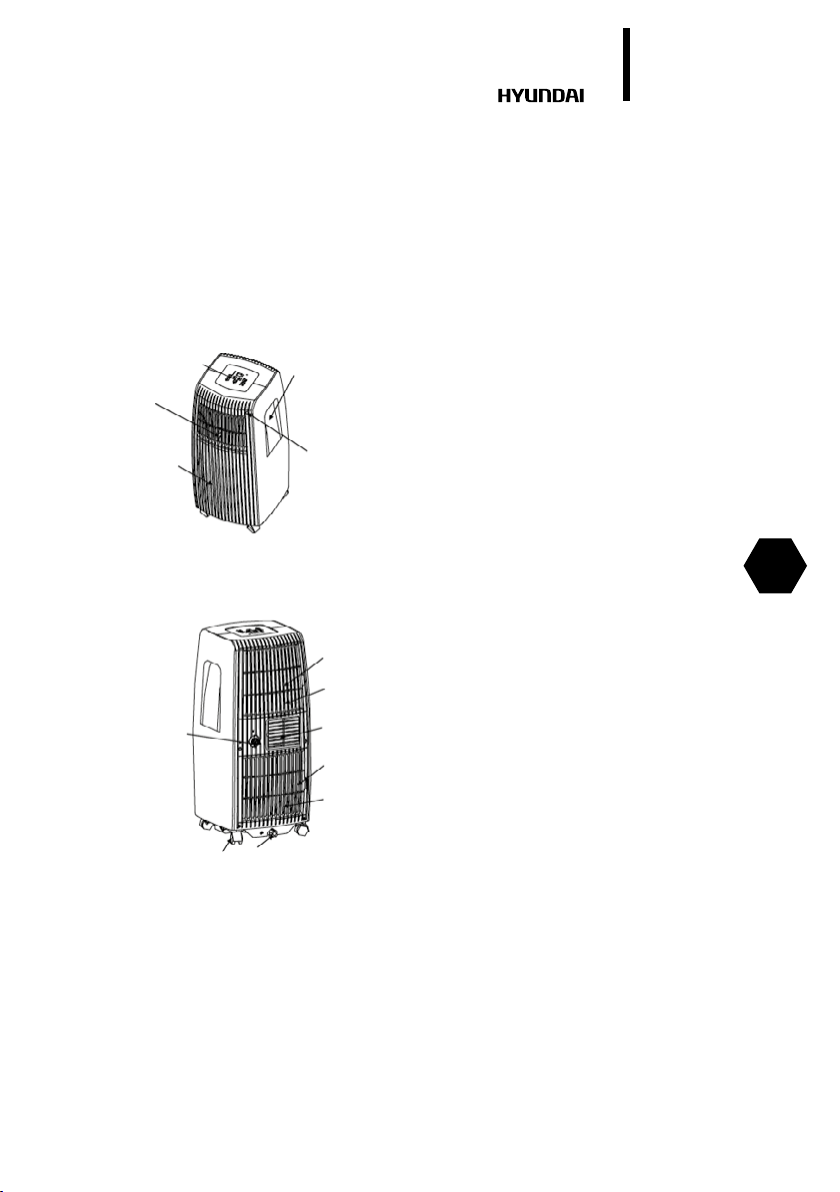

5. DEVICE DESCRIPTION
1. Operation Panel
2. Horizontal Louver Control Lever (adjust manually)
3. Carrying Handle (both sides)
4 Remote signal receptor
5 Panel
6. Upper Air Filter (Behind the grille)
7. Air Outlet
8. Wheel
9. Air intake
10. Drain Outlet
11. Air intake
12. Lower Air Filter (Behind the grille)
13. Bottom tray drain outlet
1
2
3
4
6
9
7
12
11
10
5
Fig. 9

10.
EN
Electric air conditioner
portable type

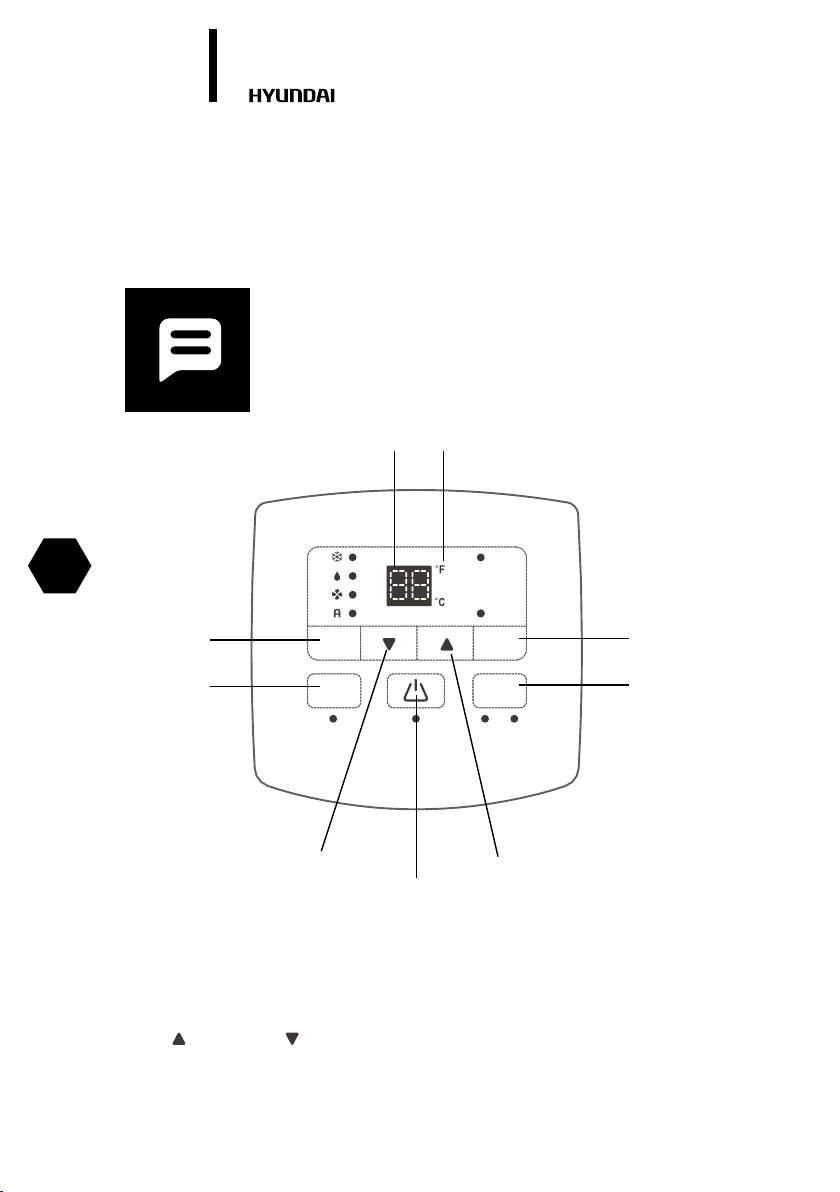

6. CONTROL OF PORTABLE AIR CONDITIONER
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Before you begin, thoroughly familiarize yourself with the control panel and remote controller
and all its functions, then follow the symbol for the functions you desire.
The unit can be controlled by the unit control panel alone or with the remote controller .
NOTE:
This manual does not include Remote Controller Operations, see the
Remote Controller Instruction packed with the unit for details.
ON
HIGH
LOW
TEMP/TIMER
OFF
SLEEP TIMER
FANMODE
1
2
3
4
3
5
6
7 8
1. Modefantimersleepotemp/timerlowhighon
Selects the appropriate operating mode. Each time you press the button, a mode is selected in a
sequence that goes from AUTO, COOL, DRY and FAN .The mode indicator light illuminates under
the dierent mode setting.
2. SLEEP button
Used to initiate the SLEEP operation.
3. UP( ) and DOWN( ) button
Used to adjust (increasing/decreasing) temperature s ettings in 1 C /2 F( or 1 F) inc rements
in a range of 17 C/62 F to 30 C/88 F (or 86 F) or the TIMER setting in a range of 0~24hrs.
ON
HIGH
LOW
TEMP/TIMER
OFF
SLEEP TIMER
FANMODE
Fig. 10
ON
HIGH
LOW
TEMP/TIMER
OFF
SLEEP TIMER
FANMODE

11.
EN
Electric air conditioner
portable type
NOTE:
The control is capable of displaying temperature in degrees Fahren-
heit or degrees Celsius. To convert from one to the other, press
and hold the Up and Down buttons at the same time, for 3 seconds.
NOTE:
When more than one codes occur the priority of the code display
order is E4--E2--E1--P1.
4. ON-OFF button
Power switch on/o.
5. TIMER button
Used to initiate the AUTO ON start time and AUTO OFF stop time program, in conjuction with the
& buttons.
6. FAN button
Press to select the fan speed in three steps- LOW , HIGH and AUTO. The fan speed indicator light
illuminates under dierent fan settings except AUTO speed. When select AUTO fan speed, all the
fan indicator lights will turn dark.
7. LED Display
Shows the set temperature in OC “ OF” (“ OF” no display) and the Auto-timer settings.
While on DRY and FAN modes, it shows the room temperature.
Error codes:
E1- Room temperature sensor error. Unplug the unit and plug it back in. If error repeats, call for
service.
E2- Evaporator temperature sensor error- Unplug the unit and plug it back in. If error repeats,
call for service.
E4- Display panel communication error- Unplug the unit and plug it back in. If error repeats, call
for service. Protection codes:
P1- Bottom tray is full - Connect the drain hose and drain the collected water away. If error
repeats, call for service.
8. Power management feature
When the ambi ent tempe rature is lowe r (Coo ling mode ) or higher (Hea ting mode ) than the
setting tempe rature for a period of time, the unit will be automat ically operate power mana
gement feature. The power mana gement indicator light. When the ambi ent tempe rature is
higher (Cooling mode ) or lower (Hea ting mode ) than the setting tempe rature, the unit will be
automat ically quit the power mana gement feature. The power mana gement indicator light he
compressor and fan mot or stop and tillumi nates. turns dark and the compressor and (or) fan
mot or run.

12.
EN
Electric air conditioner
portable type
Operating Instructions
COOL operation
Press the “MODE” button until the “COOL” indicator light comes on.
Press the ADJUST buttons “▲” or “ “ to select your desired room temperature. The temperature
can be set within a range of 17OC-30OC/62OF-88OF (or 86OF).
Press the “FAN” button to choose the fan speed.
DRY operation
Press the “MODE” button until the “DRY” indicator light comes on. Under this mode, you cannot
select a fan speed or adjust the temperature. Keep windows and doors closed for the best dehu-
midifying eect. Do not put the duct to window.
AUTO operation
When you set the air conditioner in AUTO mode, it will automatically select cooling, fan only oper-
ation depending on what temperature you have selected and the room temperature.
The air conditioner will control room temperature automatically round the temperature point set
by you.
Under AUTO mode, you can not select the fan speed.
FAN operation
Press the “MODE” button until the “FAN “ indicator light comes on.
Press the “FAN” button to choose the fan speed. The temperature cannot be adjusted.
Do not put the duct to window.
TIMER operation
When the unit is on, rst press the Timer button, the TIMER OFF indicator light illuminates. It
indicates the Auto Stop program is initiated.Press the Timer button again,the TIMER ON indicator
light illuminates. It indcates the Auto Start program is initiated.
When the unit is o, rst press the Timer button, the TIMER ON indicator light illuminates. It indi-
cates the Auto Start program is initiated. When the unit.Press the Timer button again,the TIMER
OFF indicator light illuminates. It indcates the Auto Stop program is initiated.
Press or hold the UP or DOWN button to change the Auto time by 0.5 hour increments, up to 10
hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining
until start.
The selected time will register in 5 seconds and the system will automatically revert back to
display the previous temperature setting.
Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto
Start/Stop timed program.
When the malfunction (E1 or E2) occurs, the Auto Start/Stop timed program will also be
cancelled.
SLEEP/ECO operation
Press this button, the selected temperature will increase(cooling) or decrease(heating) by
1OC/2OF(or 1OF) 30 minutes.The temperature will then increase (cooling) or decrease (heating)
by another 1OC/2OF(or 1 OF) aer an additional 30 minutes. This new temperature will be main-
tained for 7 hours before it returns to the originally selected temperature. This ends the Sleep/
Eco mode and the unit will continue to operate as originally programmed.
NOTE:
Under AUTO mode, both the AUTO mode and the actual operation
mode indicator lights illuminate.

13.
EN
Electric air conditioner
portable type
Other features
Auto-Restart(on some models)
If the unit breaks o unexpectedly due to the power cut,it will restart with the previous function
setting automatically when the powe resumes.
Wait 3 minutes before resuming operation
Aer the unit has stopped, it can not be restarted operation in the rst 3 minutes. This is to
protect the unit. Operation will automatically start aer 3 minutes.
Air ow direction adjustment
Adjust the air ow direction manually (Fig.13): The louver can be set to the desired position
manually. Do not place any heavy objects or other loads on the louver, doing so will cause dam-
age to the unit. Ensure the louver is fully opened under heating operation. Keep the louver fully
opened during operation.
NOTE:
This feature is unavailabe under FAN or DRY mode.
Fig. 11

14.
EN
Electric air conditioner
portable type
7. FUNCTION BUTTONS
LED DISPlAY
RESET LOCK TIMER OFF
TIMER ON
FAN SPEED
FAN
HIGH
MED
LOW
AUTO
COOL
DRY
HEAT
TEMP
ECONOMY
SWING
MODE
SET TEMPERATURE ( C)
12
6
7
8
9
10
11
12
3
4
5

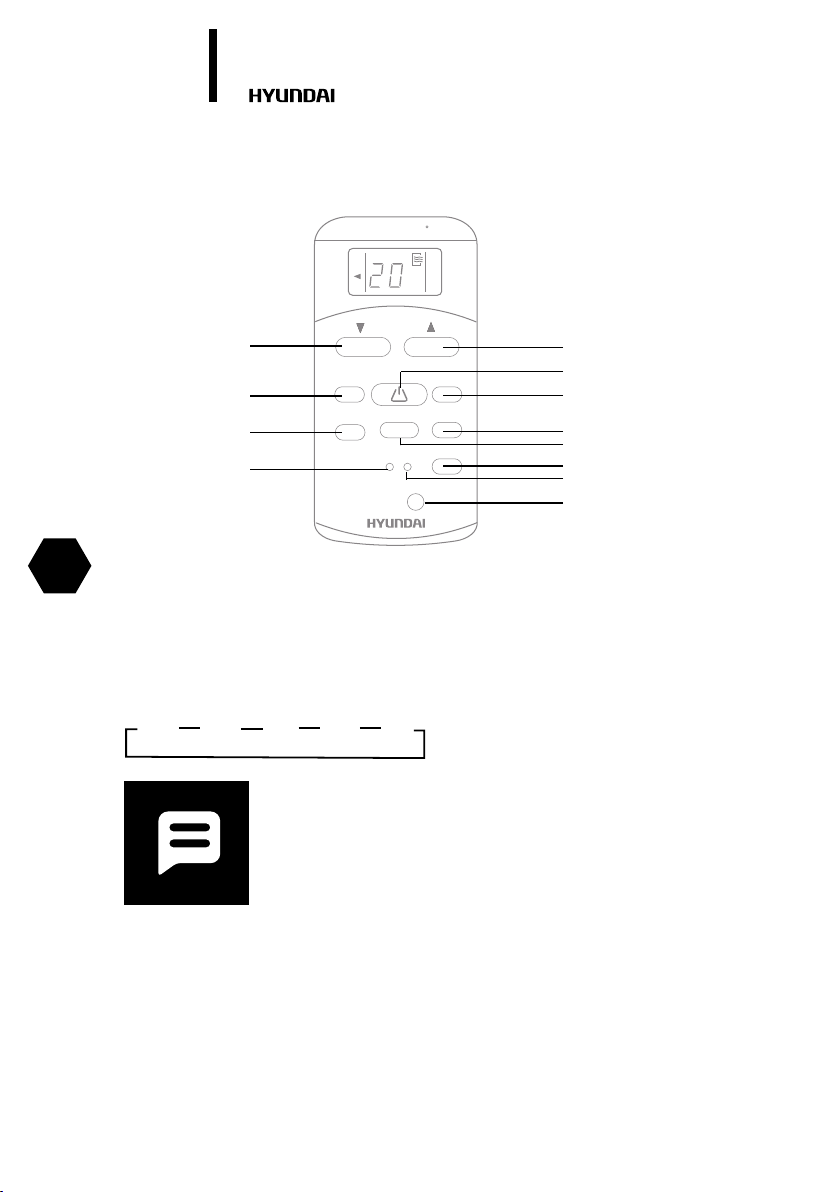

Fig. 12.
1.TEMP DOWN Button
Push this button to decrease the indoor temperature
setting in 1oC(2 F) increments to 30oC(88 F).
2. TEMP UP Button
Push this button to increase the indoor temperature
setting in 1oC(2 F) increments to 17oC(62 F).
3. MODE Button
Each time the button is pressed, the operation mode is selected in the sequence of the following
AUTO COOL DRY HEAT FAN
4. SWING Button(on some models)
Used to stop or start louver movement and set the desired up/down airow direction.
5. RESET Button
Once the recessed RESET button is pressed, all of the current settings will be cancelled
and the controller will return to the initial settings.
6. ON/OFF Button
Operation starts when this button is pressed and stops when the button is pressed again.
7. FAN SPEED Button
Used to select the fan speed in four steps.
NOTE:
Do not select HEAT mode if the machine you purchased is cooling only
type. Heat mode is not supported by the cooling only appliance.

15.
EN
Electric air conditioner
portable type
TIMER ON Button
Press this button to activate the Auto-on time setting. Each press will increase the time setting
in 30 minutes increments, up to 10 hours, then at 1 hour increments up to 24 hours. To cancel
the Auto-on time setting, just press the button until the time setting is 0.0.
9 ECONOMY(SLEEP) Button
Select this function during the sleeping time. It can maintain the most comfortable temperature
and save energy. This function is available onCOOL, HEAT or AUTO mode only .
10. TIMRT OFF Button
Press this button to activate the Auto-o time setting. Each press will increase the time setting
in 30 minutes increments, up to 10 hours, then at 1 hour increments up to 24 hours. To cancel
the Auto-o time setting, just press the button until the time setting is 0.0.
11. LOCK Button
Press this recessed button to lock all current settings, and the remote controller will not accept
any operation except that of the LOCK. Use the LOCK mode when you want to prevent settings-
from being changed accidentally. Press the LOCK button again to cancel the LOCK function. A
lock symbol will appear on the remote controller display when the lock function is activated.
12. LED Display Button
Press this button to clear the display on the indoor unit, press it again to light the display
NOTE:
While the unit is running under SLEEP mode, it would be cancelled if
ON/OFF, FAN SPEED, SLEEP or MODE button is pressed.

16.
EN
Electric air conditioner
portable type
8. INDICATORS ON LCD
1. MODE display
Displays the current selected mode. Including AUTO, COOL, DRY, HEAT (cooling & heating models
only) and FAN
2. Transmission Indicator
This transmission indicator will light when remote controller transmits signals to the indoor unit.
3. Temp./Timer display
The temperature setting (from 17OC(62O F) to 30OC(88OF)) or timer setting (0~24h) will be
displayed. If FAN mode is selected, there will be no display.
4. ON/OFF display
This indicator will be displayed when the unit is operating.
5. MODE display (FAN mode)
6. FAN SPEED display
Displays the selected fan speed: AUTO, HIGH, and LOW. Nothing displays when the fan speed is
selected in AUTO speed. When AUTO or DRY Mode is selected, there will be no signals displayed.
7. FOLLOW ME display
When pressing FOLLOW ME/TEMP SENSING button in COOL or HEAT mode, the remote sensing
function is activated and this indicator displays.
8. TIMER display
This display area shows the settings of the TIMER. That is, if only the Auto-on time function is set,
it will display TIMER ON. If only the Auto-o time function is set, it will display TIMER OFF. If both
functions are set, it will display TIMER ON OFF which indicates you have chosen both the Auto-on
time and Auto-o time.
9. LOCK Indicator
LOCK display is displayed when pushing the LOCK button. Push the LOCK button to clear display.
TIMER ON OFF
SET TEMPERATURE
1
2 3 4
5
6
78
9
Fig. 12

17.
EN
Electric air conditioner
portable type
9. HOW TO USE THE BUTTONS
Auto operation
Ensure the unit is plugged in and power is
available. The OPERATION indicator on the
display panel of the indoor unit illuminates.
1. Press the MODE button to select Auto.
2. Press the TEMP button to set the desired
temperature. The temperature can be set
within a range of 17 C(62 F)~ 30 C in 1 C(2 F)
increments.
3. Press the ON/OFFbutton to start the air
conditioner.
NOTE:
1. In the Auto mode, the air conditioner can logically
choose the mode of Cooling, Fan, Heating and Dehu-
midifying by sensing the dierence between the actual
ambient room temperature and the set temperature
on the remote controller.
2. In the Auto mode, you can not switch the fan speed.
It has already been automatically controlled.
3. If the Auto mode is not comfortable for you the
desired mode can be selected manually.
Cooling /Heating/Fan operation
Ensure the unit is plugged in and power is
available.
1. Press the MODE button to select COOL, HEAT, (cool-
ing & heating models only) or FAN mode.
2. Press the TEMP button to set the desired
temperature. The temperature can be set
within a range of 17 C(62 F)~ 30 C in 1 C(2 F)
increments.
3. Press the FAN SPEED button to select the
fan speed in four steps- Auto, Low, Med,or High.
4. Press the ON/OFF button to start the air
conditioner.
NOTE:
In the FAN mode, the setting temperature is not dis-
played in the remote controller and you are not able to
control the room temperature either. In this case, only
step 1, 3 and 4 may be performed.

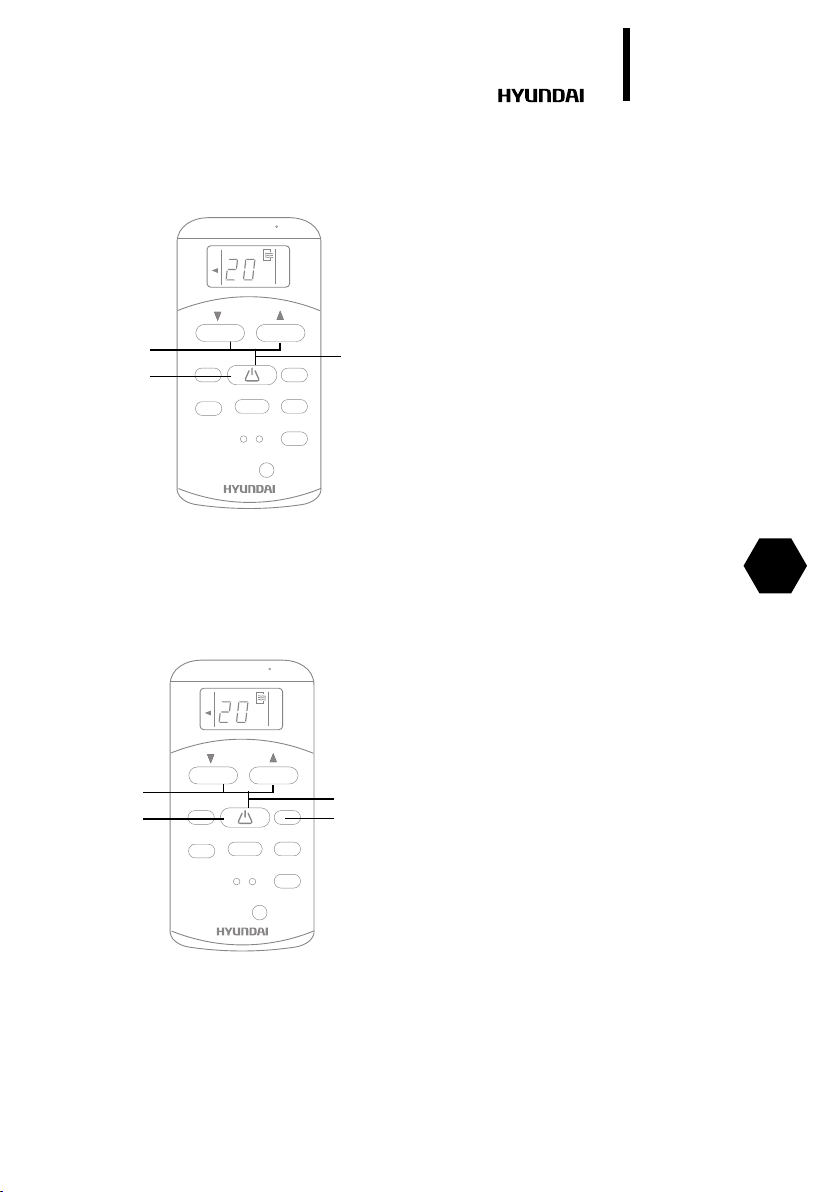

Fig. 13.
Fig. 14.
LED DISPlAY
RESET LOCK TIMER OFF
TIMER ON
FAN SPEED
FAN
HIGH
MED
LOW
AUTO
COOL
DRY
HEAT
TEMP
ECONOMY
SWING
MODE
SET TEMPERATURE ( C)
LED DISPlAY
RESET LOCK TIMER OFF
TIMER ON
FAN SPEED
FAN
HIGH
MED
LOW
AUTO
COOL
DRY
HEAT
TEMP
ECONOMY
SWING
MODE
SET TEMPERATURE ( C)
2
2
3
4
3
1
1

18.
EN
Electric air conditioner
portable type
Dehumidifying operation
Ensure the unit is plugged in and power is
available. The OPERATION indicator on the
display panel of the indoor unit illuminates.
1. Press the MODE button to select DRY mode.
2. Press the TEMP button to set the desired
temperature. The temperature can be set
within a range of 17 C(62 F)~ 30 C in 1 C(2 F)
increments.
3. Press the ON/OFF button to start the air
conditioner.
NOTE:
In the Dehumidifying mode, you can not switch the fan
speed. It has already been automatically controlled.
Swing operation(on some models)
Use the SWING button to adjust the Up/Down
airow direction .
1. When press the button once and quickly, the
air ow direction setting feature of the louver is
activated. The moving angle of the louver is
6o for each press. Keep pressing the button to
move the louver to the desired position.
NOTE:
On some models press it to initiate the Auto
swing feature only.
2. If keep pressing the SWING button without
releasing for 2 more seconds, the auto swing
feature of the louver is activated. The horizontal
louver would swing up/down automatically.
Press it again to stop.
NOTE:
When the louver swing or move to a position which
would aect the cooling and heating eect of the air
conditioner, it would automatically change the swing/
moving direction.
Timer operation
Press the TIMER ON button can set the auto-on time
of the unit. And press the TIMER OFF button can set
the auto-o time of the unit.
To set the Auto-on time.
1. Press the TIMER ON button. The remote
controller shows TIMER ON, the last Auto-on
setting time and the signal “h” will be shown on the
LCD display area. Now it is ready to reset the Auto-on
time to START the operation.
2. Push the TIMER ON button again to set desired Au-
to-on time. Each time you press the button, the time
increases in 30 minutes increments, up to 10 hours,
then at 1 hour increments up to 24 hours.
3. Aer setting the TIMER ON ,there will be a onehalf
second delay before the remote controller trans-
mits the signal to the air conditioner. Then, aer
LED DISPlAY
RESET LOCK TIMER OFF
TIMER ON
FAN SPEED
FAN
HIGH
MED
LOW
AUTO
COOL
DRY
HEAT
TEMP
ECONOMY
SWING
MODE
SET TEMPERATURE ( C)
LED DISPlAY
RESET LOCK TIMER OFF
TIMER ON
FAN SPEED
FAN
HIGH
MED
LOW
AUTO
COOL
DRY
HEAT
TEMP
ECONOMY
SWING
MODE
SET TEMPERATURE ( C)
23
1
1
Fig.15.
Fig.16.

19.
EN
Electric air conditioner
portable type
approximately another 2 seconds, the signal “h” will
disappear and the set temperature will re-appear on
the LCD display window.
To set the Auto-on time.
1. Press the TIMER OFF button. The remote
controller shows TIMER OFF, the last Auto-o
setting time and the signal “h” will be shown on the
LCD display area. Now it is ready to
reset the Auto-o time to START the operation.
2. Push the TIMER OFF button again to set desired.
Auto-o time. Each time you press the button, the
time increases in 30 minutes increments, up to 10
hours, then at 1 hour increments up to 24 hours.
3. Aer setting the TIMER OFF ,there will be a
onehalf second delay before the remote controller
transmits the signal to the air conditioner. Then, aer
approximately another 2 seconds, the signal “h” will
disappear and the set temperature will re-appear on
the LCD display window.
TIMER ON (Auto-on Operation)
The TIMER ON feature is useful when you want
the unit to turn on automatically before say
when you return home. The air conditioner
will automatically start operating at the set
time. To start the air conditioner in 6 hours.
1. Press the TIMER ON button, the last setting
of starting operation time and the signal “h”
will show on the display area.
2. Press the TIMER ON button to display
“6:0h” on the TIMER ON display of the remote
controller.
3. Wait for about 3 seconds and the digital
display area will show the temperature again.
Now this function is activated.
IMPORTANT!
The eective operation time set by the remote controller for the timer
function is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0,
3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13,
14, 15,16,17, 18, 19, 20, 21, 22, 23 and 24.
10. EXAMPLE OF TIMER SETTING
TIMER ON
Start
Off
6 hours later
h
Set
Fig. 15
Fig.17.
LED DISPlAY
RESET LOCK TIMER OFF
TIMER ON
FAN SPEED
FAN
HIGH
MED
LOW
AUTO
COOL
DRY
HEAT
TEMP
ECONOMY
SWING
MODE
SET TEMPERATURE ( C)
1
2

20.
EN
Electric air conditioner
portable type
TIMER OFF (Auto-o Operation)
The TIMER OFF feature is useful when you
want the unit to turn o automatically aer
you go to bed. The air conditioner will stop
automatically at the set time.
Example:
To stop the air conditioner in 10 hours.
1. Press the TIMER OFF button, the last set-
ting of stopping operation time and the signal
“h” will show on the display area.
2. Press the TIMER OFF button to display
“10h” on the TIMER OFF display of the remote
controller.
3. Wait for about 3 seconds and the digital
display area will show the temperature again.
Now this function is activated.
COMBINED TIMER
(Setting both ON and OFF timers simultane-
ously) TIMER OFF → TIMER ON
(On → Stop → Start operation)
This feature is useful when you want to stop
the air conditioner aer you go to bed, and
start it again in the morning when you wake
up or when you return home.
Example:
To stop the air conditioner 2 hours aer set-
ting and start it again 10 hours aer setting.
1. Press the TIMER OFF button.
2. Press the TIMER OFF button again to
display 2.0h on the TIMER OFF display.
3. Press the TIMER ON button.
4. Press the TIMER ON button again to
display 10h on the TIMER ON display .
5. Wait for the remote control to display
the setting temperature.
TIMER ON → TIMER OFF
(O → Start → Stop operation)
This feature is useful when you want to start
the air conditioner before you wake up and
stop it aer you leave the house.
Example:
To start the air conditioner 2 hours aer
setting, and stop it 5 hours aer setting.
1. Press the TIMER ON button.
2. Press the TIMER ON button again to
display 2.0h on the TIMER ON display.
3. Press the TIMER OFF button.
4. Press the TIMER OFF button again to
display 5.0h on the TIMER OFF display .
5. Wait for the remote control to display
the setting temperature.
TIMER OFF
Stop
On
Set 10 hours later
h
TIMER ON OFF
h
On
Stop
2 hours later
after setting
Set
Start
10 hours later
after setting
Off Stop
Start
TIMER ON OFF
h
2 hours later
after setting
5 hours later
after setting
Set
TIMER OFF
Stop
On
Set 10 hours later
h
TIMER ON OFF
h
On
Stop
2 hours later
after setting
Set
Start
10 hours later
after setting
Off Stop
Start
TIMER ON OFF
h
2 hours later
after setting
5 hours later
after setting
Set
TIMER OFF
Stop
On
Set 10 hours later
h
TIMER ON OFF
h
On
Stop
2 hours later
after setting
Set
Start
10 hours later
after setting
Off Stop
Start
TIMER ON OFF
h
2 hours later
after setting
5 hours later
after setting
Set
