Hyundai AVN-700MDA User manual

FCC ID: TQ8-AVN-700MDA / IC: 5074A-AVN700MDCA
HCT CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:[phone] FAX:[phone] www.hct.co.kr
Report No. : HCTR1005FR16 1/1
ATTACHMENT E.
-User Manual -

DIGITAL NAVIGATION SYSTEM
User's Manual
DIGITAL NAVIGATION SYSTEM
User's Manual

PART 1
PRE-OVERVIEW
Introduction ……………………… 1-2
Controller and functions ………… 1-3
Basic operation and setting ……… 1-6
PART 2
AUDIO SYSTEM
Operating the radio ……………… 2-2
Operating the CD Player ………… 2-10
Operating external devices ……… 2-22
PART 3
NAVIGATION SYSTEM
Limitations of the navigation
system …………………………… 3-2
Map Functions …………………… 3-5
Setting a destination …………… 3-12
Operating after setting
a destination ……………………… 3-28
Route guidance …………………… 3-30
Setup and Information …………… 3-36
PART 4
XM DATA
Entering XM Data mode ………… 4-2
PART 5
VOICE COMMAND SYSTEM
Operating voice command ……… 5-2
Setting up the voice command
system …………………………… 5-4
Voice command list ……………… 5-6
Table of contents

PART 6
BLUETOOTH HANDS FREE
Before using the Bluetooth
Handsfree ………………………… 6-2
Converting Bluetooth Handsfree
mode ……………………………… 6-2
Pairing and connecting a Bluetooth
phone ……………………………… 6-4
Bluetooth Handsfree screen
layout ……………………………… 6-9
Making a call ……………………… 6-11
Answering a call ………………… 6-13
Operating menus during a call …… 6-14
Phone Book ……………………… 6-16
Call History List …………………… 6-19
Phone Music ……………………… 6-21
Bluetooth settings ………………… 6-24
Important information …………… 6-30
PART 7
PGS (Parking Guide System)
About PGS (Parking Guide System) … 7-2
PART 8
APPENDIX
Troubleshooting guide …………… 8-2
Map legend ……………………… 8-5
INDEX ……………………………… 8-8
Table of contents

PRE-OVERVIEW 1-1
PRE-OVERVIEW
PART 1
PRE-OVERVIEW
Introduction ……………………… 1-2
Important information about this
manual …………………………………1-2
Precaution for safe usage ………………1-2
Controller and functions ………… 1-3
Control panel ……………………………1-3
Steering wheel remote controller ………1-5
Basic operation and setting ……… 1-6
Turning the Power ON …………………1-6
System Power ON …………………… 1-6
Turning the Power OFF …………………1-6
Turning the Audio ON/OFF ……………1-6
Adjusting audio volume …………………1-7
How to operate the screen menu ………1-7
Operating typical screen menu ……… 1-7

Inputting letter by using screen
keyboard ……………………………… 1-7

Displaying the list …………………… 1-7

Selecting an item in a list …………… 1-8

Sorting items from list ……………… 1-8
How to operate menu by voice
command ………………………………1-8

Conditions for voice recognition
system ………………………………… 1-8
Giving voice command ……………… 1-9
Sound setting ……………………………1-9
FAD/BAL ……………………………… 1-9
BASS/MID/TREB ……………………… 1-10
Auto volume control ON/OFF ……… 1-10
Touch screen beep ON/OFF ………… 1-10
Variable EQ Setup (Optional) ………… 1-10
Operating Variable EQ ……………… 1-10
Display setting ……………………… 1-11
Display mode ………………………… 1-11
Brightness …………………………… 1-11
Display OFF ………………………… 1-11
Display ON …………………………… 1-11
Viewing Current Time ………………… 1-12
Setting the Clock …………………… 1-12
Setting Display OFF ………………… 1-13
Display Photo Frame ………………… 1-13
PART 1 PRE-OVERVIEW

Thank you for purchasing this Audio
Navigation System.
This user's manual explains how to use
the Hyundai Motor Audio Navigation
System.
Before using the product, read the
contents of this user's manual carefully
and use this product safely.
● The screens shown in this manual
may differ with the actual screens of
the product.
●

The design and specification of this
product may change without prior
notification for product improvement.
● When transferring the vehicle to
another individual, include this user's
manual so that the next driver can
continue its use.
iPod®
iPod® is a registered trademark of Apple
Inc.
Bluetooth®
The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by Hyundai is under license.
A Bluetooth® enabled cell phone is
required to use Bluetooth® wireless
technology.
Preface
Copyright(c) 2009 by NAVTEQ. All Map Database cannot be copied without permission.
This is protected by U.S. copyright laws. All rights not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent.

1-2 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
Introduction
Important information about this
manual
This user manual contains instructions related
to safety. Closely observe and comply with all
of the safety instructions found within this
manual.
WARNING !
Disobeying the warnings listed within this
user's manual may cause fatal or serious inju-
ries. Warnings indicate matters which may
directly lead to accidents.
CAUTION!
Disobeying the cautions listed within this user
manual may lead to accidents or cause injury.
Cautions indicate matters which may lead to
vehicle damage or malfunction.
INFORMATION
Information which the user must be aware or
allows for more convenient use of the device.
Precaution for safe usage
WARNING !
●
Do not operate the Audio Navigation system
while driving.
●
Do not disassemble, assemble, or modify the
Audio Navigation system.
●
Do not watch the screen for prolonged peri-
ods of time while driving.
●Set the volume to a level which allows the
driver to be aware of external conditions.
CAUTION!
●
Do not operate the Audio Navigation sys-
tem for prolonged periods of time with the
vehicle ignition in ACC. Such operations
may lead to battery discharge.
●
Be cautious not to spill water or introduce
foreign objects into the device.
●
Do not cause severe shock to the device.
Direct pressure onto the front side of the
monitor may cause damage to the LCD or
touch panel.
●
In case of product malfunction, please con-
tact your place of purchase or service cen-
ter.
●
When cleaning the touch screen, make sure
to turn off the device and use a dry and
smooth cloth. Never use tough materials,
chemical cloths, or solvents (alcohol, ammo-
nia, benzene, thinners, etc.) as such materials
may damage the device panel or cause color
and quality deterioration.
Reference Page
This indicates the title and page that you
should refer to.
This indicates a key on the control panel.
Voice Command
This indicates an operation by voice com-
mand.

PRE-OVERVIEW 1-3
PRE-OVERVIEW
4SEEK/TRACK Up/Down
●SHORT KEY(less than 0.8 second)
• FM/AM Mode : automatically searches for
the previous or next broadcast frequency
and starts playing.
• XM Mode : receives the previous or next
channel.
• CD Mode : plays the previous or next track.
• MP3, USB Mode : Plays the previous or
next file.
• iPod Mode : plays the previous or next song.
● 
LONG KEY(over 0.8 second)
• FM/AM Mode : quickly moves through the
frequencies while the button is pressed.
Once released, automatically searches for
broadcasts which can be received.
• XM Mode : quickly moves to the previous
or next channel.
• CD Mode : REW/FF the current playing
track.
5MEDIA
Each press will change the bands in the fol-
lowing order: DISC(CD, MP3)
→
(USB or iPod)
→
(AUX)
→
(Phone Music)
→
DISC(CD, MP3)...
2FM/AM
Each press will change the bands in the fol-
lowing order: FM1
→
FM2
→
AM
→
FM1 ...
3XM
Each press will change the bands in the fol-
lowing order: XM1
→
XM2
→
XM3
→
XM1 ...
1Power / Volume control knob
●
Push knob (over 0.8 second) : turns the
power off.
●
Push knob (under 0.8 second) : each time the
knob is pressed, the Audio is turned on and off.
● 
Tune knob : the range of volume adjustment
is between 0 ~ 35.
Controller and functions
Control panel
16
1 4
2 5
36
10
11
12 14
13 15
7 8 917

1-4 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
• MP3, USB Mode : REW/FF the current play-
ing file.
• iPod Mode : REW/FF the current playing
song.
6PHONE
Displays the Bluetooth handsfree screen.
7DISP
DISP displays the displays setting screen.
8MAPVOICE
Displays the map screen for the current posi-
tion.
9ROUTE
Displays the Route menu screen.
10 DEST
Displays the displays setting screen.
11 TUNE
● 
FM/AM Mode : push the key to search for
the desired frequency. Press the key to
receive the selected frequency.
● 
XM Mode : push the key to search for the
desired channel. After a brief moment, the
selected channel will be displayed.
● 
CD Mode : push the key to search for the
desired track. Press the key to play the
selected track.
● 
MP3, USB Mode : push the key to search
for the desired file. Press the key to play
the selected file.
●
iPod Mode : push the key to search for the
desired song. Press the key to play the
selected song.
12 SETUP
Displays the Setup menu screen.
13 ENTER
Completes the command.
14 RESET
Resets the system - if software locks-up.
INFORMATION
If pressing the power off knob for over 0.8 sec-
ond and the system does not shut down, and
carefully use and insert a straightened paper
clip at the access hole shown next to the right
DISC indicator LED to reset the software.
The system power will shut-off and restart.
15 Clock
●Short Key (under 0.8 second)
• When the screen is turned on : displays
the current time in the center of the
screen.
• When the screen is turned off : turns the
full clock screen on and off.
●Long Key (over 0.8 second)
• Displays the clock setting screen.
16 DISC eject
Ejects the inserted disc.
17 DISC insert indicator LED
Displays whether a DISC has been inserted.

PRE-OVERVIEW 1-5
PRE-OVERVIEW
Steering wheel remote controller
1MODE
Each time the Mode key is pressed, the mode
changes in the following order: FM1
→
FM2
→
AM
→
XM1
→
XM2
→
XM3
→
(DISC)
→
(USB or iPod)
→
(AUX)
→
(Phone Music)
→
FM1 ...
If an unsupported DISC is inserted, if there is
no disc, or if an external device (e.g. iPod, USB
memory stick, etc.) has not been connected,
the mode will not be recognized and auto-
matically switch to the next mode.
●
Press this key for over 0.8 second to turn the
Audio ON and OFF.
●
Press this key when the Power is turned off
to turn the power on.
2Volume Up/Down
Increases or decreases the volume within a
range between 0 ~ 35. Volume for navigation
and voice guidance can be adjusted in the
setup mode.
3Seek Up/Down
●SHORT KEY(less than 0.8 second)
• FM/AM : receives the previous or next pre-
set frequency.
• XM Mode : receives the previous or next
preset channel.
• CD Mode : plays the previous or next
track.
• MP3, USB Mode : plays the previous or
next file.
• iPod Mode : plays the previous or next
song.
●
LONG KEY(Over 0.8 second)
• FM/AM Mode : quickly moves through the
frequencies while the key is pressed.
Once released, automatically searches for
broadcasts which can be received.
• XM Mode : quickly moves to the previous
or next channel.
• CD Mode : REW/FF the current playing track.
• MP3, USB Mode : REW/FF the current play-
ing file.
• iPod Mode : REW/FF the current playing
song.
4Voice Recognition
Starts Voice Recognition.
5CALL
Press this key to receive an incoming call. If
pressed while in Audio/Navigation mode, the
bluetooth handsfree screen will be displayed.
6END
Press this key to reject an incoming call.
If pressed while on a call, then the call will be
terminated.
6
3
1
2
4
5

1-6 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
Basic operation and setting
Turning the Power ON
1.

Turn the ignition key onto ACC or ON. If the
system power had been on when the igni-
tion was turned off, the system will turn
back on automatically.
2.

If the system power had been off when the
ignition was turned off, the system will
remain off. In this case, press the
PWR/VOL
knob to turn on the system power.

System Power ON
INFORMATION
As system booting starts from the point the
door lock is unlocked, the device may com-
plete booting before the ACC is turned on or
the
PWR/VOL
knob is pressed.
Consequently, the booting screen may not be
displayed upon initially turning on the system
power.
3. Once system booting is complete, the most
recent operated mode will be displayed. For
example, turning on the system will display
FM1 radio mode if the last operated mode
prior to turning off the system had been
FM1 radio mode.
Turning the Power OFF
If the
PWR/VOL
knob is pressed for over 0.8
second, a beep will sound and the system
power will be turned off.
Turning the Audio ON/OFF
Press the
PWR/VOL
knob for under 0.8 sec-
ond with the system power on to turn the
Audio on and off.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Audio On"
"Audio Off"
INFORMATION
Conducting the following operations while
the AUDIO is off will automatically turn on the
Audio system.
●
Pressing the Audio related keys (
FM/AM
,
XM
,
MEDIA
).
●
Inserting a DISC or connecting an external
device.

PRE-OVERVIEW 1-7
PRE-OVERVIEW
Adjusting audio volume
Turn the
PWR/VOL
knob in clockwise direc-
tion to increase the volume and counter-
clockwise to decrease the volume.
INFORMATION
●
The range of volume adjustment is between
0 ~ 35.
● 
Adjustments to the volume cannot be made
while the AUDIO is turned off.
How to operate the screen menu

Operating typical screen menu
● 
If a menu button on the screen is pressed,
the corresponding function will begin oper-
ation.
● 
The same menu button may perform differ-
ent functions depending on the length of
time the button is pressed (under 0.8 sec-
onds or over 0.8 second). For more informa-
tion, refer to the specific function within this
user manual.
● The current operated button will be high-
lighted upon display.
● 
Buttons which cannot be operated under
the current conditions will be displayed in
disabled state. Pressing a disabled button
will not perform any operation.

Inputting letter by using screen
keyboard
ABC
: Displays the English alphabet keypad.
: Displays the French alphabet keypad.
(if available)
0 - 9
: Displays the number and symbol key-
pad.
Delete
: Deletes the previously inputted letter.
Pressing for over 0.8 second will delete
all content.
Done
: The input is completed.
: Restores to previous screen. The
inputted text will not be saved.

Displaying the list
List
: Even if input is not complete, the cur-
rent matching items from the data-
base will be displayed.
INFORMATION
The number at the upper-right side of the
screen displays the number of current matches.

1-8 PRE-OVERVIEW
PART 1 PRE-OVERVIEW

Selecting an item in a list
▲
▼: Moves to the next page or previous
page.
▶ ◀
:
The
▶
button will be displayed if
the text is too long to be displayed in
one button.
Press the
▶
button to move the cursor to
the end of the text. Press the
◀
button to
move the cursor to the front of the text.

Sorting items from list
Select the desired sorting method to reorga-
nize the list in accordance to the selected
method.
How to operate menu by voice
command

Conditions for voice recognition system
Most of the functions within the Audio and
Navigation system can be operated by voice.
Please follow the instructions below for opti-
mal voice recognition performance.
● 
Close all windows and the sunroof. The
voice recognition can be improved when in
a quiet environment.
● 
Press the voice recognition button and say
the desired voice command after the sound
of the beep.
● 
The microphone is positioned above the
driver so that voice commands can be said
while maintaining a proper posture.
● 
Pronounce the voice commands naturally
and clearly as if in normal conversation.

PRE-OVERVIEW 1-9
PRE-OVERVIEW


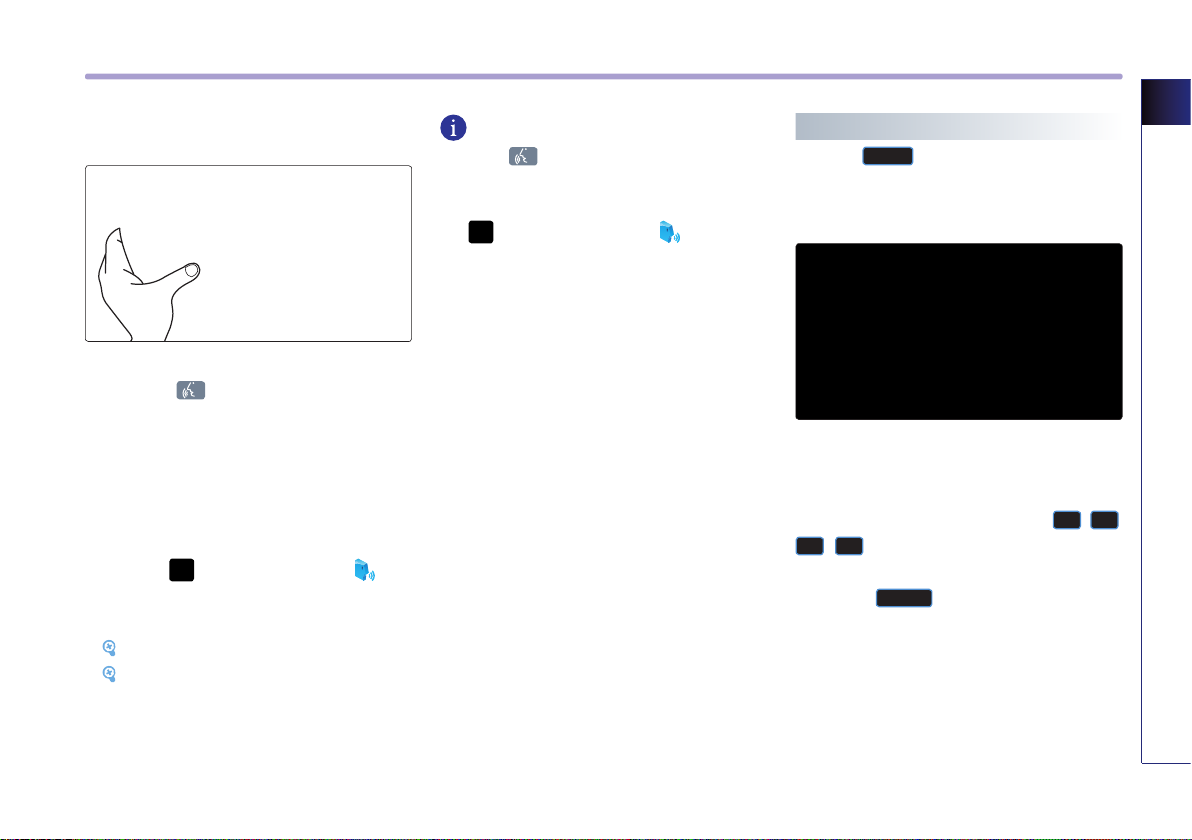

Giving voice command
1.

Press the key on the steering wheel
remote controller.
A voice command window will be displayed
on the lower side of the screen followed by
a "Command please" system voice com-
ment.
2.

Once the icon changes into the icon
on the pop-up screen with a beep sound,
say the desired voice command.
[Voice command list], page 5-6.
[ Searching a destination by voice com-
mand], page 5-19.
INFORMATION
Press the key shortly to input the desired
voice command. The system voice instruction
comment will immediately terminate. When
the icon changes into the icon with a
beep sound, it is possible to input voice com-
mands.
Sound setting
Press the
Sound
button on the main screen of
each Audio mode (FM/AM, XM, CD, MP3, USB,
iPod) to display the Sound setting screen.
FAD/BAL
The position of the sound can be adjusted by
using the up-down and left-right (
▲
,
▼
,
▶
,
◀
) buttons on the left side of the
screen.
Press the
Center
button to position the
sound in the center of the vehicle.

1-10 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
BASS/MID/TREB
The BASS/MID/TREB can be adjusted by using
the left/right buttons (
◀
,
▶
) of each con-
trol.
Auto volume control ON/OFF
Each time the
Auto volume control
button is
pressed, the Auto volume control function is
turned on or off.
INFORMATION
The Auto Volume Control is a function which
automatically adjusts the volume level in
accordance to changes in vehicle speed.
Touch screen beep ON/OFF
Each time the
Touch screen beep
button is
pressed, the beeping sound that follows each
press on the screen will turn on or off.
Variable EQ Setup (Optional)
Operating Variable EQ
1.

Press the
Variable EQ
button at the top of
the
Sound
screen.
2.

Within the <Variable EQ> screen, three
type s of EQ setups su c h as Norma l,
Dynamic, Concert can be selected.
3.

Press the
Detail
button to view specific
information on the three EQ settings.
INFORMATION
The Variable EQ feature may not be supported
in some vehicle models and tuner mode.

PRE-OVERVIEW 1-11
PRE-OVERVIEW
Display setting
Press the
DISP
key on the control panel to
display the Setup menu screen.
Display mode
Press the button for the desired display mode
fr o m
Automatic
,
Day
, an d
Night
modes. The current selected mode is high-
lighted.
●
Automatic
The display is automatically converted
between Daylight and Night modes in
accordance to the on/off state of the vehi-
cle taillights.
●
Day
The bright screen is always maintained
regardless of the on/off state of the vehicle
taillights.
●
Night
The dark screen is always maintained
regardless of the on/off state of the vehicle
taillights.
Brightness
Use the left/right buttons (
◀
,
▶
) for con-
trol to make adjustments.
Display OFF
Press the
Display Off
button.
Display ON
Press anywhere on the black screen.
The screen prior to display setting will be dis-
played.

1-12 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
Viewing Current Time
Press the on the front panel shortly
(under 0.8 second) to display the current time
at the center of the screen.
INFORMATION
If the screen is turned off, selecting the
will display the current time on the entire
screen.
Setting the Clock
Press and hold the on the front panel
(over 0.8 second) to display the Clock setting
screen.
●GPS Time
The time received from the GPS will be dis-
played automatically.
●Clock Type
Selects the clock type shown as the entire
screen when the system power is turned off.
●Time Format
When the clock type is digital, this button is
used to convert the time between 12 hour/ 24
hour systems.
●Daylight Saving Time
Turns the Daylight Saving Time function on or
off.
INFORMATION

Clock setting mode can be displayed while
the clock is displayed on the screen even
when the system is turned off.

PRE-OVERVIEW 1-13
PRE-OVERVIEW
Setting Display OFF
Display Photo Frame
1. Press the
Power Off Set
button i n th e
DISPLAY setup screen.
2. Press t he
Photo Frame
bu tton in the
<Setting Display Off> setup screen.
3. The registered image will be displayed once
power is turned off.
INFORMATION

For Photo Frame setup, the frame must be set
in USB Image mode. (For details on setting the
Photo Frame, refer to the USB IMAGE page.)
4.

To delete an image registered as a frame,
press the
Delete Image
button.

PART 2 AUDIO SYSTEMPART 2 AUDIO SYSTEM
PART 2
AUDIO SYSTEM
Operating the radio ………………… 2-2
FM/AM Radio …………………………… 2-2
Listening to the FM/AM radio ………2-2
FM/AM screen and functions …………2-2
Selecting FM/AM broadcast
frequency ……………………………2-3
Storing FM/AM preset ………………2-4
Scanning FM/AM broadcast
frequency ……………………………2-5
XM radio ………………………………… 2-6
Listening to the XM radio ……………2-6
XM screen and functions ……………2-6
Switching the XM mode
(Channel / Category) …………………2-7
Selecting XM broadcast channel ……2-7
Storing XM preset ……………………2-9
Scanning XM broadcast channel ……2-9
Operating the CD Player …………… 2-10
About CD Player ………………………… 2-10
Precautions upon handling discs … 2-10
For safe and efficient operation …… 2-10
Supported disc formats …………… 2-11
Disc/Content format compatibility … 2-12
Inserting/Ejecting Disc ………………… 2-13
Inserting a Disc …………………… 2-13
Ejecting a Disc …………………… 2-13
CD ……………………………………… 2-14
Listening to CD music …………… 2-14
CD screen and functions ………… 2-14
Selecting the CD track …………… 2-14
REW/FF CD track …………………… 2-15
Setting Repeat function for
CD music …………………………… 2-15
Setting Random function for
CD music …………………………… 2-15
Scanning CD track ………………… 2-16
MP3 …………………………………… 2-17
MP3 disc related information and
precaution ………………………… 2-17
Listening to MP3 music …………… 2-18
MP3 screen and functions ………… 2-18
Selecting to MP3 music …………… 2-19
REW/FF MP3 file …………………… 2-20
Viewing detail information for
MP3 file …………………………… 2-20
Setting Repeat function for
MP3 file …………………………2-20
Setting Random function for
MP3 file …………………………… 2-20
Scanning MP3 file ………………… 2-21

AUDIO SYSTEM 2-1
AUDIO SYSTEM
PART 2
AUDIO SYSTEM
Operating external devices ……… 2-22
iPod® …………………………………… 2-22
Connecting iPod device …………… 2-22
Listening to iPod music ……… 2-22
iPod screen and functions ………… 2-23
Selecting an iPod song …………… 2-23
REW/FF iPod song ………………… 2-24
Setting Repeat function for
iPod song ………………………… 2-25

Setting Random function for
iPod song ……………………… 2-25
USB MP3 ………………………………… 2-26

USB MP3 related information and
precaution ………………………… 2-26
Precautions upon handling USB … 2-26
Connecting the USB ……………… 2-28
Listening to USB music …………… 2-28
USB IMAGE Mode ……………………… 2-29

Starting USB IMAGE Mode ………… 2-29

USB IMAGE mode menu screen
configuration ……………………… 2-29

Operating USB IMAGE Mode ……… 2-30
AUX ……………………………………… 2-31
Connecting AUX …………………… 2-31
Playing AUX ……………………… 2-31
AUX screen ………………………… 2-31
