Hyundai H-CDM8022 User manual

H-CDM8022
CD/MP3 RECEIVER WITH BLUETOOTH CD/MP3-РЕСИВЕР СBLUETOOTH
Instructionmanual Руководство по эксплуатации

2
Dear customer!
Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before
connecting, operating and/or adjusting the product and keep the manual for reference in the future.
Table of contents
Table of contents.................................................................................................................................................. 2
Important safeguards ........................................................................................................................................... 3
Installation/Connections ...................................................................................................................................... 4
Panel controls ...................................................................................................................................................... 7
Remote controller (RC) ..................................................................................................................................... 10
General operation .............................................................................................................................................. 11
Digital tuner....................................................................................................................................................... 14
Disc operations .................................................................................................................................................. 17
USB/SD/MMC operations................................................................................................................................. 21
Bluetooth operations.......................................................................................................................................... 22
Anti-Theft System ............................................................................................................................................. 24
Handling discs ................................................................................................................................................... 25
Cleaning............................................................................................................................................................. 25
Troubleshooting guide....................................................................................................................................... 26
Specification ...................................................................................................................................................... 27

3
Important safeguards
• Using the device at temperature below -10ºСmay cause the breakage of the device. Before using please heat
up the passenger compartment to the recommended temperature!
• Read carefully through this manual to familiarize yourself with this high-quality sound system.
• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher
amperage rating may cause serious damage to the unit.
• Do not attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create
safety hazards such as electrical shock or laser beam exposure.
• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes
normal before operating the unit.
• Do not open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or
during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an
unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified
technician check the system.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload
or burn out the power amplifier.
• Do not install the detachable panel before connecting the wire.

Installation/Connections
First complete the electrical connections, then check them for correctness.
This unit can be installed in any dashboard having an opening as shown below. The
dashboard should be 4.75 – 5.56 mm thick in order to be able to support the unit.
1. Insert mounting collar into the dashboard, and bend the mounting tabs out with a screwdriver.
Make sure that lock lever is flush with the mounting collar (not projecting outward).
2. Secure the rear of the unit.
After fixing mounting bolt and power connector, fix the rear of the unit to the car body by rubber cushion.
3. Insert trim plate.
When you prepare to insert trim plate, please check it’s direction. Once it was up side down, it cannot be fixed.
IMPORTANT:
Remove these two
screws before
installation.
Otherwise, the
СD/MP3 Player will
not work.
4

Electrical connections
Do not interchange the connection of the wiring!
For some car models you may need to modify wiring of the supplied power cord as illustrated (modified wiring), or
else the memory of the unit may be lost after you power off. Contact your authorized car dealer before installing this
unit.
5

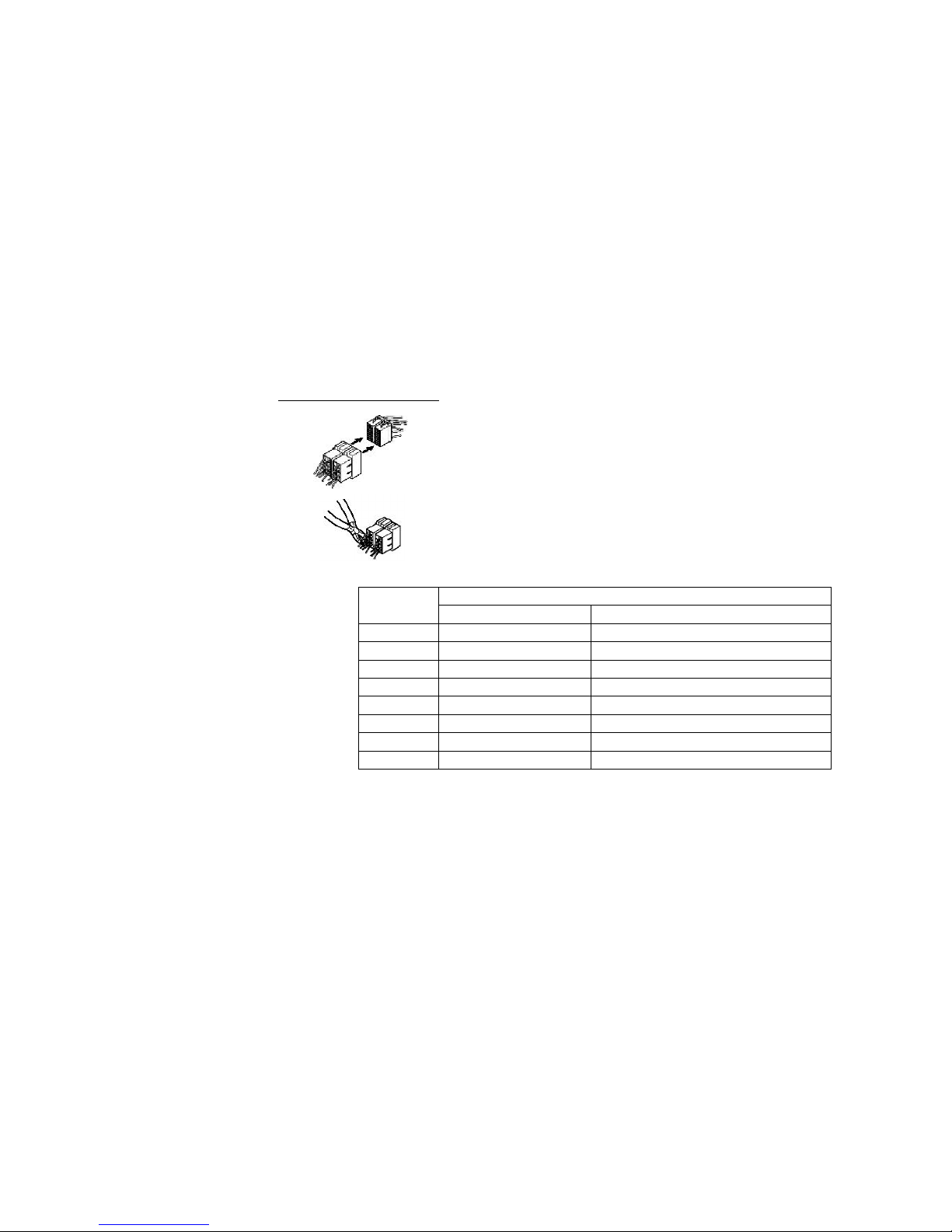

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO
connectors as illustrated.
6
2. For connections without the ISO connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection may cause serious damage to
this unit.
Cut the connector, connect the colored leads of the power cord to the car battery
as shown in the color code table below for speaker and power cable connections.
Function
Location
Connector A Connector B
1 Rear Right (+) --- Purple
2 Rear Right (-) --- Purple/Black Stripe
3 Front Right (+) --- Gray
4 Battery 12V (+)/yellow Front Right (-) --- Gray/Black Stripe
5 ANT/AMP control /blue Front Left (+) --- White
6 Front Left (-) --- White/Black Stripe
7 ACC+/red Rear Left (+) --- Green
8 Ground/black Rear Left (-) --- Green/Black Stripe

Panel controls

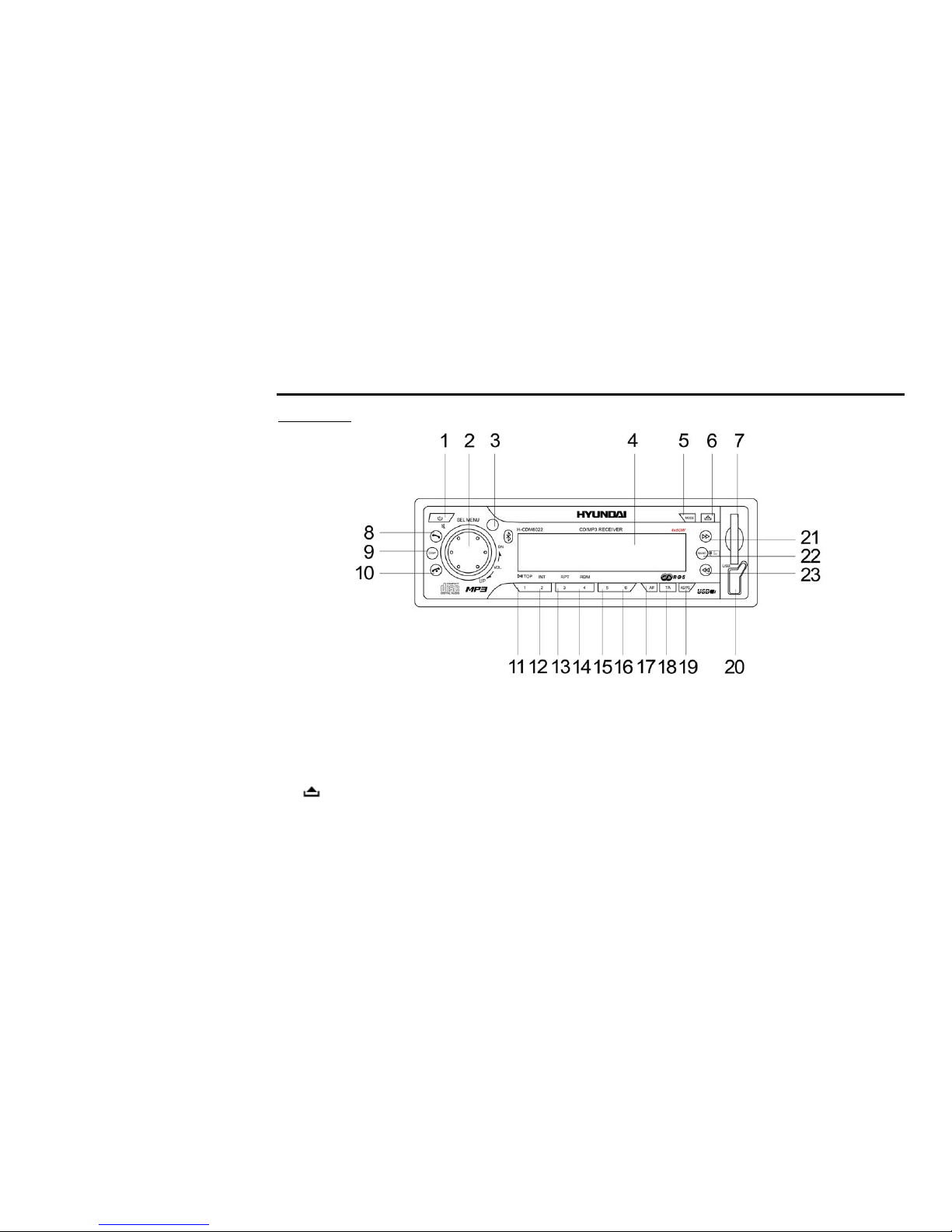

Front panel
1. PWR button
2. VOL/SEL knob (rotate it to adjust the volume). Repeatedly press SEL to select modes: VOL, BAS, TRE, BAL,
FAD; rotate the knob to adjust the level.
3. Remote control sensor
4. LCD display
5. MODE button
6. button
Press it to open the panel.
7. SD/MMC slot
7

8
8. Dial/Receive button
9. DISP button
10. Call off/cancel button
11. PLAY/PAUSE/TOP/1 number button
12. INT/2 number button
Press it to start intro playing (15 seconds).
13. RPT/3 number button
14. RDM/4 number button
15. 5 number button
16. 6 number button
17. AF button
18. TA button
19. AS/PS button
20. USB slot
21. button
22. BAND button
23. button

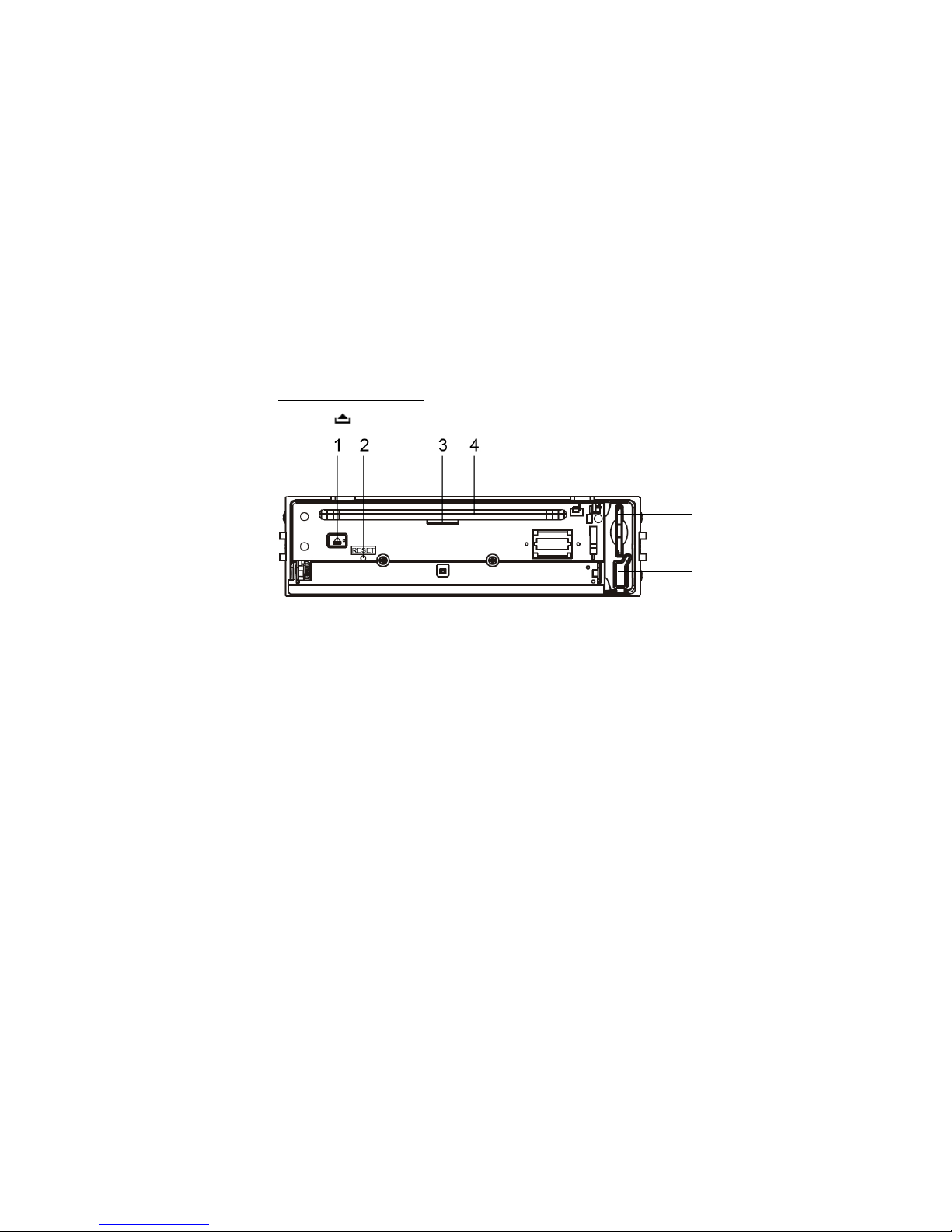

Back of the front panel
Press the button to open the panel and press EJECT button to eject the disc.
5
6
1. EJECT button
2. RESET hole
3. LED indicator
4. CD slot
5. SD/MMC slot
6. USB slot
Note: Pressing the RESET hole will erase the clock setting and stored stations.
Panel status indicator lights up when you slide the panel down; flashes when you remove the panel.
9

Remote controller (RC)
10
1. PWR button
2. Numeric pad
3. Dial/Receive call
4. Call off/cancel
5. /buttons
6. MODE button
7. VOL+/- buttons
Battery information of RC
1. Press the catch and at the same time pull out the battery tray.
2. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward.
Insert the battery tray into the RC.
Warning: Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a
doctor immediately.
Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give
off heat, crack or start a fire.
When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat,
crack or start a fire.

General operation
Power on/off
Press PWR button on the front panel or RC to turn the unit on. To turn the unit off press PWR button on the front
panel once more or press and hold PWR button on the RC. When you switch off the system or car ignition, the
settings, tuner presets and the volume level will be retained in the unit’s memory.
Source select
Press MODE button once or more to select your desired function: DISC, USB, Tuner (Radio), BT audio, Card.
Note: the USB and Card items will be available if the USB or SD/MMC card is in.
Reset the unit
Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press button on the
panel to open the panel and press the RESET hole with a point object to restore the unit to the original factory
settings.
VOL/SEL knob functions
Press the VOL/SEL knob to select VOL/BAS/TRE/BAL/FAD, rotate the control to adjust.
- VOLUME control
Display shows the volume level within 0 - 46.
- BASS control (available when DSP is OFF)
Display shows the BASS level within -6 – +6.
- TREBLE control (will be available when DSP is OFF)
Display shows the TREBLE level within -6 – +6.
- BALANCE control
Display shows the BALANCE level.
11

12
- FADER control
Display shows the FADER level.
Press and hold the VOL/SEL knob for more then 2 seconds to enter the menu and select the mode. Each of the
following modes is adjustable by rotating the VOL/SEL knob.
TA seek mode: choose TA ALARM or TA SEEK mode.
• TA ALARM mode: alarm is turned on.
• TA SEEK mode: TA SEEK is automatically activated.
MASK mode: choose Mask DPI or Mask ALL.
• MASK DPI mode: Only AF which have different program identification is masked.
• MASK ALL mode: The AF which has different program identification and NO RDS signal with high field
strength is masked.
TA VOL mode: adjust the value within 0 – 46.
RETUNE mode: select Retune L or Retune S.
• RETUNE L mode: long; TA seek interval is 180 seconds.
• RETUNE S mode: short; TA seek interval is 45 seconds.
Note: Retune mode is active for TA SEEK mode only.
DSP mode: choose DSP sound effect: ROCK, POP, CLASSIC, FLAT, DSP OFF.
LOUD mode: switch the loud to ON or OFF.
12/24 hours mode: choose the 12 or 24 hours mode.
VOL LAST: switch to VOL ADJ.
• VOL LAST mode: the turn-on volume level is that of latest power-off.
• VOL ADJ mode: volume level is adjustable.
V-ADJ mode: adjust within 0 – 46.
BEEP mode: switch the beep sound to ON or OFF.
CONNT mode: choose CONNT A or CONNT M.

13
• CONNT A mode: bluetooth is connected automatically.
• CONNT M mode: bluetooth is connected manually.
Turning the sound off
Short press the PWR button to turn the sound off. Press it again or use the VOLUME buttons to turn the sound on.
Adjusting clock
Press and hold DISP button for more than 2 seconds to select the hour setting. Rotate the VOL/SEL knob clockwise
to set the hours; rotate the VOL/SEL knob counterclockwise to set the minutes. Press DISP again to exit the clock
setting.

Digital tuner
Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not
available in you area, the following service is not available, either.
Band selection
Press PWR to turn the power on, then press the MODE button once or more to select TUNER.
Press BAND button once or more to select: FM1, FM2, FM (OIRT), AM1, AM2.
Manual/automatic tuning
• Automatic tuning: press the /buttons on the panel or /buttons on the RC repeatedly to
automatically select a station downward or upward, the radio automatically tunes to a station of sufficient
reception. It will play when finds the station.
• Manual tuning: Press and hold the /buttons on the panel or /buttons on the RC buttons, the manual
search will be available.
Programming tuner stations
You can store up to a total of 30 radio stations in the memory (18 FM [12 FM + 6 FM (OIRT)], 12 AM), manually or
automatically.
• To store a station:
- Select a band (if needed)
- Select a station by /buttons on the panel or /buttons on the RC buttons.
- Hold a Preset button (1-6) under which you want store the station for at least 2 seconds.
• To recall a station:
- Select a band (if needed)
- Press a Preset button (1-6) briefly to recall the stored station
During radio mode press the /buttons on the panel or /buttons on the RC buttons to select upward or
14

15
downward stored stations.
AF function (Alternative Frequencies)
Press AF button to turn on or turn off the AF function. The RDS program will be automatically searched and
received. After turning on, if the RDS signal is week or even no signal, the unit will search another frequency with
this RDS program.
Note: AF indicator on LCD will flash until RDS information is received. If RDS service is not available in your area,
turn off the AF mode.
Press and hold AF button for more then 2 seconds, the unit will be under REGION ON or REGION OFF mode:
• REG ON: AF function will implement the regional code (of the PI) and only stations in the current region can be
tuned automatically;
• REG OFF: AF function will ignore the regional code (of the PI) and stations in the other regions can also be
tuned automatically.
TA (Traffic Announcements) function
Press the TA button, LCD shows “TA”, traffic program will be automatically searched and saved, LCD shows TP,
the program is received.
Note: This function is also valid during playback mode.
When traffic announcement is received, the TA indicator will display. The unit will temporarily switch to the tuner
mode (regardless of the current mode) and begin broadcasting the announcement at TA volume level. After the
traffic announcement is over, it will return to the previous mode and volume level.
EON (Enhanced Other Networks)
When EON data is received, the EON indicator lights and the TA and AF functions are enhanced.
TA: Traffic information can be received from the current station or stations in other network.

16
AF: The frequency list of preset RDS stations is updated by EON data. EON enables the radio to make fuller use of
RDS information. It constantly updates the AF list of preset stations, including the one that currently tuned into. If
you preset a station around the area at your home, you will later be able to receive the same station at an alternative
frequency, or any other station serving the same program, EON also keeps track of locally available TP stations for
quick reception.
PTY (Program Type) function
Press and hold TA button, if no other button is pressed in 10 seconds, the unit will begin to search the program you
received last time.
Press and hold TA button for more than 2 seconds the first time, then press the number buttons, you can select the
music program style.
Press and hold TA button for more than 2 seconds the second time, then press the number buttons, you can select the
speech program style.
To choose the desired program style use the following table:
Button number Music group Speech group
1 Pop, Rock News, Affairs, INFO
2 Easy, Light Sport, Educate, Drama
3 Classics, Other Culture, Science, Varied
4 Jazz, Country Weather, Finance, Children
5 Nation, Oldies Social, Religion, Phone in
6 Folk Travel, Leisure, Document

Disc operations
Loading a disc
1. Press button on the panel to slide down the panel. Insert the disc with the printed side facing upward into
the slot.
2. Press button to slide down the panel. Press EJECT button on the panel to eject the disc.
Playing a disc
1. When disc inserted, display shows READ.
For MP3 or disc with mixed files, reading time may exceed 1 minute.
ERROR will be displayed if error found in disc operation.
• For CD, the CD icon will appear on the display.
• While MP3 files playback, MP3 icon will appear on the display.
2. Playback starts from the beginning of the 1st track automatically.
• To ensure good system performance, wait until the unit finishes reading the disc information before
proceeding.
• The current track number and elapsed time appear on the panel display.
Pausing playback
When pressing the PLAY/PAUSE/TOP/1 button during playback, pause mode is set. Press again to resume
playback. Press and hold the PLAY/PAUSE/TOP/1 button to start playing the first track of the disc from the
beginning. The same operations are performed by pressing the “1” numeric button on the RC.
Playing the previous/next track
Press /buttons on the panel or /buttons on the RC repeatedly to skip to previous/next track.
17

18
ID3 tags display
Press BAND button repeatedly during playback to access the ID3 information manually. The display will show
following track information: folder name, file name, track title, artist name, album name, if available.
Scanning forward and backward
1. Press and hold /buttons for more than 2 seconds once or more to select X2, X4, X8, X20 to fast backward
or forward skip during playback.
2. During the fast forward or backward operation, release /buttons to playback again.
3. During the fast forward or backward operation, the volume will be muted.
Intro playing
You can play the beginning of every track for 10 seconds in sequence.
1. During playback, press INT/2 once. INT ON/OFF will appear on the display.
2. Press again to select the current track.
The same operations are performed by pressing the “2” numeric button on the RC.
Repeating of the playback
• Press RPT/3 button once to select RPT ON and repeat playback of the current file. RPT icon will appear on
the display.
• Press RPT/3 button again to select RPT FOLD and repeat playback of all the files in the current folder.
• To turn off repeat playback, press RPT/3 button again.
The same operations are performed by pressing the “3” numeric button on the RC.
Random track playback
• Press RDM/4 button once to select RDM ON and randomly play all the files on the disc. RDM icon will

19
appear on the display.
• Press RDM/4 button again to select RDM FOLD and randomly play all the files in the current folder.
• To turn off random playback, press RDM/4 button again.
The same operations are performed by pressing the “4” numeric button on the RC.
Direct track search (for WMA/MP3)
1. Press AS/PS button to activate the track search function. “TRK SCH” will be displayed.
2. Turn the VOL/SEL knob to select the third digit.
3. Press the VOL/SEL knob to confirm and move to the second digit position.
4. Turn the VOL/SEL knob to select the second digit.
5. Press the VOL/SEL knob to confirm and move to the first digit position.
6. Turn the VOL/SEL knob to select the first digit.
7. Press the VOL/SEL knob to confirm and play the chosen track.
Navigation search (for WMA/MP3)
1. Press AS/PS button twice. “NAVIGATION” will be displayed.
2. Turn the VOL/SEL knob to navigate through all folders on the disc. The folder name will be displayed on the
LCD.
3. Press and hold the VOL/SEL knob for less than 3 seconds to access sub-folders or files.
4. Turn the VOL/SEL knob to navigate, then press the knob to select a file and start playback.
5. During navigation, turn the VOL/SEL knob counterclockwise to move back to the last upper level of a folder.
Direct character search (for WMA/MP3)
1. Press AS/PS button thrice. “CHAR-SCH” will be displayed.
2. Turn the VOL/SEL knob to choose a character, including letters A – Z, numbers 0 – 9 and blank spaces.

20
3. Press and hold the VOL/SEL knob to confirm entry and move to the next character space. After the last character
is entered, press and hold the knob to access the file.
4. If only two characters are entered and there is more than one file that begins with these characters, turn the
VOL/SEL knob to navigate through the files or folders.
5. Press the VOL/SEL knob to confirm the choice and start playback.
