Hyundai HYPS-400 User manual

PORTABLE
POWER SUPPLY
HYPS-400
USER MANUAL HYPS-400
Please read and understand all important safety and
operating instructions before using this charger.
In addition, please read and follow all battery and
vehicle manufacturer’s instructions and
cautionary markings.

We are still constantly improving this portable power supply, therefore, some parts of this portable power
supply may be changed in order to achieve the better quality, but the main functions and operations will not
be alternated and changed. Your understanding would be greatly appreciated.
HYPS-400

HYUNDAI 01
Table of Contents
SAFETY
ABOUT HYPS-400
ABOUT SMART JUMPER CLAMPS
CONNECTING TO THE BATTERY
JUMP STARTING
CHARGING
USB POWER
SUPPLY TO 19V LAPTOPS
SUPPLY TO 12V DEVICES
FLASHLIGHT
2
3
5
6
6
8
9
9
9
9

HYPS-40002
1. SAFETY
1) Use the HYPS-400 for jumpstarting a 12V LEAD-ACID battery only. Do not attempt to jump-start a vehicle
with a non-rechargeable or defective battery.
2) Working in vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases during normal
operation. Use in well-ventilated area. Battery acid can cause permanent blindness. Avoid touching eyes
while working near battery.
3) Do not smoke, strike a match, or cause a spark in vicinity of battery or engine. Avoid explosive gas,
flames and sparks.
4) Remove all personal jewelry, such as rings, bracelets, necklaces, and watches before jumpstarting
operations. These items may produce a short-circuit that can cause severe burns.
5) To avoid damage to the vehicle’s electrical system, do not use the HYPS-400 on a vehicle that has no
battery installed.
6) Use of an accessory not recommended or sold by the manufacturer may result in a risk of fire, electric
shock or injury to persons. Do not operate with damaged accessory(s).
7) Locate the HYPS-400 as far away from battery as jumper cables permit. 8) Do not expose to rain or wet
conditions.
9) To reduce the risk of damage to electric plug and cord, pull by the plug rather than the cord when
disconnecting.
10) Operate with caution if the jump starter has received direct hit of force or been dropped. Have it
checked and repaired if damaged.
11) Any repair must be carried out by the manufacturer or an authorized repair agent in order to avoid
danger.

HYUNDAI 03
2. ABOUT HYPS-400
It features low voltage protection (for HYPS-400 itself), spark proof, reverse polarity protection and short
circuit protection. This item can instantly jump start most single battery vehicles, up to 30+ (over 30) times
on a fully charge. The HYPS-400 is also equipped with USB power output, 19VDC power output, 12VDC
power output and LED flashlight.
Technical Specification:
Battery Type Lithium-ion Polymer
Battery Capacity 8100mAh
Starting Current 200A
Peak Current 400A
Jump Start up to 3.0L Gas Engine
USB Output 5V/1A, 5V/2A
19V Output 19V/3.5A for Laptops
12V Output 10A Max
LED Flashlight 3W
Operating Temperature -30°C ~ +50°C
Charging Temperature 0°C ~ +40°C
Storage Temperature -20°C ~ +35°C (for 3 months)

HYPS-40004

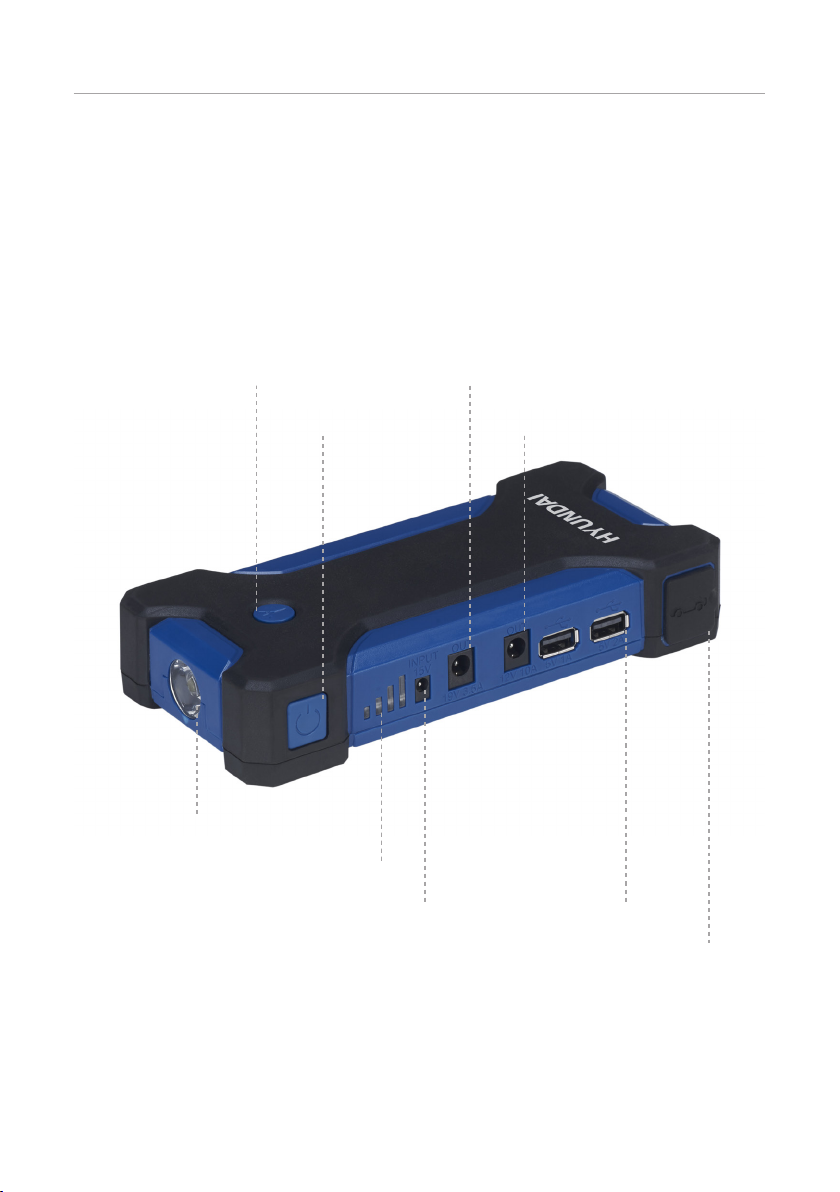

Product Layout:
19V Output PortFlashlight Button
12V Output PortPower Button
USB Output Ports15V/1A Input Port
Battery Status Indicator
LED Flashlight
ENGINE START Socket

HYUNDAI 05
Positive Clamp Negative Clamp
BOOST Button
Red LED
EC5 Plug
Green LED
3. ABOUT SMART JUMPER CLAMPS

HYPS-40006
4. CONNECTING TO THE BATTERY
1) Identify polarity of battery posts. The positive battery terminal is typically marked by these letters or
symbol (POS,P,+). The negative battery terminal is typically marked by these letters or symbol (NEG,N,-).
2) Do not make any connections to the carburetor, fuel lines, or thin metal parts.
3) Identify if you have a negative or positive grounded vehicle. This can be done by identifying which
battery post (NEG or POS) is connected to the chassis.
4) For a negative grounded vehicle (most common): connect the RED POSITIVE jumper clamp first to the
positive battery terminal, then connect the BLACK NEGATIVE jumper clamp to the negative battery
terminal or vehicle chassis.
5) For a positive grounded vehicle (very uncommon): connect the BLACK NEGATIVE jumper clamp first to
the negative battery terminal, then connect the RED POSITIVE jumper clamp to the positive battery
terminal or vehicle chassis.
6) When disconnecting, disconnect in the reverse sequence, removing the negative first (or positive first for
positive ground systems).
5. JUMP STARTING
1) This unit is only for emergency use, not for frequent commercial use! ENGINE START socket is ALWAYS
activated! Do not attempt to jumpstart your vehicle when the HYPS-400 battery capacity is below 25%
(battery status indicator: 1 solid LED lit).
2) Turn off the vehicle ignition and all accessories (radios, lights, air conditioners, etc.), and disconnect
electronic devices.
3) Connect the jumper clamps to the correct polarity battery terminals.
4) Connect the EC5 plug of jumper cables to the ENGINE START socket of HYPS-400.
5) Try starting the vehicle (turn on the ignition switch). Most vehicles will immediately start. Stop if the
vehicle does not start after 5 seconds of engine cranking. The jumpstart feature is designed for short
term operation only, and more than 5 seconds may cause damage to the unit. Allow the jump starter to
cool down for at least 3 minutes after each jumpstarting.
6) Disconnect the cable from the HYPS-400 immediately after engine starts, and then remove from battery
terminals.

HYUNDAI 07
No. Red LED Green LED Buzzer Sound Condition
1 On Off One sound Jumper cable and HYPS-400 are connected.
2Off On One sound Jumper cable and vehicle battery are connected.
Ready to start the engine.
3 Slow flash Off No buzzer Lithium battery voltage in HYPS-400 is rather low.
4 Slow flash Off No buzzer
Have not turned on the ignition switch within the regulated
time. To resolve this, you need remove clamps from vehicle
battery, and connect again when No.1 condition occurs.
5 Fast flash Off Fast buzzer Red and black clamps are connected with each other.
6 Fast flash Off Fast buzzer Reverse connection of clamps.
7Off Fast flash No buzzer Engine is started.
8Off Fast flash No buzzer Vehicle’s battery voltage is higher than Jump Starter’s.
“BOOST” Mandatory Operations:
1) If with correct connection between Jump Starter and vehicle battery (Red LED keeps on and green LED
is off), press and hold BOOST button for 3 seconds (after a buzzer sound, the green LED is on and red
LED is off). Usually this is because the vehicle battery capacity is rather low.
2) Start the engine (same method as the normal operations in Page 6).
Cautions:
1) Under normal circumstances, do not use the mandatory operations.
2) The spark proof, reverse polarity protection and short circuit protection features are disabled after Boost
button is pressed. Pay very close attention to the polarity of the battery before using this mode.
Do not allow the positive and negative battery clamps to touch or connect to each other as the item will
generate sparks and high heat if not used properly.
LED and Buzzer Communication:
!

HYPS-40008
6. CHARGING
This product is partially charged from the manufacturer. Fully charge the unit immediately after purchase.
In order to prolong the product life, be sure to fully recharge the unit after each jumpstaring, or every 3
months even if this unit has not been used. If battery voltage in the HYPS-400 is too low, this item will shut
off to prevent damage to itself. Recharge the unit as soon as possible to be activated and fully charge it to
ensure long battery life. In addition, we recommend not to charge and discharge the unit at the same time.
AC Charging:
1) Insert AC charging adapter into charging jack of the unit.
2) Plug the other end of AC charging adapter into a wall socket.
3) Fully charge the unit.
4) When charging is complete, unplug the AC charging adapter from the wall socket first, then from the
charging jack on the HYPS-400.
DC Charging in Your Vehicle:
1) Turn the vehicle engine on.
2) Insert the DC charging adapter into the charging jack of the unit.
3) Plug the other end of DC charging adapter into vehicle’s cigarette lighter socket.
4) Fully charge the unit. Engine must keep running during entire charge.
5) When charging is completed, unplug the DC charging adapter from the vehicle first, then from the
charging jack on the HYPS-400.
Charging Time:
Charging time will differ based on the discharge level and the power source used. If charging begins from 1
Flashing LED to full charge, it approximately takes 4.3 hours for AC charging.
Battery Status Indicator:
The indicator LEDs will flash one by one during the period of charging. Different number of indicator LEDs
shows different storage level of HYPS-400.
Indicator LEDs. Unlit 1 Flashing 1 Solid 2 Solid 3 Solid 4 Solid
Storage Level 0% < 5% 5% ~ 25% 25% ~ 50% 50% ~ 75% 75% ~ 100%

HYUNDAI 09
7. USB POWER
Connect the USB device to the HYPS-400 with either the original cable or the included multi-tip cable
(better use original cable of Apple® for Apple® products). Press Power button to start USB power. When
disconnected, the HYPS-400 will automatically shut off. The number of times you can recharge a USB
device will vary between devices.
8. SUPPLY TO 19V LAPTOPS
Select the appropriate input tip and connect the HYPS-400 with your laptop. Press Power button to start
19V/3.5A power. When disconnected, the HYPS-400 will automatically shut off. The number of times you
can recharge a laptop will vary between devices.
9. SUPPLY TO 12V DEVICES
The HYPS-400 can run/charge 12VDC appliances that draw 10 amps or less. Two Options as follows:
1) Connect the HYPS-400 to 12V devices with optional accessory (This item does not include the
accessory). Press Power button to start 12V power. When disconnected, the HYPS-400 will automatically
shut off.
2) Connect the HYPS-400 to 12V devices by the included accessory. Do not need press Power button as
the EC5 12VDC output is ALWAYS activated. When battery voltage of 11 HYPS-400 is too low, 12V
devices will stop running/charging.
10. FLASHLIGHT
Press Flashlight button to start flashlight. Press once to switch lighting modes:
Steady On – Strobe – SOS – Off.

POWER SUPPLY HYUNDAI
