Hyundai VG Series User manual

Printed Date: 08/2021
www.hyundai-es.co.kr
HYUNDAI SOLAR MODULE
Tempered glass and reinforced frame
design withstand rigorous weather
conditions such as heavy snow and strong
wind.
Global brand with powerful financial
strength provide reliable 25-year warranty.
Hyundai’s R&D center is an accredited test
laboratory of both UL and VDE.
M6 PERC Shingled Technology provides
ultra-high efficiency with better
performance in low irradiation. Maximizes
installation capacity in limited space.
Reliable Warranty
M6 PERC Shingled
UL / VDE Test Labs
Mechanical Strength
Hyundai’s Warranty Provisions
25-Year Product Warranty
•On materials and workmanship
25-Year Performance Warranty
• Initial year: 98.0%
• Linear warranty after second year:
with 0.55%p annual degradation,
84.8% is guaranteed up to 25 years.
25
25
About Hyundai Energy Solutions Co., Ltd
Established in 1972, Hyundai Heavy Industries Group is one of the most trusted names in the
heavy industries sector and is a Fortune 500 company. As a global leader and innovator, Hyundai
Heavy Industries is committed to building a future growth engine by developing and investing
heavily in the field of renewable energy.
As a core energy business entity of HHI, Hyundai Energy Solutions has strong pride in providing
high-quality PV products to more than 3,000 customers worldwide.
Certification
For Both
Residential &
Commercial
Applications
More Power
Generation
In Low Light
Shingled
Technology
VG PERC Shingled
HiE-S390VG HiE-S395VG HiE-S400VG
HiE-S405VG HiE-S410VG HiE-S415VG
HiE-S420VG
SERIES
Australia and Europe Only
(Australia and Europe Only)

Output Tolerance
Bifaciality Factor
Mono-Crystalline Module(HiE-S____VG)
Module Type
*All Date at STC (Standard Test Conditions). Above data may be changed without prior notice.
*Tolerance of Pmax:0~+5W.
*Measuring uncertainty of power:±3%
*Performance deviation of Voc[V], Isc [A], Vm [V], and Im[A]:±3%.
Electrical Characteristics
Sales & Marketing
[email protected]
Printed date: 08/2021
Anodized aluminum
Mechanical Characteristics
Dimensions 1,719 × 1,140 × 35mm (L × W × H)
Weight 22kg
Solar Cells 340 Cells, PERC Mono-crystalines Shingled (166 × 166mm)
Output Cables Length1,500mm, 1×4mm² Stäubli : MC4-Evo2
Frame
Junction Box Rated Current : 20A, IP67, TUV&UL
Construction Front Glass: White toughened safety glass, 3.2mm
Encapsulation: EVA (Ethylene-Vinyl-Acetate)
Nominal Output(Pmpp)
Module Efficiency
Open Circuit Voltage(Voc)
Voltage at Pmax(Vmpp)
Short Circuit Current(Isc)
Currnt at Pmax(Impp)
W
V
A
V
A
%
390
390
46.3
10.87
38.5
10.13
19.9
395
395
46.3
10.92
38.5
10.26
20.2
400
400
46.4
10.97
38.6
10.36
20.4
-
V
%/°C
Cell Type
Maximum System Voltage
Temperature Coefficiency of Pmax
Temperature Coefficiency of Voc %/°C
PERC Mono-Crystalline Silicon Shingled
1,500
-0.34
-0.27
Temperature Coefficiency of Isc %/°C 0.04
Connector
•
•
•
•
Installation Safety Guide
Only qualified personnel should install or
perform maintainence.
Be aware of dangerous high DC voltage.
Do not damage or scratch the rear surface
of the module.
Do not handle or install modules when they
are wet.
405
405
46.5
11.02
38.7
10.47
20.7
410
410
46.6
11.07
38.8
10.57
20.9
Manufactured in China
415
415
46.7
11.12
38.9
10.67
21.2
420
420
46.8
11.17
39.0
10.78
21.4
Nominal Operating
Cell Temperature
Operating Temperature
Maximum
42.3℃（±2℃）
-40 ~ 85°C
DC 1,500
20A
Front 5,400 Pa
Rear 2,400 Pa
System Voltage
Maximum
Surface Load Capacity
Fire Rating
Series Fuse Rating
Class C

www.hyundai-es.co.kr
Headquarter
HYUNDAI ENERGY SOLUTIONS Co., Ltd.
Bundang First Tower, 55, Bundang-ro,
Bundang-gu, Seongnam-si,
Gyeonggo-do 13591, Korea
Tel. [phone]
https://www.hyundai-es.co.kr/
[email protected].kr
Factory
Tongwei Solar(Hefei) Co., Ltd.
No.888 Changning Road, High-tech
Destrict, Hefei, P.R. China
Tel. [phone]
http://www.tw-solar.com/en/
[e-mail]
Hyundai Limited Warranty for PV Modules
(“Limited Warranty”)
Effective February 1, 2022
Customer Name
Contract No.
Date of Issue
Project Name
(If Applicable)
The following warranty (“Limited Warranty”) is provided by Hyundai Energy Solutions Co.,
Ltd. (“HYUNDAI”) in regards to the photovoltaic modules (“MODULE(S)”) supplied to the
original end customer and subsequent owners at the original installation site (collectively
referred to as “CUSTOMER”). The Warranties defined herein apply only to the MODULES
which (a) are sold directly by HYUNDAI or through one of its authorized local distributors
and (b) have a legible Hyundai Energy Solutions Co., Ltd. logo and product serial number.
The start date for all of the following warranties is the earlier of either: (i) the date of
installation; or (ii) the 90th day (natural day) after the delivery at the end-customer’s site of
the HYUNDAI MODULES(“Warranty Start Date”). HYUNDAI reserves right to revise the
terms of this Limited Warranty without prior notice.
This Limited Warranty shall apply to the following Products:
- HiE-SxxxUH (xxx = 445-480, in increment of 5)
- HiE-SxxxSI (xxx = 395-455, in increment of 5)
- HiE-SxxxUI (xxx = 420-455, in increment of 5)
- HiE-SxxxVI (xxx = 460-505, in increment of 5)
- HiE-SxxxUF (xxx = 370-400, in increment of 5)
- HiE-SxxxSG (xxx = 325-380, in increment of 5)
- HiE-SxxxUG (xxx = 350-380, in increment of 5)
- HiE-SxxxVG (xxx = 380-420, in increment of 5)
- HiE-SxxxKN (xxx = 535-555, in increment of 5)
- HiE-SxxxDJ (xxx = 635-670, in increment of 5)
- HiE-SxxxHG (xxx = 425-445, in increment of 5)
- HiE-SxxxHG(FB) (xxx = 420-440, in increment of 5)
- HiE-SxxxDG (xxx = 405-425, in increment of 5)
- HiE-SxxxDG(FB) (xxx = 400-420, in increment of 5)
Importer in Australia
Trading Name: Metal Manufactures
Head Distribution Centre:
19-21 Loyalty Rd, North Rocks, NEW SOUTH
WALES, 2151 Australia
Tel. [phone]
https://www.mmem.com.au/
[email protected].au

www.hyundai-es.co.kr
Headquarter
HYUNDAI ENERGY SOLUTIONS Co., Ltd.
Bundang First Tower, 55, Bundang-ro,
Bundang-gu, Seongnam-si,
Gyeonggo-do 13591, Korea
Tel. [phone]
https://www.hyundai-es.co.kr/
[email protected].kr
Factory
Tongwei Solar(Hefei) Co., Ltd.
No.888 Changning Road, High-tech
Destrict, Hefei, P.R. China
Tel. [phone]
http://www.tw-solar.com/en/
[e-mail]
1. Product Warranty
A. HYUNDAI warrants to the CUSTOMER that the MODULES supplied shall, for the
duration of twenty-five (25) years from the Warranty Start Date (“Product Warranty
Period”), be free from defects in materials and workmanship under normal application,
installation, use, and service conditions.
If the MODULES fail to conform to this warranty during this Product Warranty Period,
(a) HYUNDAI has the right to choose the net value of the defective MODULES or the
current market MODULE price refunded to the CUSTOMER, the so-called defective
MODULES of the net value of the MODULES purchased at the time on the basis of the
first deduction of 16% depreciation, subsequent annual deductions 3.5% depreciation,
depreciation is calculated from the date of the warranty, up to 25 years; (b) Free repair or
replacement of defective MODULES, and to provide the initial sale of the delivery point
of free delivery service, the MODULES and parts to be replaced are owned by
HYUNDAI.
B. The remedies set forth in this clause shall be the sole and exclusive remedy available to
the CUSTOMER for any product defect, and shall not be available beyond the Product
Warranty Period for any reason whatsoever.
2. Performance Warranty
A. As for single glass MODULES:
HYUNDAI warrants to the CUSTOMER that for a period of one (1) year from Warranty
Start Date the actual power output of the MODULES will be no less than 98.0% of the
Nominal Power* at STC**, as specified on the date of sale in HYUNDAI’s product
datasheet. From the second year, the actual power output will decline annually by no
more than 0.55%p for a period of remaining twenty-four (24) years, so that by the end of
the twenty-five (25) year, an actual output of at least 84.8% of the Nominal Power* at
STC**, as specified on the date of sale in HYUNDAI’s product datasheet will be achieved.
B. As for double glass MODULES:
HYUNDAI warrants to the CUSTOMER that for a period of one (1) year from Warranty
Start Date the actual power output of the MODULES will be no less than 98.0% of the
Nominal Power* at STC**, as specified on the date of sale in HYUNDAI’s product
datasheet. From the second year, the actual power output will decline annually by no
more than 0.45%p for a period of remaining twenty-nine (29) years, so that by the end of
the thirty (30) year, an actual output of at least 84.95% of the Nominal Power* at STC**,
as specified on the date of sale in HYUNDAI’s product datasheet will be achieved
If the MODULES fail to reach the guaranteed power output levels set out above provided
that such loss in power is verified by HYUNDAI, (a) HYUNDAI has the right to choose
the net value of the defective MODULES or the current market MODULE price
Importer in Australia
Trading Name: Metal Manufactures
Head Distribution Centre:
19-21 Loyalty Rd, North Rocks, NEW SOUTH
WALES, 2151 Australia
Tel. [phone]
https://www.mmem.com.au/
[email protected].au

www.hyundai-es.co.kr
Headquarter
HYUNDAI ENERGY SOLUTIONS Co., Ltd.
Bundang First Tower, 55, Bundang-ro,
Bundang-gu, Seongnam-si,
Gyeonggo-do 13591, Korea
Tel. [phone]
https://www.hyundai-es.co.kr/
[email protected].kr
Factory
Tongwei Solar(Hefei) Co., Ltd.
No.888 Changning Road, High-tech
Destrict, Hefei, P.R. China
Tel. [phone]
http://www.tw-solar.com/en/
[e-mail]
refunded to the CUSTOMER, the so-called defective MODULES of the net value of the
MODULES purchased at the time on the basis of the first deduction of 16% depreciation,
subsequent annual deductions 3.5% depreciation, depreciation is calculated from the date
of the warranty, single glass MODULES up to 25 years, double glass MODULES up to
30 years; (b) Free repair or replacement of defective MODULES, and to provide the
initial sale of the delivery point of free delivery service, the MODULES and parts to be
replaced are owned by HYUNDAI.
C. The remedies set forth in this clause shall be the sole and exclusive remedies provided
for any performance deficiencies, and shall not be available beyond the aggregate
specified Performance Warranty Periods for any reason whatsoever.
3. Exclusions and Limitations
A. A warranty claim under any of the foregoing Warranties must be filed within the
applicable warranty period.
B. The Warranties do not apply to any MODULE, which in HYUNDAI’s sole and absolute
judgment, has been subjected to:
(a) Damage and/or failure caused by use on a mobile unit including, but not limited to,
vehicles, vessels, etc.;
(b) Damage and/or failure caused by non-compliance with national and local electric
codes;
(c) Damage and/or failure caused by installations not in conformance with the
MODULE(S) specifications, installation manuals, operation manuals, or labels
attached to the MODULE(S);
(d) Damage and/or failure caused by improper wiring, installation, or handling;
(e) Damage and/or failure caused by devices and/or parts other than the MODULE(S) or
by mounting methods of such devices and/or parts;
(f) Damage and/or failure caused by improper or incorrectly performed maintenance,
operation or modification;
(g) Damage and/or failure caused by removal from the original place of installment;
(h) Damage and/or failure caused by repairs not in accordance with HYUNDAI’s
instructions;
(i) Damage and/or failure caused by inappropriate handling during storage, packaging
or transportation; without limitation including damage caused by improper treatment,
overloading, electro-chemical or electrical influences, or any other circumstances that
may arise through no fault of HYUNDAI;
(j) Damage and/or failure caused by external shock such as flying objects or external
stress;
(k) Damage and/or failure caused by direct contact with environmental pollution such as
soot, acid rain or industrial chemicals including ammonia;
Importer in Australia
Trading Name: Metal Manufactures
Head Distribution Centre:
19-21 Loyalty Rd, North Rocks, NEW SOUTH
WALES, 2151 Australia
Tel. [phone]
https://www.mmem.com.au/
[email protected].au

www.hyundai-es.co.kr
Headquarter
HYUNDAI ENERGY SOLUTIONS Co., Ltd.
Bundang First Tower, 55, Bundang-ro,
Bundang-gu, Seongnam-si,
Gyeonggo-do 13591, Korea
Tel. [phone]
https://www.hyundai-es.co.kr/
[email protected].kr
Factory
Tongwei Solar(Hefei) Co., Ltd.
No.888 Changning Road, High-tech
Destrict, Hefei, P.R. China
Tel. [phone]
http://www.tw-solar.com/en/
[e-mail]
(l) Damage and/or failure caused by direct contact with salt water;
(m) Damage and/or failure caused by natural forces (earthquakes, tornados, floods,
lightning, hurricanes, heavy snow, hail, etc.) and fire, power failures, power surges
or other unforeseen circumstances that are beyond HYUNDAI’s control;
(n) Damage and/or failure caused by terrorist acts, riots, war or other man-made disasters;
(o) Damage and/or failure caused by external stains or scratches that do not affect output;
(p) Damage and/or failure caused by sound, vibration, rust, scratching, or discolorations
that are the result of normal wear and tear, aging or continuous use; or
(q) Damage and/or failure caused by MODULE(S) installed in a location that exceeds
operating conditions.
(r) Repair or modifications by someone other than an approved service technician of
HYUNDAI.
D. The Product Warranty and Performance Warranties shall be applied exclusively of one
another. HYUNDAI, at its sole option and in its sole discretion, will decide whether the
cause of the claim is applicable to the Product Warranty or any of the Performance
Warranties.
E. HYUNDAI will decide, at its sole and absolute option, whether to collect replaced
MODULES or not. In the case HYUNDAI decides to collect all or some of the replaced
MODULES, HYUNDAI will cover transportation (other than air transport) costs for
returning the MODULES. In the case HYUNDAI decides not to collect any replaced
MODULES, HYUNDAI will not cover any transportation costs for returning the
MODULES. In any case, HYUNDAI will not cover any of the costs associated with the
installation, removal, reinstallation, discarding or packaging of the MODULES. If the
collected MODULES are found not to be covered under these Warranties at HYUNDAI’s
sole and absolute judgement, CUSTOMER is obliged to cover all associated costs
mentioned above.
F. In the event that any model or make of MODULES for which a claim is made under
either of the foregoing Warranties have been discontinued or materially altered,
HYUNDAI reserves the right to replace the MODULES with any other module type that
may be different in output, size, color or material.
G. Any repaired or replaced MODULES under these Warranties will hold only the
remaining warranty period applicable to the original MODULES.
H. The Warranties provided under this Limited Warranty shall only extend to MODULES
that have been installed within the sales area.
I. Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
Importer in Australia
Trading Name: Metal Manufactures
Head Distribution Centre:
19-21 Loyalty Rd, North Rocks, NEW SOUTH
WALES, 2151 Australia
Tel. [phone]
https://www.mmem.com.au/
[email protected].au

www.hyundai-es.co.kr
Headquarter
HYUNDAI ENERGY SOLUTIONS Co., Ltd.
Bundang First Tower, 55, Bundang-ro,
Bundang-gu, Seongnam-si,
Gyeonggo-do 13591, Korea
Tel. [phone]
https://www.hyundai-es.co.kr/
[email protected].kr
Factory
Tongwei Solar(Hefei) Co., Ltd.
No.888 Changning Road, High-tech
Destrict, Hefei, P.R. China
Tel. [phone]
http://www.tw-solar.com/en/
[e-mail]
goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
4. Severability
If any court or competent authority finds any clauseor portion of any clause of this Limited
Warranty invalid, illegal, or unenforceable, that portion will be deemed to be deleted only to
the extent required, and the validity and enforceability of the rest of the Limited Warranty
shall not be affected.
5. Assertion of Claims
The assertion of claims under this Limited Warranty presupposes that the Customer has (i)
informed the authorized reseller/distributor of our Module(s) in writing of the alleged claim,
or that; (ii) this written notification has been sent directly to HYUNDAI in the event that the
authorized reseller/distributor no longer exists (e.g. due to discontinuance of business or
bankruptcy). Any such assertion of claims must be accompanied by the original sales receipt
as the proof of purchase and time of purchase of HYUNDAI Module(s). The assertion of the
claim must occur within thirty (30) days (natural day) from the date that the defects occurred.
The return of Module(s) may only occur after the written authorization of HYUNDAI has
been given.
6. Force Majeure
HYUNDAI shall bear no responsibility or liability for the non-performance or delay of any
duties or obligations arising out of this Limited Warranty due to natural disasters, industrial
disputes, government regulations, civil riot or war, or any other event outside HYUNDAI’s
control that is not reasonably known or understood at the time of sale of the MODULES.
7. Liability
THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, REPRESENTATIONS, OR CONDITIONS, EXPRESS
OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR
OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF
MERCHANTABILITY, NONINFRINGEMENT, AND FITNESS FOR A PARTICULAR
PURPOSE. HYUNDAI NEITHER ASSUMES NOR AUTHORIZES ANY OTHER
PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE
SALE, INSTALLATION, MAINTENANCE, OR USE OF THE GOODS. HYUNDAI
SHALL BEAR NO RESPONSIBILITY OR LIABILITY WHATSOEVER FOR ANY
DAMAGE OR INJURY TO PERSONS OR PROPERTY, OR FOR ANY OTHER LOSS
OR INJURY RESULTING FROM ANY CAUSE WHATSOEVER ARISING OUT OF OR
RELATED TO THE NEGLIGENT USE, MISUSE OR NEGLIGENT INSTALLATION OF
THE MODULES. UNDER NO CIRCUMSTANCES SHALL HYUNDAI BE LIABLE FOR
Importer in Australia
Trading Name: Metal Manufactures
Head Distribution Centre:
19-21 Loyalty Rd, North Rocks, NEW SOUTH
WALES, 2151 Australia
Tel. [phone]
https://www.mmem.com.au/
[email protected].au

www.hyundai-es.co.kr
Headquarter
HYUNDAI ENERGY SOLUTIONS Co., Ltd.
Bundang First Tower, 55, Bundang-ro,
Bundang-gu, Seongnam-si,
Gyeonggo-do 13591, Korea
Tel. [phone]
https://www.hyundai-es.co.kr/
[email protected].kr
Factory
Tongwei Solar(Hefei) Co., Ltd.
No.888 Changning Road, High-tech
Destrict, Hefei, P.R. China
Tel. [phone]
http://www.tw-solar.com/en/
[e-mail]
DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE APPLICABLE
MODULE(S), NOR FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES, HOWSOEVER CAUSED. LOSS OF USE, LOSS OF PROFITS, LOSS OF
PRODUCTION AND LOSS OF REVENUES ARE SPECIFICALLY EXCLUDED.
_________________________________________________________________________
*”Nominal Power” is the power in watt peak that a MODULE generates in its maximum power point.
**“STC(Standard Test Conditions)”is as follows: (a) light spectrum of AM 1.5, (b) an irradiation of 1,000
W/m2 and (c) a cell temperature of 25 ℃. The measurements must be carried out at HYUNDAI or an
independent test institute agreed to by HYUNDAI in advance, in accordance with IEC60904 as tested at the
junction box connectors per the calibration and testing standards of HYUNDAI. These measurements will be
considered valid at the production date of the MODULES with an equipment tolerance of ±3%. HYUNDAI’s
calibration standards shall be in compliance with the standards applied by international institutions accredited
for this purpose.
Importer in Australia
Trading Name: Metal Manufactures
Head Distribution Centre:
19-21 Loyalty Rd, North Rocks, NEW SOUTH
WALES, 2151 Australia
Tel. [phone]
https://www.mmem.com.au/
[email protected].au

HES INSTALLATION MANUAL (IEC)
Issued on June. 13th, 2022 (Version1.1)

Contents
1 General Information ------------------------------------------------------------------------------------------------------------------------------------------------ 1
Installation Manual Disclaimer ----------------------------------------------------------------------------------------------------------------------------- 1
Limitation of liability ------------------------------------------------------------------------------------------------------------------------------------------ 1
2 General Principles Of Security ------------------------------------------------------------------------------------------------------------------------------------ 1
Electrical safety ------------------------------------------------------------------------------------------------------------------------------------------------ 2
Fire Safety ------------------------------------------------------------------------------------------------------------------------------------------------------- 3
Transportation safety ----------------------------------------------------------------------------------------------------------------------------------------- 3
Install Security -------------------------------------------------------------------------------------------------------------------------------------------------- 3
3 Electrical Properties ------------------------------------------------------------------------------------------------------------------------------------------------- 4
Electrical installation ------------------------------------------------------------------------------------------------------------------------------------------ 4
Cables and wires ----------------------------------------------------------------------------------------------------------------------------------------------- 5
Connector ------------------------------------------------------------------------------------------------------------------------------------------------------- 5
Bypass Diode---------------------------------------------------------------------------------------------------------------------------------------------------- 5
Grounding ------------------------------------------------------------------------------------------------------------------------------------------------------- 6
4 Handling, transportation, storage and unpacking ----------------------------------------------------------------------------------------------------------- 7
Handling, Transportation and Tran-shipment ---------------------------------------------------------------------------------------------------------- 7
Storage ----------------------------------------------------------------------------------------------------------------------------------------------------------- 8
Unpacking ------------------------------------------------------------------------------------------------------------------------------------------------------- 9
5 Module Installation ------------------------------------------------------------------------------------------------------------------------------------------------ 11
Installation environment ---------------------------------------------------------------------------------------------------------------------------------- 11
Inclination Choice -------------------------------------------------------------------------------------------------------------------------------------------- 11
Machinery Installation ------------------------------------------------------------------------------------------------------------------------------------- 12
Location Choice ---------------------------------------------------------------------------------------------------------------------------------------------- 12
Wiring ---------------------------------------------------------------------------------------------------------------------------------------------------------- 13
6 Installation Guide -------------------------------------------------------------------------------------------------------------------------------------------------- 15
Installation Method: Bolting ------------------------------------------------------------------------------------------------------------------------------ 16
Installation method: Clamps ------------------------------------------------------------------------------------------------------------------------------ 18
7 Maintenance -------------------------------------------------------------------------------------------------------------------------------------------------------- 22
Cleaning -------------------------------------------------------------------------------------------------------------------------------------------------------- 22
Visual inspection --------------------------------------------------------------------------------------------------------------------------------------------- 22
Inspection of connector and cable ---------------------------------------------------------------------------------------------------------------------- 22
AMENDED EDITIONS AND DATES -------------------------------------------------------------------------------------------------------------------------------- 23
INTERNAL FILE NUMBER ----------------------------------------------------------------------------------------------------------------------------------------23

1
General Information
This general manual provide important electrical and mechanical installation information. For correctly
installation and obtain stable power output, please read and understand this manual carefully before installing and
maintaining the PV modules. And keep this manual properly for future reference during PV module maintenance or
sales.
This manual does not constitute a warranty, expressed or implied. Hyundai Energy Solution does not assume
responsibility and expressly disclaims liability for loss, damage, or expense arising out of or in any way connected with
installation, operation, use or maintenance of modules.
PV module should be installed in accordance with all safety precautions in this manual and local laws and
regulations, and should be installed and maintained by qualified professionals who have professional skills and
knowledge and are familiar with the mechanical and electrical requirements of the system. The installer must inform
the customer.
Any questions, please contact with the salesman or customer service personnel of Hyundai Energy Solution for
further explanations.
Installation Manual Disclaimer
Hyundai Energy Solution reserves the right to change this user manual without prior notice.
This user manual is not a warranty, nor does it have any meaning of warranty.
This manual will be updated from time to time, please contact the commercial department of Hyundai Energy
Solution to obtain relevant products and documents.
Limitation of liability
Hyundai Energy Solution shall not be responsible for any kind of injury, including but not limited to physical injury
or property damage caused by module operation, system installation error or failure to follow instructions in this
manual.
2
General Principles Of Security
Modules rated for use in this application class may be used in systems operating at greater than 50V DC or 240W,
where general contact access is anticipated. Modules qualified for safety through IEC 61730-1 and this part of IEC
61730 within this application class are considered to meet the requirements for safety class II.
No matter whether the PV module is connected to the system or not, proper protective measures should be
used when touching the PV module, such as insulation tools, safety caps, insulation gloves, safety belts, and safety
insulation shoes. During installing, grounding, connecting cables, and cleaning modules, the proper electrical
protection tools must be used too.

Avoid contact with modules directly, which may cause electric shocks or cuts.
The installation should comply with the laws and regulations specified by the relevant region and country. If
necessary, obtain the required certificates such as building permit.
Module installation shall be carried out by qualified professionals with technical knowledge and familiarity with
the mechanical and electrical requirements of the system. Be aware of the risks of injury, including electric shock,
that may occur during installation.
The modules are applied to the ground, roof, fish pond and other outdoor environments. Proper design of
support structures is the responsibility of the system designer or installer. When applied to roof installation, the
overall fire rating of the final structure needs to be considered, as well as the overall maintenance of the later period.
A roof system can only be installed on a roof that has been assessed by a construction expert with the results of a
formal complete structural analysis.
Comply with safety regulations for all installed components. Such as wires and cables, connectors, charging
controllers, inverters, batteries, etc., only the equipment, connectors, wires and brackets that match the solar power
system can be used. If the photovoltaic system uses energy storage batteries, the configuration of the modules should
follow the advice of the battery manufacturer.
Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances
as unsorted municipal waste, use separate collection facilities.
Contact your local government for information regarding the collection
systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain,
damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to
take back your old appliance for disposals at least free of charge.
Electrical safety
For avoid any form of electrical accidents, please followed the following electrical safety provisions strictly.

Damaged modules pose a risk of electric shock and
fire, should be replaced immediately.

The DC voltage generated by module may exceed
30V, please avoid contact directly.

Ensure that the cable is fixed to the support
bracket for installing modules.

Protect cables with catheters in areas accessible to
animals and children.

Do not manually modify or remove any module or
label.

The installation of the module array must be
carried out in isolation from direct sunlight.

The serial voltage of modules must not exceed the
maximum system voltage.

Do not connect modules with connectors of
different models from different manufacturers.

Do not replace roofing and wall materials with
modules.

Do not connect or disconnect modules when there
is current or external current.


Do not install modules without taking protective
measures.

Do not use any means other than connectors for
electrical connection.

Do not coat the surface of the module with
corrosive chemicals.

Do not install or operate modules in damp or
windy conditions.

Do not add any light concentrators to the module.  Do not touch the module when it is wet.
Fire Safety
Before installing modules on the roof, refer to local laws and regulations and comply with building fire protection
requirements. The roof shall be covered with a suitable grade of fireproof material for roof installation and to ensure
that the modules and mounting surfaces are fully ventilated. Different roof structures and installation methods can
affect the fire performance of a building. Improper installation may cause a fire.
Use appropriate components such as fuses, circuit breakers and ground connectors according to local regulations.
Do not install or use modules near open flames or flammable or explosive objects.
Transportation safety
Do not open the packing case before the modules arrive at the installation site. Place the packing case in a dry
and ventilated environment.
During all handling, ensure that the module will not be shaken, dropped to the ground, or objects will fall on the
module, as this will damage the module or the solar cells in the module. Do not allow children or unauthorized persons
to handle modules. Improper handling and placement may result in glass breakage or loss of electrical properties,
thus rendering the modules useless.
Handle and installation modules with care. Under no circumstances should assemblies be lifted by lifting junction
boxes or cables. Two or more persons must hold the edges of assemblies with both hands.
Do not step on, stand on or sit on modules as this can damage modules and risk injury to people.
Do not stack modules, do not place any heavy objects on the front and back of modules, and do not place
modules on sharp surfaces.
Install Security
Comply with safety rules applicable to all installed modules. Such as wires and cables, connectors, charging
controllers, inverters, batteries, etc., only the equipment, connectors, wires and rails that match the solar power
system can be used.
If the photovoltaic system uses energy storage batteries, the configuration of the modules should follow the
advice of the battery manufacturer.
Do not install or operate s in damp or windy conditions, and keep the junction box cover closed.

The glass can protect the module, improper operation may cause the glass to be broken. Damaged module pose
a risk of electric shock and fire. Such modules cannot be repaired or repaired and should be replaced immediately.
When sunlight strikes the front of the module, the module generates electricity and the DC voltage may exceed
30V. Avoid direct contact with the voltage of 30V or higher to avoid danger.
To reduce or avoid the array mismatch effect, it is recommended to connect modules with similar electrical
properties on the same string.
When connecting modules, ensure that the connecting cables are fixed on the support frame of the module to
limit the swing of the slack part of the cable.
Comply with the minimum bending radius of the cable (not less than 43mm is recommended).
3
Electrical Properties
Electrical installation
The module product specification lists the specific electrical performance of photovoltaic modules in detail, and
the nameplate of each module is also marked with the main electrical performance parameters under STC conditions
(1000W/㎡, AM 1.5, cell temperature 25°C). The product specification and nameplate are also marked with the
maximum system voltage of the module.
Under certain environmental conditions, the current or voltage generated by the module may be greater than
the operating current or voltage for standard test conditions (STC). Therefore, when determining the current/voltage
ratings and load values of electrical components, the module short-circuit current under STC should be multiplied by
1.25, and the open-circuit voltage should be corrected according to the calculation formula below:
Maximum System Voltage
≥ N×Voc×[1 ＋ λvoc （ Tmin-25 ℃）
While,
N — Serial number of modules in strings
Voc — Open circuit voltage value of module under STC (see module nameplate)
λvoc — Open circuit voltage temperature coefficient of the module (see module technical specification)
Tmin — Annual minimum temperature for module installation position (for example, -20 ° C, Tmin = -20)
When determining the appropriate wire and fuse specifications, the maximum fuse current rating is selected by
reference to the product specifications.
The system electrical design and calculation shall be determined by a qualified electrical engineer.
The minimum over-current protection device specification is determined by calculating the maximum expected
current of the photovoltaic system. The maximum over-current protection device specification is mandatory in IEC
61215:2016 and IEC61730:2016 standards.

If there may be a reverse current through the module that exceeds the maximum fuse current, the module must
be protected by over-current protection. If the number of parallel connections is greater than or equal to 2, an over-
current guard must be installed on each assembly.
Do not install in rainy weather, moisture will lead to insulation failure, prone to safety accidents.
For specific electrical performance parameters, please refer to the product specifications.
Cables and wires
The junction box of each module is equipped with two separate wires, one positive and one negative, which can
be connected in series by inserting the positive connector of one module into the socket of the negative connector of
the adjacent module.
During installation, do not use lubricating oil or alkane cleaning agents to clean connectors, junction boxes, and
cables.
The cross-sectional area of the cable and the capacity of the connector must meet the maximum short-circuit
current of the module (for a single module, the cross-sectional area of the cable is 4mm2, and the cable temperature
ranges from -40 ° c to +90 ° c).
When the cable is fixed on the bracket, it is necessary to avoid mechanical damage to the cable or module. The
cable is fixed on the bracket with specially designed light resistant tie and cable card. The cable is light resistant and
waterproof, and also avoid direct sunlight and water soaking the cable.
Connector
When connecting modules, ensure that the connectors of the same string of modules are from the same
manufacturer or fully compatible, and the connection terminals of the modules and the system must also be in the
same way. The connectors of different manufacturers may be incompatible, which may cause mismatching and
burning.
Keep the connector dry and clean.
Do not connect the connector when it is damp or dirty.
Do not expose the connector to direct sunlight or water.
Bypass Diode
The junction box of the Hyundai Energy Solution module contains the bypass diode and forms a parallel structure
with the circuit. When the solar cells of the module is blocked or damaged, the hot spot phenomenon occurs in the
part of the module, the diode will work, so that the current no longer flows through the hot spot solar cell, so as to
limit the heating and performance loss of the module.
Note that the bypass diode is not an over-current protector.

Grounding
The module use anodized corrosion-resistant aluminum alloy frames as rigid supports. To protect the module
from lightning and static electricity, and to protect personal safety. All frames and mounting brackets of the
components must be grounded. If there are no specific regulations, please follow the International Electrotechnical
Commission standard or other international standards. Connect the ground cable with the recommended connection
terminal and fix it to the module frame. It is recommended to use 12AWG copper core wire. Figure 1 shows the
grounding holes and its identification on the assembly, and Figure 2 shows the assembly grounding method.

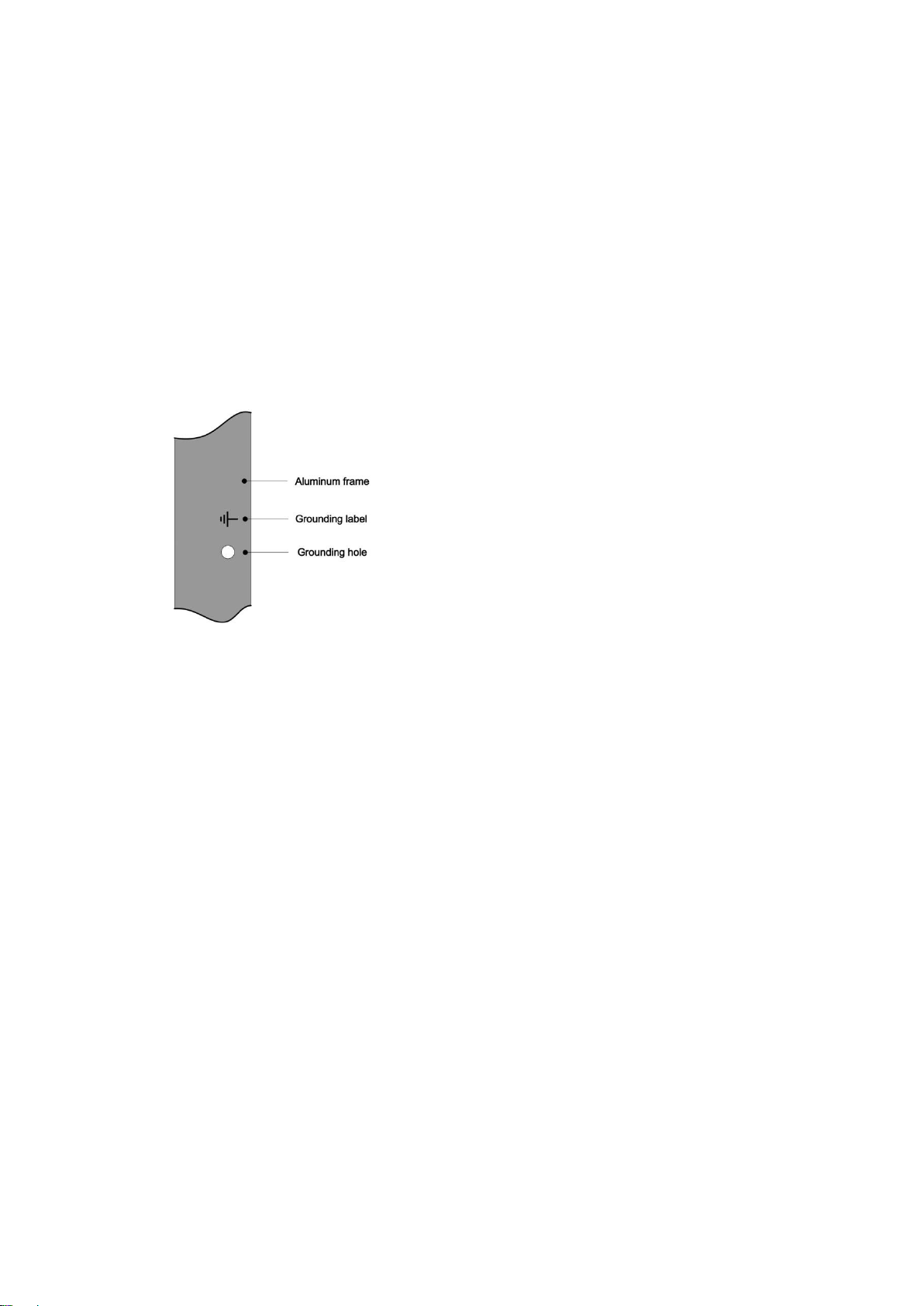

Figure 1. Ground hole and its identification Figure 2. Grounding method
The holes are used for grounding only and cannot be used to install module. Do not drill any additional ground
holes on any frame of the modules. Otherwise, the module warranty will be invalid.
When grounding, the grounding device must fully contact the interior of aluminum alloy, penetrate the oxide
film on the surface of the frame, and connect the frame of the module and the supporting member to achieve good
grounding effect. Use an electroplated support frame to ensure good electrical conductivity.
The ground conductor must be connected to the ground by a suitable ground electrode. You are advised to use
a ground cable accessory (wiring nose) to connect the ground cable. Weld the ground cable into the socket of the
wiring nose, insert the M4 screw into the ring of the wiring nose and the hole in the middle of the module frame, and
secure the cable using a nut. Spring washers should be used to prevent screw loosening resulting in poor grounding.
If the module is used in a high temperature and humidity environment, it is recommended to install an inverter
with an isolation transformer that can be negatively grounded (figure 3 shows the system voltage polarity
configuration).

+ 1 5 0 0
+ 7 5 0
+ 0
Negative grounding
Figure 3. Schematic diagram of grounding potential of inverter
The module may be grounded using a third party grounding device, provided that the grounding device is reliable
and proven and operated in accordance with the manufacturer's requirements.
4
Handling, transportation, storage and unpacking
Hyundai Energy Solution’s module have horizontal packaging and vertical packaging according to different
product. There are significant differences between horizontal packaging and vertical packaging in loading, unloading,
transportation and unpacking. Please be sure to follow the above operations in this manual.
The patterns of horizontal and vertical packing are as follows:

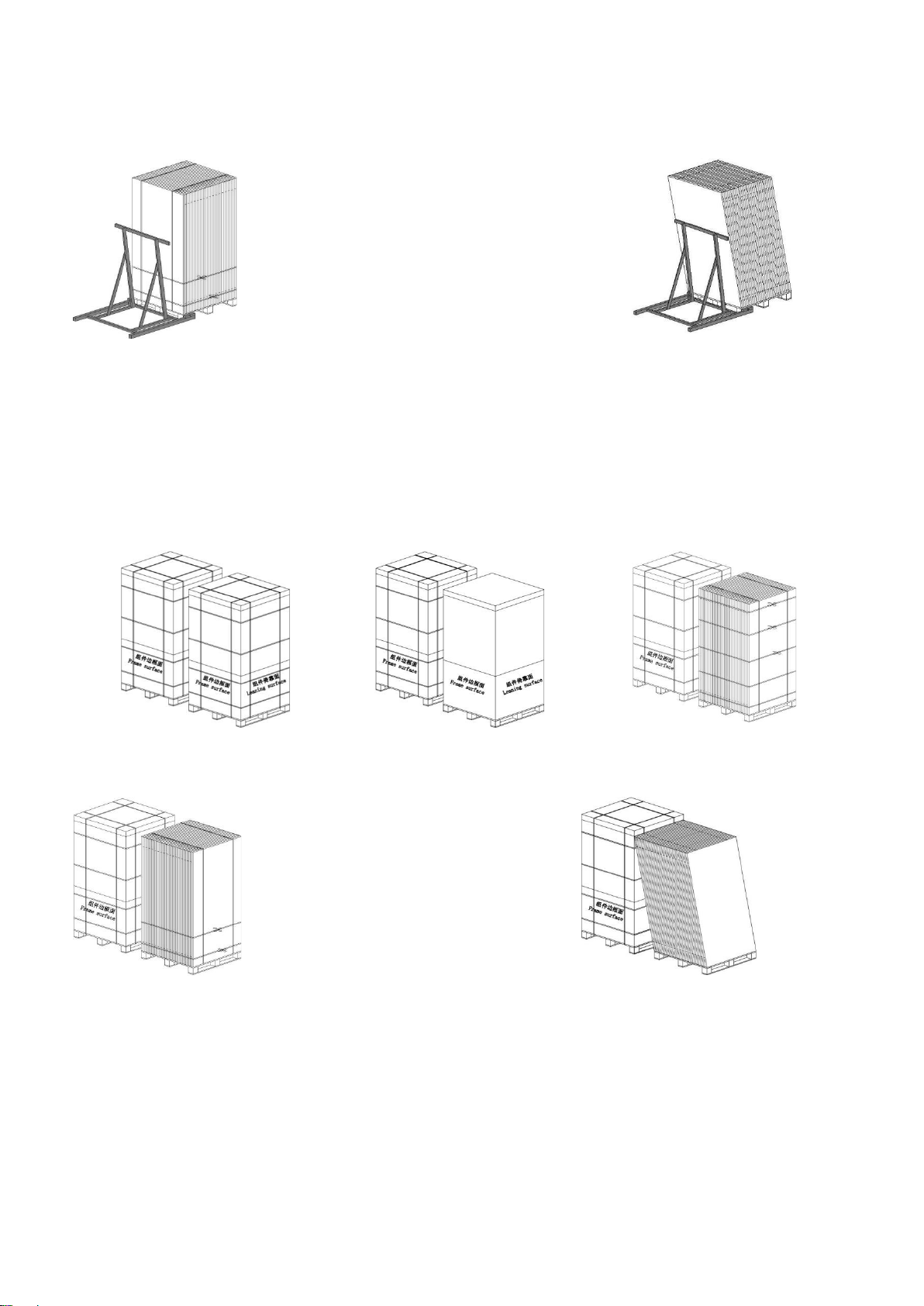

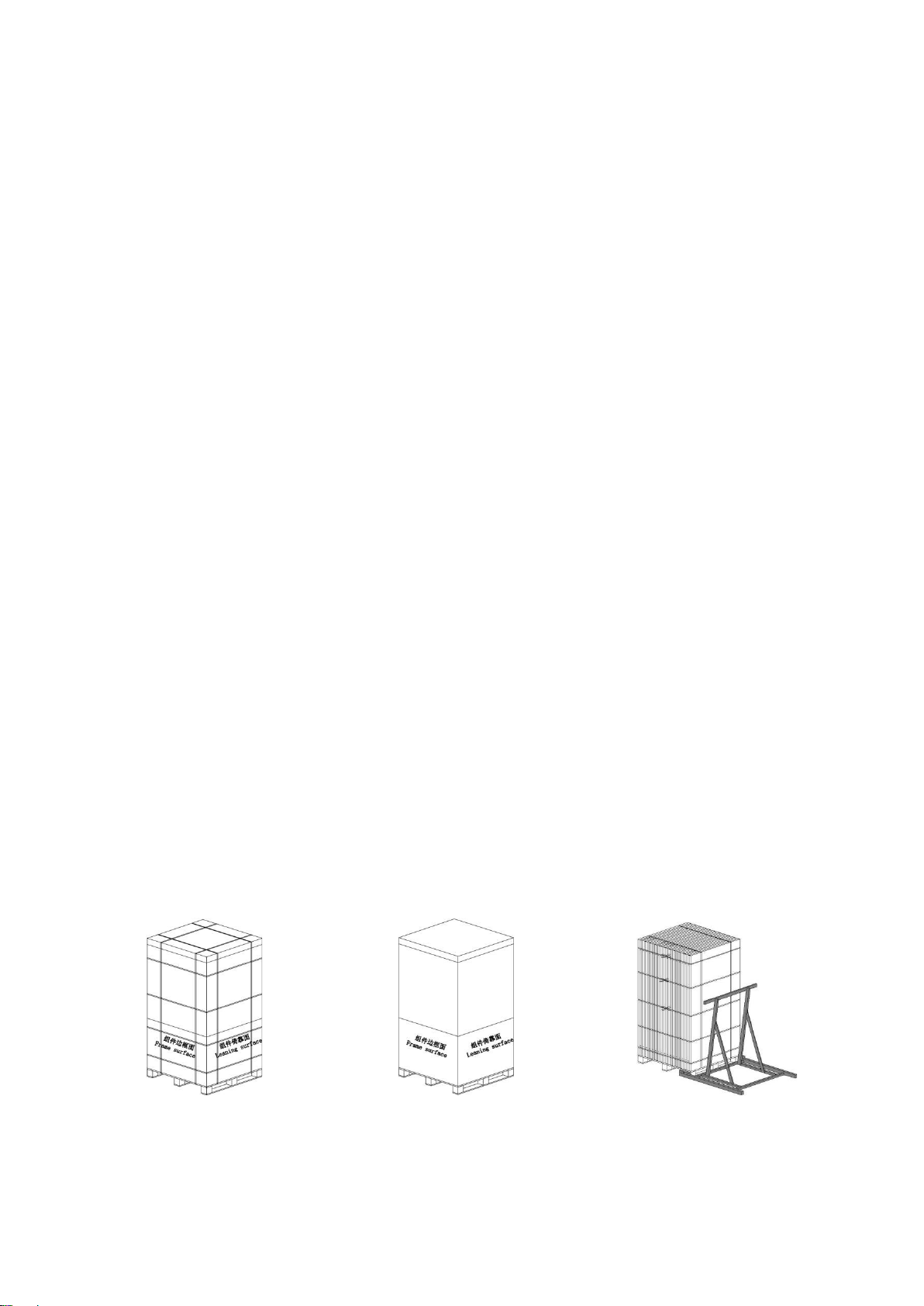

Figure 4. Horizontal packaging Figure 5. Vertical packaging
Handling, Transportation and Tran-shipment
After the module arrived, please check the overall status of the package in time. If there is any abnormal
condition such as package damage, deformation or skew, please contact the customer service or logistics
personnel of Hyundai Energy Solution immediately.
Place the module on flat ground after transporting it to the installation site.
Forklift to unload
If forklift tools are used, the forklift tools should be reasonably selected according to the size and weight of the
goods. If the fork of the forklift is less than 3/4 of the size of the cargo, it should be covered with an extended fork
assembly to avoid tipping the package when moving the forklift.

Straight-line driving speed control of forklift truck transportation ≤5km/h, turning speed ≤3km/h; during
transportation, the spacing between goods and inserts should be adjusted to the maximum position of the
spacing between pallets.
During loading and unloading, except forklift operators, other personnel should keep within a safe distance to
ensure personnel safety.
Lifting the unloading
If a crane is used to unload the package, use a dedicated hoisting tool. Select a proper hoisting tool based on the
weight and size of modules. Use a fixing tool of the same size on the top of the package to prevent the lifting rope
from squeezing the package or modules.
Horizontal packaging can lift up to 4 sets of modules at a time, vertical packaging can lift up to 2 sets of modules
at a time.
Tran-shipment
If vertical packaging modules need to be transported to the construction project site through secondary
transportation after being transported to the centralized storage site by container or flatbed vehicle, the following
points should be noted:
If forklift truck is used for transport, the forklift truck shall comply with the above requirements for unloading,
and the forklift truck size shall be at least ≥ 3T;
If you use a box truck or other type of vehicle, please use a carriage with guardrail, the height of the guardrail is
not less than 2/3 of the height of the module, and use fastening straps to secure the module to the carriage; modules
should be placed closely with each other, and gaps should not be left.
If the vertical package is turned to horizontal by a turning machine, please note that the flat tray structure is
used as the bearing unit of the module after turning over, and only the frame surface of the module can be used as
the bearing surface of the module after turning over.
Retail packaging
If the modules are not filled when they are shipped, Hyundai Energy Solution uses wooden frames of the same
size as the modules as packing fillers. The wooden frames are located in the middle of the packaging body, and the
scattered packaging method is exactly the same as the integral packaging method.
Storage
Please store the modules in a dry and ventilated environment and place the modules on a relatively flat ground.
Ensure that the outer package of the modules is intact. Ensure that the pallets and packages are protected from
moisture and direct sunlight in the storage area, and take waterproof (rain) measures.
If the modules are stored in an uncontrolled environment, they must not be stored for more than 3 months.
Additional measures should be taken to protect the connector from moisture or sun exposure, such as using the
connector end cover;
Long-term storage of modules is recommended to be stored in a standard warehouse. Check for module tilt
anomalies periodically.

Do not soak the tray in water. Take drainage measures on the ground to prevent the wooden pallet from rotting
or the ground from sinking after a rain.
Unpacking
Please confirm the product model, power, quantity and serial number according to the shipping mark posted on
the container before unpacking. For vertical packaging, please carefully read the unpacking operation instructions
and unpacking support assembly operation instructions, do not use other unpacking methods other than the
unpacking operation instructions.

Do not lift the wiring and junction box of the module, hold the frame while carrying.

During handling, do not distort or bend modules due to operation or other weight.

The number of modules stacked horizontally does not exceed 18.

Do not rely on the backplane to support modules when moving or installing them.

Do not contact the module with sharp objects to avoid damaging the module.

Vertical packing and unpacking shall not be carried out on non-horizontal or soft ground;

When vertical packing and unpacking, the operator shall not stand behind the reclining surface;

After unpacking, do not place module electrical connectors near any unauthorized chemical substance.
Horizontal packaging
Applicable product series:
HiE-SxxxUF Series, HiE-SxxxUH Series, HiE-SxxxVG Series, HiE-SxxxVI Series, HiE-SxxxHG Series, HiE-SxxxDG Series
HiE-SxxxKN Series horizontal packing and unpacking is the conventional packing method, which will not be specified
here. If you have any questions in the process of unpacking, please contact Hyundai Energy Solution commercial
department to provide specific information.
Vertical packaging
Applicable product series:
HiE-SxxxDJ, HiE-SxxxDI
Unpacking method 1: unpacking with brackets
The unpacking modules are placed on a
level floor
Remove the plastic wrap, wrapping film,
cover and surface of the packing case
Place a support bracket on either of the
recline surfaces of the assembly and
remove the three transverse steel strips
from the upper part of the assembly with a
cutter

Two people stand on the frame surface of
the module to hold the component, while
the other person cuts the lower two
transverse plastic steel packing belts
Gently push the assembly so that it leans
against the support frame and remove the
vertical steel strip
Remove all modules in sequence to
complete module unpacking
Unpacking method 2: Rely on
Unpacking the reclining surface needs to
be close to a solid wall or another pallet of
intact components of the same size
Two people stand on the frame surface of
the module to hold the module, while the
other person cuts the lower two transverse
plastic steel packing belts
Remove the plastic wrap and wrapping film
for the modules to be removed, and
remove the cover and packing case
Gently push the module so that it leans
against the support, removing the vertical
strip of plastic steel
Use scissors to remove the three
transverse steel strips from the upper
part of the assembly
Remove all modules in sequence to
complete module unpacking
