INSTALLATION MANUAL (HiE-SxxxSG/SI, IEC)
Issued on Sep. 17th, 2019
1. General Information
·This Installation manual contains information regarding the installation and the safe handling method
of the photovoltaic module (hereafter referred to as “module”) supplied by Hyundai Energy Solutions
Co., Ltd. (hereafter referred to as “HES”).
·HiE-SxxxSG: 340 pieces, 325-350W, 1500V
HiE-SxxxSI: 408 pieces, 395-420W, 1500V
·System users and installers should read and understand this manual before handling, installing the
module. Please contact Customer Support department or our local representatives for more detailed
information.
·Before installing solar photovoltaic systems, mechanical and electrical requirements for the total
system should be checked as well. Keep this manual in a safe place for future reference.
·The installer should consider every safety precautions specified in this manual and local codes when
installing a module.
·HES modules are tested and certified for installation worldwide. Different regions may have different
regulations for solar PV installations. In this manual, hereafter “IEC only” is used to refer to regions
where IEC standard applies, e.g. Europe, Middle East, most of Asia Pacific countries; “UL only” is
used to refer to regions where UL standard applies, e.g. United States, Canada; all other references
are global.
1.1
·Installing solar photovoltaic systems requires specialized skills and knowledge. Thus, before
installation, wiring, and operation of photovoltaic modules, system users and installer should
understand and conform to this manual.
·Installation and wiring should only be performed and supervised by qualified persons.
·Each module has a junction box for permanent cable connection. HES can provide customers with
fitted cables for easy installation. Installers should secure the safe installation status including all
electrical hazards.
1.2
·Installers should secure the installation status, without limitation, including the risk of electric shock.
·Backsheet of PV module should be kept safe from any damage or scratch to prevent mechanical or
electric shock.
·Do not disassemble or remove any part of a PV module. Such actions may cause electric shock, fire
or damage.
·Keep safety regulations for all components used in the system, including wiring and cables,
connectors, charging regulators, inverters, storage batteries and rechargeable batteries, etc.

www.hyundai-es.co.kr
Page 2 of 13
Sales Office
4th Fl., First Tower,
55, Bundang-ro, Bundang-gu,
Seongnam-si, Gyeonggi-do,
13591 Korea
Factory
313, Soi-ro, Soi-myeon, Eumseong-gun,
Chungcheongbuk-do 369-872, Korea
1.3
·Before installation, recommend preventing the module from exposure to direct sunlight or other light
source. (If modules are exposed directly to sunlight without connection, each module generates over
DC 30V, which is potentially hazardous.)
·Modules are heavy. Be sure to have more than two persons with anti-slip gloves on carry each PV
module. Do not throw and drop PV modules.
·Do not sit, stand, step, walk and/or jump on the module, including the frames.
·Do not drop or place objects on the modules. Do not place excessive loads on the modules or twist
the module frame.
·All installation equipment and PV modules must be kept in dry condition during installation.
·Check the current and the voltage before connecting the line. There is potential hazard in case of
higher voltage in series connection and higher current in parallel connection.
·All PV modules must be earthed by using earth device. Safety check for all other parts of systems
should be finished before installation to prevent any electric hazard.
·Do not use any damaged PV module, where it may cause fire, electric shock or injury.
·Do not focus light on a PV module, where it may cause fire and damage.
·Do not touch live parts of wires, cables, connectors, or junction boxes, in order to prevent electric
shock and injury. Be sure the circuit breaker is off if it’s applicable. Always use appropriate safety
equipment. (Insulated tools, insulating gloves, etc.)
·Do not re-arrange bypass diodes, where it may cause electric shock and injury.
·Do not disconnect the cable when the load to module is engaged.
·Check applied Class for module after installing the module.
·Do not remove any labels.
1.4
·In order to prevent any performance drop, damage, or incapability, do not use paint and adhesive
material to the module surface.
·Do not leave modules in places where flammable gases can be generated or collected.
·Do not leave un-fixed and unsafe PV modules unattended.
·Do not wear metallic rings, watchbands, ear, nose, lip rings or other metallic devices while installing
photovoltaic systems.
·Installers should be careful of module’s sharp parts(ex: the edges of module)
1.5 General Safety
The following requirements should be kept during installation and inspection.
·Check the inspection requirements by authorized personnel.
·When installing the system, abide by all local, regional and national statutory regulations.
·System designer and installers should secure safe installation of PV modules. All installation must be
conformed to all fire safety regulations. Additional structures can be applied for installation. If
additional equipment is applied, it is necessary to check the fuse status, earth error and system
isolation.
·Do not use different types of PV module in a same module array.
·Abide by the safety regulations for all other components within the total system.

www.hyundai-es.co.kr
Page 3 of 13
Sales Office
4th Fl., First Tower,
55, Bundang-ro, Bundang-gu,
Seongnam-si, Gyeonggi-do,
13591 Korea
Factory
313, Soi-ro, Soi-myeon, Eumseong-gun,
Chungcheongbuk-do 369-872, Korea
2. Transportation, Storage and Unpacking
·Modules are packaged vertically. They should also be vertical during transportation.
·Check tension of banding tapes before transportation. Be cautious of abnormal shock for vehicles
and modules which might cause module damage and cell crack during transportation. Store the
modules safely in a dry and cool environment.
·Do not stack or move more than two packages of modules which are stacked vertically.
·Workers are recommended to keep some distance from the package when one worker cuts banding
tapes. Don’t lift the package after removing banding tapes.
·After unpacking, please visually check if there is no problem on modules. Install modules and
components without any defect.
·When carrying modules, do not hold cables or junction box. Carry by holding frames with two hands.
·Carry one module at one time.

www.hyundai-es.co.kr
Page 4 of 13
Sales Office
4th Fl., First Tower,
55, Bundang-ro, Bundang-gu,
Seongnam-si, Gyeonggi-do,
13591 Korea
Factory
313, Soi-ro, Soi-myeon, Eumseong-gun,
Chungcheongbuk-do 369-872, Korea
3. Installation Environment
3.1 General
·Before installing and operating HES PV system, installer and operator should follow the requirements
specified in this manual.
·Do not drill additional holes in the frame of the modules. This additional hole will void the warranty.

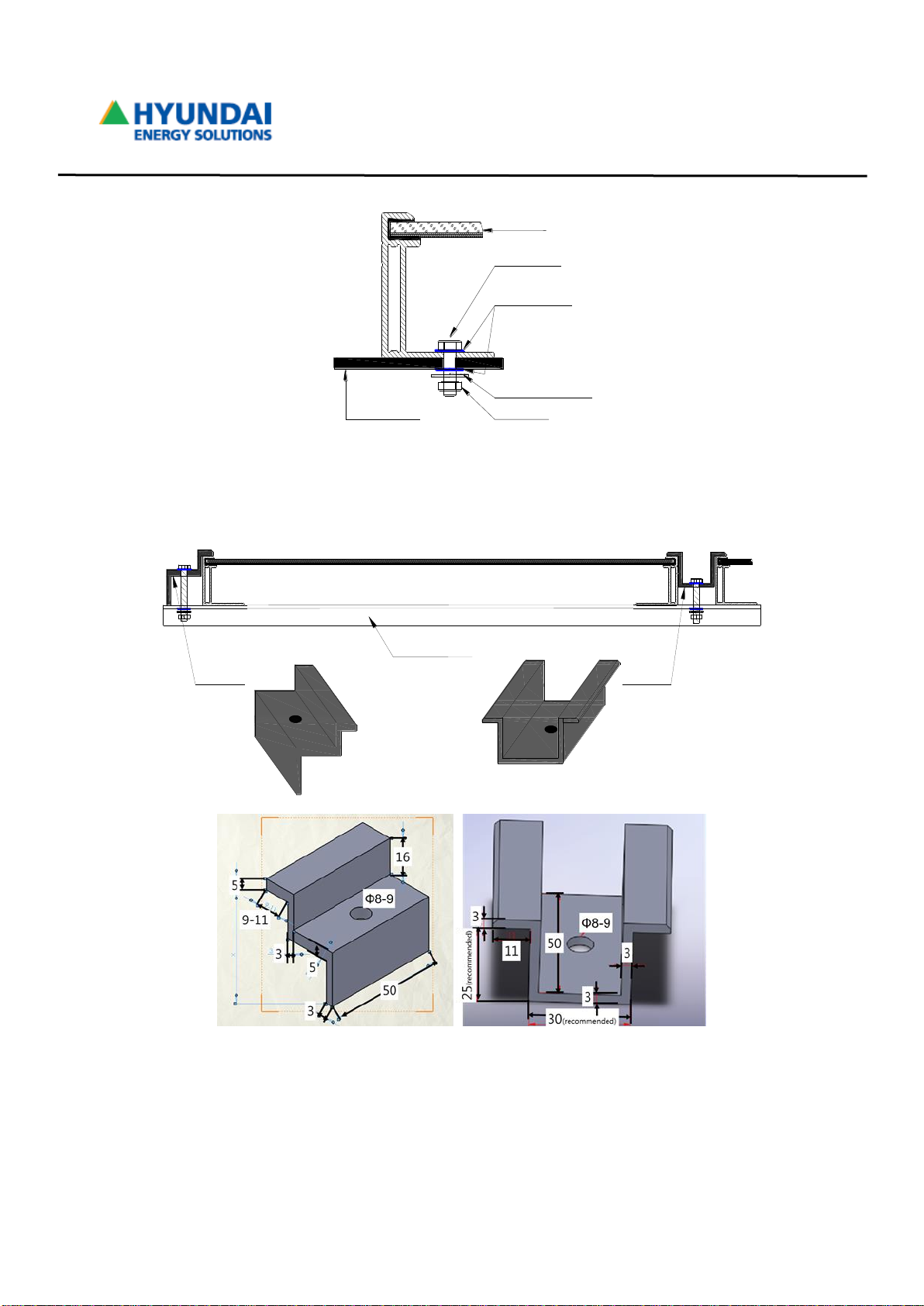

Refer to the mounting profile in Picture 1.
