Hyundai HRP850 User manual

WARNING: Read thoroughly the instruction manual before using.
ELECTRIC WATER PUMP
HRP850

CONTENTS
1. INTRODUCTION.................................................................................................................................... 3
2. SAFETY INSTRUCTIONS....................................................................................................................3
3. UNPACKING AND CHECKING.......................................................................................................... 4
4. TECHNICAL DESCRIPTION............................................................................................................... 5
5. ASSEMBLY.............................................................................................................................................6
6. OPERATION........................................................................................................................................... 6
7. MAINTENANCE..................................................................................................................................... 8
8. TROUBLESHOOTING.......................................................................................................................... 9
9. DISPOSAL.............................................................................................................................................. 9
10. DECLARATION OF CONFORMITY...............................................................................................10
11. WARRANTY....................................................................................................................................... 11
12. PRODUCT FAILURE........................................................................................................................ 12
13. WARRANTY EXCLUSIONS............................................................................................................13
02

1. INTRODUCTION
1.1 SCOPE
This pump is designed for pumping rainwater out of a water butt for garden/plant watering.
This product is suitable for a domestique use. Any application other than that it was intended for, is
considered misuse.
Local regulations may restrict the age of the operator.
2. SAFETY INSTRUCTIONS
Warning! Read all safety warnings and all instructions. When using electric tools basic safety
precautions should always be followed to reduce the risk of fire, electric shock and personal injury
including the following.
2.1 GENERAL SAFETY INSTRUCTIONS FOR POWERTOOL USE
When using any type of power tool there are steps that should be taken to make sure that you, as
the user, remain safe.
Common sense and a respect for the tool will help reduce the risk of injury.
Read the instruction manual fully. Do not attempt any operation until you have read and
understood this manual.
You must know how to safely start and stop this machine, especially in an emergency.
Keep the work area tidy and clean. Mess on the floor creates a trip hazard. Any liquid spilt on the
floor could result in you slipping.
Unplug and house all power tools that are not in use. A power tool should never be left
unattended while connected to the power supply. They must be housed in a suitable location,
locked up and out of the reach of children
Do not overload or misuse the tool. All tools are designed for a purpose and are limited to what
they can do. Do not attempt to use a power tool (or adapt it in any way) for an application it is not
designed for.
Maintain your tools correctly. A well-maintained tool will do the job safely. Replace any damaged
or missing parts immediately with original parts from the manufacturer.
2.2 ADDITIONAL SAFETY INSTRUCTIONS FOR SUBMERSIBLE WATER PUMPS
- This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory, or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
- Pollution of the liquid could occur due to leakage of lubricants.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
- When carrying or lifting the submersible pump always use the transport handle, do not carry or lift
using the power cable.
- The pump must be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30 mA.
- The electrical supply should be the same as that stated on the rating plate.
- Submersible water pumps should always be transported, stored, and submersed vertically.
- Always ensure that your hands are dry when connecting and disconnecting the power supply.
- Never operate the pump below the top of the water inlet.
03

- The area being pumped should be kept clear and nobody should enter the area while the pump is
operating.
- Do not pump explosive or flammable liquids.
- Clean water pumps are not suitable for use in dirty water.
- These water pumps are designed for pumping water only.
The addition of any chemicals, chlorine or additives to the water could damage the pump, this
would be considered misuse and would not be covered under warranty.
Note: The pump should be suspended using a rope, chain or stood on a brick to prevent any gravel
etc. being sucked into the pump and damaging the impeller.
- If the pump fails to operate, disconnect from mains supply. Remove the base and gently turn the
impeller using a screwdriver. Check for obstruction in the impeller, i.e., stones/gravel etc.
IMPORTANT: Any pump returned to us under warranty must be clean. If a pump is received that
has NOT been cleaned, it will be returned to you at your cost.
Make sure the power supply information on the machine's rating plate is compatible with the power
supply you intend to connect it to.
3. UNPACKING AND CHECKING
3.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage. Check
contents against the parts shown in Fig A. If any part is damaged or missing, please contact us. Do
not attempt to use the product!
The packaging material should be retained during the warranty period in case the product needs to
be returned for repair.
Warning!
- Some of the packaging materials may be harmful to children. Do not leave any of these materials
in reach of children.
- If any of the packaging is to be thrown away, make sure it is disposed of correctly, according to
local regulations.
04

4. TECHNICAL DESCRIPTION

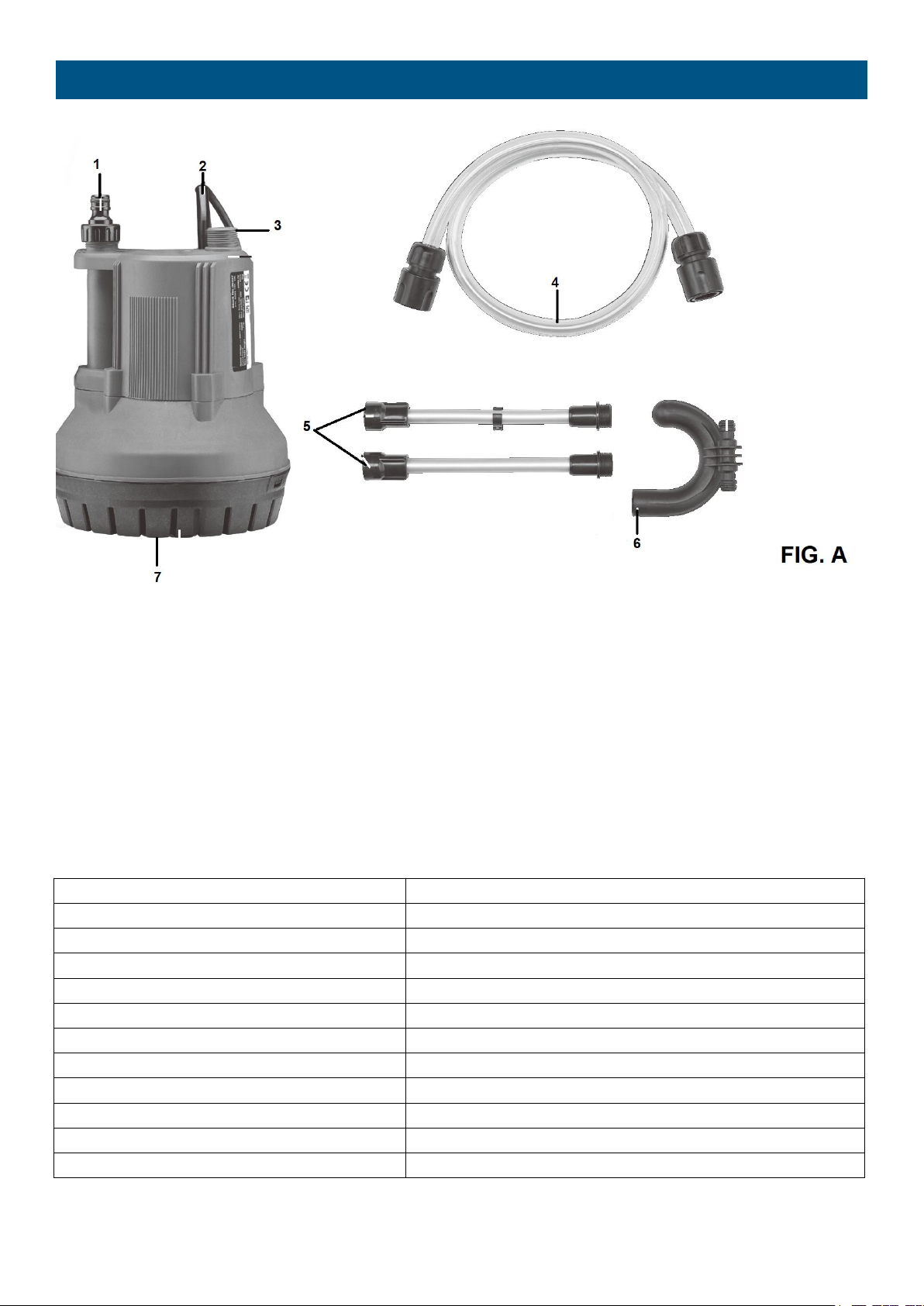

4.1 DESCRIPTION
1- Hose connector
2- Power cord
3- Extension tube connection
4- Hose
5- Straight extension tube x2
6- Hose connector/pump outlet
7- Filter
Note: For details of our full range of accessories and consumables, please visit:
https://services.swap-europe.com/contact
05
4.2 SPECIFICATION
Rated voltage 220-240V~ 50Hz
Rated input 350W
Max. particle size 3mm
Output aperture size 19mm (3/4”)
Flow rate max 2.5m3/h
Head height max 11m
Operating depth max 3m
Water temperature max 35°C
Min water level for operation 25mm
Degree of protection IPX8
Class of protection against electric shock I
Weight (Gross/Net) 4.9/4kg

5. ASSEMBLY
Note: Remove the plug from the socket before carrying out the assembly.

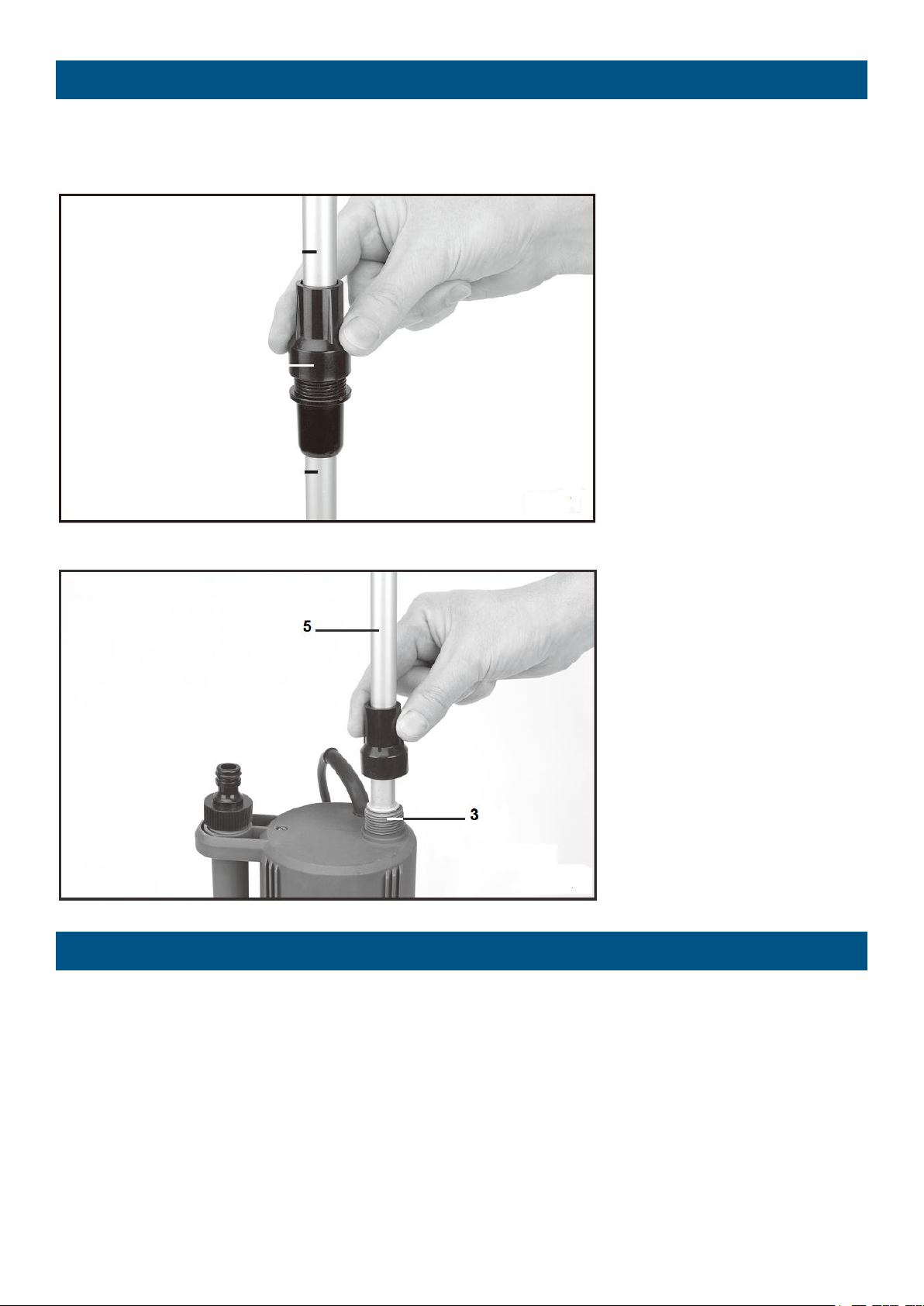

5.1 EXTENSIONTUBES
Assemble the two parts of the straight extension tube.
Screw the straight extension tube (5) to the extension tube connection (3).
6. OPERATION
6.1 PUMPING DISTANCE
The horizontal pumping distance is directly affected by the working head height (maximum total
head minus measured working head height, times factor of 10, equals the approximate horizontal
pumping distance in meters using solid delivery hose).
For example: maximum total head is 7m, minus actual working head of 3m, equals 4m*10=40m
approximate pumping distance.

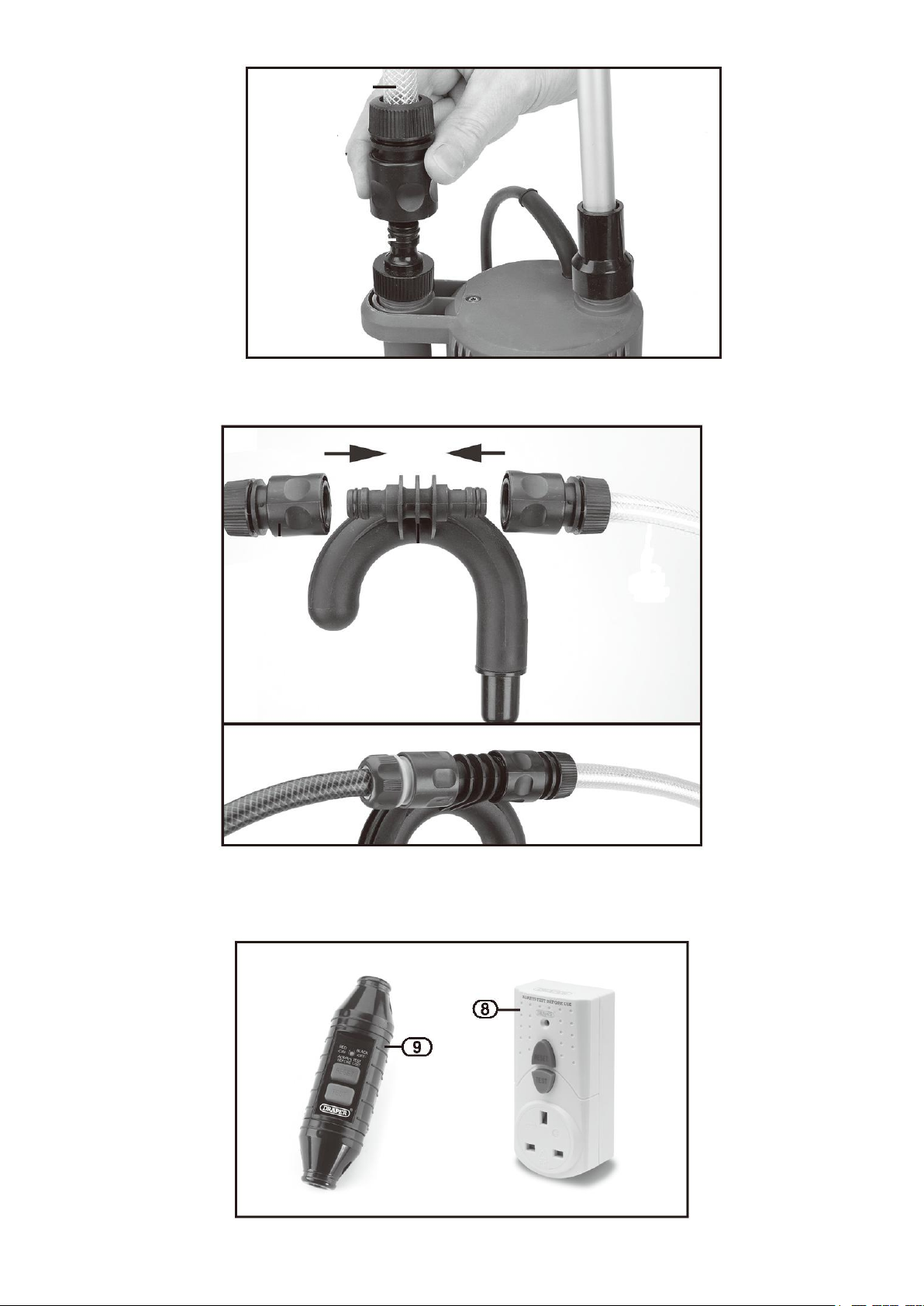

6.2 CONNECTION TO HOSE
Install the hose connector/pump outlet (6) on the straight extension tube (5).
Screw the provided quick connector on the extension hose connection (3).
Connect the hose (4) to the hose connection (3).
06

Connect the hose to the male part of the hose connector (5).
Connect your garden hose to the pump outlet. If necessary, use a quick connector.
6.3 CONNECTINGTO POWER VIA RCD
Plug your pump into a Residual Current Device (RCD) and connect to your mains supply. The
pictures 8 and 9 below show some examples of devices.
07

6.4 INSTALLATION
The pump must be fully submersed before the power is switched on. Do not run the pump dry.

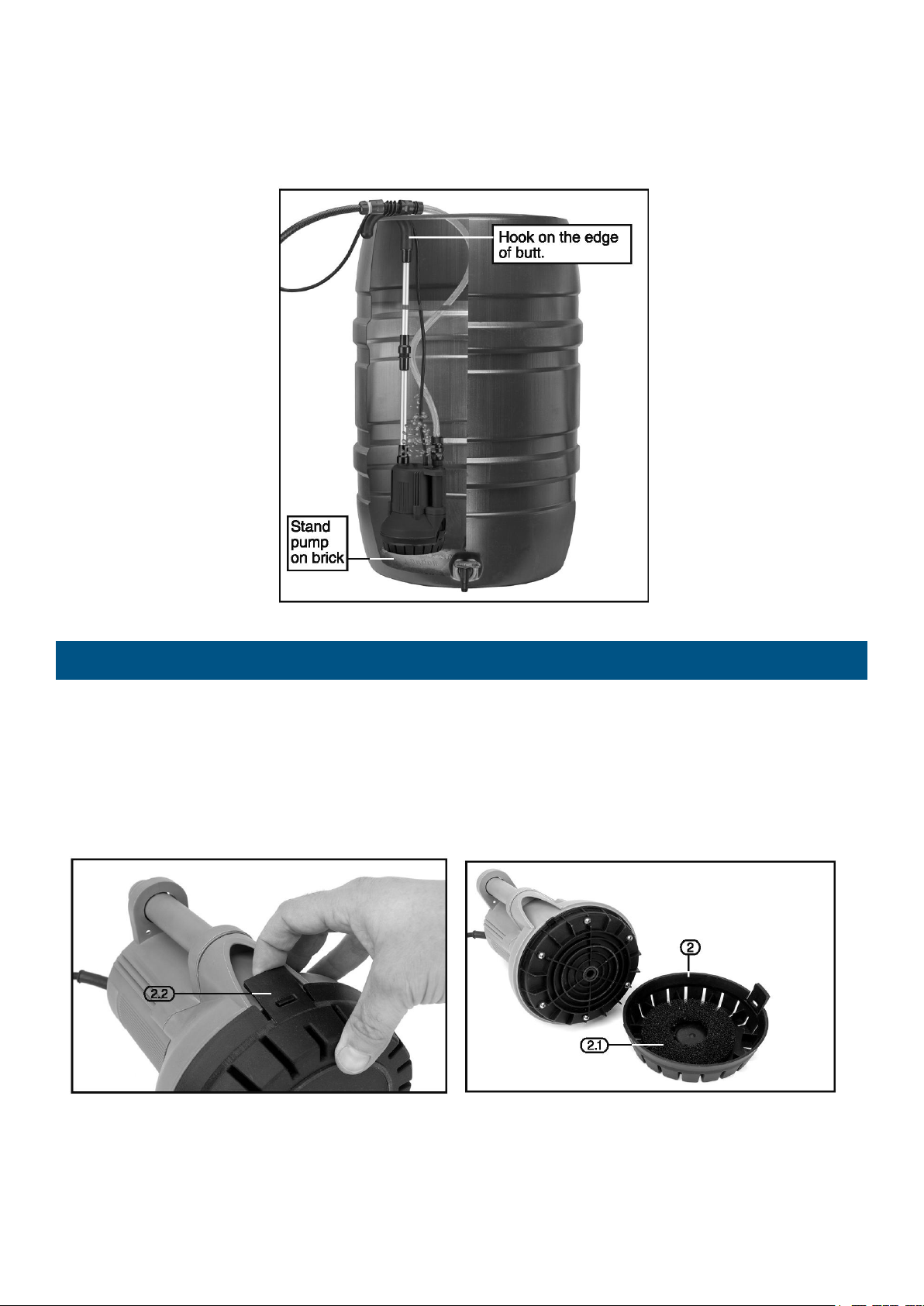

Use the hook/extension pipes to lower pump into the butt. If pumping water from sandy or muddy
water butt suspend the pump off the base; alternatively stand the pump on a brick to raise it up from
the dirt. Do not use the electric cable for this purpose.
7. MAINTENANCE
7.1 FILTER REMOVAL
From time to time, it will be necessary to remove and clean/replace the inlet filter.
With the pump disconnected from the power supply, turn the unit over to expose the base (2).
Release clips (2.2) and remove filter base, exposing filter as shown.
Remove filter (2.1) and rinse thoroughly with clean water. Install the filter and secure the filter base.
Never use the pump with the filter and the cover removed.
08

8. TROUBLESHOOTING
8.1 TROUBLESHOOTING CHECKLIST
FAULT
POSSIBLE CAUSE
REMEDY
No power.
Faulty power supply.
This should be replaced immediately by
a qualified person.
Power supply fuse blown.
Replace the fuse.
Residual current circuit breaker
tripped.
Check and reset.
Pump running, but
not delivering water.
Water level under the minimum
pumping level.
Raise the water level (where possible).
Filter inlet clogged.
Clean inlet.
Outlet tube clogged.
Remove tube and clear obstruction.
Pump stops running
due to thermal
overload coming
into operation.
Voltage supply different to
rating plate.
Remove plug from power supply.
A solid has jammed in pump.
Remove obstruction.
The pump is operating in hot
water.
Allow pump to cool then restart.
The pump ran dry.
Wait for pump to cool then submerge
before switching on.
8.2 GENERAL MAINTENANCE AND STORAGE
Flush your pump through with fresh clean water from time to time if it is left idle in water for some
time.
It is recommended to remove the pump from the water if it will not be used for a period.
Clean the outside of the pump and dry with a cloth before storing the pump.
You should always perform a visual check of the pump prior to storing and re-using so that any
wear or damage to the pump or its power supply cable can be safely rectified prior to next use.
The pump should be protected from frost. Do not allow any residual water to freeze inside the pump
as irreversible damage will occur.
9. DISPOSAL
Electrical products should not be discarded with household products. According to the
European Directive 2012/19/EU on waste electrical and electronic equipment and its
implementation into national law, electrical products used must be collected separately
and disposed of at collection points provided for this purpose. Talk with your local
authorities or dealer for advice on recycling.
09

10. DECLARATION OF CONFORMITY
BUILDER SAS
ZI, 32 rue Aristide Bergès - 31270 Cugnaux - France
Declares that the machine designated below:
ELECTRIC WATER PUMP
Ref: HRP850
Serial number: 20230517242-20230517541
Complies with the provisions of the Machine Directive 2006/42 / EC and the national regulations
transposing it;
Also complies with the provisions of the following European Directives:
To the EMC Directive 2014/30 / EU
Rohs Directive (EU)2015/863 amending 2011/65/EU
Also complies with European standards, national standards and the following technical provisions:
EN 60335-1: 2012+A11+A13+A1+A14+A2
EN 60335-2-41: 2003+A1+A2
EN 62233: 2008; EN ISO12100: 2010
EN 55014-1: 2006+A1+A2; EN55014-1: 2017
EN 55014-2: 2015
EN IEC61000-3-2: 2019; EN 61000-3-3: 2013
Cugnaux on 17/04/2023
Philippe MARIE / PDG
10

WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identied as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
• insu󰀩cient maintenance.
• abnormal assembly, adjustment or operations of the product.
• parts subject to normal wear and tear.
The warranty does not extend to:
• shipping and packaging costs.
• using the tool for a purpose other than that for which it was designed.
• the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specications
without notice. Consequently, the product may be di󰀨erent from the information contained therein, but a
modication will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can nd this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
• +33 (0)9.70.75.30.30
• https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
• Register or create your account.
• Indicate the reference of the tool.
• Choose the subject of your request.
• Describe your problem.
• Attach these les: invoice or sales receipt, photo
of the identication plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).
11. WARRANTY
11

WHAT TO DO IF MY MACHINE BREAKS DOWN?
the repairer will refuse the machine.
Go to the store with the complete machine and with the receipt or invoice.
the repairer will refuse the machine.
c) Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When making the
request on SWAP-Europe, you must attach the invoice and the photo of the nameplate (serial number).
d) Contact the repair station to make sure it is available before dropping o󰀨 the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice and the
station support sheet downloadable after the service request is completed on the SWAP-Europe site
For machines with engine failure from manufacturers BRIGGS & STRATTON, HONDA and RATO, please
refer to the following instructions.
Repairs will be done by approved engine manufacturers of these manufacturers, see their site:
• http://www.briggsandstratton.com/eu/fr
• http://www.honda-engines-eu.com/fr/service-network-page;jsessionid=5EE8456CF39CD572AA2AEEDFD
290CDAE
• https://www.rato-europe.com/it/service-network
Please keep your original packaging to allow for after-sales service returns or pack your machine
with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website https://
services.swap-europe.com
Our hotline remains available at [phone].
If you bought your product in a store:
a) Empty the fuel tank if your product has one.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
If you bought your product on a website:
a) Empty the fuel tank if your product has one..
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
12. PRODUCT FAILURE
12

THE WARRANTY DOES NOT COVER:
• Start-up and setting up of the product.
• Damage resulting from normal wear and tear of the product.
• Damage resulting from improper use of the product.
• Damage resulting from assembly or start-up not in accordance with the user manual.
• Breakdowns related to carburetion beyond 90 days and fouling of carburetors.
• Periodic and standard maintenance events.
• Actions of modication and dismantling that directly void the warranty.
• Products whose original authentication marking (brand, serial number) has been degraded, altered or
withdrawn.
• Replacement of consumables.
• The use of non-original parts.
• Breakage of parts following impacts or projections.
• Accessories breakdowns.
• Defects and their consequences linked to any external cause.
• Loss of components and loss due to insu󰀩cient screwing.
• Cutting components and any damage related to the loosening of parts.
• Overload or overheating.
• Poor power supply quality: faulty voltage, voltage error, etc.
• Damages resulting from the deprivation of enjoyment of the product during the time necessary for repairs
and more generally the costs related to the immobilization of the product.
• The costs of a second opinion established by a third party following an estimate by a SWAP-Europe repair
station
• The use of a product which would show a defect or a breakage which was not the subject of an immediate
report and/or repair with the services of SWAP-Europe.
• Deterioration linked to transport and storage*.
• Launchers beyond 90 days.
• Oil, petrol, grease.
• Damages related to the use of non-compliant fuels or lubricants.
* In accordance with transport legislation, damage related to transport must be declared to carriers within 48
hours maximum after observation by registered letter with acknowledgement of receipt.
This document is a supplement to your notice, a non-exhaustive list.
Attention: all orders must be checked in the presence of the delivery person. In case of refusal by the
delivery person, it you must simply refuse the delivery and notify your refusal.
Reminder: the reserves do not exclude the notication by registered letter with acknowledgement within 72
hours.
Information:
Thermal devices must be wintered each season (service available on the SWAP-Europe site).
Batteries must be charged before being stored.
13. WARRANTY EXCLUSIONS
13
