i-MO Q2 plus User manual

Quick Start Guide
IMO Q2 Plus
smartphone
Please Read Before Proceeding

1

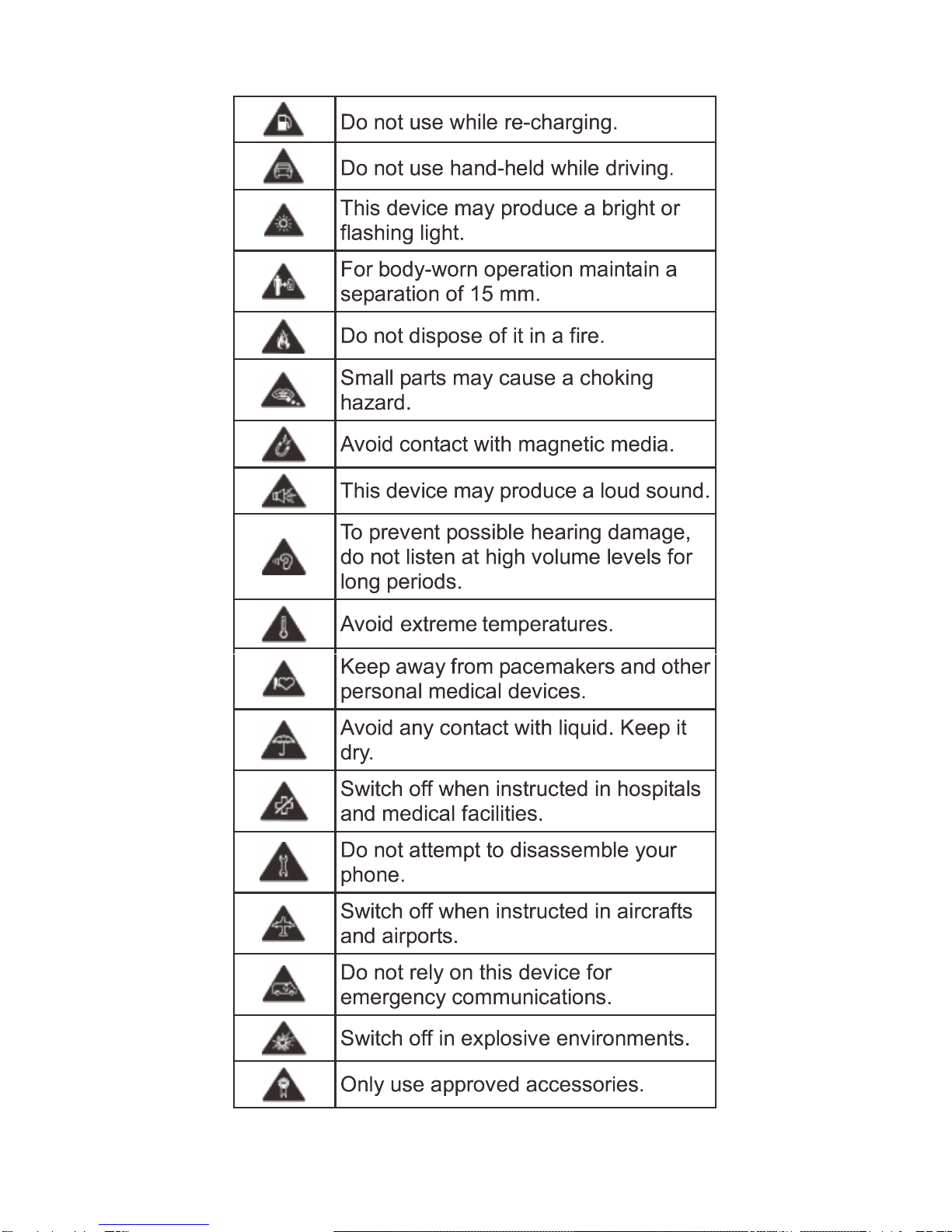

Product Safety Information

2
What's in the Box
The phone packaging box should contain the following
items and accessories:
Phone, Battery, Power Adapter, Quick Start Guide and
USB cable.
Notices for the Use of Your Phone
Your phone should be treated with care. The following
suggestions can help you extend the life of your mobile
phone.
1）Place the mobile phone and their parts and components
out of reach of young children.
2）Keep the phone dry. Rain, humidity and all types of
liquids which contain minerals will corrode electronic
circuits.
3）Don’t touch the phone with wet hands when charging, it
will cause electric shock or damage the phone.
4）Avoid placing the device in high temperature
environments. High temperatures can shorten the life
of electronic devices, damage batteries, and warp or
melt certain plastics.
5）Avoid placing the device in a low temperature
environment. When the temperature rises, the phone
will produce water vapor that may damage electronic
circuits.
6）Avoid placing the phone in dusty, dirty places, otherwise
parts may be damaged.
7）Avoid placing the phone near a lit cigarette, open flame
or any heat source.
8）Do not drop, knock or shake the phone. Rough handling
can damage internal circuit boards.
9）Do not paint the phone. The paint may block
headphones, microphones or other removable parts,
and cause them not to work.
10）Use a clean, soft, dry cloth to clean the camera, light
sensor lenses. Prohibit the use of harmful chemicals
and cleaning agents to clean the phone.

3
Getting to Know Your Phone
Earpiece
Camera
Charging USB Port
Headset Jack
Back key
Volume Keys
Power Key
Home key
Menu key
Camera
Camera Flash
Speaker
Touch Screen

4
Power Key
Press and hold to turn on or off Aeroplane mode,
enable Silent mode or Silent mode with Vibration,
disable Silent mode, Power off or Restart the phone.
Press to wake up or turn off the display.
Home Key
Touch to return to the home screen.
Touch and hold to open the Google Assistant for
Android (Go edition).
Menu Key
Touch to see recently used applications.
Back Key
Touch to go back to the previous screen.
Volume Keys
Press or hold to turn the volume up or down.
Before Getting Started

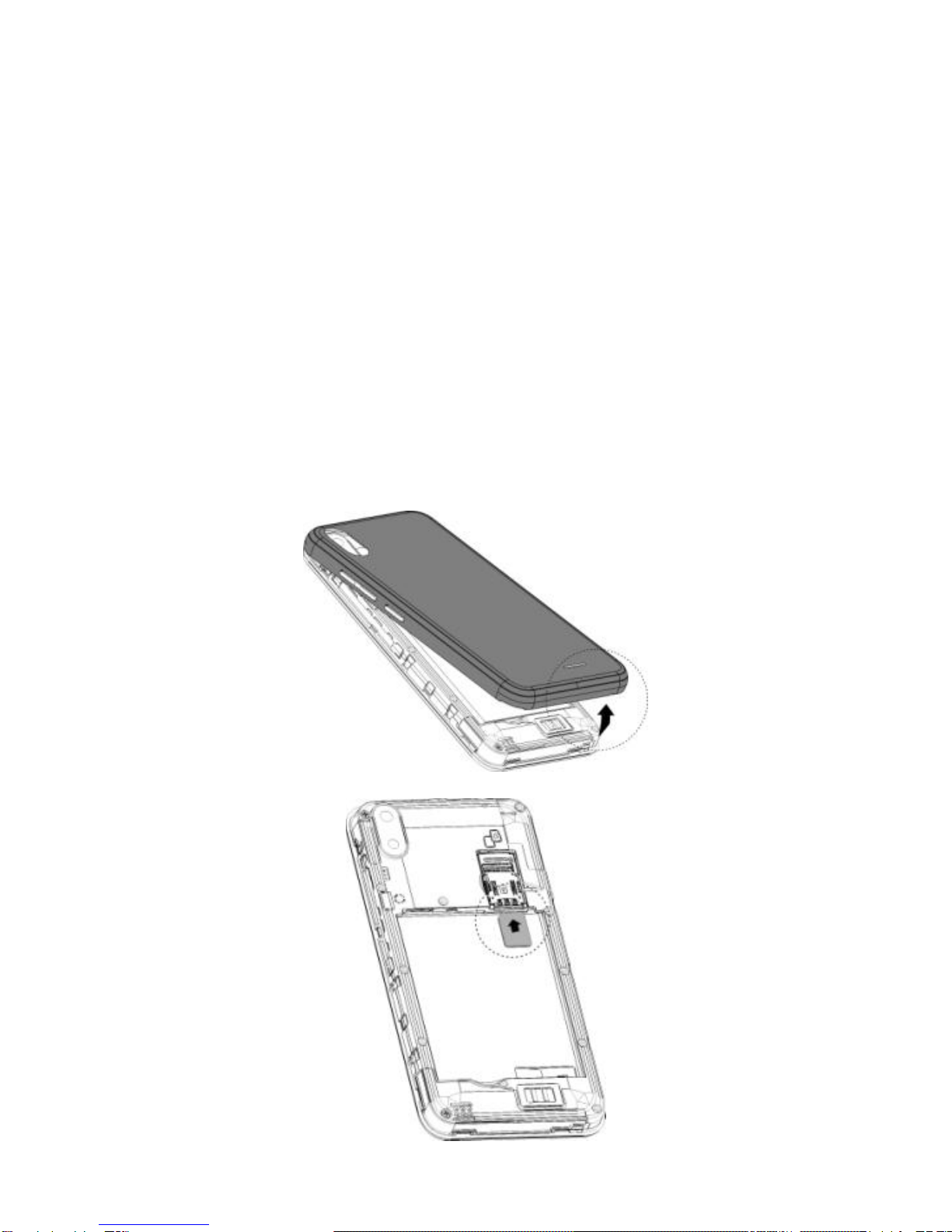

Removing the Back Cover
Installing the SIM Card

5
Installing the Battery
Installing a microSD Card (Not Included)
NOTE: Some applications may require a microSD card to
work normally or may store certain data on it. Therefore, it
is recommended that you keep a microSD card installed
and not remove or replace it randomly.

6
Basic Settings
Your service provider may default some device settings,
so you may not be able to change these settings.
Network & Internet
Wi-Fi
Swipe Wi-Fi to right to switch on WiFi.
Once it’s on, it will search for available WiFi networks
automatically. Check whether the network has a password.
Network without a password can be used directly, for
others you will need to enter the password to use.
Note：Wi-Fi will switch off automatically when the phone
is changed to flight mode, even if WiFi is on. Switch on
WiFi again when the device is in flight mode, then the WiFi
will work normally.
Connected devices
Bluetooth
Swipe Bluetooth to right to switch on
Bluetooth. The phone will search automatically for nearby
bluetooth devices.
Display
Display
a. Brightness level: Adjust the screen brightness
b. Wallpaper: The gallery and built-in wallpaper can be set
as standby and lock screen wallpaper.
c. Sleep: Adjust the time allowed before the screen goes
to sleep after inactivity.
d. Advanced
1. Auto-rotate screen: On, Off.
2. Font size: Set the font size of the system
3. Display size: Set the display size of the screen.

7
System
Languages & input
1) You can set up all the languages supported by the
phone.
2) Keyboard Settings: You can set virtual keyboard and
physical keyboard.
Backup
1) Back up Apps and apps data, Call history, Contacts,
Device settings, SMS to Google Drive.
Date and Time
1) Automatic date & time: Use date and time provided by
network.
2) Automatic time zone: Use time zone provided by
network.
3) Set date: Set the current date.
4) Set time: Set the current time.
5) Select time zone: Select Time Zone according to where
you are.
6) Use 24-hour format: ON/OFF
About phone
You can check the information on Wireless Update, Status,
Legal information, Model & hardware, Android™ version,
Android security patch level, RAM, Baseband version,
Kernel version, Build number here.

8
Technical Specifications
•Network: GSM850/900/1800/1900
WCDMA900/2100 LTE B1/B3/B7/B20
•Display: 4”
•Memory: 8GB ROM+1GB RAM
•Camera: 0.3MP+2MP
•FM/MP3/MP4/GPS/WiFi/Bluetooth/G-Sensor
•Battery Capacity: 1500mAh Li-ion
(*):The storage capacity actually available in the unit's
internal memory may be less due to the preloaded
operating system and / or other pre- installed or configured
applications. Check the space actually available on your
computer.
FCC Statement
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable pence in a residential instrotection against
harmful interferallation. This equipment generates uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and
receiver.

9
-- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV
technician for help
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions (1)this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This device has been evaluated to meet general RF
exposure requirement. The device can be used in portabl
e exposure condition without restriction.
SAR Information Statement
Your smartphone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission
limits for exposure to radiofrequency (RF) energy set by
the Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons,
regardless of age and health. The exposure standard for
wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple
power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless
base station antenna, the lower the power output. Before a
phone model is available for sale to the public, it must be

10
tested and certified to the FCC that it does not exceed the
limit established by the government adopted requirement
for safe exposure. The tests are performed in positions
and locations (e.g., at the ear and worn on the body) as
required by the FCC for each model. The highest SAR
value for this model phone when tested for use at the ear
is 0.36 W/Kg and when worn on the body, as described in
this user guide, is 0.35 W/Kg (Body-worn measurements
differ among phone models, depending upon available
accessories and FCC requirements). The maximum
scaled SAR in hotspot mode is 0.36 W/Kg. While there
may be differences between the SAR levels of various
phones and at various positions, they all meet the
government requirement for safe exposure. The FCC has
granted an Equipment Authorization for this model phone
with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on
this model phone is on file with the FCC and can be found
under the Display Grant section of http://www.fcc.gov/
oet/fccid after searching on
FCC ID: 2AQPYIMOQ2PLUS Additional information on
Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Association (CTIA)
web-site at http://www.wow-com.com. * In the United
States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one
gram of tissue. The standard incorporates a substantial
margin of safety to give additional protection for the public
and to account for any variations in measurements.
CE Declaration of conformity
Herby, Verve Connect Ltd. declares that this smartphone,
IMO Q2 Plus is in compliance with the essential
requirements and other relevant provisions of Directive
2014/53/EU.
Use the smartphone in the environment with the
temperature between -10℃and 45℃

11
Use the earphone carefully. Excessive sound pressure
from earphones and headphones can cause hearing loss.
There is a risk of explosion if battery is replaced with an
incorrect type. Dispose of used batteries according to the
instructions.
The product shall only be connected to a USB interface of
version USB2.0
SAR: The device complies with RF specifications when
the device is used at 5mm from your body.
The highest SAR value for this mobile phone tested* is
0.202 W/Kg against the head and 0.661 W/kg at 5 mm
from the body.
Adapter shall be installed near the equipment and shall be
easily accessible.
The plug is considered as disconnect device of adapter
(EU) Adapter Model: HL-0507B
Input: AC 100-240V 50/60Hz 0.2A
Output: DC 5.0V, 700mA
(US) Adapter Model: HL-0507C
Input: AC 100-240V 50/60Hz 0.2A
Output: DC 5.0V, 700mA

12
WIFI
Operation
frequency
2412MHz~2472MHz for
(802.11b/802.11g/802.11n(HT20))
WIFI Max
power(2.4G)
17.31dBm(conducted)
BT/BLE
Operation
Frequency
2402MHz~2480MHz
BT Max power
9.65dBm(conducted)
BLE Max power
1.7dBm(conducted)
GSM
Operation
Frequency
E-GSM 900/GPRS 900/EGPRS 900:
TX: 880-915MHz; RX: 925-960 MHz
E-GSM 1800/GPRS 1800
TX: 1710-1785 MHz; RX: 1805-1880
MHz
E-GSM 850/GPRS 850
TX: 824-849 MHz; RX: 869-894 MHz
E-GSM 1900/GPRS 1900
TX: 1850-1910 MHz; RX: 1930-1990
MHz

13
Max
power(E-GSM
900)
32.9 dBm(conducted)
Max
power(DCS
1800)
30.2 dBm(conducted)
Max
power(E-GSM
850)
32.27dBm(conducted)
Max
power(DCS
1900)
30.36dBm(conducted)
WCDMA
Operation
Frequency
Band 1: TX:1920MHz~1980MHz;
RX: 2110-2170MHz

14
Band 8: TX: 880MHz~915MHz;
RX: 925-960MHz
Max
power(Band 1)
22.43 dBm(conducted)
Max
power(Band 8)
22.55 dBm(conducted)
LTE
Operation
Frequency:
Band 1: (UL)1920MHz~1980MHz,
(DL) 2110MHz~2170MHz
Band 3: (UL)1710MHz~1785MHz,
(DL)1805MHz~1880MHz
Band 7: (UL)2500MHz~2570MHz,
(DL)2620MHz~2690MHz
Band 20: (UL)832MHz~862MHz,
(DL) 791MHz~821MHz
Max
power(Band 1)
22.85dBm(conducted)
Max
power(Band 3)
23.15dBm(conducted)

15
Max
power(Band 7)
22.7dBm(conducted)
Max
power(Band
20)
23.11 dBm(conducted)
FM
Operation
Frequency:
87.5MHz-108MHz
GPS/GLONASS
Operation
Frequency:
1.57542GHz
Manufacturer:Verve Connect Ltd.
Address:59 Church Street, Staines, TW18 4XS, United
Kingdom
Tel:[phone]
Fax: N/A
E-mail: [e-mail]
For the detailed User Manual or more
information about the product, please visit:
www.imomobile.co.uk

16
Google, Android and other marks are
trademarks of Google LLC.
Verve Connect Ltd.
59 Church Street,
Staines, TW18 4XS, United
Kingdom
www.imomobile.co.uk
Charger manufactured by:
SiChuan Honglong Electronic Co.Ltd.,
NO.36, Jingang Road, luohan street,
Longmatan Area, Luzhou City,
Sichuan Province
