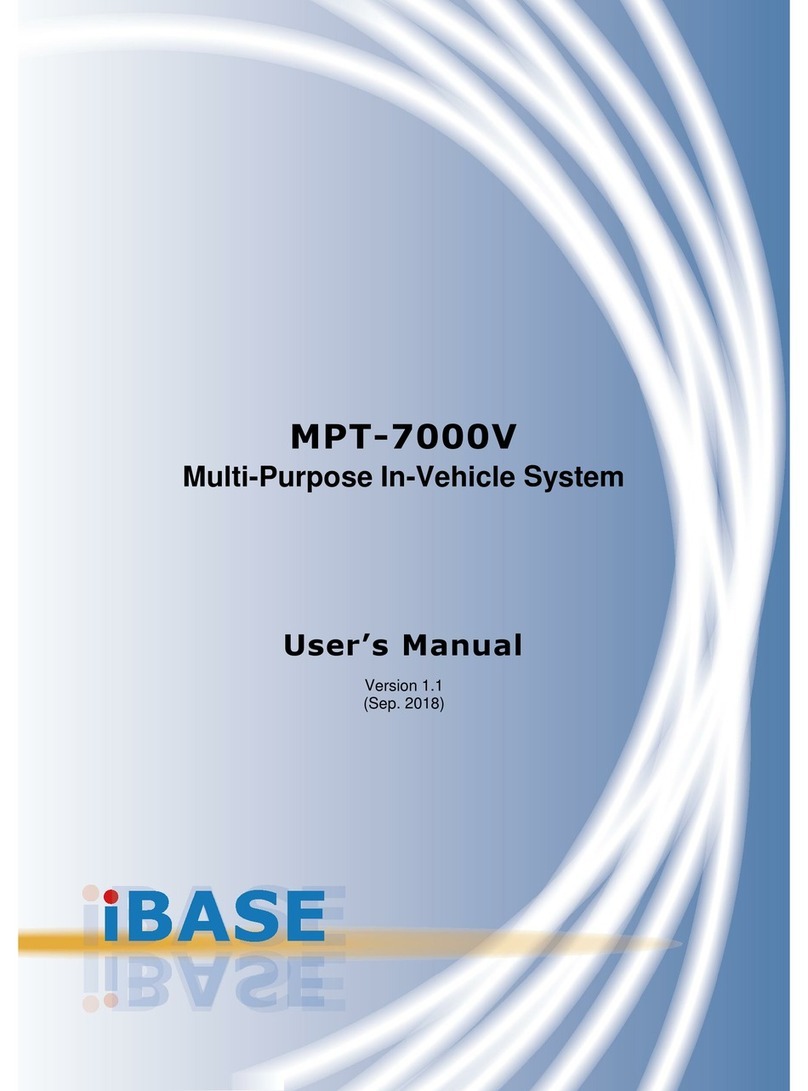

IBASE Technology MPT-7000VSM User manual

MPT-7000V
Multi-Purpose In-Vehicle System
User’s Manual
Version 1.0b
(Aug. 2018)

ii
MPT-7000V User Manual
Copyright
©2018 IBASE Technology, Inc. All rights reserved.
No part of this publication may be reproduced, copied, stored in a retrieval system, translated
into any language or transmitted in any form or by any means, electronic, mechanical,
photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc.
(hereinafter referred to as “IBASE”).
Disclaimer
IBASE reserves the right to make changes and improvements to the products described in
this document without prior notice. Every effort has been made to ensure the information in
the document is correct; however, IBASE does not guarantee this document is error-free.
IBASE assumes no liability for incidental or consequential damages arising from
misapplication or inability to use the product or the information contained herein, nor for any
infringements of rights of third parties, which may result from its use.
Trademarks
All the trademarks, registrations and brands mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.

MPT-7000V User Manual
iii
Compliance
This product has passed CE tests for environmental specifications and limits. This
product is in accordance with the directives of the Union European (EU). If users
modify and/or install other devices in this equipment, the CE conformity declaration
may no longer apply.
This product has been tested and found to comply with the limits for a Class B
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with manufacturer’s instructions, may cause
harmful interference to radio communications.
WEEE
This product must not be disposed of as normal household waste, in
accordance with the EU directive of for waste electrical and electronic
equipment (WEEE - 2012/19/EU). Instead, it should be disposed of by
returning it to a municipal recycling collection point. Check local
regulations for disposal of electronic products.
Green IBASE
This product is compliant with the current RoHS restrictions and
prohibits use of the following substances in concentrations exceeding
0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by
weight (100 ppm).
•Lead (Pb)
•Mercury (Hg)
•Cadmium (Cd)
•Hexavalent chromium (Cr6+)
•Polybrominated biphenyls (PBB)
•Polybrominated diphenyl ether (PBDE)

iv
MPT-7000V User Manual
Important Safety Information
Carefully read the precautions before using the device.
Environmental conditions:
•Lay the device horizontally on a stable and solid surface in case the device may
fall, causing serious damage.
•Leave plenty of space around the device and do not block the openings for
ventilation. NEVER DROP OR INSERT ANY OBJECTS OF ANY KIND INTO
THE VENTIILATION OPENINGS.
•Slots and openings on the chassis are for ventilation. Do not block or cover these
openings. Make sure you leave plenty of space around the device for ventilation.
NEVER INSERT OBJECTS OF ANY KIND INTO THE VENTILATIN OPENINGS.
•Use this product in environments with ambient temperatures between -30˚C and
55˚C for SSD.
•DO NOT LEAVE THIS DEVICE IN AN ENVIRONMENT WHERE THE
STORAGE TEMPERATURE MAY GO BELOW -35˚C OR ABOVE 85˚C. This
could damage the device. The device must be used in a controlled environment.
Care for your IBASE products:
•Before cleaning the device, turn it off and unplug all cables such as power in case
a small amount of electrical current may still flow.
•Use neutral cleaning agents or diluted alcohol to clean the device chassis with a
cloth. Then wipe the chassis with a dry cloth.
•Vacuum the dust with a computer vacuum cleaner to prevent the air vent or slots
from being clogged.
WARNING
Attention during use:
•Do not use this product near water.
•Do not spill water or any other liquids on your device.
•Do not place heavy objects on the top of the device.
•Operate this device from the type of power indicated on the marking label. If you
are not sure of the type of power available, consult your distributor or local
power company.
•Do not walk on the power cord or allow anything to rest on it.
•If you use an extension cord, make sure that the total ampere rating of the
product plugged into the extension cord does not exceed its limits.
Avoid Disassembly
You are not suggested to disassemble, repair or make any modification to the device.
Disassembly, modification, or any attempt at repair could generate hazards and
cause damage to the device, even bodily injury or property damage, and will void any
warranty.

MPT-7000V User Manual
v
CAUTION
Danger of explosion if internal lithium-ion battery is replaced by an incorrect type.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
Warranty Policy
•IBASE standard products:
24-month (2-year) warranty from the date of shipment. If the date of shipment
cannot be ascertained, the product serial numbers can be used to determine
the approximate shipping date.
•3rd-party parts:
12-month (1-year) warranty from delivery for the 3rd-party parts that are not
manufactured by IBASE, such as CPU, memory, SSD/HDD, power adapter,
panel and touchscreen.
＊PRODUCTS, HOWEVER, THAT FAILS DUE TO MISUSE, ACCIDENT,
IMPROPER INSTALLATION OR UNAUTHORIZED REPAIR SHALL BE
TREATED AS OUT OF WARRANTY AND CUSTOMERS SHALL BE BILLED
FOR REPAIR AND SHIPPING CHARGES.
Technical Support & Services
1. Visit the IBASE website at www.ibase.com.tw to find the latest information about
the product.
2. If you need any further assistance from your distributor or sales representative,
prepare the following information of your product and elaborate upon the
problem.
•Product model name
•Product serial number
•Detailed description of the problem
•The error messages in text or in screenshots if there is any
•The arrangement of the peripherals
•Software in use (such as OS and application software, including the version
numbers)
3. If repair service is required, you can download the RMA form at
http://www.ibase.com.tw/english/Supports/RMAService/. Fill out the form and
contact your distributor or sales representative.

vi
MPT-7000V User Manual
Table of Contents
Compliance....................................................................................................iii
Important Safety Information.......................................................................iv
WARNING ......................................................................................................iv
CAUTION ........................................................................................................v
Warranty Policy..............................................................................................v
Technical Support & Services ......................................................................v
Chapter 1 General Information................................................................1
1.1 Introduction.............................................................................................2
1.2 Features..................................................................................................2
1.3 Packing List ............................................................................................3
1.4 Optional Accessories ..............................................................................3
1.5 Specifications..........................................................................................4
1.6 Overview.................................................................................................6
1.7 Device Dimensions .................................................................................8
1.8 Fuse Dimensions....................................................................................8
Chapter 2 Hardware Configuration.........................................................9
2.1 Essential Installations............................................................................10
2.1.1 Memory Installation ................................................................10
2.1.2 Storage Installation.................................................................12
2.1.3 CFast & Micro-SIM Card Installation.......................................15
2.1.4 Mini-PCIe & M.2 Network Cards Installation...........................16
2.1.5 WiFi / 3G / 4G Antenna Installation.........................................17
2.1.6 PCIe (x16) Expansion Card Installation ..................................18
2.1.7 Mounting Brackets Installation................................................20
2.1.8 Pinout for COM Ports, Power Input & GPIO Connectors.........22
2.2Setting the Jumpers..............................................................................24
2.2.1 How to Set Jumpers ...............................................................24
2.3 Jumper & Connector Locations on Motherboard...................................25
2.4 Jumpers Quick Reference.....................................................................27
2.4.1 COM1 & COM2 Voltage Selection (JP1, JP2)......................27
2.4.2 ME Register Clearance (J12)...............................................28
2.4.3 CMOS Data Clearance (J14) ...............................................28

MPT-7000V User Manual
vii
2.4.4 Flash Descriptor Security Override Selection (J15)..............29
2.5 Connectors Quick Reference................................................................30
2.5.1 PCIe (x4) Slot (PCIE1).........................................................31
2.5.2 Power Module Interface (PCIE2)..........................................31
2.5.3 COM Port (COM1, COM2, COM3, COM4)...........................32
2.5.4 Digital I/O Connector (CN1) .................................................32
2.5.5 DVI-D Port (CN2).................................................................33
2.5.6 Audio Jack (CN6, CN15, CN16).........................................33
2.5.7 SATA III Connector (CN7, CN8)...........................................33
2.5.8 CFast Connector (CN10) .....................................................34
2.5.9 USB 3.0 Ports (CN11, CN12)...............................................34
2.5.10 SIM Card Slot (CN13, CN14) ...............................................34
2.5.11 GbE LAN Ports (CN3, CN4).................................................35
2.5.12 USB 2.0 Ports (CN5)............................................................35
2.5.13 SATA HDD Power Connector (J4, J21)................................35
2.5.14 CRT Connector (J5).............................................................36
2.5.15 M.2 M2280 SATA Interface (J6)...........................................36
2.5.16 M.2 E2230 USB2.0 / PCIe (x1) Interface (J8).......................37
2.5.17 DDR4 SO-DIMM Socket (J9, J10)........................................37
2.5.18 Future Connector for CAN Module Connection (J11)...........38
2.5.19 M.2 B3042 USB2.0 Interface (J17).......................................38
2.5.20 Half-Size Mini-PCIe USB2.0 Connector (J19) ......................39
2.5.21 Full-Size Mini-PCIe USB2.0 / PCIe (x1) Connector (J20).....39
2.5.22 Reset Button (SW2).............................................................39
2.5.23 Digital IO Pull High to +5V Switch (SW1) .............................40
Chapter 3 Driver Installation .................................................................41
3.1 Introduction...........................................................................................42
3.2 Intel®Chipset Software Installation Utility..............................................42
3.3 VGA Driver Installation..........................................................................44
3.4 HD Audio Driver Installation..................................................................46
3.5 LAN Driver Installation ..........................................................................48
3.6 Intel®Management Engine Driver Installation .......................................51
3.7 USB 3.0 Driver Installation....................................................................53
Chapter 4 BIOS Setup............................................................................55
4.1 Introduction...........................................................................................56
4.2 BIOS Setup...........................................................................................56
4.3 Main Settings........................................................................................57
4.4 Advanced Settings................................................................................58
4.4.1 ACPI Settings.........................................................................59

viii
MPT-7000V User Manual
4.4.2 Power Board Configuration.....................................................60
4.4.3 Super IO Configuration...........................................................61
4.4.4 Hardware Monitor...................................................................67
4.4.5 NVMe Configuration ...............................................................68
4.4.6 USB Configuration..................................................................68
4.4.7 CPU Configuration..................................................................70
4.4.8 SATA Configuration................................................................71
4.4.9 CSM Configuration.................................................................72
4.5 Security Settings...................................................................................73
4.6 Boot Settings.........................................................................................74
4.7 Save & Exit Settings..............................................................................75
Appendix ......................................................................................................76
A. I/O Port Address Map............................................................................77
B. Interrupt Request Lines (IRQ)...............................................................77
C. Watchdog Timer Configuration..............................................................78
D. Software Development Kit for WDT.DLL...............................................82
E. Motherboard MCU ISP Specifications...................................................88

1
Chapter 1
General Information
The information provided in this chapter includes:
•Features
•Packing List
•Specifications
•Overview
•Dimensions

2
MPT-7000V User Manual
1.1 Introduction
The MPT-7000V is a vehicle-mounted product IBASE embedded computing
system. It is a robust, rugged and fanless design with an Intel®Core™ i7/i3
processor and an Intel®I210 Ethernet controller. This product provides high-
speed data transmission and reliable connection when subject to shock or
vibration. It can be operated at the ambient operating temperature ranging
from -40 ~ 70 °C if SSD is used, and even from -40 ~ 85 °C for storage.
1.2 Features
•In-vehicle fanless design box PC with E-mark
•Intel®Core™ i7/i3 processor and I210 Ethernet Controller
•Dual micro-SIM slots for WWAN redundancy
•Dual RJ45 Gigabit Ethernet ports
•Dual removable 2.5”drive bays and a CFast slot
•Rich I/O interfaces for wireless, SSD, GPS, WWAN and add-on card
expansion
•Fully car battery power control
•Wide-range voltage GPIO interface
•One PCIe (x4) expansion

General Information
MPT-7000V User Manual
3
1
1.3 Packing List
Your MPT-7000V package should include the items listed below. If any of the
items below is missing, contact the distributor or the dealer from whom you
purchased the product.
Item
Q’ty
IBASE P/N
MPT-7000V
1
- -
Mounting Bracket
2
- -
DC-Input Connector
(DINKLE terminal block, 3 pins)
1
C12165ESD03105200P
GPIO Matching Connector
(DINKLE terminal block, 8 pins)
1
C1216EC3508103000P
Thermal Pad (35 x 20 x 1.5 mm)
*Longer, for M.2 SSD module card
1
C1401035020150000P
Thermal Pad (20 x 20 x 5.5 mm)
*Shorter, for M.2 WiFi module card
1
C1401020020055000P
Round Head Screw (1 for M.2 network
Module Card, 1 for spare)
2
H02306110122001N0P
Flat Head Screw for Mini PCIe Card
2
H02203511122000N0P
Flat Head Screw (8 for SSD / HDD if not
pre-installed, 4 for mounting brackets)
12
H0230561B710BN000P
1.4 Optional Accessories
IBASE provide optional accessories as follows. Please contact us or your
dealer if you need any.
Item
IBASE P/N
Thermal Pad (35 x 20 x 1.5 mm)
C1401035020150000P
Thermal Pad (20 x 20 x 5.5 mm)
C1401020020055000P
RTC Battery
C272113012020B100P
Fuse for MPT-7000V
C2309001151058000P
2.5” MLC SSD (64 GB)
A002SSDSA064G2524P
M.2 MLC SSD (128 GB)
A002SSDM2S128G200P
MLC CFast (8 GB)
A008CFG0080400200P

4
MPT-7000V User Manual
1.5 Specifications
Product Name
MPT-7000V
System
Motherboard
MBT-7001V
Operating
System
•Windows 10 (64-bit)
•Windows Embedded Standard 7 (64-bit)
•Linux Kernal 3.8.0 or above (64-bit)
CPU
•Intel®6th Gen. Core™ i7-6600U processor at 2.6 GHz
•Intel®6th Gen. Core™ i3-6100U processor at 2.3 GHz
Cache
Level 2
Chipset
Integrated
Memory
2 x 4 GB DDR4-2133 SO-DIMM (default), upgradable to
32 GB (non-ECC)
Graphics
Intel®HD graphics Gen. 9 LP with up to 72 EUs
Network
2 x Intel®I210IT
Super I/O
Fintek F81866AD-I
Storage
2 x 2.5” SSD drive bay
Audio Codec
Realtek ALC662, two channels of input and output
Power Supply
9~36V with IGN control
Fuse
Littlefuse®TAC ATO®Style Blade 15A, 58V DC
RTC Battery
Panasonic BR2032 3V
BIOS
AMI BIOS
Watchdog
Watchdog Timer 256 segments, 0, 1, 2…255 sec/min
Chassis
Aluminum, black
Mounting
Custom mounting rail
Dimensions
(W x H x D)
256 x 83 x 182 mm
(10.08” x 3.27” x 7.17”)
Net Weight
3.6 kg (7.94 lb)
Certificate
CE, FCC Class B, E-Mark
I/O Ports
LAN
2 x GbE LAN
USB
•2 x USB 3.0
•2 x USB 2.0
SSD
2 x 2.5” drive bay
SATA
2 x SATA III ports

General Information
MPT-7000V User Manual
5
1
Serial
3 x COM ports:
•COM1: RS-232/422/485
•COM2 & COM3: RS-232 only
1-1
*COM3 is optional with CAN.
Display
•1 x DVI-D, up to 1920 x 1080
•1 x VGA, up to 1920 x 1080
Digital I/O
6 In/Out with 24V input tolerance
1-2
*You can use IBASE’s software development kit (SDK) to
configure GPIO in the operating system. For further information
about the SDK, refer to Appendix D Software Development Kit
for WDT.DLL in this manual.
CFast
1 x CFast connector
SIM
2 x Micro-SIM card slot
Audio Jack
•2 x Microphone Input
•2 x Line-out
Expansion
•1 x Mini PCIe slot (full-sized) with USB 2.0 & PCIe
•1 x Mini PCIe slot (half-sized) with USB2.0
•1 x M.2 slot (M2280) with SATA for SSD only
•1 x M.2 slot (E2230) with PCIe & USB for WLAN
•1 x M.2 slot (B3042) with PCIe & USB for WWAN
Environment
Temperature
•Operating:
SSD: -30 ~ 55 °C (-22 ~ 131 °F)
SSD: -40 ~ 70 °C (-40 ~ 158 °F) if there is no card installed in
the system
•Storage: --35 ~ 85 °C (-31 ~ 185 °F)
Relative
Humidity
10 ~ 95% (non-condensing)
Vibration
Protection
Operating / Non-operating:
•For SSD: 2.26 grms, 5 ~ 500 Hz (Z-axis)
•For HDD: 1.04 grms, 5 ~ 500 Hz (Z-axis)
Shock
Protection
•Operating: 20G, 11 msec (Z-axis)
•Non-operating: 40G, 11 msec (Z-axis)
All specifications are subject to change without prior notice.

6
MPT-7000V User Manual
1.6 Overview
Front View
No.
Name
No.
Name
1
LED Indicators
5
USB 3.0 Receptacles
2
Reset Button
6
CFast / SIM Card Slot Door
3
Secondary Microphone Input
7
Antenna Holes
4
Secondary Line-out
8
SSD Drive Bays

General Information
MPT-7000V User Manual
7
1
Rear View
No.
Name
No.
Name
1
GPIO Connector
7
DC Input Connector
2
LAN Ports with LED Indicators
8
UPS Battery / DC 12V Output
3
DVI-D Port
9
COM3 / CAN (Optional)
4
USB 2.0 Ports
10
VGA Port
5
First Microphone Input
11
COM1 & COM2 Ports
6
First Line-out
12
Expansion Card Slot
Oblique View

8
MPT-7000V User Manual
1.7 Device Dimensions
Unit: mm
1.8 Fuse Dimensions
Littlefuse®TAC ATO®Style Blade 15A, 58V DC

9
Chapter 2
Hardware Configuration
The information provided in this chapter includes:
•Essential installations
•Information and locations of connectors

10
MPT-7000V User Manual
2.1 Essential Installations
2.1.1 Memory Installation
If you need to replace or install the modules, perform the following steps:
1. Loosen the following 4 screws to pull out the SSD trays.
2. Turn your MPT-7000V upside down. Remove the following 4 screws to
open the front I/O cover.
3. Release the following 6 screws to half open the bottom cover.
1-3

Hardware Configuration
MPT-7000V User Manual
11
2
4. Locate the memory slot and align the keys of the memory module with that
on the memory slot.
5. Insert the module slantwise and gently push the module straight down
until the clips of the slot close to hold the module in place when the
mdoule touches the bottom of the slot.
To remove the module, press the clips outwards with both hands.
After installation, tighten the 8 screws mentioned in Step 2 to secure the
device.

12
MPT-7000V User Manual
2.1.2 Storage Installation
You can use either SSD or M.2 SATA card, or use both for storage.
For SSD or M.2 SATA card replacement or installation, follow the instructions
below.
Installation for 2.5” SSD
1. Release 2 screws to pull out an SSD tray (4 screws for 2 trays).
2. Put your 2.5” SSD onto the tray(s), and secure the SSD with the supplied
4 screws for each tray.
3. Put and secure the tray(s) back to the device.
SSD
Tray
4 screws
