INTRODUCTION
Introduction
MI888 Mini ITX Motherboard
MI888 Edge Connectors
MI888 User’s Manual 5

INTRODUCTION
6 MI888 User’s Manual
Checklist
Your MI888 package should include the items listed below.
•The MI888 Intel®Luna-Pier Mini-ITX motherboard
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
•Cable kit (USB, Serial port, Serial ATA)

INTRODUCTION
MI888 User’s Manual 7
MI888 Specifications
Form Factor MiniITX
CPU Type Intel® Pineview-M & Pineview-D Microprocessor (45nm
Technology)
CPU Speed Atom SC N450 1.66 GHz/ 512KB L2 cache (MI888)
Atom DC D510 1.66GHz / 1MB L2 cache (MI888-D5)
Green /APM APM1.2
BIOS AMI BIOS, support ACPI Function
Chipset Intel® Luna-Pier / Luna-Pier Refresh platform
Pineview-M : 22mm x 22mm, Micro-FCBGA8 (5.5W)
or Pineview-D : 22mm x 22mm, Micro-FCBGA8 ( 13W for DC)
ICH8M: 31mm x 31mm, 676-pin T-PBGA (2.4W)
Memory DDR2 667MHz
N450 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single
channel
D510 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single
channel
VGA Intel® Integrated Graphics Controller
Luna Pier supports DirectX 9 Graphic (200MHz)
Luna Pier Refresh supports DirectX 9 Graphic (400MHz)
OpenGL 1.4
LVDS 18-bit one channels LVDS interface w/DF13 socket x1
LAN Realtek 8111DL x 1
USB ICH8M built-in USB 2.0 host controller, support 8 ports
Serial ATA Ports ICH8M built-in SATA controller, supports 2 ports
Parallel IDE ICH8M built-in one channel Ultra DMA 33/66/100, for CF Type II
(Component side)
Audio Intel ICH8M built-in audio controller w/ Realtek ALC662 Codec
Supports 5.1 CH audio (Line-out, Line-in & MIC )
LPC I/O Winbond W83627UHG :
COM1 (RS232/422/485), COM2(RS232), COM3 (RS232), COM4
(RS232), with pin-9 with power for 4 ports (500 mA for each port)
Hardware monitor (2 thermal inputs, 4 voltage monitor inputs,
VID0-4 & 1 x Fan Header)
Digital IO 4 in & 4 out
KB/Mouse
Connector
Yes
Expansion Slots Mini PCI-express socket x 1 for Wireless LAN or other module
PCI + PCI-Express(1x) slot x1
Edge Connector PS/2 KBMS connector x 1
DB15 + DB9 Stack connector x1 for VGA+COM 1
Dual DB9 Stack connector x 1 for COM2,3
RJ45 + Dual USB stack connector x1 for LAN 1 + USB 1,2
Dual USB stack connector x 1 for USB 3, 4
Audio 3-port connector x 1 (Line-out, Line-in, MIC)
On Board
Header/Connecto
r
2x4 pins header x 2 for 4 USB ports
LVDS ( DF13 X 1 )
Mini PCI-e connector x 1
12 pins header x1 for front audio
DF11-10 pins box header x 1 for COM4
CF type II connector x 1
2x5 pin header x 1 for Digital I/O
Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)
Power Connector ATX (20-pin)
Board Size 170mm x 170mm

INTRODUCTION

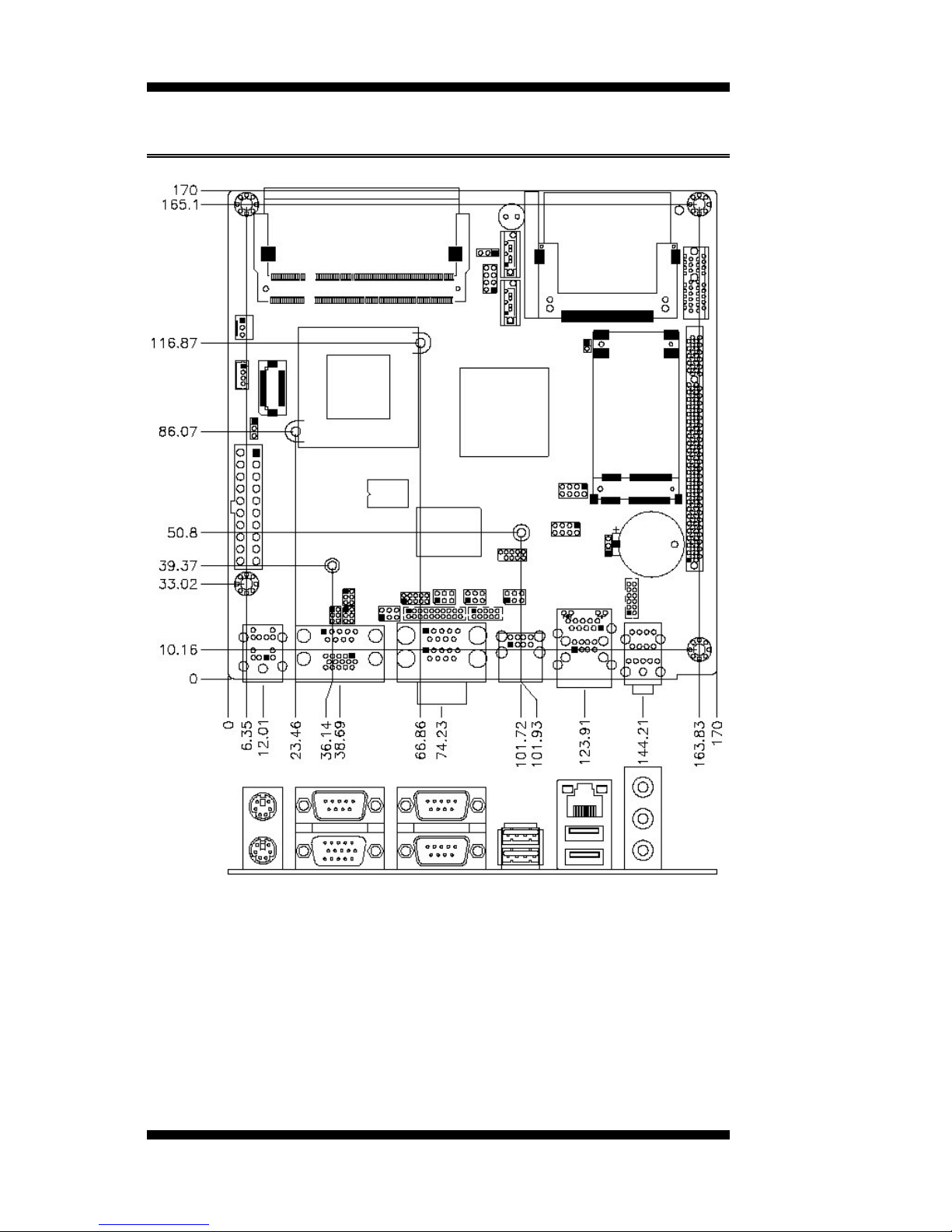

Board Dimensions
8 MI888 User’s Manual

INSTALLATIONS
MI888 User’s Manual 9
Installations
This section provides information on how to use the jumpers and
connectors on the MI888 in order to set up a workable system. The
topics covered are:
Installing the Memory ......................................................................... 10
Setting the Jumpers.............................................................................. 11
Connectors on MI888.......................................................................... 15

INSTALLATIONS
Installing the Memory
The MI888 board supports one DDR667 DDR2 memory.
Remarks:
N450 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel
D510 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel
Installing and Removing Memory Modules
To install the DDR2 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR2 module so that the key of the DDR2 module aligns
with that on the memory slot. Insert the module into the socket at a
slight angle (approximately 30 degrees). Note that the socket and
module are both keyed, which means that the module can be installed
only in one direction.
2. To seat the memory module into the socket, apply firm and even
pressure to each end of the module until you feel it slip down into the
socket.
3. With the module properly seated in the socket, rotate the module
downward. Continue pressing downward until the clips at each end
lock into position.
4. To remove the DDR2 module, press the clips with both hands.
10 MI888 User’s Manual

INSTALLATIONS
MI888 User’s Manual 11
Setting the Jumpers
Jumpers are used on MI888 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on MI888 and their respective functions.
Jumper Locations on MI888................................................................ 12
JP1: LCD Panel Power Selection ........................................................ 13
JP3, JP4, JP5: RS232/422/485 (COM1) Selection.............................. 13
JP6: COM1 RS232 RI/+5V/+12V Power Setting ............................... 13
JP8: COM4 RS232 RI/+5V/+12V Power Setting ............................... 13
JP9: COM3 RS232 RI/+5V/+12V Power Setting ............................... 14
JP7: COM4 RS232 RI/+5V/+12V Power Setting ............................... 14
JP11: Clear CMOS Setting.................................................................. 14

INSTALLATIONS
Jumper Locations on MI888
Jumper Locations on MI888................................................................12
JP1: LCD Panel Power Selection.........................................................13
JP3, JP4, JP5: RS232/422/485 (COM1) Selection ..............................13
JP6: COM1 RS232 RI/+5V/+12V Power Setting................................13
JP8: COM4 RS232 RI/+5V/+12V Power Setting................................13
JP9: COM3 RS232 RI/+5V/+12V Power Setting................................14
JP7: COM4 RS232 RI/+5V/+12V Power Setting................................14
JP11: Clear CMOS Setting ..................................................................14
12 MI888 User’s Manual

INSTALLATIONS

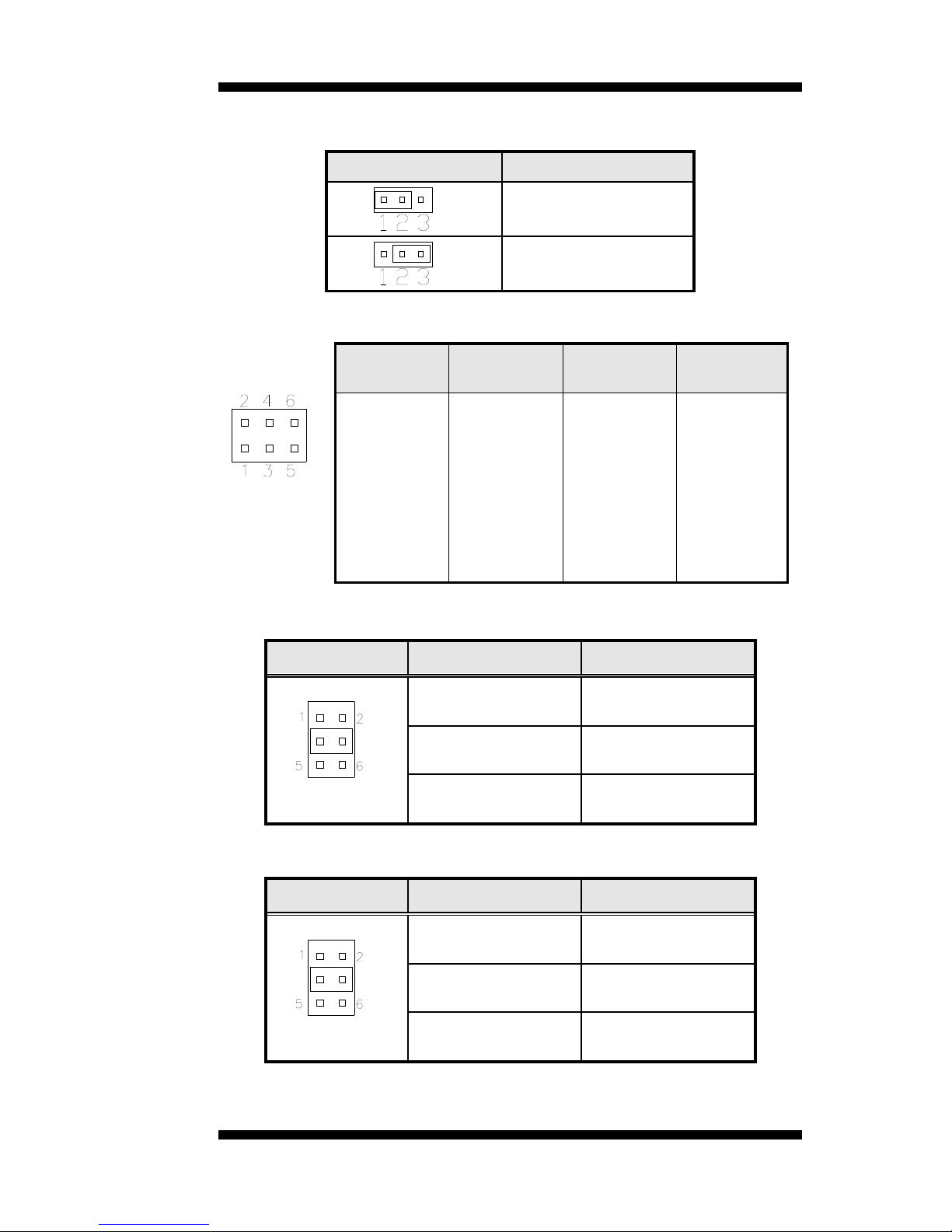

JP1: LCD Panel Power Selection
JP2 LCD Panel Power
3.3V
5V
JP3, JP4, JP5: RS232/422/485 (COM1) Selection
COM1
Function RS-232 RS-422 RS-485
Jumper
Setting
(pin closed)
JP5:
1-2
JP3:
3-5 & 4-6
JP4:
3-5 & 4-6
JP5:
3-4
JP3:
1-3 & 2-4
JP4:
1-3 & 2-4
JP5:
5-6
JP3:
1-3 & 2-4
JP4:
1-3 & 2-4
JP6: COM1 RS232 RI/+5V/+12V Power Setting
JP6 Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed RI
Pin 5-6
Short/Closed +5V
JP8: COM4 RS232 RI/+5V/+12V Power Setting
JP8 Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed RI
Pin 5-6
Short/Closed +5V
MI888 User’s Manual 13

INSTALLATIONS
JP9: COM3 RS232 RI/+5V/+12V Power Setting
JP9 Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed RI
Pin 5-6
Short/Closed +5V
JP7: COM4 RS232 RI/+5V/+12V Power Setting
JP7 Setting Function
Pin 1-2
Short/Closed +12V
Pin 3-4
Short/Closed RI
Pin 5-6
Short/Closed +5V
JP11: Clear CMOS Setting
JP11 Setting
Normal
Clear CMOS
14 MI888 User’s Manual

INSTALLATIONS
MI888 User’s Manual 15
Connectors on MI888
The connectors on MI888 allows you to connect external devices such as
keyboard, floppy disk drives, hard disk drives, printers, etc. The
following table lists the connectors on MI888 and their respective
functions.

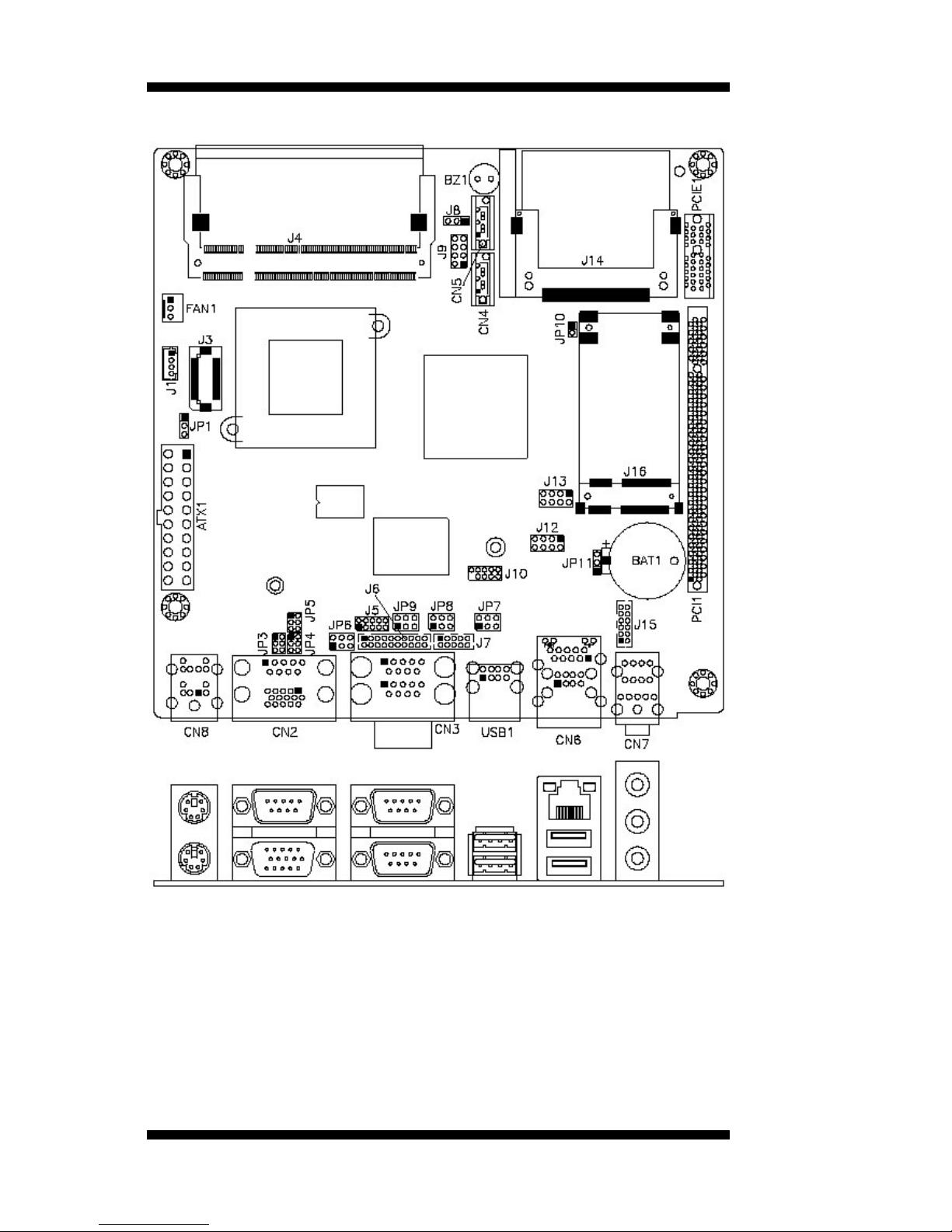

Connector Locations on MI888........................................................... 16
CN8: PS/2 Keyboard and PS/2 Mouse Connectors............................. 17
CN2: COM1 RS232/RS422/RS485 and VGA Connector................... 17
CN3: COM2/RS232 and COM3/RS232 Connector............................ 18
CN6: 10/100/1000 RJ-45 and USB3/4 Ports...................................... 18
USB1: USB5/6 Ports........................................................................... 18
CN7: Line-in, Line-out & Microphone Connector.............................. 18
ATX1: ATX Power Supply Connector ............................................... 19
J1: LCD Backlight Connector ............................................................. 19
J3 : LVDS(18bit) Connectors.............................................................. 19
J4: DDR2 SO-DIMM.......................................................................... 19
J5: Digital I/O...................................................................................... 20
J6: COM2/RS232, COM3/RS232 Serial Port (option)........................ 20
J7: COM4/RS232 Serial Port .............................................................. 20
J8: Power LED .................................................................................... 20
J9: System Function Connector........................................................... 21
J10: SPI Flash Connector (factory use only)....................................... 21
J12: USB5/USB6 Connector............................................................... 21
J13: USB7/USB8 Connector............................................................... 22
J14: Compact Flash Connector............................................................ 22
J15: Audio Connector (DF11 Connector) ........................................... 22
J16: Mini PCIE Connector .................................................................. 22
CN4, CN5: SATA Connectors ............................................................ 22
PCI1: PCI Slot (supports 2 Master)..................................................... 22
PCIE1: PCIEX1 Slot ........................................................................... 22
FAN1: CPU Fan Power Connector ..................................................... 22

INSTALLATIONS
Connector Locations on MI888
16 MI888 User’s Manual

INSTALLATIONS

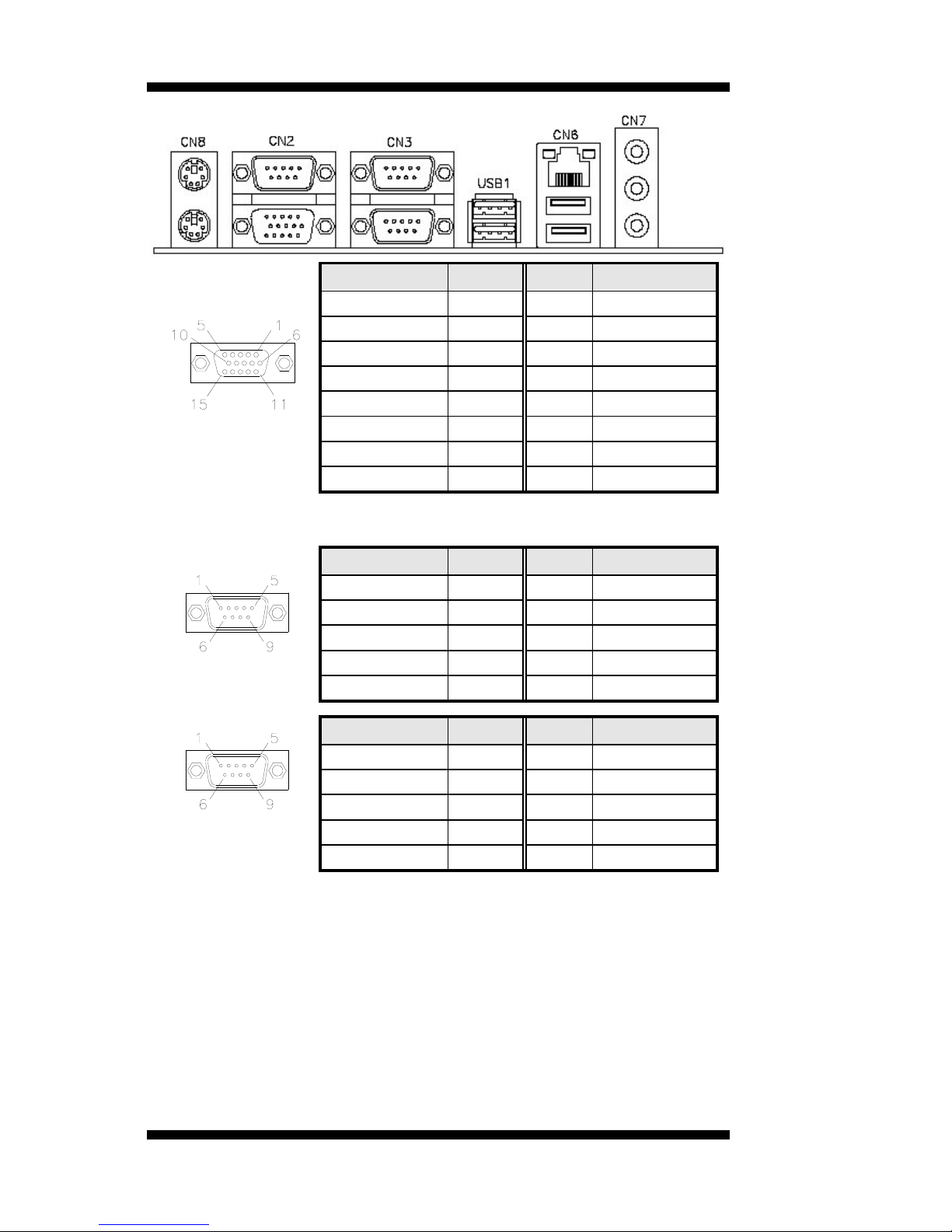

CN8: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
CN2: COM1 RS232/RS422/RS485 and VGA Connector
[
Pin # Signal Name
RS-232 R2-422 RS-485
1 DCD TX- DATA-
2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR NC NC
7 RTS NC NC
8 CTS NC NC
9 RI NC NC
10 NC NC NC
MI888 User’s Manual 17

INSTALLATIONS
[[[[
VGA
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
NC 15

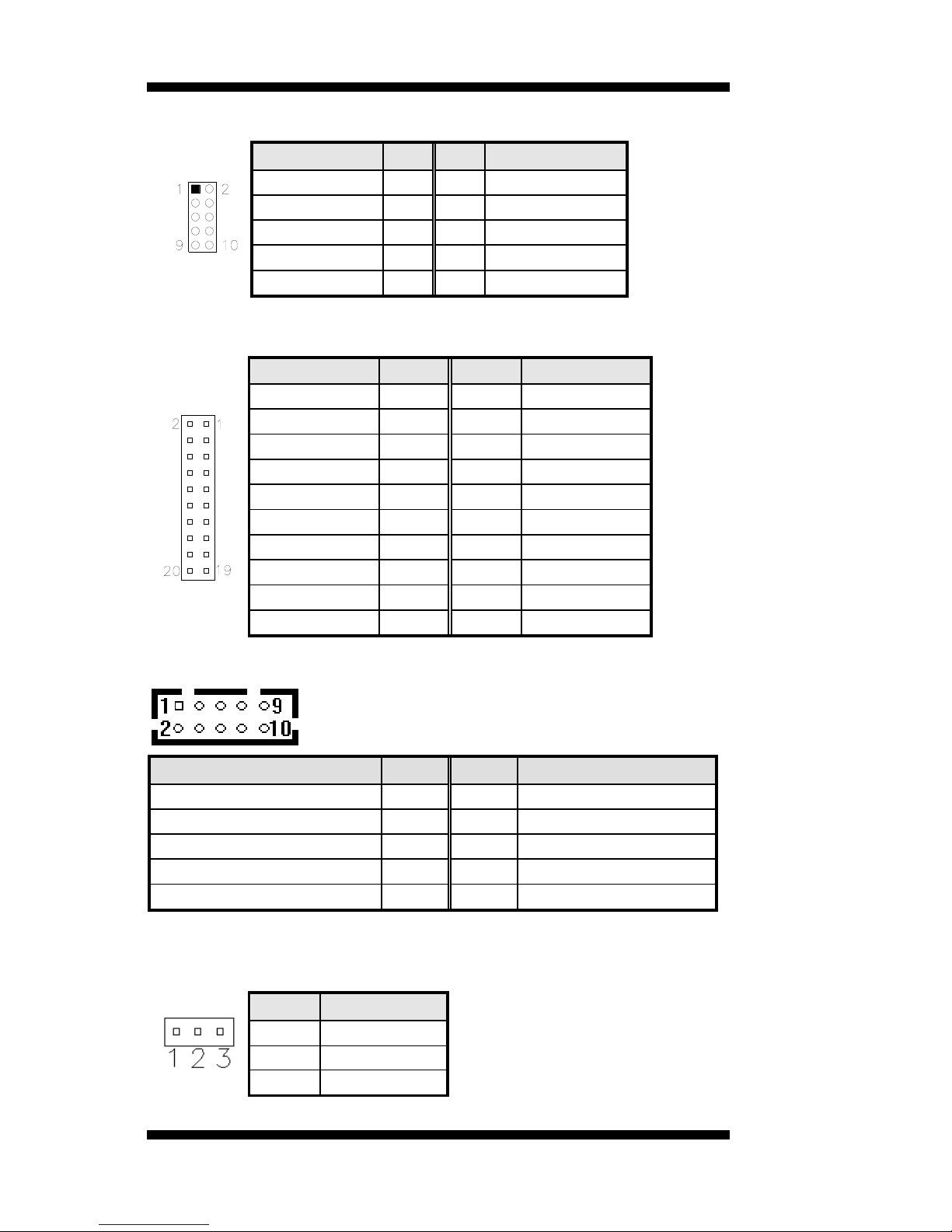

CN3: COM2/RS232 and COM3/RS232 Connector
[
COM2/RS232
Signal Name Pin # Pin # Signal Name
DCD 1 6 DSR
RXD 2 7 RTS
TXD 3 8 CTS
DTR 4 9 RI
GND 5 10 Not Used
[
COM3/RS232
Signal Name Pin # Pin # Signal Name
DCD 1 6 DSR
RXD 2 7 RTS
TXD 3 8 CTS
DTR 4 9 RI
GND 5 10 Not Used
CN6: 10/100/1000 RJ-45 and USB3/4 Ports
USB1: USB5/6 Ports
CN7: Line-in, Line-out & Microphone Connector
18 MI888 User’s Manual

INSTALLATIONS

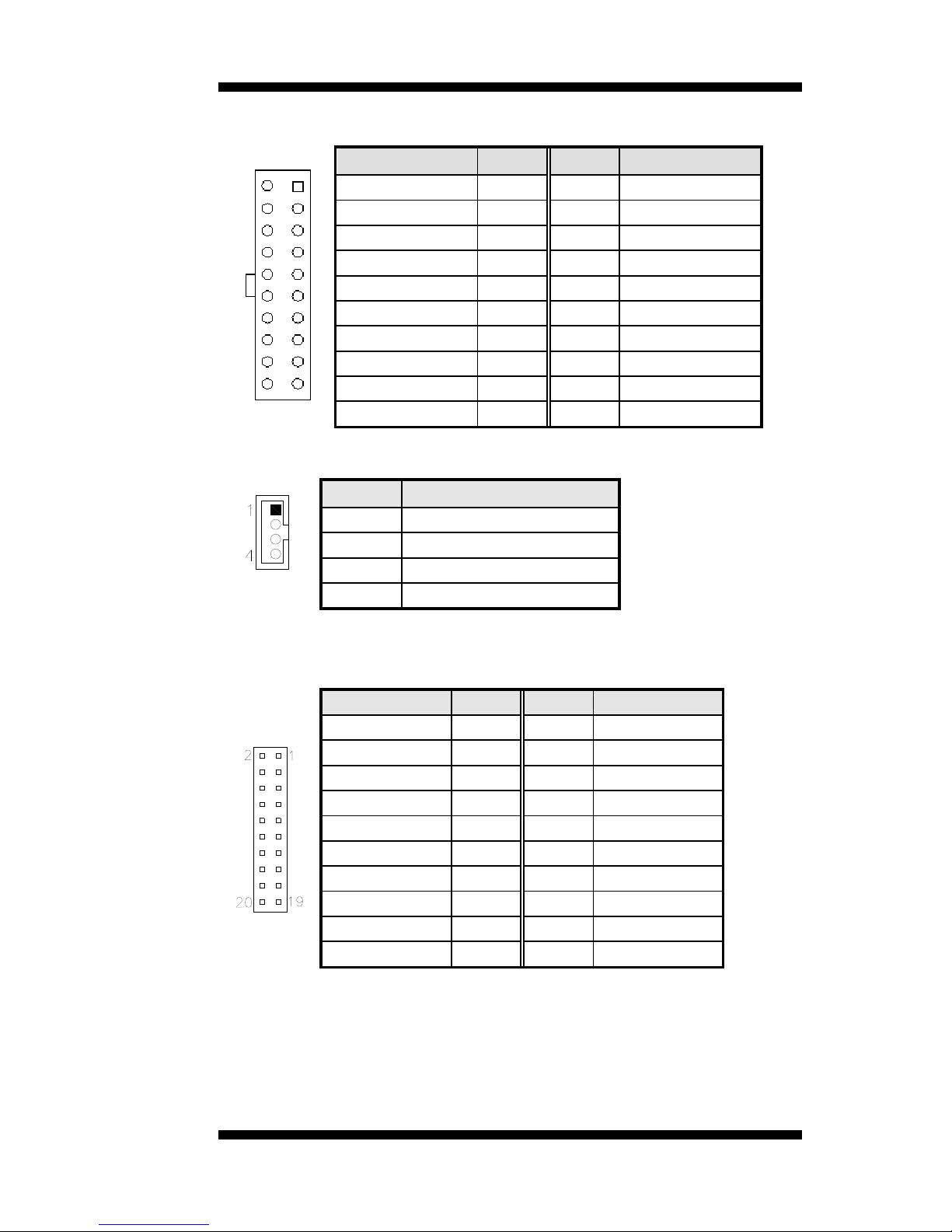

ATX1: ATX Power Supply Connector
11 1
20 10
Signal Name Pin # Pin # Signal Name
3.3V 11 1 3.3V
-12V 12 2 3.3V
Ground 13 3 Ground
PS-ON 14 4 +5V
Ground 15 5 Ground
Ground 16 6 +5V
Ground 17 7 Ground
-5V 18 8 Power good
+5V 19 9 5VSB
+5V 20 10 +12V
J1: LCD Backlight Connector
Pin # Signal Name
1 +12V
2 Backlight Enable
3 Brightness Control
4 Ground
J3 : LVDS(18bit) Connectors
The LVDS connectors on board
Signal Name Pin # Pin # Signal Name
TX0- 2 1 TX0+
Ground 4 3 Ground
TX1- 6 5 TX1+
5V/3.3V 8 7 Ground
NC 10 9 NC
TX2- 12 11 TX2+
Ground 14 13 Ground
TXC- 16 15 TXC+
5V/3.3V 18 17 ENABKL
+12V 20 19 +12V
J4: DDR2 SO-DIMM
MI888 User’s Manual 19

INSTALLATIONS
J5: Digital I/O
Signal Name Pin Pin Signal Name
GND 1 2 VCC
OUT3 3 4 OUT1
OUT2 5 6 OUT0
IN3 7 8 IN1
IN2 9 10 IN0
J6: COM2/RS232, COM3/RS232 Serial Port (option)
Signal Name Pin # Pin # Signal Name
DSR1 2 1 DCD1
RTS1 4 3 RXD1
CTS1 6 5 TXD1
RI1 8 7 DTR1
NA 10 9 Ground
DSR2 12 11 DCD2
RTS2 14 13 RXD2
CTS2 16 15 TXD2
RI2 18 17 DTR2
NA 20 19 Ground
J7: COM4/RS232 Serial Port
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
J8: Power LED
The power LED indicates the status of the main power switch.
Pin # Signal Name
1 Power LED
2 No connect
3 Ground
20 MI888 User’s Manual
