IBASE Technology IB905 User manual

IB905
Intel®Sandy Bridge / PCH
3.5-inch Embedded Board
USER’S MANUAL
Version 1.1

ii IB905 User’s Manual
Acknowledgments
AMI is a registered trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Intel® Sandy Bridge DC Mobile Processor are
registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Fintek is a registered trademark of Fintek Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.

IB905 User’s Manual iii
Table of Contents
Introduction...................................................... 1
Product Description....................................................................1
Checklist ....................................................................................2
IB905 Specifications...................................................................3
Board Dimensions ......................................................................5
Installations...................................................... 6
Installing the CPU ......................................................................7
Installing the Memory.................................................................8
Setting the Jumpers ....................................................................9
Connectors on IB905................................................................ 13
BIOS Setup.......................................................20
Drivers Installation......................................46
Intel Chipset Software Installation Utility.................................. 47
VGA Drivers Installation.......................................................... 48
Realtek HD Audio Driver Installation .......................................49
LAN Drivers Installation...........................................................50
ASMedia USB 3.0 Drivers........................................................52
Appendix...........................................................54
A. I/O Port Address Map..........................................................54
B. Interrupt Request Lines (IRQ)..............................................55
C. Watchdog Timer Configuration............................................56

iv IB905 User’s Manual
This page is intentionally left blank.

INTRODUCTION
IB905 User’s Manual 1
Introduction
Product Description
The IB905 3.5-inch embedded board is based on the latest Intel®QM67
chipset. The platform supports 2nd generation Intel®Core processor
family with rPGA988B packing and features an integrated dual-channel
DDR3 memory controller as well as a graphics core.
The latest Intel®processors provide advanced performance in both
computing and graphics quality. This meets the requirement of customers
in the gaming, POS, digital signage and server market segment.
The Intel®QM67 is made with 32 nanometer technology that supports
Intel’s first processor architecture to unite the CPU and the graphics core
on the transistor level. The IB905 3.5-inch embedded board utilizes the
dramatic increase in performance provided by this Intel’s latest
cutting-edge technology. Measuring 102mm x 148mm, IB905 offers fast
6Gbps SATAsupport (2 ports), USB3.0 (2 ports) and interfaces for ,
DVI-I, LVDS displays. IB905 features IntelActive Management
Technology 7.0.
IB905 FEATURES:
Supports Intel®2nd Generation Core i7/i5/i3 QC/DC mobile
processors
One DDR3 SoDIMM, 1066/1333MHz, Max. 4GB memory
Dual Intel®PCI-Express Gigabit LAN
Integrated Graphics for DVI-I/LVDS displays
2x SATA 3.0, 6x USB 2.0, USB 3.0 (2 ports),
2x COM, Watchdog timer
1x Mini PCI-E
Digital I/O, LPC/Smart battery interface

INTRODUCTION
2 IB905 User’s Manual
Checklist
Your IB905 package should include the items listed below.
The IB905 3.5-inch embedded board
This User’s Manual
1 CD containing chipset drivers and flash memory utility
SATA-12 ;PK1-20B ;PW87 cable
Optional SATA-5;Audio-18;USB29;HSIB905

INTRODUCTION
IB905 User’s Manual 3
IB905 Specifications
Form Factor
3.5” Disk Size
CPU Type
- Intel®2nd generation CoreTM i7/i5/i3/Celeron QC/DC mobile
processor
- rPGA package, 37.5 x 37.5 mm
- TDP: QC = 45W~ 55W/ DC = 35W
CPU Speed
Up to 2.7GHz
Cache
Up to 8MB
CPU Socket
rPGA988B(Socket G2) @ solder side
Chipset
Intel®QM67 PCH @ solder side
25 x 27 mm package size , TDP=3.9W
BIOS
AMI BIOS, support ACPI Function
Memory
Intel®2nd generation CoreTM i7/i5 QC/DC mobile processor
integrated memory controller
DDRIII 1066/1333/1600 MHz SO-DIMM x 1 (w/o ECC, 1.5V),
Max. 8GB
VGA
Intel®2nd Gen. CoreTM i7/i5/i3 mobile processor integrated Gfx
DVI-I x 1 (thru Level shifter ASM1442) [Thru Digital Port B]
LVDS
24-bit dual channels LVDS interface w/DF13 socket x2
LAN
1. Intel® 82579V GbE PHY as 1st LAN
2. Intel®82583V PCIe GbE as 2nd LAN
USB (Universal
Serial Bus)
1. Intel®QM67 PCH integrated USB 2.0 host controller, 6ports :
2-port in the rear panel + 4-ports via pin header
2. USB 3.0 host controller [ASM1042], support 2ports in the rear
panel [Does not support DOS boot function]
Serial ATA
Ports
Intel®QM67 PCH built-in SATA controller, supports 2 x SATA 3.0
(6Gbps)
Audio
Intel®QM67 PCH built-in High Definition Audio controller +
Realtek ALC662, support 5.1-channel
LPC I/O
Winbond W83627DHG
COM1 (RS232 only)
COM2 (RS232/422/485) with pin-18 with power @500 mA (jumper
selectable for 5V or 12V) via DF11 2x10 pin connector
Hardware Monitor:
2x Thermal inputs
2x Voltage monitoring
1x fan speed DC control
Digital IO
4 in & 4 out
IAMT(7.0)
N/A
Expansion
Slots
Mini PCI-e socket x 1, Half-sized type, reserved one mounting hole
only; [USB device support]
Edge
Connector
DVI-I x1
RJ45 x2 for LAN 1&2
USB 3.0 stack connector x 1 for USB1 ~2 [Blue color]
USB 2.0 stack connector x 1 for USB3 ~4

INTRODUCTION
4 IB905 User’s Manual
On Board
Header/Connec
tor
2 ports x SATA III [Blue color]
2x4 pins header x 2 for 4 USB 2.0 ports[DF11]
DF13-20 socket connector x 2 for 24-bit dual channel LVDS
2x6 pins box header x1 for Audio [DF11]
2x10 pins box header x 1 for COM1~2 [DF11]
2x5 pins headers x 1 for LPC Digital IO
Mini PCI-e(1x) connector x 1[Half-sized]
5 pins box header x 1 for smart battery
4 pins box header x 1 for backlight/brightness control
4 pins power connector x 1 for SATA HDD
2 pins power connector x 1 for 12V DC-in [180 degree vertical type]
Watchdog
Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
Power
Connector
+12V DC-in only
RoHS
Yes
Board Size
102mm x 147mm
Others

INTRODUCTION
IB905 User’s Manual 5
[

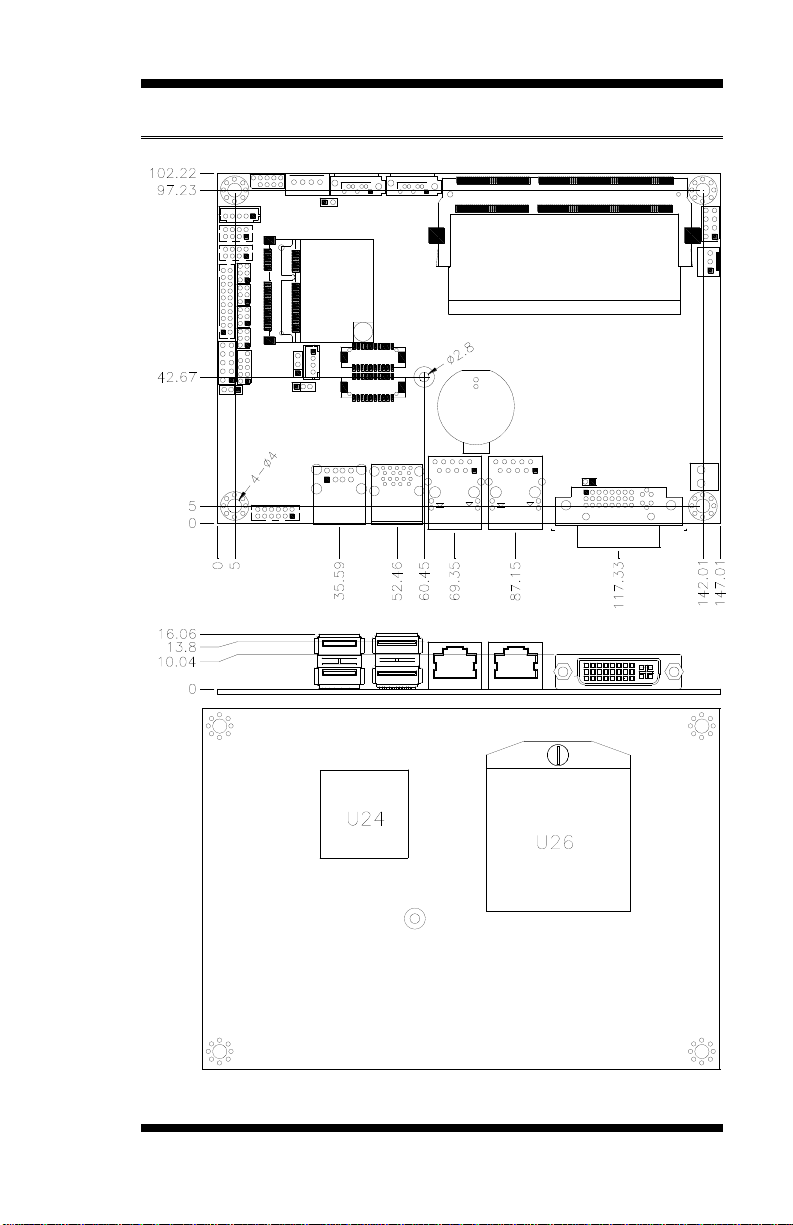

Board Dimensions

INSTALLATIONS
6 IB905 User’s Manual
Installations
This section provides information on how to use the jumpers and
connectors on the IB905 in order to set up a workable system. The topics
covered are:
Installing the CPU................................................................................7
Installing the Memory..........................................................................8
Setting the Jumpers.............................................................................. 9
Connectors on IB905......................................................................... 13

INSTALLATIONS
IB905 User’s Manual 7
Installing the CPU
The IB905 board supports rPGA988B socket for Intel® Sandy Bridge
Dual Core mobile processors.
The processor socket comes with a screw to secure the processor. As
shown in the left picture below, loosen the screw first before inserting the
processor. Place the processor into the socket by making sure the notch
on the corner of the CPU corresponds with the notch on the inside of the
socket. Once the processor has slide into the socket, fasten the screw.
Refer to the figures below.
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.

INSTALLATIONS
8 IB905 User’s Manual
Installing the Memory
The IB905 board supports one DDR3 memory socket for a maximum
total memory of 4GB in DDR3 SO-DIMM memory type.
Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3 module so that the key of the DDR3 module aligns
with that on the memory slot. Insert the module into the socket at a
slight angle (approximately 30 degrees). Note that the socket and
module are both keyed, which means that the module can be installed
only in one direction.
2. To seat the memory module into the socket, apply firm and even
pressure to each end of the module until you feel it slip down into the
socket.
3. With the module properly seated in the socket, rotate the module
downward. Continue pressing downward until the clips at each end
lock into position.
4. To remove the DDR3 module, press the clips with both hands.

INSTALLATIONS
IB905 User’s Manual 9
Setting the Jumpers
Jumpers are used on IB905 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on IB905 and their respective functions.
Jumper Locations on IB905...............................................................10
JP5, JP6, JP8: RS232/RS422/RS485 (COM2) Selection ....................11
JP9: COM2 RS232 RI/+5V/+12V Power Setting...............................11
J7: LCD Panel Power Selection ......................................................... 12
J1: Flash Descriptor Security Overide (Factory use only) ...................12
J8: ATX or AT Power Selection........................................................12
J9: Clear CMOS Contents..................................................................12

INSTALLATIONS
10 IB905 User’s Manual
Jumper Locations on IB905
Jumpers on IB905...........................................................................Page
JP5, JP6, JP8: RS232/RS422/RS485 (COM2) Selection.................... 11
JP9: COM2 RS232 RI/+5V/+12V Power Setting............................... 11
J7: LCD Panel Power Selection ......................................................... 12
J1: Flash Descriptor Security Overide (Factory use only) ................... 12
J8: ATX or AT Power Selection........................................................ 12
J9: Clear CMOS Contents.................................................................. 12

INSTALLATIONS
IB905 User’s Manual 11
JP5, JP6, JP8: RS232/RS422/RS485 (COM2) Selection
COM2
Function
RS-232
RS-422
RS-485
Jumper
Setting
(pin closed)
JP5:
3-5&4-6
JP8:
1-2
JP6:
3-5 & 4-6
JP5:
1-3&2-4
JP8:
3-4
JP6:
1-3 & 2-4
JP5:
1-3&2-4
JP8:
5-6
JP6:
1-3 & 2-4
JP9: COM2 RS232 RI/+5V/+12V Power Setting
JP9
Setting
Function
Pin 1-2
Short/Closed
+5V
Pin 3-4
Short/Closed
RI
Pin 5-6
Short/Closed
+12V

INSTALLATIONS
12 IB905 User’s Manual

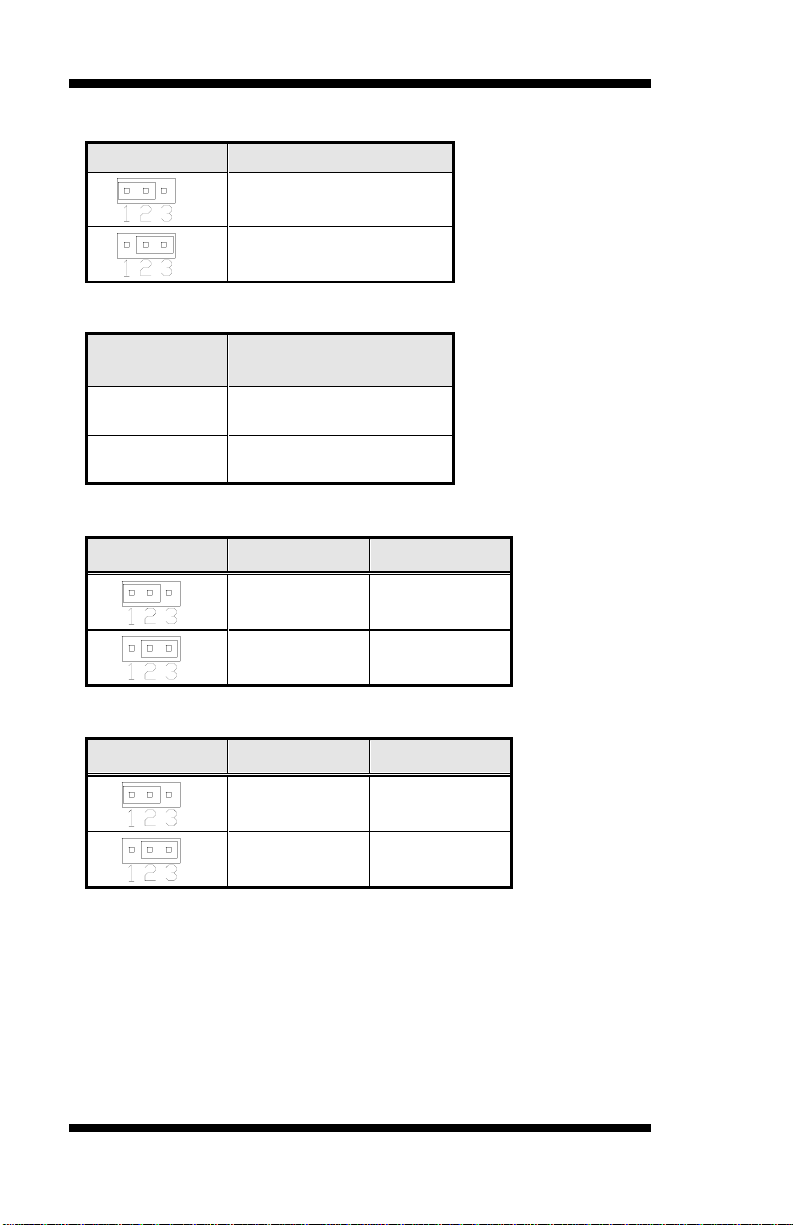

J7: LCD Panel Power Selection
J7
LCD Panel Power
3.3V
5V
J1: Flash Descriptor Security Override (Factory use only)
J1
Flash Descriptor Security
Override
Open
Disabled
(Default)
Close
Enabled
J8: ATX or AT Power Selection
J8
Setting
Function
Pin 1-2
Short/Closed
ATX Mode
Pin 2-3
Short/Closed
AT Mode
J9: Clear CMOS Contents
J9
Setting
Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear CMOS

INSTALLATIONS
IB905 User’s Manual 13

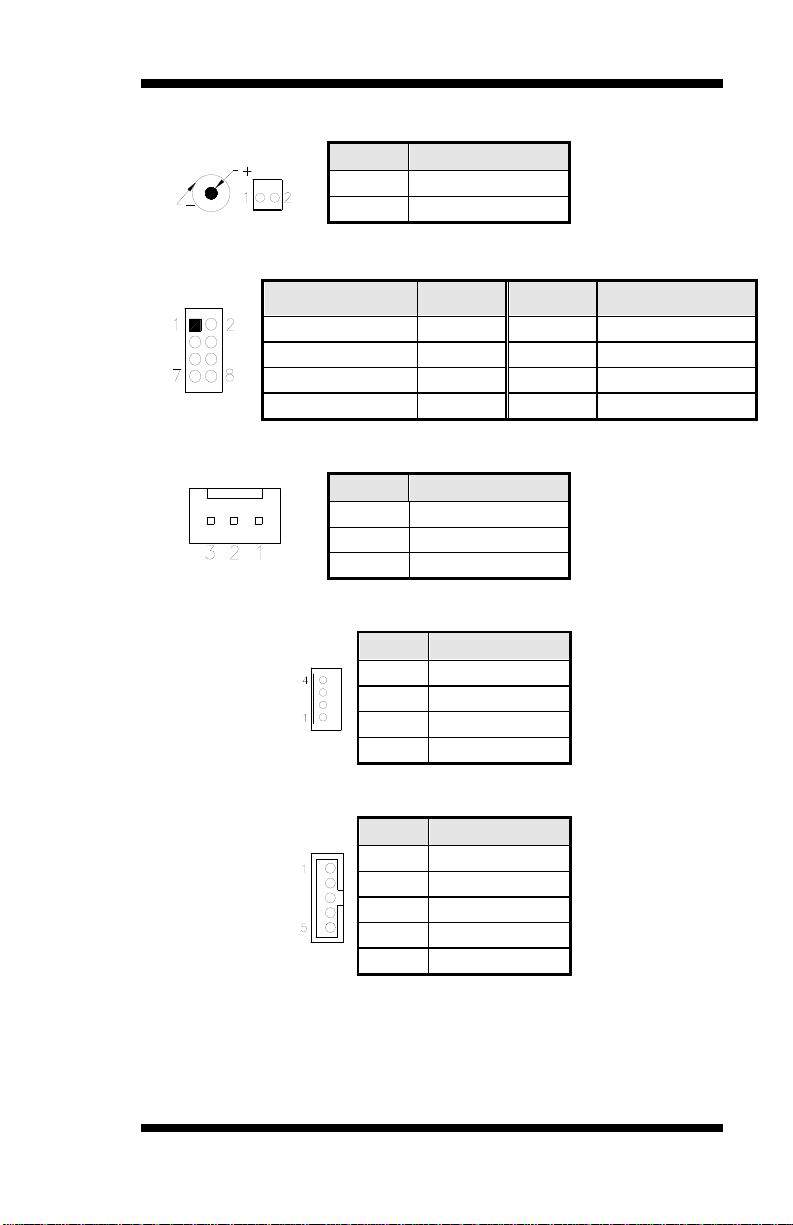

Connectors on IB905
J10: DC-IN 12V Power Connector .................................................... 15
J3: Front Panel Connector..................................................................15
SYS_FAN1:DC-system Fan Power Connector..................................15
JP2: HDD Power Connector..............................................................15
J2: Smart Battery Interface Connector ............................................... 15
J10, J13: LVDS1, LVDS2 Connectors (1st/2nd channel) ...................16
J6: LCD Backlight Connector (DC type)............................................16
JP7: COM1, COM2 Serial Port (DF11 Connector) ............................16
J12: Audio Connector (DF11 Connector)...........................................18
JP11: Digital I/O................................................................................ 18
JP3, JP4: USB3~USB6 Connector(DF11 Connector) ........................18
CN7: DVI-I Connector.....................................................................19
CN5: USB3.0 Connector ...................................................................19
CN6: USB2.0 Connector ...................................................................19
CN4: Gigabit LAN (Intel 82579LM)..................................................19
CN3: Gigabit LAN (Intel 82583V).....................................................19
J5: Mini-PCIE Connector................................................................... 19
CN1, CN2: SATA Connectors...........................................................19
JP12: LPC Debug Connector (Factory use only) ................................19
JP1: SPI Flash Connector (Factory use only)...................................... 19

INSTALLATIONS
14 IB905 User’s Manual

INSTALLATIONS
IB905 User’s Manual 15
J10: DC-IN 12V Power Connector
Pin #
Signal Name
1
DC in (12V only)
2
Ground
J3: Front Panel Connector
Signal Name
Pin #
Pin #
Signal Name
Power BTN
1
2
Power BTN
HDD LED+
3
4
HDD LED-
Reset BTN
5
6
Reset BTN
Power LED+
7
8
Power LED-
SYS_FAN1:DC-system Fan Power Connector
Pin #
Signal Name
1
Ground
2
+12V
3
NC
JP2: HDD Power Connector
Pin #
Signal Name
1
+5V
2
Ground
3
Ground
4
+12V
J2: Smart Battery Interface Connector
Pin #
Signal Name
1
RST
2
EXTSMI
3
Ground
4
DATA
5
CLK

INSTALLATIONS
16 IB905 User’s Manual
J10, J13: LVDS1, LVDS2 Connectors (1st/2nd channel)
Signal Name
Pin #
Pin #
Signal Name
TX0-
2
1
TX0+
Ground
4
3
Ground
TX1-
6
5
TX1+
*5V/3.3V
8
7
Ground
TX3-
10
9
TX3+
TX2-
12
11
TX2+
Ground
14
13
Ground
TXC-
16
15
TXC+
*5V/3.3V
18
17
ENABKL
+12V
20
19
+12V
* Remarks: These connectors support 24-bit.J10 is 1st channel. J13 is 2nd
channel. J7 can be used to set 1-2 3.3V or 2-3 5V.
J6: LCD Backlight Connector (DC type)
Pin #
Signal Name
1
+12V
2
Backlight Enable
3
*Backlight Adj
(DC type)
4
Ground
* LCD backlight brightness can be adjusted by the OS or in the BIOS setup. In the
BIOS setup, both backlight enable/disable and backlight brightness can be
configured. Also, the backlight voltage can be set to 3.3V or 5V.
JP7: COM1, COM2 Serial Port (DF11 Connector)
Signal Name
Pin #
Pin #
Signal Name
DSR1
Data set ready
2
1
DCD1
Data carrier detect
RTS1
Request to send
4
3
RXD1
Receive data
CTS1
Clear to send
6
5
TXD1
Transmit data
RI1
Ringing indicator
8
7
DTR1
Data terminal ready
Not used
10
9
Ground
DSR2
12
11
DCD2
RTS2
14
13
RXD2
CTS2
16
15
TXD2
RI2
18
17
DTR2
