IBASE Technology IB831-NB User manual

IB831
VIA VX900
5.25-inch Disk Size SBC
USER’S MANUAL
Version 1.0

ii IB831 User’s Manual
Acknowledgments
AMI is a registered trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.

IB831 User’s Manual iii
Table of Contents
Introduction ..............................................................1
Product Description.............................................................1
Checklist..............................................................................2
Specifications......................................................................3
Board Dimensions...............................................................4
Installations ..............................................................5
Installing the Memory.........................................................6
Setting the Jumpers.............................................................7
Connectors on IB831...........................................................9
Bypass and WDT ..............................................................15
Block Diagram:.................................................................. 15
Communication States: ...................................................... 15
Watchdog Timer Configuration........................................16
GPIO Function Definition.................................................19
Digital I/O Sample Configuration.....................................20
BIOS Setup .............................................................25
Drivers Installation.................................................45
VIA VX900 VGA Driver Installation...............................46
Realtek LAN Driver Installation.......................................49

iv IB831 User’s Manual
This page is intentionallyleft blank.

INTRODUCTION
IB831 User’s Manual 1
Introduction
Product Description
The IB831 5.25-inch SBC incorporates the VIA VX900 chipset.
Currently, the board is available in three models, namely:
Model
VIA NanoTM X2
Dual Core CPU
LAN Bypass
Watchdog Timer
IB831
1.2 GHz
Yes
Yes
IB831-NB
1.2 GHz
No
Yes
IB831 Features
Supports four Realtek 10/100/1000 LAN ports
Supports 1.2GHz VIA NanoTM X2 U4300 processor
DDR3 SO-DIMM x 1, up to 2GB
Mini PCI-e (USB Signal) slot, Compact Flash socket
Optional Hardware LAN Bypass function on Eth1 & 2

INTRODUCTION
2 IB831 User’s Manual
Checklist
Your IB831 package should include the items listed below.
The IB831 VIA NanoTM X2 motherboard
1 CD containing chipset drivers and flash memory utility
Optional cables for VGA, KB/MS, Serial port, Serial ATA

INTRODUCTION
IB831 User’s Manual 3
Specifications
Form Factor
Desktop / Table Top Networking Product
CPU
VIA NanoTM X2 U4300 Dual Core @ 1.2 GHz, 13W
x86 and x64 (64-bit) capability
Bus speeds up to 1066 MHz
Hardware Virtualization (VMX)
VIA Virtualization (VIA-VT)
Enhanced PowerSaver provides fastest performance state
switching
Multi-processor support: Dual processing (SMP)
MMX, SSE, SSE2, SSSE3 and SSE4.1 compatible instructions
Two large (64-KB each, 16-way) Level 1 caches per core
1 MB Level 2 victim cache (32-way) with ECC per core (2 MB
Total)
Two Large TLBs (196 entries each, 12-way)
Chipset
VIA VX900 FSB 400~800 MHz, 4.5W
1.2V Core Voltage
800 / 533 / 400 MHz FSB support
PCI-e Gen2
128 bit 2D Graphic Engine
Ethernet
controller
Onboard 4X Realtek RT8111E PCIe GbE with RJ45
Memory
Single channel DDR3 up to 1066MHz
SO-DIMM Socket x1
Network
4x Realtek RT8111E Gigabit LAN, optional Bypass
Network
Bypass
Up to One segments hardware Bypass (ETH 1 & 2)
Control by GPIO / Watchdog / Electrical Disconnect (Power Off)
Watchdog
Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
Expansion Slot
Mini PCI-e Slot (USB Signal only)
Storage
Onboard CF Socket x1, SATA Connector x1
LED Indicators
Power (Green) / Status (Green) / Alarm (Red)
LAN: Speed 10Mbps: LED off
100Mbps: Green
1000Mbps: Amber
Link / ACT: Green / Green Blinking
Edge
Connectors
DC +12V inlet
RJ45 x4
DB-9 Console Port
USB 2.0 x2
USB 2.0
2 ports
VGA
Pin header on board
Power
DC-In +12V
Dimensions
203 (W) x 146 (D) mm

INTRODUCTION
4 IB831 User’s Manual
Board Dimensions
203 (W) x 146 (D) mm

INSTALLATION
IB831 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the IB831 in order to set up a workable system. The topics
covered are:
Installing the Memory................................................................... 6
Setting the Jumpers ...................................................................... 7
Connectors on IB831.................................................................... 9
Bypass and WDT........................................................................ 15
Block Diagram:............................................................................ 15
Communication States:................................................................ 15
Watchdog Timer Configuration.................................................. 16
GPIO Function Definition........................................................... 19
Digital I/O Sample Configuration............................................... 20

INSTALLATION
6 IB831 User’s Manual
Installing the Memory
The IB831 board supports one DDR3 memory socket for a maximum
total memory of 2GB in DDR3 memory type.
Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3 module so that the key of the DDR3 module aligns
with those on the memory slot.
2. Gently push the DDR3 module in an upright position until the clips of
the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.
3. To remove the DDR3 module, press the clips with both hands.

INSTALLATION
IB831 User’s Manual 7
Setting the Jumpers
Jumpers are used on IB831 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs.
Jumper Locations on IB831
Jumpers on IB831.............................................................................. …7
J3: Clear CMOS Setting......................................................................... 8
JP3: LAN bypass controlled Setting....................................................... 8
JP4: Bypass LANs & Reboot Setting..................................................... 8

INSTALLATION
8 IB831 User’s Manual
J3: Clear CMOS Setting
J3
Setting
Normal
Clear CMOS

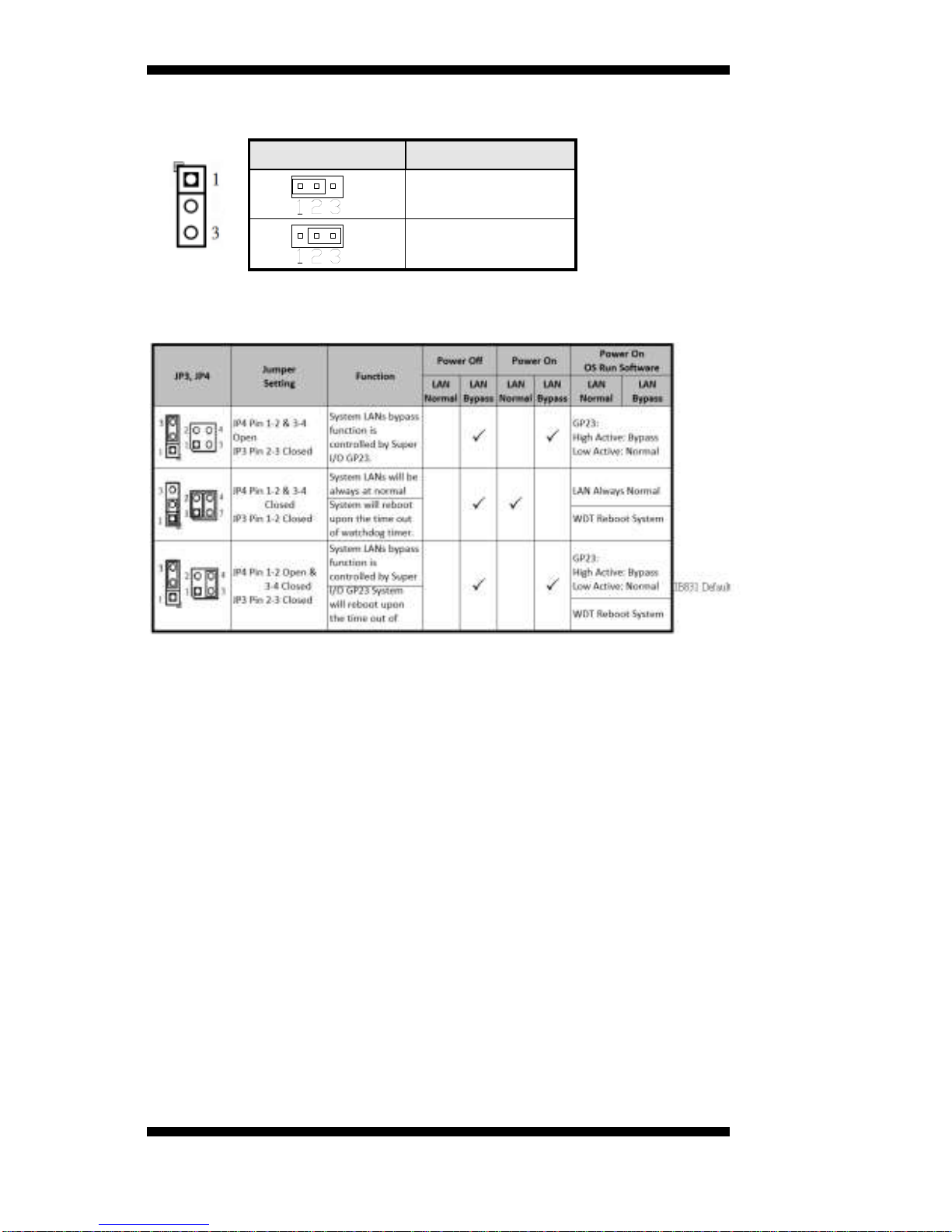

JP3 & JP4: Bypass LANs & Reboot Setting

INSTALLATION
IB831 User’s Manual 9
Connectors on IB831
The connectors on IB831 allow you to connect external devices such as
keyboard, floppydisk drives, hard disk drives, printers, etc. Thefollowing
table lists the connectors on IB831 and their respective functions.
FAN1: CPU Fan Power Connector ...................................................... 10
FAN2: System Fan Power Connector................................................... 10
CN3: USB1/2 Ports.............................................................................. 10
CN4, CN5: 10/100 /1000 RJ-45 Ports.................................................. 10
CN6, CN7: 10/100 /1000 RJ-45 Ports.................................................. 10
CN8: COM1 Serial Port....................................................................... 11
SW1: System Reset.............................................................................. 11
CN1: Serial ATA Port.......................................................................... 11
J4: Parallel Port.................................................................................... 11
J5: LPC Debug Port............................................................................. 11
J6: PS/2 Keyboard and PS/2 Mouse Connectors.................................. 12
J9: AT_12V Connector........................................................................ 12
J12: Mini PCI-E Connector (top side).................................................. 12
JP6: SPI Debug Port ............................................................................ 13
JP7: VGA Connector ........................................................................... 13
JP8: HDD Power Connector (Output: Max. 2A).................................. 13
CN2: Compact Flash Connector (top side)........................................... 14

INSTALLATION
10 IB831 User’s Manual

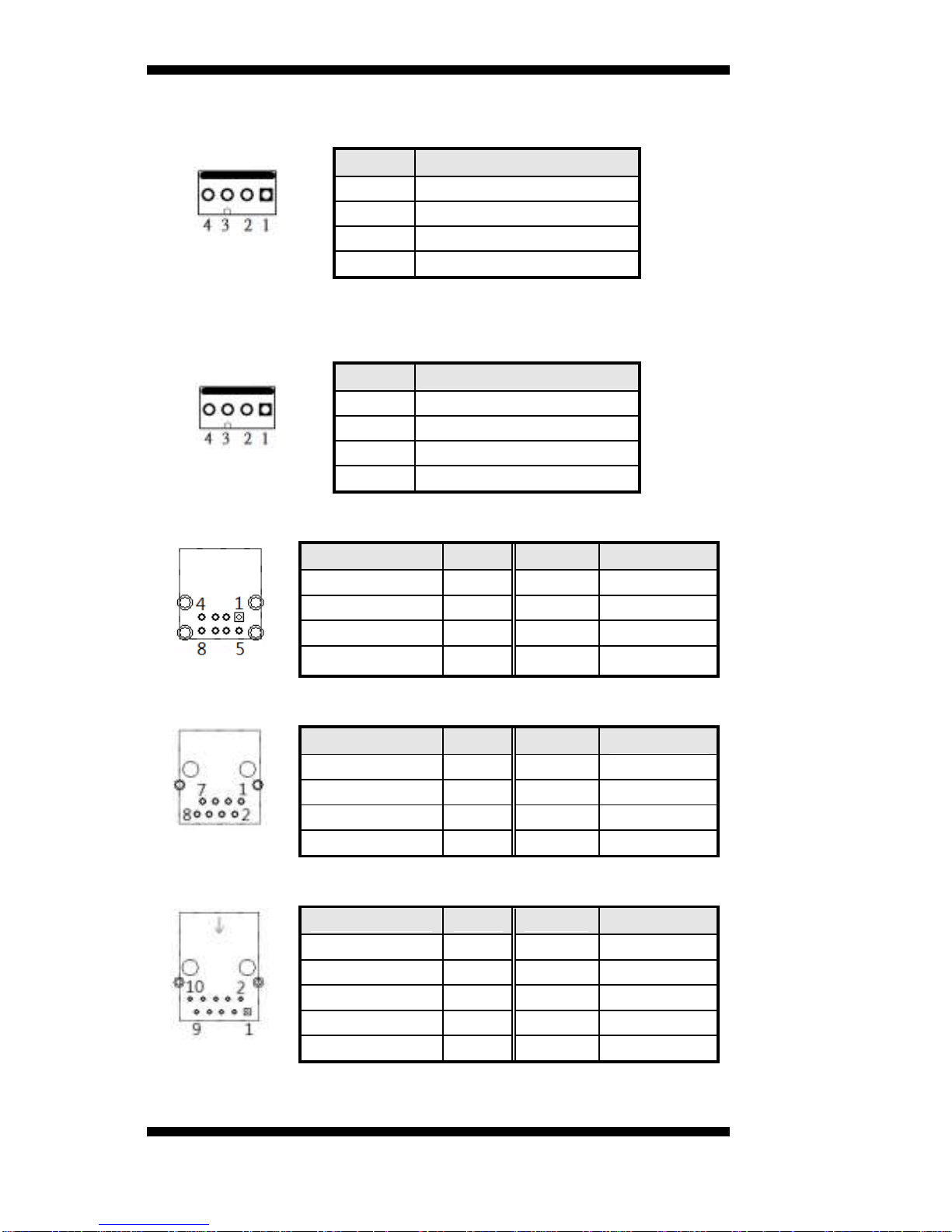

FAN1: CPU Fan Power Connector
FAN1 is a 4-pin header for the CPU fan. The fan must be 12V (Max. 1A).
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
4
Rotation control
FAN2: System Fan Power Connector
FAN2 is a 4-pin header for system fans. The fan must be 12V (Max. 1A).
Pin #
Signal Name
1
Ground
2
+12V
3
Rotation detection
4
Rotation control
CN3: USB1/2 Ports
Signal Name
Pin #
Pin #
Signal Name
+5V
1
5
+5V
D-
2
6
D-
D+
3
7
D+
GND
4
8
GND
CN4, CN5: 10/100 /1000 RJ-45 Ports
Signal Name
Pin #
Pin #
Signal Name
TX+
1
2
TX-
RX+
3
4
NC
NC
5
6
RX-
NC
7
8
NC
CN6, CN7: 10/100 /1000 RJ-45 Ports
Signal Name
Pin #
Pin #
Signal Name
TX+
1
2
TX-
RX+
3
4
RX-
TCT
5
6
RCT
MDI2+
7
8
MDI2-
MDI3+
9
10
MDI3+

INSTALLATION
IB831 User’s Manual 11
CN8: COM1 Serial Port
Pin #
Signal Name
1
DCD, Data carrier detect
2
RXD, Receive data
3
TXD, Transmit data
4
DTR, Data terminal ready
5
Ground
6
DSR, Data set ready
7
RTS, Request to send
8
CTS, Clear to send
9
RI, Ring indicator
SW1: System Reset
CN1: Serial ATA Port
J4: Parallel Port
Signal Name
Pin #
Pin #
Signal Name
STB-
1
14
AFD-
PD0
2
15
ERR-
PD1
3
16
INIT-
PD2
4
17
SLIN-
PD3
5
18
Ground
PD4
6
19
Ground
PD5
7
20
Ground
PD6
8
21
Ground
PD7
9
22
Ground
ACK-
10
23
Ground
BUSY
11
24
Ground
PE
12
25
Ground
SLCT
13
J5: LPC Debug Port
Signal Name
Pin #
Pin #
Signal Name
LAD0
1
2
LRESET
LAD1
3
4
LFRAME#
LAD2
5
6
+3.3V
LAD3
7
8
Ground
PCI_CLK1
9

INSTALLATION
12 IB831 User’s Manual

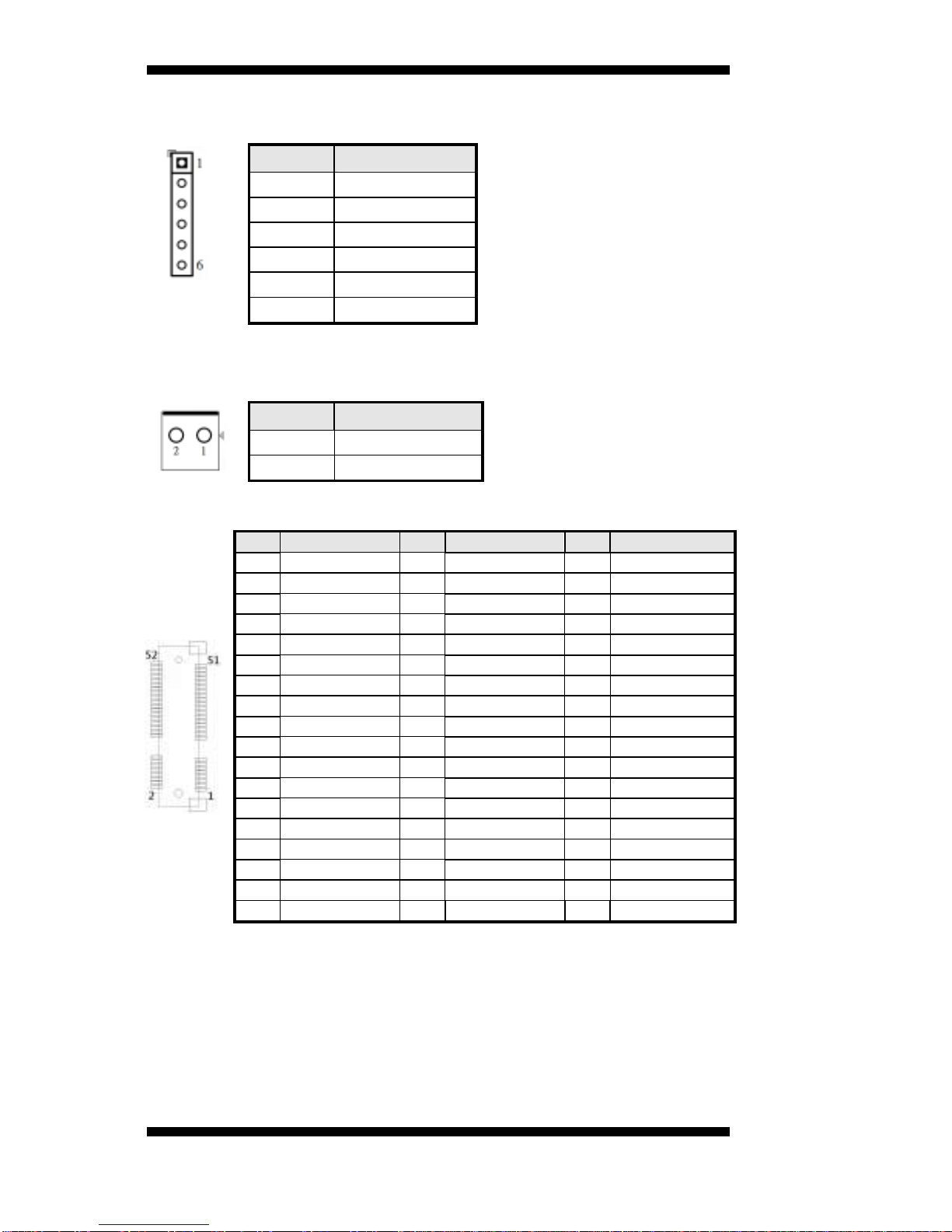

J6: PS/2 Keyboard and PS/2 Mouse Connectors
Pin #
Signal Name
1
KBDA
2
KBCL
3
MDA
4
MCL
5
Ground
6
+5VSUS
J9: AT_12V Connector
J9 is a DC-in internal connector supporting +12V.
Pin #
Signal Name
1
+12V
2
Ground
J12: Mini PCI-E Connector (top side)
Pin
Signal
Pin
Signal
Pin
Signal
1
WAKE#
19
RSVD4(UIM)
37
GND
2
+3.3Vaux
20
W_DISABLE
38
USB_D+
3
COEX1
21
GND
39
+3.3Vaux
4
GND
22
PERST#
40
GND
5
COEX2
23
PER_N0
41
+3.3Vaux
6
+1.5V
24
+3.3Vaux
42
LED_WWAN#
7
CLKREQ#
25
PER_P0
43
GND
8
UIM_PWR
26
GND
44
LED_WLAN#
9
GND
27
GND
45
RSVD9
10
UIM_DATA
28
+1.5V
46
LED_WPAN#
11
REFCLK-
29
GND
47
RSVD10
12
UIM_CLK
30
SMB_CLK
48
+1.5V
13
REFCLK+
31
PET_N0
49
RSVD11
14
UIM_RESET
32
SMB_DATA
50
GND
15
GND
33
PET_P0
51
RSVD12
16
UIM_CLK
34
GND
52
+3.3Vaux
17
RSVD3(UIM)
35
GND
18
GND
36
USB_D-

INSTALLATION
IB831 User’s Manual 13
JP6: SPI Debug Port
Signal Name
Pin #
Pin #
Signal Name
2
NC
MSPISS0
3
4
SPIVCC
MSPIDI
5
6
-HOLD
-WP
7
8
MSPICLK
GND
9
10
MSPIDO
JP7: VGA Connector
Signal Name
Pin #
Pin #
Signal Name
DACR
1
2
+5VCRT
DACG
3
4
GND
DACB
5
6
NC
NC
7
8
CRT_SPD
GND
9
10
HSYNC_C
+5VCRT
11
12
VSYNC_C
GND
13
14
CRT_SPCLK
GND
15
JP8: HDD Power Connector (Output: Max. 2A)
Pin #
Signal Name
1
+5V
2
Ground
3
Ground
4
+12V
Note: +12V power is provided with 2A maximum load.

INSTALLATION
14 IB831 User’s Manual
CN2: Compact Flash Connector (top side)
Pin
Signal
Pin
Signal
Pin
Signal
1
GND
18
A02
35
IOW#
2
D03
19
A01
36
WE#
3
D04
20
A00
37
INTRQ
4
D05
21
D00
38
VCC
5
D06
22
D01
39
CSEL#
6
D07
23
D02
40
NC/VS2
7
CS0#
24
IOCS16#
41
RESET#
8
GND/A10
25
CD2#
42
IORDY
9
ATA_SEL#
26
CD1#
43
NC/NPACK#
10
GND/A09
27
D11
44
VCC/REG#
11
GND/A08
28
D12
45
DASP#
12
GND/A07
29
D13
46
PDIAG#
13
VCC
30
D14
47
D08
14
GND/A06
31
D15
48
D09
15
GND/A05
32
CS1#
49
D10
16
GND/A04
33
GND/VS1#
50
GND
17
GND/A03
34
IOR#

INSTALLATION
IB831 User’s Manual 15
Bypass and WDT
The bypass function is used to link (or short) two independent Ethernet
ports when user’s application software halts or when power is off.
Block Diagram:
I/O Command
Relays are "Energized"
Normal State
Driver
Relay
GPIO
Ethemet#2
Ethemet#1
Bypass
RJ45
Relays
RJ45
WDT
CN11
CN12
Communication States:
There are two communications states for the bypass function: (1) Normal
State, (2) Bypass State. A watchdog timer (WDT) or a GPIO are used to
control and switch the communication between the two states.
The block diagram in the section above shows the Normal State, where
the two Ethernet ports work independently. The following diagram shows
the Bypass State, where the two Ethernet ports are bypassed.
I/O Command
Relays are "Dis-energized"
Driver
Relay
Bypass State
Ethemet#2
Ethemet#1
Bypass
RJ45
Relays
RJ45
WDT
GPIO
CN11
CN12

INSTALLATION
16 IB831 User’s Manual
Watchdog Timer Configuration
The WDT is used to generate a variety of output signals after a user
programmable count. The WDT is suitable for use in the prevention of
system lock-up, such as when software becomes trapped in a deadlock.
Under these sort of circumstances, the timer will count to zero and the
selected outputs will be driven. Under normal circumstance, the user will
restart the WDT at regular intervals before the timer counts to zero.
SAMPLE CODE:
This code and information is provided "as is" without warranty of any
kind, either expressed or implied, including but not limited to the implied
warranties of merchantability and/or fitness for a particular purpose.
Filename：Main.cpp
//---------------------------------------------------------------------------
//
// THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY
// KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
// IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR
// PURPOSE.
//
//---------------------------------------------------------------------------
#include <dos.h>
#include <conio.h>
#include <stdio.h>
#include <stdlib.h>
#include "W627DHG.H"
//---------------------------------------------------------------------------
int main (void);
void WDTInitial(void);
void WDTEnable(unsigned char);
void WDTDisable(void);
//---------------------------------------------------------------------------
int main (void)
{
char SIO;
SIO = Init_W627DHG();
if (SIO == 0)
{
printf("Can not detect Winbond 83627DHG, program abort.\n");
return(1);
}
WDTInitial();
WDTEnable(10);
WDTDisable();
return 0;
}
//---------------------------------------------------------------------------
void WDTInitial(void)
{
unsigned char bBuf;
