TE-3BDP User Manual

iBeamUSA.com

MetraDealer.com

techsupport@metra-autosound.com

� TECH SUPPORT

l ::: J 800-253-8324

1

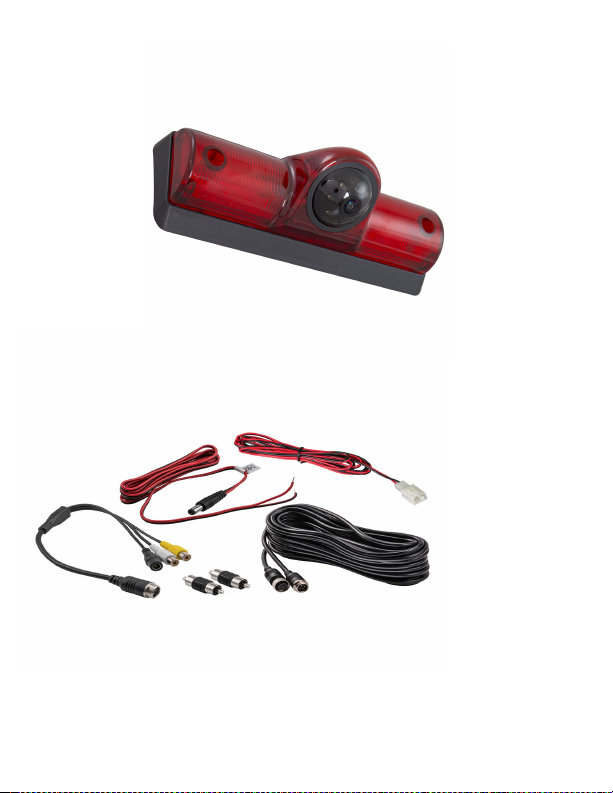

1. Brake light camera

2. Accessories

1. 10m extension cable

2. 4-pin to RCA adapter

3. DC power cable

4. Two male to male adapters

5. Brake power cable

6. Gasket (not shown)

1

2

3

4

5

2

3. Connections

1. Remove factory 3rd brake light.

2. Connect red wire off new brake light to +12v and black to ground at factory

3rd brake light connector. This connection will power the brake light when

the brake is pressed.

3. Run extension cable though vehicle, up to monitor. Make sure to run cable in

the correct orientation (female end to monitor and male end to camera).

Avoid placing video cable where it can get pinched or damaged. Connect to

monitor's reverse AV input.

4. If using a RCA monitor, attach the adapter cable to monitor end of the

extension cable. Connect yellow video rca to the reverse camera input of the

radio or video display. Connect the DC power cable, with the red wire to a

switched +12v power source and black to ground (a metal, non-painted

surface).

5. Connect brake light camera to the extension cable, and after verifying

functionality mount the brake light to the vehicle using the factory hardware.

4.Maintenance

Although this Rear View Camera requires little care, you can still maintain its

condition and performance by occasionally clean the camera lens with damp soft

cloth.

3

4.Specifications

Notes:

_______________________________________________________________________________

Notes:

_______________________________________________________________________________

Notes:

_______________________________________________________________________________

IMPORTANT

If you are having difficulties with the installation

of this product, please call our Tech Support line

at 1-800-253-TECH. Before doing so, look over

the instructions a second time, and make sure

the installation was performed exactly as the

instructions are stated. Please have the vehicle

apart and ready to perform troubleshooting

steps before calling.

When connecting with power cable, please make sure not to mistake the positive and

negative pole, otherwise the fuse will blow immediately for security protection. If it happens,

please replace the blown fuse with a new one with same specification, after connecting

properly to the right pole. Don’t randomly increase the current rating of the fuse, and NEVER

use metal wire as a substitute.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

Version 1.1 4/18
