iBeam IsatDock LITE User manual

IsatDock LITE
User Manual

2
Beam IsatDock LITE
Installation and User Manual
Product name: IsatDock LITE
Manual revision: 05
Part Number: USRMAN005905
Release date: April 2017
Beam Communications Pty Ltd
5/8 Anzed Court, Mulgrave,
Victoria, 3170, AUSTRALIA
Information furnished by Beam Communications Pty Ltd (Beam) is believed to be accurate and
reliable. However, no responsibility is assumed by Beam for its use, or for any infringement of
patents or other rights of third parties, which may result from its use. No license is granted by
implication or otherwise under any patent or patent rights of Beam. Beam reserves the right to
change specications at any time without notice.
Copyright © 2010 Beam Communications Pty Ltd. All rights reserved

IsatDock LITE - Installation & User Manual
3
About Beam Communications
Beam Communications, a wholly owned subsidiary of World Reach
Limited (WRR), listed on the Australian Stock Exchange, is a world leader
in design, manufacture and distribution of specialised communications
equipment for the Inmarsat Satellite Network.
Beam’s commitment to be at the forefront has continued to increase its share
of the global satellite communications market. Its premium distribution
network spans the world.
Recognized as a leading provider of satellite communication solutions,
Beam specializes in Voice, Data, Tracking and customized solutions.
Beam develops innovative products and services to meet market
demands and niche applications.
Beam’s leading edge products are deployed in a wide range of vertical markets
including Maritime, Transport, Government, Defence, Mining, Construction,
Forestry, Emergency Services, Relief Aid, Telemetry and Rural Telephony.
Supported by a dedicated team of professionals, Beam has developed
solid relationships with its peers and network of distributors worldwide.
Beam Communications Pty Ltd
5/8 Anzed Court, Mulgrave,
Victoria, 3170, AUSTRALIA
Web: www.beamcommunications.com
Information: [e-mail]
Support: suppor[email protected]
Tel: [phone]
Fax: [phone]

4
These notes will appear throughout this manual
and should be taken into consideration.
Warning or Caution
This symbol and associated text indicate a
warning note providing information to prevent
damage to equipment or personal injury.
Note/Important/Tip Header
This symbol and associated text indicate a note
providing general operating information.
Interference Header
All wireless phones may get interference, which
could aect performance.
Record Header
Write details of your unit for easy reference when
required. Ideal when troubleshooting.
Terminology
TERM DESCRIPTION
Falcon Falcon Conguration Tool - MS Windows Install
SMS Short Message Service
Mobile Originating Describes a call initiated by the IsatDock
Mobile Terminating Describes an incoming call being answered by the IsatDock
IsatPhone Pro The Inmarsat IsatPhone Pro handset
®The ®symbol, mark and logos are owned by the respective companies
of which the symbol follows. Any use of such marks by Beam
Communications is under license. Other trademarks and trade names
are those of their respective owners.
RF Radio Frequencies
SMA Sub Miniature version A co-axial RF connection
RJ9 4P4C connector for the privacy handset
GPS Global Positioning System
GSPS Inmarsat’s Global Satellite Phone Service
Conventions in this Manual

IsatDock LITE - Installation & User Manual
5
Package Contents
Check that your IsatDock LITE package
contains all of the following items:
F1 x IsatDock LITE docking station
F1 x DC Power Cable / Lead
F1 x Universal Mounting Bracket (RAM)
F3 x M4 Screws and washers
F1 x Fuse Kit
F2 x Handset Locking Keys
FUser Manual
FQuick Start Guide
Falcon Conguration Tool (Falcon)
is available for download from:
www.beamcommunications.com/support/
lite
Optional Accessories
The following optional accessories are available
for your IsatDock LITE

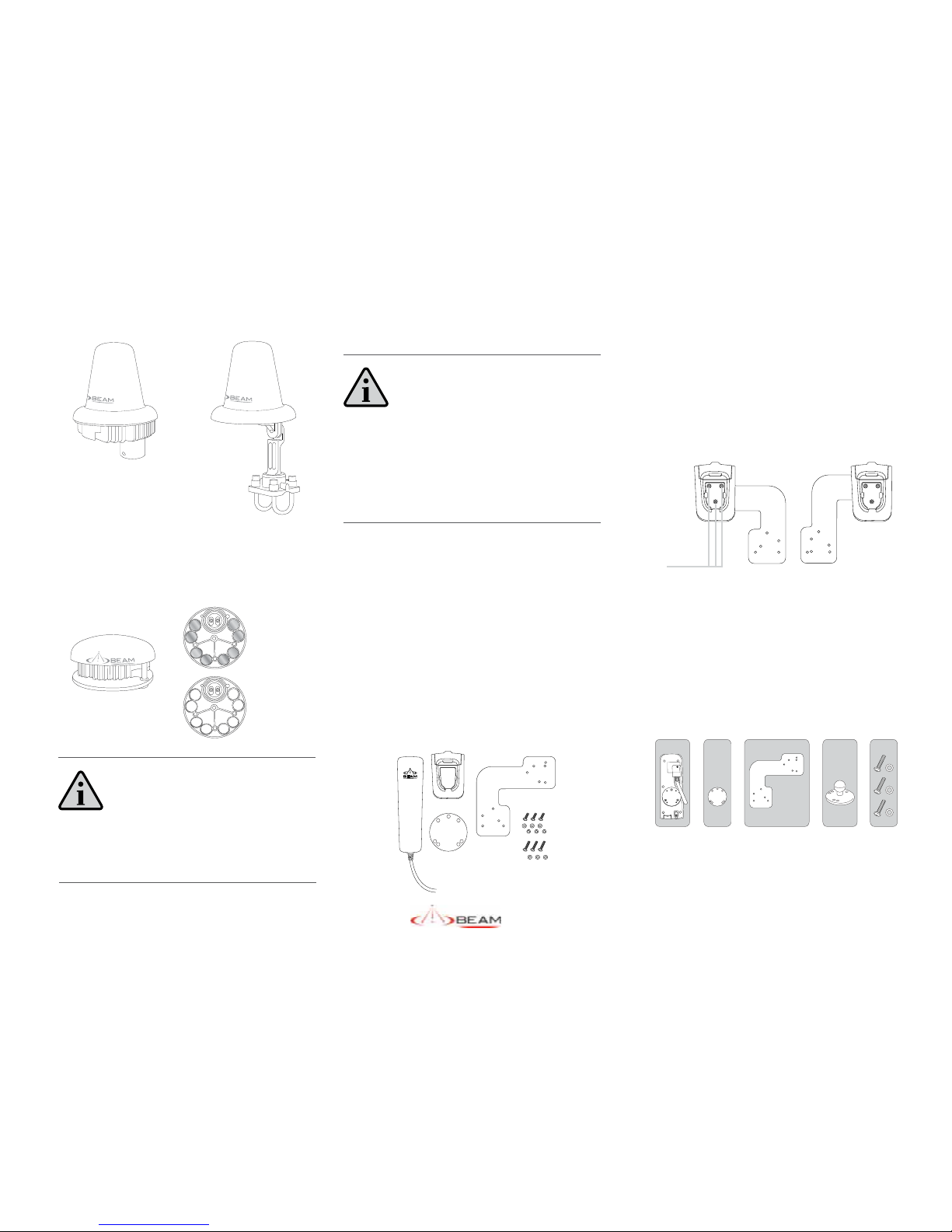

Active Antennas
• ISD710 Maritime Antenna (Active)
• ISD715 Transport Magnetic Antenna
(Active)
• ISD720 Transport Bolt Antenna (Active)
Antenna Cable Kits for Active Antennas
• ISD932 6m cable kit (Active)
• ISD933 13m cable kit (Active)
• ISD934 18m cable kit (Active)
• ISD935 31m cable kit (Active)
• ISD938 40m cable kit (Active)
• ISD942 50m cable kit (Active)
• ISD943 60m cable kit (Active)
• ISD944 70m cable kit (Active)
• ISD945 80m cable kit (Active)
• ISD946 90m cable kit (Active)
• ISD947 100m cable kit (Active)
Passive Antennas
• ISD700 Directional/Fixed Antenna (Passive)
Antenna Cable Kits for Passive Antennas
• ISD936 10m cable kit (Passive)
• ISD937 20m cable kit (Passive)
• ISD939 30m cable kit (Passive)
• ISD940 40m cable kit (Passive)
• ISD941 50m cable kit (Passive)
Additional Accessories
• ISD955 Privacy Handset
• ISD951 110-240v AC plug pack
• RST055 UPS Battery Pack
See your service provider for pricing and
availability of these quality Beam accessories.
Additional Information
For the latest in supporting software and
documentation for IsatDock LITE please contact
www.beamcommunications.com/support/
lite
Other Resources Available Online
- Advanced Conguration – in-built to Falcon
- Quick Start Guide & Manual
- Antenna Installation Guide
- IsatPhone Pro rmware upgrade if required

6
CONTENTS
Beam IsatDock LITE Part Number 2
About Beam Communications 3
Conventions in this Manual 4
Terminology
Package Contents 5
Optional Accessories
Additional Information
Other Resources Available Online
Safety Information 7
Safety Transceiver
IsatPhone Pro
IsatDock FCC Information
Electronic Devices
Pacemakers
Other Medical Devices
Vehicles
Posted Facilities
Aircraft
Vehicles Equipped with an Air Bag
IsatDock LITE Key Features 11
Equipment Overview 12
Installation Guidelines 13
Routing Cables
(for vehicle installations)
Guidelines for Electrical Connections
Installation Procedure 14
Installing the IsatDock LITE Cradle
Connecting Power to the Dock
IsatDock LITE Usage 18
Docking & undocking the IsatPhone
Pro handset
Operation of the IsatPhone Pro
Placing Voice Calls
Privacy Handset Use
(Optional Accessory)
Mute Mode
USB Driver Installation
Conguration using Falcon
Conguration using Remote Commands
IsatDock LITE Front Panel
LED Status
Assuring Quality of Service
Specification Summary 24
Electrical & Environmental
Specications - IsatDock LITE
(1) Physical Dimensions - LITE Dock
(2) Physical Dimensions - Privacy Handset
Trouble Shooting 26
Beam Warranty Terms
& Conditions
27

IsatDock LITE - Installation & User Manual
7
Safety Information
IMPORTANT!
Please read the following information carefully
before installing and using the IsatDock LITE.
Failing to follow instructions may compromise the
safety of the product and may result in personal
injury and/or equipment damage. Please consult
your supplier if you have any further questions.
The IsatDock LITE is a low power docking station
for the IsatPhone Pro handset. When ON, it will
charge the IsatPhone Pro handset whilst docked in
the IsatDock LITE.
Refer to the appropriate section of this IsatDock
LITE Installation & User Manual for additional
safety information.
• Store the system in a cool and dry area.
• Do not submerge the system in water.
• Do not place foreign metal objects or debris
in the system. If debris enters into the system,
please return to factory for service.
WARNING
DO NOT open equipment. There are no user-
serviceable parts inside.
If a DC power supply is to be used, its output must
comply with the Safety Extra Low Voltage (SELV)
requirements of IEC60950.
All connectors must only be connected to equipment
ports which comply with the Safety Extra Low
Voltage (SELV) requirements of IEC60950.
POTENTIALLY EXPLOSIVE ATMOSPHERES
• Turn your phone OFF and DO NOT remove
your battery or remove the IsatPhone Pro
handset from the cradle when you are in any
area with a potentially explosive atmosphere.
• Obey all signs and instructions.
• Sparks from your battery in such areas could
cause an explosion or re resulting in bodily
injury or even death.
• Areas with a potentially explosive atmosphere
are often but not always clearly marked.
They include, but are not limited to:
»fuelling areas such as gasoline stations
»below deck on boats;
»fuel or chemical transfer or storage facilities;
»areas where fuel odors are present (for
example, if a gas/propane leak occurs in
a car or home);
»areas where the air contains chemicals
or particles, such as grain, dust, or
metal powders;
»any other area where you normally would
be advised to turn o your vehicle engine.

8
WARNING
ROAD SAFETY COMES FIRST!
Do not use a hand-held cellular terminal, satellite
phone or mobile when driving a vehicle, unless
it is securely mounted in a holder for speaker
phone operation. Before making a call with a
handheld terminal, satellite phone or mobile,
park the vehicle stationary. Please obey local road
laws for hands-free speakerphone operation.
Speakerphones (hands-free) must be installed
by qualied personnel. Faulty installation or
operation can constitute a safety hazard.
IMPORTANT
Cellular & Satellite terminals or mobiles operate using
radio signals and communication networks. Because
of this, the connection cannot be guaranteed at all
times or under all conditions. Therefore, you should
never rely solely upon any wireless device for essential
communications, for example emergency calls.
» International Commission on Non-Ionizing
Radiation Protection (ICNIRP) 1996
» Verband Deutscher Elektrotechniker
(VDE) DIN-0848
» United States Federal Commission, Radio
Frequency Exposure Guidelines (1996)
» National Radiological Protection Board of
the United Kingdom, GS 11, 1988
» American National Standards Institute
(ANSI) IEEE. C95. 1-1992
• Do not operate your satellite telephone
when a person is within 55cm of the
antenna. A person or object within 55cm
of the antenna could impair call quality
and may cause the phone to operate at
a higher power level than necessary and
expose that person to RF energy in excess
of that established by the FCC RF Exposure
Guidelines.
• As a precaution, please maintain the
maximum body distance possible from the
antenna during call transmission.
Safety Transceiver IsatPhone Pro
Your handset is a low power radio transmitter
and receiver. When it is ON, it receives and
also sends out radio frequency (RF) signals.
(NOTE: Refer to Inmarsat IsatPhone Pro
Manual for additional Information)
• The Inmarsat IsatPhone Pro handset has
an in-built transceiver which is designed
to be used with an external antenna. This
antenna transmits RF energy. The Beam
antenna (tted via an extension coaxial
cable to the cradle) must be located
more than > 55cm from the human body
(person) when in operation.
• International agencies have set standards
and recommendations for the protection
of public exposure to RF electromagnetic
energy. These standards are based on
extensive scientic review by scientists,
engineers, and physicians from universities,
government health agencies, and industry
groups They review the available body of
research to develop ANSI standard. These
ANSI standards are reviewed regularly for
research development.

IsatDock LITE - Installation & User Manual
9
IsatDock FCC Information
This equipment has been tested and found
to comply with the limits for a Class B digital
devices, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment o and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the
equipment and receiver
• Connect the equipment into an outlet on
a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
This device has been designed to operate with
antennas ISD710 AT1595-82, ISD715/ISD720
AT1595-83 and having a maximum gain of 6dB.
Antennas having a gain greater than 6dBi are
strictly prohibited for use with this device.
To reduce potential radio interference to other
users, the antenna type and its gain should
be so chosen that the equivalent isotropically
radiated power (EIRP) is not more than that
required for successful communication
WARNING
Changes or modications not expressly approved
by Beam Communications could void the product
warranty.

10
Electronic Devices
Most modern electronic equipment is shielded
from RF signals. However, certain equipment
may not be shielded against the RF signals from
your wireless phone.
Pacemakers
The Health Industry Manufacturers Association
recommends that a minimum separation of
16cm (six inches 6”) be maintained between a
wireless phone’s antenna and a pacemaker to
avoid potential interference with the pacemak-
er. These recommendations are consistent with
the independent research by and recommenda-
tions of Wireless Technology Research.
Persons with pacemakers:
• Should ALWAYS keep the phone more than
six inches from their pacemaker when
phone is turned ON.
• Should turn the phone OFF immediately if
you have any reason to suspect interference
is taking place.
Posted Facilities
Turn your phone OFF in any facility where
posted notices require such as hospitals and
on-board aircraft.
Aircraft
Airline regulations prohibit using your phone
while in the air. Consult the local Aviation
Authority for guidelines on use of the
equipment on board an aircraft.
Vehicles Equipped with an Air Bag
An air bag inates with great force. Do NOT
place objects, including both installed and
portable wireless equipment, in the area over
the air bag or in the air bag deployment area.
If in-vehicle wireless equipment is improperly
installed and the air bag inflates, serious
injury could result.
Other Medical Devices
If you use any other personal medical device,
consult the manufacturer of your device to
determine if it is adequately shielded from
external RF energy. Your physician may be able
to assist you in obtaining this information.
Turn your phone OFF in health care facilities
when any regulations posted in these areas
instruct you to do so. Hospitals or health care
facilities may be using equipment that could be
sensitive to external RF energy.
Vehicles
RF signals may aect improperly installed or
inadequately shielded electronic systems in
motor vehicles. Check with the manufacturer or
its representative regarding your vehicle.
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Performance of electronically controlled brake
and/or guidance systems can, under certain
unique conditions, be subject to interference
by mobile radio operation. Although the
transceiver meets all requirements regarding RF
emissions, you should mount the transceiver as
far as possible from the guidance system and/
or braking modulator box (usually located in the
trunk) to minimize any interference.

IsatDock LITE - Installation & User Manual
11
IsatDock LITE Key Features
The IsatDock LITE enables the IsatPhone Pro to
be always on and ready to receive incoming calls,
that can be answered via a Bluetooth accessory
or the optional privacy handset. The IsatPhone
Pro handset, ts securely in the Dock which is
also key lockable, other features include phone
charging, USB data port, inbuilt ringer and allows
antenna and power to be permanently con-
nected to the Dock ready for use.
IsatDock LITE Design
• Slimline design
• High quality ABS plastic
• Single action insertion mechanism
• Insertion guides
• Single button release
• Key lockable
• RAM universal mounting bracket
• Integrated cable assemblies
• Robust GSPS/GPS antenna connection
• Accessible control buttons
Power
• 10-32V DC Input
• 110-240V AC plug pack, optional
Buttons on Dock
• In-call mute
• Ring tone selection
• In-call volume up/down
Accessing Voice Services
• Bluetooth Accessory via handset
• Privacy Handset (Optional Accessory)
• IsatPhone Pro Speaker (limited Volume)
Other Key Features
• Keeps phone always charged
• Adjustable inbuilt ringer
• Status LED with adjustable brightness
• Includes universal RAM bracket

12

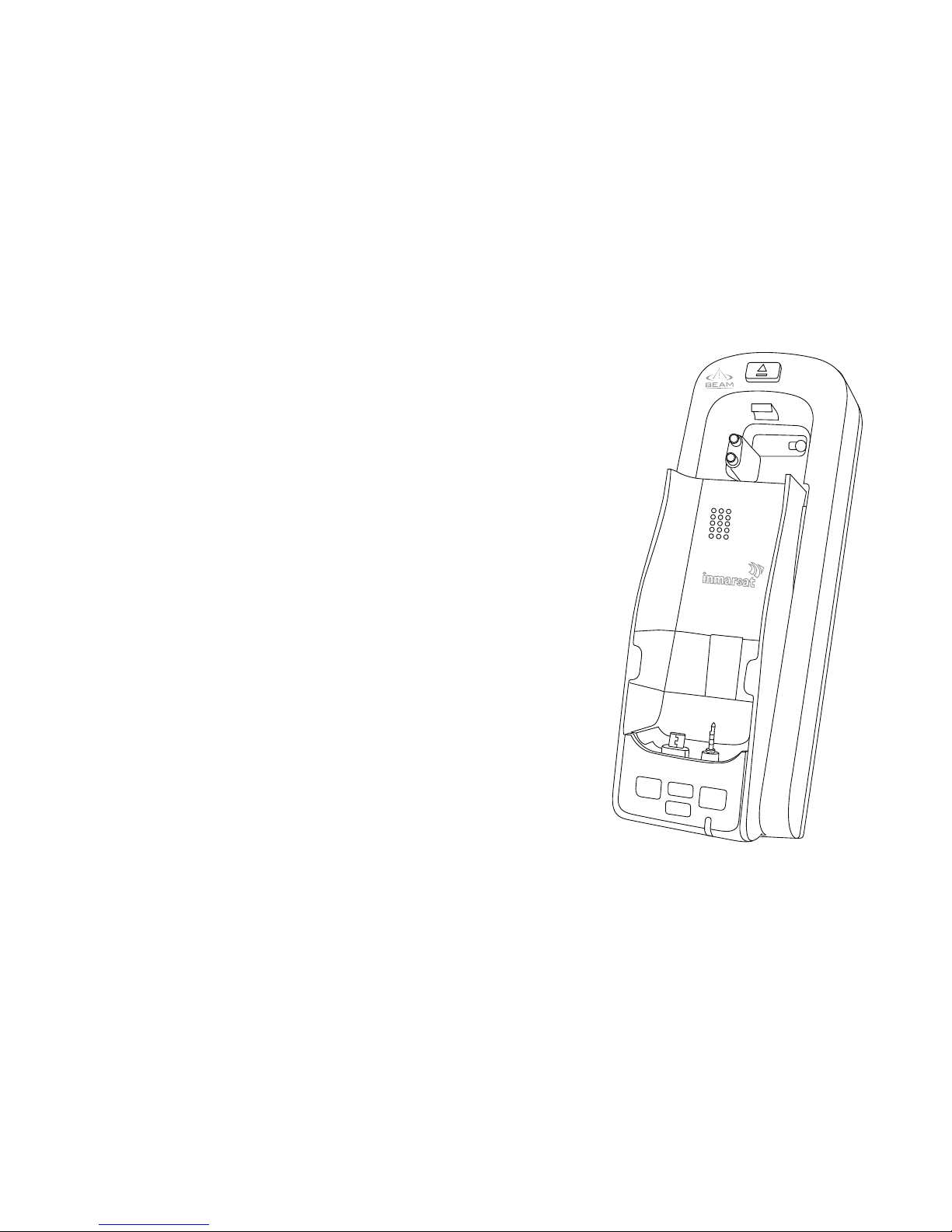

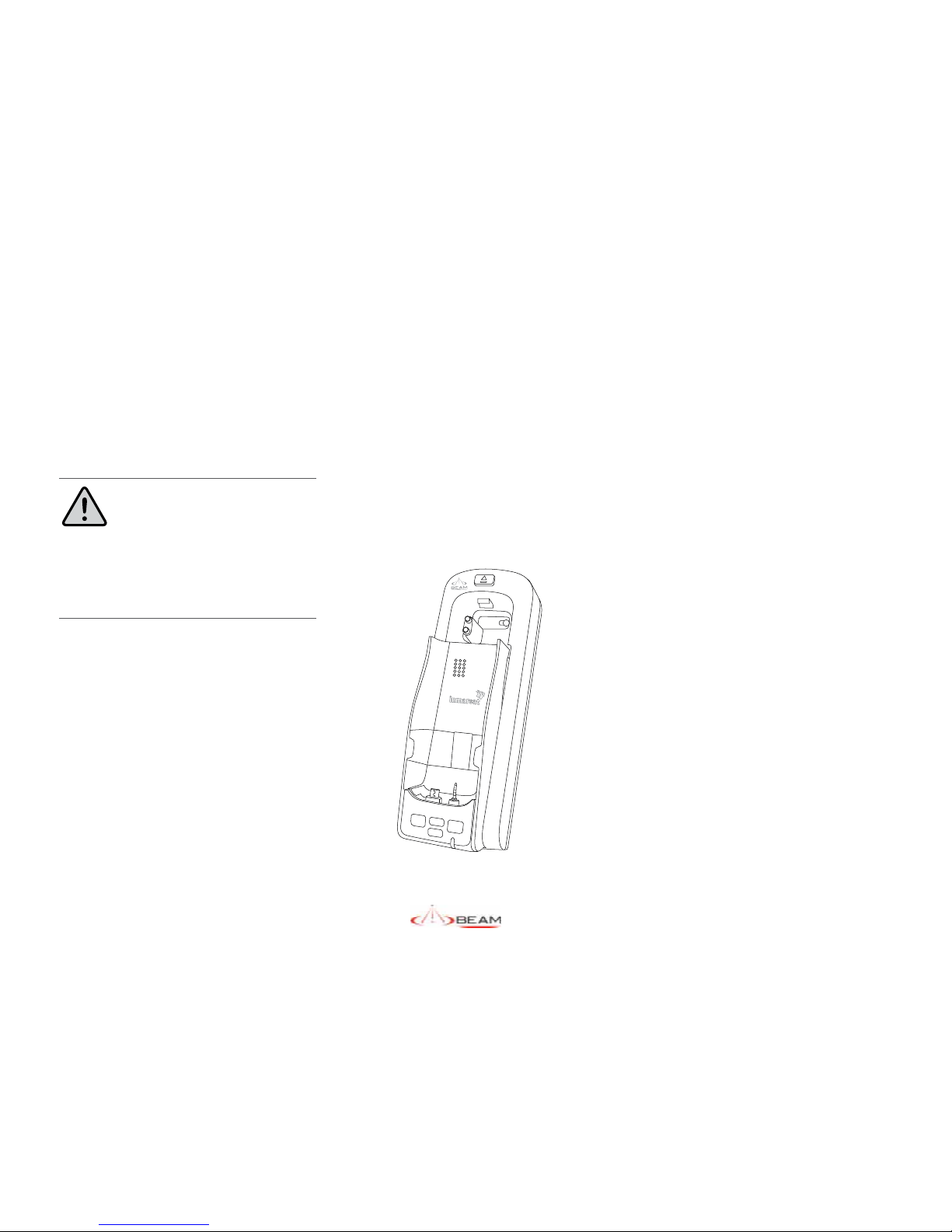

Equipment Overview
IsatDock LITE
1. IsatDock LITE Unit
2. Key lock
3. IsatPhone Pro Eject Button
4. IsatPhone Pro (not included)
5. IsatPhone Pro Docking Tray
6. Function Buttons
7. Status Indication Light
8. Power Cable Loom
a. Power Supply
b. Satellite TNC-Female Connector
c. GPS SMA-Female Connector
9. RAM Mounting
10. RJ9 Privacy Handset Connection
11. Micro USB Data Connection
3
2
4
5
6
7
1
9
10
11
8
c
b
a

IsatDock LITE - Installation & User Manual
13
Installation Guidelines
This guide outlines the process for installing the
IsatDock LITE in conjunction with an Inmarsat
IsatPhone Pro handset.
This kit must not be used with any other device
other than the Inmarsat IsatPhone Pro handset.
• Only qualied personnel should install
communication equipment. If necessary,
contact the vehicle manufacturer for air bag
information specic to the vehicle.
• Ensure that the units are protected from
dirt and moisture.
• Select an area to mount components that
do not interfere with driver or passengers
seating or leg space.
• Ensure that each mounting surface is strong
enough to support the component being
mounted to prevent the component from
loosening over time.
• Mount all components securely to prevent
shifting that could cause injury or could
interfere with safe vehicle operation. Always
use the supplied mounting hardware.
• Leave space around the units to allow
cooling and ensure there are adequate
clearance for cables.
• Ensure the units can be easily removed.
Guidelines for Electrical Connections
The system is designed to operate in negative
ground 10 to 32 Volt DC electrical systems only.
If using the DC cable lead:
• The best power connection point for
the positive primary power leads is the
positive terminal of the vehicle battery.
Often, direct connection to the battery is
inconvenient, and you may find it easier
to connect the positive leads to the
starter solenoid. Always select a point
as close as possible to the battery.
• Connect the negative primary power leads to
a good ground point on the vehicle chassis or
at the battery. If you must attach the negative
primary power lead(s) directly to the negative
pole of the battery, you may optionally insert
a 10-amp fuse (not included) into the ground
(0V) line. Failure to insert a fuse can cause
equipment to overheat IF a wiring fault exists.
• Many parts of a vehicle can produce
electrical noise that interferes with the
electrical radio system operation. The
ignition system is the most common source
of electrical noise interference. Before you
begin installation, ensure that the ignition
wiring and connections to the vehicle
battery are in good working condition.
Routing Cables
(for vehicle installations)
• Route cables so they are protected from
pinching, sharp edges, and crushing.
WARNING
Air bags inate with great force. DO NOT place
objects, including communication equipment,
in the area over the air bag or in the air bag
deployment area. If the communication
equipment is improperly installed and the air bag
inates, serious injury could result.
• Where possible, avoid routing cables above
the catalytic converter.
• Use grommets wherever a cable must pass
through a hole in a metal panel
• In a vehicle equipped with electronically
controlled anti-skid brakes, route all cables
on the opposite side of the vehicle from the
braking modulator box to minimize possible
interference from the phone.
• Keep all in-line connectors accessible.
• The suggested path for routing cables in
vehicles without wiring troughs is alongside
the drive shaft hump, under the carpet.

14
• Verify that low resistance connections are
present between the battery negative
terminal, the vehicle chassis, and the
engine block. All wire connections should
be clean and tight.
WARNING
Do not connect the IsatDock LITE interface
power cable to power the unit until the full
installation is completed.
Installation Procedure
Installing the IsatDock LITE Cradle
Install the components in the following order.
More detailed instructions can be found in the
sections following.
1. Mount the IsatDock LITE cradle
2. Install the external Beam antenna
3. Connect the privacy handset
(ordered as extra option)
4. Connect the DC power cable
When selecting a location for the IsatDock LITE
cradle, consider these guidelines:
• Ensure that each mounting surface is
strong enough to support the cradle.
• Allow enough room so that you can easily
insert the IsatPhone Pro handset in and
out from the cradle.
• Ensure that the IsatDock LITE is within cable
distance of power and antenna connections
• Position the handset and cables so that it
does not interfere with vehicle operation or
with driver or passenger seating or leg space.
• Ensure sucient room is allowed for the
antenna and interface cables to be routed
from the rear of the IsatDock LITE cradle.

IsatDock LITE - Installation & User Manual
15

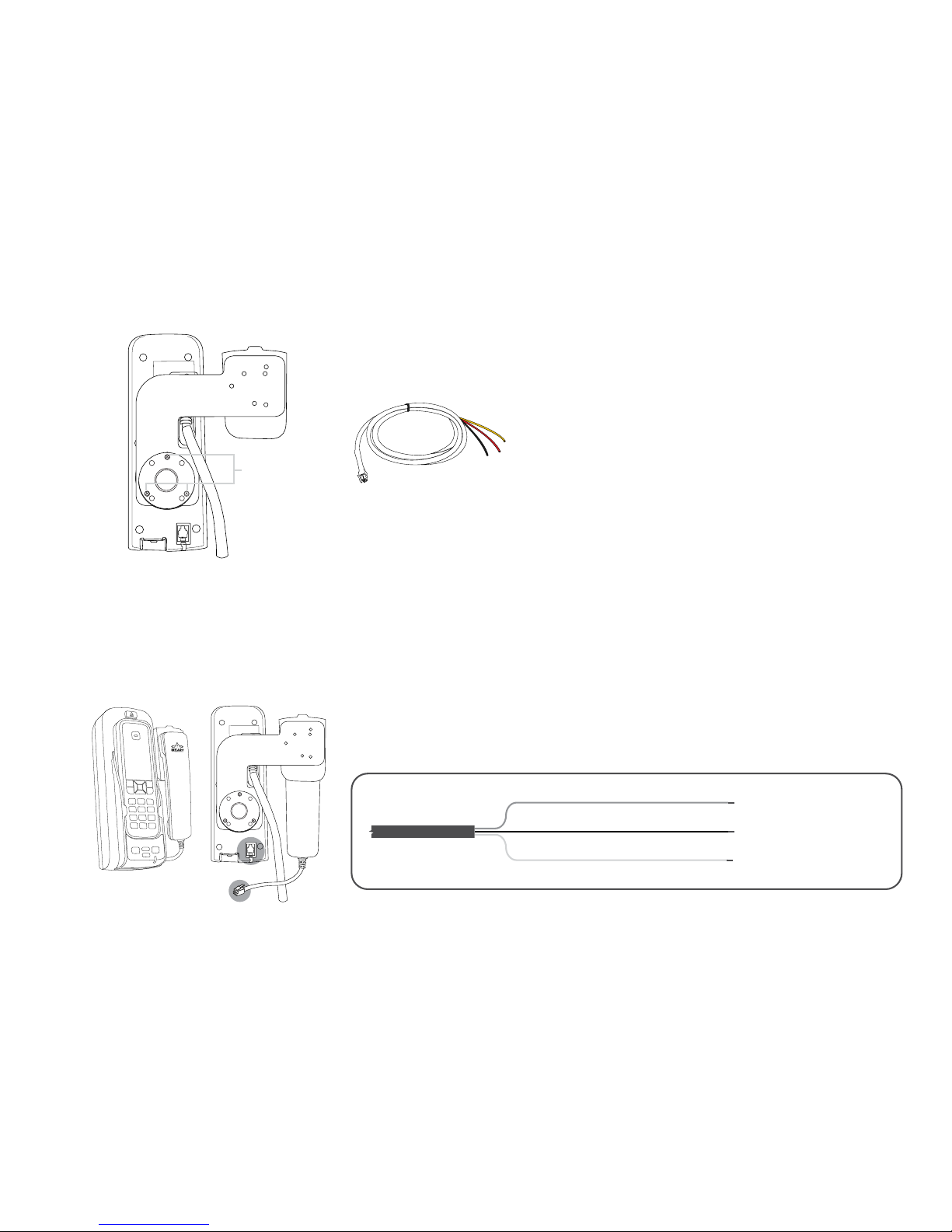

1) Mounting the IsatDock LITE Cradle
The IsatDock LITE is supplied with a universal RAM®
mount bracket that enables mounting to any at
surface (vertical or horizontal) within a vehicle,
attached on a wall or on a table as required.
1. Attach one pivot base to the rear of the
IsatDock LITE using the M4 screws supplied.
2. Secure the second pivot base to the
location you have selected for mounting
the IsatDock LITE.
3. Use the interconnecting step of the
RAM® mount to secure the IsatDock LITE
to the pivot base and tighten into the
desired location firmly using the wing
nut on the stem.
[1] [2] [3]
2) Install the external Beam Antenna
The antenna connections exit from the rear of
the IsatDock LITE cradle, via the antenna loom.
There are two RF connections required, the
Satellite TNC – Female Connector and GPS SMA-
Female connector.
WARNING
DO NOT pull with force on the cables from the
rear of the IsatDock LITE. Please install strain relief
clamping for the antenna cables where required.
Correct installation of the antenna system is a vital
part of the IsatDock LITE system, to ensure reliable
functionality, and drop-free calls.
WARNING
Changes or modications not expressly
approved by Beam Communications could void
the product warranty.
WARNING
To satisfy FCC RF exposure requirements for mobile
transmitting devices, a separation distance of 55
cm or more should be maintained between the
antenna of this device and persons during device
operation. To ensure compliance, operations at
closer than this distance is not recommended.
1. Refer to the antenna’s installation guide
for antenna mounting and location
requirements
2. Connect the antenna cable labelled
“Inmarsat” to the IsatDock’s TNC connector
3. Connect the antenna cable labelled “GPS”
to the IsatDock’s SMA connector
4. Connect the antenna cable labelled“Inmarsat”
to the antenna via the SMA connector.
5. Connect the antenna cable labelled “GPS”
to the antenna via the SMA connector
54
32
THIS SIDE UP
SMA
SMA
TNC
SMA
Satellite
Antenna
Cable
GPS
Antenna
Cable
54
32 SMA
SMA
TNC
SMA
Satellite
Antenna
Cable
GPS
Antenna
Cable
A B
A - Connection with Fixed/Directional Antenna
(Passive)
B - Connection with Transport Mag mount
Antenna (Active)

16
NOTE
Refer to the section “Antenna Installation” for more
information on antenna placement and installation.
NOTE
The antenna should only be connected and
disconnected when the IsatDock LITE is not
powered. Connecting the antenna after power-up
can result in prolonged acquisition time.
3) Connect the Privacy Handset
(Optional – Extra Order)
The IsatDock LITE provides a RJ9 audio
socket on the bottom of the docking unit, for
connection to the Beam privacy handset. This
provides a local handset function, conveniently
mounted next to the IsatDock LITE cradle.
1. The Privacy Handset Kit (purchased/ordered
separately) contains a mounting bracket,
space plate, screws, washers and nut bolts.
2. Mount the handset cup to the mounting
plate, it can be installed to the left or right side
of the dock by simply rotating the bracket.
Secure the cup with the washer and nut
bolt behind the bracket.
3 screws
M4 x 14
3. Mount the spacer plate and the mounting
bracket to the rear of the IsatDock LITE, by
using the longer screws provided with the
kit. The original RAM® arm-bracket plate
is also re-installed behind these plates.
Install in the following order:
4.
[a] Rear of IsatDock LITE [b] Spacer
[c] Mounting plate [d] RAM base
[e] 3 x Mounting screws & washers
ISD710
Marine Antenna
(Active) with Pole
Bracket
ISD700
Directional/Fixed
Antenna (Passive)
with Bracket
Transport Antenna
(Active)
ISD715
Magnetic
Mounting
ISD720
Bolt
Mounting
Left and right conguration
a b c d e
+ + + +

IsatDock LITE - Installation & User Manual
17
4) Connecting the DC Power Cable
The DC power cable supplied has three wires,
RED, BLACK and YELLOW.
The RED and BLACK wires are used for the
power connection while the YELLOW wire can
be connected to a vehicle’s accessories, ignition
or a switch.
By default, the IsatDock LITE will stay on for 20
minutes after this input is switched o. If a call
is in progress while this occurs, the IsatDock
LITE will stay on for 20 minutes after the call
is terminated. Please follow the steps below
to connect the DC power cable to the vehicle
battery power and the IsatDock LITE.
1. Route the wire end of the DC power
cable to the connection point. DO NOT
apply power until the following steps
3 Long Screws
M4 x 18 &
washers
5. Plug the Privacy Handset RJ9 connector
into the bottom of the docking unit, as
per image below. Privacy Handset mode
is enabled when the handset is removed
from the cup. Please ensure to re-dock the
Privacy Handset when not in use.
are completed.
2. Connect the BLACK wire to the negative
terminal of the battery (10A fuse
recommended) or the vehicle chassis (if
negatively grounded chassis).
3. Connect the RED wire to the positive
terminal of the battery. It is recommended
to add a 5A fuse (supplied) between them.
4. Connect the YELLOW wire to the vehicle
accessory power. If the accessory power
is unavailable, this may be connected
to a vehicle ignition voltage. It is
recommended to add a 1A fuse between
them. The accessory wire enables the
IsatDock LITE to turn on and o as the
vehicle key is enabled or disabled. If this
function is not required, the YELLOW wire
MUST be connected to the RED wire.
5. Connect the 4-way Microfit connector on
the DC power cable to the 4-way power
connector on the rear cable loom of the
IsatDock LITE.
YELLOW
BLACK
RED
RED (+) Vin 10 to 32VDC
BLACK (-) OV Power Ground
YELLOW ON/SLEEP
To Battery Positive Terminal
(Requires 5A Fuse)
To Negative Terminal or chassis
To ON/OFF switch
(1A Fuse recommended)

18
Wiring for a Marine Application
When installed in a marine application using the
DC power cable, the YELLOW wire can be wired
to a suitable panel switch which will allow the
IsatDock LITE to be turned o when not in use.
Optional ISD951 AC Plug Pack Installation
For installation with the optional ISD951
110-240 AC plug pack connect the 4-way
Microt connector from the plug pack to the
4-way power connector on the rear cable loom
of the IsatDock LITE. In this conguration the
ignition/accessory status is always ON.
cradle by applying pressure to the top of the
handset. An audible‘click’is heard when the
phone is in the docked position.
4. To remove the handset from the cradle,
press the EJECT button at the top of the
docking station. The dock will swing out
and the handset can be removed.
IsatDock LITE Usage
Docking & undocking the IsatPhone
Pro handset
To place the IsatPhone Pro into the docking unit, both
the ‘covers’on the external antenna connectors and
the USB/Audio connectors need to be opened.
1. The antenna‘cover’ must be placed at 90
degrees to the antenna connector cavity and
run parallel to the top edge of the phone.
2. The‘cover’in the base of the phone should be
at a 90 degrees fully opened position.
3. To dock the handset, align the IsatPhone Pro
with the phone tray and slide the handset
down until it seats ush to the bottom of the
tray. Swing the phone down into the
Eject Button
1
2

IsatDock LITE - Installation & User Manual
19
IMPORTANT:
Before docking the IsatPhone Pro to the docking
station, check that the USB cover is open, able to
swing free (without putting it in a “locked open”
position as illustrated in ‘B’) and ready for docking at
a 90-95 degree angle as shown on image ‘C’. If not
properly inserted, this could cause some problems
with the USB connection.
NOTE:
If the IsatPhone Pro is removed from the dock during
a call, the call will drop out during this transition.
NOTE:
One common cause for connection failure is a
at IsatPhone Pro battery which prevents the
IsatPhone Pro from turning ON. In these instances
the docking station will attempt to charge the
IsatPhone Pro handset while it is switched OFF,
until enough charge is present for the IsatPhone
Pro to turn ON. This charging period can take up
to 20 minutes depending on how at the battery.
Operation of the IsatPhone Pro
Prepare the Inmarsat IsatPhone Pro
Ensure that the IsatPhone Pro Handset has the
latest compatible rmware installed. For more
information visit:
www.beamcommunications.com/support/
lite
Starting Up
1. Retract the antenna on the IsatPhone
Pro handset.
2. Place the IsatPhone Pro as per instructions
“Docking & Undocking”on page 18.
3. Turn vehicle ignition on. The IsatPhone
Pro will automatically power up followed
by a rising beep, once the docking
station has successfully synchronized
with the IsatPhone Pro.
4. Wait for the IsatPhone Pro handset to
register on the Inmarsat network. The
STATUS LED on the docking station
will turn green when a successful
registration has taken place.
5. You are now ready to make and receive calls.
IsatDOCK
IsatPhone PRO
 

0°
90°
95°
180°



A B C

20
Charging the IsatPhone Pro handset
The IsatDock LITE provides charging power to the
IsatPhone Pro handset via its USB connector.
The IsatPhone Pro battery is a lithium-ion cell
which has a safety temperature range whilst
charging. This range is from 0-45°C (32-113 °F).
Due to the increased heating eects on the
IsatPhone Pro handset whilst it is docked
and being charged, it is ideal for the ambient
temperature to be approximately 15 degrees
below the 45oC upper limit for the handset
to charge the battery whilst docked. If the
battery temperature exceeds this limit, then
the IsatPhone Pro may cease charging until the
temperature is reduced.
Placing Voice Calls
Bluetooth®calls via IsatPhone Pro
The IsatDock LITE allows for Bluetooth audio
calls to be placed via the IsatPhone Pro handset
while docked. Consult the IsatPhone Pro manual
for further information on pairing and Bluetooth
discovery setup.
Mute Mode
Mute functionality
The mute function of the IsatDock LITE allows
the user to mute the uplink microphone audio
on the privacy handset.
1. During a call, Press the Mute button on the
face of the IsatDock LITE, a RED LED will
illuminate the Mute button to conrm that
the IsatDock LITE is muted.
2. To exit the mute mode, press the mute
button once.
USB Driver Installation
The IsatDock LITE USB data port requires
an interface driver to be installed on the
user’s computer prior to undertaking data
communication. This driver supports the
following operating systems:
Windows XP (SP3 or above) & Windows Vista
You can download the Windows driver for the
IsatDock from
www.beamcommunications.com/support/lite
Privacy Handset Use
(Optional Accessory)
Privacy handset Phone Call - Mobile
Originating
1. Remove the privacy handset from its cup
2. Dial the phone number (using the full
country code) on the IsatPhone Pro keypad
whilst docked. Press the GREEN button to
start the connection.
3. A message is displayed on the IsatPhone
Pro to indicate a call is in progress.
4. Once the call is connected, the STATUS LED
will ash to indicate a call is in progress.
5. Press the RED key on the IsatPhone Pro
handset or return the privacy handset to
its cup to terminate the call.
Privacy Handset Phone Call - Mobile
Terminating
1. Answer the incoming call by un-cupping
the privacy handset from its cup.
2. Press the RED key on the IsatPhone Pro
handset or return the privacy handset to
its cup to terminate the call.
