IBM 8Xmax User manual

8Xmax DVD-ROM
Drive with Software
MPEG-2 Option Kit
OP T IONS
Black 8Xmax
DVD-ROM Drive

Note: Before using this information and the product it supports, be sure to read
the information under Appendix D, “Product warranty and notices” on page 3-14.
First Edition (November 1999)
The following paragraph does not apply to the United Kingdom or any country where such
provisions are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES
CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain
transactions, therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are
periodically made to the information herein; these changes will be incorporated in new editions of
the publication. IBM may make improvements and/or changes in the product(s) and/or the
program(s) described in this publication at any time.
This publication was developed for products and services offered in the United States of America.
IBM may not offer the products, services, or features discussed in this document in other
countries, and the information is subject to change without notice. Consult your local IBM
representative for information on the products, services, and features available in your area.
Requests for technical information about IBM products should be made to your IBM reseller or
IBM marketing representative.
Copyright International Business Machines Corporation 1999. All rights reserved.
Note to U.S. Government Users — Documentation related to restricted rights — Use, duplication
or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Contents
Safety: Read first ................................ iv
Registering your option ............................ vi
About this book ................................ vi
Part 1: Installation and user’s guide ................ 1-1
Part 2: Care and maintenance guide ................ 2-1
Caring for a CD or DVD ........................... 2-1
Caring for the DVD-ROM drive ....................... 2-1
Loading a disc into the DVD-ROM drive .................. 2-2
Manually ejecting a disc ........................... 2-3
Part 3: Appendixes . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Appendix A. Customizing device-driver configuration settings ....... 3-1
Appendix B. Problem solving . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Appendix C. Help and service information ................. 3-13
Online technical support ............................ 3-13
Telephone technical support .......................... 3-13
Appendix D. Product warranty and notices ................. 3-14
Warranty Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Electronic emission notices .......................... 3-24
Copyright IBM Corp. 1999 iii

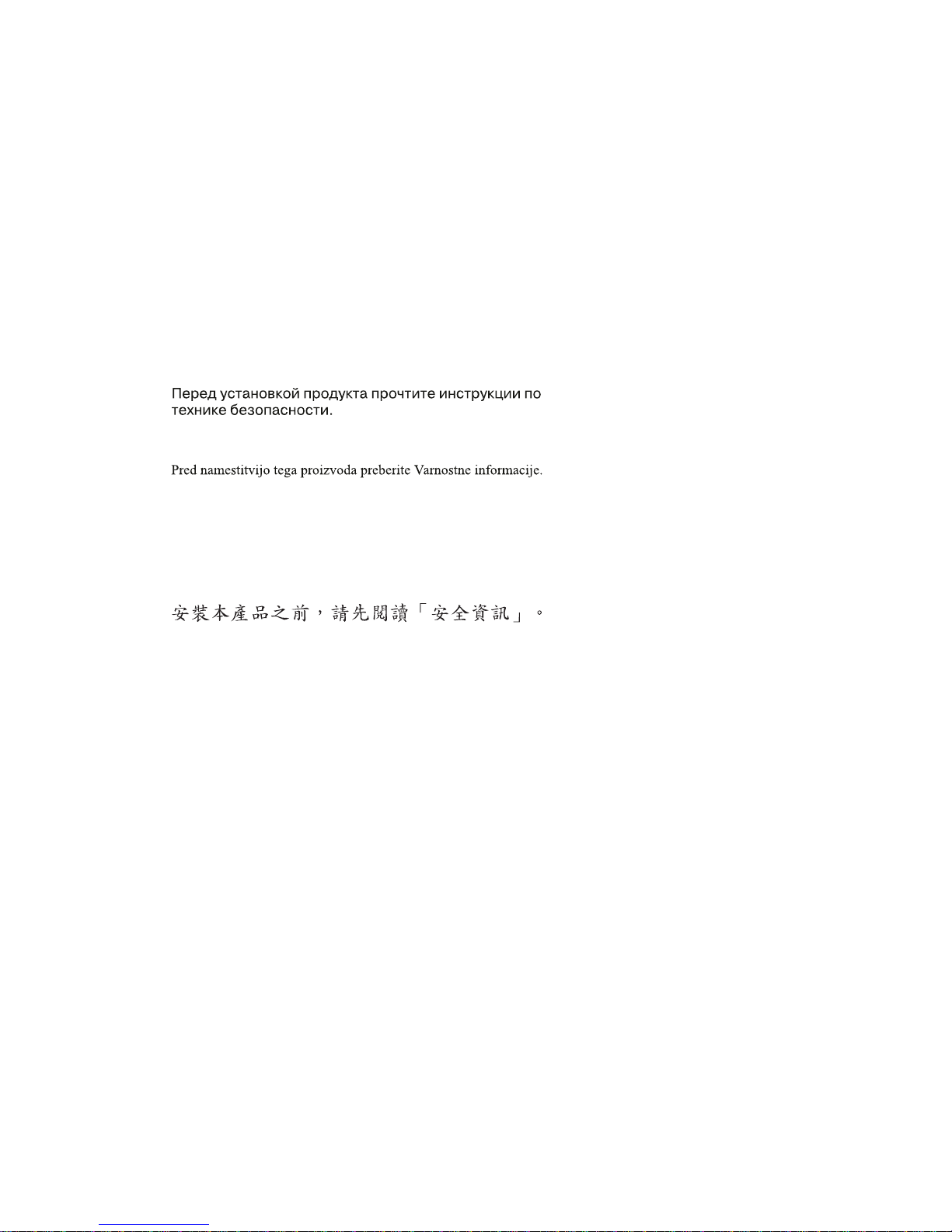

Safety: Read first
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de
Segurança.
Před instalací tohoto produktu si přečtěte příručku bezpečnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta
Safety Information.
Avant d'installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise
lesen.
Prima di installare questo prodotto, leggere le Informazioni
sulla Sicurezza
Lees voordat u dit product installeert eerst de
veiligheidsvoorschriften.
Les sikkerhetsinformasjonen (Safety Information) før du
installerer dette produktet.
iv IBM 8Xmax DVD-ROM Drive

Antes de instalar este produto, leia as Informações sobre
Segurança.
Pred inštaláciou tohto zariadenia si pečítaje Bezpečnostné predpisy.
Antes de instalar este producto lea la información de
seguridad.
Läs säkerhetsinformationen innan du installerar den här
produkten.
v

Registering your option
Thank you for purchasing OPTIONS by IBM . Please take a few moments to register
your product and provide us with information that will help IBM to better serve you in
the future. Your feedback is valuable to us in developing products and services that
are important to you, as well as in developing better ways to communicate with you.
Register your option on the IBM Web site at:
http://www.ibm.com/pc/register
IBM will send you information and updates on your registered product unless you
indicate on the Web site questionnaire that you do not want to receive further
information.
About this book
This manual contains information on the IBM 8Xmax DVD-ROM Drive. It is divided
into the following parts:
Part 1: Installation and user’s guide
This section contains the product description and installation and operating
instructions in the following languages: English, German, French, Spanish,
Italian, Brazilian Portuguese, and Japanese.
Part 2: Care and maintenance guide
This section contains care and maintenance instructions for the DVD-ROM
drive and the discs used with the drive.
Part 3: Appendixes
This section contains device-driver configuration settings, problem-solving,
service, warranty, and notice information.
Be sure to retain your proof of purchase. It might be required for warranty service.
Note: The illustrations in this manual might be slightly different from your hardware.
vi IBM 8Xmax DVD-ROM Drive

Part 1: Installation and user’s guide
This section contains the product description, hardware and software installation
instructions, and operating information.
Product description
You have received one of the following option packages:
Your drive can read many DVD and CD formats, including DVD video, Video CD,
and audio CD formats. However, you must install a video decoder to read video files.
The drive also reads multiple-session, extended architecture (XA) discs, such as the
Kodak Photo CD. When used as a CD-ROM drive, this drive delivers data at up to 40
times the standard CD-ROM speed (40X). The DVD-ROM drive is designed for
installation in a personal computer that uses the integrated drive electronics (IDE) or
enhanced IDE (EIDE) architecture.
IBM 8Xmax Internal IDE
DVD-ROM Drive with Software MPEG-2
This drive comes with a software CD
containing an MPEG-2 decoder for
Microsoft Windows 98, Windows 95
OSR2, and Microsoft Windows NT 4.0
Workstation.
In addition to this book, the option package
includes:
IBM 8Xmax DVD-ROM Drive
Four mounting screws (M3 x 5 mm,
slotted)
IDE cable for connecting two IDE
devices
Two white faceplates for use with certain
computers
Two internal audio cables
WinDVD MPEG-2 software CD
8Xmax DVD-ROM Drive Option Diskette
Safety information manual
Laser Safety Guide
IBM 8Xmax Black Internal IDE
DVD-ROM Drive
You can use this drive to play MPEG-2 DVD
video files in Windows 98, Windows 95, or
Windows NT 4.0 only if you install an
MPEG-2 adapter (not included) in your
computer. However, you do not need to
install an MPEG-2 adapter to use the drive as
a data-only DVD-ROM drive or as a
CD-ROM drive.
In addition to this book, the option package
includes:
IBM 8Xmax DVD-ROM Drive
Four mounting screws (M3 x 5 mm,
slotted)
IDE cable for connecting two IDE
devices
One black faceplate
Two internal audio cables
8Xmax DVD-ROM Drive Option Diskette
Safety information manual
Laser Safety Guide
Copyright IBM Corp. 1999 1-1

Contact your place of purchase if an item is missing or damaged. Be sure to retain
your proof of purchase. It might be required to receive warranty service. See
Appendix C, “Help and service information” on page 3-13 for technical support
information.
Software description
The IBM 8Xmax Internal IDE DVD-ROM
Drive with Software MPEG-2 option kit
includes the following software:
WinDVD MPEG-2 software CD
With the WinDVD software, you do not need
to install an MPEG-2 adapter in your
computer to view DVD video files. The
WinDVD software CD contains an MPEG-2
decoder and programs that work with
Windows 98, Windows 95 OSR2, and
Windows NT 4.0. You can use the software
to play high-resolution DVD movies or
MPEG-2 files with MPEG-2 video and Dolby
AC-3 audio on a multimedia computer.
8Xmax DVD-ROM Drive Option Diskette
The 8Xmax DVD-ROM Drive Option Diskette
contains device drivers for Windows 98,
Windows 95, Windows NT 4.0, Windows 3.x,
IBM OS/2 , and DOS that you can use to
access the drive as a data-only DVD-ROM
drive or as a CD-ROM drive in DOS mode.
The diskette also includes an audio CD-player
program for DOS and a diagnostic program.
The IBM 8Xmax Black Internal IDE
DVD-ROM Drive option kit includes the
following software:
8Xmax DVD-ROM Drive Option Diskette
The 8Xmax DVD-ROM Drive Option Diskette
contains device drivers for Windows 98,
Windows 95, Windows NT 4.0, Windows 3.x,
OS/2, and DOS that you can use to access the
drive as a data-only DVD-ROM drive or as a
CD-ROM drive in DOS mode. The diskette
also includes an audio CD-player program for
DOS and a diagnostic program.
1-2 IBM 8Xmax DVD-ROM Drive

Installation requirements
If you received the IBM 8Xmax Internal IDE
DVD-ROM Drive with Software MPEG-2, be
sure that your computer meets the following
system requirements before installing the
drive:
Minimum microprocessor: Intel
Pentium II 333 MHz
Minimum RAM: 32 MB
Windows 98, Windows 95 OSR2, or
Windows NT 4.0 operating system if you
will be using the WinDVD MPEG-2
software CD
Windows 98, Windows 95, Windows NT
4.0, Windows 3.x, OS/2, or DOS
operating system if you are going to use
the drive as a data-only DVD-ROM drive
or as a CD-ROM drive in DOS mode
Available drive bay
3.5-inch diskette drive to load the
included device drivers if you are going
to use the drive as a data-only
DVD-ROM drive or as a CD-ROM drive
in DOS mode
Available IDE connection
20 MB1 available hard disk drive space
Audio adapter supporting 44.1 or 48 KHz
sampling rate
Optional stereo speakers
If you received the IBM 8Xmax Black
Internal IDE DVD-ROM Drive, be sure that
your computer meets the following system
requirements before installing the drive:
Minimum microprocessor: Intel Pentium
I 133 MHz
Minimum RAM: 32 MB
Windows 98, Windows 95, or Windows
NT 4.0 operating system if you will be
adding an MPEG-2 adapter (not
included)
Windows 98, Windows 95, Windows NT
4.0, Windows 3.x, OS/2, or DOS
operating system if you are going to use
the drive as a data-only DVD-ROM drive
or as a CD-ROM drive in DOS mode
Available drive bay
3.5-inch diskette drive to load the
included device drivers if you are going
to use the drive as a data-only
DVD-ROM drive or as a CD-ROM drive
in DOS mode
Available IDE connection
1 MB available hard disk drive space
1MB equals approximately 1000000 bytes.
Part 1: Installation and user’s guide 1-3

Before you begin
Before you install the DVD-ROM drive, read the information in this section on
handling precautions and on using the drive controls and connectors.
Handling precautions
Use the following handling precautions to protect your drive.
Keep the DVD-ROM drive in the antistatic bag until you are ready to install it.
Limit your movement when installing; movement can cause static electricity
buildup.
Handle the drive with care. Dropping or jarring the drive can damage the
components inside the drive housing.
Do not force insertion of the power cable. Doing so might damage the connector
or the drive.
Drive controls and connectors
The following diagrams show the location and functions of the drive controls and
connectors.
Front view of the drive
1 Disc drawer
This drawer is where you load and unload a disc.
2 Headphone jack
This jack provides audio output to the headphones.
3 Volume control
This dial controls the headphone volume.
4 Busy indicator
This light comes on when the drive reads from, writes to, or plays a disc.
5 Emergency eject hole
This hole provides access to the eject mechanism to remove a disc from the drive.
6 Open/Close button
This button opens and closes the disc drawer when you push it.
1-4 IBM 8Xmax DVD-ROM Drive

Rear view of the drive
Pin 1
1 Reserved
2 Audio-out connector
This port connects the analog audio signals to an audio adapter.
3 Configuration pins
These pins are used to set the drive configuration.
4 IDE port
This connects the DVD-ROM drive to the IDE cable.
5 Power connector
This connects the power cord to the DVD-ROM drive.
Installing the drive
Use the following steps to install the drive.
Step 1. Opening the computer
1. Turn off the computer and all attached devices.
2. Unplug the power cords for the computer and all attached devices.
3. Remove the cover from the computer.
Step 2. Unpacking the drive
1. Take the bag the drive is packed in and touch it to an unpainted metal surface for
at least two seconds. This will drain the static electricity from the package and
your body.
2. Remove the drive from the bag.
If you must put the drive down, place the antistatic bag on a flat, padded surface,
such as a magazine, and place the drive on the bag.
Part 1: Installation and user’s guide 1-5

Step 3. Setting the configuration jumpers
You can configure your drive as master 1, slave 2, or cable-select 3, as shown.
Use the following guidelines to determine the correct configuration for your
DVD-ROM drive.
Configure the DVD-ROM drive as a master if it will be the only device
connected to an IDE cable. (This is the preset configuration.)
Configure the DVD-ROM drive as a slave if it will be the second device on an
IDE cable. Be sure to configure the other device as a master. In some cases, a
hard disk drive might require a Master with Slave Present jumper setting when
another device on the same cable is configured as a slave. For more information
on setting configuration jumpers on other devices, refer to the documentation that
comes with your computer system or with the device.
Some non-IBM computers use special ATA cables with two wires reversed in the
device connectors so that the drives can be configured by the cable instead of by
jumper position. Use the cable-select position only for computers equipped with
these special cables. See the documentation that comes with your computer to
determine if your ATA adapter requires that you place the jumpers in the
cable-select position.
If you place the jumpers in the cable-select position, the IDE cable automatically
assigns the master and slave settings based on the position of the drive on the
cable. You must use the cable-select setting for this cabling system whether the
DVD-ROM drive is the only device or the second device connected to the cable.
The drive closest to the IDE controller is automatically the master drive. Any
other devices on the IDE cable must also be set to cable-select.
1-6 IBM 8Xmax DVD-ROM Drive

Step 4. Mounting the drive in the bay
Attention: Be sure to use the M3 x 5 mm mounting screws in the option
package when you are driving screws directly into the drive. Using screws that
are too long might damage the drive.
You can mount the DVD-ROM drive horizontally or vertically in the computer. If
you mount the drive vertically, you must secure any discs you place into the drive
before the drive tray is closed, or the DVD-ROM drive will not be able to read the
disc properly. For more information on securing discs in a vertically mounted drive,
go to page “Securing a disc in a vertically mounted drive” on page 2-3.
1. Slide the drive into the bay. Your computer might have specific required
procedures for installing storage devices. For more information on storage
devices, refer to the documentation that comes with your computer.
2. Align the drive-bay screw holes with the threaded holes in the drive housing or
mounting bracket.
3. Thread the screws in loosely to check their position. Usually two screws are used
on each side. Verify that the alignment is correct; then tighten the screws to
secure the drive. Do not overtighten.
Step 5. Attaching the cables to the drive
The following diagram shows where to connect the cables to the drive.
1. Connect the larger end of the included internal audio cable 1 to the audio-out
connector on the DVD-ROM drive. The following is an illustration of an internal
audio cable.
Part 1: Installation and user’s guide 1-7

2. Attach a 40-pin IDE-cable connector 2 to the IDE connector on the drive.
Align the cable so that the color-coded edge is closest to the power cable
connector 3. Use the IDE cable provided with this option if there is no cable
attached to the IDE port. The IDE cable can have up to three connectors. For
the best signal quality when you are connecting only one device to the IDE cable,
attach the connector on one end of the cable to the IDE port and the connector on
the other end of the cable to the device. Do not use the middle connector. Use
the IDE cable provided with this option if there is no cable attached to the
computer IDE port, or if there is only one device connector on the computer IDE
cable.
If you are connecting two devices to the IDE cable, attach the connector on one
end of the cable and the remaining cable connectors to the master and slave
devices. Many computers have two cables for attaching up to four ATA devices.
For best performance, attach fast devices (hard disk drives) to the cable connected
to the primary IDE port, and the DVD-ROM drive or other slower devices
(CD-ROM drives, tape drives, removable media) to the cable connected to the
secondary IDE port.
3. Attach a four-pin power cord 3 to the power connector on the DVD-ROM
drive.
If you have an audio adapter, connect one of the included audio cables 1 to the
device audio-out connector. Use the audio cable that has a connector that fits
your audio adapter. Keep the other cable in case you use a different audio
adapter in the future.
Be sure that the cables will not be pinched or crowded by the computer cover and
that all other cable and power connections are secure.
Note: If you are installing the 8Xmax DVD-ROM Drive that does not come with
the WinDVD MPEG-2 software and would like to play MPEG-2 video files in
Windows 98, Windows 95, or Windows NT 4.0, you must install an MPEG-2
adapter such as IBM part number 33L5009 (not included) using the instructions
that come with the adapter.
Step 6. Completing the hardware installation
1. Be sure that the DVD-ROM drive is securely mounted and the connectors are
firmly attached.
2. Be sure that the cables do not interfere with the computer cover and do not block
the power-supply fan blades or air-flow paths.
3. Reinstall the computer cover.
4. Reconnect all external devices.
5. Plug all power cords into electrical outlets.
1-8 IBM 8Xmax DVD-ROM Drive

Step 7. Attaching the faceplates
This option package includes two faceplates that conform to the curved design of
certain computers. If your computer has a curved design, you can attach one of the
included faceplates so that the front of the drive matches the exterior cabinet. Choose
the faceplate that best fits your computer, and attach it after you have mounted the
DVD-ROM drive in the appropriate bay.
Step 8. Updating your computer configuration
After you have completed the hardware installation, restart your computer. When you
turn on your computer, the configuration-setup information screen is displayed on your
screen. If you do not see this screen, check your computer documentation for
information about accessing the configuration or setup utility program.
To see the configuration information for most IBM computers, press F1 during startup
when the graphic displays in the upper-right corner of the screen. After you have
reviewed the information, save the changes and exit.
Step 9. Installing the device drivers
Note: If you do not plan to access the DVD-ROM drive through a DOS session, go
directly to Step 11.
This section contains the instructions for installing device drivers for the DVD-ROM
drive.
Note: Be sure to read the README.TXT file for additional information about the device
drivers.
In most instances, Windows 98, Windows 95, and Windows NT 4.0 will automatically
detect the DVD-ROM drive and will already have the necessary device drivers.
However, you cannot use the standard Windows 98, Windows 95, or Windows NT 4.0
device drivers to access the DVD-ROM drive through a DOS session.
If you are using the DVD-ROM drive with DOS, Windows 3.x, or OS/2, or if you
want to access the DVD-ROM drive through a DOS session in Windows 98, Windows
95, or Windows NT 4.0, you must install the DOS device driver from the 8Xmax
DVD-ROM Drive Option Diskette. This device driver will allow you to access the
DVD-ROM drive in DOS, or to access the DVD-ROM drive through an open DOS
session in Windows 3.x, OS/2, Windows 98, Windows 95, or Windows NT 4.0.
Note: In DOS mode, the DVD-ROM drive functions as a data-only DVD-ROM drive
or as a CD-ROM drive, and can only read data discs.
Part 1: Installation and user’s guide 1-9

Follow these instructions to install the device driver.
1. Insert the 8Xmax DVD-ROM Drive Option Diskette into the diskette drive.
2. Type A:CDSETUP in a command line and press Enter.
3. Click Setup.
4. Follow the on-screen instructions to install the software.
5. Click Exit when software installation completes.
6. Restart your computer so that the new settings take effect.
Some IBM computers with preinstalled Windows NT 4.0 contain a PIIXIDE device
driver. This device driver replaces the Windows NT 4.0 native ATAPI device driver,
and provides DMA support. The drive will not work if both the ATAPI and PIIXIDE
device drivers are enabled at the same time. If both device drivers are enabled at the
same time, go into the Control Panel and set the Startup parameter of one of the
device drivers to Disabled.
For optional information about configuring the 8Xmax DVD-ROM Drive Option
Diskette device drivers for Windows 3.x, DOS, OS/2, Windows 98, and Windows 95,
go to Appendix A, “Customizing device-driver configuration settings” on page 3-1.
Step 10. Using the DVD-ROM drive with data CDs and data
DVDs
You can use the DVD-ROM drive to read data CDs and data DVDs.
To read a data disc:
1. Turn on the computer.
2. Load a data disc into the loading tray.
3. Wait for the DVD-ROM drive LED to stop lighting; then double-click My
Computer.
4. Verify that the CD-ROM icon is displayed.
5. Double-click the CD-ROM icon.
6. Verify that you can view the disc files on the displayed list.
Step 11. What to do next
If you will be using the drive as a data-only DVD-ROM drive or as a CD-ROM drive,
you have completed the installation. For information on maintaining your drive, see
“Part 2: Care and maintenance guide” on page 2-1.
If you will be installing the WinDVD software for Windows 98 or Windows 95 OSR2,
continue with Step 12.
If you will be installing the WinDVD software for Windows NT 4.0, go to “Step 14.
Software verification for Windows NT 4.0” on page 1-12.
1-10 IBM 8Xmax DVD-ROM Drive

Step 12. Enabling DMA in Windows 98 or Windows 95 OSR2
Before you install the WinDVD software, be sure that the Direct Memory Access of
your DVD-ROM drive has been enabled in Windows 98 or Windows 95 OSR2 or the
video and audio playback quality might be poor.
To enable DMA for Windows 98 or Windows 95 OSR2:
1. Double-click My Computer.
2. Double-click Control Panel.
3. Double-click System.
4. Click the Device Manager tab.
5. Double-click CDROM
6. Select the DVD-ROM device in the menu display.
7. Click Properties.
8. Click the Settings tab to view the DMA option in the Options window.
9. Place a check in the DMA check box to enable DMA.
10. Click OK.
11. Click OK.
12. Click Close.
13. Restart your computer to enable the DMA mode of your DVD-ROM drive.
Step 13. Installing the WinDVD software for Windows 98 or
Windows 95 OSR2
Note: Before installing WinDVD, be sure to read “Changing the DVD region code”
on page 1-14 to familiarize yourself with the region code concept.
To install the WinDVD software for Windows 98 or Windows 95 OSR2:
1. Close any programs running on the desktop.
2. Insert the WinDVD software CD into your DVD-ROM drive.
3. If the Installation window opens, go to step 8 below.
4. Click Start.
5. Select Run.
6. Type x:\setup.exe where x is the drive letter for your DVD-ROM drive.
7. Click OK.
8. Follow the on-screen instructions to complete the installation.
Note: During installation, WinDVD verifies that you have the most recent
versions of DirectX and DirectMedia. If WinDVD does not find the most
recent version, click Yes when WinDVD prompts you to install DirectX
6.1 or DirectMedia.
9. Restart Windows.
You have completed the installation of the WinDVD software for Windows 98 or
Windows 95 OSR2. For information on using WinDVD, go to “Using the DVD
software” on page 1-14.
Part 1: Installation and user’s guide 1-11

Step 14. Software verification for Windows NT 4.0
If you are using Windows NT 4.0, refer to the documentation that comes with your
computer to determine if the IDE controller on your computer supports DMA transfers.
Note: Be sure that your computer has an Intel chipset and that you are using the
Service Pack 3 or the latest Service Pack for Windows NT provided by Microsoft.
Refer to the documentation that comes with your computer to determine if there is
an Intel chipset in your computer. For more information on installing Windows
NT Service Packs, visit the Microsoft Web site at http://microsoft.com
If your computer IDE controller supports DMA transfers, continue with “Step 15.
Installing the WinDVD software for Windows NT 4.0.”
If your computer IDE controller does not support DMA transfers, you must go to the
Web site for the system board manufacturer and install the Windows NT 4.0 DMA
device driver using instructions provided on the Web site.
The following is a list of manufacturer Web sites that contain Windows NT 4.0 DMA
device drivers for system boards:
IBM: http://www.ibm.com
Intel: http://www.intel.com
VIA: http://via.com.tw
ALi: http://ali.com.tw
Refer to the documentation that came with your computer for information on other
system board manufacturers.
Step 15. Installing the WinDVD software for Windows NT 4.0
Note: Before installing WinDVD, be sure to read “Changing the DVD region code”
on page 1-14 to familiarize yourself with the region code concept.
To install the WinDVD software for Windows NT 4.0:
1. Start Windows.
2. Insert the WinDVD software CD into your DVD-ROM drive.
3. If the Installation window opens, go to step 4 below. If the installation window
does not open, double-click My Computer, double-click the CD-ROM icon, and
click the Setup icon.
4. Follow the on-screen instructions to complete the installation.
5. Restart Windows.
6. Use instructions given in Step 16 to enable DMA in Windows NT 4.0 or the
video and audio playback might be poor.
1-12 IBM 8Xmax DVD-ROM Drive

Step 16. Enabling DMA for Windows NT 4.0
Attention: Before enabling DMA for Windows NT 4.0, be sure to read “Step 14.
Software verification for Windows NT 4.0” on page 1-12 to determine if your
computer can perform this upgrade procedure. If you do not perform this
procedure correctly, your operating system might lock up. Therefore, be sure to
build an Emergency Repair Disk before you use the following upgrade
instructions. If you are not familiar with the procedure for building an Emergency
Repair Disk, press F1 to obtain instructions from the Microsoft NT online help.
To enable DMA in Windows NT 4.0:
1. Log on as an Administrator.
2. Disable the CD-ROM device driver using the following instructions.
a. Double-click My Computer.
b. Double-click Control Panel.
c. Double-click Devices.
d. Select the ATAPI device.
e. Click Startup.
f. Click Disabled; then click OK. Disregard displayed warnings.
g. Select the PIIXIDE device.
h. Click Startup.
i. Click Disabled; then click OK. Disregard displayed warnings.
3. Upgrade the CD-ROM device driver using the following instructions.
a. Double-click My Computer.
b. Double-click Control Panel.
c. Double-click SCSI adapters.
d. Click the Drivers tab.
e. Select the IDE CDROM device driver; then click Remove and Yes.
f. Click Add.
g. Browse to the \PIIXIDE directory created during the installation of WinDVD
in Step 15.
h. Select the PIIXIDE device driver and click Open.
i. Click OK.
The SCSI adapter will now be identified as Intel PIIX PCI Bus Master
IDE Controller.
j. Click OK.
k. Select Yes to restart your computer.
Part 1: Installation and user’s guide 1-13

Using the DVD software
This section describes how to use and customize the WinDVD software. You can find
additional information on WinDVD in the README file on the WinDVD software CD.
Changing the DVD region code
Attention: Regionalization and Copy Protection (the DVD region code) uses the
Content Scramble System (CSS) standard to prevent unauthorized duplication of
the intellectual property rights distributed on DVDs. It was originally requested
by the Motion Picture Association of America (MPAA) to address video piracy
but is applicable to any content. CSS works by inhibiting the transmission of
unencrypted data from the PCI bus. Playback systems must license CSS to
decode the encrypted data.
The CSS specification divides the world into six unique regions. Content
designated for one region cannot be read by playback systems in another region.
While CSS is used to prevent digital copies of the DVD content, another
technology devised by Macrovision is used to prevent analog copies of the DVD
content. The Macrovision standard is a scrambling system that has been widely
used by the movie industry to prevent unauthorized duplication of video content
using commercial VCRs. DVD playback systems must support both CSS and
Macrovision copy protection standards.
If you relocate to a different region of the world, you can use the WinDVD software to
change the region code.
Note: You can change the DVD region code only five times. After you make
five region code changes, the drive can play only MPEG-2 video titles that are
associated with the fifth region code that you set.
To change the region code:
1. Turn on your computer and start your operating system.
2. Click Start.
3. Select Programs.
4. Select Intervideo WinDVD. (If you have created a shortcut to WinDVD on your
desktop, you can click it instead.)
5. Click to open the Properties window.
6. Click the General Properties tab.
7. Select the correct region code for your country.
8. Click OK so that changes take effect.
1-14 IBM 8Xmax DVD-ROM Drive
