IBM USB 2.0 CD-RW/DVD-ROM Combo Drive User manual

IBM USB 2.0 CD-RW/DVD-ROM
Drive
User’s Guide
򔻐򗗠򙳰

IBM USB 2.0 CD-RW/DVD-ROM
Drive
User’s Guide
򔻐򗗠򙳰

Note
Before using this information and the product it supports, read Príloha B, “Servis apodpora”, Príloha C, “Vyhlásenie IBM oobmedzenej
záruke Z125-4753-08 04/2004”,, and Príloha E, “Notices”.
First Edition (November 2004)
©Copyright International Business Machines Corporation 2004. Všetky práva vyhradené.

Obsah
Safety ...............v
General safety guidelines....... vii
Service ................ vii
Power cords and power adapters ........ vii
Extension cords and related devices ....... vii
Plugs and outlets ............. viii
Batteries ............... viii
Heat and product ventilation ......... viii
CD and DVD drive safety...........ix
About this book ...........xi
Registering your option ...........xi
Kapitola 1. Rýchla inštalácia Combo
jednotky .............. 1-1
Opis produktu .............. 1-1
Hardvérové asoftvérové požiadavky ....... 1-2

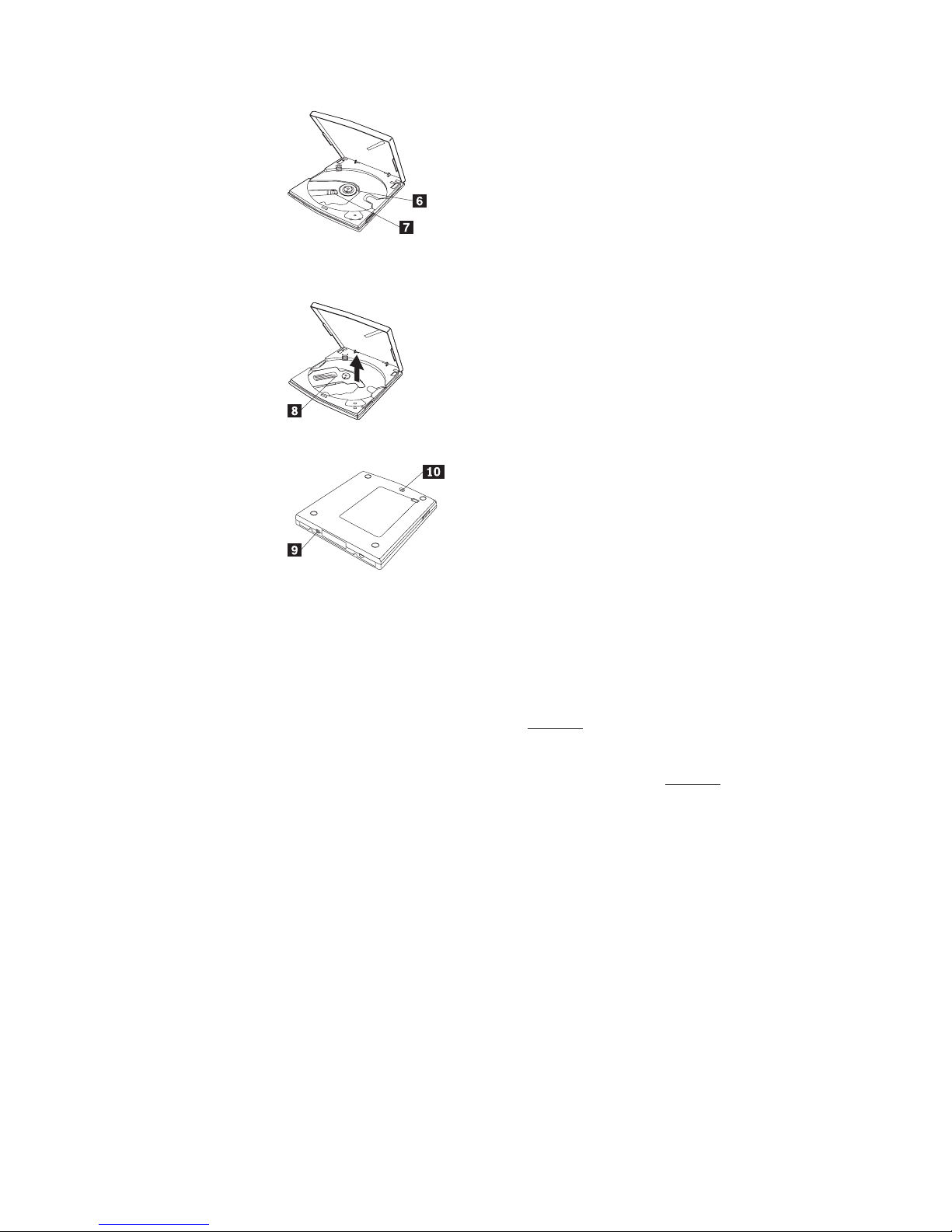

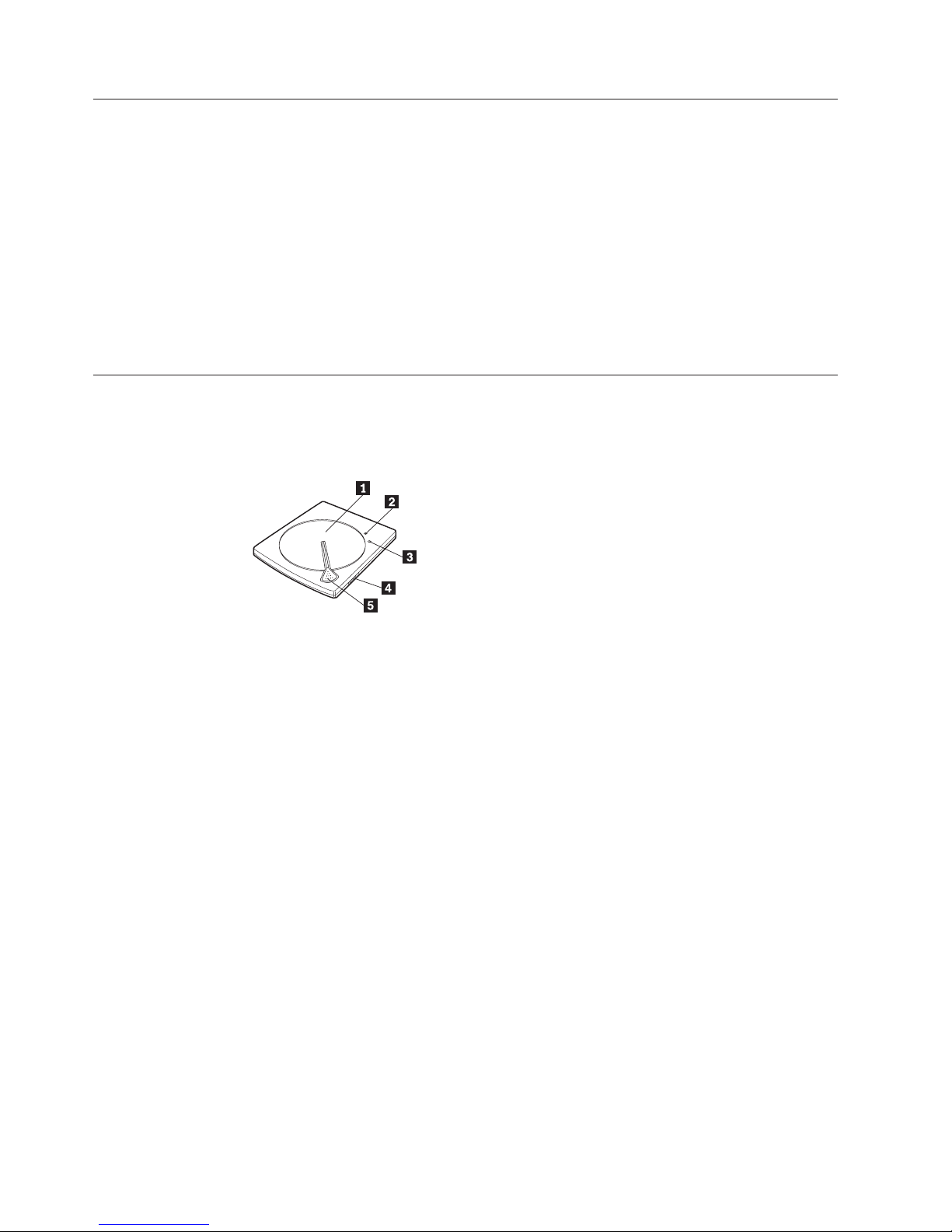

Identifikácia komponentov Combo jednotky ..... 1-2
Operačné konfigurácie .......... 1-3
Kapitola 2. Pripojenie Combo jednotky
kpočítaču ThinkPad pomocou kábla.. 2-1
Kapitola 3. Vlastnosti ........ 3-1
Kapitola 4. Príprava na používanie
Combo jednotky .......... 4-1
Kapitola 5. Inštalácia aodstránenie
Combo jednotky vo Windows 2000 a
Windows XP ............ 5-1
Odstránenie Combo jednotky ......... 5-1
Windows 2000 ............ 5-1
Windows XP ............. 5-2
Vloženie média ............. 5-2
Vybratie média ............. 5-2
Prehrávanie diskov audio CD ......... 5-3
Windows 2000 ............ 5-3
Windows XP ............. 5-5
Kapitola 6. Aplikačný softvér ..... 6-1
Kapitola 7. Použitie Combo jednotky 7-1
Skôr než začnete ............. 7-1
Manipulácia sdiskom astarostlivosť oň ...... 7-1
Starostlivosť oCombo jednotku ........ 7-2
Čistenie jednotky ............. 7-2
Používanie jednotky ............ 7-2
Používanie jednostranných aobojstranných diskov
DVD-RAM ............. 7-2
Odporúčania pre manipuláciu sdiskom ..... 7-2
Používanie jednotky sdiskami CD aDVD ..... 7-4
Používanie softvéru pre DVD prehrávač ...... 7-4
Použitie funkcie DVD ........... 7-4
Aktivovanie DLA (driver letter access) ...... 7-4
Inštalácia aplikácie WinDVD apozeranie DVD filmov 7-5
Regionálne DVD kódy .......... 7-5
Spustenie WinDVD ............ 7-6
Použitie funkcie CD-R aCD-RW ........ 7-6
Používanie funkcie DVD+R, DVD+RW, DVD-R,
DVD-RW aDVD-RAM (len čítanie) ....... 7-6
Zálohovanie CD ............. 7-7
Riešenie problémov ............ 7-7
Príloha A. Špecifikácie produktu ... A-1
Príloha B. Servis apodpora ..... B-1
Online technická podpora .......... B-1
Telefonická technická podpora......... B-1
Príloha C. Vyhlásenie IBM o
obmedzenej záruke Z125-4753-08
04/2004 .............. C-1
Časť 1-Všeobecné podmienky ........ C-1
Časť 2-Podmienky pre jednotlivé krajiny ..... C-4
Časť 3-Informácie ozáruke ......... C-14
Záručná lehota ............ C-14
Typy záručného servisu ......... C-15
Telefónny zoznam scelosvetovou pôsobnosťou .. C-16
Príloha D. Guarantee supplement for
Mexico .............. D-1
Príloha E. Notices.......... E-1
Trademarks .............. E-2
Electronic emission notices .......... E-2
Federal Communications Commission (FCC)
statement .............. E-2
©Copyright IBM Corp. 2004 iii

iv IBM USB 2.0 CD-RW/DVD-ROM Drive: User’s Guide

Safety
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Lees voordat udit product installeert eerst de veiligheidsvoorschriften.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.
Antes de instalar este produto, leia as Informações sobre Segurança.
Antes de instalar este producto lea la información de seguridad.
©Copyright IBM Corp. 2004 v

Läs säkerhetsinformationen innan du installerar den här produkten.
vi IBM USB 2.0 CD-RW/DVD-ROM Drive: User’s Guide

General safety guidelines
Always observe the following precautions to reduce the risk of injury and property damage.
Service
Do not attempt to service aproduct yourself unless instructed to do so by the IBM Support
Center. Use only an IBM authorized service provider who is approved to repair your
particular product.
Note: Some parts can be upgraded or replaced by the customer. These parts are referred to as
Customer Replaceable Units, or CRUs. IBM expressly identifies CRUs as such, and provides
documentation with instructions when it is appropriate for customers to replace those parts.
You must closely follow all instructions when performing such replacements. Always make
sure that the power is turned off and that the product is unplugged from any power source
before you attempt the replacement. If you have any questions or concerns, contact the IBM
Support Center.
Power cords and power adapters
Use only the power cords and power adapters supplied by the product manufacturer.
Never wrap apower cord around the power adapter or other object. Doing so can stress the
cord in ways that can cause the cord to fray, crack or crimp. This can present asafety hazard.
Always route power cords so that they will not be walked on, tripped over, or pinched by
objects.
Protect the cord and power adapters from liquids. For instance, do not leave your cord or
power adapter near sinks, tubs, toilets, or on floors that are cleaned with liquid cleansers.
Liquids can cause ashort circuit, particularly if the cord or power adapter has been stressed by
misuse. Liquids can also cause gradual corrosion of the power cord terminals and/or the
connector terminals on the adapter which can eventually result in overheating.
Always connect power cords and signal cables in the correct order and ensure that all power
cord connectors are securely and completely plugged into receptacles.
Do not use any power adapter that shows corrosion at the ac input pins and/or shows signs of
overheating (such as deformed plastic) at the ac input or anywhere on the power adapter.
Do not use any power cords where the electrical contacts on either end show signs of
corrosion or overheating or where the power cord appears to have been damaged in any way.
Extension cords and related devices
Ensure that extension cords, surge protectors, uninterruptible power supplies, and power strips
that you use are rated to handle the electrical requirements of the product. Never overload
these devices. If power strips are used, the load should not exceed the power strip input rating.
Consult an electrician for more information if you have questions about power loads, power
requirements, and input ratings.
©Copyright IBM Corp. 2004 vii

Plugs and outlets
If areceptacle (power outlet) that you intend to use with your computer equipment appears to
be damaged or corroded, do not use the outlet until it is replaced by aqualified electrician.
Do not bend or modify the plug. If the plug is damaged, contact the manufacturer to obtain a
replacement.
Some products are equipped with athree-pronged plug. This plug fits only into agrounded
electrical outlet. This is asafety feature. Do not defeat this safety feature by trying to insert it
into anon-grounded outlet. If you cannot insert the plug into the outlet, contact an electrician
for an approved outlet adapter or to replace the outlet with one that enables this safety feature.
Never overload an electrical outlet. The overall system load should not exceed 80 percent of
the branch circuit rating. Consult an electrician for more information if you have questions
about power loads and branch circuit ratings.
Be sure that the power outlet you are using is properly wired, easily accessible, and located
close to the equipment. Do not fully extend power cords in away that will stress the cords.
Connect and disconnect the equipment from the electrical outlet carefully
Batteries
All IBM personal computers contain anon-rechargeable coin cell battery to provide power to
the system clock. In addition many mobile products such as Thinkpad notebook PCs utilize a
rechargeable battery pack to provide system power when in portable mode. Batteries supplied
by IBM for use with your product have been tested for compatibility and should only be
replaced with IBM approved parts.
Never attempt to open or service any battery. Do not crush, puncture, or incinerate batteries or
short circuit the metal contacts. Do not expose the battery to water or other liquids. Only
recharge the battery pack strictly according to instructions included in the product
documentation.
Battery abuse or mishandling can cause the battery to overheat, which can cause gasses or
flame to “vent” from the battery pack or coin cell. If your battery is damaged, or if you notice
any discharge from your battery or the buildup of foreign materials on the battery leads, stop
using the battery and obtain areplacement from the battery manufacturer.
Batteries can degrade when they are left unused for long periods of time. For some
rechargeable batteries (particularly Lithium Ion batteries), leaving abattery unused in a
discharged state could increase the risk of abattery short circuit, which could shorten the life
of the battery and can also pose asafety hazard. Do not let rechargeable Lithium-Ion batteries
completely discharge or store these batteries in adischarged state.
Heat and product ventilation
Computers generate heat when turned on and when batteries are charging. Notebook PCs can
generate asignificant amount of heat due to their compact size. Always follow these basic
precautions:
vDo not leave the base of your computer in contact with your lap or any part of your body
for an extended period when the computer is functioning or when the battery is charging.
Your computer produces some heat during normal operation. Extended contact with the
body could cause discomfort or, potentially, askin burn.
viii IBM USB 2.0 CD-RW/DVD-ROM Drive: User’s Guide

vDo not operate your computer or charge the battery near flammable materials or in
explosive environments.
vVentilation slots, fans and/or heat sinks are provided with the product for safety, comfort,
and reliable operation. These features might inadvertently become blocked by placing the
product on abed, sofa, carpet, or other flexible surface. Never block, cover or disable these
features.
CD and DVD drive safety
CD and DVD drives spin discs at ahigh speed. If aCD or DVD is cracked or otherwise
physically damaged, it is possible for the disc to break apart or even shatter when the CD
drive is in use. To protect against possible injury due to this situation, and to reduce the risk of
damage to your machine, do the following:
vAlways store CD/DVD discs in their original packaging
vAlways store CD/DVD discs out of direct sunlight and away from direct heat sources
vRemove CD/DVD discs from the computer when not in use
vDo not bend or flex CD/DVD discs, or force them into the computer or their packaging
vCheck CD/DVD discs for cracks before each use. Do not use cracked or damaged discs
General safety guidelines ix

xIBM USB 2.0 CD-RW/DVD-ROM Drive: User’s Guide

About this book
This manual contains instructions for installing the IBM USB 2.0 CD-RW/DVD-ROM Drive
hardware.
This manual provides installation instructions in the following languages:
vBrazilian Portuguese
vCzech
vEnglish
vFrench
vGerman
vItalian
vJapanese
vSimplified Chinese
vSlovak
vSpanish
vTraditional Chinese
vTurkish
Registering your option
Thank you for purchasing this IBM product. Please take afew moments to register your
product and provide us with information that will help IBM to better serve you in the future.
Your feedback is valuable to us in developing products and services that are important to you,
as well as in developing better ways to communicate with you. Register your option on the
IBM Web site at:
http://www.ibm.com/pc/register/
IBM will send you information and updates on your registered product unless you indicate on
the Web site questionnaire that you do not want to receive further information.
©Copyright IBM Corp. 2004 xi

xii IBM USB 2.0 CD-RW/DVD-ROM Drive: User’s Guide

Kapitola 1. Rýchla inštalácia Combo jednotky
Táto kapitola obsahuje návod na inštaláciu jednotky IBM USB 2.0 CD-RW/DVD-ROM,
(ďalej sa bude nazývať Combo jednotka).

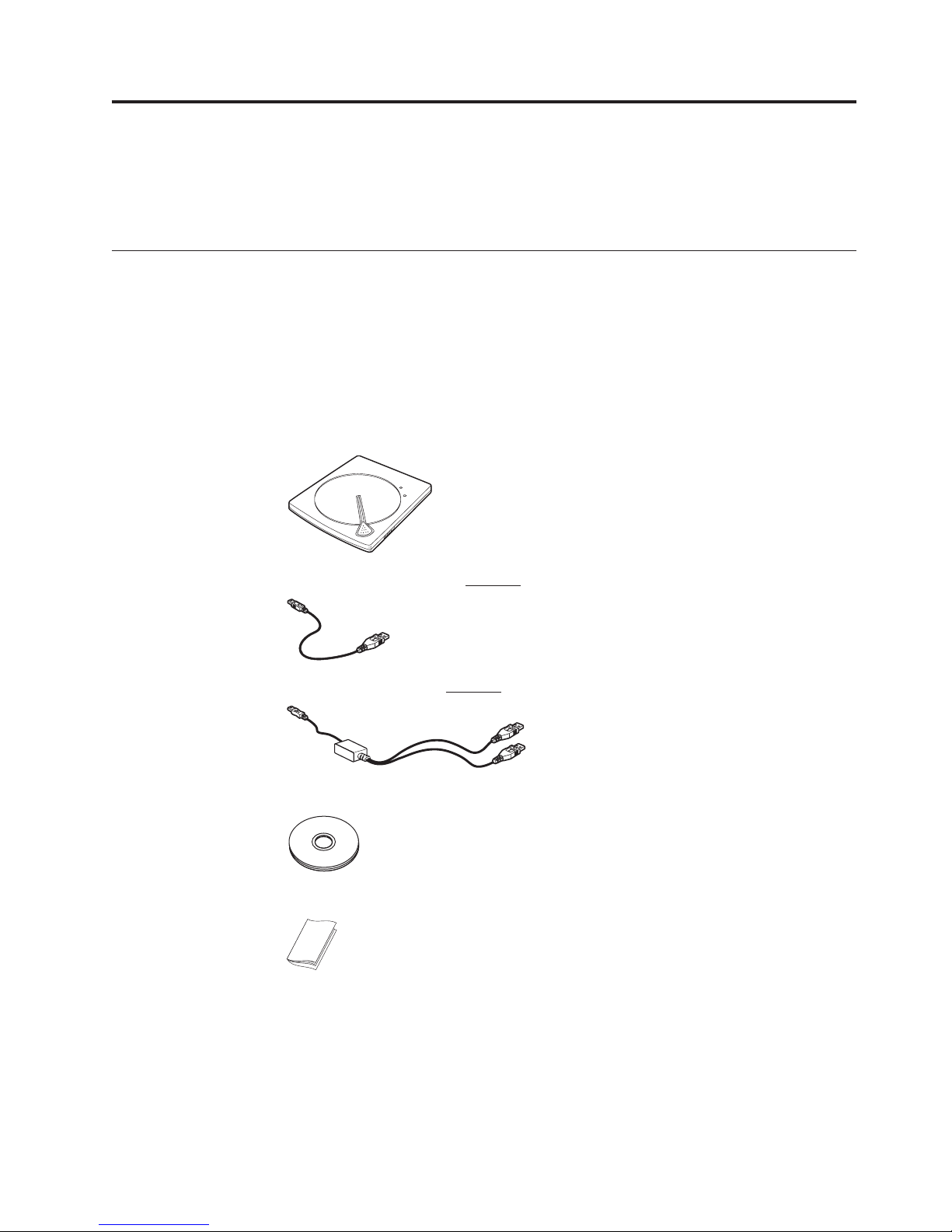

Opis produktu
Jednotka IBM USB 2.0 CD-RW/DVD-ROM je jednotkou DVD-ROM typu Slimline s
možnosťou záznamu CD, ktorá sa dá rýchlo ajednoducho pripojiť kpočítaču IBM ThinkPad.
Táto jednotka je zariadením USB 2.0 avyžaduje pripojenie kjednému alebo dvom portom
USB 2.0. Maximálna rýchlosť zápisu je 8x (médium CD-R/CD-RW). Maximálna rýchlosť
čítania je 6x (médium DVD) a20x (médium CD).
Balenie jednotky obsahuje okrem tohto návodu nasledujúce súčasti:
vJednotku IBM USB 2.0 CD-RW/DVD-ROM
vŠtandardný USB kábel (P/N 73P4522 je určený pre operácie čítania.)
vKábel USB 2.0 ″Y″(P/N 73P4517 je určený pre operácie čítania/zápisu).
vDisk IBM USB 2.0 CD-RW/DVD-ROM Drive Software and Guide Super CD
vBezpečnostná informačná príručka
Ak zistíte, že nejaká položka chýba alebo je poškodená, kontaktujte miesto nákupu vášho
produktu. Pre prípadnú neskoršiu reklamáciu si starostlivo uschovajte účet aobal výrobku.
Budete ich možno potrebovať pri žiadaní ozáručný servis.
©Copyright IBM Corp. 2004 1-1

Hardvérové asoftvérové požiadavky
Aby ste mohli používať tento komponent, musíte mať nainštalovaný na vašom počítači
ThinkPad tento hardvér:
vJeden alebo dva porty USB 2.0. Dva porty sú vyžadované pre operácie zápisu.
Ak chcete používať toto zariadenie, musíte mať na počítači nainštalovaný jeden z
nasledujúcich operačných systémov:
vMicrosoft Windows XP
vMicrosoft Windows 2000 Professional (Service Pack 4alebo novší)
Poznámka: Zariadenie nebude fungovať správne, ak nemáte nainštalovaný Service Pack 4
alebo novší.
Identifikácia komponentov Combo jednotky
Nasledujúce obrázky obsahujú informácie okomponentoch Combo jednotky, vrátane
ovládacích prvkov akonektorov. Nižšie uvedené obrázky obsahujú pohľad na vrchný panel,
spodný panel aotvorenú jednotku.
v1Kryt disku
v2Indikátory napájania/činnosti
vZelený: Jednotka je zapnutá.
vPomaly blikajúci žltý: Čítanie údajov
vRýchlo blikajúci žltý: Rozpoznávanie média.
v3Indikátor zápisu
vŽltý: Zápis údajov.
v4Vypínač napájania [POWER]
v5 Tlačidlo otvorenia [OPEN]
1-2 IBM USB 2.0 CD-RW/DVD-ROM Drive: User’s Guide

v6Podnos
v7Šošovka
v8Ochranný kryt šošovky
v9Konektor rozhrania USB
v10Páčka núdzového vysunutia
Operačné konfigurácie
Táto časť poskytuje informácie ooperačných konfiguráciách Combo jednotky.
1) Pre operácie čítania použite kábel P/N 73P4522. Pripojte jednotku kjednému
štandardnému portu systému USB 2.0.
2) Pre operácie čítania/zápisu použite USB kábel typu ″Y″P/N 73P4517. Pripojte jednotku k
dvom štandardným portom USB 2.0.
Kapitola 1. Rýchla inštalácia Combo jednotky 1-3

1-4 IBM USB 2.0 CD-RW/DVD-ROM Drive: User’s Guide

Kapitola 2. Pripojenie Combo jednotky kpočítaču ThinkPad
pomocou kábla
Nasledujúci obrázok vám môže pomôcť pri pripájaní Combo jednotky kvášmu počítaču
ThinkPad. Hardvér na obrázkoch sa môže mierne odlišovať od vášho konkrétneho hardvéru.
1Kábel USB 2.0 typu ″Y″,(P/N 73P4517)
2 počítač ThinkPad
3 Combo jednotka
Obrázok 2-1. Pre operácie čítania/zápisu.
1Štandardný USB kábel (P/N 73P4522)
2 počítač ThinkPad
3 Combo jednotka
Obrázok 2-2. Pre operácie čítania.
