Iceking IK304W.E User manual

IK304W.E
Defrost Fridge Freezer in White
Installation and Operating Manual
Please read these instructions carefully before attempting to install
or use this appliance. It is advisable to keep these instructions
in a safe place for future reference.
Iceking: Henry John House, Northway Industrial Estate, Northway Lane, Ashchurch, Tewkesbury, Gloucestershire, GL20 8JH
01527 888133 | [e-mail] | www.ice-king.co.uk

User Instructions
IK304W.E
Defrost Fridge Freezer in White
Contents
1. Safety Information
Page 1 –8
2. Overview
Page 9
3. Installation
Page 10 – 1 7
4. User Control Panel
Page 18 – 19
5. Daily Use
Page 20 – 2 6
6. Guarantee
Page 2 7-28

Safety Information
Safety Information
In the interest of your safety and to ensure the correct use, before installing
and first using the appliance, read this user manual carefully, including its tips
and warnings. To avoid unnecessary mistakes and accidents, it is important to
ensure that all people using the appliance are thoroughly familiar with its
operation and safety features. Save these instructions and make sure that
they remain with the appliance if it is moved or sold, so that everyone using it
through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user
instructions as the manufacturer is not responsible for damages caused by
omission.
Children and Vulnerable People Safety
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory, or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
•Children aged from 3 years are allowed to load and unload this appliance.
•Children should be supervised to ensure that they do not play with the
appliance.
•Cleaning and user maintenance shall not be made by children unless they
are aged from 8 years and above and supervised.
•Keep all packaging well away from children. There is risk of suffocation.
If you are discarding the appliance pull the plug out of the socket, cut the
connection cable as close to the appliance as you can and remove the door to
prevent children or pets being trapped inside.
1

Safety Information
2
If this appliance featuring magnetic door seals is to replace an older appliance
having a spring lock & latch on the door or lid, ensure that spring lock is
unusable and not a danger before being discarded.
General Safety
WARNING!
Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING!
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING!
Do not damage the refrigerant circuit.
WARNING!
Do not use other electrical appliances such as ice cream makers inside of
refrigerating appliances unless they are approved for this purpose by the
manufacturer.
WARNING!
Do not touch the light bulb if it has been on for a long period of time because it
could be very hot.
WARNING!
When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING!
Do not locate multiple portable socket outlets or portable power suppliers at
the rear of the appliance.

Safety Information
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance. The refrigerant isobutane (R600-
a) is contained within the refrigerant circuit of the appliance, a natural
gas with a high level of environmental compatibility, which is
nevertheless flammable.
•During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
•Avoid open flames and sources of ignition. Thoroughly ventilate the
room in which the appliance is situated.
•It is dangerous to alter the specifications or modify this product in any
way. Any damage to the cord may cause a short circuit, fire and/or
electric shock.
•This machine is for domestic use only; do not use it for other purposes.
Commercial use will void the guarantee.
WARNING!
Any electrical components & plug, power cord, compressor etc., must be
replaced by a certified service agent or qualified service personnel.
WARNING!
The light bulb supplied with this appliance is a special use lamp bulb usable
only with the appliance supplied. This bulb is not usable for domestic lighting.
•The power cord must not be lengthened.
•Make sure that the power plug is not damaged at the rear of the
appliance. A damaged power plug may overheat and cause a fire.
•Make sure that you can access the mains plug of the appliance.
•Do not pull the mains cable.
3

Safety Information
4
•If the power plug socket is loose, do not insert the power plug. There is
a risk of electric shock or fire. You must not operate the appliance
without the lamp.
•This appliance is heavy. Care should be taken when moving it.
•Do not remove or touch items from the freezer compartment if your
hands are damp/wet, as this could cause skin abrasions or frost/freezer
burns.
•Avoid prolonged exposure of the appliance to direct sunlight.
Daily Use
•Do not put hot items on the plastic parts in the appliance.
•Do not place food products directly against the rear wall.
•Frozen food must not be refrozen once it has been thawed out.
•Store prepacked frozen food in accordance with the frozen food
manufacturer’s instructions.
•The appliance manufacturer’s storage recommendations should be
strictly adhered to.
•Refer to relevant instructions.
•Do not place carbonated fizzy drinks in the freezer compartment as it
creates pressure on the container, which may cause it to explode,
resulting in damage to the appliance.
•Ice lollies can cause frost burns if consumed straight from the
appliance.
•To avoid contamination of food, please respect the following
instructions:
•Opening the door for long periods can cause a significant increase of
the temperature in the compartments of the appliance.
•Regularly clean surfaces that can come in contact with food and
accessible drainage systems.

Safety Information
•Clean water tanks if they have not been used for 48 hours: flush the
water system connected to a water supply if water has not been drawn
for 5 days.
•Store raw meat and fish in suitable containers in the refrigerator, so that
it is not in contact with or drips onto other food.
•Two-star frozen food compartments (if they are presented in the
appliance) are suitable for storing pre-frozen food, storing or making
ice-cream and making ice cubes.
•One, two and three-star compartments (if they are presented in the
appliance) are not suitable for the freezing of fresh food.
•If the appliance is left empty for long periods, switch off, defrost, clean,
dry and leave the door open to prevent mould developing within the
appliance.
Care and Cleaning
•Before maintenance, switch off the appliance and disconnect the mains
plug from the mains socket.
•Do not clean the appliance with metal objects.
•Do not use sharp objects to remove frost from the appliance. Use a
plastic scraper.
•Regularly examine the drain in the refrigerator for defrosted water. If
necessary, clean the drain. If there is a fresh food storage compartment,
if the drain is blocked, water will collect in the bottom of the appliance.
Installation
IMPORTANT!
For electrical connection carefully follow these instructions.
•Unpack the appliance and check if there is any damage to it. Do not
connect the appliance if it is damaged. Report any damage immediately
5

Safety Information
6
to the retailer where you purchased the appliance. In that case retain
the packaging.
•It is advisable to wait at least four hours before connecting the
appliance to allow the oil to flow back in the compressor.
•Ensure your appliance has adequate air circulation, failure to do this
may lead to overheating. To achieve sufficient ventilation, follow the
instructions relevant to installation.
•Wherever possible the spacers of the product should be against a wall,
to avoid the warm parts (compressor, condenser) touching any surfaces
and causing possible burning.
•The appliance must not be located close to radiators or cookers.
•Make sure that the mains plug is accessible after the installation of the
appliance.
Service
•Any electrical work required to service the appliance should be carried
out by a qualified electrician or competent person.
•This product must be serviced by an authorised Service Centre and
only genuine spare parts must be used.
Energy Saving
•Do not put hot food in the appliance.
•Do not pack food close together as this prevents air circulation.
•Make sure food doesn’t touch the back of the compartments.
•If electricity goes off, do not open the doors.
•Do not open the doors frequently.
•Do not keep the doors open for too long.
•Keep the temperature at a moderate level during normal weather
conditions.

Safety Information
•All accessories, such as drawers, shelves and balconies should be kept
in place for lower energy consumption.
Environment Protection
This symbol on the product or on its packaging indicates that it must not
be treated as household waste. It should be disposed of in accordance
with local
authority regulations or taken to the appropriate collection point for the
recycling of electrical and electronic equipment.
Ensuring this product is disposed of correctly will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
This appliance does not contain gasses which could damage the ozone
layer, in either its refrigerant circuit or insulation materials.
The insulation foam contains flammable gases. Avoid damaging the cooling
unit, especially the heat exchanger.
The materials used on this appliance marked by the symbol are recyclable.
For more detailed information about recycling of this product, please contact
your local council, your household waste disposal service or the retailer where
you purchased the product.
Packaging Materials
•The materials with the symbol are recyclable.
•Dispose of the packaging in a suitable collection container to recycle it.
Disposal of the Appliance
7

Safety Information
8
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.
WARNING!
During use, service, and disposal of the appliance, please pay attention to the
symbol similar to the one below, which is located on the rear of the appliance
(rear panel or compressor) and yellow or orange in colour.
This is the risk of fire warning symbol. There are flammable materials
in the refrigerant pipes and the compressor.
Please keep a safe distance between the appliance and fire sources during
use, service, and disposal.

Overview
Note: This diagram is for reference only, the actual product may differ slightly.









9

Installation
10
Space Requirement
•Select a location without direct exposure to sunlight.
•Select a location with enough space for the refrigerator doors to open
easily.
•Select a location with level (or nearly level) flooring.
•Allow sufficient space to install the refrigerator on a flat surface.
•Allow clearance to the right, left, back and top when installing. This will
help reduce power consumption and keep your energy bills lower.
•If either the left- or right-hand side of the fridge freezer is positioned
against a wall, or cabinets that are of a similar height, it is strongly
recommended to keep at least a 50mm gap at both sides and at the
back of the fridge freezer to aid ventilation.
Positioning
Install this appliance in a location where the ambient temperature corresponds
to the climate class indicated on the rating plate of the appliance:
•Extended Temperate: this refrigerating appliance is intended to be used
at ambient temperatures ranging from 10°c to 32°c; (SN)
•Temperate: this refrigerating appliance is intended to be used at
ambient temperatures ranging from 16°c to 32°c; (N)
•Subtropical: this refrigerating appliance is intended to be used at
ambient temperatures ranging from 16°c to 38°c; (ST)
•Tropical: this refrigerating appliance is intended to be used at ambient
temperatures ranging from 16°c to 43°c; (T)
Location
The appliance should be installed well away from sources of heat such as
radiators, boilers, direct sunlight etc. Ensure that air can circulate freely
around the back of the cabinet.

Installation
To ensure best performance, if the appliance is positioned below an
overhanging wall unit, the minimum distance between the top of the cabinet
and the wall unit must be at least 50mm.
Ideally, however, the appliance should not be positioned below overhanging
wall units. Accurate levelling is ensured by one or more adjustable feet at the
base of the cabinet.
This refrigerating appliance is not intended to be used as a built-in appliance.
WARNING!
It must be possible to disconnect the appliance from the mains power
supply; the plug must therefore be easily accessible after installation.
Electrical Connection
Before plugging in, ensure that the voltage and frequency shown on the rating
plate correspond to your domestic power supply. The appliance must be
earthed.
The power supply cable plug is provided with a contact for this purpose. If the
domestic power supply socket is not earthed, connect the appliance to a
separate earth in compliance with current regulations, consulting a qualified
electrician. The manufacturer declines all responsibility if the above safety
precautions are not observed.
Door Reversibility
Before reversing the door, please be prepared with the below tools and
materials: straight screwdriver, cross screwdriver, spanner.
11

Installation
12

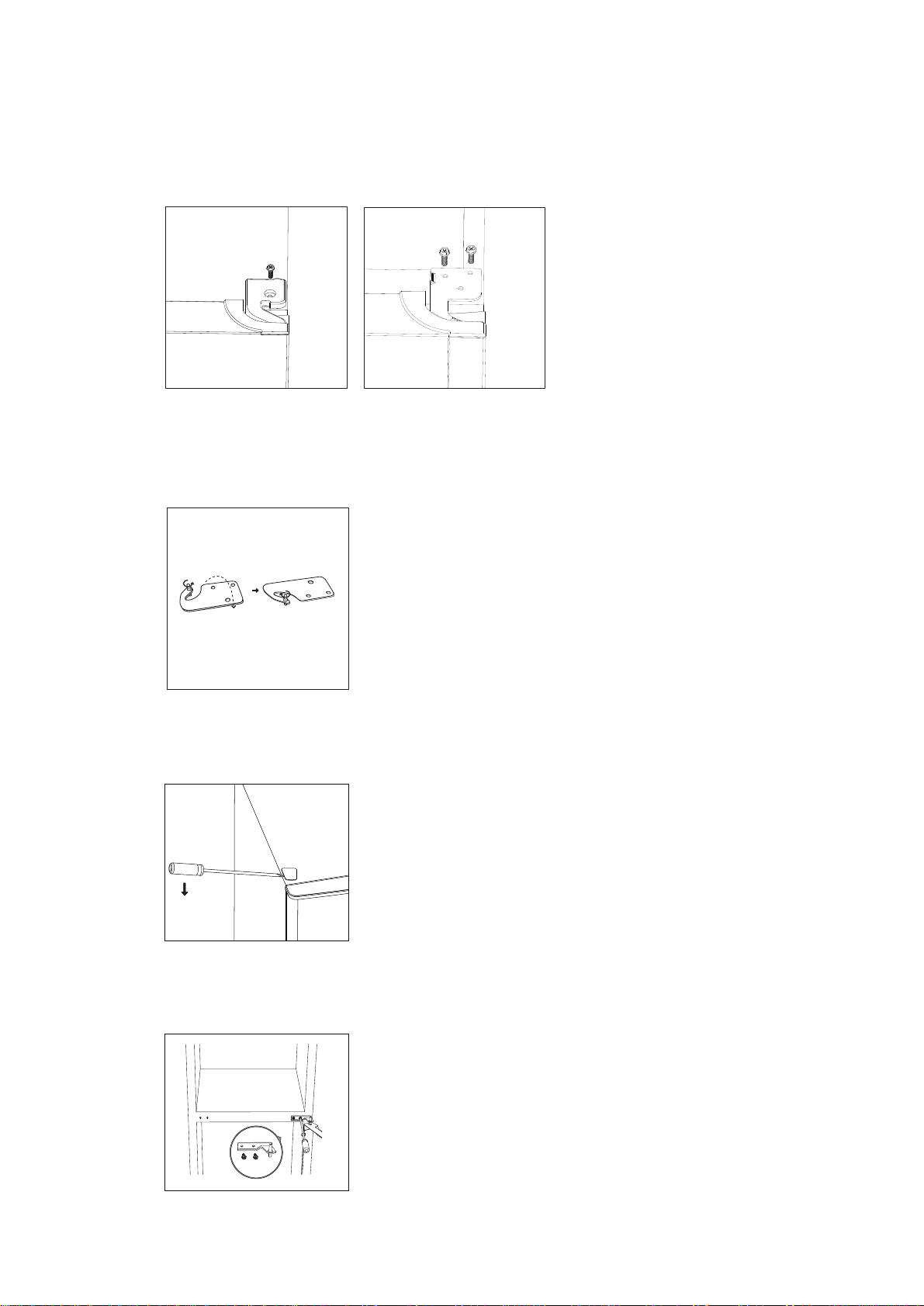

1. Unscrew the top hinge cover and then unscrew the top hinge. Lift the
upper door and place it on a soft pad to avoid scratches and damage.
2. Remove the pin with a screwdriver and flip the hinge bracket. Then refit
the pin to hinge bracket.

3. Remove the top left screw cover.
4. Unscrew middle hinge.

Installation
,'

('-
sides.
./
0/
 
 
13

Installation
14
9. Refit the bracket fitting the bottom hinge pin. Replace both adjustable
feet. Transfer the lower door to the proper position.
10.Reverse the middle hinger by 180 degree, then transfer it to the left side
properly. Position the middle hinger pin in the upper hole of the lower door,
then tighten the bolts.
11.Place the upper door back on. Ensure the door is aligned horizontally and
vertically so that the seal are closed on all sides before finally tightening the
top hinge. Then insert the top hinge and screw it to the top of the unit and
then fix hinger cover (in poly bag) by screw.
12.Fix the screw cover.

Installation
13.Detach the fridge and the freezer door gaskets and then attach them after
rotating.
Install Door External Handle
(if an external handle is present)
15

Installation
16
I
Space Requirement
• Keep enough space for the door to open.
• If either the left- or right-hand side of the fridge freezer is positioned
against a wall, or cabinets that are of a similar height, it is strongly
recommended to keep at least a 50mm gap at both sides and at the
back of the fridge freezer to aid ventilation.
Levelling the Unit
• To do this, adjust the two levelling feet at the front of the unit.
• If the unit is not level, the doors and magnetic sealalignments will
not be covered properly.
A
600
B
600
C
1720
D
min = 50
E
min = 50
F
min = 50
G
1200
H
1200
I
135 deg

Installation
17

User Control Panel
18
Temperature Setting
Environment
Temperature
Freezer
compartment
Fridge
compartment
Set on 2~4
Set on 4
Temperature Setting Recommendation
Summer
（Above 38℃）
Normal
/
/
• The internal temperature is controlled by a thermostat. There are 8
settings. When the appliance is set at 1, the target temperature is the warmest,
while at 7, it is the coldest. If set at 0, the appliance will be switched off . If the unit
is set at 7, the compressor may not stop.
•
For winter user, it is suggested to set the appliance between 4 to 6 so
as to keep the compressor running for longer and the compartment cool enough.
• The appliance may not operate at the correct temperature if it is in a
particularly hot location or if you open the door often.
Temperature setting recommendation
