Iceking IK20568WE User manual

Installation and Operating Manual
IK20568WE – White
F Rated Fridge Freezer
Please read these instructions carefully before attempting to install or use this appliance.
It is advi sable to keep these instructions in a safe place for future reference.
Iceking: Henry John House Northway Industrial Estate Northway Lane Ashchurch Tewkesbury Gloucestershire GL20 8JH
T: 01527 888133 E: [e-mail] W: www.ice-king.co.uk

INTRODUCTION:
Thank you for choosing this ICEKING appliance. It has been designed to give
years of trouble-free use provided it is installed and maintained correctly.
Please read these instructions carefully before installing or using your
appliance. It is advisable to keep your purchase and installation receipts
with these instructions in a safe place for future reference.
Included is some important safety information in addition to guidelines and
recommendations that will enable you to take full advantage of all the
functions available.
This quality appliance has been tested and certified to meet all applicable
UK electrical and safety standards.
This appliance must be installed and connected in accordance with current
regulations by a qualified electrician.
After unpacking the appliance ensure that there is no visible damage.
If the appliance has been damaged during transit, do not use it, contact
your retailer immediately.
1

YOUR 2-YEAR MANUFACTURER'S
GUARANTEE:
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new ICEKING appliance carries a free guarantee which protects you against
the cost of repairs during the first 24 months from date of purchase provided
that: any claim is accompanied by evidence of the model reference, model serial
number and proof of purchase, such as a Sales Receipt, showing that the
appliance was purchased within the 24 months prior to the date of claim.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and
return it with a stamp affixed or alternatively register your Appliance at
www.ice-king.co.uk/register-your-product
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Iceking Service Helpline on:
01527-888133
Please remember to have all your product details available, including the
model number, serial number, date of purchase and your retailer’s
details before registering a fault.
Your service call cannot progress without this information.
2

WHAT IS NOT COVERED UNDER THE
GUARANTEE:
 Any appliance not correctly installed and operated in accordance
with the manufacturer's instructions.
 Any appliance that is used for anything other than domestic
purposes.
 Any defect caused by accident, misuse, unauthorised modification
or inexpert repair.
 Cost of Call-out where a fault cannot be found with the appliance.
 Cost of Call-out for work covering routine maintenance, such as,
but not exclusively, cleaning of filters or defrosting.
 Cost of Call-out for work required to correct the alignment of
doors following door reversal procedures carried out by you.
 Use of the appliance by anyone other than the Householder.
 Use in any commercial environment.
 Consumable items, such as, but not exclusively, fuses in plugs,
bulbs and breakable items which require routine replacement.
 Repair costs incurred that have not been authorised by Repairtech
and/or carried out by a non-approved Repairtech engineer.
3

CONTENTS:
Section 1. First Steps
Section 2. Installation
Section 3. General Safety and Use
Section 4. Description of the Appliance
Section 5. Daily Use
Section 6. Maintenance
Section 7. Trouble Shooting
Section 8. Servicing
4

FIRST STEPS:
 Unpack the appliance and check to see if there is any damage. Do not
connect the appliance if it is damaged. Report the damage immediately
and retain the packing.
 If there is no damage to the appliance remove all packaging and securing
tape from the appliance and dispose of it correctly (see ‘Environmental
Protection’ Page 26).
 If this appliance is to replace an old refrigerator with a lock, you must
as a safety measure break or remove the lock and/or door before
disposal.
 Disconnect the mains plug from the mains socket. Cut off the
mains cable as close to the appliance as possible and discard.
 Your old appliance contains insulation gases and refrigerant that
must be disposed of correctly. Please ensure that the refrigerant
circuit is not damaged before the appliance is taken away for correct
disposal, in line with current legislation. If there is any doubt contact
your Local Authority for instructions.
 This appliance may contain the refrigerant isobutene (R600a). This is
a natural gas with a high level of environmental compatibility;
however, caution is required as isobutene is a flammable gas. It is
essential to ensure that refrigerant tubes are not damaged during
transportation and the installation of the appliance. In the event that
the refrigerant circuit is damaged, avoid naked flames or sources of
ignition and ventilate the room in which the appliance is situated.
5

INSTALLATION:
 In the interest of safety and to ensure correct use, before installing the
appliance, read this user manual carefully.
 To avoid unnecessary mistakes and accidents, it is important to ensure that
all people using the appliance are thoroughly familiar with its operation and
safety features.
 Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that anyone using it throughout
its’ life will be properly informed of the appliance use and safety. Please
note that this warranty is not transferrable.
 The manufacturer accepts no responsibility for incorrect installation or use.
IMPORTANT! This appliance must be left to stand in an upright position for at
least 4 hours before being switched on for the first time.
This appliance has been designed for Domestic Use only.
 Wash the interior of the appliance with lukewarm water containing a
small amount of bicarbonate soda (5ml to 0.5 litres of water).
 For electrical connection carefully follow the instructions given.
 There must be adequate air circulation around the Appliance to avoid
overheating. To achieve sufficient ventilation, follow the instructions
relevant to installation.
 Wherever possible the spacers of the product should be against a wall to
avoid the possibility of touching or catching parts that may become hot,
such as the compressor or condenser.
6

REAR SPACERS:
 The rear of your new appliance will have either an exposed condensor (Fig.3)
or a concealed condenser or ‘flat-back’ (Fig.2).
 Your Appliance may come supplied with spacers fitted to the rear or you may
be supplied with two plastic spacers similar to those shown in Fig.3a or 3b. Fit
these to the rear of the appliance as shown (Fig.3a & 3b). When fitted, the
spacers will ensure an air gap between the condenser and the rear wall.
 If the appliance does not come supplied with spacers fitted or you are not
supplied with plastic spacers to fit yourelf, simply ensure that a gap of
approximately 50mm is maintained behind the condenser and the rear wall.
7

 Connect the plug to an adjacent 13amp socket outlet and ensure that the
appliance is not trapping the supply cable.
 Make sure that the plug is accessible after the installation of the appliance.
 Position the appliance in a dry atmosphere and out of direct sunlight.
 Do not position next to a cooker or other sources of heat, i.e. radiator.
 Leave a minimum gap of 2cm between the appliances in order to avoid
condensation.
 Please ensure that there is an ‘air-gap’ between the appliance and the rear
and side walls.
 Do not place or store heavy items on the top of this appliance.
 Ensure that the appliance is positioned on a firm flat floor.
 This appliance must be level.
 Ensure that the appliance is upright and wheels/feet are in firm contact
with the floor so that the cabinet is stable.
 This appliance has been designed and manufactured to operate efficiently
within an ambient temperature range of +16°C to +32°C.
8

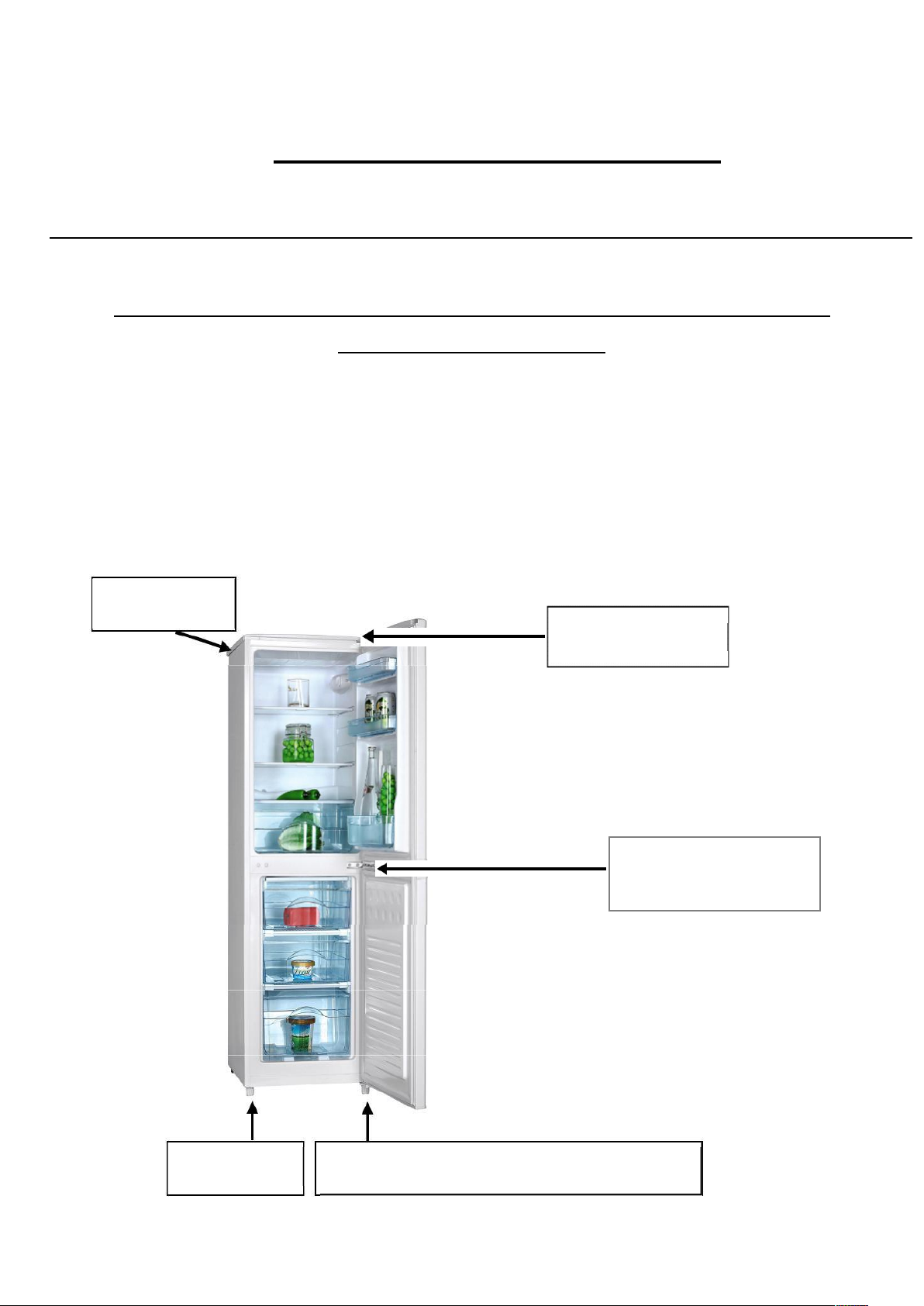

Top Cover
Upper Hinge
Assembly
Left Foot Lower Hinge and Foot Assembly
REVERSING THE DOOR:
Please note that your appliance may be supplied with the doors left or right hand hinged.
The door opening can be reversed from “right hand hinged” to “left
hand hinged” if required.
Warning! When reversing the door, the appliance must not be
connected to the mains. Remove the plug from the mains
beforehand.
(Picture shown for indicative purposes only, model supplied may differ).
Middle Hinge
Assembly
