Iceking RZ205W.E User manual

RZ205W.E
Tall Freezer - White
Installation and Operating Manual
Please read these instructions carefully before attempting to install
or use this appliance. It is advisable to keep these instructions
in a safe place for future reference.
Iceking: Henry John House, Northway Industrial Estate, Northway Lane, Ashchurch , Tewkesbury, Gloucestershire, GL20 8JH
01527 888133 | [e-mail] | www.ice-king.co.uk

User Instructions
RZ205W.E
Tall Freezer - White
Contents
I. SAFETY ........................................................................................................................................................... 1
2. Product Features .........................................................................................................................................10
3. Installation ....................................................................................................................................................11
4.Using This Appliance .................................................................................................................................15
5. Instructions for food storage....................................................................................................................16
6. Important Reminders ..................................................................................................................................17
7. Maintenance and cleaning ........................................................................................................................18
8.
Guarantee ..................................................................................................................................................... 22
10. Special For New European Standard .................................................................................................. 24
Simple Fault Analysis and Elimination ................................................................................................. 21
9.

Safety Information
1
Safety Information
In the interest of your safety and to ensure the correct use, before installing
and first using the appliance, read this user manual carefully, including its tips
and warnings. To avoid unnecessary mistakes and accidents, it is important to
ensure that all people using the appliance are thoroughly familiar with its
operation and safety features. Save these instructions and make sure that
they remain with the appliance if it is moved or sold, so that everyone using it
through its life will be properly informed on appliance use and safety.
For the safety of life and property, keep the precautions of these user
instructions in mind as the manufacturer is not responsible for damages
caused by omission.
Children and Vulnerable People Safety
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory, or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
•Children should be supervised to ensure that they do not play with the
appliance.
•Cleaning and user maintenance shall not be made by children unless they
are aged from 8 years and above and supervised.
•Keep all packaging well away from children. There is risk of suffocation.
If you are discarding the appliance, pull the plug out of the socket, cut the
connection cable as close to the appliance as you can and remove the door to
prevent children or pets being trapped inside.
Note: The guidelines and information within this manual are for all refrigeration
apliances. Some features may not be applicable to this appliance.

2
Safety Information
If this appliance is to replace an older appliance having a spring lock & latch
on the door or lid, ensure that spring lock is unusable and not a danger before
being discarded.
General Safety
WARNING!
Keep ventilation openings in the appliance enclosure clear of obstruction.
WARNING!
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING!
Do not damage the refrigerant circuit.
WARNING!
Do not use other electrical appliances such as ice cream makers inside of
refrigerating appliances unless they are approved for this purpose by the
manufacturer.
WARNING!
Do not touch the light bulb if it has been on for a long period of time because it
could be very hot.
WARNING!
When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING!
Do not locate multiple portable socket outlets or portable power suppliers at
the rear of the appliance.

Safety Information
3
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance. The refrigerant isobutane (R600a)
is contained within the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility, which is nevertheless
flammable
•During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
•Avoid open flames and sources of ignition. Thoroughly ventilate the
room in which the appliance is situated.
•It is dangerous to alter the specifications or modify this product in any
way. Any damage to the cord may cause a short circuit, fire and/or
electric shock.
•This machine is for domestic use only; do not use it for other purposes.
Commercial use will void the guarantee.
WARNING!
Any electrical components & plug, power cord, compressor etc., must be
replaced by a certified service agent or qualified service personnel.
WARNING!
The light bulb supplied with this appliance is a special use lamp bulb usable
only with the appliance supplied. This bulb is not usable for domestic lighting.
•The power cord must not be lengthened.
•Make sure that the power plug at the rear of the appliance is not
damaged.
•A damaged power plug may overheat and cause a fire.
•Make sure that you can access the mains plug of the appliance.
•Do not pull the mains cable.

Safety Information
4
•If the power plug socket is loose, do not insert the power plug. There is
a risk of electric shock or fire.
•This appliance is heavy. Care should be taken when moving it.
•Do not remove or touch items from the freezer compartment if your
hands are damp/wet, as this could cause skin abrasions or frost/freezer
burns.
•Avoid prolonged exposure of the appliance to direct sunlight.
•This appliance is not intended to be used as a built-in appliance.
Daily Use
•Do not put hot items on the plastic parts or in the appliance.
•Do not place food products directly against the rear wall.
•Frozen food must not be refrozen once it has been thawed out.
•Store prepackaged frozen food in accordance with the frozen food
manufacturer’s instructions.
•The appliance manufacturer’s storage recommendations should be
strictly adhered to. Refer to relevant instructions.
•Do not place carbonated fizzy drinks in the freezer compartment as
freezing creates pressure on the container, which may cause it to
explode, resulting in damage to the appliance.
•Ice lollies can cause frost burns if consumed straight from the
appliance.
To avoid contamination of food, please respect the following
instructions:
•Opening the door for long periods can cause a significant increase of
the temperature in the compartments of the appliance.
•Regularly clean surfaces that can come in contact with food and
accessible drainage systems.

Safety Information
5
•Clean water tanks if they have not been used for 48 hours: flush the
water system connected to a water supply if water has not been drawn
for 5 days.
•Store raw meat and fish in suitable containers in the refrigerator, so that
it is not in contact with or drips onto other food.
•Two-star frozen food compartments (if they are presented in the
appliance) are suitable for storing pre-frozen food, storing or making
ice-cream and making ice cubes.
•One, two and three-star compartments (if they are presented in the
appliance) are not suitable for the freezing of fresh food.
•If the appliance is left empty for long periods, switch off, defrost, clean,
dry and leave the door open to prevent mould developing within the
appliance.
Care and Cleaning
•Before maintenance, switch off the appliance and disconnect the mains
plug from the mains socket.
•Do not use bristle brush, steel wire brush, detergent, soap powder, alkaline
detergent, benzene, gasoline, acid, hot water and other corrosive or
soluble items to cleanse the cabinet surface, door gasket, plastic
decorative parts, etc., so as to avoid damage.
•Do not use sharp objects to remove frost from the appliance. Use a plastic
scraper.
•Regularly examine the drain and drain hole (some models may not have a
drain hole) in the refrigerator for defrosted water. If necessary, clean the
drain.
•If there is a fresh food storage compartment in the bottom of the fridge and
the drain is blocked, water will collect in the bottom of the appliance.

6
•THIS APPLIANCE MUST BE EARTHED.
This appliance is fitted with a three-prong plug which will be suitable for use in
all houses fitted with sockets to current specifications. If the fitted plug is not
suitable for your socket outlets, it should be cut off and carefully disposed of.
To avoid a possible shock hazard, do not insert the discarded plug into a
socket.
This appliance complies with the EEC Directives.
•Do not, under any circumstances, cut or remove the third ground prong from
the power cord supplied.
•This refrigerator appliance requires a standard 220-240VAC 50Hz electrical
outlet with three-prong ground.
•This refrigerator appliance is not designed to be used with an inverter.
•The cord should be secured behind the appliance and not left exposed or
dangling to prevent accidental injury.
•Never unplug the refrigerator by pulling the power cord. Always grip the plug
firmly and pull straight out from the socket.
•Make sure that the mains plug is accessible after the installation of the
appliance.
•Do not use an extension cord with this appliance. If the power cord is too short,
have a qualified electrician or service technician install an outlet near the
appliance. Use of an extension cord can negatively affect the performance of
the unit.
•Improper use of the grounded plug can result in the risk of electrical shock. If
the power cord is damaged, have it replaced by an authorised Service Centre.
IMPORTANT!
For electrical connection carefully follow these instructions.
Safety Information
Electrical Connection.

7
Service
•It is hazardous for anyone other than authorized service personnel to
carry out servicing or repairs which involves the removal of covers. To
avoid the risk of an electric shock do not attempt to repair this
appliance yourself.
Energy Saving
•Do not put hot food in the appliance.
•Do not pack food close together as this prevents air circulation.
•Make sure food doesn’t touch the back of the compartments.
•If electricity goes off, do not open the doors.
•Do not open the doors frequently.
•Do not keep the doors open for too long.
•Keep the temperature at a moderate level during normal weather
conditions.
•All accessories, such as drawers, shelves and balconies should be kept
in place for lower energy consumption.
Environmental Protection and Recycling
This symbol indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. For
more detailed information about recycling of this product, please contact
your local council, your household waste disposal service or the retailer
where you purchased the product. They can take this product for
environmentally safe recycling.
Any Packaging or material with this symbol is fully recyclable and should
be disposed of in a suitable manner
Safety Information

Safety Information
8
Safe Disposal of the Appliance
Freon-free
The freon-free refrigerant (R600a) and the foaming insulation material
(cyclopentane) that is environmentally friendly are used for the refrigerator,
causing no damage to the ozone layer and having a very small impact on the
global warming. R600a is flammable, and sealed in a refrigeration system,
without leakage during normal use. But, in case of refrigerant leakage due to
the refrigerant circuit being damaged, be sure to keep the appliance away
from open flames and open the windows for ventilation as quickly as
possible.
•When disposing of old Refrigeration appliances please follow the below
guidelines:
•Old appliances still have some surplus value. An environmentally
friendly approach will ensure that valuable raw materials are recycled.
•The refrigerants used in your equipment and insulation materials require
special handling procedures. Make sure there is no pipe damage on the
back of the equipment before handling.
•Up-to-date information on the options for disposing of old equipment
and packaging from old equipment can be obtained from the local
municipal office.
•Refrigerant and cyclopentane foaming material used for the refrigerator
are flammable. Therefore, when the refrigerator is scrapped, it shall be
kept away from any fire source and be recovered by a special
recovering company with corresponding qualification other than be
disposed by combustion, so as to prevent damage to the environment or
any other harm.
•When the refrigerator is scrapped, cut off and discard the mains cable,
break off any old locks or latches disassemble the doors, remove
gaskets from door/s and shelves, put the doors and shelves in a safe
place, so as to prevent trapping of children and pets.
WARNING!
During use, service, and disposal of the appliance, please pay attention to
the symbol similar to the one to the side, which is located on the rear of the
appliance (rear panel or compressor) and yellow or orange in colour.
This is the risk of fire warning symbol. There are flammable materials in the
refrigerant pipes and the compressor. Please keep a safe distance between
the appliance and fire sources during use, service, and disposal.

9
Climate Range
The information about the climate range of the appliance is provided on the rating plate.
It indicates at which ambient temperature (that is, room temperature, in which the
appliance is working) the appliance is designed to run at its optimal performance.
Climate range Permissible ambient temperature
SN from +10°C to +32°C
N from +16°C to +32°C
ST from +16°C to +38°C
T from +16°C to +43°C
Note：Given the limit values of the ambient temperature range for the
climate classes for which the refrigerating appliance is designed and the fact that
the internal temperatures could be affected by such factors as location of the
refrigerating appliance, ambient temperature and the frequency of door opening, the
setting of any temperature control device might have to be varied to allow for these
factors, if appropriate.
Note:When operating in an environment other than the specified climate type
(i.e., beyond the rated ambient temperature range), the appliance may not be able
to maintain the desirable compartment temperatures.
Safety Information
Locks
If your Refrigerator is fitted with a lock, keep the key out of reach and not in the vicinity
of the appliance to prevent children being entrapped. When disposing of an old
Refrigerator, break off any old locks or latches as a safeguard.

10
Product Features
Due to technological innovations, the product descriptions in this manual may not be completely consistent with your
refrigerator. Detailed information is in accordance with the final product.

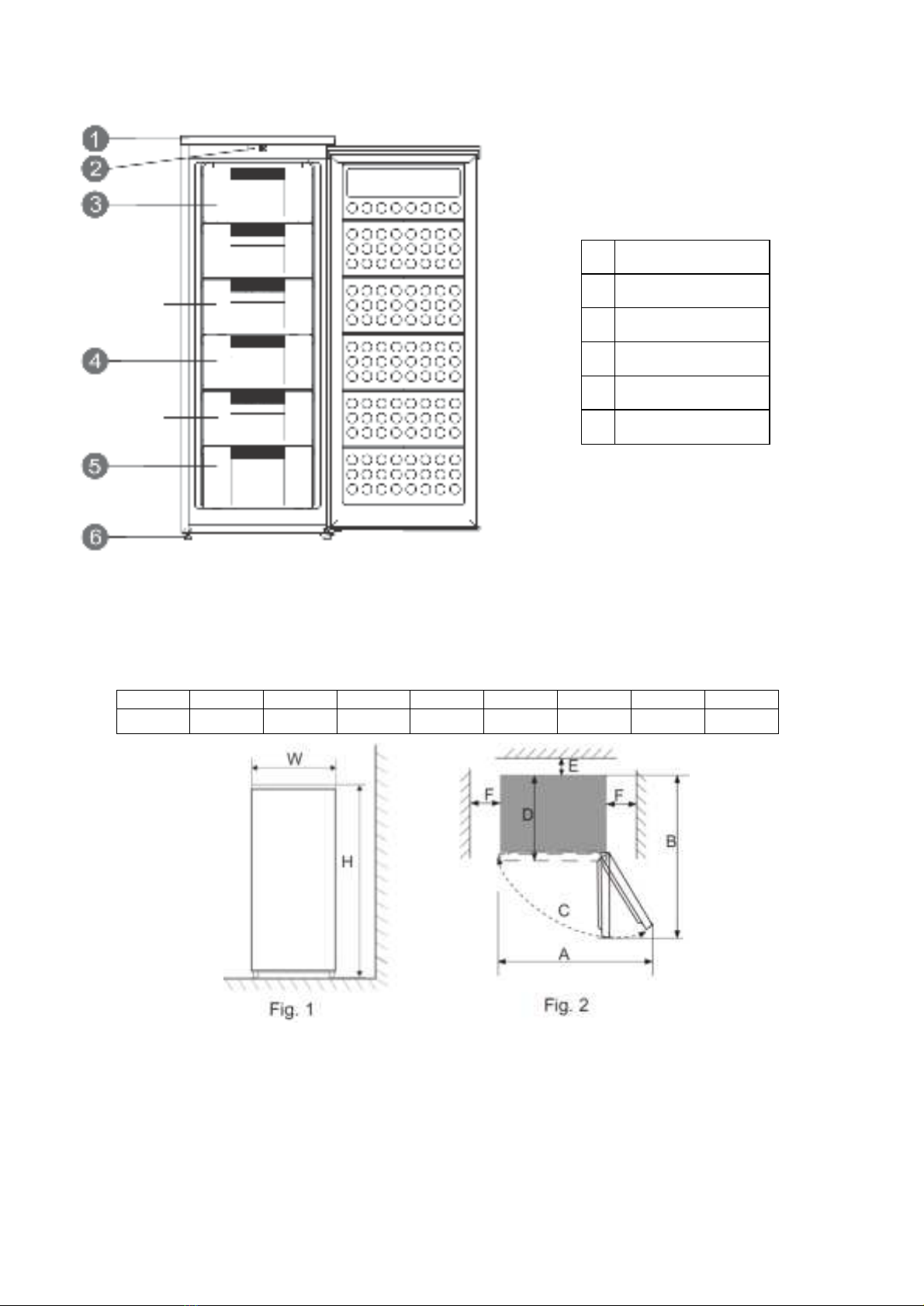

Dimensions in mm:
Note：Figure 1, Figure 2 only illustrate the space demand of the product.
If either the left- or right-hand side of the fridge freezer is positioned against a wall, or
cabinets that are of a similar height, it is strongly recommended to keep at least a
100mm gap at both sides, 30mm at the top and 50mm at the back of the fridge freezer
to aid ventilation and help the appliance to run efficiently.
W D H A B C(°) E F MODEL
545 566 1430 1011 1107 125±5 50 100
1 Top cover
2 Display Block
3 Freezer Flap
4 Middle Drawers
5 Lower Drawer
6 Adjustable feet

11
Location
•The position you select for the refrigerator installation should be well-
ventilated.
•Do not locate the refrigerator near a heat source such as cooker, and
avoid direct sunlight, thus guaranteeing the refrigeration effect while
saving energy consumption.
•Do not locate the refrigerator in the damp place, so as to prevent the
refrigerator from rusting and leakage of electricity.
•The result of the total space of the room in which the refrigerator is
installed being divided by the refrigerant charge amount of the
refrigerator shall not be less than 1m³(space)/8g(refrigerant).
Note: The amount of refrigerant charged for the refrigerator can be found
on the nameplate.
•Install this appliance in a location where the ambient temperature
corresponds to the climate class indicated on the rating plate of the
appliance.
•Select a location with enough space for the refrigerator door to open
easily.
•Place the refrigerator on the solid and flat ground (floor) to keep it stable,
or else, it will give rise to vibration and noise.
•When the refrigerator is placed on such flooring materials as carpet,
straw mat, polyvinyl chloride,solid backing plates should be applied
underneath the refrigerator, so as to prevent color change due to heat
dissipation.
•When selecting a position for your appliance you should make sure the
floor/surface that it is standing on is flat and firm, do not stand on carpets
or any surface that may block ventilation.
•Allow clearance to the right, left, back and top when installing. This will
help reduce power consumption and keep your energy bills lower.
•This refrigerating appliance is not intended to be used as a built-in
appliance.
Installation
Unobstructed ventilation shall be maintained around the appliance at all
times.

Cleaning Before Use
•Unpack the appliance and check if there is any damage to it. Do not
connect the appliance if it is damaged. Report any damage immediately to
the retailer where you purchased the appliance. In that case retain the
packaging.
•Wipe the inside of the fridge with a weak solution of bicarbonate of soda
and water - always make sure the appliance is turned of during cleaning.
•Rinse thoroughly with warm water using a sponge or cloth. Wash the
baskets and shelves in warm soapy water and dry completely before
replacing in the Fridge. The external parts of the Fridge can be cleaned
with wax polish.
•Wash the door parts and shelves in warm soapy water and dry completely
before replacing in the Fridge.
•The external parts of the Fridge can be cleaned with wax polish.
Notes: Electric parts of the refrigerator can only be wiped with a dry cloth.
Installation
12

13
Installation
Door Reversal Instructions
If you require the door to be reversed it is advisable to do so before anything is
placed inside the fridge or switched on. If the appliances is placed on its back for a
prolonged period of time during this process, it must be allowed to remain upright for
6 hours before turning it on to avoid damage to the internal components.
To reverse the door follow the below directions
•Open the door and unscrew the upper
hinge from the right side of the worktop.
Remove the door from the cabinet.
Remove the screws in the left side of the
work top. These will be used to secure
the upper hinge later.
•Remove the hinge hole plug from the top
left side of the door and the bushing from
the top right side of the door and swap
their positions.
•Remove the door stop from the bottom
right side of the door and install it on the
bottom left side of the door.
•Remove the lower hinge from the bottom
right side of the cabinet then insert the pin
shaft into the left hole on the lower hinge
then install it on the bottom left side of the
cabinet.
•Install the door on the lower hinge. Install
the upper hinge on the top left side of the
worktop.
Note: When installing the door, ensure that the top of the door is level with the
top of the cabinet. If the door is not level the rubber gasket will not make a good
seal with the cabinet which can cause the appliance to malfunction. 2134522266121.Upper Hinge2.Screws3.Hinge Hole Cover4.Bushing5.Door Stop6.Lower Hinge

Installation
14
Before Turning On.
•Before plugging in YOU MUST Check that you have a socket which
is compatible with the plug supplied with the Fridge.
•DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE
FRIDGE.
The coolant fluid needs time to settle. If the appliance is switched off
at any time, wait 30 minutes before switching back on to allow the
coolant fluid to settle.
•When operating in an environment other than the specified climate
type (i.e. beyond the rated ambient temperature range), the
appliance may not be able to maintain the desirable compartment
temperatures.
•Before storing foods in your Fridge, turn the Fridge on and wait for
24 hours, to make sure it is working properly and to its running
temperature.
•If the Fridge is not level, the door and magnetic seal alignment will
be affected and may cause you Fridge to work incorrectly. Once the
Fridge is placed in its final location, adjust the leveling feet at the
front - see below

15
Using This Appliance
Turning On.
•Turn the thermostat knob to the "2" position, plug in and turn on electricity.
The compressor will begin to run.
•Open the door 30 minutes later, if the temperature in the freezer has
decreased obviously, it shows that the refrigeration system is working.
•When the freezer operates for a period of time, the temperature controller
will automatically set the temperature within the appliance according to the
number it has been set on.
Temperature Control

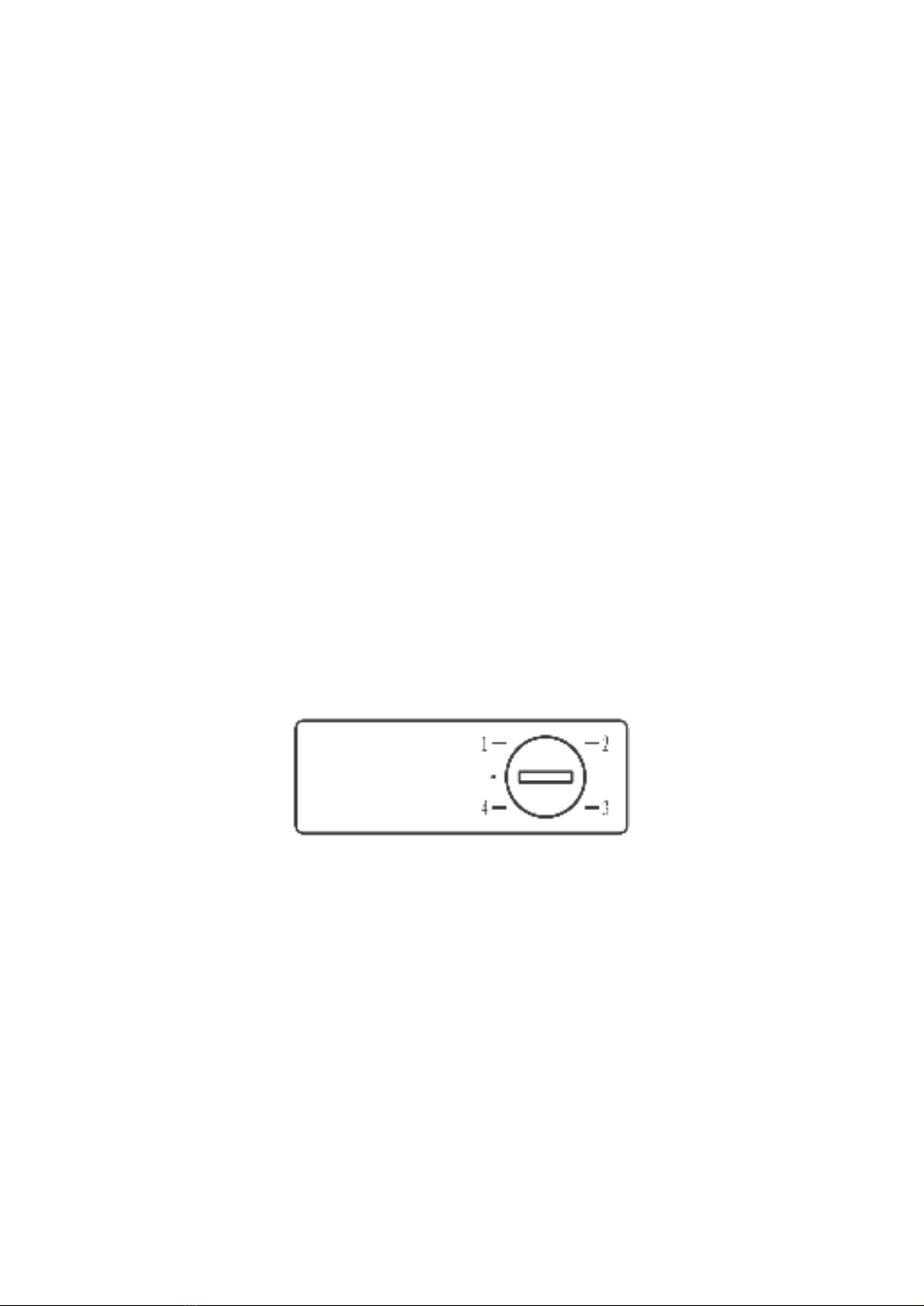

•The temperature control (thermostat knob, turned by a coin) is located near
the top of the unit.
•Turning the thermostat knob adjusts the temperature of the freezer.
•The marks on the knob represent different settings. Setting “1” is the
warmest and setting “4” is the coolest.
•The factory recommended setting is “2” for normal operating conditions.

16
Use of the frozen food storage compartment:
•The 4* freezer compartment is controlled below -18 ℃, and it is advisable to store
the food for long-term preservation in the freezer compartment, but the storage
duration indicated on the food packaging should be adhered to according to the
freezer * rating.
•Only a 4* freezer is capable of freezing fresh food. 2-3 * compartments can freeze
pre-frozen food, 0-1 * compartments are only suitable for making ice.
•The freezer drawers are used to store food that needs to be frozen. Fish and meat
of large block size should be cut into small pieces and packed into fresh-keeping
bags before they are evenly distributed inside the freezer drawers.
•Allow the hot foods to cool down to the room temperature before putting them in
the freezer compartment.
•Do not put a glass container with liquid or the canned liquid that is sealed in the
freezer compartment, so as to avoid bursting due to volume expansion after the
liquid gets frozen.
•Divide the food into appropriately small portions
•Pack the food up before freezing it, the packing bag used should be dry, in case
the packing bags are frozen together. Foods should be packed or covered by
suitable materials that are firm, tasteless, impervious to air and water, non-toxic
and pollution-free, to avoid cross-contamination and transfer of odour.
•Place the ice-making box in the upper position of the freezer compartment, so that
it ices up as soon as possible.
•IMPORTANT! In the event of accidental defrosting, do not refreeze defrosted food.
•When you are buying frozen food, look at the Storage Guidelines on the
packaging. You will be able to store each item of frozen food for the period
shown against the star rating. This is usually the period stated as “Best before”,
usually found on the front of the packaging.
•Check the temperature of the frozen food cabinet in the shop where you buy the
frozen foods. Make sure the frozen food package is in perfect condition.
•Always buy frozen products last on your shopping trip or visit to the supermarket.
•Try to keep frozen food together whilst shopping and on the journey home, as
this will help to keep the food cooler.
•Don’t buy frozen food unless you can freeze it straight away. Special insulated
bags can be bought from most supermarkets and hardware shops. These keep
the frozen foods cold longer.
•For some foods, thawing before cooking is unnecessary. Vegetables and pasta
can be added directly to boiling water or steam cooked. Frozen sauces and
soups can be put into a saucepan and heated gently until thawed.
•Use quality food and handle it as little as possible. When foods are frozen in
small quantities, it will take less time for them to freeze up and thaw.
•Estimate the amount of foods to be frozen. When freezing large amounts of fresh
food, adjust the temperature control knob to the low mode, with the freezer
temperature lowered. So foods can be frozen in a fast manner, with the food
freshness well kept.
Tips for shopping for frozen foods:
Instructions For Food Storage

17
Important Reminders
Location
•Do not place your refrigerator/freezer near a heat source, e.g. cooker, boiler
or radiator. Avoid direct sunlight or cold temperatures in out-buildings or
conservatories etc..
Positioning
•Make sure to level your appliance using the front leveling feet. If not level,
the appliance door gasket sealing performance will be affected, or it may
even lead to the operating failure of your appliance.
•After placing your appliance in position, wait for 4 hours before using it, so as
to allow the refrigerant to settle.
Installation
•Do not cover or block the vents or grilles of your appliance.
When you are away for a long time.
•If the appliance will not be used for several months, turn it off first, and then
unplug the plug from the wall outlet.
•Take out all foods.
•Clean and dry the interior thoroughly. To prevent odor and mold growth,
leave the door ajar: block it open or have the door removed if necessary.
•Keep the cleaned appliance in a dry, ventilated place and away from any heat
source. Place the appliance in a safe place, and do not place heavy objects on
top of it.
•The unit should not be accessible for children to play with.

Maintenance and Cleaning
Before cleaning, unplug the power plug first; Do not plug in or
unplug with wet hands, because there is a risk of electric shock and
injury. Do not spill water directly on the refrigerator, to avoid rust,
electricity leakage and accidents. When placing your hands into the
refrigerator take care.
Internal cleaning and external cleaning
•Any food residue in the refrigerator is liable to produce a strong odor, so the
refrigerator must be cleaned regularly. The fresh food compartment is usually
cleaned once a month.
•Remove all shelves, crisper box, bottle racks, cover board, and drawers etc.,
and clean them with a soft towel or sponge dipped in warm water or neutral
detergent.
•Clear off the dusts accumulated on the rear panel and side plates of the
refrigerator often.
•After using detergent, be sure to rinse it with clean water, and then wipe it dry.
Do not use bristle brush, steel wire brush, detergent, soap powder,
alkaline detergent, benzene, gasoline, acid, hot water and other
corrosive or soluble items to cleanse the cabinet surface, door gasket,
plastic decorative parts, etc., so as to avoid damage.
•Carefully wipe dry the door gasket, clean the groove using a soft cotton cloth.
•If the gasket is removed for cleaning make sure when re-fitting to afix the
four corners of the door gasket first, and then carefully slide into the door
groove.
18
