ICI FM 384 P Series User manual
FM 384 P SERIES IR CAMERA
USER MANUAL
2105 W. Cardinal Dr. Beaumont, TX 77705 | Phone: (409) 861-0788 | Toll Free: (866) 861-0788
infraredcameras.com | sales@infraredcameras.com | We Are IR ™
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
IMPORTANT SAFETY INFORMATION INSIDE.
MedicalMedical
Edit Text Outlines
FM 384 SERIES IR CAMERA USER MANUAL
2
©Copyright 2020, Infrared Cameras, Inc. - All rights reserved. The contents of
this document may not be reproduced in whole or in parts without the written
consent of the copyright owner.
Printed in the United States of America.
2105 W. Cardinal Dr.
Beaumont, TX 77705
(866) 861-0788
www.infraredcameras.com
THE MANUFACTURER RESERVES THE RIGHT TO ALTER THE SPECIFICATIONS
OF THE PRODUCT WITHOUT PRIOR NOTIFICATION. THE MANUFACTURER
ALLOWS HIMSELF THE RIGHT TO MODIFY WITHOUT ANY PRELIMINARY
OPINION THE TECHNICAL SPECIFICATIONS OF THE PRODUCT. THIS MANUAL
MAY CONTAIN TECHNICAL INACCURACIES OR TYPOGRAPHICAL ERRORS.
NOTICE ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS
MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND. NOTWITHSTANDING ANY OTHER WARRANTY
HEREIN, ALL DOCUMENT FILES AND SOFTWARE ARE PROVIDED “AS IS” WITH
ALL FAULTS. ICI DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A
COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING
PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED
WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE.
IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED
WARRANTY, CONTACT YOUR ICI REPRESENTATIVE FOR A COPY.
IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF
THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
FM 384 SERIES IR CAMERA USER MANUAL
1. General Description
2. Safety Information
Features
4. Intended Use
5. Technical Specifications, Accessories, and Documents
6. Structure and Installation Instructions
7. Operation Instructions
8. Cleaning and Maintenance
9. Site and System Validation Checklist
10. Troubleshooting
11. About ICI
Contents
4
4
5
5
5
6
7
8
9
12
14
FM 384 SERIES IR CAMERA USER MANUAL
4
1. General Description
2. Safety Information
of a person and to report the total number of persons scanned. Depending on
various skin types and thickness, there may be temperature difference. The
system has been widely applied for inspection services, and is available for
adjunctive use in: hospitals, and sub-acute healthcare settings public areas,
i.e. airports.
• This device must be installed by qualified service personnel or system
installation personnel.
• This device must be installed in an environment with lightning protection
measures.
• Do not touch the lens to prevent it from being damaged or getting dirty.
• Please take precautions to prevent the lens from being worn, scratched
or even broken.
• Given that the uncooled thermal infrared image camera uses a very
sensitive thermal sensor, under no circumstances (power on or off) should
the lens be pointed directly at a strong radiation source (such as sun,
direct or reflected laser beam, etc.), otherwise permanent damage will be
caused to the uncooled thermal imager.
• This product is a precise electronic device that must be handled with care
during use, storage, and transportation to prevent dangerous actions such
as the device being hit by external force, or falling from heights.
• During transportation and storage, the ambient temperature must not be
lower than -25 °C, and the original packaging box must be used during
transportation.
• Prior to start of the device, make sure that the power supply is properly
connected. If the power supply is connected incorrectly, the device may
become damaged.
• Do not place any objects on the power cord, and do not place the device
where the power cord can be easily touched.
• If the device operates abnormally, please contact the supplier and do not
dismantle the device on your own.
• Do not drop or throw the device.
• Do not put the product into a fire.
• It is recommended to calibrate the device annually.
FM 384 SERIES IR CAMERA USER MANUAL
5
3. Features
• Automatic alarm capture
• Sound alarm
• Integrates into embedded systems
• Hot spot tracker
• Synchronous display
• Intelligent calibration
• Unmatched image sensitivity
• Real-time radiometric data streaming
4. Intended Use
measurement of infants and adults without contacting the human body.
Age Temp °C Temp °F
97.5 to 100.4
97.0 to 100.0
96.6 to 99.7
96.4 to 99.5
The temperature of the human body varies throughout the day. It can also be
influenced by numerous external factors: age, sex, and thickness of skin.
5. Technical Specifications, Accessories, and Documents
Camera monitoring devices can be found online:
FM 384 SERIES IR CAMERA USER MANUAL
6
6. Structure and Installation Instructions
1.
2.

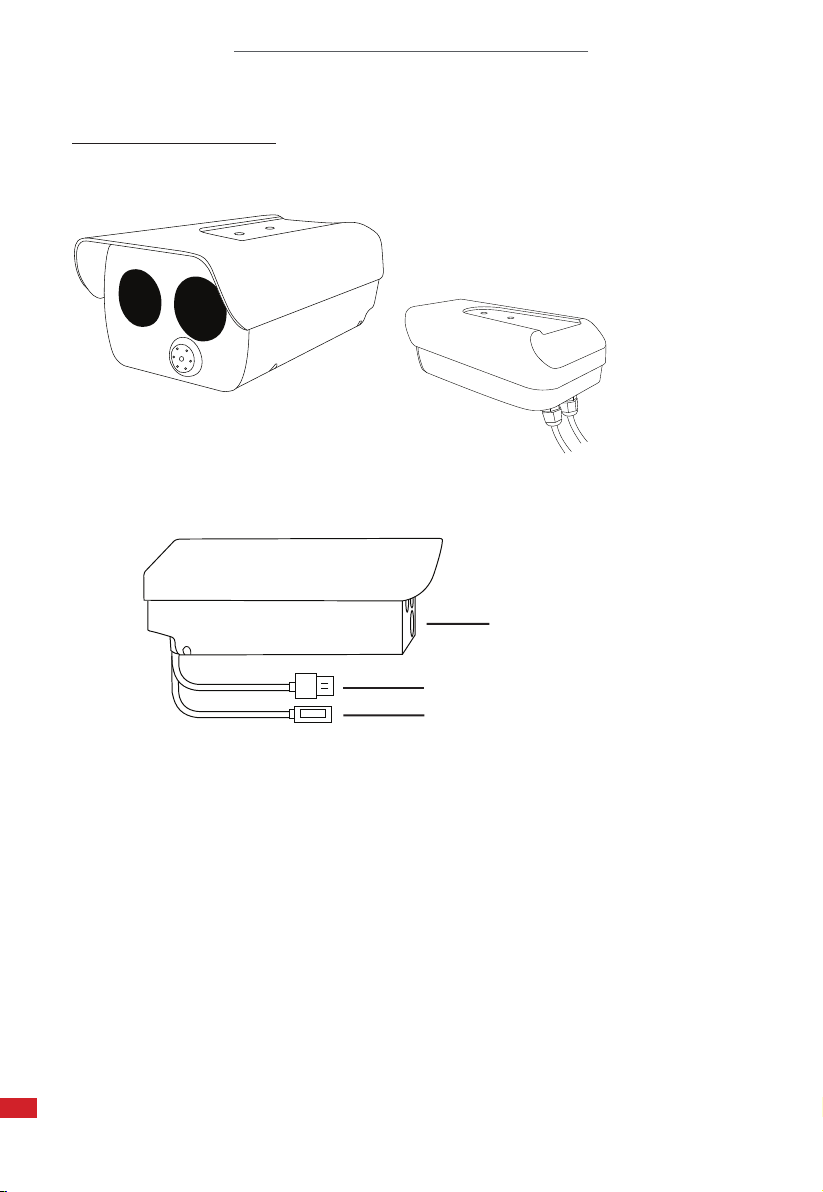

1. Speaker - reserved
2. USB interface
Barrel connector
FM 384 SERIES IR CAMERA USER MANUAL
7
be found online:
7. Operation Instructions
FM 384 SERIES IR CAMERA
SETUP GUIDE
2105 W. Cardinal Dr. Beaumont, TX 77705
Phone: (409) 861-0788
Toll Free: (866) 861-0788
infraredcamerasinc.com
sales@infraredcamerasinc.com
We Are IR ™

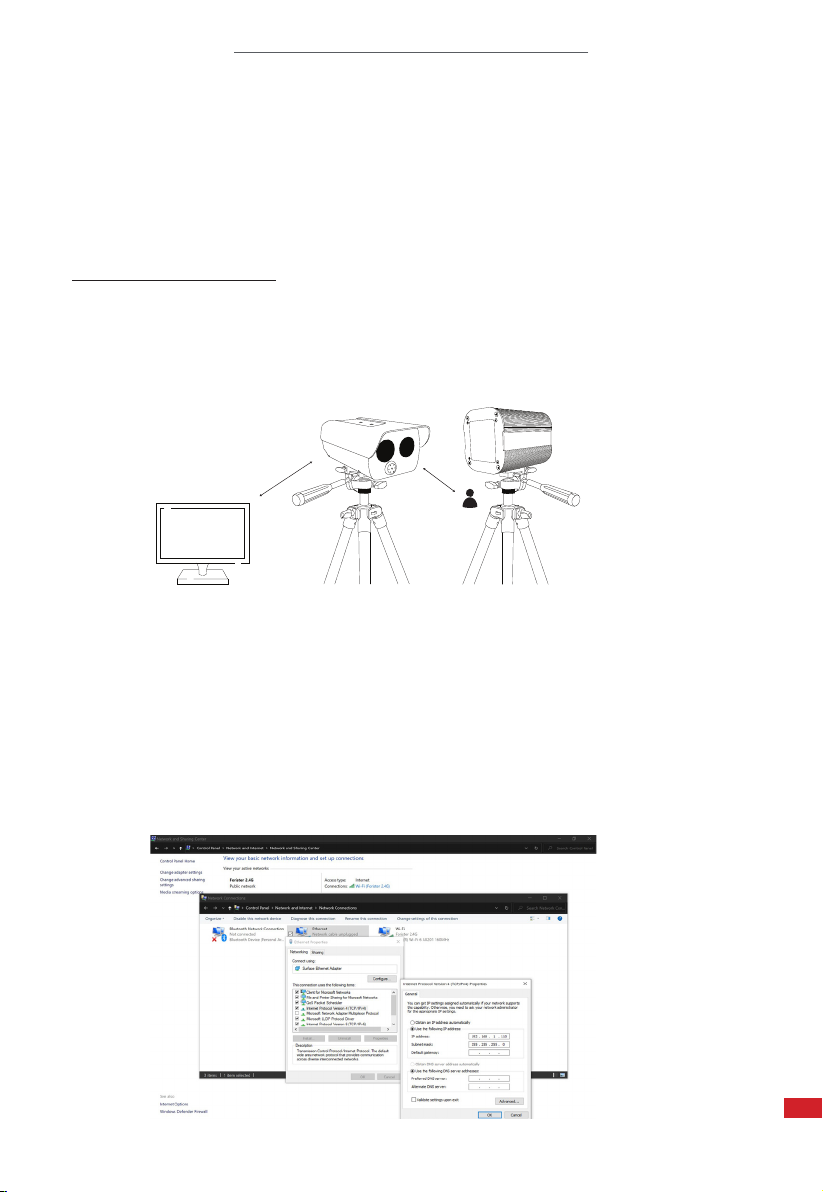

Provide power to both the camera and temperature reference source and
connect the Ethernet connection directly to the computer.
infrared cameras. The visible camera resides at 192.168.1.88, and the infrared
camera lies at 192.168.1.88. Connecting your computer requires setting the
IPv4 settings of the Ethernet port to a static IP address in the same “Class C.”
We suggest applying 192.168.1.110 with a subnet mask of 255.255.255.0. There
is no need to set a gateway as this is a direct connection from the computer to
the cameras with no router.
FM 384 SERIES IR CAMERA USER MANUAL
8
Be sure the static IP address is set by doing the following:
1. Click on Windows icon.
2. Click on Settings.
Click on Network and Internet.
4. Click on Ethernet.
5. Click on Change Adapter Options.
6. Right click on Ethernet and choose properties.
7.
8. The IP address should read 192.168.1.110. If it does not, click in the box and
fill in the correct number. Then click Tab to generate subnet.
9. The Subnet Mask should read 255.255.255.0. If it does not, click in the box
and fill in the correct number.
10. Click Ok.
Installation, setup, and operations documentation for IR Flash STM can be
found online:
Do not use corrosive chemicals on the optical glass components. The
germanium window surface is coated with anti-reflection coating. Dust,
grease, and fingerprints will produce harmful substances and lead to a decline
in performance, or cause scratches. If dirt is found, please use the following
methods:
1. Use a blown balloon or a soft brush to clean the lens surface to avoid
dust particles scratching the anti-reflection film on lens surface during the
wiping process.
2. Use a soft cotton cloth or lens wiping paper and dip in alcohol or lens
wiping liquid. Gently wipe the lens surface from the middle to the edge,
paying attention to not crack the lens, or use too much wiping liquid. If the
lens is still not clean, replace the cloth and repeat operation.
8. Cleaning and Maintenance
FM 384 SERIES IR CAMERA USER MANUAL
9
**All those tasked with the initial setup of the temperature screening equipment
must be present during this training.
***This portion of the validation requires a live video feed with the instructors.
Ensure that this area is free from:
• Any direct or indirect (reflected) sunlight
• Warm or cold conductive airflow
• Any radiant energy from electrical sources
• Direct or indirect lighting on individual being screened
Placement is parallel and perpendicular to screening camera
• At a distance of ~12 feet
Consists of a non-IR reflective homogeneous background
• Minimum size is 10’ x 8’
• White to gray flat finish
The temperature reference source is in front of background (direct line of
sight to the screening camera) and is framed within the screening image
9. Site and System Setup Validation Checklist
It is recommended to have your device re-calibrated annually. Contact
customer service to schedule maintenance.
FM 384 SERIES IR CAMERA USER MANUAL
10
Establish a guided pathway from the entrance to the screening area
Design this pathway so there is an equilibration time
No restrooms on ingress pathway
Signage should instruct for removal of glasses, headwear, and masks
The distance is unique to each screening system
Ensure the line of sight from the temperature reference source to the
camera is never blocked by an individual entering or leaving the point of
measurement
The secondary screening area should be setup near the screening area
Level on tripod or other suitable support
Perpendicular to floor and individual being screened
Height of camera
Larger will require a height adjustment to camera
FM 384 SERIES IR CAMERA USER MANUAL
11
The individual’s face and temperature reference source should be in
the frame
Behind the individual being screened yet visible within the frame of
the image
Protect the camera from exposure to direct sunlight to avoid damage to
the camera sensor
On tripod or other stable stand, in front of background, and positioned
for visibility within the frame of the image
Warm-up time is 15 minutes
Set up the software according to the instructions provided
Installation, setup, and operations documentation for IR Flash STM can
be found online:
Final validation is dependent upon a signed copy of this checklist from each
person responsible for each site.
Upon completion please sign below:
____________________________ ______________________________
Sign name Sign name
____________________________ ______________________________
Print name Print name
Date:________________
FM 384 SERIES IR CAMERA USER MANUAL
12
• Close and reopen software
• Reconnect power & USB cables
• Ensure that camera has been powered on for a few minutes
• Verify that static IP address is correct:
Default IPv4 of 192.168.1.110
Default subnet mask of 255.255.255.0
• Restart computer
• Verify that correct software is installed
• Uninstall & reinstall software, running as administrator
• Verify that firewall is not blocking software
• Try newer or different version of IR Flash Pro STM software
• Adjust distance between camera and subject.
• Close and reopen software
• Check that software settings are correct:
on temperature reference source
Temperature reference source has crosshair over it
• Remove masks & glasses
• Camera is proper distance from person
• Camera is at proper height
• Temperature reference source in view, perpendicular to camera, but
not blocked
• Person is looking directly at camera lens, not at an angle
• Temperature reference source power switch is on
• Camera and temperature reference source powered on for 15 minutes
10. Troubleshooting
FM 384 SERIES IR CAMERA USER MANUAL
• Ensure temperatures on back of temperature reference source match
• Camera is away from direct sunlight or reflective light
• Plain background
• Try newer version of IR Flash Pro STM software
FM 384 SERIES IR CAMERA USER MANUAL
14
11. About ICI
INFRARED CAMERAS INC.
2105 W. Cardinal Dr.
Beaumont, TX 77705
Website: www.infraredcameras.com
ICI manufactures complete systems and software. We can provide complete engineering,
software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and
thermography training (which we offer through the Infrared Training Institute).
In addition to providing custom germanium, silica, and sapphire optics, we also build
windows for enclosures, as well as custom pan and tilt units. We can even provide
customizable explosion
proof systems.
Our knowledge and experience stems from years of using infrared imaging and
temperature measurement instruments to provide solutions to: managers, engineers,
scientists, inspectors and operators in space, power companies, medical, pulp and paper,
food industry, research and development, and various process industries. You can see
our products and services used in industrial, commercial, and government applications
since March, 1995.
Thank you for your dedicated and continued support.
Other manuals for FM 384 P Series
1
Table of contents
Other ICI IP Camera manuals
ICI
ICI FM 384 P Series User manual
ICI
ICI GAS DETECTIR Series User manual
ICI
ICI FMX 320 Series User manual
ICI
ICI FM PLUS P Series User manual
ICI
ICI 9320 Series User manual
ICI
ICI T-CAM 160 XT P Series User manual
ICI
ICI 8000 Series User manual
ICI
ICI FMX 400 P Series User manual
ICI
ICI SOUND DETECTAI User manual
