SOUND DETECT & SOUND DETECT PRO
QUICK START GUIDE
Edit Text Outlines
IndustryIndustry

2
©Copyright 2023, Infrared Cameras, Inc. - All rights reserved. The
contents of this document may not be reproduced in whole or in parts
without the written consent of the copyright owner.
Printed in the United States of America.
2105 W. Cardinal Dr.
Beaumont, TX 77705
[phone]
www.infraredcameras.com

THE MANUFACTURER RESERVES THE RIGHT TO ALTER THE
SPECIFICATIONS OF THE PRODUCT WITHOUT PRIOR NOTIFICATION. THE
MANUFACTURER ALLOWS HIMSELF THE RIGHT TO MODIFY WITHOUT
ANY PRELIMINARY OPINION THE TECHNICAL SPECIFICATIONS OF THE
PRODUCT. THIS MANUAL MAY CONTAIN TECHNICAL INACCURACIES OR
TYPOGRAPHICAL ERRORS.
NOTICE ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN
THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND. NOTWITHSTANDING ANY OTHER
WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE ARE
PROVIDED “AS IS” WITH ALL FAULTS. ICI DISCLAIMS ALL WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE,
OR TRADE PRACTICE.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE
ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION
PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED
HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE
SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR ICI
REPRESENTATIVE FOR A COPY.
IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING
OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

3
Package Includes
Sound Detect Device
Hand StrapsCharger Type-C Cable
Neck Strap
ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE
PRESENT BEFORE CONTINUING.
Optional: Power Bank
Memory Card

4

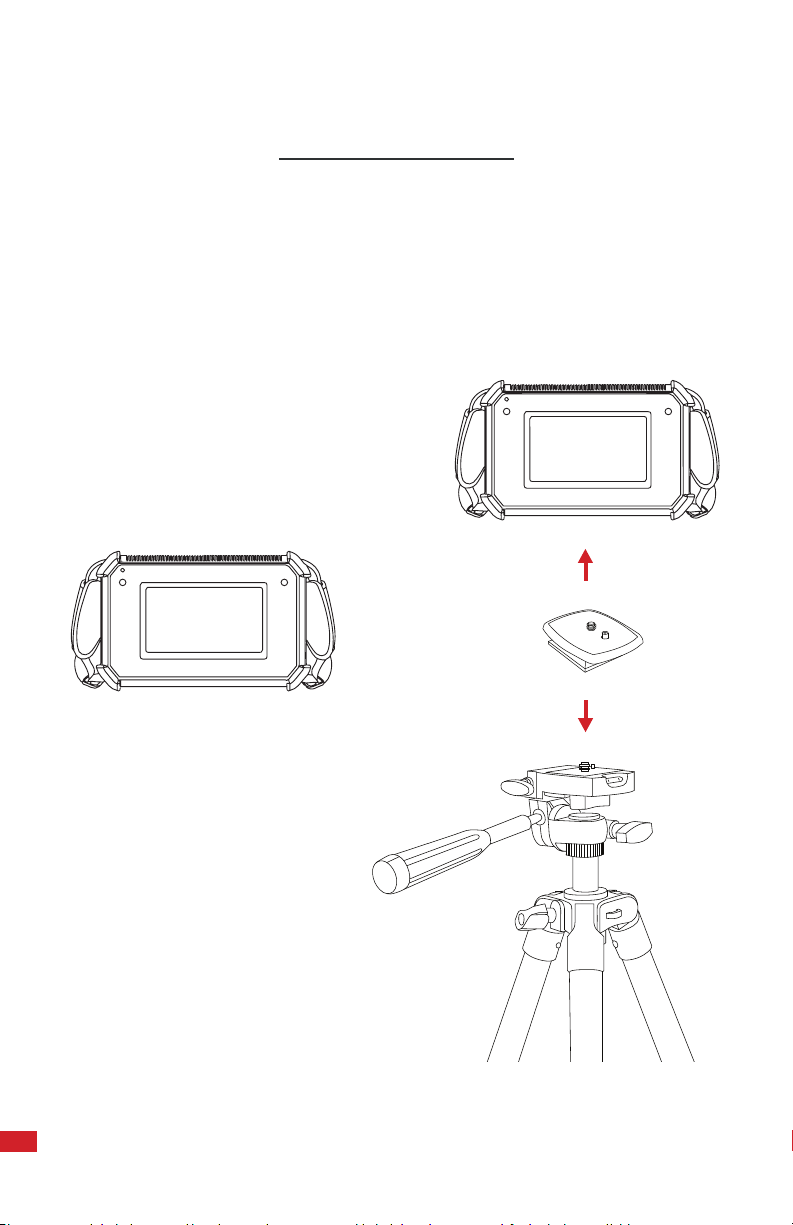

The Sound Detect is used as
a handheld acoustic device.
or
Mount the fully charged acoustic
device to a tripod using the ¼”-
20 mount located on the bottom
of the acoustic device.
A.
MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF
PERSON(S) TO BE IMAGED TO ENSURE THE EQUIPMENT WILL NOT
BE MOVED OR KNOCKED DOWN. USING A DIVIDING BARRIER WILL
HELP KEEP TRIPODS SEPARATE FROM THE PATH.
Set Up

5
THE ACOUSTIC DEVICE NEEDS SUFFICIENT WARM-UP TIME
FOR THE MOST ACCURATE MEASUREMENTS AND BEST IMAGE
QUALITY. THIS TIME CAN OFTEN VARY BY ENVIRONMENTAL
CONDITIONS. IT IS BEST TO WAIT A MINIMUM OF 10 MINUTES FOR
THE ACOUSTIC DEVICE TO COMPLETELY WARM-UP.
B.
Power on device.
TURN ON THE CAMERA BY PRESSING AND HOLDING THE POWER
BUTTON FOR AT LEAST TWO SECONDS.
PRESS AND HOLD THE POWER BUTTON FOR MORE THAN 5
SECONDS TO SHUT DOWN THE CAMERA.
B.
Power on device.
TURN ON THE CAMERA BY PRESSING AND HOLDING THE POWER
BUTTON FOR AT LEAST TWO SECONDS.
PRESS AND HOLD THE POWER BUTTON FOR MORE THAN 5
SECONDS TO SHUT DOWN THE CAMERA.

6
Charging via Power Adapter
A. B.
C.
Plug one end of the Type-C
cable into the power adapter.
Plug the other end of the Type-C
cable into the acoustic device.
Plug power adapter into a
110/120V electrical outlet.

7
ENSURE THE BATTERY IS NEAR ROOM TEMPERATURE BEFORE
CHARGING. DO NOT CHARGE THE BATTERY IN EXTREMELY HOT
OR COLD AREAS.THE BATTERY CAPACITY MAY BE DECREASED IF
CHARGED IN AN EXTREME TEMPERATURE ENVIRONMENT.
THE STATUS LED POWERS ON WHEN THE BATTERY IS BEING
CHARGED. THE STATUS LED TURNS OFF WHEN CHARGING IS
COMPLETE.
THE DEVICE IS NOT MEANT TO BE USED WHILE CHARGING. KEEP
THE DEVICE POWER OFF WHEN CHARGING.
IF YOU DO NOT USE THE ACOUSTIC DEVICE FOR A LONG PERIOD
OF TIME, PUT THE DEVICE IN A COOL AND DRY ENVIRONMENT.
THE BATTERY WILL DISCHARGE OVER TIME; THEREFORE, THE
ACOUSTIC DEVICE SHOULD BE CHARGED OCCASIONALLY TO
PREVENT DAMAGE TO THE BATTERY OR THE ACOUSTIC DEVICE.
IT TAKES 4-6 HOURS TO CHARGE AN EMPTY BATTERY TO FULL.
WHEN THE BATTERY IS FULLY CHARGED, THE DEVICE DISPLAYS
4 GRIDS OF ELECTRICITY AND CAN BE USED FOR UP TO 6 HOURS;
3 GRIDS CAN BE USED FOR ABOUT 2.5 TO 3 HOURS; 2 GRIDS CAN
BE USED FOR ABOUT 1.5 TO 2 HOURS; 1 GRID CAN BE USED FOR
ABOUT HALF AN HOUR TO 1 HOUR.

8
Charging via Power Bank
A. B.
Plug one end of the Type-C
cable into the power bank.
Plug the other end of the
Type-C cable into the device.
ENSURE THE BATTERY IS NEAR ROOM TEMPERATURE BEFORE
CHARGING. DO NOT CHARGE THE BATTERY IN EXTREMELY HOT
OR COLD AREAS.THE BATTERY CAPACITY MAY BE DECREASED IF
CHARGED IN AN EXTREME TEMPERATURE ENVIRONMENT.
THE STATUS LED POWERS ON WHEN THE BATTERY IS BEING
CHARGED. THE STATUS LED TURNS OFF WHEN CHARGING IS
COMPLETE.
THE DEVICE IS NOT MEANT TO BE USED WHILE CHARGING
FROM THE POWER BANK. KEEP THE DEVICE POWER OFF WHEN
CHARGING.
IT TAKES 4-6 HOURS TO CHARGE AN EMPTY BATTERY TO FULL.

9
Charging the Power Bank
B.
Plug the other end of the Type-C
cable into the power bank.
A.
C.
Plug one end of the Type-C
cable into the power adapter.
Plug power adapter into a
110/120V electrical outlet.

10
ENSURE THE POWER BANK IS NEAR ROOM TEMPERATURE
BEFORE CHARGING. DO NOT CHARGE THE POWER BANK IN
EXTREMELY HOT OR COLD AREAS. THE POWER BANK CAPACITY
MAY BE DECREASED IF CHARGED IN AN EXTREME TEMPERATURE
ENVIRONMENT.
THE STATUS LED POWERS ON WHEN THE POWER BANK IS BEING
CHARGED. THE STATUS LED TURNS OFF WHEN CHARGING IS
COMPLETE.
THE POWER BANK IS NOT MEANT TO BE USED WHILE CHARGING.
KEEP THE POWER BANK DISCONNECTED FROM THE ACOUSTIC
DEVICE WHEN CHARGING.
IT TAKES 4-6 HOURS TO CHARGE AN EMPTY POWER BANK TO FULL.
IF YOU DO NOT USE THE POWER BANK FOR A LONG PERIOD OF
TIME, PUT THE POWER BANK IN A COOL AND DRY ENVIRONMENT.
THE POWER BANK WILL DISCHARGE OVER TIME; THEREFORE,
THE POWER BANK SHOULD BE CHARGED OCCASIONALLY TO
PREVENT DAMAGE TO THE POWER BANK OR THE ACOUSTIC
DEVICE.

11
Memory
A.
Align the USB drive and insert it into
the side of the acoustic device.
DO NOT FORCE THE USB DRIVE INTO THE SLOT. THE SIDE OF THE
CARD WITH CONTACT PINS MUST BE INSERTED FIRST. IF THERE
IS RESISTANCE FLIP THE CARD AROUND AND TRY AGAIN. TO
EJECT THE MEMORY POWER OFF THE ACOUSTIC DEVICE; THEN,
PULL THE CARD FROM THE MEMORY SLOT.
DO NOT REMOVE OR INSERT THE MEMORY CARD WHEN VIDEO
RECORDING.
AFTER TAKING PHOTOS AND RECORDING VIDEOS, PLEASE WAIT
UNTIL THE DATA IS SAVED SUCCESSFULLY BEFORE INSERTING
AND REMOVING THE MEMORY CARD.
DO NOT REMOVE OR INSERT THE MEMORY CARD WHEN
BROWSING AND MARKING DATA UNDER THE PLAYBACK MENU.
WHEN READING MEMORY CARD DATA ON THE PC DO NOT
CHANGE THE NAMES OF FILES AND FOLDERS IN THE MEMORY
CARD. CHANGING FILE AND FOLDER NAMES MAY CAUSE TEST
DATA TO BE INCORRECTLY IDENTIFIED AND DISPLAYED IN THE
PLAYBACK MENU.

12
Attach the Neck Strap
A.
B.
C.
Ensure the strap feeds from the outside-
in and through the tether points.
Feed the end of the strap
through the retainer piece
and up the back of the plastic
fastener on the acoustic device.
Feed the strap from the inside-out
and through the tether points.

13
Attach the Hand Straps
A. B.
C. D.
Feed one end of the strap from the
outside-in and through the tether point.
Feed the other end of the strap
from the outside-in and through
the plastic fastener.
Fold the straps into the strap cushion. Close the strap cushion.
