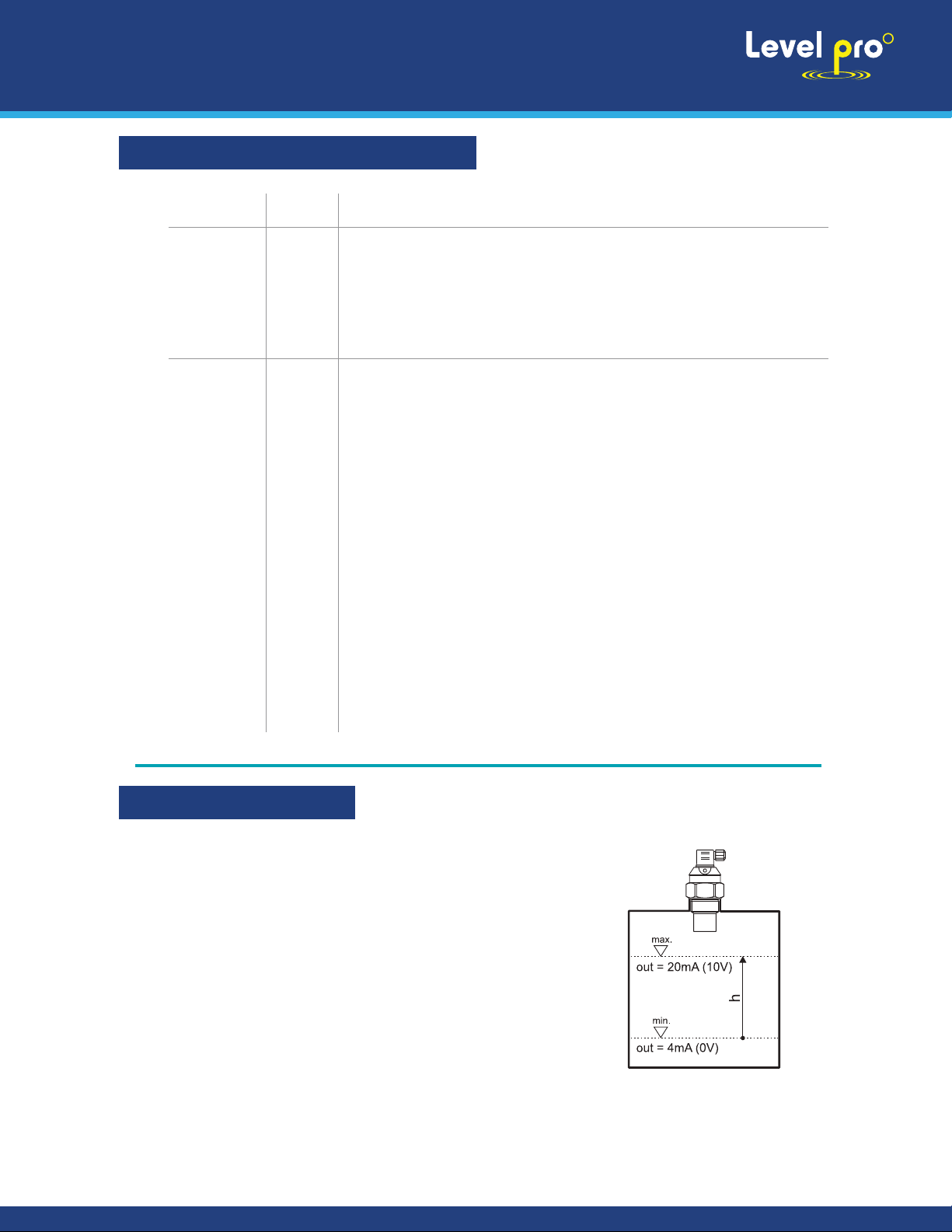

The UPS Series ultrasonic level sensors are compact measure-ment devices containing an electro-acoustic
transducer and an electronic module. Using the electro-acoustic transducer, level meters and level sensors transmit
a series of ultrasonic puls-es that spread towards the surface. The transducer then receives the reflected acoustic
wave, which is subsequently processed in the electronic module. The current distance to the surface level is
calculated from the time of spread of individual pulses towards the surface and back and the temperature measured
in the tank. The output is then set on the basis of the surface height. The outputs of the ULM level meter are current
4 -20 mA, voltage 0 - 10 V and industrial line RS-485 with Modbus RTU communication. The output of the ULS sensor
consists of a PNP transistor with an open collector and a two-state current switch 4 mA / 20 mA.
3. MEASURING PRINCIPLE
Thanks to the proximity principle employed, the devices are suitable for continuous or limit measurement of the level
of liquids, waste water, sludge, suspensions, adhesives, resins in various open and closed vessels, sumps, open
channels and drains. Applicability for measuring the surface level of loose materials is limited, the range of
measurement is shorter there. Setting is carried out either using two buttons or a magnetic pen or by remote setting
in case of Modbus RTU output. The device is equipped with optical indication of its state (RUN) and the setting
process (STATE). It is manufactured in designs for normal (N) and explosive atmospheres (Xi).
4. RANGE OF APPLICATION
UPS_–53_–01–_ measurement range 0.1 m to 1 m, all-plastic design, source of PVDF (polyvinylidene fluoride),
mechanical connection with thread G ¾.
UPS_–53_–02–_ measurement range 0.20 m to 2 m, all-plastic design, source of PVDF, mechanical connection with
thread G 1''.
UPS_–53_–06–_ measurement range 0.20 m to 6 m, all-plastic design, source of PVDF, mechanical connection with
thread G 1 ½".
UPS_–53_–10–_ measurement range 0.4 m to 10 m, all-plastic case, source of PVDF, mechanical connection with
thread G 2 ¼“.
UPS_–53_–20–_ measurement range 0.5 m to 20 m, all-plastic case, source of PVDF, mechanical connection with
flange of aluminium alloy.
5. FEATURES OF VARIANTS

R
Ultrasonic level meters
ULTRAPRO 500 MANUAL
www.iconprocon.com | [email protected] | 905.469.9283
6 . DIMENSIONAL DRAWINGS
ground
terminal
UPS_–53_–02–_ UPS_–53_–06–_
UPS_–53_–10–_ UPS_–53_–20–_
Al alloy
UPS_–53_–01–_
7 . INSTALLATION AND PUTTING INTO OPERATION
This procedure includes the following three steps.
Installation
Electric connection
Setting

R
Ultrasonic level meters
ULTRAPRO 500 MANUAL
www.iconprocon.com | [email protected] | 905.469.9283
with the dead zone, the device will not measure properly.
f) If the maximum level in the tank gets into the dead zone, the device shall be mounted into a higher installation
neck. The tank can be then filled nearly up to the maximum volume. The neck’s inner surface shall be even and
smooth (without edges and welded joints), the inner edge should be rounded in the spot where the ultrasonic wave
leaves the pipe. Choose the largest possible neck diameter, but keep the neck height as low as possible. The
recommended dimensions of
a) The device is installed in a vertical position into the upper lid of the tank or reservoir using a lug, a fastening nut or
a flange in such a way that the axis of the device is perpendicular to the surface level of the measured liquid (Fig. 1).
Tightening of the level meter in the welding flange (or. by the fixing nut) is done by hand *. The device shall be
installed in places with no risk of mechanical damage to the front of the sensor.
b) The minimum dimensional parameters when installing into the lid or
the ceiling of the tank are listed in Fig. 3.
c) When installing in an open channel (sump, drain, etc.),
install the device onto a console as close as possible to the expected
maximum level.
d) The reference plane for the measurement is the lower
edge of the transducer (Fig.2). In compliance with the measuring
principle, no signals reflected in the area directly below the device (dead
zone) can be evaluated.
The dead zone (Fig. 2) determines the minimum distance possible
between the device and the highest level. The minimum distances to the
medium are listed in the chapter "Technical specifications".
e) The device shall be installed so that the surface does not interfere with
the dead zone when the tank is filled to the maximum. If the measured
surface interferes
6 . DIMENSIONAL DRAWINGS
Fig. 1: Correct installation of the sensor,
perpendicular to the liquid surface
Fig. 2: Dead zone of the device Fig. 3: Distance of the device from the tank wall
Fig. 4: Installation of the device in the installation neck
UPS_–53–01 ; 02 ; 10
UPS_–53–06
UPS_–53–20
d > c/12
(min. 200 mm)
d > c/8
(min. 200 mm)
d > c/10
(min. 200 mm)
UPS_–53–01; 02; 06
UPS_–53–10
UPS_–53–20
a < 3 b
b > 100 mm
a < 1.5 b
b > 100 mm
a < 1.5 b
b > 150 mm
reference plane for
the measurement
a – neck height from source edge
b – neck width
m – dead zone
d – distance from tank wall
c – maximum reach of the device
m – dead zone
*) To loosen the level meter can be used suitable torque wrench.

R
Ultrasonic level meters
ULTRAPRO 500 MANUAL
www.iconprocon.com | [email protected] | 905.469.9283
Fig. 5: Thick foam on the surface
Fig. 6: Minimum distance from close objects in the tank
Fig. 7: Installation of the device out of reach of filling circulation
g) Foam may be produced on the surface of the measured liquid
during filling, mixing and other processes. The thick foam
significantly absorbs the ultrasound signal and may cause
malfunction of the device (Fig. 5). In those cases it is necessary to
test the device in advance and, if necessary, to contact the
manufacturer.
h) The site for installing the level meter needs to be chosen so that
the emitted acoustic signal is not affected by nearby objects
(reinforcements, supports, brackets, ladders, heating elements,
mixers, etc.). These obstacles may result in false rebounds,
increasing measurement inaccuracy (Fig. 6).
i) Do not install the device in or above the filling point (Fig. 7).
The measurement could be affected by the inflowing medium.
j) Applicability for measuring the surface level of bulk-solid materials is limited, the range of measurement is shorter
there. We recommend to consult the suitability of the device for measuring
UPS_–53–01 ;02 ; 10
UPS_–53–06
UPS_–53–20
x > c/12
(min. 200 mm)
x > c/8
(min. 200 mm)
x– distance from the edge of the longest object
c – maximum reach of the level meter
x > c/10
(min. 200 mm)

R
Ultrasonic level meters
ULTRAPRO 500 MANUAL
www.iconprocon.com | [email protected] | 905.469.9283
k) The measuring device shall not be installed in places with direct sunlight and
shall be protected against weather conditions.
l) If installation in places with direct sunlight is inevitable, it is necessary to
mount a shielding cover above the device (Fig. 8).
m) It is advisable to keep cable under the cable gland (sagging down) as shown
in Fig. 9 to prevent penetration of moisture. Rain and condensing water can be
therefore drained away freely.
n) The cable gland as well as the connector shall be tightened sufficiently to
prevent penetration of moisture.
o) The ultrasonic signal can be scattered or attenuated if the surface is
moderately stirred or rippled (due to a mixer, inflow of liquid, etc.). This may
result in reduction of the measurement range or unreliable operation of the
device (Fig. 10).
p) False surface reflections of the ultrasonic signal and unreliable operation of
the device might result from the mixer's rotating blades that ripple the surface
level(Fig. 11).
q) The device should not be installed in places with the risk of false reflections of
the ultrasonic signal from the mixer's blades (Fig. 12).
r) Horn adapter ST–G1 (for UPS-500_–02), ST–G1,5 (for UPS-500_-06) or
ST–G2,25 (for UPS-500_–10) for improved reception of the transmitted signal
can be used in open chanels, sumps, etc.
s) Horn adapter ST increases the directivity of the emitted acoustic waves,
improves the reception of weak echoes (unstable surface level, loose
materials) and reduces the risk of false reflections.
t) The horn adapter is installed on the device via process.
!
Fig. 8: Shielding cover against
direct sunlight
Fig. 9: Protection against penetration
of moisture
Fig. 10: Moderately
stirred surface
!
Fig. 11: Strongly
stirred surface
Fig. 12: False reflection
from mixer blades
Fig. 13: Horn adapter installation
Horn adapter ST

R
Ultrasonic level meters
ULTRAPRO 500 MANUAL
www.iconprocon.com | [email protected] | 905.469.9283
• If the level sensor is mounted to bottlenecks and places with
barriers, or near uneven walls or the filling area, where the
transmission signal could be distorted, we recommend using
a guide tube (acoustic horn). The tube must be made from a
single material with a smooth inner surface (see image 14a,
14b ). The minimum tube diameter must have the dimension
„b“ according to image 4
The UPS level meter or ULS level sensor with a G type cable gland are connected to
processing (display) units by means of a cable with an outer diameter of 6 to 8 mm
(recommended wire cross-section 0.5 to 0.75 mm2), via a detachable ISO connector
with inner screw terminals, which is part of the delivery. The connection diagram and
the inner view of the connector are shown in Fig.15 and 16. Non-detachable connector
IP67 with PVC cable 5 m long can be supplied as an extra option.
1. Unscrew the connector from the device body using a
suitable screwdriver.
2. Remove the inner part of the connector using a flat
screwdriver (insert the screwdriver in the gap marked with an
arrow).
3. Unscrew the cable gland and pull the supply cable inside
the connector.
4. Connect the cable wires to the screw terminals as shown in
Fig. 15 (current output 4-20 mA), Fig. 16 (voltage output 0-10
V), Fig. 17 (S type output) or Fig. 18 (P) type output. Tighten the
terminals firmly.
5. Insert the terminals back in the connector so that the NC
terminal points away from the cable gland. Fasten the cable
gland.
6. Check the sealing on the connector and attach the
connector back to the device body.
9. ELECTRIC CONNECTION
Fig. 14a: Short guide tube installation
ventilation
holes
sleeves for
mounting
Fig. 14b: Total guide tube installation
legend:
BK – black brown
BU – blue not connected
BN –
NC –
0 V
Uout
U+
0 V
+U
Fig.15: Connection diagram of
(variant –I) and inside view
the ULM level
meter of the connector
Fig.16: Connection diagram of the ULM level meter
(variant –U) and inside view of the connector
BN 1( )
mA
BU 2( )
0V
+U
V
+U
Uout
0V
U
BN 1( )
BK (3)
BU 2( )
BN 1( )
Valid for: UPS_-53_-_ _-_-_-G-_
Performance “G”
with connector ISO
Connection through ISO connector
Connecting the cable to the device:

R
Ultrasonic level meters
ULTRAPRO 500 MANUAL
www.iconprocon.com | [email protected] | 905.469.9283
Type UPS-500_–_ _–_–S–G–_
Positive supply pole +U is
connected to the brown wire
or to connector pin 1, negative
pole to the blue wire or to
connector pin 2.
Type UPS-500_–_ _–_–P–G–_
Positive supply pole +U is
connected to the brown wire
or to connector pin 1, negative
pole to the blue wire or to
connector pin 2. Load is
connected to the black wire or
to connector pin 3.
Type UPS-500_–_ _–_–I–C–_
The positive supply pole +U is
connected to connector pin 1 or the
brown wire of the connected cable,
the negative pole is connected to
connector pin 3 or the blue wire of
the connected cable.
Type UPS-500_–_ _–_–U–C–_ The
positive supply pole +U is
connected to connector pin 1 or the
brown wire of the connected cable,
the negative pole is connected to
connector pin 3 or the blue wire of
the connected cable. Output
voltage is connected to connector
pin 4 or the black cable wire.
The ULM level meter or ULS level sensor with a C type cable gland are connected to processing (display)
units by means of a cable with an outer diameter of 4 to 6 mm (recommended wire cross-section 0.5 to
0.75 mm2), via a connector socket with a moulded cable (2 or 5 m long) or via a detachable connector
socket without a cable (see accessories). In this case connect the cable to the inner socket pins under
Fig. 19.
Connection through M12 connector
+U
0 V
Uout
+U
0 V
legend:
BN – brown
BK – black
BU – blue
output (BK)
0V (BU)
+U (BN)
1
3
4
0 V
+U
1
3
4
0 V
+U
Uout
Fig. 17: Connection diagram of the ULS sensor with S type output
(two-statecurrent switch 4 mA / 20 mA)
Fig. 18: Connection diagram of the ULS sensor with P
type output (PNP) with an open collector
Fig. 19: Inside view of the connector socket
Fig. 21: Connection diagram of the ULM level meter (variant –U)
and view of the connector
and view of the connector
Fig. 20: Connection diagram of the ULM level meter (variant –I)
BN 1( )
BU 2( )
mA +U
0V
+U
0V
BN (1)
BU (2)
BK (3)
V
+U
0V
UUout
BN 1( )
BU (3)
BK(4)
mA +U
0V
BN 1( )
BU (3)
Performance "C"
with connector M12
Valid for: UPS_-53_-_ _-_-_-C
