IconBiT FTB16000S User manual

IconBiT FTB16000S
User’s Guide

2
Product Characteristics
Oversized power supply, storage capacity is two times than notebook computer.
Streamline design, small size, light weight, easy to carry out.
Wide range of application: can support MP3/ MP4/ iPod/ PSP game/ mobile phone/
iPad/ CD player/ GPS/ digital camera/ Notebook and other electronic products.
Exclusive output voltage regulator functionality, stable pressure drop 3%, which can
protect your electronic products, extend the service life.
Product temperature is low, excellent low-power path design, energy conversion
efficiency >92%, can up to 93.4%, the highest performance of similar products at
present.
Use super-iron shell explosion-resistant extrusion, safe and reliable in the world.
Exclusive voltage foolproof design, you cannot switch voltage during using, resulting in
voltage does not match, resulting in damage to your valuable electronic products.
Exclusive turn up to support commercially available connector.
Built-in short circuit, over charge, over discharge, etc.
Standard with 16 adapter suitable for a variety of Notebook products.
Use of high-energy polymer lithium battery, the working environment temperature -
10°Сto +70 °С, high security, no risk of explosion.
Cycle life is more than 500 times.
LED lighting features.
High-frequency mosquito repellent feature

3

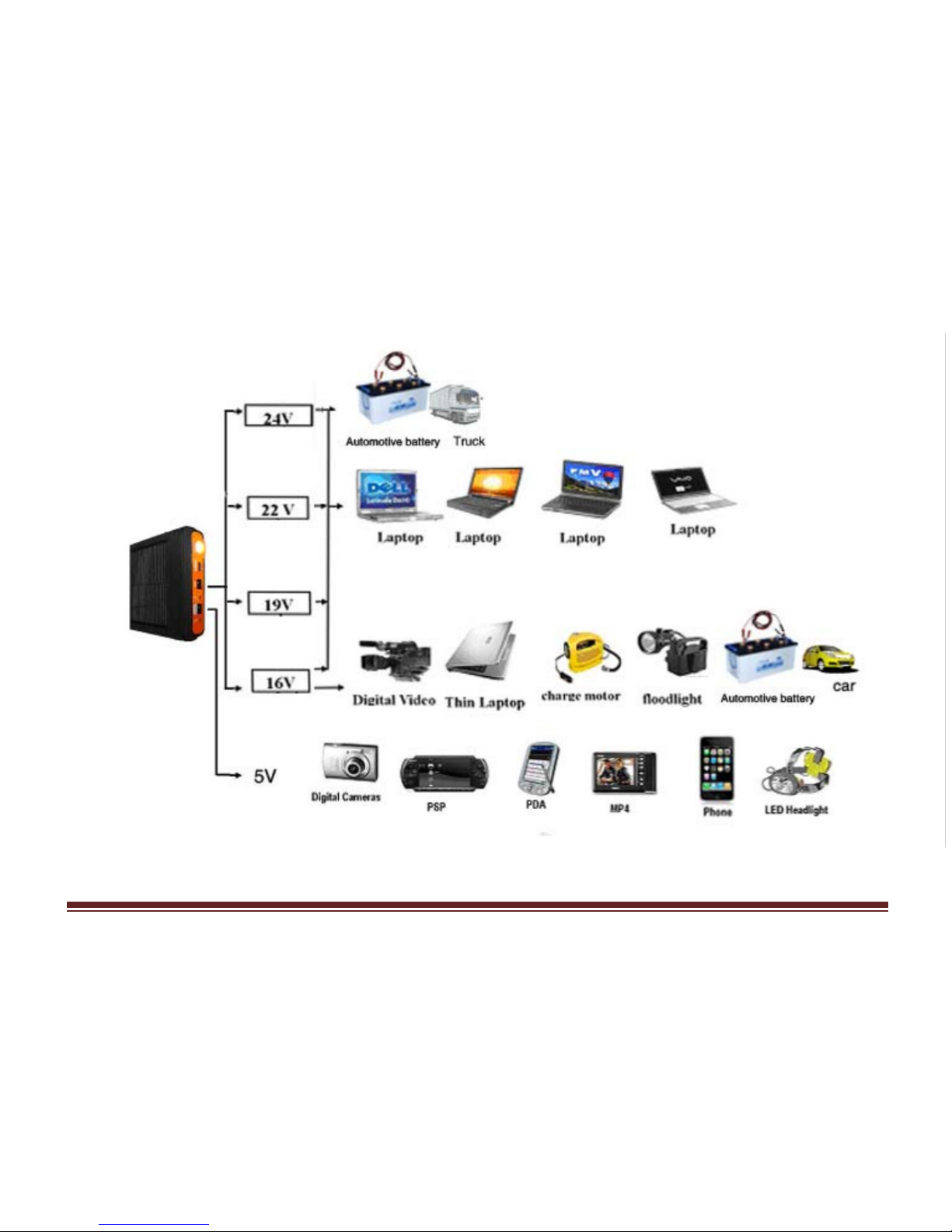

Output voltage: 16/19/22/24V (optional), 5V(fixed).

4
Interfaces & Indicators
1. Charging Indicator light (Charging — Red, Full — Green).
2. Mobile Phone Charger output voltage: working voltage 5V, current 2A.
3. Battery capacity indicator: >80% in green, >15% in red, <5% red flashing.
2. Adjustable Output Voltage: 16V/ 19V/ 22V/ 24V.
5. Solar charging input: You can add solar power to recharge.

5
6. LED flashlight.
7. Charge input: DC charge/car charger, input voltage must be 18V/ 2A.
8. Variable frequency drive mouse repellent device: Frequency 40 ~ 80000HZ automatic
scanning. Imitate the sound of female species’ enemies (the dragonflies, male species
and bats). Effect: drive the species and rats. Effective Range: 10 square meters.
9. Flashlight switch.
10. Solar panel: peak power 1.41W.
11. Voltage output indicator: 16V, 19V, 22V, 24V. After start, the indicator is in the first
output voltage 16V ~ 24V, press twice to change the output voltage. The fixed output
port (when the charger cable plug into the output port, gearshift function will be
automatically locked, avoiding wrong operation).
12. Power on/off switch: press 4 seconds (on/off).
13. Solar panel charging indicator.

6
Features
Material of battery
Lithium-ion polymer
Battery Capacity 3.7V, 16000 ma/h (60W/h)
Output voltage
16/19/22/24V optional 5V fixed
Output current
2A/5V, 3A/9-12V, 3.5A/16-19V
Charging voltage
100
～
240V AC / DC
Input voltage 18V
Charging current
2A (max)
Charging Time
<3 hours
Electric eye dimension
120mmx80mm
Peak power supplied by photocell
1.41 W
High solar energy convert efficiency
>16％
Material of electric eye surface 1mm chemically toughened glass
Ultrasonic mosquito killer
40~80000HZ auto frequency conversion
Available distance of mosquito killer
10 m2
Flashlight
Ø 10 mm white
Size
170mm x 95mm x 20mm
Net Weight 430 g
Circuit protection
Over input/ output. Short-circuit protection/ heat protection.
Automatic function
Double-click to choose the voltage. When charge cable plug in
the output port, Gearshift function locked
Working temperature
Output: －10～70
℃
Input: －10～65
℃
Storage temperature －10～45
℃
Battery life After 500 times charge/discharge ,Capacity ≥75％

7
Usage
1. Start: Long press the Master Switch (12) for about 4 seconds. The device will automatically start the
self-test program, the voltage indicator light flashes one by one, one second enter the working state.
2. Voltage regulator: Double-click the Master Switch (12) (double-click the switch like double-click the
computer mouse), the voltage loop in the order of low - high - low – high. According the input voltage
of the electric devices (like laptop, mobile phone) choose the right voltage. When the charging switch
cable plugging, the charging start and the gearshift be locked .Pull out the charging cable, the gearshift
activation, the voltage can be changed.
3. Off: Long press the Master Switch for about 4 seconds.
4. Charge: Pease use the Adapter in the standard accessories. When the Charging Indicator Light (1) turn
into green, the battery is full
5. Flashlight switches: toggle function switch (8), switch flashlight.
6. Frequency mosquito drive mouse: toggle function (9), there is a slight sound.
7. Automatic shutdown: Power off automatically after five hours with power.
8. Battery capacity indicator light: >80% in green, < 15% in red, <5% red flashing
9. When the solar panel is working, the icon (13) will be in red
Note: Please not place it in water, fog and moist environment. Can not be placed in a place which is higher
than 75°C
environment for a long time. If a long time do not use, it is recommended every 3-5 months on a
single charge.

8

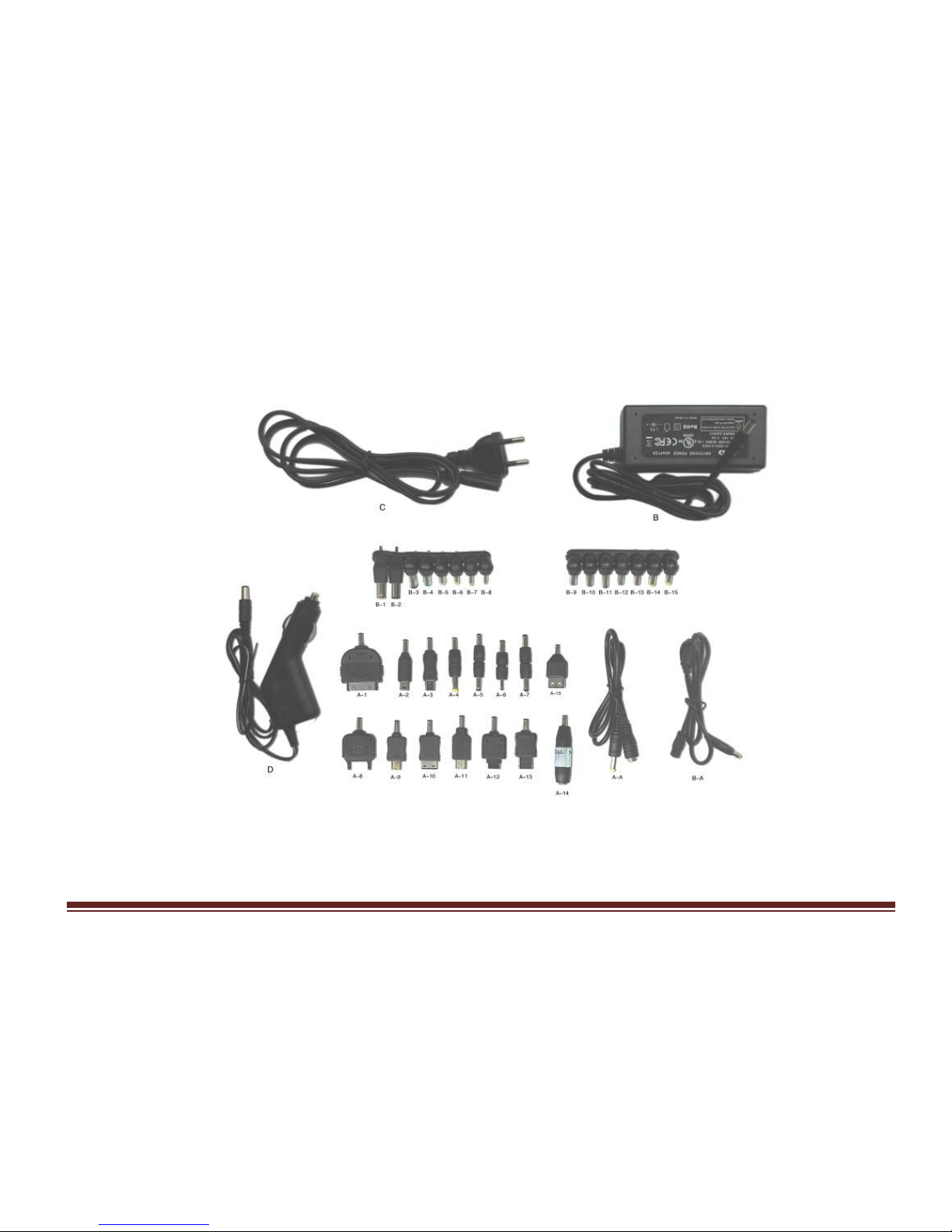

Accessories
A-A USB switch connectors
B
AC 100~240V or DC 18V/2A Adapter
B-A Laptop charger switch connectors
CSwitch cable
DCar DC /DC 12~24V 2A charger

9

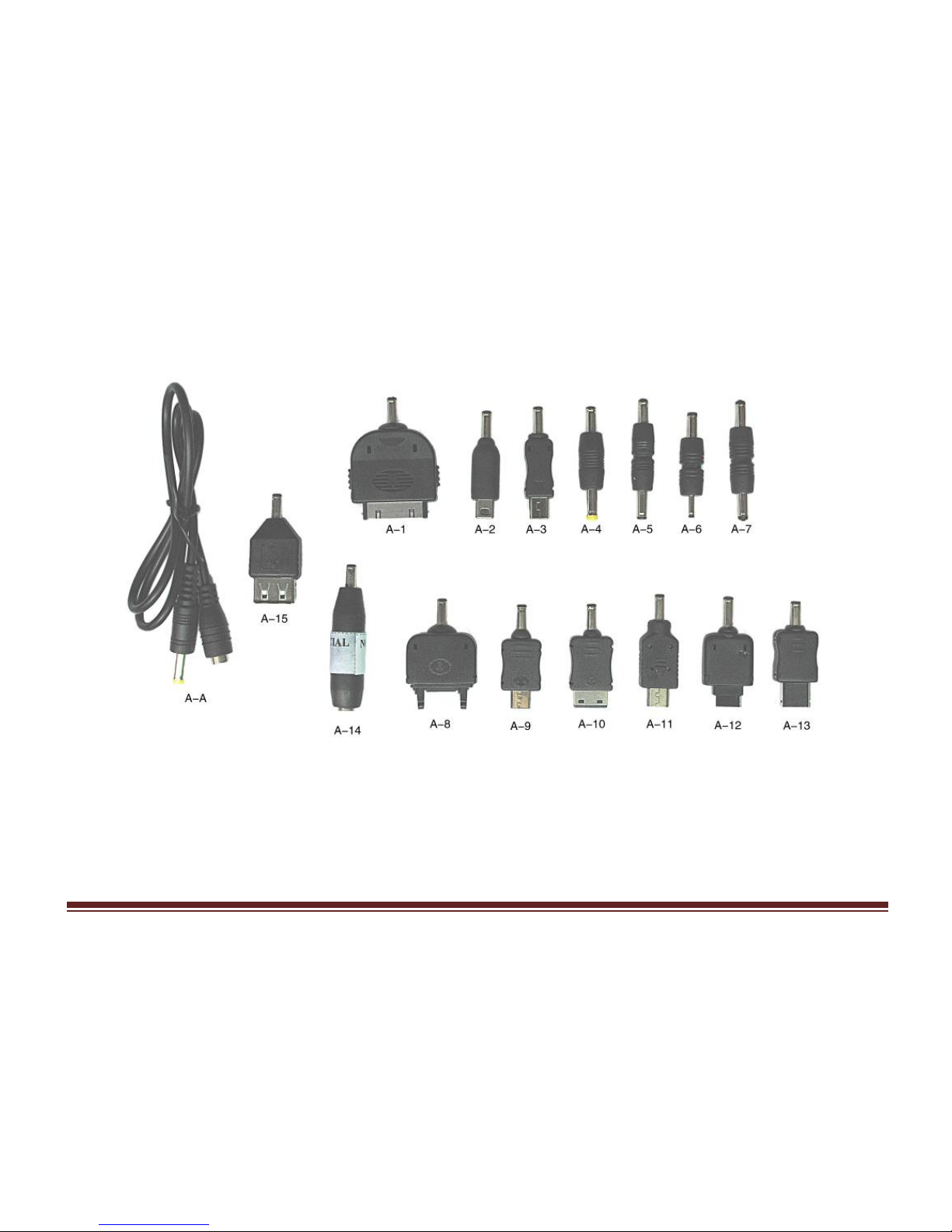

Connectors for Mobile Phone, Camera and DV.
A-1
For iPod/iPhone/iPad
A-5
For NOKIA
A-9
Mini USB
A-13
For Samsung
A-2 For NDSL
A-6 For NOKIA
A-10 For Samsung
A-14 Nokia Special connector
A-3
For Motorola V3
A-7
For Camera
A-11
Micro USB
A-15 3.5*11 To USB
A-4 For Sony PSP
A-8 For SONY Ericsson
A-12 For LG
A-A USB switch connectors

10
Connectors for Camera, DV and Laptop
B-A Laptop charger switch connectors
B-8 For CANON (3.5*1.3)
B-1 For IBM (7.9*0.9)
B-9 For HP, DELL, IBM, NEC, Toshiba (5.5*2.5)
B-2 For DELL (7.4*0.65)
B-10 For 5.5*1.0
B-3 For SONY LAPTOP (6.0*1.0)
B-11 For 5.0*2.1
B-4 For NEC, Sony, Toshiba (6.3*3.0)
B-12 For 5.0*1.0
B-5 For HP, Acer/T1, IBM, NEC, Toshiba (5.5*2.1)
B-13 For 5.5*3.0
B-6 For ACER (5.0*1.7)
B-14 For SAMSUNG (5.5*1.0)
B-7
For CANON, KODAK, CASIO, FUJITSU, PANASONIC,
OLYMPUS, NIKON, SONY GAME (4.0*1.7)
B-15
For ASUS, HP, NIKON (4.75*1.7)

11
Car charger 12~24V DC/DC 18V 2A
