ICOP Technology PPC-150T User manual

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 i
User’s Manual
PPC-150T
DMP Vortex86 DX2 Processor
Compact Panel PC with 15”Touchscreen

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 ii
SAFETY INFORMATION
Read these Safety instructions carefully.
Please carry the unit with both hands, handle carefully.
Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
Do not expose your Panel PC to rain or moisture in order to prevent
shock and fire hazard.
Input voltage rated +12 ~ 24 VDC
Operating temperature between 0~+50°C (+32~+122°F).
Keep PPC-150T away from humidity.
When a Compact Flash Card or a SATA Slim is the main operating
system storage, please turn off power before inserting or removing.
Do not open the cabinet to avoid electrical shock. Refer to your
nearest dealer for qualified personnel servicing.
Never touch un-insulated terminals or wire unless your power
adaptor is disconnected.
Locate your Panel PC as close as possible to the socket outline for
easy access and to avoid force caused by entangling of your arms
with surrounding cables from the Panel PC.
USB connectors are not supplied with Limited Power Sources.
If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.
WARNING!
DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS
(ENCASING) OF THIS PRODUCT. PLEASE CONTACT YOUR DEALER
FOR SERVICING FROM QUALIFIED TECHNICIAN.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 iii
Content
Ch. 1 General Information..........................................................................1
1.1 Product Description ............................................................................2
1.2 Product Specifications ........................................................................3
1.3 Inspection standard for TFT-LCD Panel..............................................5
1.4 Product Dimensions............................................................................7
1.5 Mounting Instruction ...........................................................................9
1.6 Ordering Information.........................................................................11
Ch. 2 System Installation.........................................................................12
2.1 CPU Board Outline ...........................................................................13
2.2 Connector Summary.........................................................................14
2.3 Connector Pin Assignments..............................................................15
2.4 External I/O Overview.......................................................................17
2.5 External I/O Pin Assignment .............................................................18
2.6 Watchdog Timer................................................................................19
Ch. 3 Hardware Installation .....................................................................20
3.1 Installing the SATA Slim....................................................................21
3.2 Installing the Compact Flash.............................................................22
Ch. 4 Driver Installation ...........................................................................23
4.1 PPC-150T Development Note ..........................................................26
4.2 BIOS Default Setting.........................................................................27
Warranty....................................................................................................28

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 1
Ch. 1
General Information
1.1 Product Description
1.2 Product Specifications
1.3 Inspection standard for TFT-LCD Panel
1.4 Product Dimensions
1.5 Mounting Instruction
1.6 Ordering Information

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 2
1.1 Product Description
ICOP Technology Inc. is proudly going to release a brand new Panel PC,
which offers fanless design, low power consumption, and IP65 front panel.
The PPC-150T is powered by DMP’s latest Vortex86DX2 SoC, the 3rd
generation SoC of Vortex86 family, and dual-channel 1GB DDRII chipset
that handles processing more efficiently and provides faster performance.
The resistive touch panel with LED backlight TFT LCD increases operation
convenience and visibility in outdoor environments. The ultra-compact and
thin exterior design is perfect for the present demanding embedded and
productive applications.
The new PPC-150T inherited PDX/PMX-series’smooth appearance and
ultra-texture aluminum exterior design to make your industrial applications look
more stylish. The versatile I/O ports, IP65 front panel, 10/100Mps Ethernet,
GIGA high-speed Ethernet, WiFi, etc. can fulfill fundamental functions. Our
consistent advantages feature stable performance, extended working
temperature support, low power consumption and fanless design. The
expandable customize I/O ports can be accommodated connectivity
requirements to industrial machine platforms and industrial automation
equipment’s needs.
The PPC-150T supports Windows Embedded CE, Windows Embedded
Standard 2009, Windows Embedded Compact 7, and Linux to meet
ready-to-market demand and provide competitive advantages for customers.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 3
1.2 Product Specifications
CPU BOARD SPECIFICATIONS
CPU
DM&P Vortex86DX2 933MHz
Cache
L1:16KB I-Cache, 16KB D-Cache
L2: 256KB Cache
BIOS
AMI BIOS
Memory
512MB / 1GB /2GB DDR2 onboard
Watchdog Timer
Software Programmable from
30.5u to 512 seconds x 2 sets
LAN
Integrated 10/100M Ethernet X1
Giga Ethernet (Optional) X1
Audio
HD Audio-Realtek ALC262 CODEC
Internal Drives
Compact Flash Type I / II Slot,
SATA SLIM
SD Slot (Optional)
I/O
RS-232/422/485 x 2
USB Ports (Ver2.0) x 3
PS/2 KB
Audio-Out
RJ-45 Port x 1
GIGA Ethernet Port X 1 (Optional)
MECHANICAL & ENVIRONMENT
Power Requirement
+12 ~ 24VDC
Power
Consumption
+24VDC@ 0.7A
Operating
Temperature
0~+50°C (+32~+122°F) /
-20~+60°C (-4~+140°F)

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 4
Storage
Temperature
-30~+70°C (-22~ +158°F)
Operating Humidity
0% ~ 90% Relative Humidity,
Non-Condensing
Dimensions
354.85x280.85x55mm (13.97"x8.22"x2.16")
Weight
3.8 Kg
Protection
IP65 Front Panel
Certification
CE / FCC / VCCI / Vibration
LCD SPECIFICATIONS
Display Type
15” XGATFT LCD
Backlight Unit
LED
Display Resolution
1024(W) x 768(H)
Brightness (cd/m2)
250/350 nits
Contrast Ratio
700 : 1
Display Color
262,144
Pixel Pitch (mm)
0.297 (H) x 0.297 (V)
Viewing Angle
Vertical 140o, Horizontal 160o
Backlight Lifetime
25,000/50,000 hrs
TOUCHSCREEN
Type
Analog Resistive
Resolution
Continuous
Transmittance
80%
Controller
PS/2 interface
Software Driver
DOS / Linux / Windows Embedded
Durability
1 million

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 5
1.3 Inspection standard for TFT-LCD Panel
DEFECT TYPE
LIMIT
Not
e
VISUAL
DEFECT
INTERNAL
SPOT
φ＜0.15mm
Ignore
Note
1
0.15mm≦φ≦0.5mm
N≦4
0.5mm＜φ
N=0
FIBER
0.03mm<W≦0.1mm, L≦5mm
N≦3
Note
1
1.0mm＜W, 1.5mm＜L
N=0
POLARIZER
BUBBLE
φ＜0.15mm
Ignore
Note
1
0.15mm≦φ≦0.5mm
N≦2
0.5mm＜φ
N=0
Mura
It’ OK if mura is slight visible through 6%ND filter
ELECTRI
CAL
DEFECT
BRIGHT DOT
A Grade
B Grade
C Area
O Area
Total
C Area
O Area
Total
Note
3
N≦0
N≦2
N≦2
N≦2
N≦3
N≦5
Note
2
DARK DOT
N≦2
N≦3
N≦3
N≦3
N≦5
N≦8
TOTAL DOT
N≦4
N≦5
N≦6
N≦8
Note
2
TWO ADJACENT DOT
N≦0
N≦1
pair
N≦1
pair
N≦1
pair
N≦1
pair
N≦1
pair
Note
4
THREE OR MORE
ADJACENT DOT
NOT ALLOWED
LINE DEFECT
NOT ALLOWED
(1) One pixel consists of 3 sub-pixels, including R, G, and B dot. (Sub-pixel = Dot)
(2) Little bright Dot acceptitable under 6% ND-Filter.
(3) If require G0 grand (Total dot N≦0), please contact region sales.

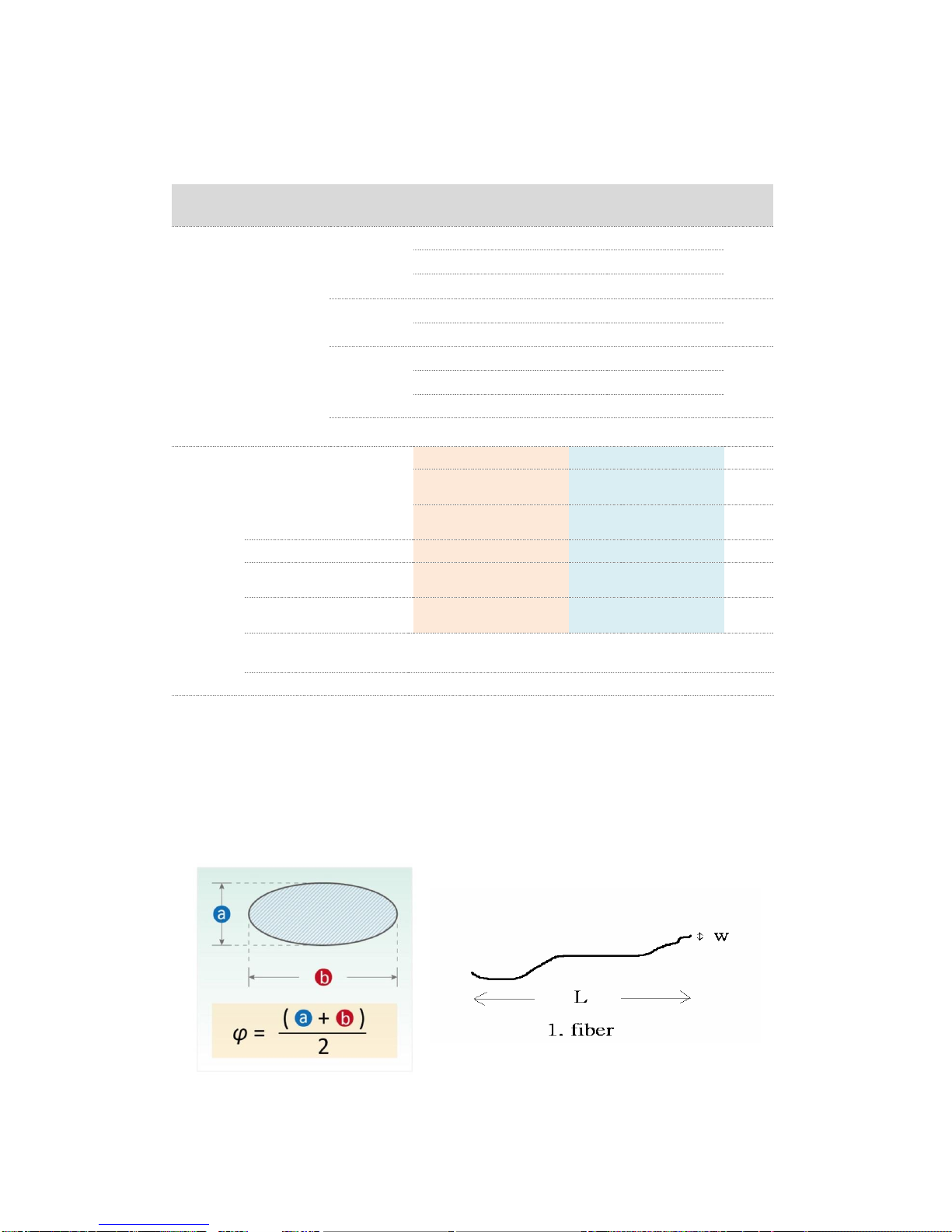

[ Note 1 ] W: Width[mm]; L: Length[mm]; N: Number; φ: Average Diameter.
(a) White / Black Spot (b) Polarizer Bubble

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 6
[ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following.
[ Note 3 ] Display area
C Area: Center of display area O Area: Outer of display area
[ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below
(as A, B, C and D status) adjacent defect dots, including bright and dark adjacent
dot. And they will be counted 2 defect dots in total quantity.
R
R
G
G
R G
R
R
G
G
R G
R
R
G
G
R G
R
R
G
G
R G
R
R
G
G
R G
R
R
G
G
R G
R
RDefect Dot
Adjacent Dot
A
B
C
D
The defects that are not defined above and considered to be problem shall
be reviewed and discussed by both parties.
Defects on the Black Matrix, out of Display area, are not considered as a defect
or counted.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 7

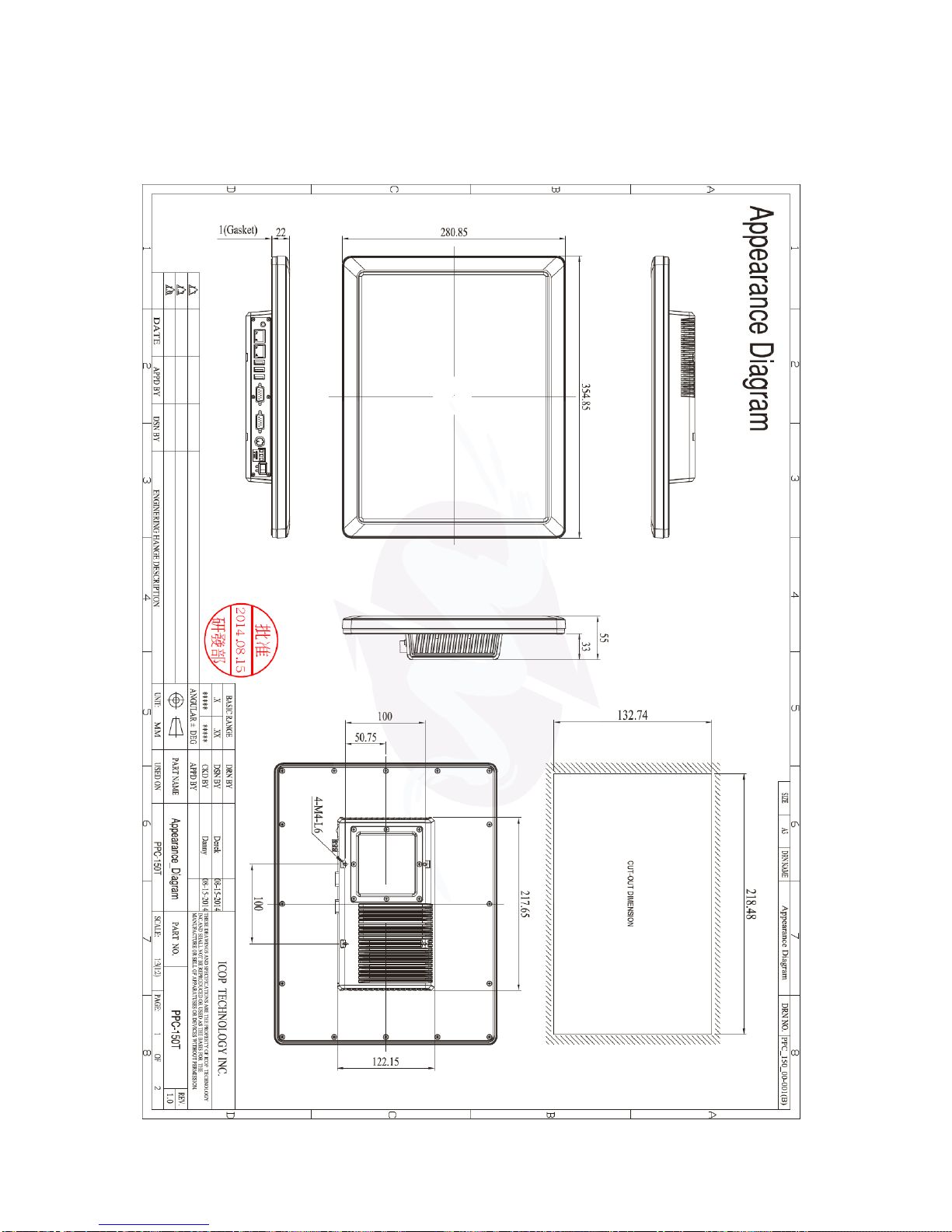

1.4 Product Dimensions

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 8

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 9
1.5 Panel Mounting Instruction
1. Cut a mounting hole in the panel. (Refer to PPC‐150T Dimensions
on page 11~12.) (Note 1)
2. Check and remove the twelve M3 screws in a diagonal pattern as
image below if necessary.
3. Place PPC‐150T face‐down on a clean, flat surface.
4. Slide the panel cutout around the back of PPC‐150T, until the panel
rests directly on the gasket. Make sure the screw holes align with
the screw holes on PPC‐150T.
5. The screw size is M3*L (L=wall thickness + 6.0mm) (Note 2)
6. Insert all twelve M3 screws into the screw holes. (Note 2)
7. Finger-tighten the M3 screws. Finish tightening the M3 screws in a
diagonal pattern using an M3 screw driver (see the image as below);
maximum torque 1.18Nm (12 kgf‐cm).
○
1
○
2
○
3
○
4
○
5
○
9
○
7
○
12
○
11
○
10
○
8
○
6

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 10
Note 1:
It is strongly recommended that a professional machine shop cut the
mounting hole in the panel.
Note 2:
The length for all twelve M3 screws will be according to the thickness of
mounting panel. For example: The length of standard M3 screws for
PPC-150T is 6mm. If the thickness of your mounting panel is 3mm and
washer thickness is 1mm, you have to use 10mm M3 screw.

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 11
1.6 Ordering Information
PART NUMBER
DESCRIPTION
PPC-150T-D2N3N
15”Panel PC w/512MB
Memory/3U/1A/1L/2S/DC12~24V
PPC-150T-D2N4N
15”Panel PC w/1GB
Memory/3U/1A/1L/2S/DC12~24V
PPC-150T-D2N5N
15”Panel PC w/2GB
Memory/3U/1A/1L/2S/DC12~24V
PPC-150T-D2N3N -GE
15”Panel PC w/512MB
Memory/3U/1A/1L/1GigaL/2S/DC12~24V
PPC-150T-D2N4N -GE
15”Panel PC w/1GB
Memory/3U/1A/1L/1GigaL/2S/DC12~24V
PPC-150T-D2N5N -GE
15”Panel PC w/2GB
Memory/3U/1A/1L/1GigaL/2S/DC12~24V
PACKING LIST
PART NUMBER
PACKAGE
PPC-150T-D2N3N
PPC-150T-D2N3N
M4 L8 Screw *4
PPC-150T-D2N4N
PPC-150T-D2N4N
M4 L8 Screw *4
PPC-150T-D2N5N
PPC-150T-D2N5N
M4 L8 Screw *4
PPC-150T-D2N3N -GE
PPC-150T-D2N3N -GE
M4 L8 Screw *4
PPC-150T-D2N4N -GE
PPC-150T-D2N4N -GE
M4 L8 Screw *4
PPC-150T-D2N5N -GE
PPC-150T-D2N5N -GE
M4 L8 Screw *4

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 12
Ch. 2
System Installation
2.1 CPU Board Outline
2.2 Connector Summary
2.3 Connector Pin Assignments
2.4 External I/O Overview
2.5 External I/O Pin Assignment
2.6 Watchdog Timer

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 13
2.1 CPU Board Outline
PPC CPU Board

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 14
2.2 Connector Summary
No.
Description
Type of Connections
Pin #
J1
Power Terminal Connector
External Power Plug
3-pin
J3
COM (RS232/422/485)
External D-Sub Male Connector
9-pin
J4
USB
External USB Connector
6-pin
J5
USB
External USB Connector
6-pin
J6
PS/2Keyboard
External Mini DIN Socket
6-pin
J7
USB
External USB Connector
6-pin
J8
USB (Wi-Fi Optional)
Internal USB Connector
5-pin
J11
Ethernet
External RJ45 Connector
8-pin
J12
GIGA Ethernet
External RJ45 Connector
8-pin
J14
RS-232-422-485
2.0mm 10-pin box header
10-pin
J16
SD Card Slot (Optional)
Internal SD Card Socket
J19
RS-232-422-485 (VGA)
2.0mm 10-pin box header
10-pin
J25
SATA Slim Slot
Internal SATA Slim Socket
J30
Audio Line-Out
1.25mm Phone Jack
2-pin
J33
GPIO-X3
PH2*25F(2.0)-7.5mm/P2N71-2XX
50-pin
J34
GPIO-X1
PH2*25F(2.0)-7.5mm/P2N71-2XX
50-pin
J35
GPIO-X4
PH2*15F(2.0)-7.5mm/P2N71-2XX
30-pin
J36
GPIO-X2
PH2*25F(2.0)-7.5mm/P2N71-2XX
50-pin
CF1
CF Card Socket
CF Type I/II Socket

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 15
2.3 Connector Pin
Assignments
J1: Power Terminal Connector
J3: COM (RS232/422/485)
J4: USB
J5: USB
J7: USB
J8: USB (Wi-Fi Optional)
J6 : PS/2Keyboard
J19: RS-232-422-485
Pin #
Signal Name
1
+12~24V
2
GND
3
FG
Pin #
Signal Name
Pin #
Signal Name
1
DCD1/422TX-/
RS485-
2
RXD1/422TX+
/RS485+
3
TXD1/422RX+
4
DTR1/422RX-
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI1
Pin #
Signal Name
Pin #
Signal Name
1
VCC
2
USBD2-
3
USBD2+
4
GND
5
GND
6
GND
Pin #
Signal Name
Pin #
Signal Name
1
VCC
2
USBD3-
3
USBD3+
4
GND
5
GND
6
GND
Pin #
Signal Name
Pin #
Signal Name
1
VCC
2
USBD4-
3
USBD4+
4
GND
5
GND
6
GND
Pin #
Signal Name
Pin #
Signal Name
1
VCC
2
USBD1-
3
USBD1+
4
GND
5
GND
Pin #
Signal Name
Pin #
Signal Name
1
KBCLK
2
MSCLK
3
GND
4
KBDATA
5
MSDATA
6
VCC
7
GND
8
GND
9
GND
Pin #
Signal Name
Pin #
Signal Name
1
R OUT
2
GND
3
G OUT
4
GND
5
B OUT
6
GND
7
HSYNC
8
GND
9
VSYNCD
10
GND

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 16
J33/J34/J35/J36: GPIO 180-pin
J33
J34
J35
J36
Pin#
Signal
Name
Pin#
Signal
Name
Pin#
Signal
Name
Pin#
Signal
Name
Pin#
Signal
Name
Pin#
Signal
Name
Pin#
Signal
Name
Pin#
Signal
Name
1
GND
2
GND
1
GND
2
SBHE
1
VCC
2
VCC
1
SA7
2
SA6
3
GP34
4
GP35
3
RSTDRV
4
SD7
3
GND
4
GND
3
IRQ3
4
SA5
5
GP36
6
GP37
5
VCC
6
SD6
5
GP90
6
GP91
5
IRQ10
6
SA4
7
GP40
8
GP41
7
SD8
8
SD5
7
GP92
8
GP93
7
IRQ11
8
SA3
9
GP42
10
GP43
9
SD9
10
SD4
9
GP94
10
GP95
9
IRQ12
10
SA2
11
GP44
12
GP45
11
SD10
12
SD3
11
GP96
12
GP97
11
BALE
12
SA1
13
GP46
14
GP47
13
SD11
14
SD2
13
GPCS0
14
GPCS1
13
OSC
14
SA0
15
GP50
16
GP51
15
SD12
16
SD1
15
GP00
16
GP01
15
GND
16
IQ14
17
GP52
18
GP53
17
SD13
18
SD0
17
GP02
18
GP03
17
GP10
18
GND
19
GP54
20
GP55
19
GND
20
GND
19
GP04
20
GP05
19
GP12
20
GP11
21
GP56
22
GP57
21
SMEMW
22
IOCHRDY
21
GP06
22
GP07
21
GP14
22
GP13
23
GND
24
GND
23
SMEMR
24
AEN
23
RS485+1
24
RS485-1
23
GP16
24
GP15
25
GP60
26
GP61
25
IOW
26
SA19
25
VBATT
26
FGND
25
GP20
26
GP17
27
GP62
28
GP63
27
IOR
28
SA18
27
VIN
28
VIN-
27
GP22
28
GP21
29
GP34
30
GP65
29
SD14
30
SA17
29
VIN
30
VIN-
29
GP24
30
GP23
31
GP66
32
GP57
31
SD15
32
SA16
31
GP26
32
GP25
33
GP70
34
GP71
33
MEMCS16
34
SA15
33
GP30
34
GP27
35
GP72
36
GP73
35
IOCS16
36
SA14
35
GP32
36
GP31
37
GP74
38
GP75
37
REFRESH
38
SA13
37
XPCIRST -
38
GP33
39
GP76
40
GP77
39
GND
40
SA12
39
GND
40
GND
41
GP80
42
GP81
41
SYSCLK
42
SA11
41
XPE0_RX -
42
XPE0_TX -
43
GP82
44
GP83
43
IRQ7
44
SA10
43
XPE0_RX +
44
XPE0_TX +
45
GP84
46
GP85
45
IRQ6
46
SA9
45
GND
46
GND
47
GP86
48
GP87
47
IRQ5
48
SA8
47
XYPE0_CLK -
48
XUSBD3 -
49
GND
50
GND
49
IRQ4
50
GND
49
XYPE0_CLK +
50
XUSBD3 +

PPC-150T User’s Manual IUMPPC150T-01 Ver.1.0A Jun, 2014 17
2.4 External I/O Overview
NOTE
1. GIGA LAN, Wireless are optional
2. RS232/422/485 is selected by BIOS setting
RS-232/422/485
USB 2.0 PORT
10/100Mbps
Ethernet
GIGA Ethernet
(Optional)
Audio-Out
PS/2 KB
Power Switch
+12 ~ 24VDC
