ICOP Technology ICOP-0070 User manual

ICOP-0070/0071/0072
Power Supply AC/DC PC/104 Module
Power Supply DC/DC PC/104 Module
Power Supply DC/DC + DIO PC/104 Module
User’s Manual
(Version 3.1)
www.MicrocomputerSystems.com

ii
Copyright Notice
This document is copyrighted, 2000 by ICOP Technology Inc.
All rights are reserved. The information in the manual is
subject to change without notice in order to improving products.
No part of this manual may be reproduced, copied, translated
or transmitted in any form or by any means without the prior
written permission of the manufacturer.
ICOP Technology Inc. assumes no responsibility for any
inaccuracies that may be contained in this document. ICOP
Technology Inc. makes no commitment to update or to keep
current the information contained in this manual.
 Copyright 2000 by ICOP Technology Inc.
All rights reserved. Ver.2.1 2000,
Printed in Taiwan
Trademarks Acknowledgments
All brand names and trademarks are the properties and
registered brands of their respective owners.

iii
T a b l e o f C o n t e n t s
Chapter 0 Packing List 1
Chapter 1 Specifications 2
Chapter 2 Jumper Settings 7
Chapter 3 Connectors 8
Chapter 4 Digital I/O 9
Warranty 11

ICOP PC/104 Power Supply User's Manual
1
C h a p t e r 0
Packing List
Function Function Package
ICOP-0070 Power Supply
AC/DC Module
lICOP-0070 Power Supply Module
l3 Pin extend cable x 1
ICOP-0071 Power Supply
DC/DC Module
lICOP-0071 Power Supply Module
ICOP-0072 Power Supply
DC/DC with 24-
Bit DIO Module
lICOP-0072 Power Supply Module

ICOP PC/104 Power Supply User's Manual
2
C h a p t e r 1
Specifications
Features ICOP-0070
Power Input voltage range : 90 ~ 264 VAC
Output voltage : +5 VDC @ 2A,
-5 VDC @ 0.2 A,
+12 VDC @ 1 A,
-12 VDC @ 0.3 A
Input frequency: 47 ~ 63 Hz
Inrush current cold : 20A @ 110VAC, 40A @ 220 VAC
Hold-up time : 16 ms
Raise time: 500 ms
Overload protection: power limit
Short protection : auto-recovery
MOSFET design
Built-in line filter
Meets FCC, CE, TÜV
Meets UL478 and CS
Fast type FUSE 2A/250V
Connector 3-pin AC input
6-pin DC output (-5V,-12V,+12V,GND,GND,+5V)
Bus Interface PC/104 standard compliant
Dimensions 90 (L) x 96 (W) mm.
Weight 90 g
Operating
Temperature 0 ~ +60 °C

ICOP PC/104 Power Supply User's Manual
3
Features ICOP-0071
Power Input Voltage: +8V ~ +48V DC
Output Voltage: 5V DC / 3A
Over load protection
Over heat protection
Converted frequency: 52 KHz
Converted effect: Over 80%
Suitable for auto / truck system
Bus Interface PC/104 standard compliant
Dimensions 90 (L) x 96 (W) mm.
Weight 90 g
Operating
Temperature -20 ~ +60 °C

ICOP PC/104 Power Supply User's Manual
4
Features ICOP-0072
Digital I/O 24 bit digital I/O lines (1 group)
Group emulates a 8225 PPI mode 0
Buffered circuits for higher driving capacity than 8255
Output status read back
Pin-compatible with OPTO-22 I/O module racks
Transfer rate: 300 KB/sec. (typical)
Digital output:Logic level 0: 0.5 V max. @ 24 mA sink
Logic level 1: 2.0 V min. @ 15 mA source
Digital input: Logic level 0: 0.8 V max.
Logic level 1: 2.0 V min.
Power Input Voltage: +8V ~ +48V DC
Output Voltage: 5V DC / 3A
Over load protection
Over heat protection
Converted frequency: 52 KHz
Converted effect: Over 80%
Suitable for auto / truck system
Bus Interface PC/104 standard compliant
Dimensions 90 (L) x 96 (W) mm.
Weight 110 g
Operating
Temperature -20 ~ +60 °C

ICOP PC/104 Power Supply User's Manual
5
Component Location
ICOP-0070
ICOP-0071
L
N
G
CN1
AC Input
-5v / -12v / +12v / GND / GND / +5v
CN4
DC Output
CONT4
DC Input
+8v~+48v
CONT5
DC Output
+5v @ 3A

ICOP PC/104 Power Supply User's Manual
6

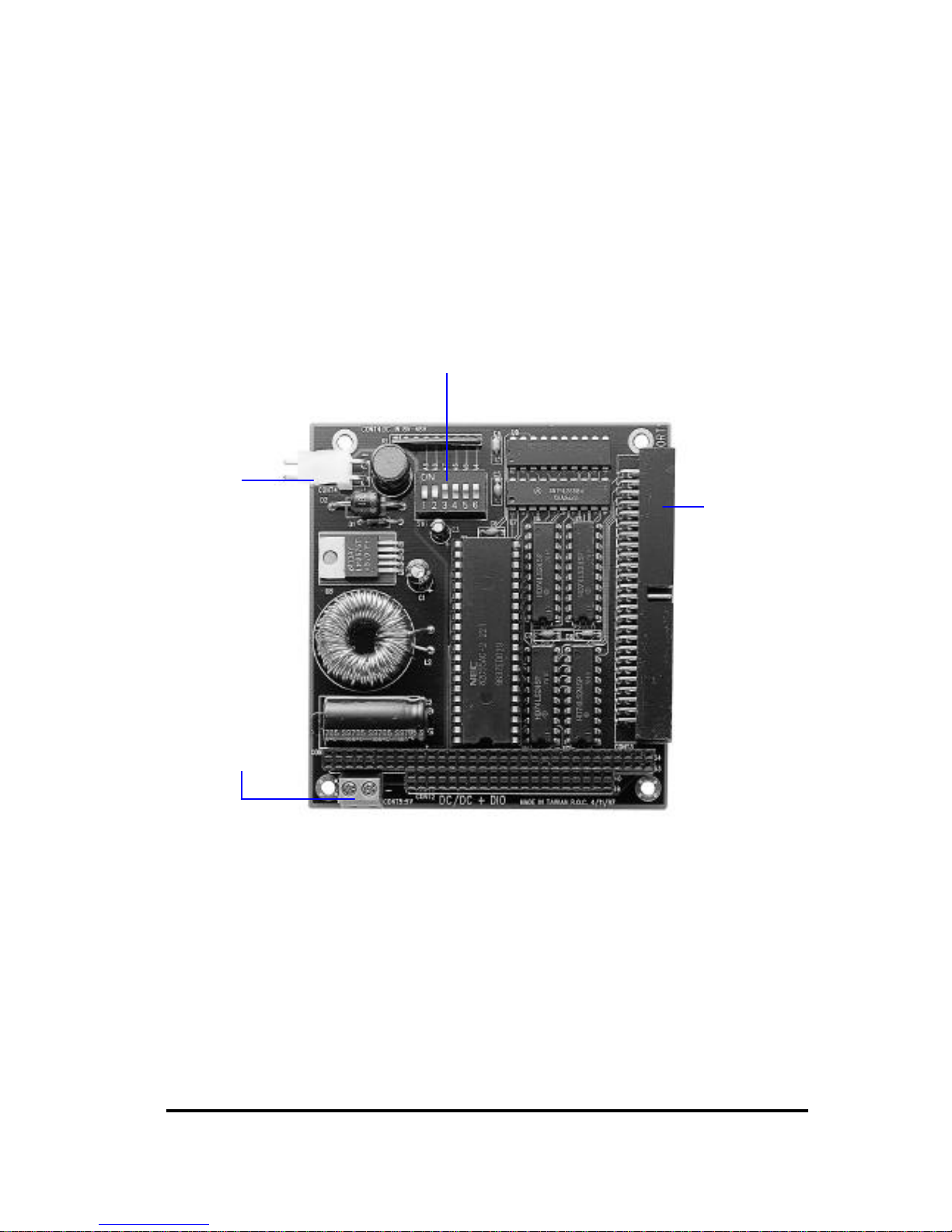

Component Location
ICOP-0072
CONT5
DC Output
+5v @ 3A
CONT4
DC Input
+8v~+48
v
DIO
Cont
SW1

ICOP PC/104 Power Supply User's Manual
7
C h a p t e r 2
Jumper Setting
The ICOP-0072 occupies 8 consecutive I/O locations. Dip-switch SW1 sets
the base address for the ICOP-0072. Be careful when selecting the base
address as some settings can conflict with existing PC ports. The following
table shows common examples that usually will not cause a conflict.
Base Address Setting (SW1) (ICOP-0072)
Address 123456
000-00Fh ON ON ON ON ON ON
010-01Fh ON ON ON ON ON OFF
020-02Fh ON ON ON ON OFF ON
030-03Fh ON ON ON ON OFF OFF
200-20Fh OFF ON ON ON ON ON
210-21Fh OFF ON ON ON ON OFF
300-30Fh *
OFF OFF ON ON ON ON
3F0-3FFh OFF OFF OFF OFF OFF OFF

ICOP PC/104 Power Supply User's Manual
8
C h a p t e r 3
Connectors
Connector ICOP-0070 ICOP-0071 ICOP-0072
CONT1 AC Input
CONT2
CONT3 Digital I/O Group 1
CONT4 DC Output 8-48VDC Input 8-48VDC Input
CONT5 5VDC Output 5VDC Output

ICOP PC/104 Power Supply User's Manual
9
C h a p t e r 4
Digital I/O
(ICOP-0072)
Mode 0 Operation
Mode 0 operation provides simple input and output operation for each of the
three ports. No handshaking is required, data is simply written to or read
from a specific port.
Mode 0 Basic Functional Definitions:
-Three 8-bit ports
-Any port can be input or output
-Outputs are latched
-Inputs are not latched
I/O port Assignments
Location Write Read
BASE+0 A0 A0
BASE+1 B0 B0
BASE+2 C0 C0
BASE+3 Mode Register for A0,B0,C0 N/A
8255 Data Registers
Base+0 Port A0 (read/write)
Bit 76543210
Value PA07 PA06 PA05 PA04 PA03 PA02 PA01 PA00

ICOP PC/104 Power Supply User's Manual
10
Base+1 Port B0 (read/write)
Bit 76543210
Value PB07 PB06 PB05 PB04 PB03 PB02 PB01 PB00
Base+2 Port C0 (read/write)
Bit 76543210
Value PC07 PC06 PC05 PC04 PC03 PC02 PC01 PC00
Base+3 Port A0,B0,C0 (write)
Bit 76543210
Value 100PA0 PCH 0PB0 PCL
PA0 = 0 => Port A0 is output
PA0 = 1 => Port A0 is input
PB0 = 0 => Port B0 is output
PB0 = 1 => Port B0 is input
PCL = 0 => Port C0 Low Nibble is output(Bit0-3)
PCL= 1 => Port C0 Low Nibble is input(Bit0-3)
PCH =0 => Port C0 High Nibble is output (Bit4-7)
PCH =1 => Port C0 High Nibble is input (Bit4-7)
After power-on or reset of the module the A0, B0 and C0 ports are
default set to input mode.

ICOP PC/104 Power Supply User's Manual
11
Warranty
This product is warranted to be in good working order for a period of one
year from the date of purchase. Should this product fail to be in good
working orderat any time during this period, we will, at our option, replace or
repair it at noadditional charge except as set forth in the following terms.
This warranty doesnot apply to products damaged by misuse, modifications,
accident or disaster. Vendor assumes no liability for any damages, lost
profits, lost savings or anyother incidental or consequential damage
resulting from the use, misuse of, orinability to use this product. Vendor will
not be liable for any claim made by anyother related party. Return
authorization must be obtained from the vendor before returned merchan-
dise will be accepted. Authorization can be obtained by calling or faxing the
vendor and requesting a Return Merchandise Authorization (RMA) number.
Returned goods should always be accompanied by a clear problem
description.
