ZT-USB Series
User Manual
Warranty
All products manufactured by ICP DAS are under warranty regarding
defective materials for a period of one year, beginning from the date of
delivery to the original purchaser.
Warning
ICP DAS assumes no liability for any damage resulting from the use of
this product. ICP DAS reserves the right to change this manual at any
time without notice. The information furnished by ICP DAS is believed to
be accurate and reliable. However, no responsibility is assumed by ICP
DAS for its use, nor for any infringements of patents or other rights of
third parties resulting from its use.
Copyright
Copyright © 2013 by ICP DAS. All rights are reserved.
Trademarks
Names are used for identification purpose only and may be registered
trademarks of their respective companies.
TechnologySupport
If you have any problems, please feel free to contact us via
email at [email protected]


ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page2
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.
TableofContents
1IntroductiontoZigBee ............................... 4
2IntroductiontotheZT‐USBSeries .................... 5
3HardwareInformation ................................. 6
3.1Specifications ........................................ 6
3.2ZT‐USBSeriesFrontView .............................. 7
3.3Dimensions(Units:mm) ................................ 8
3.4BlockDiagram ......................................... 9
4InstallingDriverandUtility ....................... 10
4.1InstallingtheZT‐USBSerialPortDriver ............. 10
4.2InsertingtheZT‐USBandinstallingDriver ........... 13
4.3InstallingtheConfigurationTool .................... 17
5SettinguptheZT‐USBSeries ........................ 19
5.1Introductionofconfigurations ....................... 19
5.2ConfiguringZigBeeSetting ........................... 23
5.3TestCommunications .................................. 26
5Applications ........................................ 27
6Troubleshooting ..................................... 28
6.1TechnicalSupport .................................... 28
6.2LEDIndicatorStatus ................................. 29

What’sintheshippingpackage?
The shipping package includes the following items:
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page3
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.



MoreInformation
ZT‐USBSeriesCD
QuickStart
If any of these items are missing or damaged, please contact your local distributor for more
information. Save the shipping materials and cartons in case you want to ship the module
in the future.
Documentation:
CD: \Napdos\ZigBee\ZT_Series\document
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/document
Software:
CD: \Napdos\ZigBee\ZT_Series\utility
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/utility
Driver:
CD: \Napdos\ZigBee\ZT_Series\driver
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/driver

ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page4
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.
1 IntroductiontoZigBee
ZigBee is a specification for a suite of high-level communication protocols using
small, low-power digital radios based on the IEEE 802.15.4 standard for personal area
networks. ZigBee devices are often used in mesh network form to transmit data over
longer distances, passing data through intermediate devices to reach more distant ones.
This allows ZigBee networks to be formed ad-hoc, with no centralized control or
high-power transmitter/receiver able to reach all of the devices. Any ZigBee device can
be tasked with running the network.
ZigBee is targeted at applications that require a low data rate, long battery life, and
secure networking. ZigBee has a defined rate of 250 kbit/s, best suited for periodic or
intermittent data or a single signal transmission from a sensor or input device.
Applications include wireless light switches, electrical meters with in-home-displays,
traffic management systems, and other consumer and industrial equipment that requires
short-range wireless transfer of data at relatively low rates. The technology defined by
the ZigBee specification is intended to be simpler and less expensive than other
WPANs.

ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page5
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.
2 IntroductiontotheZT‐USBSeries
The Basis of ZT-USB Series Product
The ZT-USB series modules are small-sized wireless ZigBee converters based on
the IEEE802.15.4 standard that allow USB interface to be converted to a personal area
ZigBee network. The typical transmission of ICP DAS ZT-USB series ZigBee products is
60 meters (LOS, line of sight), with a transmission frequency range of between 2.405
GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels and 16384
PAN IDs. ZT-USB series is not only a long distance wireless converter but also can act a
ZigBee router to extend the transmission range and improve the quality of wireless
signal.
ZT-USB series products are specification for a suite of high level communication
protocols using small, low-power digital radios module, which are fitted the ZigBee 2007
(ZigBee Pro) of ZigBee Alliance. In the ZigBee network, it is only allowed one ZigBee
Host and called “ZigBee Coordinator”, ZT-USBC is used to initialize and manager the
routing. In addition, One ZigBee network are able to manager 255 ZigBee router and
responsible for receiving or bypassing data from parent or child node.
The Benefits of ZT-USB Series Product
A Windows compatible GUI configuration utility is available. The utility allows users
to set different configurations based on the type of application, together with several of
required ZigBee variables such as Pan ID. The friendly user interface is also helping
user be familiar with ZT-USB and ZT-2000 series.
For more information, please refer to the relevant documents for these devices,
which can be found at following link:
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/document


ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page6
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.
3 HardwareInformation
3.1Specifications
Part Number ZT-USBC (Coordinator) ZT-USBR (Router)
Hardware
MCU Module 8-bit microprocessor
Temporary Buffer Size 237 Bytes
LED Red ZigBee Net
Communication Interface
Connector Type-A Plug
Compatibility USB 1.1 and 2.0 standard
USB
Driver Windows 2000/XP/Vista/7/8
Power
Required Supply Voltage USB Socket Powered
Power Consumption 0.3 W(Max.)
Mechanism
Casing Plastic
Dimensions 19.8 ㎜ x 58.4 ㎜ x 9 ㎜ (W x L x H)
Environment
Operating Temperature -25°C ~ +75°C
Storage Temperature -40°C ~ +80°C
Relative Humidity 5 ~ 95% RH (non-condensing)
Wireless
RF Channels 16
RF Transmit Power 3 dBm
Antenna (2.4GHz) PCB Antenna
Transmit Range (Line of Sight) 60 m (Typical)
Max. Slaves Supported 255

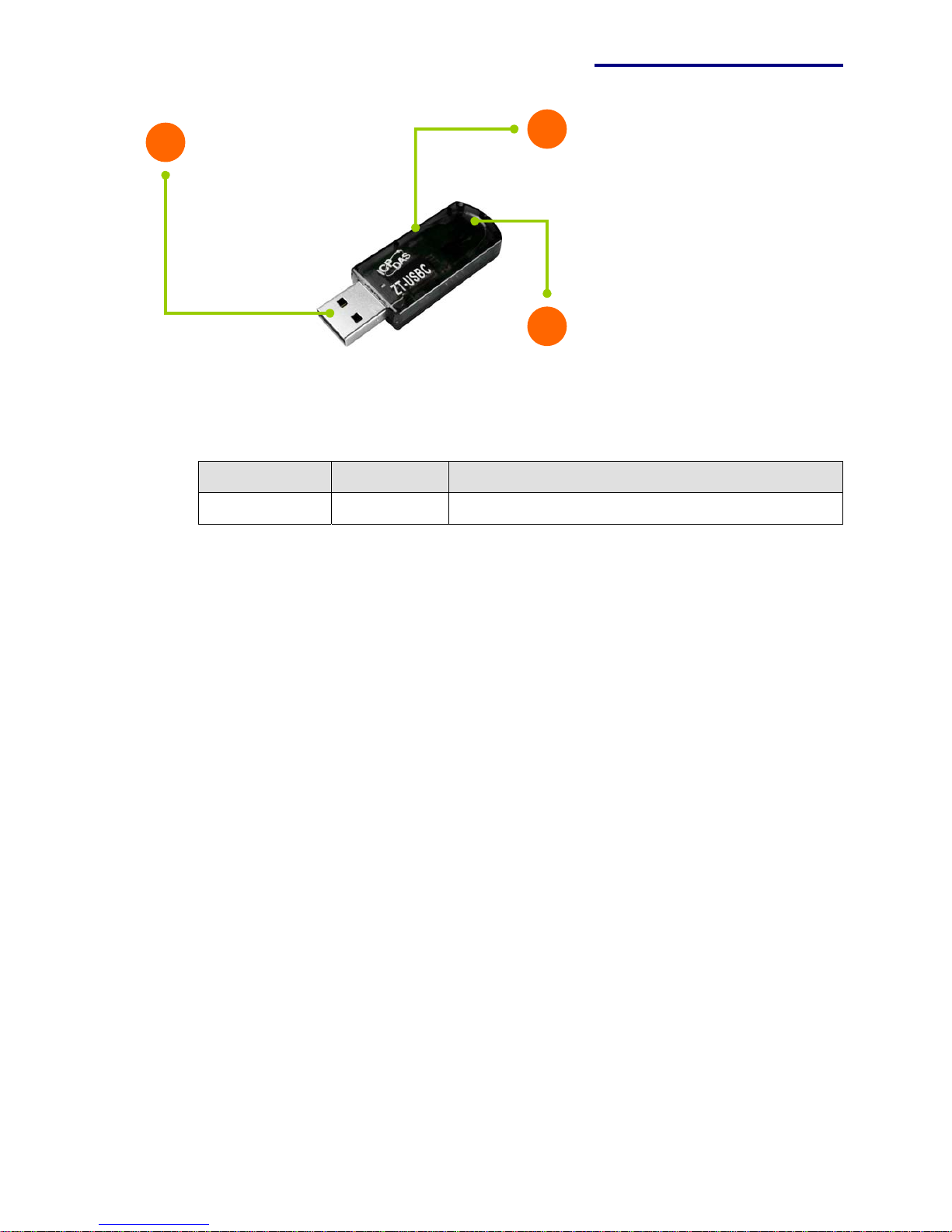

3.2 ZT‐USBSeriesFrontView
2.4 GHz PCB Antenna
3
1
LED Indicator
(ZigBee Net Status)
USB Type-A Plug
2

1. LED Indicator
LED Indicator LED Color Explanation
ZigBee Net Red The status of ZigBee network.
※ For more details, please see the section 6 troubleshooting.
2. USB Type-A Plug
¾The port is used to configure ZT-USB series, communicate with other ZT-2000
modules and be powered via the USB socket.
3. 2.4 GHz PCB Antenna
¾There is PCB antenna inside ZT-USB series which is no additional antenna
required.
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page7
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

3.3 Dimensions(Units:mm)
Left Side View Front View Top View
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page8
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

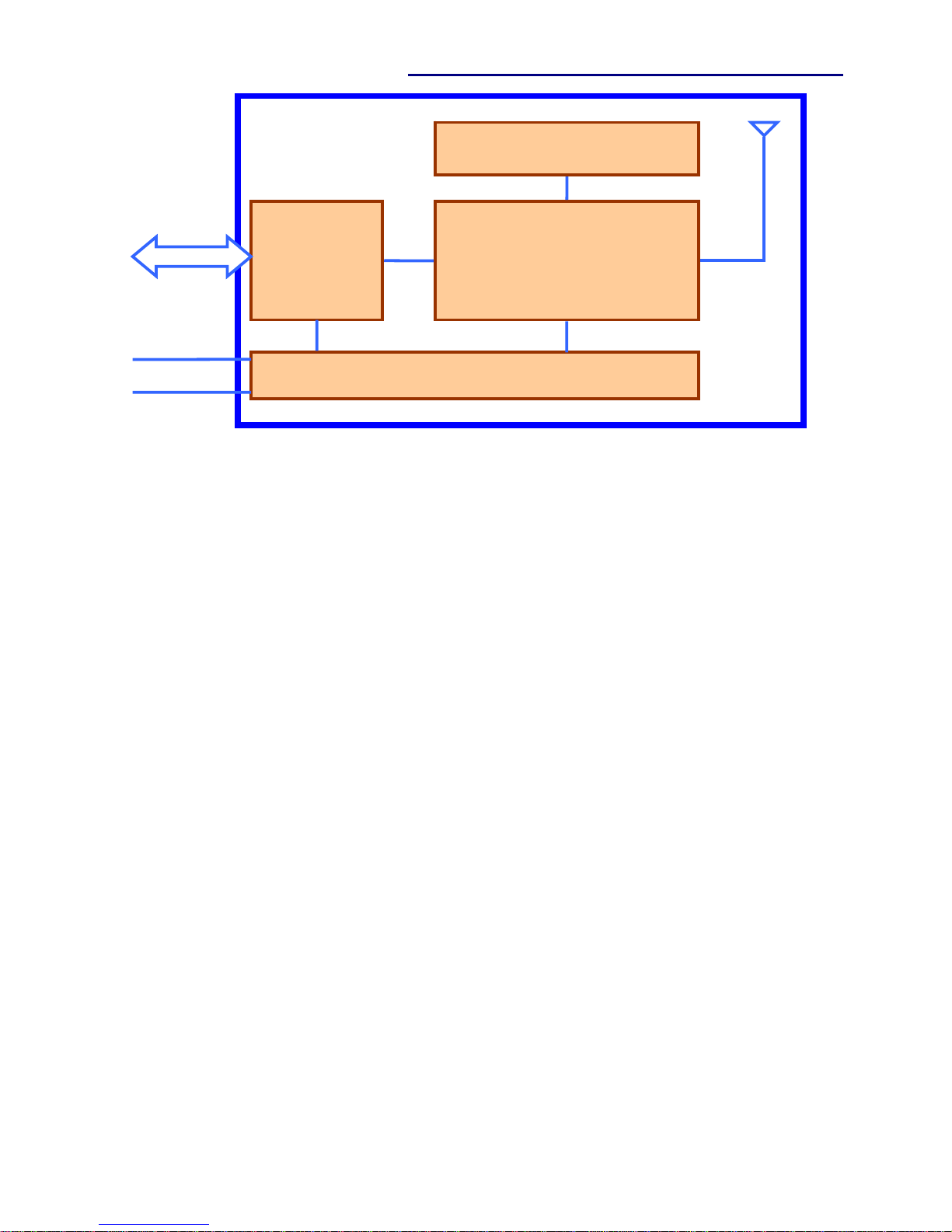

3.4 BlockDiagram
Z
igBeeModule


LEDDisplay
U
SB
(TypeA)

PowerCircuit

ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page9
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

4 InstallingDriverandUtility
4.1 InstallingtheZT‐USBSerialPortDriver
1. Download the file from website
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/driver/
or from the CD in the shipping package
CD: \Napdos\ZigBee\ZT_Series\driver
2. Rightclick the ZT-USB_Series_Driver_Installer.exe file and select the item that
Runasadminstrator to install the driver for the ZT-USB Series.
3. When the following screen is displayed, click the Next> button to continue.
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page10
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

4. hen the following screen is displayed, click the Install button to continue.
5. When the following screen is displayed, click the Next> button to continue.
6. If the following screen is displayed, click the Alwaystrustsoftwarefrom“ICP
DASCo.,LTD.”> and press Install button to continue.
W
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page11
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

7. When the following screen is displayed, click theFinish button to continue.
8. When the following screen is displayed, click theFinish button to completing the
installation.
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page12
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.


4.2 r
1. Insert the ZT-USB series to USB socket in your computer. If Windows detects the
new device, it will install the driver automatically and successfully.
2. Right click on MyComputer and select Properties.
InsertingtheZT‐USBandinstallingDrive
USB
ZT‐USBSeries
3. Select DeviceManager from the SystemProperties dialog box.
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page13
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

4. onfirm the COMNumber of the ZT-USB Series is listed in the Ports(COM&LPT). C
5. If Windows Ports(COM & LPT) is failed to allocate the COM Port Number of
ZT-USB Series, you should find USBSerialPort item below Otherdevices and
right Click the “UpdateDriverSoftware…” to update driver manually.
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page14
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

6. When the following screen is displayed, select the “Browsemycomputerfor
driversoftware” Option to continue.
7. Browse to C:\\ICPDAS\ZT‐USB\driver\ to locate the install tion file, and click a
“Includesubfolders” and the Next button to begin the search.
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page15
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

8. When the following screen is displayed, click the Close button to finalize the
software installation.
NOTICE:Whenthedriverinstallationiscomplete,unplugZT‐USBSeries
9.
DeviceManager.
andinsertitinagain.
Now you can find out the correct COMPortNumber of ZT-USB series in the
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page16
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

4.3
1. the website
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/utility/
InstallingtheConfigurationTool
Download the file from
or from the CD in the shipping package
CD: \Napdos\ZigBee\ZT_Series\utility
2. Double click the ZT2000_Configuration_Utility_vxxx.exe file to install the
configuration tool for the ZT-USB series.
3. When the following screen is displayed, you can click the Next> button to install
the software into the default directory or click the Change... button to install into
an alternate location.
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page17
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

4. hen the following screen is displayed, click the Next> button to cWontinue.
When the following sc5. reen is displayed, click the Finish button to finalize the
software installation.
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page18
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.

ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page19
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.
5 SettinguptheZT‐USBSeries
5.1 Introductionofconfigurations
1. “Pan ID” is the group identity of a ZigBee network, and must be the same if they
are in the same ZigBee network.
(Valid values range from 0x0000 to 0x3FFF)
2. “Node ID” is the identity of the ZigBee module.
The identity number must be unique if it is in the same ZigBee network as other
ZigBee module. (Valid values range from 0x0001 to 0xFFF7 for a ZigBee Router,
but is fixed to 0x0000 for a ZigBee Coordinator)
3. “RF Channel” indicates the radio frequency channel, and must be set to the same
.
channel if the module is in the same ZigBee network as other ZigBee modules
Channel 0x00 0x01 …… 0x0F
Frequency(MHz) 2405 2410 …… 2480
※ In addition, the RF channels 0x04, 0x09, 0x0E and 0x0F are recommended because
they are not covered with the frequency of Wi-Fi.
000102030405060708090A0B0C0D0E0F
802.11b/g
Channel1
802.11b/g
Channel6
802.11b/g
Channel11
802.11b/gChannel(NorthAmerica)
802.15.4Channel
2400
MHz
2485
MHz


4. “RF Power” denotes the wireless transmit power value.
Code Note
0x0F Typical Maximum (Default)
0x00 Typical Minimum
5. Baud rate & Data Format” serial port settings are supported“ by ZT-USB Series.
Item Specification
Parity None(Default), Odd, Even
Data Bit 8
Stop Bit 1
Baud rate 2400, 4800, 9600, 19200, 38400, 57600, 76800 and 115200(Default)
bps
ICPDAS,ZT‐USBSeriesUserManual,Version1.0Page20
Copyright@2013byICPDASCo.,Ltd.AllRightsReserved.
