1. Introduction
The HRT-227CS is a HART to Fiber converter paired used to extend HART
communication distance via single mode fiber optic transmission medium. In order to
solve the problem between HART and fiber transmission medium, HRT-227CS is
specially designed for converting the HART signal to fiber optic cables. Built-in a HART
250 Ω loop resistor adjustable by dip switch. Therefore, users can make data collection
and processing of HART network easier and quicker by applying HRT-227CS. In
addition, we also provide the free HC_Tool utility for module configuration easily.
The following is the application structure of HRT-227CS.

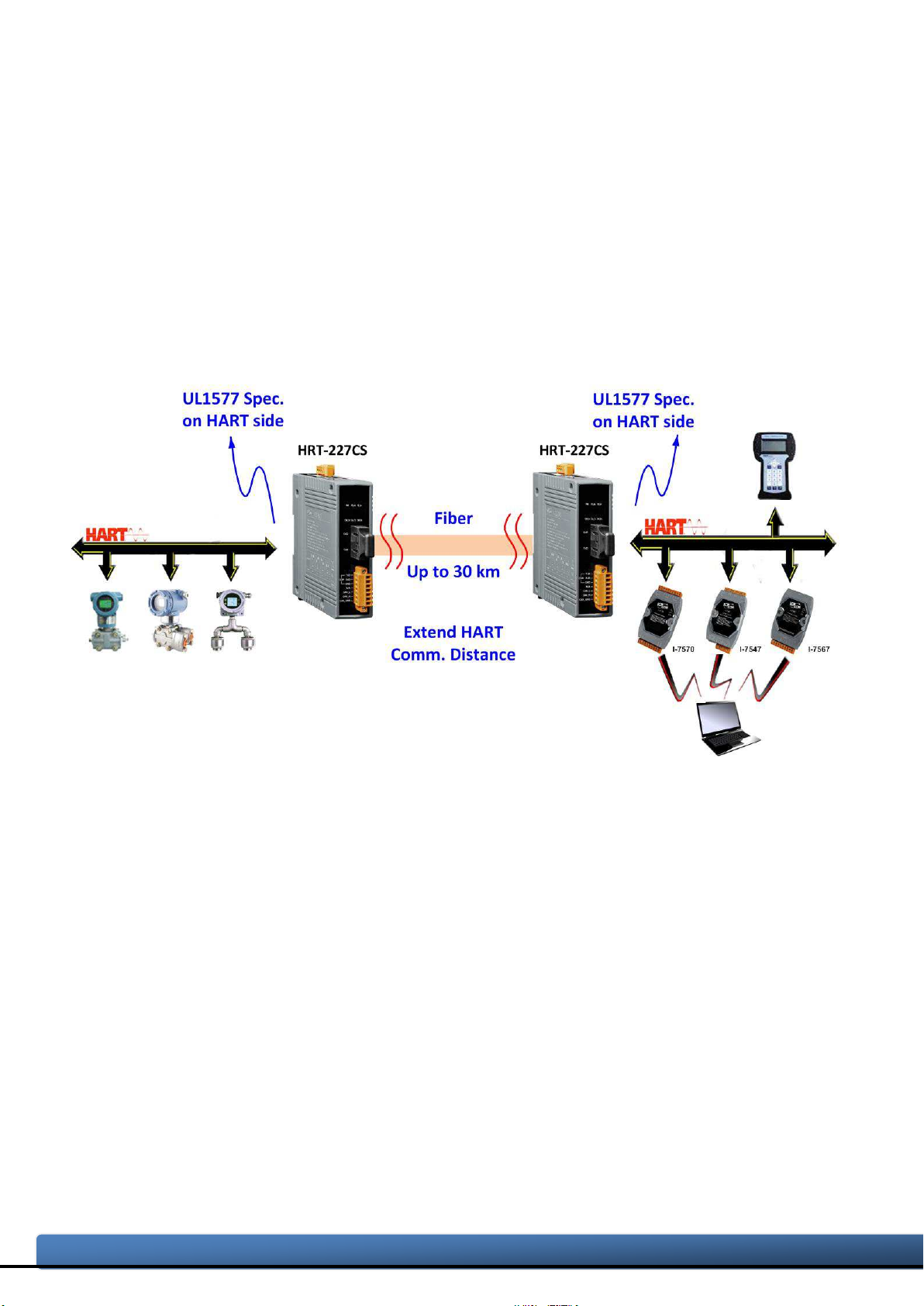

Figure 1-1 HART to Fiber application
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 5
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
1.1. Specifications
HART Interface
Channel
1
Connector
2-pin screwed terminal block (HART+, HART-)
Terminator Resistor
Selectable 250Ω loop resistor
HART Data
Only Digital Data
Isolation
UL1577 Spec.
Fiber Interface
Type
SC Duplex type ; Single mode ; 100 Base-FX
Wave Length (nm)
1310
Fiber Cable (μm)
8.3/125, 8.7/125, 9/125 or 10/125
Transmission Distance (km)
30 (indicative only)
Min./Max. TX Output (dBm)
-15 / -8
Max. RX Sensitivity (dBm)
-34
Max. RX Overload (dBm)
-5
Budget (dBm)
19
UART Interface
COM
RS-232 (TXD / RXD / GND) for configuration (1200, O, 8 ,1)
LED
Round LED
PWR, FB_Ack, FB_Err, HT_Err, HT_Tx and HT_Rx
Power
Power supply
Unregulated +10 ~ +30 VDC
Protection
Power reverse polarity / Over-voltage brown-out protection
Power Consumption
3W
Mechanism
Installation
DIN-Rail
Dimensions
33.0 mm x 126 mm x 101 mm (W x L x H)
Environment
Operating Temperature
-25 to 75 °C
Storage Temperature
-30 to 80 °C
Humidity
10 to 90% RH, non-condensing
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 6
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
1.2. Features
Support HART Short/Long frame
Support HART Burst mode
Support point-to-point or multi-drop HART mode
Support connecting up to 15 HART slave devices
Allow two HART masters.
Provide HC_Tool for module configuration
Support firmware update via ComPort
Fiber Type:SC ; Single mode ; 100 Base-FX
Fiber maximum transmission distance up to 30 km
Adjustable 250Ωloop resistor by dip switch
Provide Fiber broken line detection
Provide PWR/Fiber/HART LED
Built-in Watchdog
The HART port can communicate with each other with the same Group ID
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 7
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
2. Hardware
2.1. Block Diagram
The following figure is the block diagram of HRT-227CS.

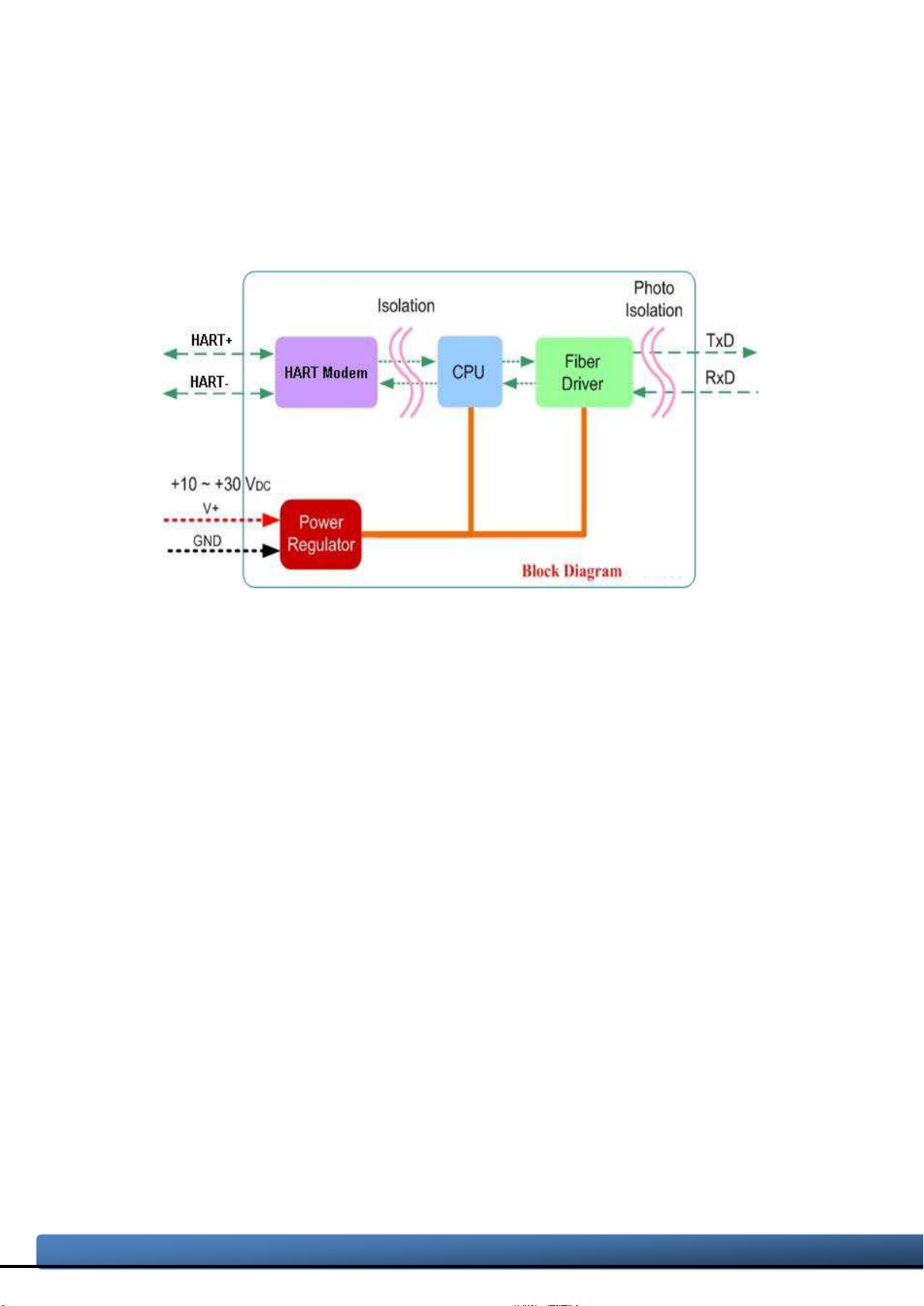

Figure 2-1 HRT-227CS block diagram
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 8
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
2.2. Appearance

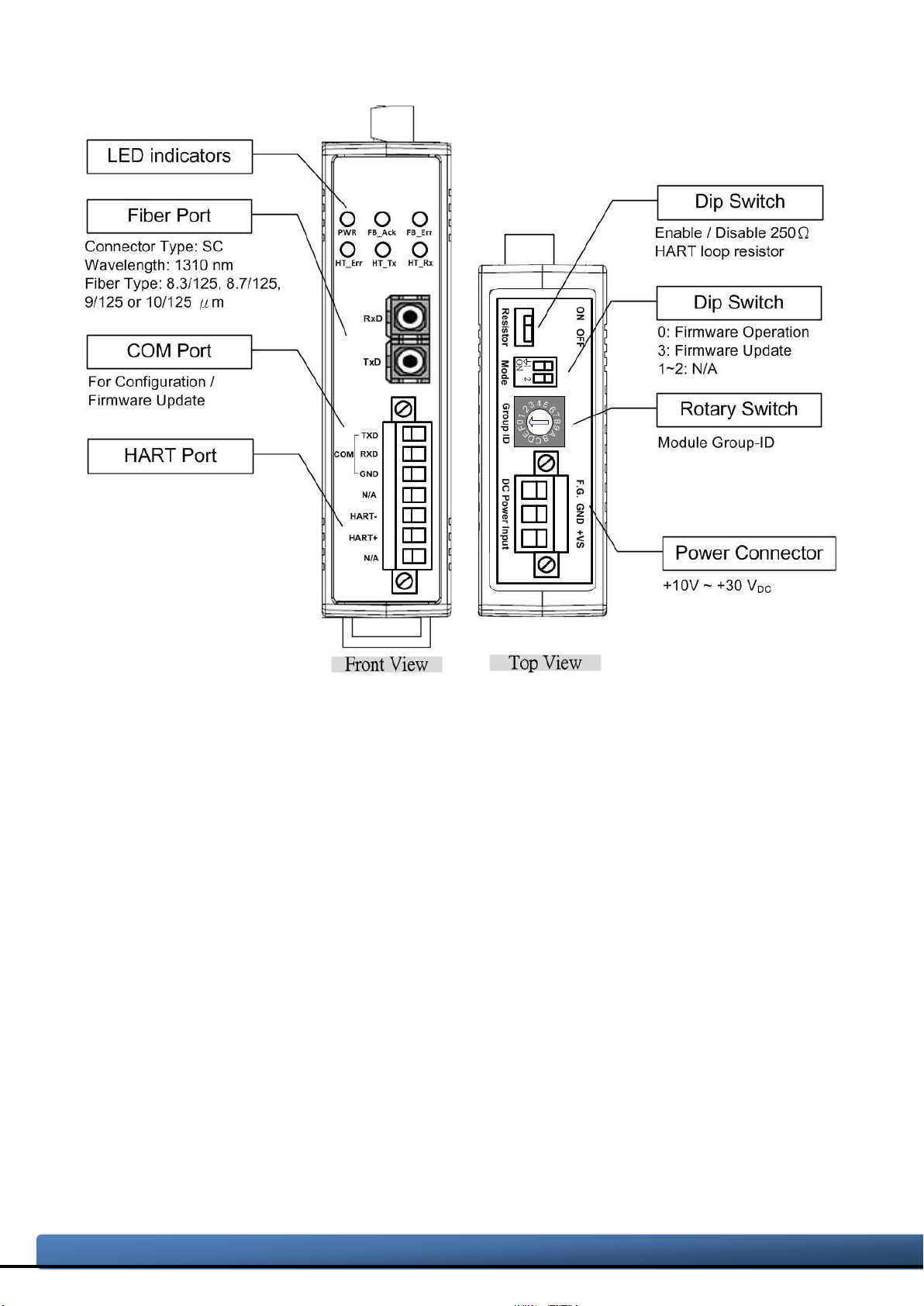

Figure 2-2 Appearance of HRT-227CS
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 9
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
2.3. LED Indicator
HRT-227CS provides 6 LED indicators.
(1) Power LED * 1 => PWR
(2) Fiber LED * 2 => FB_Ack / FB_Err
(3) HART LED * 3 => HT_Err / HT_Tx / HT_Rx

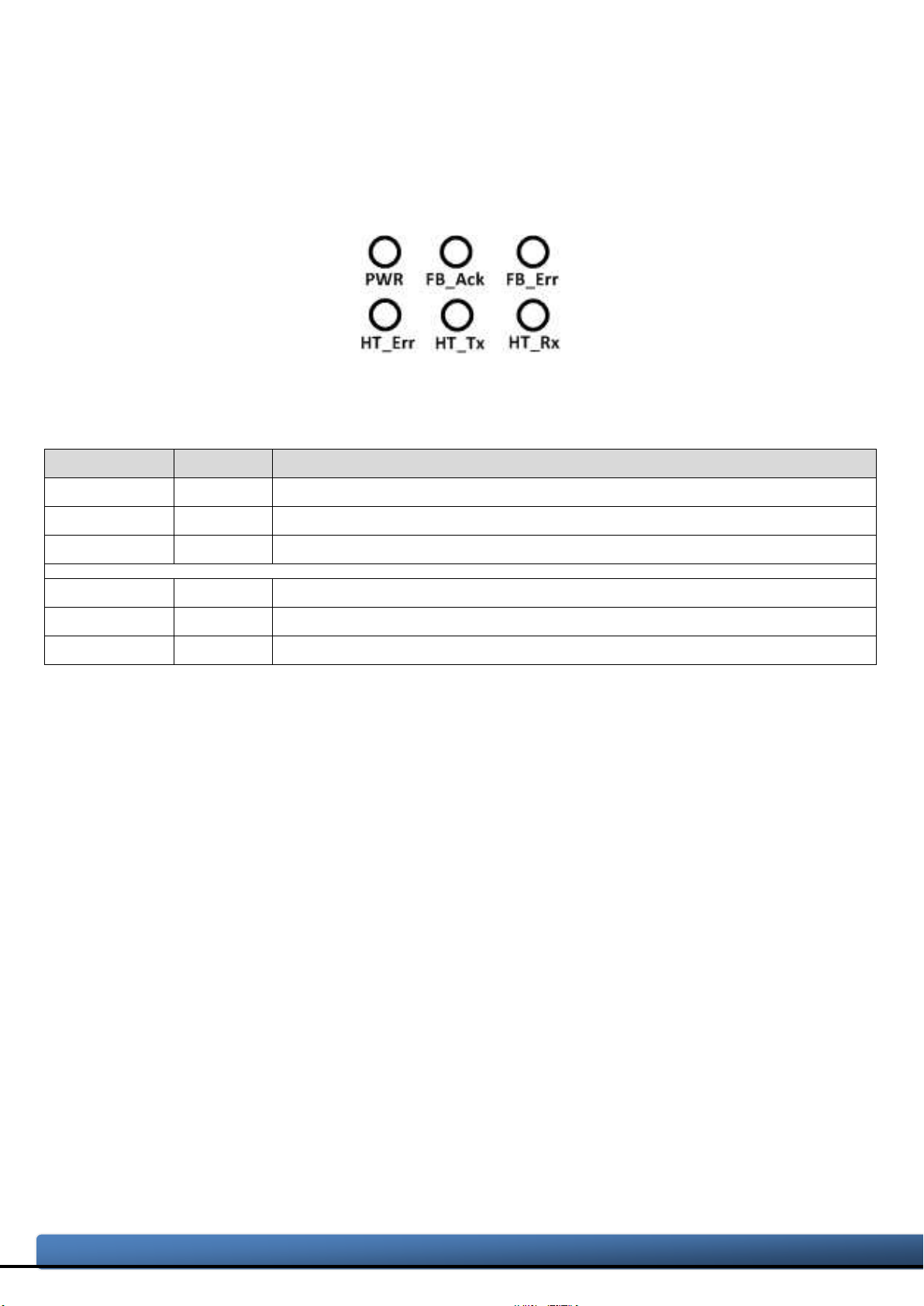

Figure 2-3 LED Indicator of HRT-227CS
Table 2-1 LED Description
LED Name
Color
Description
PWR
Red
When power on, the LED will be on.
FB_Ack
Green
When the fiber send/receive message, the LED will flash.
FB_Err
Orange
When detecting the fiber RXD line off, the LED will be on.
HT_Err
Red
When HART send/receive message failed, the LED will flash.
HT_Tx
Green
When HART send messages, the LED will flash.
HT_Rx
Green
When HART receive messages, the LED will flash.
[ NOTE ]
1. ”Firmware Update”mode: HT_Err / HT_Tx / HT_Rx LED will flash every 500ms.
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 10
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
2.4. Pin Assignment

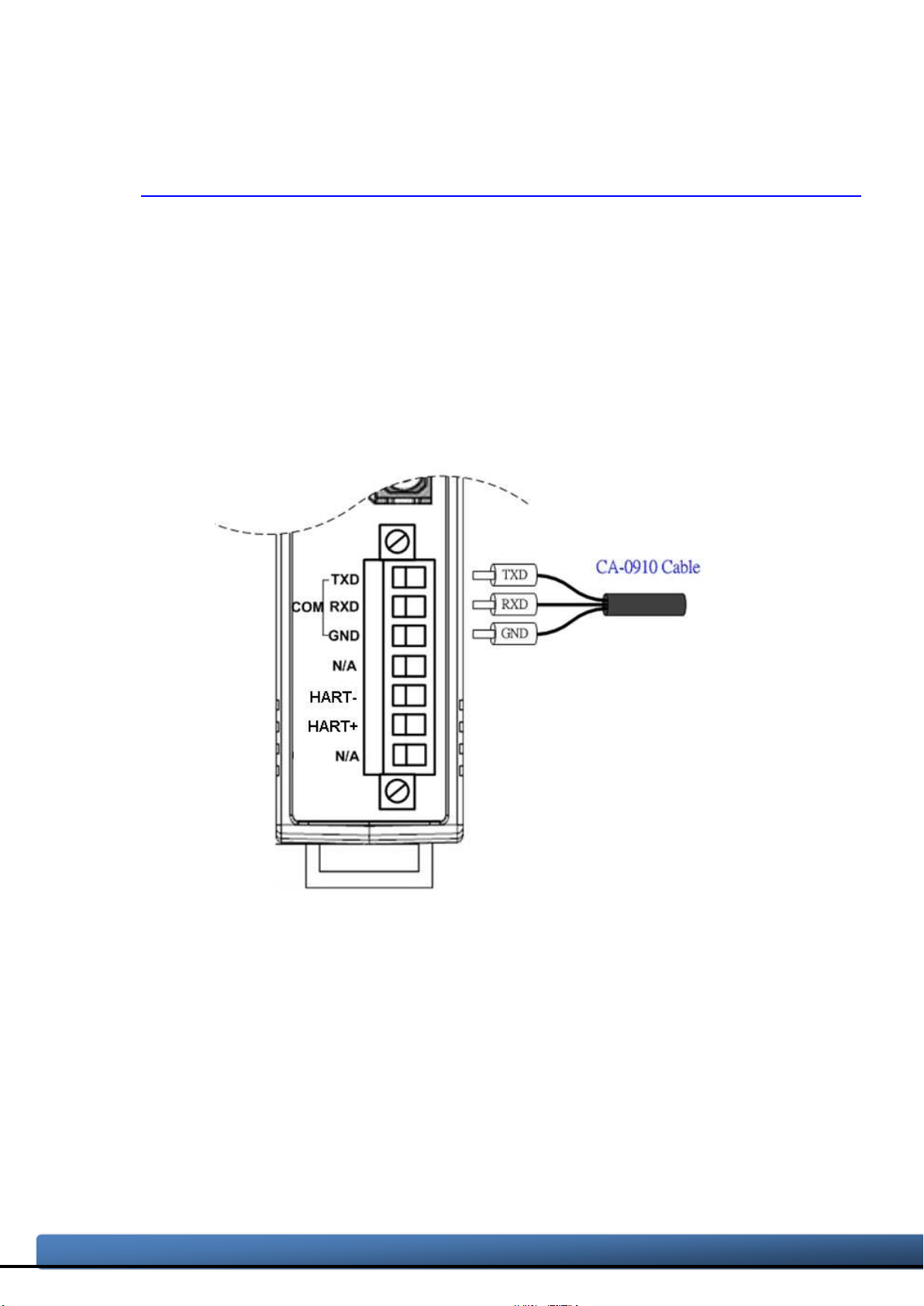

The below table is the pin assignment for Fiber / COM / HART port of HRT-227CS.
Table 2-2 Pin Assignment
Port
Name
Description
Fiber
RxD
Receive optic data
TxD
Transmit optic data
COM
TXD
TXD pin of RS-232 port
RXD
RXD pin of RS-232 port
GND
SG (or GND) pin of RS-232 port
HART
HART-
HART- signal line of HART port
HART+
HART+ signal line of HART port
Power
F.G.
Frame Ground
GND
Power Ground
+VS
Voltage Source Input. +10VDC ~ +30VDC
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 11
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
2.5. HART Loop Resistor
HRT-227CS provides a built-in 250Ω (1/4W) HART loop resistor as figure 2-4 and
adjustable by DIP switch (Resistor). When setting to be „ON‟position, the loop resistor
will connect to HART network. The default position of the dip switch is „ON‟.

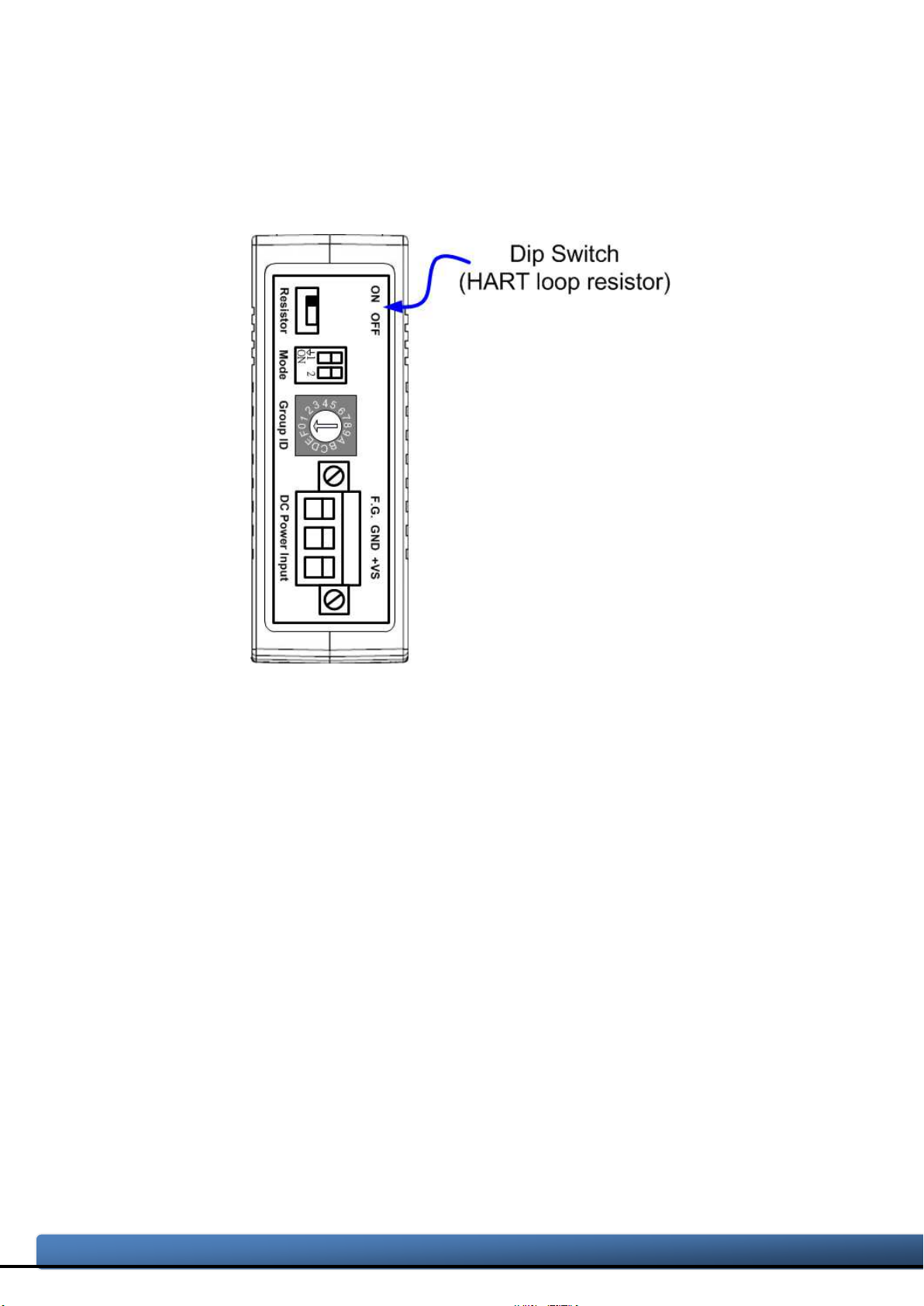

Figure 2-4 The DIP Switch (Resistor) Location
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 12
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
2.6. Dip Switch (Mode)
The dip switch (Mode) is used to switch module firmware function (firmware
operation or firmware update) of HRT-227CS. (The detailed description for firmware
update refers to chapter 5)

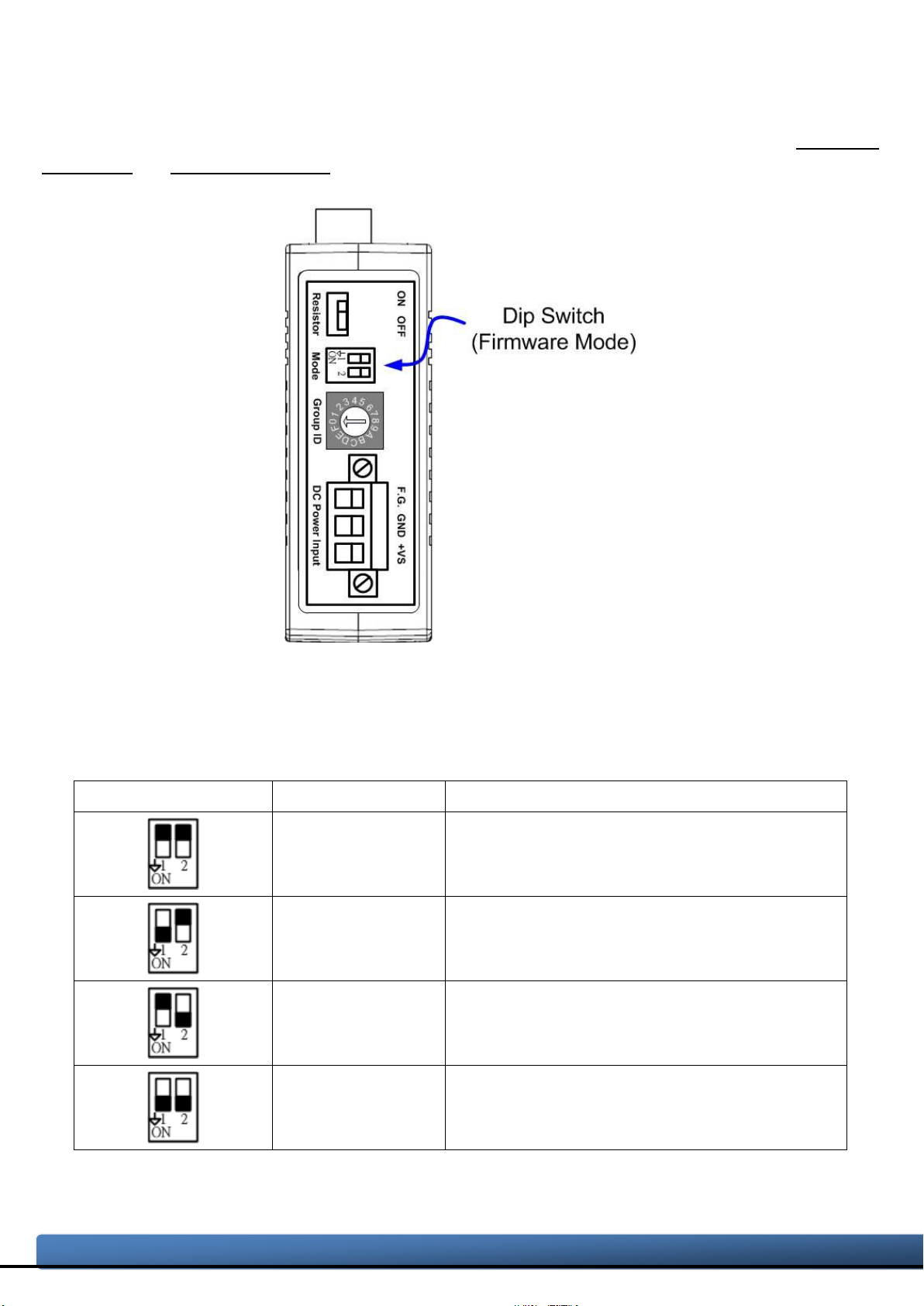

Figure 2-5 The Dip Switch (Mode) Location
There are 4 values on the dip switch and described as the below table.
Table 2-3 Function Description of Dip Switch
Dip Switch State
Value
Function
00
Firmware Operation
01
Reserved
02
Reserved
03
Firmware Update
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 13
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
2.7. Module Group ID
The HART port in HRT-227CS with the same module “Group ID”can communicate
with each other via fiber optics. When using on star topology application, it can be used
to distinguish the different HART networks connected together with fiber switch.
[ Example ]
(1) The above HART network 1 uses two HRT-227CS with Group ID=1.
(2) The below HART network 2 uses two HRT-227CS with Group ID=2.
(3) These two HART networks connected together via HRT-227CS with fiber switch.
The HART network 1 and network 2 can communicate simultaneously without any
interfere.

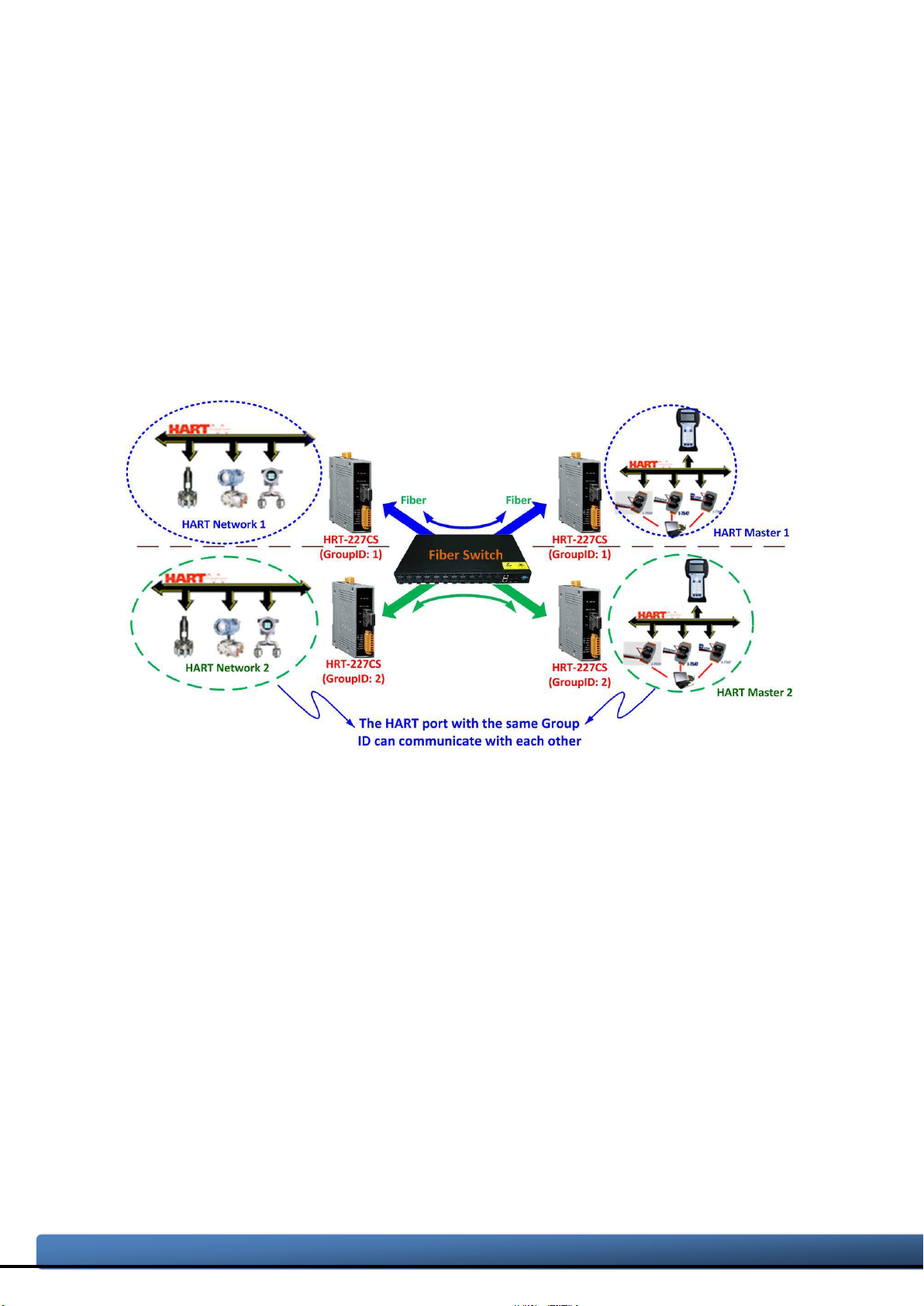

Figure 2-6 “Group ID”application
The “Group ID”value can be set by using rotary switch like Figure 2-7 and the range
is from 0 to F(15).
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 14
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]

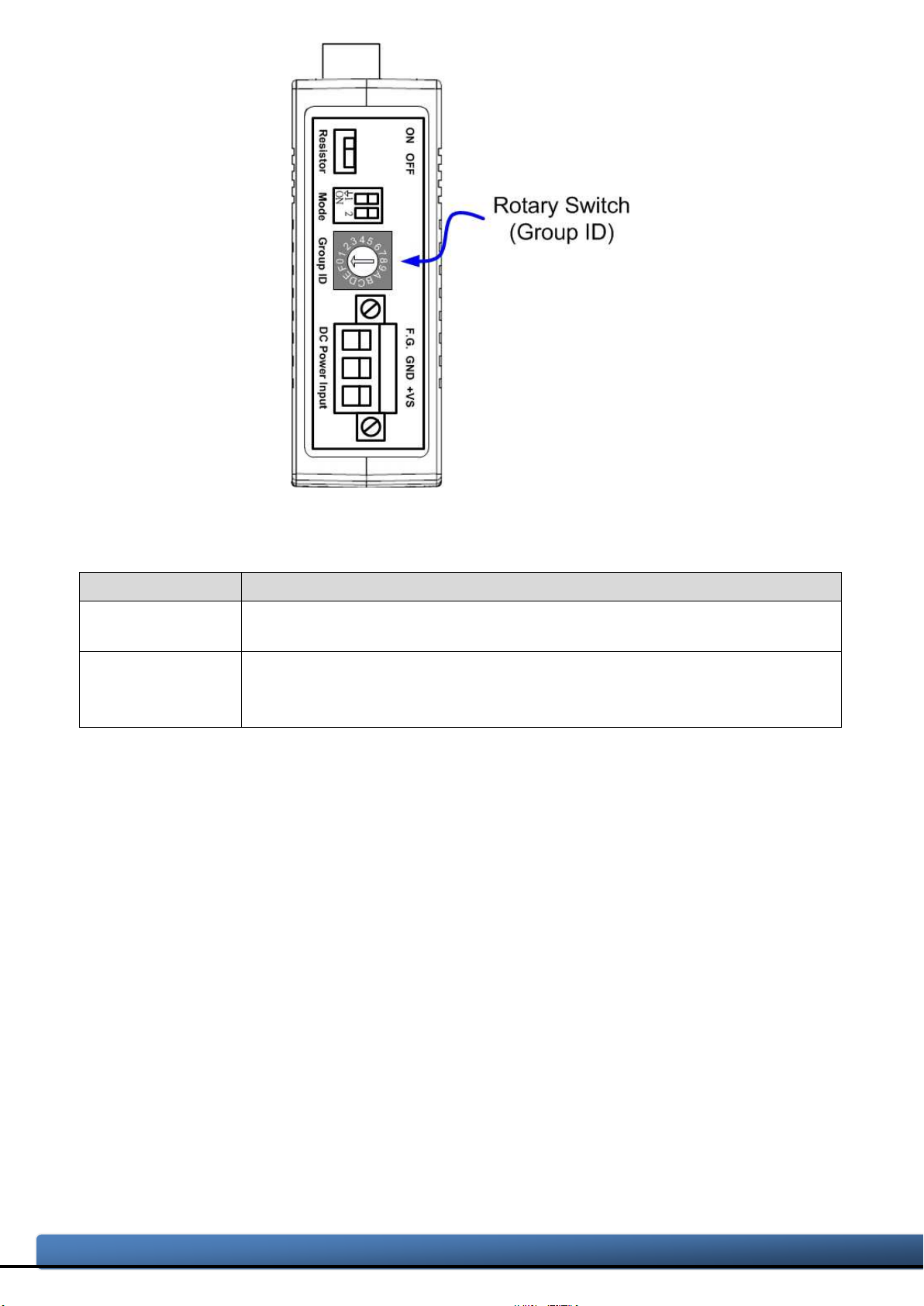

Figure 2-7 The Rotary Switch (Group ID) Location
Table 2-4 Group ID Settings
Switch Value
Description
0x0~0xE
Group ID (by hardware)
(If changed, need to reboot for new setting)
0xF
Group ID (by software, range from 0~255, set by HC_Tool)
(If changed, the new setting will work immediately without
reboot)
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 15
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
2.8. Wire Connection
The wire connection of the HRT-227CS is as below.

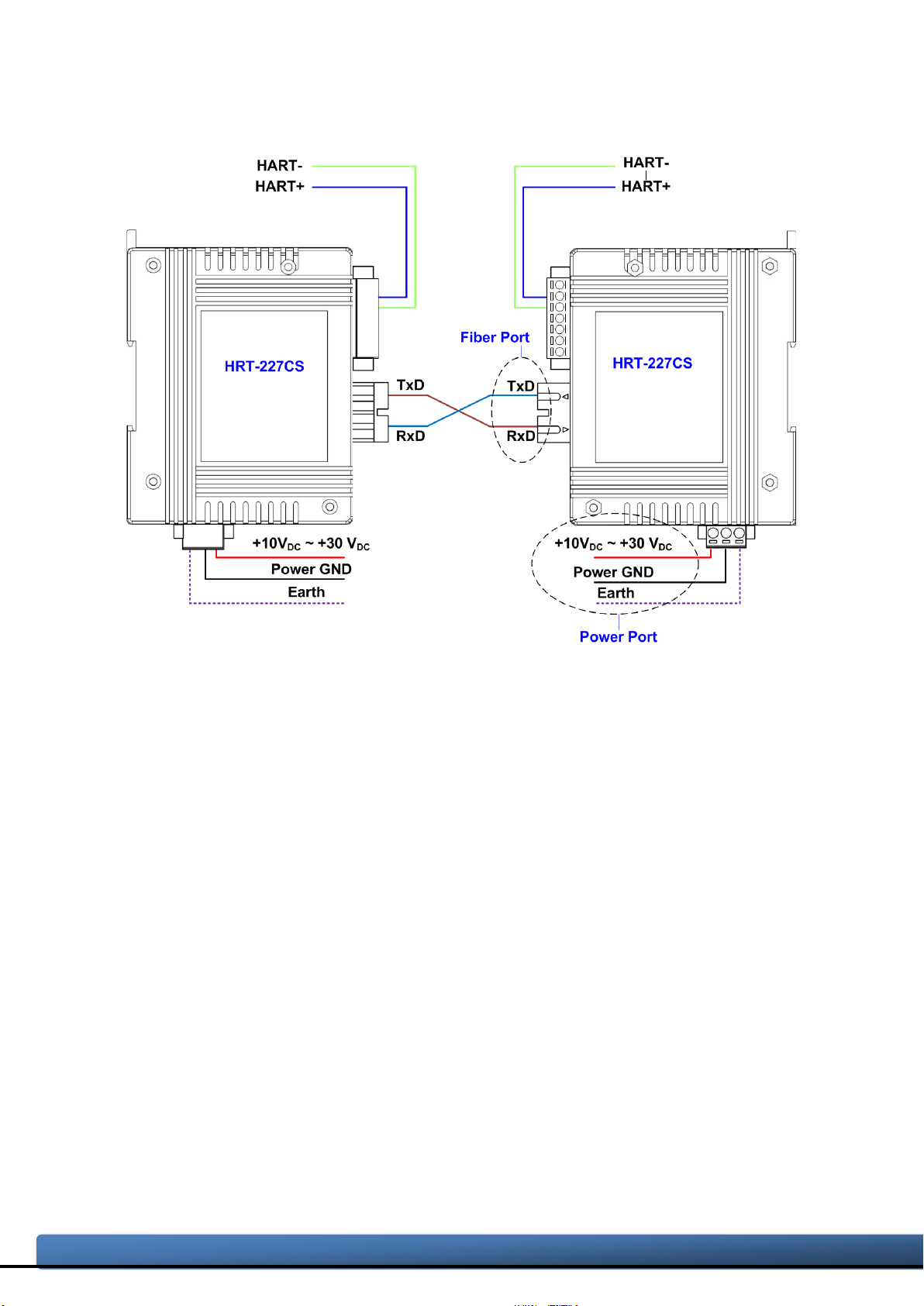

Figure 2-8 Wire Connection for HRT-227CS
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 16
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
3. Cable Selection
3.1. HART Cable Selection
The HART bus is a balanced (differential) 2-wire interface running over a Shielded
Twisted Pair (STP), Un-shielded Twisted Pair (UTP), or Ribbon cable. In general, the
minimum conductor size is 0.51mm diameter (#24 AWG) for cable runs less than 1,500
meters (@ 5,000 ft.) and 0.81mm diameter (#20 AWG) for longer distances. However,
the electrical characteristics of the cable –primarily its capacitance –and the number of

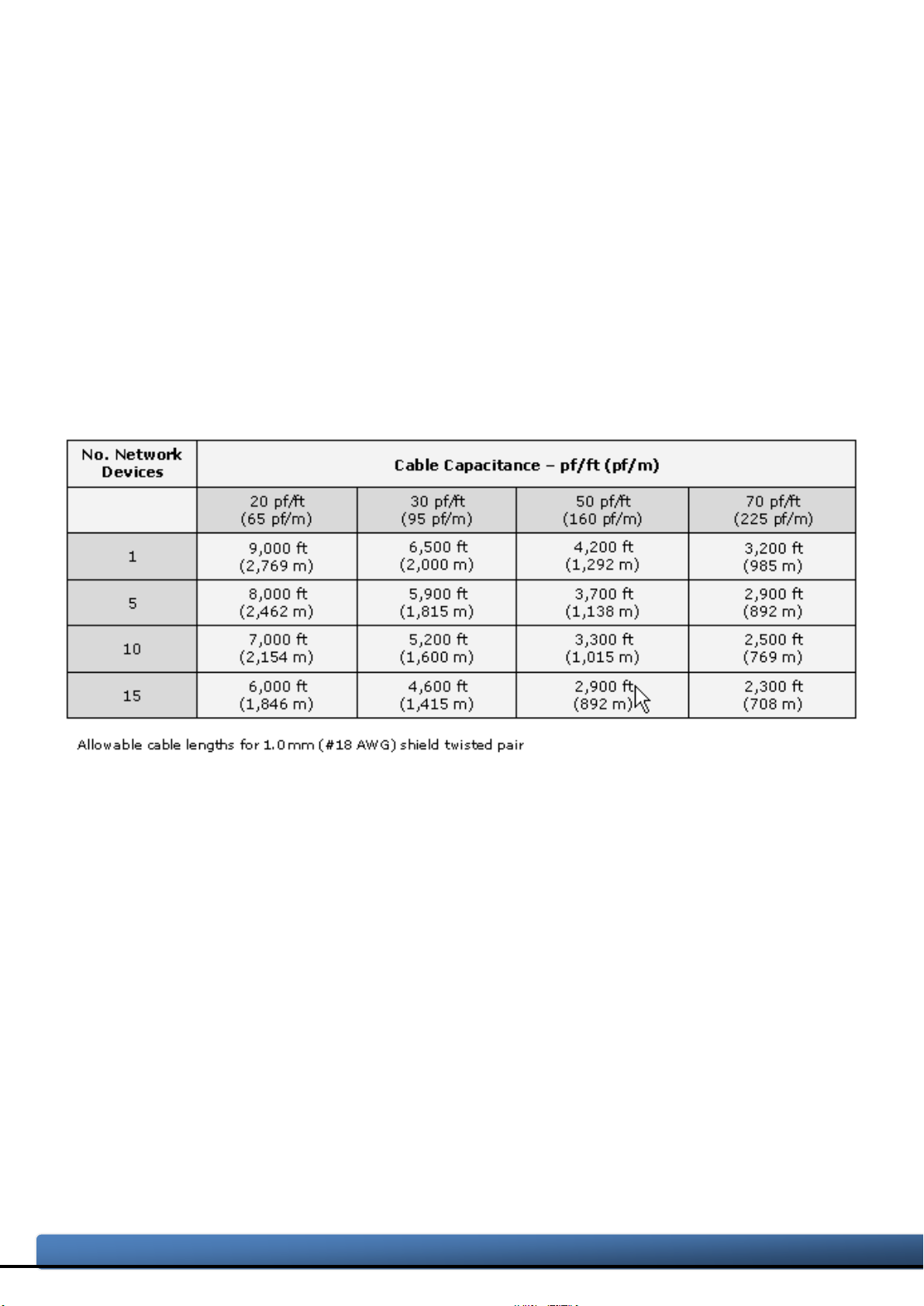

connected devices can affect the maximum allowable cable length. The table below
shows the effect of cable capacitance and the number of network devices on cable
length.
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 17
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
3.2. Fiber Selection & Fiber Length
The specification of fiber cable for HRT-227CS is shown as below table.
Table 3-1 Specification of Fiber
Fiber Type
Diameter [μm]
(Core/Cladding)
Operating
Wavelength [nm]
Single mode
8.3/125, 8.7/125, 9/125, 10/125
1310
The HRT-227CS allows the maximum 30km fiber length. The higher attenuation of
fiber will reduce the transmission distance. The below table is the relationship between
fiber attenuation and length.
Table 3-2 Attenuation & Fiber Length
Module Name
Attenuation
[dB/km]
Allowed Fiber length [km]
HRT-227CS
0.4
30
> 0.4
< 30
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 18
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
4. HC_Tool Utility
HC_Tool utility is provided to configure ICP DAS HART converters (like I-7567 /
I-7570 / I-7547 / HRT-227CS) or transmit / receive HART frame for HART
communication easily and quickly. HC_Tool utility can be downloaded from the ICP DAS
web site : http://ftp.icpdas.com/pub/cd/fieldbus_cd/hart/converter/hrt-227CS/software/
4.1. Set up HRT-227CS
Please follow the below steps to set up HRT-227CS.
Step1:In the product box, the CA-0910 cable can be used to connect the com port
between PC and HRT-227CS together.
(1) Connect the TXD / RXD GND pins together between PC and HRT-227CS.
Figure 4-1 RS-232 wire connection between PC and HRT-227CS
Step 2:(1) Execute HC_Tool, like Figure 4-2.
If users can‟t run “HC_Tool”, please install .NET Framework 3.5 first.
(http://www.microsoft.com/downloads/details.aspx?familyid=333325FDAE5
2-4E35-B531-508D977D32A6&displaylang=en).
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 19
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]
Figure 4-2 HC_Tool Utility

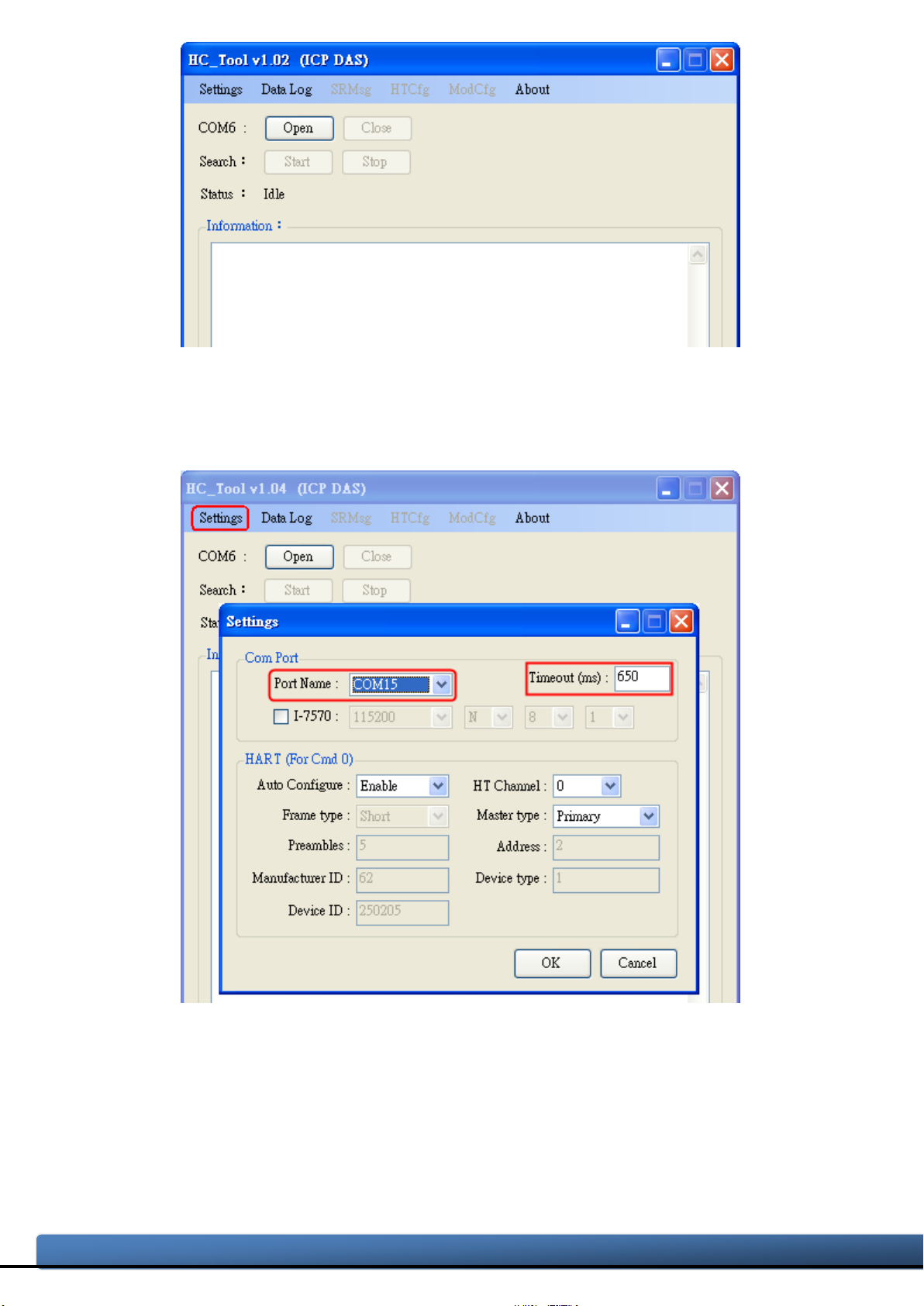

(2) Serial port settings (“Settings”Item)
Please click “Settings” item to open setting window of serial port and choose
the com port number like Figure 4-3.
Figure 4-3 Serial Port No. Setting
Step 3:Click the ”ModCfg” item and choose the “For All”option. Then it will open
module configuration screen like Figure 4-4.
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru

HRT-227CS, HART to Single Mode Fiber Converter (version 1.00) –2015/02/02 Page: 20
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]

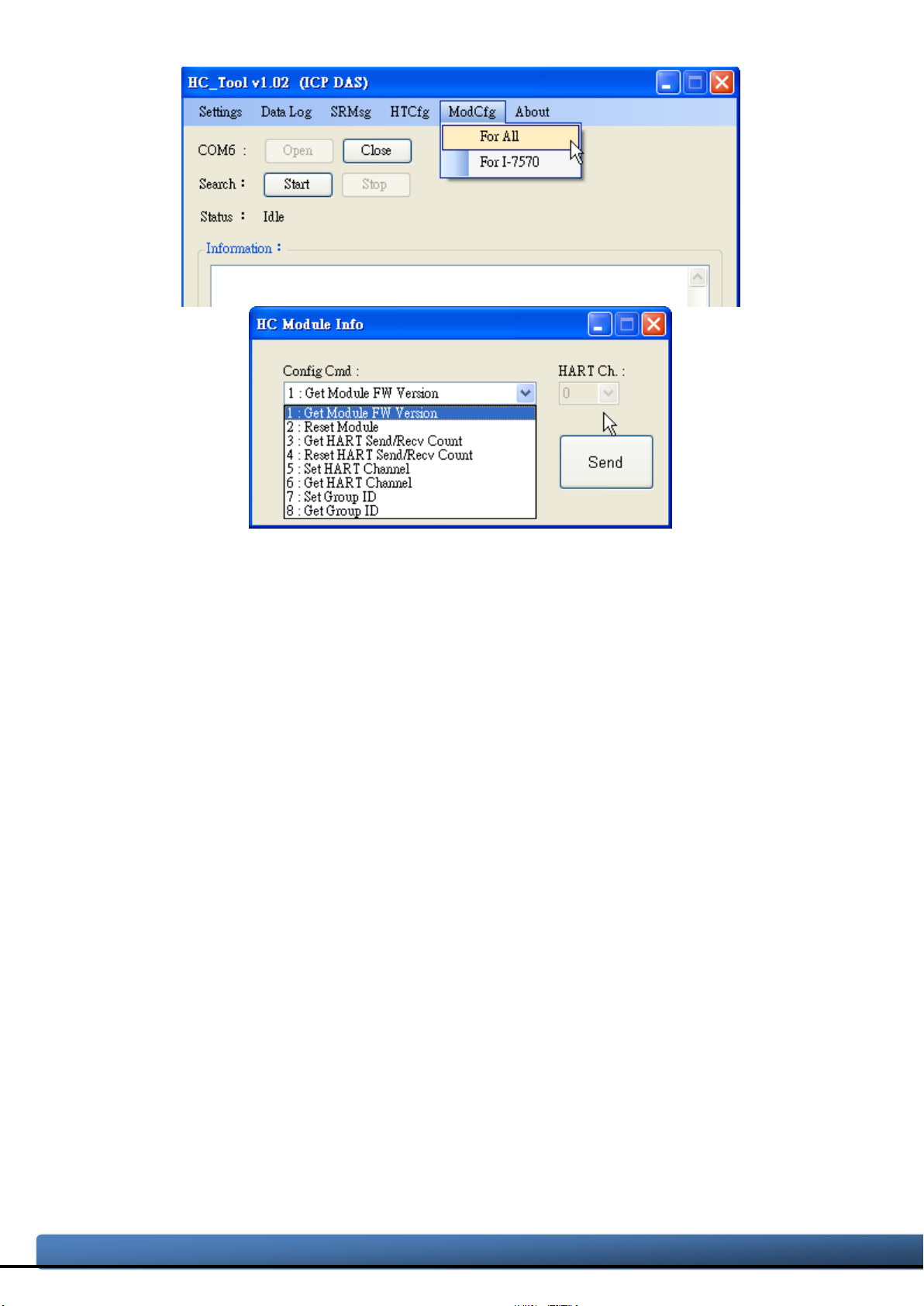

Figure 4-4 “For All” Option - Configuration Screen
(1) “Get Module FW Version”:
=> Return the firmware version of HART converter module.
(2) “Reset Module”:
=> Reset HART converter module.
(3) “Get HART Send/Recv Count”:
=> Return the total count of the sending and receiving HART messages in HART
converter module.
(4) “Reset HART Send/Recv Count”:
=> Reset the total count of the sending and receiving HART messages in HART
converter module.
(5) “Set HART Channel”: (Only for I-7547)
=> Set the HART channel (Range:0 ~ 3) of I-7547 for HART communication by
using ”HART Ch”option.
(6) “Get HART Channel”: (Only for I-7547)
=> Return the current HART communication channel (Range:0 ~ 3) of I-7547.
(7) ”Set Group ID”:
=> Set Group ID (When the rotary switch value is „F‟, it will be enabled and the
range is from 0 to 255).
(8) ”Get Group ID”:
=> Return Group ID.
ГК Атлант Инжиниринг – официальный представитель вРФ иСНГ
[phone] [email protected] www.bbrc.ru
