ICP DAS USA VPD-142-H User manual

VPD-142(N)-H/143(N)-H Quick Start, version 1.0 Last Revised: May 2017 - 1 -
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]m
VPD-142(N)-H/143(N)-H
Quick Start
1Shipping package
Thanks for buying ICPDAS VPD-142-H/143-H Series device. This shipping package contains
the following items:
VPD-142-H/143-H Series x 1 Quick Start x 1 Screw Driver x 1 Panel Mounting kit x 1
2Appearance
LED Indicator
Serial Port
USB
Rotary Switch
VPD-142-H
VPD-143-H
VPD-142N-H
VPD-143N-H
Rubber Keypad
(for VPD-142-H/143-H only)
Reset Button
XV-Board
(optional)
or
Ethernet
(for VPD-143(N)-H only)

VPD-142(N)-H/143(N)-H Quick Start, version 1.0 Last Revised: May 2017 - 2 -
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]m

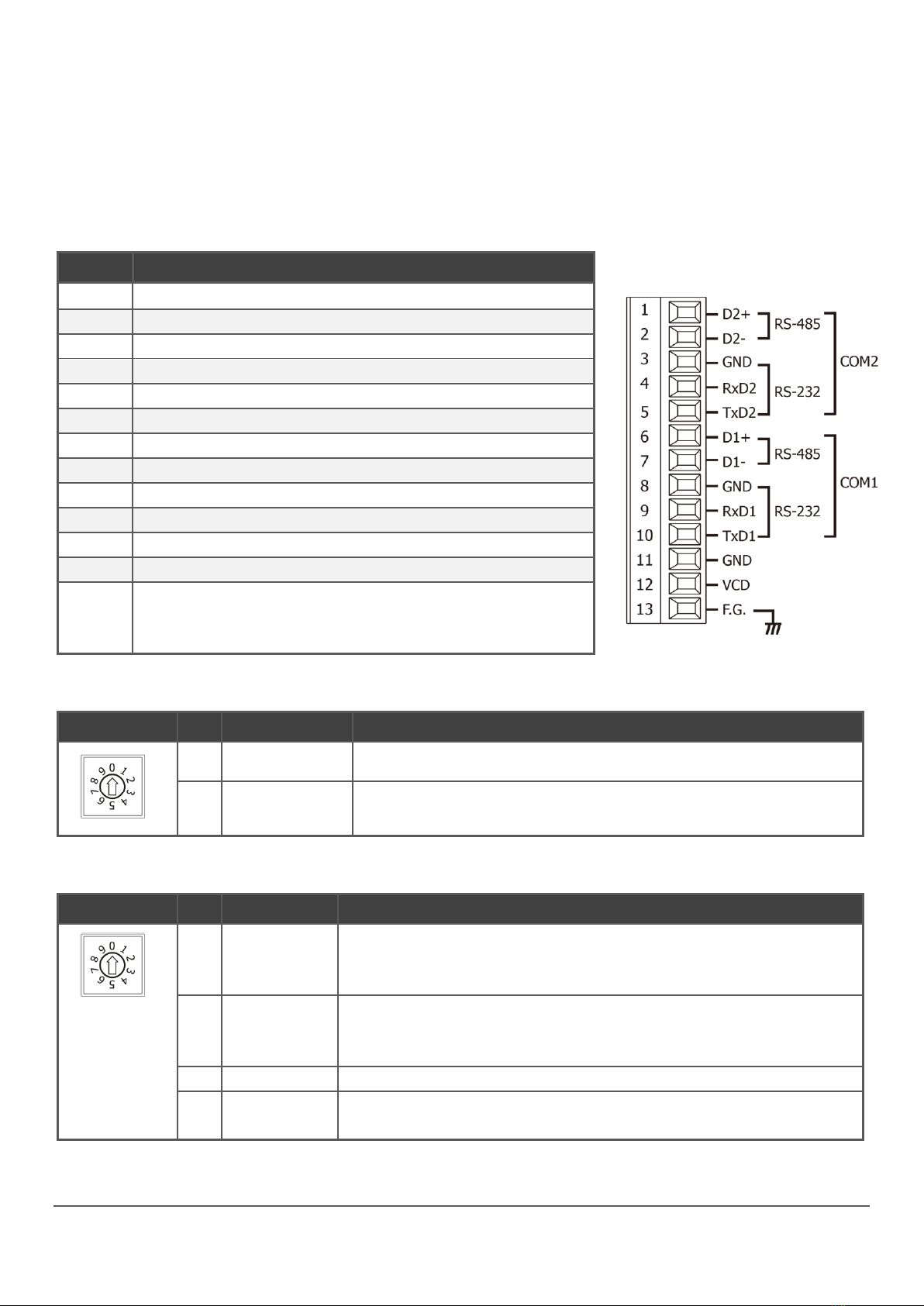

3Pin Assignment
The pin assignments:
Pin
Description
D2+
The positive data line of the RS-485 network
D2-
The negative data line of the RS-485 network
GND
The common ground of the RS-232
RxD2
The pin of received data of the RS-232
TxD2
The pin of transmitted data of the RS-232
D1+
The positive data line of the RS-485 network
D1-
The negative data line of the RS-485 network
GND
Ground pin
RxD1
The pin of received data of the RS-232
TxD1
The pin of transmitted data of the RS-232
GND
Connected to the power supply’s ground pin
VDC
DC input Voltage (range: +12 V ~ +48 V)
F.G.
Frame Ground. F.G. is connected to the inside EMI
or ESD suppression circuits. Make sure that F.G. is
connected to the Earth
The definition of the rotary switch (VPD-142(N)-H):
No
Mode
Description
0
Run Only
This mode is used for running programs.
9
USB Update
Update a new application to the TouchPAD device
through USB.
The definition of the rotary switch (VPD-143(N)-H):
No
Mode
Description
0
Run &
Update
(Ethernet)
This is a special run mode which is used in the
development stage. The TouchPAD device can be
updated by a PC from the remote side through Ethernet.
1
Ethernet
Force
Update
While the application run on the TouchPAD device
seriously crashes, use this mode to update a new
application to the TouchPAD device through Ethernet.
2
Run Only
Run the program.
9
USB Force
Update
Update a new application to the TouchPAD device
through USB.

VPD-142(N)-H/143(N)-H Quick Start, version 1.0 Last Revised: May 2017 - 3 -
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]m
4First Use of the VPD-142/143-H
1. Connect wires as the figure or prepare an Ethernet
cable which will be used to supply power through PoE if
there’s a RJ-45 Ethernet port on it. And set the rotary
switch to zero (At this point, the power is not yet supplied).
2. Supply power to the VPD-142(N)-H/143(N)-H, wait for
several seconds and then you can see the default program
run on it.
3. Try to touch on the icons on the bottom-right corner of the
screen of the VPD-142(N)-H/143(N)-H and you can find
that VPD-142(N)-H/143(N)-H switches to the setting pages.
5Creating First Project
To create your first project of the VPD-142(N)-H/143(N)-H, install the free development tool,
HMIWorks and then refer to <<TouchPAD_programming_quide.pdf>>, which can be found
on the FTP:
http://ftp.icpdas.com/pub/cd/touchpad/document/english/programming_guide/
Use a flat-head
screwdriver to set
rotary switch
GND
VDC (+12~+48V)
External Power
PoE Switch

VPD-142(N)-H/143(N)-H Quick Start, version 1.0 Last Revised: May 2017 - 4 -
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]m
6Hardware Installation

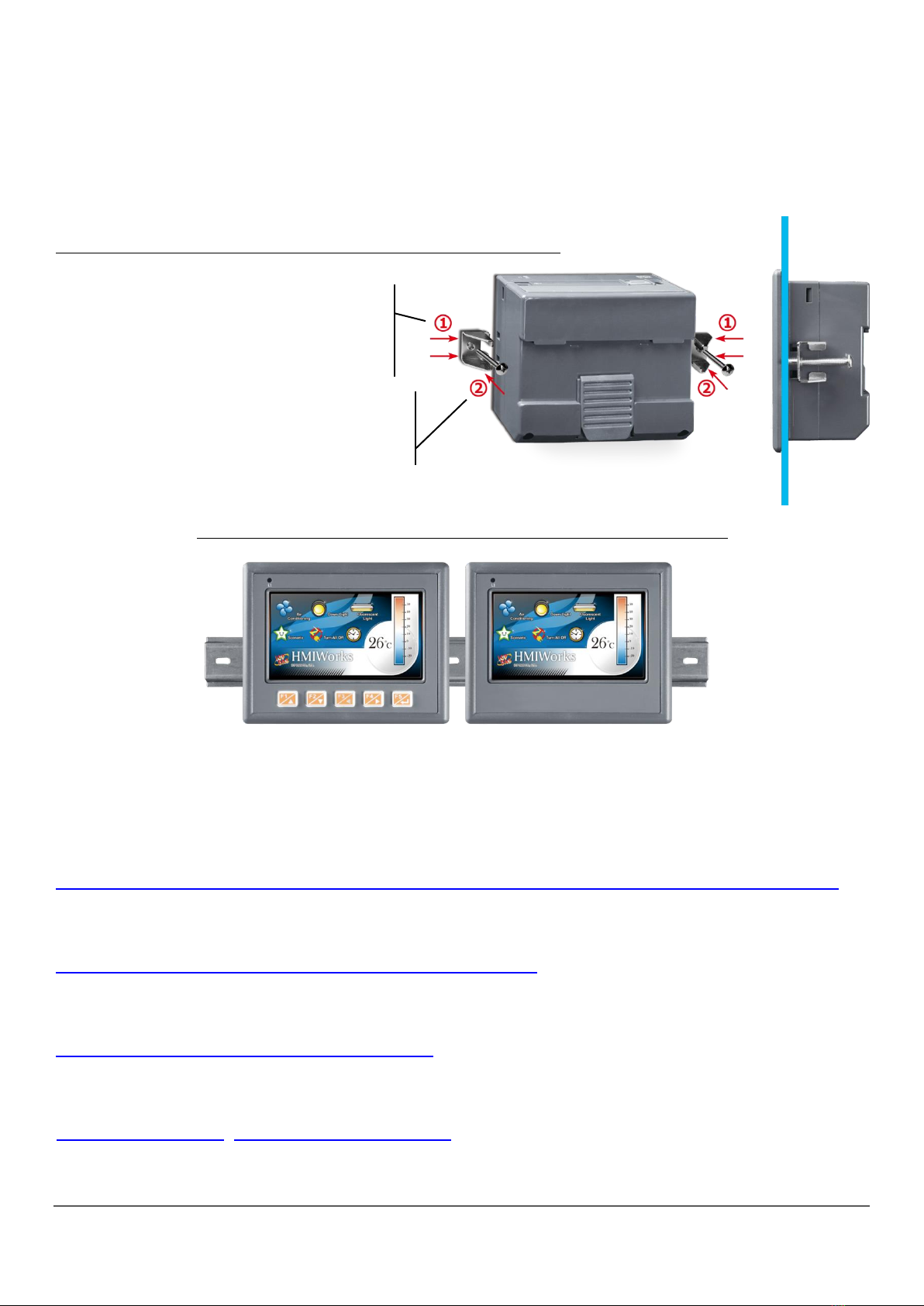

The panel mounting of VPD-142(N)-H/143(N)-H
The DIN-rail Mounting of VPD-142(N)-H/143(N)-H
7Related Information
VPD-142(N)-H/142(N)-H Product Page:
http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/vpd-142-h.html
Documents, such as the user manuals, the API references, etc.:
ftp://ftp.icpdas.com/pub/cd/touchpad/document/english/
Free Development Software, HMIWorks v2.10.10 or above:
ftp://ftp.icpdas.com/pub/cd/touchpad/setup/
If you have any questions, please feel free to contact us via email at:
[e-mail], [e-mail]
Insert the panel mounting clips into
the upper and lower ventilation
holes.
Screw the panel mounting clips to the
panel. (Mounting Screw: M4 x 30L)

VPD-142(N)-H/143(N)-H Quick Start, version 1.0 Last Revised: May 2017 - 5 -
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]m
VPD-142(N)-H/143(N)-H
快速入門指南
1檢查配件
感謝您購買泓格的 VPD-142(N)-H/143(N)-H 產品。產品包裝內應包含下列配件:
VPD-142-H/143-H 系列 x 1 入門指南(本文件) x 1 螺絲刀 x 1 面板安裝組件 x 1
2外觀
LED 指示燈
重啟按鈕
序列埠
旋轉開關
USB
橡膠鍵盤
(VPD-142-H/143-H 僅有)
I/O 擴充卡
XV-Board (選購品)
VPD-142-H
VPD-143-H
VPD-142N-H
VPD-143N-H
或
乙太網路孔
(VPD-143(N)-H 僅有)

VPD-142(N)-H/143(N)-H Quick Start, version 1.0 Last Revised: May 2017 - 6 -
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]m
3腳位定義
序列埠腳位定義:
Pin
說明
D2+
RS-485 網路的正訊號線
D2-
RS-485 網路的負訊號線
GND
RS-232 的接地端
RxD2
RS-232 的接收資料腳位
TxD2
RS-232 的傳送資料腳位
D1+
RS-485 網路的正訊號線
D1-
RS-485 網路的負訊號線
GND
RS-232 的接地端
RxD1
RS-232 的接收資料腳位
TxD1
RS-232 的傳送資料腳位
GND
連到電源的接地端
VDC
直流電壓輸入 (範圍：+12 V ~+48 V)
F.G.
機架接地，F.G. (連接到內部的 EMI 或ESD 保護電
路)，請接到大地。
VPD-142(N)-H 旋轉開關 (Rotary Switch) 的配置模式定義:
項次
模式
說明
0
Run Only
執行程式 (只能執行程式，不能進行更新)。
9
USB Force Update
透過 USB 更新程式。
VPD-143(N)-H 旋轉開關 (Rotary Switch) 的配置模式定義:
項次
模式
說明
0
Run & Update
(Ethernet)
執行/更新程式，用於程式開發階段 (能執行
程式，也能進行更新)。
1
Ethernet Force
Update
強制更新，當 TouchPAD 上的程式嚴重毀損
時可用此模式透過 Ethernet 更新。
2
Run Only
執行程式。
9
USB Force Update
透過 USB 更新程式。

VPD-142(N)-H/143(N)-H Quick Start, version 1.0 Last Revised: May 2017 - 7 -
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]m
4第一次使用 VPD-142/143-H
1. 如左圖所示，將電源和接地線連接完成。或是若有
RJ-45 的乙太網路接孔，可以準備一條網路線，透過乙太網
路供電(PoE)。然後將旋轉開關(Rotary Switch)轉到 0(此
時尚未供電)。
2. 開始供電給 VPD-142(N)-H/143(N)-H，等待約數秒的開機時間，
接著可以看到 VPD-142(N)-H/143(N)-H 執行出貨預附的程式
如圖所示。
3. 試著按一下 VPD-142(N)-H/143(N)-H 螢幕上面的圖示，
VPD-142(N)-H/143(N)-H 會切到其他的頁面。
5建立第一個軟體專案
在建立 VPD-142(N)-H/143(N)-H 的第一個專案之前，請先安裝免費的開發軟體 HMIWorks。然
後參考<< TouchPAD_programming_guide.pdf>>這份文件，一步一步地完成。該份文件可以在
FTP 上找到：http://ftp.icpdas.com/pub/cd/touchpad/document/chinese/programming_guide/
使用一字起子來
配置旋轉開關
GND
VDC (+12 ~ +48V)
外部供電器
PoE Switch

VPD-142(N)-H/143(N)-H Quick Start, version 1.0 Last Revised: May 2017 - 8 -
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: [email protected]m
6硬體安裝
VPD-142(N)-H/143(N)-H 的面板安裝(Panel Mounting)
VPD-142(N)-H /143(N)-H 導軌安裝(DIN-rail Mounting)
7參考資訊
VPD-142(N)-H/143(N)-H 產品網頁:
http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/vpd-142-h_tc.html
相關文件，如使用手冊、API 函數手冊…等:
http://ftp.icpdas.com/pub/cd/touchpad/document/chinese/
免費開發軟體，HMIWorks 版本 2.10.10 或以上版本:
ftp://ftp.icpdas.com/pub/cd/touchpad/setup/
如有任何問題歡迎聯繫我們，我們將會為您提供完善的咨詢服務:
E-mail: [e-mail], service[email protected]
於上下方的通風口，
插入面板固定鋁夾
使用 M4 x 30L 螺絲釘，
鎖緊固定面板及鋁夾
