Quick Start: iCR 3600 Computer Mounting Instructions
1. Attach the Back Computer Mounting bracket to the Computer Mounting Bracket using four (4)
6-32 x 1
4” flathead screws (Figure 1).
Figure 1
2. Align the computer mounting bracket on the back of the cassette tray.
3. Once the screw holes are aligned, fasten the computer mounting bracket to the CR unit using four
(4) 6-32 x 3
8” truss head screws (Figure 2).
Figure 2
1 of 3 Document # F-141 Rev C January 26, 2010

Quick Start: iCR 3600 Computer Mounting Instructions

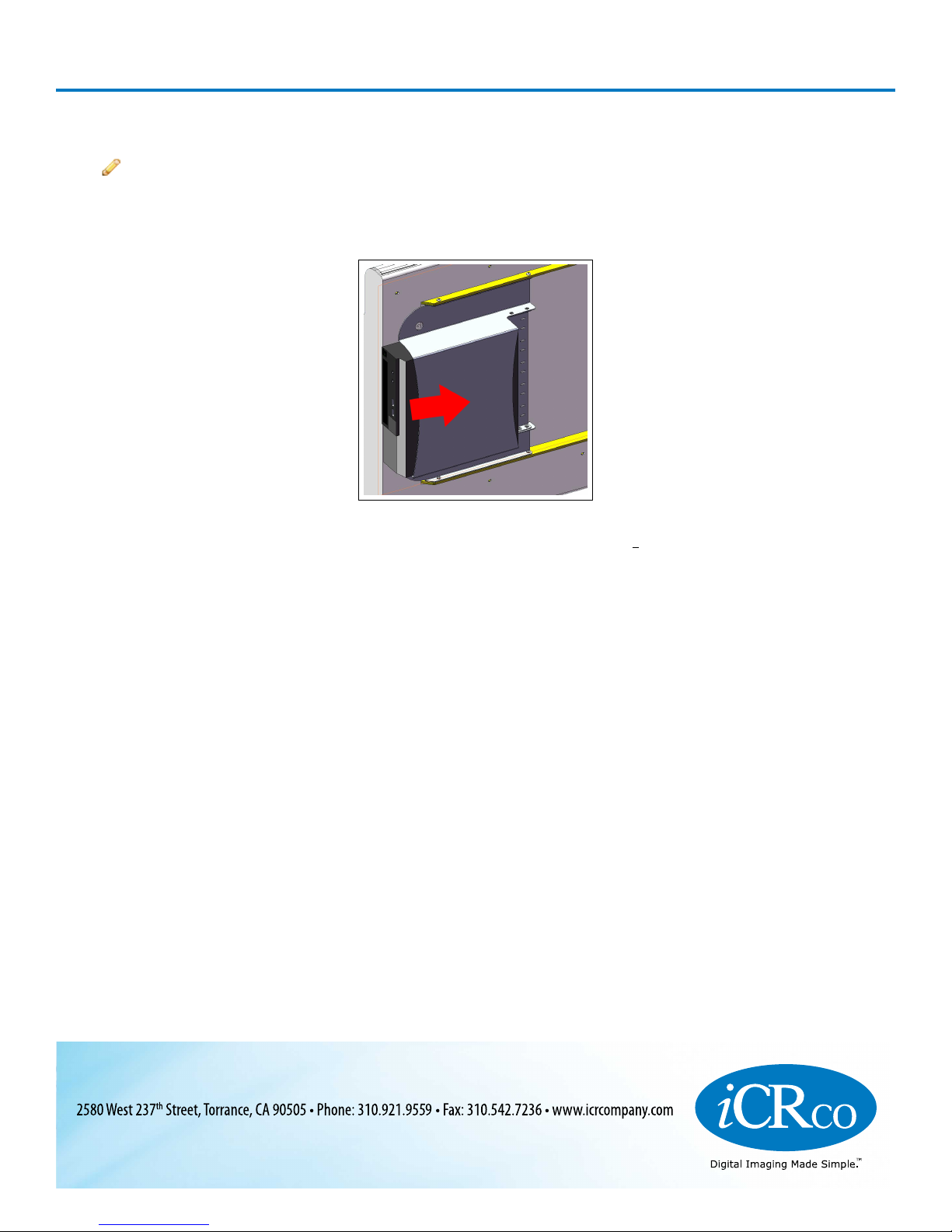

4. Carefully slide the computer into the computer mounting bracket (Figure 3).
NOTE: For easy access to the CD-ROM drive, make sure the drive opens towards the outside of
the unit.
Figure 3
5. Fasten the computer to the mounting bracket using one (1) 8-32 x
3
8
” truss head screws and #10 flat
washer. The computer’s security tab should be in between the washer and the mounting bracket
(Figure 4).
2 of 3 Document # F-141 Rev C January 26, 2010

Quick Start: iCR 3600 Computer Mounting Instructions
Figure 4
