Welcome
Thank you for purchasing our analog camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!

iii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC in the IEC60950-1.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
If this product is installed in the ceiling, please make sure the installation position can sustain the min
50N.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series analog camera should be installed in a cool, dry place away from direct sunlight or strong
light, inflammable, explosive substances and etc.
The working temperature ranges from -30℃to +60℃. Please keep it away from the electromagnetic
radiation object and environment.
Please make sure the CMOS component is out of the radiation of the laser beam device. Otherwise it
may result in CMOS optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
6. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
7. Daily Maintenance

iv
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the
mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.
Please put the dustproof cap to protect the CMOS component when you do not use the camera.

1
1General Introduction
1.1 Overview
This series megapixel analog HD camera conforms to the HD-AVS standard. It supports video
signal high-speed long distance transmission without any delay. It can be controlled by the
DVR conforming to the HD-AVS.
1.2 Features
High-performance CMOS image sensor, megapixel definition.
HD video, coaxial cable to transmit the control signal.
Support 75-3 coaxial cable transmission without any loss. Transmission distance is over
500m.
Support analog HD and standard definition switch.
Support 720P@25, 720P@30, 720P@50, 720P@60.
High speed, long distance real-time transmission.
Support OSD (on-screen display), suitable for user self-defined setup.
Support DC12V power supplying.
Support 3D noise reduction(denoise),excellent performance in low illumination
environment.
IP66 compliance.
Support ICR switch to realize surveillance both in the daytime and at night.
Support intelligent IR function.
1.3 Functions
HD-AVS Specification
HD-AVS（High Definition Analog Video System）is an over-coaxial –cable analog HD video
transmission standard. The technology renders two HD video formats by progressive scanning.
OSD
User-friendly on-screen display for you to select the different functions.
ICR
The IR cut removal is to filter the IR light in the daytime and then auto switch to the general
fitter at night. This function allows the camera to output the high sensitivity and clear video.
Smart IR technology
The sensor controls the IR light on/off via the combination work of the hardware and software,
which realizes the automatically IR light compensation according to the environment
illumination.
1.4 Specifications
Please refer to the following sheet for specification.

2
Model
Parameter
1 Megapixel HD-AVS Analog Camera
AVS-D2110
AVS-B2100
AVS-B2110
Video Processor
1/3" 1.3 Megapixel CMOS
Video Format
PAL/NTSC
Effective Pixel
1280(H)×960(V)
Min Illumination
Color: 0.01Lux/F1.2（0 Lux with IR）
Electronic Shutter
PAL：4/25s～1/45,000s
NTSC：4/30~1/54,000s
Video Standard
HD-AVS/CVBS compliance
Video Frame Rate
1280×720@25 fps；1280×720@30 fps；
1280×720@50 fps；1280×720@60 fps
Lens Port
M12
Lens Type
2.8/3.6/6/8mm optional
Day/Night Switch
ICR mechanical auto switch
Video Output
1-channel BNC analog high definition video output/ CVBS analog standard
definition video output (Can switch.)
Denoise (Noise
Reduction)
Support 3D denoise.
OSD Menu Control
Support
OSD
EXPOSURE
Global/centre/Centre weight/BLC/Front light/Distinguish
WHITE
BALANCE
AWB-GW/AWB-CCT/AWB-PRO/AWB-TEMPROAL/AWB-AI/AWB-SZ
DAY/NIGHT
Auto/B&W/Color
FUNCTION
3DNR
ADVANCED
Mirror/Language/RS485/Video format/Version/
Sharpness/Contrastness/Saturation/Brightness
EXIT
SAVE/CANCEL/RESET
Max IR Distance
20m
30 m
20 m
Transmission
Distance
Over 500m via 75-3 coaxial cable.
Protection Level
IP66
Working Temperature
/Humidity
-30℃~+60℃. Humidity is less than 95%(no condensation)
Power
DC 12V±10%
Power Consumption
3.5W MAX (Input:
12V 0.29A)
6W MAX
(Input: 12V 0.5A)
4.2W MAX
(Input: 12V 0.35A)
Dimension(mm)
Φ113.6×85.4
200.2×89.1×80.4
φ65.0×154.7
Weight
300g
450g
380g
Installation Mode
Wall mount
In-ceiling mount
Wall mount

3

4
2Framework
2.1 Dimensions

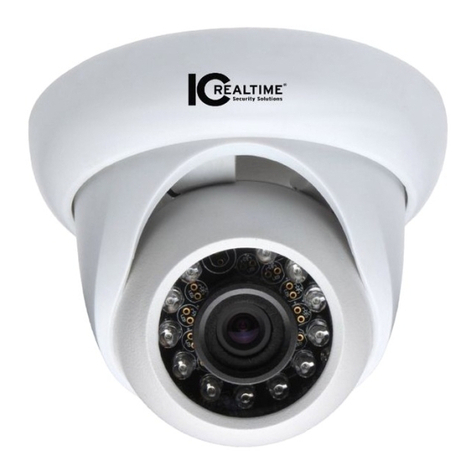

2.1.1 AVS-D2110
Please refer to the following figures for the dimension information. The unit is mm. See Figure
2-1.
Figure 2-1
2.1.2 AVS-B2100
Please refer to the following figures for the dimension information. The unit is mm. See Figure
2-2.
Figure 2-2
2.1.3 AVS-B2110
Please refer to the following figures for the dimension information. The unit is mm. See Figure
2-3.

5
Figure 2-3
When the standard definition/high definition switch control cable is short circuit, system outputs
standard definition video. Otherwise, when the circuit is open, system outputs the high
definition video.

6
3Installation
Important
Before the installation, please make sure the installation surface can sustain at
least 3X weight of the bracket and the camera.
3.1 IR Waterproof Dome Camera
Step1
Please take the installation position map in the accessories bag, and then paste it on the
ceiling or the wall according to your monitor area requirements. Draw and then dig three holes
in the installation surface and then insert three expansion bolts in the holes. Secure these
three bolts firmly.
Step 2
Turn counter clockwise to remove the decoration ring. Please dig a “cable exit hole”in the
surface according to the installation position map if you want to draw out the cable from the top
of the installation surface. You need to draw out the cable from the cable channel side port of
the pedestal if you want to draw out the cable from the side port of the cable channel. Adjust
the device installation pedestal to the proper position and then draw the cable through the
cable exit. Line up the three screw holes in the device pedestal to the three plastic expansion
bolt holes in the installation position. Put the three self-tapping screws in the three plastic
expansion bolts firmly. Now the dome camera is secure in the installation surface. See Figure
3-1.
Figure 3-1
Step 3
Adjust the lens to get the clear monitor video. See Figure 3-2. Use crosshead screwdriver to
loosen the screw and the turn the camera body to the proper position manually. Fix the screw
again.

7
Important
Do not remove the screw. Loosen a little bit will be OK. Please secure after you completed the
setup.
Figure 3-2
Step 4
Line up the bulge of the decoration ring to the nick of the camera body and install along the tilt
installation. Push and then turn decoration ring clockwise. The installation completed after you
secure the decoration ring. You need to use the proper tool to open up the side port of the U-
cable channel of the decoration ring if you want to draw out the cable from the side port of the
cable channel when you are installing the device cable. And then you can draw out the cable
from the cable channel of the pedestal. Finally you can install the decoration ring to complete
the installation. See Figure 3-3.
Figure 3-3
3.2 General Fixed Camera Installation

8
This series product supports wall-mount. Please refer to the steps listed below for installation
information.
Step 1
Please dig four installation holes in the installation surface according to the four holes of the
bottom of the bracket. Insert four expansion bolts from the accessories bag into the holes and
then use four self-tapping screws to secure the bracket on the installation surface. See Figure
3-4.
If you want to install in the wood surface, please skip the first step and then use the self-
tapping screws to install the bracket directly.
Figure 3-4
Step 2
Use the inner hex wrench from the accessories bag to loosen the side panel of the bracket and
two hex knobs at the bottom. Adjust the camera to the proper monitor area and then secure
the knobs of the bracket to fasten the camera.
Step 3
Connect the video output port of the device cable to the rear-end encode device such as DVR
or NVS. Then connect the power port of the device cable to the corresponding power
supplying source.
Now you have completed dome camera installation and cable connection.
You can use the rear-end device to view the monitor video.
3.3 Mini IR Waterproof Fixed Camera Installation
In Figure 3-5, ①Installation surface；②Bracket；③Screws；④Camera.
Step 1
Dig three holes in the installation surface of the wall or the ceiling. Insert three expansion bolts
to the three holes and then lock firmly.

9
Figure 3-5
Step 2
First prepare the cable according to the cable. Line up the three screw holes at the bottom of
the bracket to the three installation holes in the wall or the ceiling, and then insert three screws
to the three holes of the chassis of the bracket and fix them firmly. Now secure the bracket on
the installation surface of the wall or the ceiling.
Step 3
Adjust the camera to the proper monitor area via the three directions indicated in Figure 3-6
after you fixed the camera.
Figure 3-6
Step 4
Connect the device video output port to the terminal devices such as the DVR, NVS and etc.
Then connect the power cable to the device.
Now you have completed the device installation and cable connection.

10
You can use the terminal encode devices to view the monitor video.

11
4Menu
4.1 Menu List
The 1st Menu
The 2nd Menu
The 3rd Menu
EXPOSU
RE
AE
MODE
GLOBAL
CENTRE
CENTRE
WEIGHT
BLC
FRONT
LIGHT
DISTINGUI
SH
RETURN
WB
MODE
AWB-GW
AWB-CCT
AWB-PRO
AWB-
TEMPROAL
AWB-AI
AWB-SZ
DAY
&NIGHT
AUTO
B&W
COLOR
FUNCTI
ON
3D-NR
ON/OFF
RETURN
ADVANC
ED
MIRROR
OFF/HORIZ
ONTAL/VER
TICAL/H&V
LANGUA
GE
ENGLISH
RS485
ADDRESS
1-254
BAUD RATE
2400-115200
PROTOCOL
PELCOP/PELC
OD/DH-SD
VIDEO
720P@25
/
720P@30
/
720P@50
/
720P@60）
VERSIO
N
XXXXXXXX
RETURN
SHARPN
ESS
DETAIL
AUTO/MANUAL
VALUE
0-15（For
manual mode
only）

12
The 1st Menu
The 2nd Menu
The 3rd Menu
EDGE
AUTO/MANUAL
VALUE
0-15（For
manual mode
only）
RETURN
CONTRA
ST
0-255
SATURA
TION
0-15
BRIGHT
NESS
70-250，
+10
RETURN
EXIT
SAVE
CANCEL
RESET
4.2 Note
Parameter
Function
3D NR
It is to reduce video noise. The larger the number is, the lower
the noise is. The details of the video may disappear if the value
here is too large.
Contrast
It is to adjust video contrast.
The larger the number is, the higher the contrast is. You can
use this function when the whole video bright is OK but the
contrast is not proper. Please note the video may become hazy
if the value is too low. If this value is too high, the dark section
may lack brightness while the bright section may over exposure.
Saturation
It is to adjust video saturation.
The larger the number, the strong the color is. This value has
no effect on the general brightness of the whole video. The
video color may become too strong if the value is too high. For
the grey part of the video, the distortion may occur if the white
balance is not accurate. Please note the video may not be
attractive if the value is too low.
Sharpness
The value here is to adjust the edge of the video. The larger the
value is, the clear the edge is and vice versa. Please note there
is noise if the value here is too high.
Exposure
Front light: It is to automatically enhance video brightness
by specified value when the whole video is too dark. It is to
get clear and bright video.
Distinguish: It is the customized exposure mode. There are
total nine exposure zones and each zone has its own
specified value.

13
Appendix Toxic or Hazardous Materials or Elements
Component
Name
Toxic or Hazardous Materials or Elements
Pb
Hg
Cd
Cr VI
PBB
PBDE
Circuit Board
Component
○
○
○
○
○
○
Device
Construction
Material
○
○
○
○
○
○
Wire and Cable
○
○
○
○
○
○
Packing
Components
○
○
○
○
○
○
Accessories
○
○
○
○
○
○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials
in the parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all
homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006
standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous
substance or elements contained in products will not leak or mutate so that the use of these
(substances or elements) will not result in any severe environmental pollution, any bodily injury
or damage to any assets. The consumer is not authorized to process such kind of substances
or elements, please return to the corresponding local authorities to process according to your
local government statutes.
Note
This manual is for reference only. Slight difference may be found in the user
interface.
All the designs and software here are subject to change without prior written
notice.
All trademarks and registered trademarks mentioned are the properties of their
respective owners.
If there is any uncertainty or controversy, please refer to the final explanation of
us.
Please visit our website or contact your local service engineer for more
information.
