1 Introduction
The ICT Protege System is a powerful integrated alarm and access control management system designed to
provide integration with building automation, apartment complex control and HVAC in one flexible package.
Communication is over a proprietary high speed protocol across an encrypted local area network and AES
Encrypted Proprietary RS-485 module network. Using modular-based hardware design, system installers have
the flexibility to accommodate any installation from small to large, residential or commercial.
The Protege 16 PGM Output Expander extends the number of PGM outputs by 16. All 16 PGM Outputs feature
7A FORM C High Current Relays with fire control and power supply cut off integrated.
Flexible module network architecture allows large numbers of modules to be connected to the RS-485 Module
Network. Up to 250 modules can be connected to the Protege System in any combination to the network up to
a distance of 900M (3000ft). Communication beyond this distance requires the use of a RS-485 Network
Extender or the Slave Communications Port on a PRT-RDI2 or PRT-RDE2 Reader Expansion Module for simple
cost effect integrated elevator floor control with local autonomous operation. Locking a network prevents the
removal, substitution or addition of modules to the module network effectively preventing any tampering with the
system.
The current features of the Protege 16 PGM Output Expander include:
 Secure Encrypted RS-485 Module Communications
 16 High Current FORM C PGM Outputs
 1 Open Collector Status Output
 1.5A Switching Power Supply
 Intelligent Battery Charge and Monitoring
 Online and Remote upgradeable firmware
 Optically Isolated Fire Control Input For Elevator Systems
For more information on theProtege 16 PGM Output Expander and other Integrated Control Technology
products please visit the ICT website (http://www.ict.co).

6PRT-PX16-PCB Protege 16 PGM Output Expander Installation Manual | June 2017
2 Installation
2.1 Package Contents
When receiving the PRT-PX16 Protege 16 PGM Output Expander you should find the kit contains the items
listed below. When receiving this product you should find the kit contains the items listed below. If you do not
have the correct contents, please contact your distributor immediately.
PRT-PX16-PCB - Protege 16 PGM Output Expander PCB Only
 PGM Output Expander Printed Circuit Board
 6 X Plastic Mounting Standoffs
 Red/Black Backup Battery Wires

2.2 Location and Mounting
The PGM Expander is available as a PCB Only (Printed Circuit Board) or complete unit supplied with a metal
cabinet. We recommend that the cabinet is used wherever possible as this provides the best mounting and
installation solution as well as the required cable entry and termination space.
When installing the PGM Expander ensure that there is adequate clearance around all sides of the enclosure
and air flow to the vents of the enclosure are not restricted.
We recommend the PGM Expander is installed in a location that will facilitate easy access for wiring. We also
recommend that the PGM Expander is installed in electrical rooms, communication equipment rooms, closets or
in an accessible area of the ceiling.
1. Insert the plastic stand-offs in to the locations to mount the PCB board.
2. Calculate the location and position of the enclosure and mark the holes for the keyhole points in the top left
and right locations. This will allow you to screw in the screws and then hang the box on them adjusting the
location to suit.
3. Ensure a solid fixing point and screw in the two screws. Before tightening the top screws insert the tamper
bracket in the slot provided on the right side of the enclosure.
4. Fix the enclosure securely using the remaining mounting holes on the bottom left, right and centre of the
enclosure.
5. Insert the PCB in to the enclosure and mount using the plastic standoffs inserted during step one.
i
Install the enclosure when the circuit board is NOT installed on the plastic stand-offs. This will reduce
the risk of damage caused by debris during the installation process.


PRT-PX16-PCB Protege 16 PGM Output Expander Installation Manual | June 2017 7
2.3 Cabinet Tamper Switch
The enclosure tamper input signals to the monitoring station or remote computer that the Analog Output
Expander enclosure has been opened. The tamper input switch shall be mounted into the steel bracket
provided and connected to the tamper connection terminals as shown in the diagram below. The tamper input
opens and closes trouble zone PXxxx:01 on the Analog Output Expander.
Bracket
Tamper Switch
AC AC ST TP TP
Tamper Input Connection

2.4 Earth Ground Connection
The Analog Output Expander has a connection for earth ground. For best results a cold water pipe should be
used with a pipe wiring clamp. If a cold water pipe is not available, connect to a suitable ground connection in
the installation. A minimum 14AWG solid copper wire shall be used from the Analog Output Expander's earth
connection point to the clamp on the cold water pipe. If other earth clamps are present at the same connection
point connect the clamp below the existing units.
To other earth connecons already
aached to the earth peg or water
pipe
Cold water pipe grounding earth
peg grounding rod
AC AC ST TP TP
Main Earth Ground Connections


8PRT-PX16-PCB Protege 16 PGM Output Expander Installation Manual | June 2017
2.5 AC Power
The Protege PGM Expander should be supplied by a dedicated electrical power source rated for a minimum
10Amp Load and have a dedicated circuit breaker. Do not use a switch controlled breaker or a switched
electrical point to supply electrical power. Connect the primary of a 16.5VAC, 50/60Hz, 40VA Transformer to
the electrical circuit and run the secondary to the AC input on the controller terminals.
Transformer
Mains Input
AC AC ST TP TP
AC Transformer 16VAC, 50/60Hz, 40VA MAX
Specific regional regulations may allow the transformer to be mounted inside the enclosure. In this case wire the
electrical circuit to the electrical termination point inside the enclosure and the secondary wires of the
transformer to the AC Input on the controller.
i
Termination of wiring to the PGM Expander while power is applied or the battery is connected may
cause serious damage to the PGM Expander and will VOID ALL WARRANTIES OR GUARANTEES.
Power the PGM Expander ONLY after all wiring, configuration and jumper settings are completed and
verified.

2.6 Backup Battery
It is recommended that a minimum of a 4Ah battery is used as the main backup battery. From the accessory
bag provided, connect the RED and BLACK battery termination wires to the B+ and B- terminals. Connect the
spade terminals to the battery as shown below. Connection of the battery in reverse will not damage the PGM
Expander but will cause the battery fuse (5A Fast Blow) to blow and require replacement.
Gel Cell Backup Baery
+
-
AC AC ST TP TP
+_
BATT
Battery Connection

PRT-PX16-PCB Protege 16 PGM Output Expander Installation Manual | June 2017 9
The battery test procedure uses a special algorithm to prevent deep discharge and increase battery endurance.
A dynamic battery test is performed every ten minutes when AC power is present and a battery condition alarm
will be generated if the battery is either disconnected or shows poor capacity. Battery fault conditions will
activate the battery trouble zone associated with the address assigned to the PGM Expander.
If AC is not present the Protege PGM Expander will monitor the battery for a low voltage level and will activate
the battery trouble zone. The next dynamic battery test will occur 30 minutes after AC power has been restored.
This delay allows the battery to achieve optimal charging during the first 30 minutes when power is initially
restored to the unit. Once the first test is completed the dynamic battery testing will return to 10 minute
intervals.
When power is first applied to the Protege PGM Expander a dynamic battery test will be performed after 30
seconds, this allows the status and condition of the battery to be detected. On completion of this first test the
normal testing period of 10 minutes will be resumed.

2.7 Status Indicator
The status output will activate according to the status indicator on the Protege PGM Expander and can be used
to provide signalling or indication of the PGM Expander status outside the enclosure. The following diagram

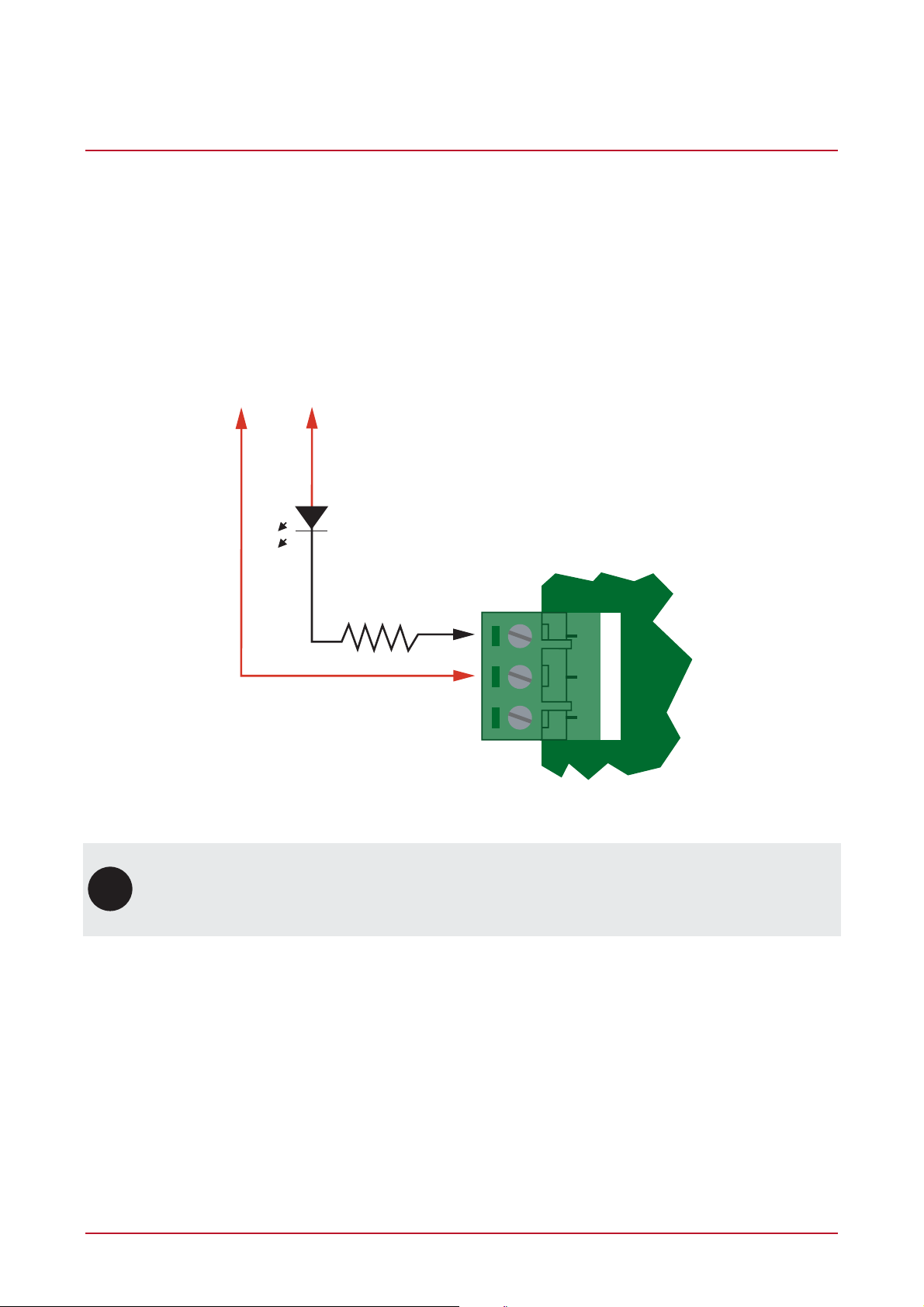

shows the connection of an LED indicator to the status output.
1K5 OHM
LED
AC AC ST TP TP
+12V AUX
External Status LED Connection


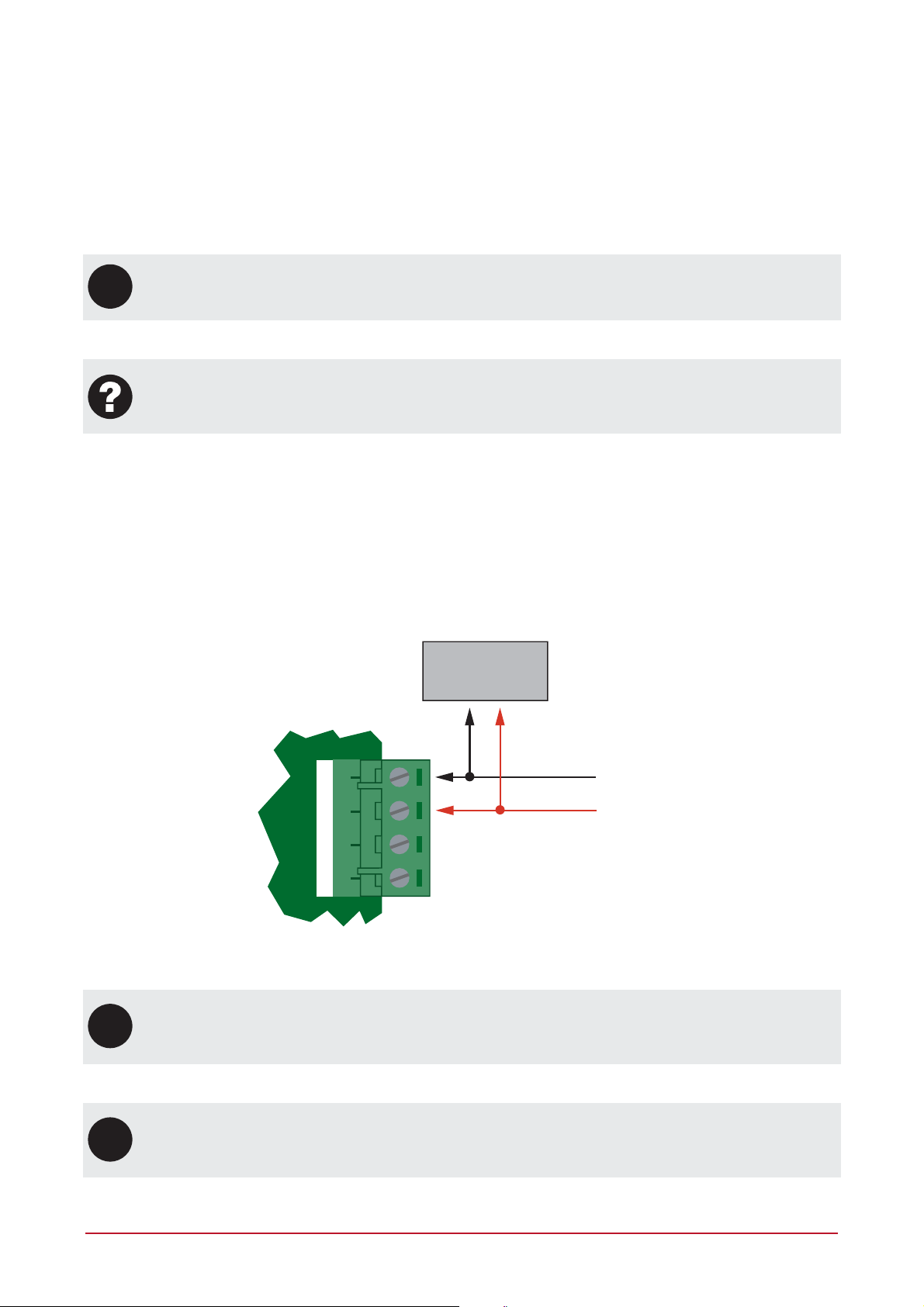

2.8 Encrypted Module Network
The Protege PGM Expander incorporates encrypted RS-485 communications technology. The isolated
communications interface offers full galvanic isolation to prevent ground loop noise and cross phase ground
differential between network devices.
NAN+ N- NB
Network communicaons input
from the Protege Integrated
System Controller or previous
Protege module
Standard Communication Connection
Connection of the communications should be performed according to the diagram shown above. It is important
that the N+ Network Communications Power be supplied from an independent battery backed power supply
unit or a networked module capable of supplying the required voltage to all devices on the RS485 network.

10 PRT-PX16-PCB Protege 16 PGM Output Expander Installation Manual | June 2017
Always connect the PGM Expanders NA and NB terminals to the NA and NB terminals of the communication
network. The N+ and N- must go to a 12V power supply source as shown in the following diagram and
connected at ONLY one +12V power source.
NAN+ N- NB
NAN+ N- NB NAN+ N- NB
+AUX- Z1 COM COMZ2 Z3 Z4
Protege Integrated System
Controller or module supplying
power to networked devices
AUX power from Module or
external power supply
Next modules
on network
Network Power Supplied By Network Module
Warning: The 12V N+ and N- Communication input must be supplied from only ONE point.
Connections from more than one 12V supply may cause failure or damage to the PGM Expander or
device supplying network power.
i
The EOL (End Of Line) jumper setting MUST be set in the ON position for the LAST module on the
RS485 network. EOL is ON when the jumper is closest to the EOL text.
2.9 Slave Device Network
The Protege PGM Expander can be connected in Elevator Control Mode (see configuration section (see page
21)) to allow floor control of elevators using the RDI2 and PX16 modules.
Connection of the communications should be performed according to the following diagram. It is important that
the S+ Slave Communications Power be supplied from an either independent battery backed power supply unit
or a module connected to the slave communication interface capable of supplying the required voltage to all
devices on the slave RS485 network.
SAS+ S- SB
Slave Communications Connection
