ICY ICY2745IN User manual
ICY2745IN
ICY-Net Transceiver
Installation Manual
All manuals and user guides at all-guides.com
all-guides.com

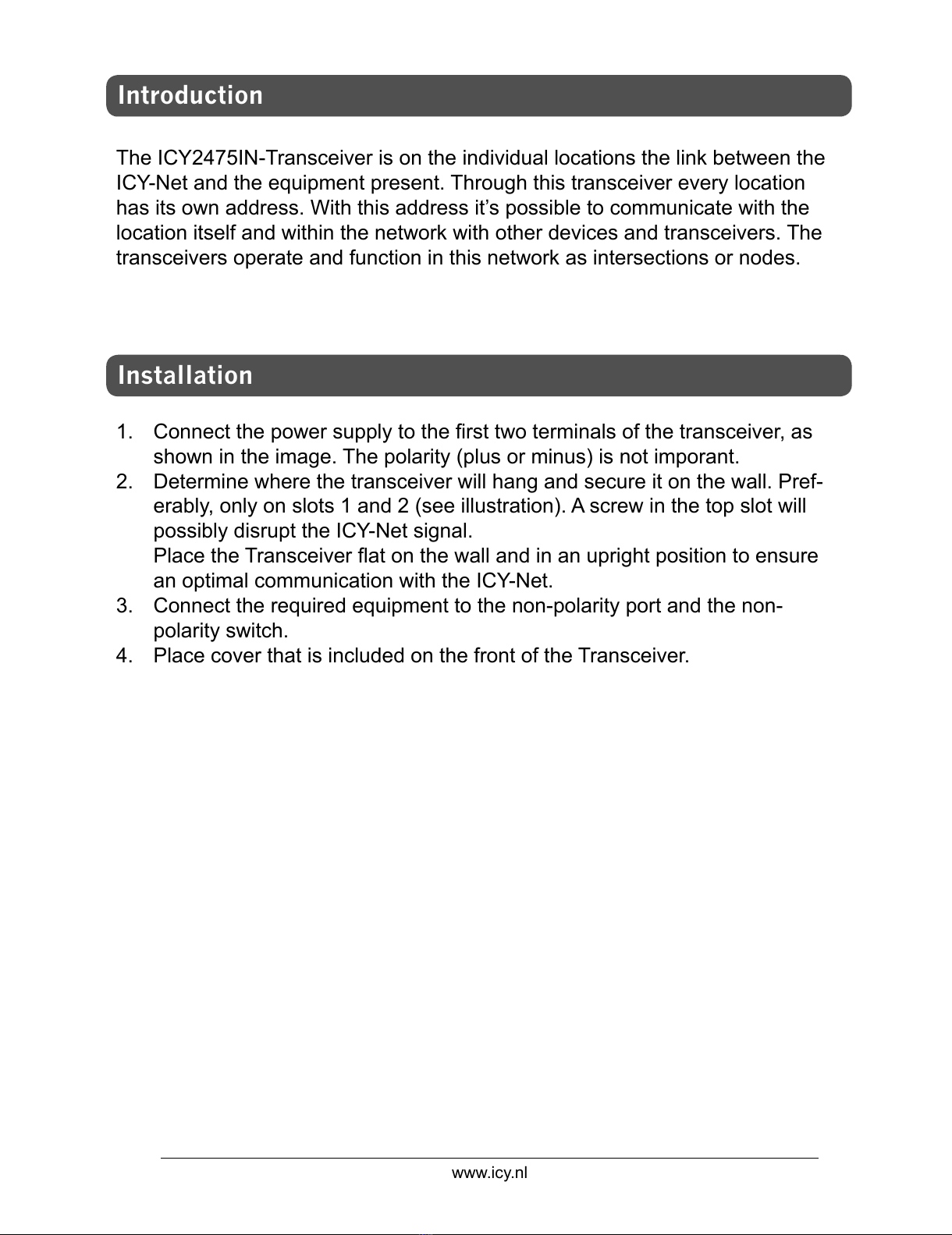

The ICY2475IN-Transceiver is on the individual locations the link between the
ICY-Net and the equipment present. Through this transceiver every location
has its own address. With this address it’s possible to communicate with the
location itself and within the network with other devices and transceivers. The
transceivers operate and function in this network as intersections or nodes.
Connect the power supply to the rst two terminals of the transceiver, as 1.
shown in the image. The polarity (plus or minus) is not imporant.
Determine where the transceiver will hang and secure it on the wall. Pref-2.
erably, only on slots 1 and 2 (see illustration). A screw in the top slot will
possibly disrupt the ICY-Net signal.
Place the Transceiver at on the wall and in an upright position to ensure
an optimal communication with the ICY-Net.
Connect the required equipment to the non-polarity port and the non-3.
polarity switch.
Place cover that is included on the front of the Transceiver.4.
Introduction
Installation
www.icy.nl
All manuals and user guides at all-guides.com

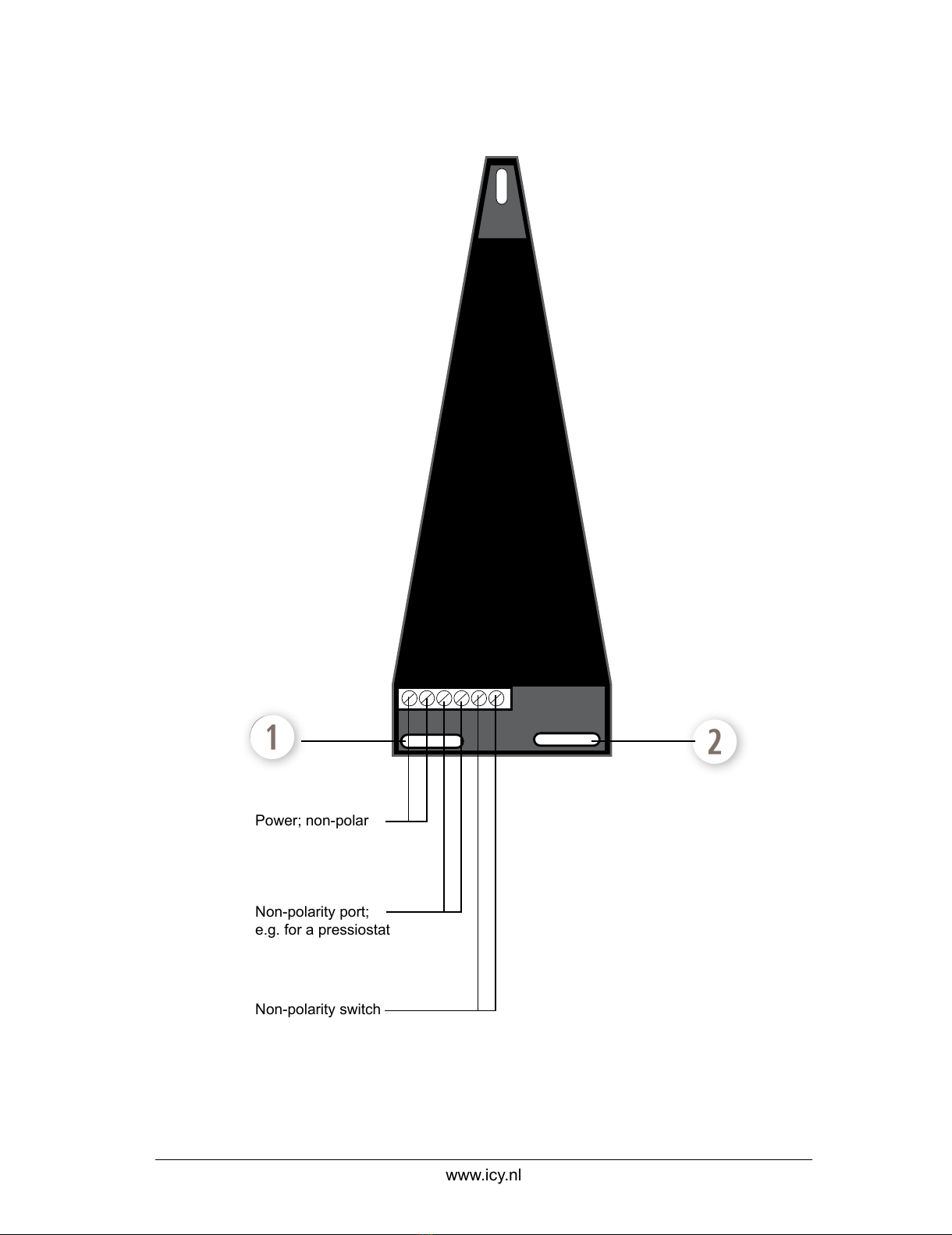

Power; non-polar
