INSTALL GUIDE
ADS-AL(DL)-SUB2-EN
AVAILABLE FOR: ADS-AL CA
SUB2
Rev. Date: December 11, 2017
Doc. No.: ##46348##
20171211

U.S. Patent No. 8,856,780
INSTALL TYPE SELECTION
Make MoDel Year InStall tYPe
featUreS
Data IMMoBIlIZer BYPaSS arM oeM alarM DISarM oeM alarM Door lock Door Unlock trUnk/HatcH releaSe a/M alarM ctrl froM oeM reMoteS a/M alarM ctrl froM Door HanDle Brake PeDal StatUS oUtPUt e-Brake oUtPUt Door StatUS trUnk StatUS MonItorInG Park/neUtral SWItcH StatUS VSS StatUS tacHoMeter StatUS SecUre takeoVer aUtoMateD take oVer raP SHUtDoWn ctrl a/M rS froM oeM reMoteS Data ParkInG lIGHt ctrl PoWer lIftGate
ScIon
FR-S PTS AT113-164•••••••••••••••••• •
FR-S PTS MT113-166•••••••••••••••••• •
SUBarU
BRZ PTS AT113-174•••••••••••••••••• •
BRZ PTS MT113-176•••••••••••••••••• •
Forester 2.5i PTS AT 14-16 1 • • • • • • • • • • • • • • • • • • • • •
Forester 2.5i PTS AT 17-18 8 • • • • • • • • • • • • • • • • • • • • •
Forester XT PTS AT 14-18 2 • • • • • • • • • • • • • • • • • • • • •
Impreza PTS AT 15-16 1 • • • • • • • • • • • • • • • • • • • •
Legacy PTS AT 15-16 3 • • • • • • • • • • • • • • • • • • • •
Legacy PTS AT117 3•••••••••••••••••• •
Legacy PTS AT118 9•••••••••••••••••• •
Outback PTS AT 15-16 3 • • • • • • • • • • • • • • • • • • • • •
Outback PTS AT117 3•••••••••••••••••• ••
Outback PTS AT118 9•••••••••••••••••• ••
STi PTS MT 15-177••••••••••••••••••••
WRX PTS AT 15-182••••••••••••••••••• •
WRX PTS MT 15-185••••••••••••••••••••
XV Crosstrek PTS AT 14-17 1 • • • • • • • • • • • • • • • • • • •
XV Crosstrek Hybrid PTS AT 14-17 1 • • • • • • • • • • • • • • • • • • •
toYota
86 PTS AT117 4•••••••••••••••••• •
86 PTS MT117 6•••••••••••••••••• •
1OEM fob and door handles will not function during runtime
Page 2 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 1 - WIRE CROSS REFERENCE CHART - 1 OF 1
Make MoDel Year WIre DeScrIPtIon connector naMe connector color connector tYPe PoSItIon WIre color PolarItY MoDUle locatIon coMPonent locator
SUBarU
Forester 2.5i
PTS
AT
14-16
Accessory C: B574 White 30 pin 04 Purple (+) Certifi cation ECU behind fuse box ~
CanH C: B574 White 30 pin 14 White (DATA) Certifi cation ECU behind fuse box ~
CanL C: B574 White 30 pin 15 Red (DATA) Certifi cation ECU behind fuse box ~
Ignition C: B574 White 30 pin 06 Purple (+) Certifi cation ECU behind fuse box ~
Ignition 2 A: B572 White 18 pin 09 White or Tan (+) Certifi cation ECU behind fuse box ~
Immo. Data B135 White 35 pin 25 White/Blue (DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Blue or Green (-) Certifi cation ECU behind fuse box ~
Starter A: B572 White 18 pin 07 Pink or Brown (+) Certifi cation ECU behind fuse box ~
Impreza
PTS
AT
15-16
Accessory C: B574 White 30 pin 04 Blue (+) Certifi cation ECU behind fuse box ~
CanH C: B574 White 30 pin 14 White (DATA) Certifi cation ECU behind fuse box ~
CanL C: B574 White 30 pin 15 Blue (DATA) Certifi cation ECU behind fuse box ~
Ignition C: B574 White 30 pin 06 Purple (+) Certifi cation ECU behind fuse box ~
Ignition 2 A: B572 White 18 pin 09 LtBlue (+) Certifi cation ECU behind fuse box ~
Immo. Data B135 White 35 pin 25 Red/Yellow or
Yellow
(DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Black (-) Certifi cation ECU behind fuse box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind fuse box ~
XV Crosstrek
PTS
AT
14-17
Accessory C: B574 White 30 pin 04 Blue (+) Certifi cation ECU behind fuse box ~
CanH C: B574 White 30 pin 14 White (DATA) Certifi cation ECU behind fuse box ~
CanL C: B574 White 30 pin 15 Blue (DATA) Certifi cation ECU behind fuse box ~
Ignition C: B574 White 30 pin 06 Purple (+) Certifi cation ECU behind fuse box ~
Ignition 2 A: B572 White 18 pin 09 LtBlue (+) Certifi cation ECU behind fuse box ~
Immo. Data B135 White 35 pin 25 Red/Yellow or
Yellow
(DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Black (-) Certifi cation ECU behind fuse box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind fuse box ~
XV Crosstrek
Hybrid
PTS
AT
14-17
Accessory C: B574 White 30 pin 04 Blue (+) Certifi cation ECU behind fuse box ~
CanH C: B574 White 30 pin 14 White (DATA) Certifi cation ECU behind fuse box ~
CanL C: B574 White 30 pin 15 Blue (DATA) Certifi cation ECU behind fuse box ~
Ignition C: B574 White 30 pin 06 Purple (+) Certifi cation ECU behind fuse box ~
Ignition 2 A: B572 White 18 pin 09 LtBlue (+) Certifi cation ECU behind fuse box ~
Immo. Data B135 White 35 pin 25 Red/Yellow or
Yellow
(DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Black (-) Certifi cation ECU behind fuse box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind fuse box ~
Page 3 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780

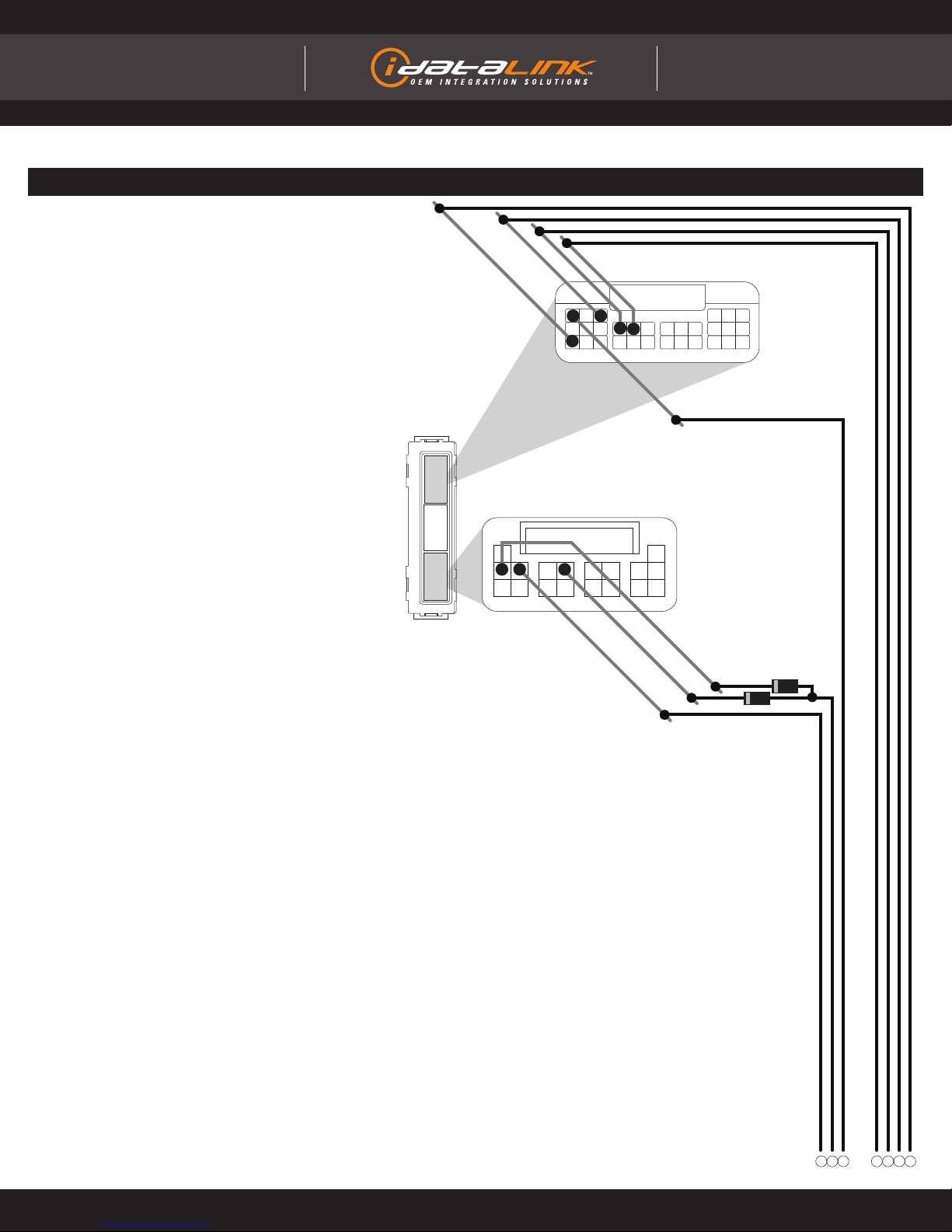

TYPE 1 - WIRING DIAGRAM - 1 OF 2
Page 4 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
01 02 03
12
7 5 46
17
18
38
1516 11121314
910
16
4
789
19
123
2021
101112
222324
131415
252627
1718
28
56
2930
15
6 4
30
9 7
A
B
C
14
0704 05 06
ACCESSORY (+)
IGNITION 2 (+) STARTER (+)
IGNITION (+)
PTS (-)
CANH
BEHIND FUSE BOX
CERTIFICATION
ECU
C: B574
A: B572
CANL
Doc. No.: ##46348##

U.S. Patent No. 8,856,780

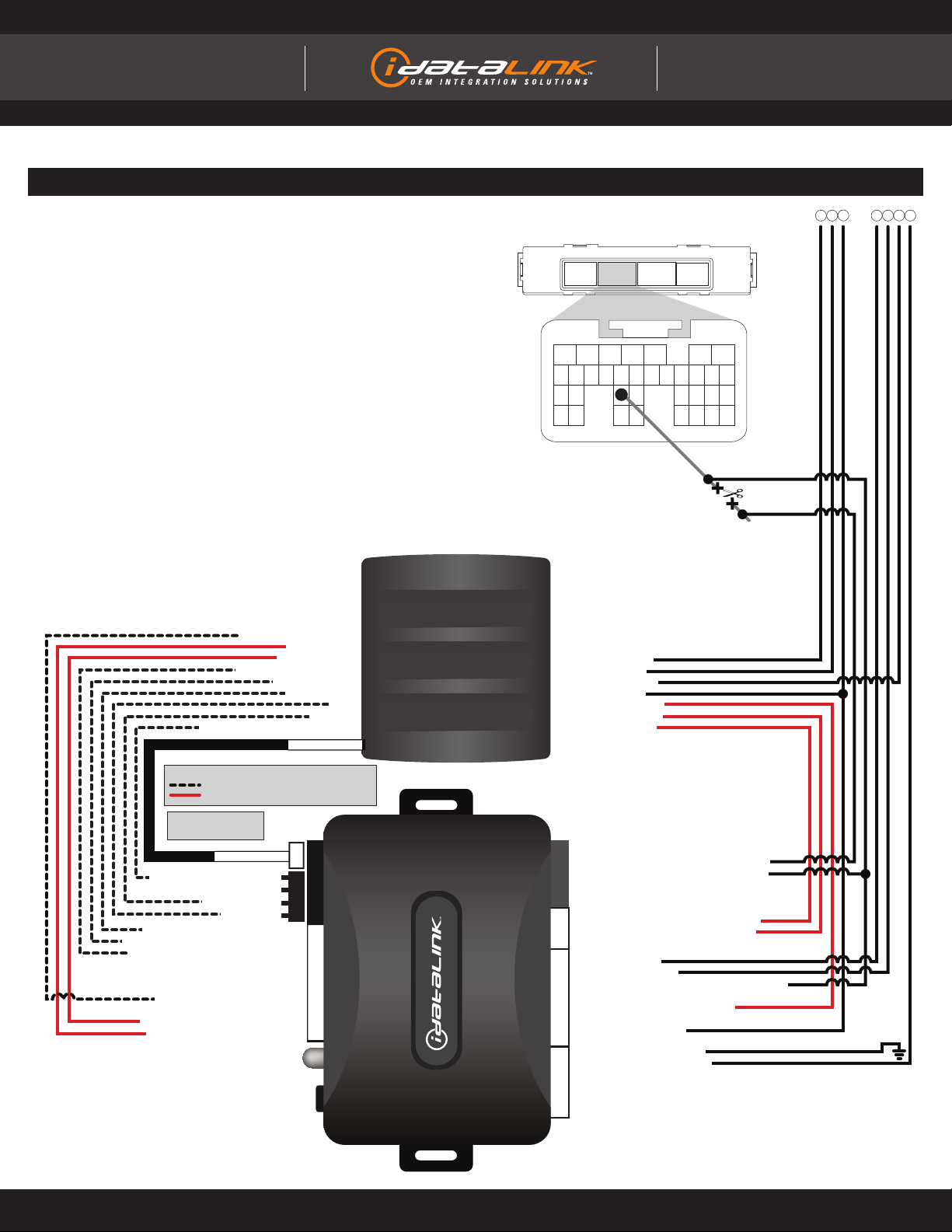

TYPE 1 - WIRING DIAGRAM - 2 OF 2
Page 5 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
10111213141516171819
2021222324252627
2829303132333435
1234567
89
2525
01 02 03 0704 05 06
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITE
GWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED - GROUND (-) INPUT
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
BRAKE STATUS (+) INPUT
BRAKE STATUS (+) INPUT
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
IGNITION 2 (+) OUTPUT
IGNITION 2 (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE
(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK RELEASE (-) INPUT - RED/WHITE
TRUNK RELEASE (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
PARKING LIGHT (+) INPUT - WHITE
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
E-BRAKE (-) INPUT
E-BRAKE (-) INPUT
TRUNK RELEASE (-) OUTPUT
TRUNK RELEASE (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - IMMOB. (DATA) VEHICLE SIDE
WHITE/BLACK - IMMOB. (DATA) VEHICLE SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
IMMO. DATA
ECU - BEHIND GLOVE BOX
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
B135 - WHITE
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 2 - WIRE CROSS REFERENCE CHART - 1 OF 1
Make MoDel Year WIre DeScrIPtIon connector naMe connector color connector tYPe PoSItIon WIre color PolarItY MoDUle locatIon coMPonent locator
SUBarU
Forester XT
PTS
AT
14-18
Accessory C: B574 White 30 pin 04 Purple (+) Certifi cation ECU behind fuse box ~
CanH C: B574 White 30 pin 14 White (DATA) Certifi cation ECU behind fuse box ~
CanL C: B574 White 30 pin 15 Red (DATA) Certifi cation ECU behind fuse box ~
Ignition C: B574 White 30 pin 06 Purple (+) Certifi cation ECU behind fuse box ~
Ignition 2 A: B572 White 18 pin 09 White or Tan (+) Certifi cation ECU behind fuse box ~
Immo. Data E158 Black 48 pin 43 Green/Black (DATA) ECU passenger side under hood ~
PTS C: B574 White 30 pin 30 Blue or Green (-) Certifi cation ECU behind fuse box ~
Starter A: B572 White 18 pin 07 Pink or Brown (+) Certifi cation ECU behind fuse box ~
WRX
PTS
AT
15-18
Accessory C: B574 White 30 pin 04 Blue (+) Certifi cation ECU behind fuse box ~
CanH C: B574 White 30 pin 14 White (DATA) Certifi cation ECU behind fuse box ~
CanL C: B574 White 30 pin 15 LtBlue (DATA) Certifi cation ECU behind fuse box ~
Ignition C: B574 White 30 pin 06 Purple (+) Certifi cation ECU behind fuse box ~
Ignition 2 A: B572 White 18 pin 09 LtBlue (+) Certifi cation ECU behind fuse box ~
Immo. Data E158 Black 48 pin 43 Green/Black (DATA) ECU passenger side under hood ~
PTS C: B574 White 30 pin 30 Black (-) Certifi cation ECU behind fuse box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind fuse box ~
Page 6 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 2 - WIRING DIAGRAM - 1 OF 2
Page 7 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
12
7 5 46
17
18
38
1516 11121314
910
16
4
789
19
123
2021
101112
222324
131415
252627
1718
28
56
2930
15
6 4
30
9 7
A
B
C
14
01 02 03 0704 05 06
ACCESSORY (+)
IGNITION 2 (+) STARTER (+)
IGNITION (+)
PTS (-)
CANH
C: B574
A: B572
CANL
BEHIND FUSE BOX
CERTIFICATION
ECU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780

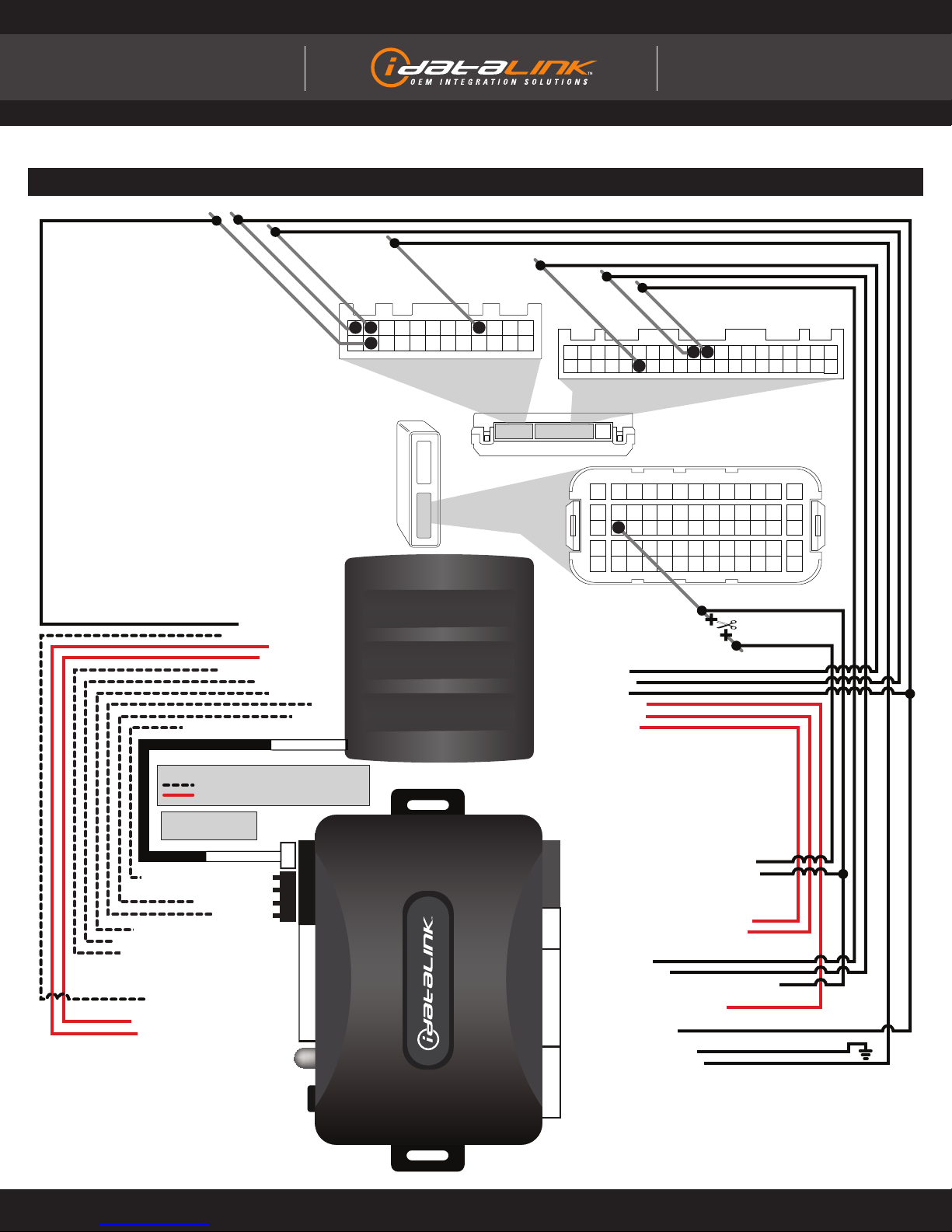

TYPE 2 - WIRING DIAGRAM - 2 OF 2
Page 8 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
23 14567891012
13
11
141516171819202223 2124
25262728293233 31343536
37384243 414445464748 39
30
40
4343
01 02 03 0704 05 06
E158 - BLACK
ECU - PASSENGER SIDE, UNDER HOOD
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITE
GWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANH
BROWN/RED - CANH
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
BRAKE STATUS (+) INPUT
BRAKE STATUS (+) INPUT
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
IGNITION 2 (+) OUTPUT
IGNITION 2 (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE
(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK RELEASE (-) INPUT - RED/WHITE
TRUNK RELEASE (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE (-) INPUT
E-BRAKE (-) INPUT
TRUNK RELEASE (-) OUTPUT
TRUNK RELEASE (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - IMMO. (DATA) VEHICLE SIDE
WHITE/BLACK - IMMO. (DATA) VEHICLE SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
IMMO. DATA
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
BLUE/RED - GROUND (-) INPUT
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED (NC)
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
PARKING LIGHT (+) INPUT - WHITE
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 3 - WIRE CROSS REFERENCE CHART - 1 OF 1
Make MoDel Year WIre DeScrIPtIon connector naMe connector color connector tYPe PoSItIon WIre color PolarItY MoDUle locatIon coMPonent locator
SUBarU
Legacy
PTS
AT
15-17
Accessory A: I75 White 24 pin 23 Green (+) Keyless access module behind cluster ~
CanH B: I241 White 40 pin 10 Red (DATA) Keyless access module behind cluster ~
CanL B: I241 White 40 pin 11 Blue (DATA) Keyless access module behind cluster ~
Ignition A: I75 White 24 pin 12 Gray/Red (+) Keyless access module behind cluster ~
Ignition 2 A: I75 White 24 pin 11 LtBlue/Red (+) Keyless access module behind cluster ~
Immo. Data A: B134 Black 65 pin 38 Red/White (DATA) Lower plug on ECU passenger side under hood ~
PTS A: I75 White 24 pin 04 Red (-) Keyless access module behind cluster ~
Starter B: I241 White 40 pin 35 White/Green (+) Keyless access module behind cluster ~
Outback
PTS
AT
15-17
Accessory A: I75 White 24 pin 23 Green (+) Keyless access module behind cluster ~
CanH B: I241 White 40 pin 10 Red (DATA) Keyless access module behind cluster ~
CanL B: I241 White 40 pin 11 Blue (DATA) Keyless access module behind cluster ~
Ignition A: I75 White 24 pin 12 Gray/Red (+) Keyless access module behind cluster ~
Ignition 2 A: I75 White 24 pin 11 LtBlue/Red (+) Keyless access module behind cluster ~
Immo. Data A: B134 Black 65 pin 38 Red/White (DATA) Lower plug on ECU passenger side under hood ~
PTS A: I75 White 24 pin 04 Red (-) Keyless access module behind cluster ~
Starter B: I241 White 40 pin 35 White/Green (+) Keyless access module behind cluster ~
Page 9 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 3 - WIRING DIAGRAM - 1 OF 1
Page 10 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
3456 12
17181920
78
1516
1112
1314
910
2324 2122
3 2 145617181920 781516 11121314 910
23242526 212237383940 27283536 31323334 2930
23 1456789101213 11
141516171819202223 21242526
2728293233 313435363738
4243 41444546474849505152
39 30
40
5556 54575859606162636465 53
4
11
12
23
38
1011
35
B: I241- WHITE
A: I75 - WHITE
ECU
PASSENGER SIDE
UNDER HOOD
KEYLESS ACCESS ECU - BEHIND CLUSTER
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITE
GWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANH
BROWN/RED - CANH
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
BRAKE STATUS (+) INPUT
BRAKE STATUS (+) INPUT
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
IGNITION 2 (+) OUTPUT
IGNITION 2 (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE
(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK RELEASE (-) INPUT - RED/WHITE
TRUNK RELEASE (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE (-) INPUT
E-BRAKE (-) INPUT
TRUNK RELEASE (-) OUTPUT
TRUNK RELEASE (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - IMMO. (DATA) VEHICLE SIDE
WHITE/BLACK - IMMO. (DATA) VEHICLE SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
IMMO. DATA
ACCESSORY (+)
IGNITION (+)
PTS (-)
CANH
CANL
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
BLUE/RED - GROUND (-) INPUT
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED (NC)
IGNITION 2 (+)
STARTER (+)
A: B134 - GRAY
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
PARKING LIGHT (+) INPUT - WHITE
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 4 - WIRE CROSS REFERENCE CHART - 1 OF 1
Make MoDel Year WIre DeScrIPtIon connector naMe connector color connector tYPe PoSItIon WIre color PolarItY MoDUle locatIon coMPonent locator
ScIon
FR-S
PTS
AT
13-16
Accessory C: B574 White 30 pin 04 LtBlue (+) Certifi cation ECU behind glove box ~
CanH C: B574 White 30 pin 14 Green (DATA) Certifi cation ECU behind glove box ~
CanL C: B574 White 30 pin 15 Red (DATA) Certifi cation ECU behind glove box ~
Ignition C: B574 White 30 pin 06 White (+) Certifi cation ECU behind glove box ~
Ignition 2 A: B572 White 18 pin 09 Purple (+) Certifi cation ECU behind glove box ~
Immo. Data B135 White 35 pin 25 Yellow (DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Tan (-) Certifi cation ECU behind glove box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind glove box ~
SUBarU
BRZ
PTS
AT
13-17
Accessory C: B574 White 30 pin 04 LtBlue (+) Certifi cation ECU behind glove box ~
CanH C: B574 White 30 pin 14 Green (DATA) Certifi cation ECU behind glove box ~
CanL C: B574 White 30 pin 15 Red (DATA) Certifi cation ECU behind glove box ~
Ignition C: B574 White 30 pin 06 White (+) Certifi cation ECU behind glove box ~
Ignition 2 A: B572 White 18 pin 09 Purple (+) Certifi cation ECU behind glove box ~
Immo. Data B135 White 35 pin 25 Yellow (DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Tan (-) Certifi cation ECU behind glove box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind glove box ~
toYota
86
PTS
AT
17
Accessory C: B574 White 30 pin 04 LtBlue (+) Certifi cation ECU behind glove box ~
CanH C: B574 White 30 pin 14 Green (DATA) Certifi cation ECU behind glove box ~
CanL C: B574 White 30 pin 15 Red (DATA) Certifi cation ECU behind glove box ~
Ignition C: B574 White 30 pin 06 White (+) Certifi cation ECU behind glove box ~
Ignition 2 A: B572 White 18 pin 09 Purple (+) Certifi cation ECU behind glove box ~
Immo. Data B135 White 35 pin 25 Yellow (DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Tan (-) Certifi cation ECU behind glove box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind glove box ~
Page 11 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 4 - WIRING DIAGRAM - 1 OF 1
Page 12 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
12
7 5 46
17
18
38
1516 11121314
910
16
4
789
19
123
2021
101112
222324
131415
252627
1718
28
56
2930
10111213141516171819
2021222324252627
2829303132333435
1234567
89
2525
15
6 4
30
9 7
14
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITE
GWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED - GROUND (-) INPUT
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
BRAKE STATUS (+) INPUT
BRAKE STATUS (+) INPUT
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
IGNITION 2 (+) OUTPUT
IGNITION 2 (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE
(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK RELEASE (-) INPUT - RED/WHITE
TRUNK RELEASE (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE (-) INPUT
E-BRAKE (-) INPUT
TRUNK RELEASE (-) OUTPUT
TRUNK RELEASE (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - IMMOB. (DATA) VEHICLE SIDE
WHITE/BLACK - IMMOB. (DATA) VEHICLE SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
IMMO. DATA
ACCESSORY (+)
IGNITION 2 (+)
STARTER (+)
IGNITION (+)
PTS (-)
CANH
CANL
ECU - BEHIND GLOVE BOX
C: B574
A: B572
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
B135 - WHITE
CERTIFICATION ECU
BEHIND GLOVE BOX
(SEE WIRE CHART)
PARKING LIGHT (+) INPUT - WHITE
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 5 - WIRE CROSS REFERENCE CHART - 1 OF 1
Make MoDel Year WIre DeScrIPtIon connector naMe connector color connector tYPe PoSItIon WIre color PolarItY MoDUle locatIon coMPonent locator
SUBarU
WRX
PTS
MT
15-18
Accessory C: B574 White 30 pin 04 Blue (+) Certifi cation ECU behind fuse box ~
CanH C: B574 White 30 pin 14 White (DATA) Certifi cation ECU behind fuse box ~
CanL C: B574 White 30 pin 15 LtBlue (DATA) Certifi cation ECU behind fuse box ~
Clutch bypass A: B572 White 18 pin 10 Gray (+) Certifi cation ECU behind fuse box ~
Ignition C: B574 White 30 pin 06 Purple (+) Certifi cation ECU behind fuse box ~
Ignition 2 A: B572 White 18 pin 09 LtBlue (+) Certifi cation ECU behind fuse box ~
Immo. Data E158 Black 48 pin 43 Green/Black (DATA) ECU passenger side under hood ~
PTS C: B574 White 30 pin 30 Black (-) Certifi cation ECU behind fuse box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind fuse box ~
Page 13 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 5 - WIRING DIAGRAM - 1 OF 2
Page 14 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
12
7 5 46
17
18
38
1516 11121314
910
16
4
789
19
123
2021
101112
222324
131415
252627
1718
28
56
2930
15
6 4
30
9 7
A
B
C
14
10
01 02 03 0704 05 06
1N4001
DIODE 1N4001
DIODE
ACCESSORY (+)
IGNITION 2 (+) STARTER (+)
IGNITION (+)
PTS (-)
CANH
C: B574
A: B572
CLUTCH BYPASS (+)
CANL
BEHIND FUSE BOX
CERTIFICATION
ECU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 5 - WIRING DIAGRAM - 2 OF 2
Page 15 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
23 14567891012
13
11
141516171819202223 2124
25262728293233 31343536
37384243 414445464748 39
30
40
4343
01 02 03 0704 05 06
E158 - BLACK
ECU - PASSENGER SIDE, UNDER HOOD
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITE
GWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANH
BROWN/RED - CANH
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
BRAKE STATUS (+) INPUT
BRAKE STATUS (+) INPUT
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
IGNITION 2 (+) OUTPUT
IGNITION 2 (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE
(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK RELEASE (-) INPUT - RED/WHITE
TRUNK RELEASE (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE (-) INPUT
E-BRAKE (-) INPUT
TRUNK RELEASE (-) OUTPUT
TRUNK RELEASE (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - IMMO. (DATA) VEHICLE SIDE
WHITE/BLACK - IMMO. (DATA) VEHICLE SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
IMMO. DATA
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
BLUE/RED - GROUND (-) INPUT
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED (NC)
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
PARKING LIGHT (+) INPUT - WHITE
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 6 - WIRE CROSS REFERENCE CHART - 1 OF 1
Make MoDel Year WIre DeScrIPtIon connector naMe connector color connector tYPe PoSItIon WIre color PolarItY MoDUle locatIon coMPonent locator
ScIon
FR-S
PTS
MT
13-16
Accessory C: B574 White 30 pin 04 LtBlue (+) Certifi cation ECU behind glove box ~
CanH C: B574 White 30 pin 14 Green (DATA) Certifi cation ECU behind glove box ~
CanL C: B574 White 30 pin 15 Red (DATA) Certifi cation ECU behind glove box ~
Clutch bypass A: B572 White 18 pin 10 Yellow (+) Certifi cation ECU behind glove box ~
Ignition C: B574 White 30 pin 06 White (+) Certifi cation ECU behind glove box ~
Ignition 2 A: B572 White 18 pin 09 Purple (+) Certifi cation ECU behind glove box ~
Immo. Data B135 White 35 pin 25 Yellow (DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Tan (-) Certifi cation ECU behind glove box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind glove box ~
SUBarU
BRZ
PTS
MT
13-17
Accessory C: B574 White 30 pin 04 LtBlue (+) Certifi cation ECU behind glove box ~
CanH C: B574 White 30 pin 14 Green (DATA) Certifi cation ECU behind glove box ~
CanL C: B574 White 30 pin 15 Red (DATA) Certifi cation ECU behind glove box ~
Clutch bypass A: B572 White 18 pin 10 Yellow (+) Certifi cation ECU behind glove box ~
Ignition C: B574 White 30 pin 06 White (+) Certifi cation ECU behind glove box ~
Ignition 2 A: B572 White 18 pin 09 Purple (+) Certifi cation ECU behind glove box ~
Immo. Data B135 White 35 pin 25 Yellow (DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Tan (-) Certifi cation ECU behind glove box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind glove box ~
toYota
86
PTS
MT
17
Accessory C: B574 White 30 pin 04 LtBlue (+) Certifi cation ECU behind glove box ~
CanH C: B574 White 30 pin 14 Green (DATA) Certifi cation ECU behind glove box ~
CanL C: B574 White 30 pin 15 Red (DATA) Certifi cation ECU behind glove box ~
Clutch bypass A: B572 White 18 pin 10 Yellow (+) Certifi cation ECU behind glove box ~
Ignition C: B574 White 30 pin 06 White (+) Certifi cation ECU behind glove box ~
Ignition 2 A: B572 White 18 pin 09 Purple (+) Certifi cation ECU behind glove box ~
Immo. Data B135 White 35 pin 25 Yellow (DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Tan (-) Certifi cation ECU behind glove box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind glove box ~
Page 16 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 6 - WIRING DIAGRAM - 1 OF 1
Page 17 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
12
7 5 46
17
18
38
1516 11121314
910
16
4
789
19
123
2021
101112
222324
131415
252627
1718
28
56
2930
10111213141516171819
2021222324252627
2829303132333435
1234567
89
2525
15
6 4
30
9 7
14
10
1N4001
DIODE 1N4001
DIODE
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITE
GWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED - GROUND (-) INPUT
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
BRAKE STATUS (+) INPUT
BRAKE STATUS (+) INPUT
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
IGNITION 2 (+) OUTPUT
IGNITION 2 (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE
(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK RELEASE (-) INPUT - RED/WHITE
TRUNK RELEASE (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE (-) INPUT
E-BRAKE (-) INPUT
TRUNK RELEASE (-) OUTPUT
TRUNK RELEASE (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - IMMOB. (DATA) VEHICLE SIDE
WHITE/BLACK - IMMOB. (DATA) VEHICLE SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
IMMO. DATA
ACCESSORY (+)
IGNITION 2 (+)
STARTER (+)
IGNITION (+)
PTS (-)
CANH
CANL
ECU - BEHIND GLOVE BOX
C: B574
A: B572
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
B135 - WHITE
CLUTCH BYPASS (+)
CERTIFICATION ECU
BEHIND GLOVE BOX
(SEE WIRE CHART)
PARKING LIGHT (+) INPUT - WHITE
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 7 - WIRE CROSS REFERENCE CHART - 1 OF 1
Make MoDel Year WIre DeScrIPtIon connector naMe connector color connector tYPe PoSItIon WIre color PolarItY MoDUle locatIon coMPonent locator
SUBarU
STi
PTS
MT
15-17
Accessory C: B574 White 30 pin 04 Blue (+) Certifi cation ECU behind fuse box ~
CanH C: B574 White 30 pin 14 White (DATA) Certifi cation ECU behind fuse box ~
CanL C: B574 White 30 pin 15 LtBlue (DATA) Certifi cation ECU behind fuse box ~
Clutch bypass A: B572 White 18 pin 10 Gray (+) Certifi cation ECU behind fuse box ~
Ignition C: B574 White 30 pin 06 Purple (+) Certifi cation ECU behind fuse box ~
Ignition 2 A: B572 White 18 pin 09 LtBlue (+) Certifi cation ECU behind fuse box ~
Immo. Data B135 White 35 pin 25 Red/White (DATA) ECU behind glove box ~
PTS C: B574 White 30 pin 30 Black (-) Certifi cation ECU behind fuse box ~
Starter A: B572 White 18 pin 07 Pink (+) Certifi cation ECU behind fuse box ~
Page 18 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 7 - WIRING DIAGRAM - 1 OF 2
Page 19 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
12
7 5 46
17
18
38
1516 11121314
910
16
4
789
19
123
2021
101112
222324
131415
252627
1718
28
56
2930
15
6 4
30
9 7
A
B
C
14
10
01 02 03 0704 05 06
1N4001
DIODE 1N4001
DIODE
ACCESSORY (+)
IGNITION 2 (+) STARTER (+)
IGNITION (+)
PTS (-)
CANH
C: B574
A: B572
CLUTCH BYPASS (+)
CANL
BEHIND FUSE BOX
CERTIFICATION
ECU
Doc. No.: ##46348##

U.S. Patent No. 8,856,780
TYPE 7 - WIRING DIAGRAM - 2 OF 2
Page 20 of 28 ADS-AL(DL)-SUB2-EN 20171211
INSTALL GUIDE
WWW.IDATALINK.COM Automotive Data Solutions Inc. © 2017
Doorlock Interface
SUBARU
10111213141516171819
2021222324252627
2829303132333435
1234567
89
2525
01 02 03 0704 05 06
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
GWR (-) INPUT - BLUE/WHITE
GWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED - GROUND (-) INPUT
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
BRAKE STATUS (+) INPUT
BRAKE STATUS (+) INPUT
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
IGNITION 2 (+) OUTPUT
IGNITION 2 (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/BLACK - IMMO. (DATA) CONNECTOR SIDE
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW - PTS (-) OUTPUT
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE
(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK RELEASE (-) INPUT - RED/WHITE
TRUNK RELEASE (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE (-) INPUT
E-BRAKE (-) INPUT
TRUNK RELEASE (-) OUTPUT
TRUNK RELEASE (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
WHITE/BLACK - IMMOB. (DATA) VEHICLE SIDE
WHITE/BLACK - IMMOB. (DATA) VEHICLE SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE/RED - IMMO. (DATA) CONNECTOR SIDE
WHITE (NC)
WHITE (NC)
IMMO. DATA
ECU - BEHIND GLOVE BOX
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
B135 - WHITE
PARKING LIGHT (+) INPUT - WHITE
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
Doc. No.: ##46348##
