INSTALL TYPE SELECTION
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM TRUNK/HATCH RELEASE HOOD STATUS OUTPUT*** DOOR STATUS OUTPUT TRUNK STATUS OUTPUT BRAKE PEDAL STATUS OUTPUT E-BRAKE OUTPUT SECURE TAKEOVER TACHOMETER OUTPUT
MITSUBISHI
Eclipse/Spyder STD key AT* 06-12 6 • • • • • • • •
Eclipse/Spyder STD key MT* 06-12 7 • • • • • • • •
Endeavor STD key AT* 07-11 6 • • • • • • • •
Galant STD key AT* 06-12 6 • • • • • • • •
Lancer Evo Fast-Key TC-SST 08-13 1 • • • • • • • • • • • •
Lancer Evo STD key TC-SST 08-13 4 • • • • • • • • • • •
Lancer Evo Fast-Key MT 08-13 8 • • • • • • • • • • • •
Lancer Evo STD key MT 08-13 5 • • • • • • • • • • •
Lancer/Ralliart Fast-Key AT 08-13 2 • • • • • • • • • • • • • •
Lancer/Ralliart STD key AT 08-13 4 • • • • • • • • • • • • •
Lancer/Ralliart Fast-Key MT 08-13 3 • • • • • • • • • • • • • •
Lancer/Ralliart STD key MT 08-13 5 • • • • • • • • • • • • •
Outlander Fast-Key AT 07-13 1 • • • • • • • • • • • • •
Outlander STD key AT 07-13 4 • • • • • • • • • • • •
Outlander STD key AT 14 10 • • • • • • • • • • •
Outlander Sport PTS AT** 11-13 9 • • • • • • • • • • • •
Outlander Sport STD key AT 11-13 9 • • • • • • • • • • • •
RVR PTS AT** 11-13 9 • • • • • • • • • • • •
RVR STD key AT 11-13 9 • • • • • • • • • • • •
NOTE
I AT: Automatic Transmission
MT: Manual Transmission
TC-SST: Twin Clutch Sportronic Shift Transmission
* WARNING: if OEM alarm goes off, only OEM remote can silence it.
** Take over and idle mode not available.
*** Hood Status Output available ONLY on vehicles equipped with factory hood pin.
Visit our website for advanced features.
Page 2 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

COMPONENT LOCATOR
XX-XX PAGE X-XADS-AL(DL)-MI2 PAGE X-X
A
B
D
C
E
F
G
J
H
Page 3 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

TYPE 1 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MITSUBISHI
Outlander
Fast-Key
AT
07-13
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
Tumbler sense 9H03 Black/White 12 pin 2 Green (+) Junction connector, left side steering column (0-7V) C
CanL C-29 Black/White 12 pin 9 LtGreen (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 Yellow (DATA) Immobilizer, right side steering column D
Alarm sensor D-135 ~ 3 pin 2 Purple (DATA) Overhead console, near radar sensor J
Lancer
Evo
Fast-Key
TC-SST
08-13
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
Tumbler sense 9H03 Black/White 12 pin 2 Green (+) Junction connector, left side steering column (0-7V) C
CanL C-29 Black/White 12 pin 9 Black/Blue (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 White/Blue (DATA) Immobilizer, right side steering column D
Page 4 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

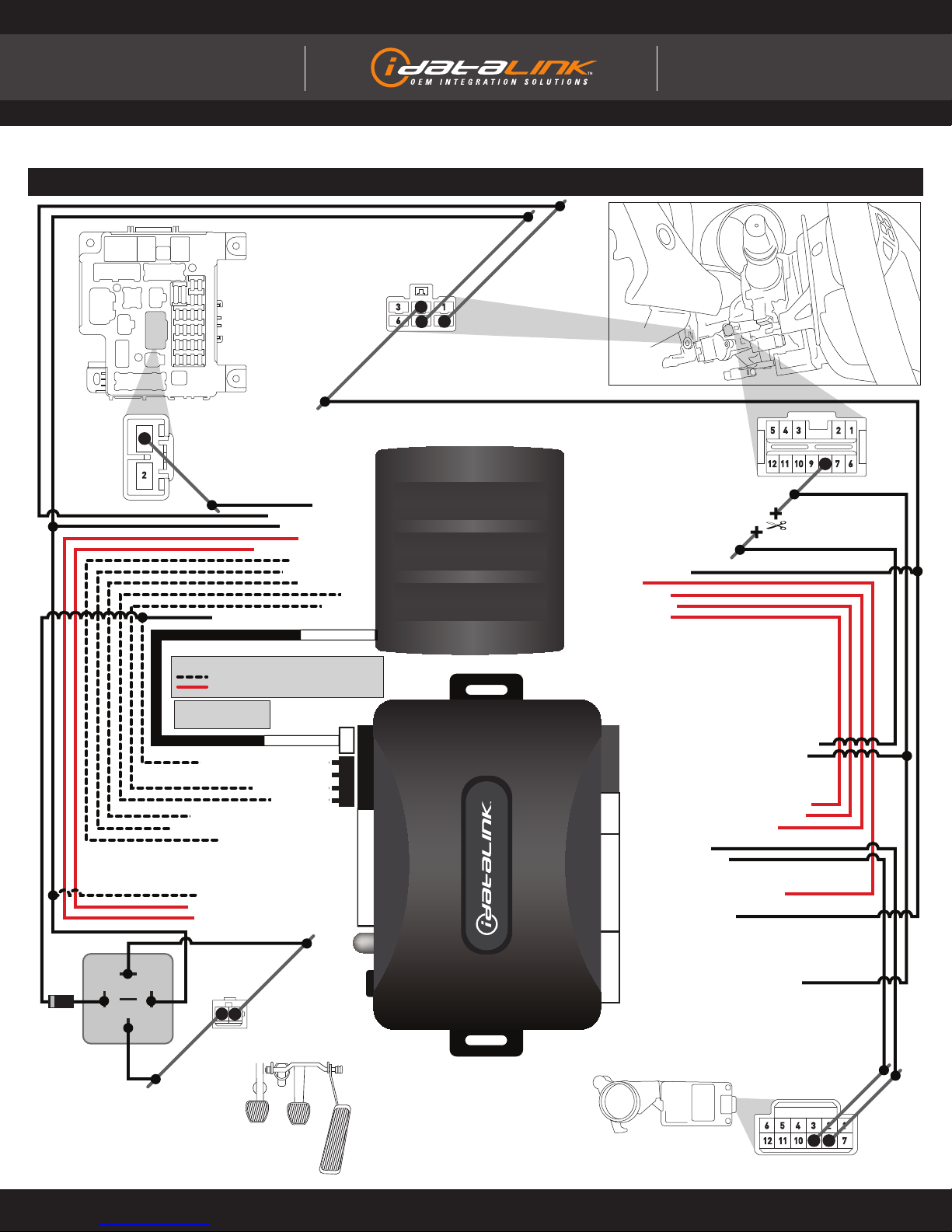

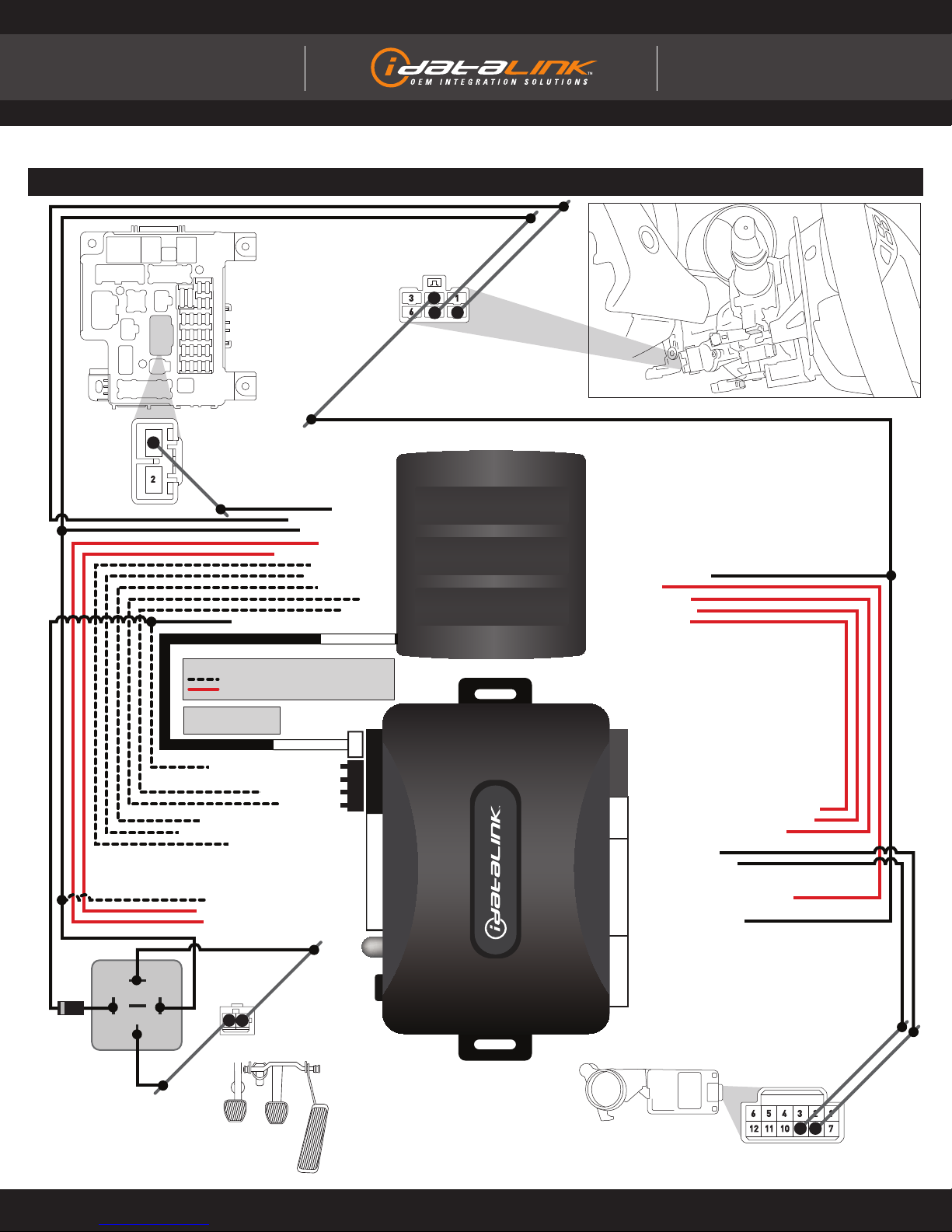

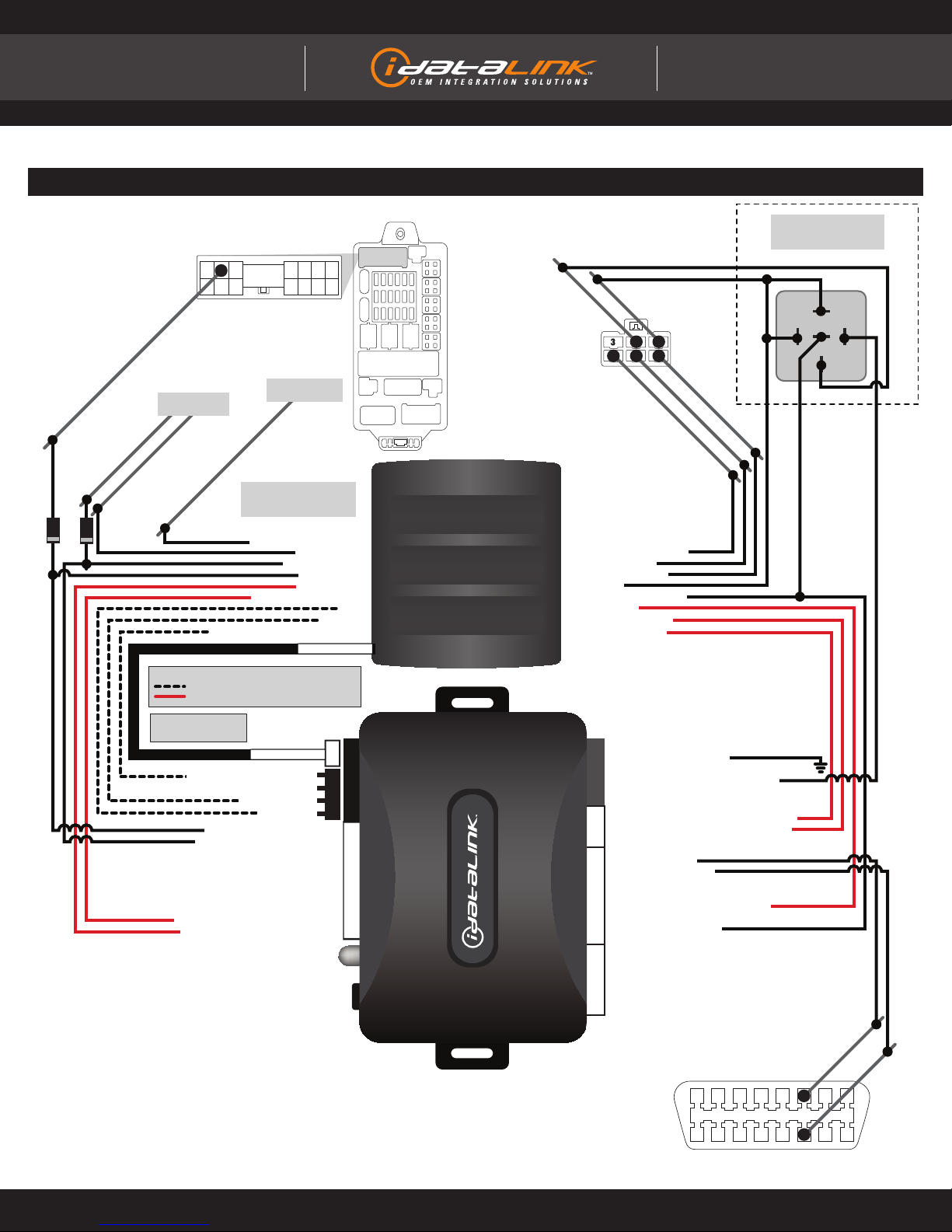

TYPE 1 - WIRING DIAGRAM
Page 5 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
1
2
1
12345
10 7 68912 11
1
2
3
4
5
6
3
2
1
2
4
5
2
12
3
4
5
6
10 78912 11 9 8
86
30
87
87A
85
2
C-309 CONNECTOR
BLACK
12V (+)
C-29
CONNECTOR
BLACK/WHITE
IMMOBILIZER - BLACK
CONNECTOR 9H03
BLACK/WHITE
LEFT SIDE
STEERING COLUMN
START (+)
IGNITION (+)
TUMBLER SENSE (+)
ACCESSORY (+)
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
ETACS/ECU
FRONT VIEW
BLACK
IGNITION CONNECTOR
WHITE
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
CANL
CANH
SWITCH SIDE
VEHICLE SIDE
YELLOW/BLACK - DOOR STATUS (-) OUTPUTYELLOW/BLACK - DOOR STATUS (-) OUTPUT
12V (+) INPUT
12V (+) INPUT
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
WHITE/BLACK - TUMBLER SENSE (+)
WHITE/BLACK - TUMBLER SENSE (+)
BRAKE (+) INPUT
BRAKE (+) INPUT
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
LOCK (-) OUTPUT
LOCK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACKUNLOCK/DISARM (-) INPUT - BLUE/BLACK
(NC) RED/WHITE
(NC) RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) WHITE
(NC) WHITE
STARTER (+) INPUT - BLACK/WHITE
STARTER (+) INPUT - BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
WHITE/RED - TUMBLER SENSE (+)
WHITE/RED - TUMBLER SENSE (+)
WHITE (NC)
WHITE (NC)
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED - TUMBLER SENSE (+)
GRAY/RED - TUMBLER SENSE (+)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
ALARM SENSOR
D-135
OVERHEAD CONSOLE
WARNING: APPLY ONLY IF
VEHICLE IS EQUIPPED
WITH PROXIMITY SENSOR
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
Doc. No.: ##12497##

TYPE 2 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MITSUBISHI
Lancer/
Ralliart
Fast-Key
AT
08-13
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
Tumbler sense 9H03 Black/White 12 pin 8 Green (+) Junction connector, left side steering column (0-7V) C
CanL C-29 Black/White 12 pin 9 LtGreen (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 Yellow (DATA) Immobilizer, right side steering column D
Page 6 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

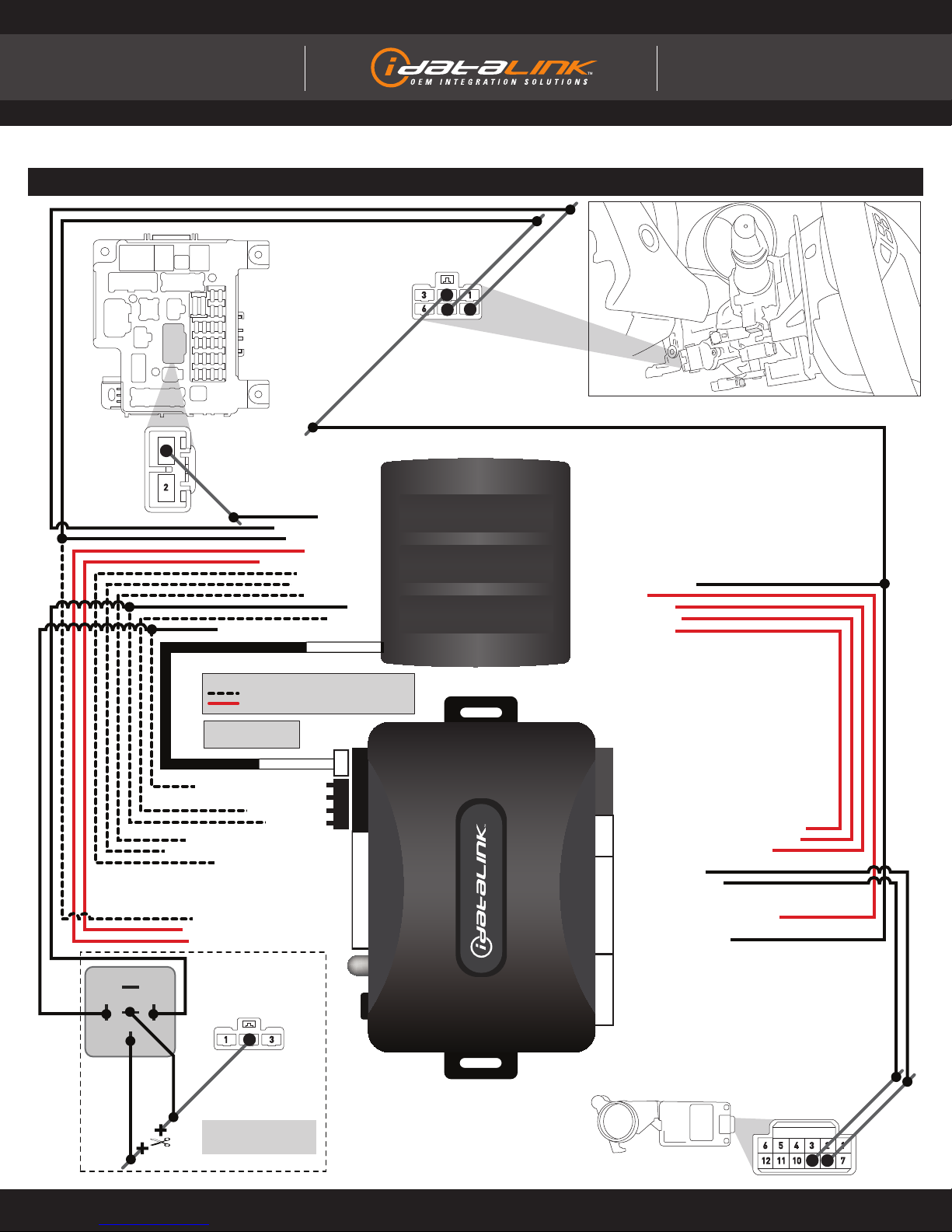

TYPE 2 - WIRING DIAGRAM
Page 7 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
1
2
1
12345
10 7 68912 11
1
2
3
4
5
6
12
3
4
5
6
10 78912 11
2
4
5
9 8
8
C-309 CONNECTOR
BLACK
12V (+)
C-29
CONNECTOR
BLACK/WHITE
CONNECTOR 9H03
BLACK/WHITE
LEFT SIDE
STEERING COLUMN
START (+)
IGNITION (+)
TUMBLER SENSE (+)
ACCESSORY (+)
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- OPTIONAL
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
ETACS/ECU
FRONT VIEW
BLACK
IGNITION CONNECTOR
WHITE
WHITE/BLACK - TUMBLER SENSE (+)
WHITE/BLACK - TUMBLER SENSE (+)
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
CANL
CANH
SWITCH SIDE
VEHICLE SIDE
IMMOBILIZER - BLACK
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
12V (+) INPUT
12V (+) INPUT
IGNITION (+) INPUT/OUTPUT
IGNITION (+) INPUT/OUTPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
BRAKE (+) INPUT
BRAKE (+) INPUT
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
LOCK (-) OUTPUT
LOCK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACKUNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
TRUNK (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) WHITE
(NC) WHITE
STARTER (+) INPUT - BLACK/WHITE
STARTER (+) INPUT - BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
WHITE/RED - TUMBLER SENSE (+)
WHITE/RED - TUMBLER SENSE (+)
WHITE (NC)
WHITE (NC)
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED - TUMBLER SENSE (+)
GRAY/RED - TUMBLER SENSE (+)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
Doc. No.: ##12497##

TYPE 3 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MITSUBISHI
Lancer/
Ralliart
Fast-Key
MT
08-13
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
Tumbler sense 9H03 Black/White 12 pin 8 Green (+) Junction connector, left side steering column (0-7V) C
CanL C-29 Black/White 12 pin 9 LtGreen (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 Yellow (DATA) Immobilizer, right side steering column D
Clutch SW1 C-132 Black 2 pin 1 Red/White (MUX) Clutch switch above clutch pedal E
Clutch SW2 C-132 Black 2 pin 2 Black/Red (MUX) Clutch switch above clutch pedal E
Page 8 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

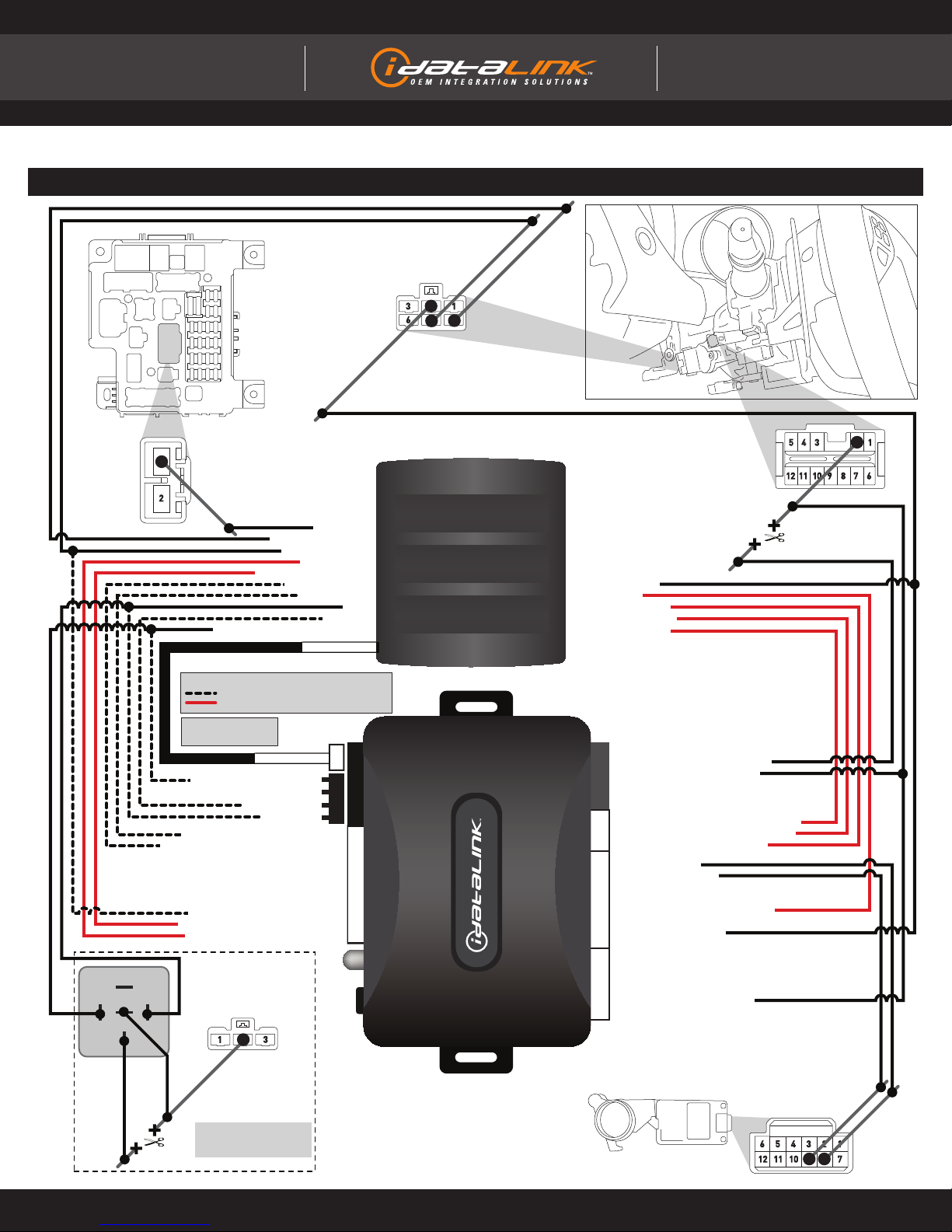

TYPE 3 - WIRING DIAGRAM
Page 9 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
86
30
87
87A
85
12
1
2
1
123
45
10 7 68 9
12 11
1
2
3
4
5
6
2
4
5
8
2
1
123
4
5
6
10 78912 11 98
1N4001
DIODE
C-309 CONNECTOR
BLACK
12V (+)
C-29
CONNECTOR
BLACK/WHITE
CONNECTOR 9H03
BLACK/WHITE
LEFT SIDE
STEERING COLUMN
START (+)
IGNITION (+)
TUMBLER SENSE (+)
ACCESSORY (+)
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
ETACS/ECU
FRONT VIEW
BLACK
IGNITION CONNECTOR
WHITE
CANL
CANH
IMMOBILIZER - BLACK
CLUTCH SWITCH - BLACK
LOCATED ABOVE CLUTCH PEDAL
SW2 (MUX)
CLUTCH
CLUTCH
SW1 (MUX)
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
12V (+) INPUT
12V (+) INPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
WHITE/BLACK - TUMBLER SENSE (+) OUTPUT
WHITE/BLACK - TUMBLER SENSE (+) OUTPUT
IGNITION (+) INPUT/OUTPUT
IGNITION (+) INPUT/OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
BRAKE (+) INPUT
BRAKE (+) INPUT
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
LOCK (-) OUTPUT
LOCK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACKUNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
TRUNK (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) WHITE
(NC) WHITE
STARTER (+) INPUT - BLACK/WHITE
STARTER (+) INPUT - BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
WHITE/RED - TUMBLER SENSE (+) OUTPUT
WHITE/RED - TUMBLER SENSE (+) OUTPUT
WHITE (NC)
WHITE (NC)
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED - TUMBLER SENSE (+) OUTPUT
GRAY/RED - TUMBLER SENSE (+) OUTPUT
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
VEHICLE SIDE
SWITCH SIDE
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
Doc. No.: ##12497##

MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MITSUBISHI
Lancer/
Ralliart
STD key
AT
08-13
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
CanL C-29 Black/White 12 pin 9 LtGreen (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 Yellow (DATA) Immobilizer, right side steering column D
Lancer Evo
STD key
TC-SST
08-13
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
CanL C-29 Black/White 12 pin 9 Black/Blue (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 White/Blue (DATA) Immobilizer, right side steering column D
Outlander
STD key
AT
07-13
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
CanL C-29 Black/White 12 pin 9 LtGreen (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 Yellow (DATA) Immobilizer, right side steering column D
Alarm sensor D-135 n/a 3 pin 2 Purple (DATA) Overhead console, near radar sensor J
TYPE 4 - WIRE CROSS REFERENCE CHART
Page 10 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

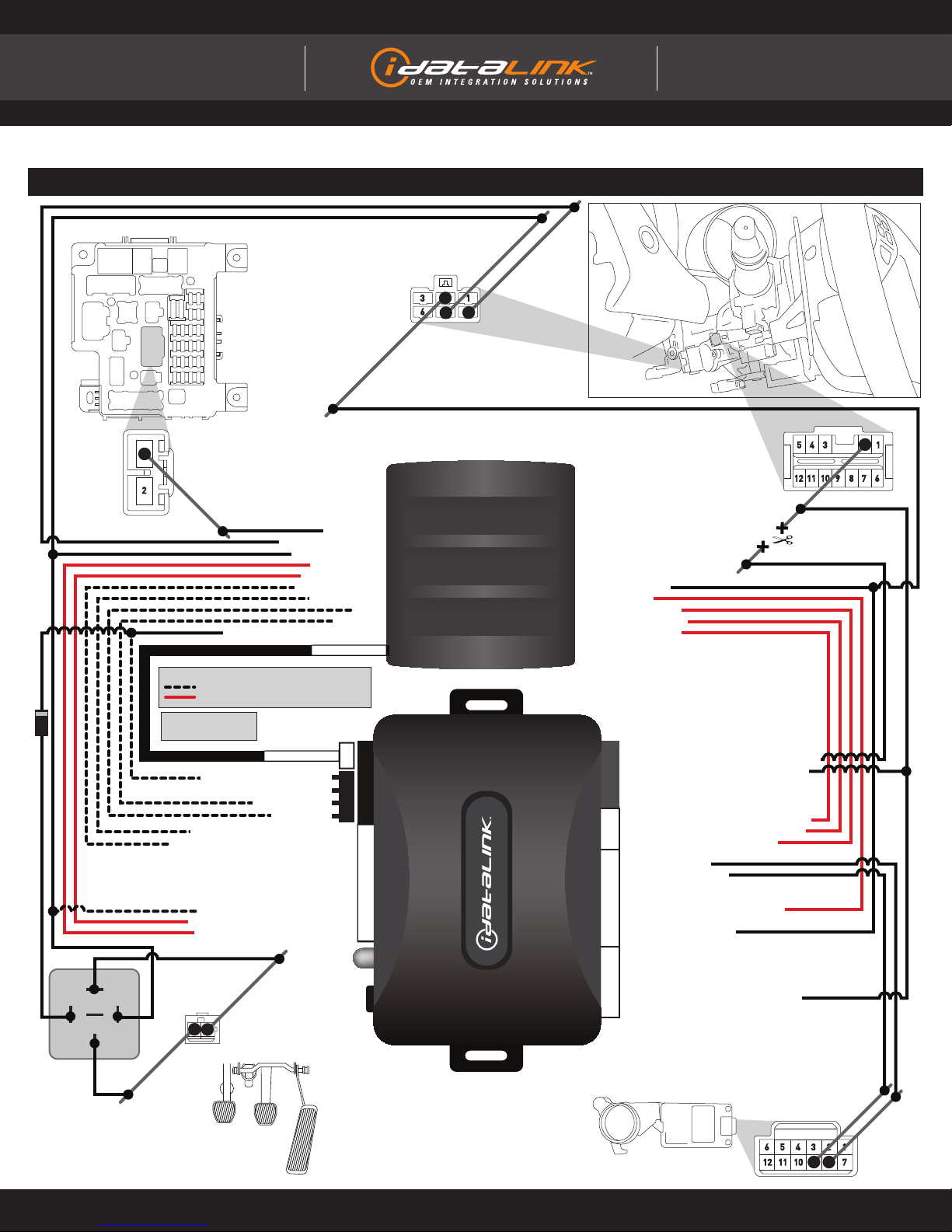

TYPE 4 - WIRING DIAGRAM
Page 11 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
1
2
1
1
2
3
4
5
6
2
4
5
12
3
4
5
6
10 78912 11 9 8
3
2
1
86
30
87
87A
85
2
C-309 CONNECTOR
BLACK
12V (+)
C-29
CONNECTOR
BLACK/WHITE
IMMOBILIZER - BLACK
WARNING: APPLY ONLY IF
VEHICLE IS EQUIPPED
WITH PROXIMITY SENSOR
LEFT SIDE
STEERING COLUMN
START (+)
IGNITION (+)
ACCESSORY (+)
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
ETACS/ECU
FRONT VIEW
BLACK
IGNITION CONNECTOR
WHITE
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
CANL
CANH
YELLOW/BLACK - DOOR STATUS (-) OUTPUTYELLOW/BLACK - DOOR STATUS (-) OUTPUT
12V (+) INPUT
12V (+) INPUT
IGNITION (+) INPUT/OUTPUT
IGNITION (+) INPUT/OUTPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
WHITE/BLACK (NC)
WHITE/BLACK (NC)
BRAKE (+) INPUT
BRAKE (+) INPUT
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
LOCK (-) OUTPUT
LOCK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACKUNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
TRUNK (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) WHITE
(NC) WHITE
STARTER (+) INPUT - BLACK/WHITE
STARTER (+) INPUT - BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
WHITE/RED (NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
ALARM SENSOR
D-135 - OVERHEAD CONSOLE
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
Doc. No.: ##12497##

TYPE 5 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MITSUBISHI
Lancer/Ralliart
STD key
MT
08-13
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
CanL C-29 Black/White 12 pin 9 LtGreen (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 Yellow (DATA) Immobilizer, right side steering column D
Clutch SW1 C-132 Black 2 pin 1 Red/White (MUX) Clutch switch above clutch pedal E
Clutch SW2 C-132 Black 2 pin 2 Black/Red (MUX) Clutch switch above clutch pedal E
Lancer Evo
STD key
MT
08-13
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
CanL C-29 Black/White 12 pin 9 Black/Blue (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 White/Blue (DATA) Immobilizer, right side steering column D
Clutch SW1 C-132 Black 2 pin 1 Red/White (MUX) Clutch switch above clutch pedal E
Clutch SW2 C-132 Black 2 pin 2 Black/Red (MUX) Clutch switch above clutch pedal E
Page 12 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

TYPE 5 - WIRING DIAGRAM
Page 13 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
86
30
87
87A
85
12
1
2
1
1
2
3
4
5
6
2
4
5
2
1
123
4
5
6
10 78912 11 98
1N4001
DIODE
C-309 CONNECTOR
BLACK
12V (+)
LEFT SIDE
STEERING COLUMN
START (+)
IGNITION (+)
ACCESSORY (+)
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
ETACS/ECU
FRONT VIEW
BLACK
IGNITION CONNECTOR
WHITE
CLUTCH SWITCH - BLACK
LOCATED ABOVE CLUTCH PEDAL
SW2 (MUX)
CLUTCH
CLUTCH
SW1 (MUX)
C-29
CONNECTOR
BLACK/WHITE
CANL
CANH
IMMOBILIZER - BLACK
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
12V (+) INPUT
12V (+) INPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BLUE/RED (NC)BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
WHITE/BLACK (NC)
WHITE/BLACK (NC)
BROWN/RED - CANH
BROWN/RED - CANH
IGNITION (+) INPUT/OUTPUT
IGNITION (+) INPUT/OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
TRUNK (-) OUTPUT
TRUNK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
LOCK (-) OUTPUT
LOCK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
BRAKE (+) INPUT
BRAKE (+) INPUT
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK/DISARM (-) INPUT - BLUE/BLACKUNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK (-) INPUT - RED/WHITE
TRUNK (-) INPUT - RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) WHITE
(NC) WHITE
STARTER (+) INPUT - BLACK/WHITE
STARTER (+) INPUT - BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
WHITE/RED (NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
Doc. No.: ##12497##

MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MITSUBISHI
Eclipse*/
Spyder*
STD key
AT
06-12
12V C308 Blue 6 pin 1 Blue/Yellow (+) Ignition switch D
Ignition C308 Blue 6 pin 2 Red (+) Ignition switch D
Accessory C308 Blue 6 pin 4 Blue/Red (+) Ignition switch D
Start C308 Blue 6 pin 5 Black/Yellow (+) Ignition switch D
2nd Accessory C308 Blue 6 pin 6 Blue/Black (+) Ignition switch D
Driver Door Pin C-208 ~ 15 pin 6 LtGreen (-) Junction block A
Parking Light ~ ~ ~ ~ Green/Orange (+) Driver kick panel, running board harness H
Lock ~ ~ ~ ~ Purple (-) Harness coming from driver door G
Unlock ~ ~ ~ ~ Green/Red (-) Harness coming from driver door G
CanH OBDII ~ 16 pin 6 Red (DATA) OBDII F
CanL OBDII ~ 16 pin 14 Black (DATA) OBDII F
Endeavor*
STD key
AT
07-11
12V C308 Blue 6 pin 1 Blue/Yellow (+) Ignition switch D
Ignition C308 Blue 6 pin 2 Black/White (+) Ignition switch D
Accessory C308 Blue 6 pin 4 Blue/Red (+) Ignition switch D
Start C308 Blue 6 pin 5 Black/Yellow (+) Ignition switch D
2nd Accessory C308 Blue 6 pin 6 Blue/Black (+) Ignition switch D
Driver Door Pin C-208 ~ 15 pin 6 LtGreen (-) Junction block A
Parking Light ~ ~ ~ ~ Green/Orange (+) Driver kick panel, running board harness H
Lock ~ ~ ~ ~ Purple (-) Harness coming from driver door G
Unlock ~ ~ ~ ~ Green/Red (-) Harness coming from driver door G
CanH OBDII ~ 16 pin 6 Red (DATA) OBDII F
CanL OBDII ~ 16 pin 14 Black (DATA) OBDII F
Galant*
STD key
AT
06-12
12V C308 Blue 6 pin 1 Blue/Yellow (+) Ignition switch D
Ignition C308 Blue 6 pin 2 Black/White (+) Ignition switch D
Accessory C308 Blue 6 pin 4 Blue/Red (+) Ignition switch D
Start C308 Blue 6 pin 5 Black/Yellow (+) Ignition switch D
2nd Accessory C308 Blue 6 pin 6 Blue/Black (+) Ignition switch D
Driver Door Pin C-208 ~ 15 pin 6 LtGreen (-) Junction block A
Parking Light ~ ~ ~ ~ Green/Orange (+) Driver kick panel, running board harness H
Lock ~ ~ ~ ~ Purple (-) Harness coming from driver door G
Unlock ~ ~ ~ ~ Green/Red (-) Harness coming from driver door G
CanH OBDII ~ 16 pin 6 Red (DATA) OBDII F
CanL OBDII ~ 16 pin 14 Black (DATA) OBDII F
TYPE 6 - WIRE CROSS REFERENCE CHART
*Warning: if OEM alarm goes off, only OEM remote can silence it.
Page 14 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

TYPE 6 - WIRING DIAGRAM
Page 15 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
1011
12
131415
1234567
89
1
2
3
4
5
6
161514131211109
87654321
1
6
86
30
87
87A
85
14
2
456
6
1N4001
DIODE
1N4001
DIODE
C-208
OBDII CONNECTOR LOCATED
UNDER DRIVER SIDE DASH
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- OPTIONAL
<- REQUIRED
<- REQUIRED
<- REQUIRED
JUNCTION BOX
BLACK
FRONT VIEW
JUNCTION BOX
BLACK
FRONT VIEW
IGNITION
CONNECTOR
C-308 - BLUE
IGNITION
CONNECTOR
C-308 - BLUE
12V (+)
IGNITION (+)
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
OPTIONAL ->
OPTIONAL ->
CANL
CANH
START (+)
ACCESSORY (+)
2ND ACCESSORY (+)
DRIVER DOOR PIN (-)
UNLOCK (-)
LOCK (-)
PARKING LIGHT (+)
HARNESS FROM
DRIVER DOOR
DRIVER SIDE
RUNNING BOARD
DO NOT CONNECT DISARM
DO NOT PROGRAM
UNLOCK BEFORE START
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
2ND ACCESSORY (+) OUTPUT
2ND ACCESSORY (+) OUTPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
ARM (-) INPUT - GREEN/BLACK
ARM (-) INPUT - GREEN/BLACK
WHITE/BLACK - GROUND (-)
WHITE/BLACK - GROUND (-)
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
ARM (-) OUTPUT
ARM (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
12V (+) INPUT
12V (+) INPUT
IGNITION (+) INPUT/OUTPUT
IGNITION (+) INPUT/OUTPUT
BRAKE (+) INPUT
BRAKE (+) INPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
WHITE/RED (NC)
WHITE/RED (NC)
WHITE - RELAY ACTIVATION (-) OUTPUT
WHITE - RELAY ACTIVATION (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK (-) INPUT - BLUE/BLACKUNLOCK (-) INPUT - BLUE/BLACK
(NC) RED/WHITE
(NC) RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) WHITE
(NC) WHITE
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
WARNING: IF OEM ALARM
GOES OFF ONLY OEM
REMOTE CAN SILENCE IT
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
Doc. No.: ##12497##

TYPE 7 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MITSUBISHI
Eclipse*/
Spyder*
STD key
MT
06-12
12V C308 Blue 6 pin 1 Blue/Yellow (+) Ignition switch D
Ignition C308 Blue 6 pin 2 Red (+) Ignition switch D
Accessory C308 Blue 6 pin 4 Blue/Red (+) Ignition switch D
Start C308 Blue 6 pin 5 Black/Yellow (+) Ignition switch D
2nd Accessory C308 Blue 6 pin 6 Blue/Black (+) Ignition switch D
Driver Door Pin C-208 ~ 15 pin 6 LtGreen (-) Junction block A
Parking Light ~ ~ ~ ~ Green/Orange (+) Driver kick panel, running board harness H
Lock ~ ~ ~ ~ Purple (-) Harness coming from driver door G
Unlock ~ ~ ~ ~ Green/Red (-) Harness coming from driver door G
Clutch SW C-129 White 4 pin 2 Brown/Black Open Clutch switch near clutch pedal E
CanH OBDII ~ 16 pin 6 Red (DATA) OBDII F
CanL OBDII ~ 16 pin 14 Black (DATA) OBDII F
*Warning: if OEM alarm goes off, only OEM remote can silence it.
Page 16 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

TYPE 7 - WIRING DIAGRAM
Page 17 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
1011
12
131415
1234567
89
1
2
3
4
5
6
161514131211109
87654321
1
6
1 2
3 4
86
30
87
87A
85
14
2
456
6
86
30
87
87A
85
2
1N4001
DIODE
1N4001
DIODE
1N4001
DIODE
C-208
OBDII CONNECTOR LOCATED
UNDER DRIVER SIDE DASH
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
JUNCTION BOX
BLACK
FRONT VIEW
IGNITION
CONNECTOR
C-308 - BLUE
12V (+)
IGNITION (+)
CANL
CANH
START (+)
ACCESSORY (+)
2ND ACCESSORY (+)
DRIVER DOOR PIN (-)
UNLOCK (-)
LOCK (-)
CLUTCH SWITCH C-129 - WHITE
LOCATED ABOVE CLUTCH PEDAL
CLUTCH (OPEN)
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
PARKING LIGHT (+)
BLUE/RED (NC)BLUE/RED (NC)
WHITE/BLACK - GROUND (-)
WHITE/BLACK - GROUND (-)
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
PARKING LIGHT (+) OUTPUT
PARKING LIGHT (+) OUTPUT
2ND ACCESSORY (+) OUTPUT
2ND ACCESSORY (+) OUTPUT
DO NOT CONNECT DISARM
DO NOT PROGRAM
UNLOCK BEFORE START
DRIVER SIDE
RUNNING BOARD
HARNESS FROM
DRIVER DOOR
WARNING: IF OEM ALARM
GOES OFF ONLY OEM
REMOTE CAN SILENCE IT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
BROWN/RED - CANHBROWN/RED - CANH
ARM (-) INPUT - GREEN/BLACK
ARM (-) INPUT - GREEN/BLACK
LOCK (-) OUTPUT
LOCK (-) OUTPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
ARM (-) OUTPUT
ARM (-) OUTPUT
TACH (AC) INPUT
TACH (AC) INPUT
E-BRAKE STATUS (-) INPUT
E-BRAKE STATUS (-) INPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
STARTER (+) OUTPUT
STARTER (+) OUTPUT
ACCESSORY (+) OUTPUT
ACCESSORY (+) OUTPUT
12V (+) INPUT
12V (+) INPUT
IGNITION (+) INPUT/OUTPUT
IGNITION (+) INPUT/OUTPUT
BRAKE (+) INPUT
BRAKE (+) INPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
WHITE/RED (NC)
WHITE/RED (NC)
WHITE - RELAY ACTIVATION (-) OUTPUT
WHITE - RELAY ACTIVATION (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW (NC)
YELLOW (NC)
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
(NC) WHITE(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
UNLOCK (-) INPUT - BLUE/BLACKUNLOCK (-) INPUT - BLUE/BLACK
(NC) RED/WHITE
(NC) RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) WHITE
(NC) WHITE
(NC) BLACK/WHITE
(NC) BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
Doc. No.: ##12497##

TYPE 8 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MITSUBISHI
Lancer
Evo
Fast-Key
MT
08-12
12V C-309 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition ~ White 6 pin 2 White (+) Ignition switch, left side steering column B
Accessory ~ White 6 pin 4 LtGreen (+) Ignition switch, left side steering column B
Start ~ White 6 pin 5 Orange (+) Ignition switch, left side steering column B
Tumbler sense 9H03 Black/White 12 pin 2 Green (+) Junction connector, left side steering column (0-7V) C
CanL C-29 Black/White 12 pin 9 Black/Blue (DATA) Immobilizer, right side steering column D
CanH C-29 Black/White 12 pin 8 White/Blue (DATA) Immobilizer, right side steering column D
Clutch SW1 C-132 Black 2 pin 1 Red/White (MUX) Clutch switch above clutch pedal E
Clutch SW2 C-132 Black 2 pin 2 Black/Red (MUX) Clutch switch above clutch pedal E
Page 18 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##

TYPE 8 - WIRING DIAGRAM
Page 19 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
86
30
87
87A
85
12
1
2
1
123
45
10 7 68 9
12 11
1
2
3
4
5
6
2
4
5
2
2
1
123
4
5
6
10 78912 11 98
1N4001
DIODE
C-309 CONNECTOR
BLACK
12V (+)
C-29
CONNECTOR
BLACK/WHITE
CONNECTOR 9H03
BLACK/WHITE
LEFT SIDE
STEERING COLUMN
START (+)
IGNITION (+)
TUMBLER SENSE (+)
ACCESSORY (+)
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
<- REQUIRED
ETACS/ECU
FRONT VIEW
BLACK
IGNITION CONNECTOR
WHITE
CANL
CANH
SWITCH SIDE
VEHICLE SIDE
IMMOBILIZER - BLACK
CLUTCH SWITCH - BLACK
LOCATED ABOVE CLUTCH PEDAL
SW2 (MUX)
CLUTCH
CLUTCH
SW1 (MUX)
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
REQUIRED ->
BROWN/RED - CANH
BROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
LOCK/ARM (-) INPUT - GREEN/BLACK
LOCK/ARM (-) INPUT - GREEN/BLACK
WHITE/BLACK - TUMBLER SENSE (+) OUTPUT
WHITE/BLACK - TUMBLER SENSE (+) OUTPUT
IGNITION (+) OUTPUT
IGNITION (+) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/BLACK - DOOR STATUS (-) OUTPUT
BRAKE (+) INPUT
BRAKE (+) INPUT
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
TRUNK STATUS (-) INPUT
TRUNK STATUS (-) INPUT
DOOR STATUS (-) INPUT
DOOR STATUS (-) INPUT
UNLOCK (-) OUTPUT
UNLOCK (-) OUTPUT
LOCK (-) OUTPUT
LOCK (-) OUTPUT
12V (+)
12V (+)
GROUND (-)
GROUND (-)
GROUND WHEN RUNNING (-) OUTPUT
GROUND WHEN RUNNING (-) OUTPUT
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK
(NC) RED/WHITE
(NC) RED/WHITE
(NC) BROWN
(NC) BROWN
(NC) PURPLE/YELLOW
(NC) PURPLE/YELLOW
(NC) PURPLE/BLACK
(NC) PURPLE/BLACK
(NC) WHITE
(NC) WHITE
STARTER (+) INPUT - BLACK/WHITE
STARTER (+) INPUT - BLACK/WHITE
E-BRAKE STATUS (-) OUTPUT - GREEN
E-BRAKE STATUS (-) OUTPUT - GREEN
TACH (AC) OUTPUT - PURPLE/WHITE
TACH (AC) OUTPUT - PURPLE/WHITE
WHITE/RED - TUMBLER SENSE (+) OUTPUT
WHITE/RED - TUMBLER SENSE (+) OUTPUT
WHITE (NC)
WHITE (NC)
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
YELLOW - HOOD STATUS (-) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - BRAKE STATUS (+) OUTPUT
ORANGE - BRAKE STATUS (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
GREEN/YELLOW (NC)
GREEN/YELLOW (NC)
GRAY/RED - TUMBLER SENSE (+) OUTPUT
GRAY/RED - TUMBLER SENSE (+) OUTPUT
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
12V (+) INPUT
ACCESSORY (+) OUTPUT
STARTER (+) OUTPUT
TACH (AC) INPUT
E-BRAKE (-) INPUT
GWR (-) INPUT - BLUE/WHITEGWR (-) INPUT - BLUE/WHITE
(NC) WHITE
(NC) WHITE
GROUND - BLACK
GROUND - BLACK
12V (+) - RED
12V (+) - RED
NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
LEGEND
USE DATA MODE
OR HARDWIRE MODE
DATA MODE
DATA MODE
REMOTE STARTER
Doc. No.: ##12497##

TYPE 9 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
MITSUBISHI
Outlander
Sport
STD key
AT
11
12V C-208 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition C-417 White 15 pin 6 White (+) ETACS/ECU, left side dash A
Accessory C-417 White 15 pin 7 LtGreen (+) ETACS/ECU, left side dash A
Start C-415 White 19 pin 7 LtBlue (+) ETACS/ECU, left side dash A
CanL C-411 Black/White 24 pin 7 Red (DATA) ETACS/ECU, left side dash A
CanH C-411 Black/White 24 pin 6 Green (DATA) ETACS/ECU, left side dash A
Alarm sensor D-135 ~ 3 pin 2 Purple (DATA) Overhead console, near radar sensor J
Outlander
Sport
PTS
AT
11-12
12V C-208 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition C-417 White 15 pin 6 White (+) ETACS/ECU, left side dash A
Accessory C-417 White 15 pin 7 LtGreen (+) ETACS/ECU, left side dash A
Start C-415 White 19 pin 7 LtBlue (+) ETACS/ECU, left side dash A
CanL C-411 Black/White 24 pin 7 Red (DATA) ETACS/ECU, left side dash A
CanH C-411 Black/White 24 pin 6 Green (DATA) ETACS/ECU, left side dash A
Alarm sensor D-135 ~ 3 pin 2 Purple (DATA) Overhead console, near radar sensor J
RVR
STD key
AT
11
12V C-208 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition C-417 White 15 pin 6 White (+) ETACS/ECU, left side dash A
Accessory C-417 White 15 pin 7 LtGreen (+) ETACS/ECU, left side dash A
Start C-415 White 19 pin 7 LtBlue (+) ETACS/ECU, left side dash A
CanL C-411 Black/White 24 pin 7 Red (DATA) ETACS/ECU, left side dash A
CanH C-411 Black/White 24 pin 6 Green (DATA) ETACS/ECU, left side dash A
Alarm sensor D-135 ~ 3 pin 2 Purple (DATA) Overhead console, near radar sensor J
RVR
PTS
AT
11-12
12V C-208 Black 2 pin 1 White (+) ETACS/ECU, left side dash A
Ignition C-417 White 15 pin 6 White (+) ETACS/ECU, left side dash A
Accessory C-417 White 15 pin 7 LtGreen (+) ETACS/ECU, left side dash A
Start C-415 White 19 pin 7 LtBlue (+) ETACS/ECU, left side dash A
CanL C-411 Black/White 24 pin 7 Red (DATA) ETACS/ECU, left side dash A
CanH C-411 Black/White 24 pin 6 Green (DATA) ETACS/ECU, left side dash A
Alarm sensor D-135 ~ 3 pin 2 Purple (DATA) Overhead console, near radar sensor J
Page 20 of 25 ADS-AL(DL)-MI2-EN 20131022
INSTALL GUIDE
Guides Français disponibles au www.idatalink.com
WWW.IDATALINK.COM/SUPPORT Automotive Data Solutions Inc. © 2013
ALL IN ONE
Mitsubishi
Doc. No.: ##12497##
