iDataLink BLADE Series User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
Automotive Data Solutions Inc.
INSTALL GUIDE
BLADE-AL(DL)-CH7-EN
AvAiLABLE for: ADS-BLADE AL
CH7
The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2013
VERSION FRANÇAISE DISPONIBLE EN LIGNE AU www.BLADEUPTADE.Com
PLEASE VISIT www.BLADEUPDATE.Com FOR COMPLETE PRODUCT DETAILS
Rev. Date: January 24, 2013
Doc. No.: ##10711##
20130110

MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM TRUNK/HATCH RELEASE DOOR STAT OUTPUT TRUNK STAT OUTPUT BRAKE PEDAL STAT OUTPUT TACHOMETER OUTPUT RAP SHUTDOWN CTRL E-BRAKE OUTPUT SECURE TAKE OVER
CHRYSLER
300 PTS 11-13 2 • • • • • • • • • • • • • •
DODGE
Charger PTS 11-13 2 • • • • • • • • • • • • • •
Journey PTS 11-13 1 • • • • • • • • • • • • •
ADS-AL(DL)-CH7 PAGE 2-3
INSTALL TYPE SELECTION
NOTE
I WARNING: All vehicle doors
must be closed and locked prior
to remote start sequence.
Page 2 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##

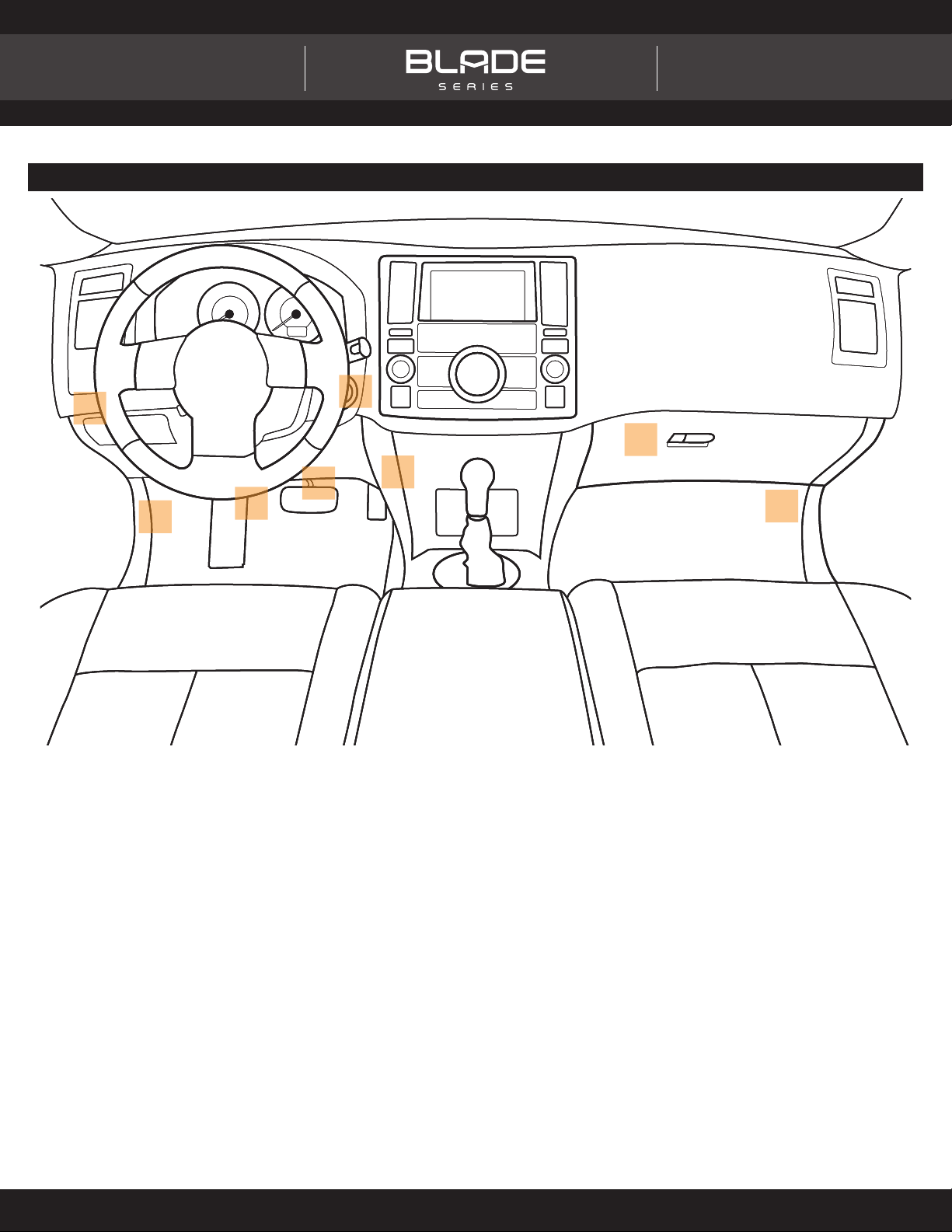

COMPONENT LOCATOR
XX-XX PAGE X-XADS-AL(DL)-CH7 PAGE X-X
A
DE
F
G
H
BC
Page 3 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##

MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR NAME COLOR TYPE
DODGE
Journey
PTS 11-13
12V ~ Black 06 pin 06 Red (+) Push button F
Ground ~ Black 06 pin 03 Black (-) Push button F
Ignition ~ ~ ~ ~ Pink/White (+) Driver kick panel B
Push ~ Black 06 pin 04 Purple/Blue (+) Push button F
IMO LIN ~ Black 06 pin 05 White/Green (DATA) Push button F
CanH ~ ~ ~ ~ Brown (DATA) Driver kick panel B
CanL ~ ~ ~ ~ Yellow (DATA) Driver kick panel B
Parking light ~ Black 06 pin 03 White/Brown (MUX) Parking light switch A
Rap shutdown C6 White 48 pin 25 Purple (-) BCM behind glove box G
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box G
TYPE 1 - WIRE CROSS REFERENCE CHART
ADS-AL(DL)-CH7 T1 PAGE X-X
Page 4 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##

TYPE 1 - WIRING DIAGRAM
123456
123456
6543
3
2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
2 15 437 69 8
12 11
10
14 1316 1519 18 1721 2023 2224
40 39
33
42 41
35 3437 36 26 2538 28 2730 29
43
32 31
45 4447 4648
25
11
1N4001
DIODE
BROWN/RED - CANHBROWN/RED - CANHBROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW - PARKING LIGHT (MUX) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - PUSH (+) OUTPUT
ORANGE - PUSH (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
PUSH (+)
CANH
CANL IGNITION (+)
PARKING LIGHT (MUX)
GROUND (-)
RAP SHUTDOWN
HOOD STATUS (-)
12V (+) IMO LIN
WHITE/BLACK - LIN CUT CONNECTOR SIDE
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
GROUND (-) INPUT
GROUND (-) INPUT
WHITE/RED - LIN CUT IGNITION SIDE
WHITE (NC)
WHITE (NC)
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
HARNESS IN RUNNING BOARD
DRIVER SIDE
PARKING LIGHT SWITCH
BLACK
C1 CONNECTOR - BLACK
C6 CONNECTOR - WHITE
BCM
WHITE
- BLACK
PUSH TO START
CONNECTOR - BLACK
Page 5 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##

MAKE MODEL YEAR WIRE DESCRIPTION
CONNECTOR
POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR NAME COLOR TYPE
CHRYSLER
300
PTS 11-13
12V ~ Black 06 pin 06 Red (+) Push button F
Ground ~ Black 06 pin 03 Black (-) Push button F
Ignition ~ ~ ~ ~ Pink/White (+) Passenger kick panel H
Push ~ Black 06 pin 04 Purple/Blue (+) Push button F
IMO LIN ~ Black 06 pin 05 White/Green (DATA) Push button F
CanH ~ ~ ~ ~ Brown (DATA) Passenger kick panel H
CanL ~ ~ ~ ~ Yellow (DATA) Passenger kick panel H
Parking light ~ Black 06 pin 03 White/Brown (MUX) Parking light switch A
Rap shutdown C6 White 48 pin 25 Purple (-) BCM behind glove box G
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box G
DODGE
Charger
PTS 11-13
12V ~ Black 06 pin 06 Red (+) Push button F
Ground ~ Black 06 pin 03 Black (-) Push button F
Ignition ~ ~ ~ ~ Pink/White (+) Passenger kick panel H
Push ~ Black 06 pin 04 Purple/Blue (+) Push button F
IMO LIN ~ Black 06 pin 05 White/Green (DATA) Push button F
CanH ~ ~ ~ ~ Brown (DATA) Passenger kick panel H
CanL ~ ~ ~ ~ Yellow (DATA) Passenger kick panel H
Parking light ~ Black 06 pin 03 White/Brown (MUX) Parking light switch A
Rap shutdown C6 White 48 pin 25 Purple (-) BCM behind glove box G
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box G
TYPE 2 - WIRE CROSS REFERENCE CHART
ADS-AL(DL)-CH7 T2 PAGE X-X
Page 6 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##

TYPE 2 - WIRING DIAGRAM
123456
123456
6543
3
2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
2 15 437 69 8
12 11
10
14 1316 1519 18 1721 2023 2224
40 39
33
42 41
35 3437 36 26 2538 28 2730 29
43
32 31
45 4447 4648
25
11
1N4001
DIODE
BROWN/RED - CANHBROWN/RED - CANH
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW - PARKING LIGHT (MUX) OUTPUT
BROWN/YELLOW - CANL
BROWN/YELLOW - CANL
ORANGE/BLACK - IMO LIN
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - PUSH (+) OUTPUT
ORANGE - PUSH (+) OUTPUT
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED - RAP SHUTDOWN
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
PINK - IGNITION (+) INPUT
PINK - IGNITION (+) INPUT
PUSH (+)
CANH
CANL IGNITION (+)
PARKING LIGHT (MUX)
GROUND (-)
RAP SHUTDOWN
HOOD STATUS (-)
12V (+) IMO LIN
WHITE/BLACK - LIN CUT CONNECTOR SIDE
IGNITION (+) INPUT
IGNITION (+) INPUT
12V (+) INPUT
12V (+) INPUT
GROUND (-) INPUT
GROUND (-) INPUT
WHITE/RED - LIN CUT IGNITION SIDE
WHITE (NC)
WHITE (NC)
HOOD STATUS (-) INPUT
HOOD STATUS (-) INPUT
HARNESS IN RUNNING BOARD
PASSENGER SIDE
PARKING LIGHT SWITCH
BLACK
C6 CONNECTOR - WHITE
BCM
WHITE
- BLACK
PUSH TO START
CONNECTOR - BLACK
C1 CONNECTOR - BLACK
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 7 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##

CARTRIDGE INSTALLATION
1Slide cartridge into unit. Notice
button under LED. 2Ready for Module Programming Procedure.
8Push start button once [1x] to
OFF position.
x1

MODULE PROGRAMMING PROCEDURE - WITH KLON - 1 OF 2
10 Wait, LED will fl ash BLUE
rapidly.
IMPORTANT: READ NEXT PAGE !
7Wait, LED will turn solid RED.
3Wait, LED will fl ash BLUE once
[1x].
x1
1Close driver door.
Re-open driver door to wake up
data bus.
2Press UNLOCK on keyfob 1.
6Push start button twice [2x] with
keyfob 1 to ON position.
(No battery)

x2
9Push start button twice [2x] with
keyfob 1 to ON position.
(No battery)

x2
4Remove valet key from keyfob 1.

11 Push start button once [1x] to
OFF position.
x1

5Remove batteries from keyfob 1.

12 Disconnect all connectors from
remote starter except the power
connector.
   
   
13 Disconnect the power
connector.
Page 8 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##

MODULE PROGRAMMING PROCEDURE - WITH KLON - 2 OF 2
20 Wait, LED will turn solid BLUE
for 2 seconds.
21 Push start button once [1x] to
OFF position.
x1

19 Push start button twice [2x] with
keyfob 1 to ON position.
(No battery)

x2
16 Proceed with extended
programming.
14 Remove remote starter from
vehicle.

15 Connect remote starter to
computer.

17 Connect remote starter to
vehicle.
23 Module Programming
Procedure completed.
18 Close driver door.
Re-open driver door to wake up
data bus.
22 Insert battery in keyfob 1.

Page 9 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##

BLADE-AL PAGE 1-1
LED STATUS
DIAGNOSTICS
DURING PROGRAMMING DURING REMOTE START WITH IGNITION OFF
Flashing RED Missing/wrong information from
fi rmware or vehicle Incorrectly programmed Incorrectly programmed or connected
Solid RED Waiting for more vehicle information Incorrectly programmed Not programmed waiting for more
vehicle information
Flashing BLUE Additional steps required to complete
programming
Correctly programmed and
operational
False ground when running status
from remote starter
Solid BLUE then OFF Correctly programmed Reset in progress Reset in progress
OFF No activity or already programmed Invalid ground when running status
from remote starter
At rest and ready for a remote start
sequence
MODULE DIAGNOSTICS
IDENTIFY VEHICLE YEAR
1Locate the Vehicle Identifi cation
Number (VIN) and identify the
10th character.
2Match the VIN’s 10th character
to its corresponding year.
L > 1990 S > 1995 Y > 2000 5 > 2005 A > 2010
M > 1991 T > 1996 1 > 2001 6 > 2006 B > 2011
N > 1992 V > 1997 2 > 2002 7 > 2007 C > 2012
P > 1993 W > 1998 3 > 2003 8 > 2008 D > 2013
R > 1994 X > 1999 4 > 2004 9 > 2009 E > 2014
4 Y 1 N53 A 5 T A L 8 D 5 R 0 X

FACTORY RESET PROCEDURE
5RECONNECT all connectors.
Repeat programming procedure.
!Failure to follow procedure may result with a DTC or a
CHECK ENGINE error message.
1DISCONNECT cartridge from
remote starter.
2PRESS AND HOLD programming
button while re-connecting
cartridge to remote starter.
3LED will fl ash red. Immediately
RELEASE programming button.
4LED will turn solid red for 2
seconds.
RESET COMPLETED.
Page 10 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##

XX-XX PAGE X-X
NOTICE
ADS-AL(DL)-HK2 PAGE X-X
WARNING: READ BEFORE REMOTE STARTING THE VEHICLE
IMPORTANT
I All vehicle doors must be closed and locked prior to remote start sequence. Failure to comply will result in remote starter malfunction.
PUSH TO START VEHICLE TAKE OVER PROCEDURE - TO THE VEHICLE OWNER
!Failure to follow procedure within time restriction will
result in vehicle engine shutdown.
3Push to Start vehicle take over
procedure completed.
2TIME RESTRICTI
 N
Within 45 SECONDS from
previous step:
Open vehicle door.
Enter vehicle.
Press and release BRAKE pedal.
NOTE
I All vehicle doors must be closed and locked prior to remote
start sequence.
1Press UNLOCK on after-market
remote.
TIME RESTRICTI
 N COMING UP !
Page 11 of 11 BLADE-AL(DL)-CH7-EN 20130110
INSTALL GUIDE
WWW.BLADEUPDATE.COM Automotive Data Solutions Inc. © 2013
ALL IN ONE
Chrysler/DoDge/Jeep
Guides Français disponibles au WWW.BLADEUPDATE.COM
Doc. No.: ##10711##
