Ideal AKE UKW Installation manual

PROGRAMMING-INSTRUCTION
Refrigerated Air Pans
BAKERY
For flat presentation, flush mounted,
Loading height: max. 60mm
BAKERY H
Flat presentation with raised air tower for larger
products like Pastries, Cakes, Delicacies, e.g.
UKW
Functional Air Pan for the use of adjustable base decks
or Containers GN 1/1 up to 150mm depth
self-contained or for remote refrigeration
For authorized refrigeration companies and qualified service personnel!
WARRANTY IS NOT GUARANTEED IF THE FOLLOWING
INSTRUCTIONS ARE NEGLECTED!

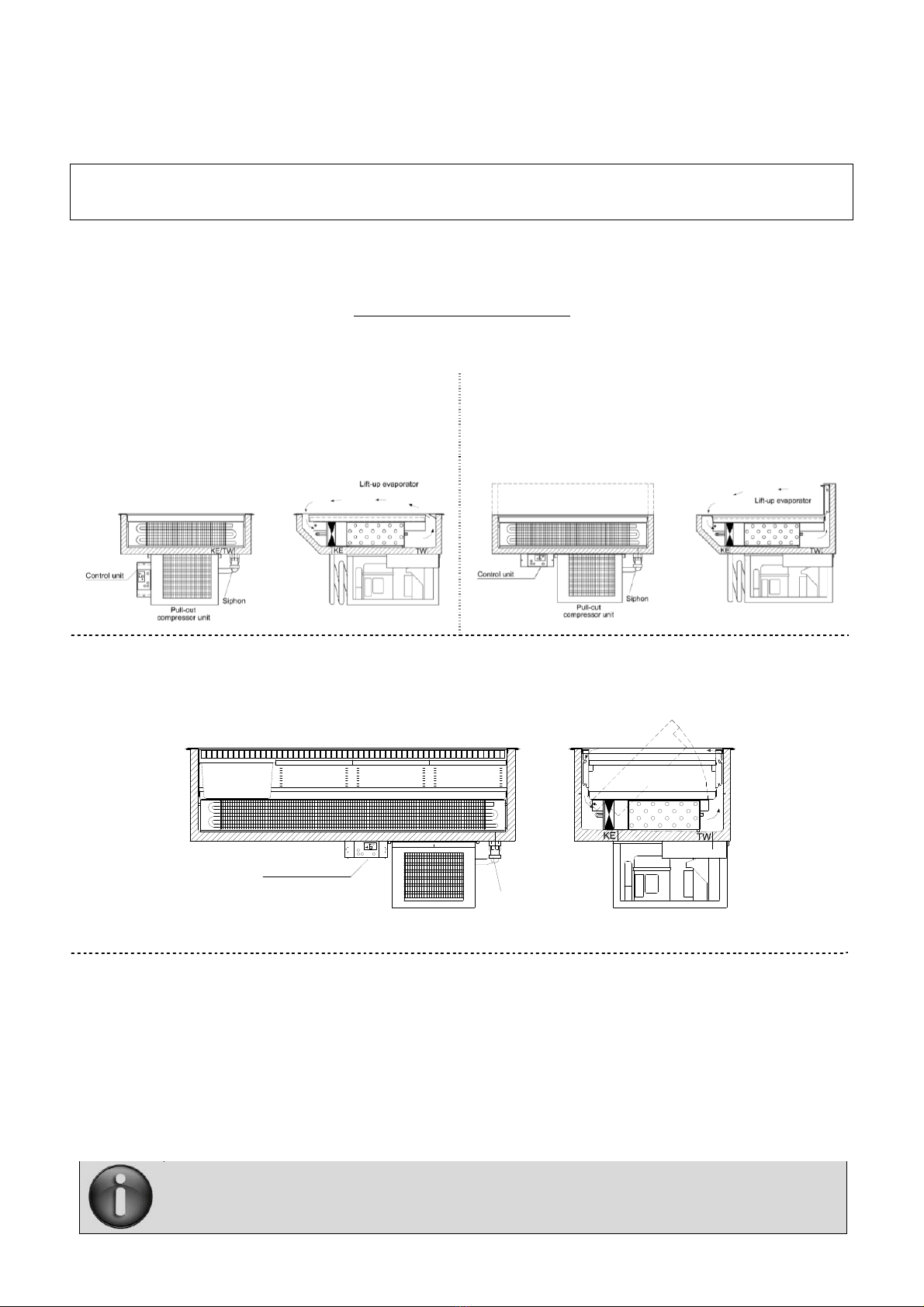

- Siphon -
Gastro norm
pan
Condensing unit
moveable
lift up Evaporator
Control unit / box
(Display can mount up to 6
feet away from control box)
Base decks - adjustable in height
inner base - removable

Valid from: 11/2013 – Rev.: UKW & BAKERY (13A) Subject to technical changes Page 2 from 4
Controller for cooling applications – programming instruction
PARAMETERISATION
Parameterisation of the cooling controller is done in the
factory or during commissioning of a cold store by
qualified staff. Wrong or inappropriate parameterisation
can result in malfunction and damage of the
refrigerated goods. Parameter setting is possible only
after entering one or more passwords. In the following
list of parameters, all parameters of a complex cooling
controller are listed. Please note, however, that the
parameters listed are only available in controller designs
where the relevant hardware (outputs, inputs, sensors
and internal clock) is available.
Parameterisation is possible at any time. The control
operation is not interrupted during parameterisation,
but can have a direct influence on it. If no button is
pressed for 2 minutes, the operation is stopped and the
actual value is displayed again.

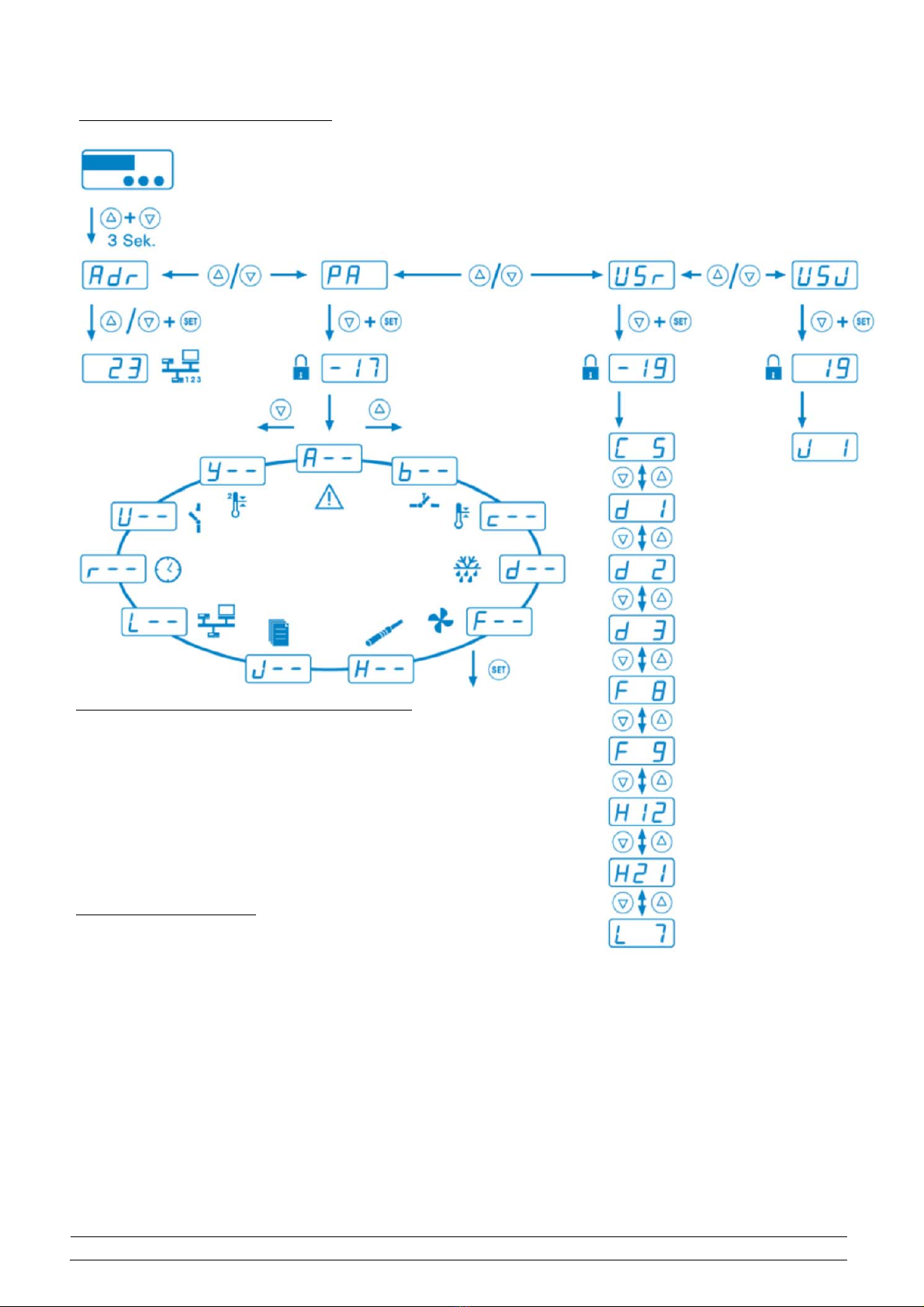

To activate parameterisation mode, press buttons UP
and DOWN at the same time. After approx. 3 seconds,
the code word  will be displayed.
Press UP or DOWN to switch between code words ,
,and . All other settings / value
specifications in parameter setting mode are performed
using the default value setting method, i.e. pressing
buttons SET and UP / DOWN at the same time.
 NETWORK ADDRESS
Under code word  you can set a network address.
This is required for commissioning networked systems.


 ENTERING A PASSWORD
By selecting code word  you can enter a password
required for parameterisation. Once the password has
been entered , the name of the first group of
parameters is displayed  (alarms). Now, using the
buttons UP and DOWN you can select any of the
parameter groups quickly.
 PRE-DESIGNED PARAMETER SETS
With this parameter (by selecting code word  and
entering password ), you can set up pre-defined data
sets. The data sets are provided by Störk-Tronic. If a
new data set is loaded, all previously set parameters will
be overwritten. After that, they can be edited as
required.
 USER LEVEL
By selecting code word  and entering the correct
password , a list with some predefined parameters
is opened. These parameters are:
, , , , , , ,  and .
ALARMS
Once you have selected a parameter group, it will
normally be sufficient if you press the button SET (
will be displayed) and then release the button again.
Now, the first parameter of the group will be displayed
(parameter in parameter group , for example).
Using the buttons UP and DOWN you can scroll the
parameter group and change certain parameter values
using the default value setting method. Press buttons
UP and DOWN at the same time to quit any parameter
group and return to the list of parameter groups. To quit
the list of parameter groups and return to the standard
level, press buttons UP and DOWN at the same time.
In some cases, certain parameter groups may be
protected by a password. In this case, you will have to
enter a specific password for the parameter group like
in the case of activation of the parameterisation level.

Valid from: 11/2013 – Rev.: UKW & BAKERY (13A) Subject to technical changes Page 3 from 4
Overview or the software features
Display and setting the setpoint temperature
The setpoint temperature can only be changed by pressing buttons SET and
UP or SET and DOWN at the same time. While pressing the buttons, the
changing setpoint temperature is displayed. After changing the setpoint
temperature and releasing the buttons, the actual temperature is displayed
again. This is the standard setting method.
Please note that the setpoint can only be changed within the set setpoint
limits
Access to USER setting
To activate parameterisation mode, press buttons UP and DOWN at the same
time. After approx. 3 seconds, the code word
 will be displayed.
Press UP or DOWN to switch between code words
 ,  ,  and  .
To offer an easy handling of the control unit we made a user level including predefined parameters.
 USER LEVEL
By selecting code word  and entering the correct password , a list with some predefined parameters is
opened.
These parameters are
 ,  ,  ,  ,  ,  ,  ,  and  .

Valid from: 11/2013 – Rev.: UKW & BAKERY (13A) Subject to technical changes Page 4 from 4
Pre-defined parameter sets 
Para-
meter Description of function Setting range UKW BAKERY BAKERY H
BAKERY
S
 Parameter set (type of application) 0 … 5 0 0 0 0
Parameters of the Level
 Control circuit1
Para-
meter Description of function Setting range UKW BAKERY BAKERY H
BAKERY
S
 Hysteresis 0,1...15,0°C 3,0°C 3,0°C 3,0°C 3,0°C
 Fan control circuit 1
Para-
meter Description of function Setting range UKW BAKERY BAKERY H
BAKERY
S
 Defrosting interval 0: no defrost
1...99 hours 3 hours
3 hours
3 hours 3 hours
 Type of defrosting 0: no defrost
1:compressor of, air only
2: electrical
3: with hot gas
1 1 1 1
 Stop at defrosting temperature 0 ... +30,0°C 7,0°C 7,0°C 7,0°C 7,0°C
 Fan control circuit 1
Para-
meter Description of function Setting range UKW BAKERY BAKERY H
BAKERY
S
 Fan speed control mode, Set1 0 ... 100% 65,0 45,0 55,0 55,0
 Fan speed defrosting, Set1 0 ... 100% 80,0 45,0 80,0 80,0
 Temperature sensors
Para-
meter Description of function Setting range UKW BAKERY BAKERY H
BAKERY
S
 Calibration sensor F1
(act. value correction)
-20...+20,0°C - 2,0°C 5,0°C 0,0°C 2,0°C
 Actual value sensor F2 (sensor coil) Measured value, not adjustable
 Networking and display (password-protected)
Para-
meter Description of function Setting range UKW BAKERY BAKERY H
BAKERY
S
 Display in standby mode 0: OFF
1: AUS
2: right decimal point
3: right decimal point
flashing
1
1
1 1
