IDEAL Mexico Super 40 FF User manual

2Mexico Super FF - Users
CAUTION. To avoid the possibility of injury during the installation, servicing or cleaning
of this appliance care should be taken when handling edges of sheet steel components
Mexico:
The Floor Standing Gas Boiler
The Ideal Mexico is a range of cast iron floor standing gas central heating boilers.
Balanced, conventional or fanned flue versions are available. A complete range of
both natural gas and propane models. The range offers Super models and, for when
space is tight, there are Slimline models available.
Mexico: Britain’s biggest selling floor standing boiler
The ideal replacement boiler...
Easy to install, easy to operate and easy to service. The Ideal Mexico really is the
ultimate replacement floor standing range - you can depend on it.
Proven reliability...
Proven cast iron heat exchanger engineered and refined to be the most dependable
floor standing boiler ensuring totally calm operation and quiet running, whatever the
system demands.
Complete range...
34 models, including 4 Slimline models at only 250mm wide and 8 propane Super
models and 7 Fanned models. Option kit availability includes an easy to use programmer
kit available on all models, an overheat thermostat kit for all models and a pump kit
that can be housed within the casing, available for all models except the Super
CF 3/140 & CF 3/140P and all fanned models.
Full system suitability...
All models are suitable for connection to pumped open vent central heating systems,
pumped central heating combined with pumped or gravity indirect domestic hot water
supply systems. They can also be used on sealed water systems when used in
conjunction with the optional Overheat Thermostat Kit.
Free Guarantee: 1st Year Ideal Care
The home owner is entitled to 12 months free Ideal Care, which includes both parts
and labour, to restore the boiler to full function. Please encourage the home owner to
complete and return the registration form in their Householder’s pack within 30 days of
installation.
Optional Extra Year Cover with Ideal Care
You may wish to offer your own annual service plan or you may wish to advise the
home owner to complete their application form for the appropriate level of extended
Ideal Care - Silver, Gold or Platinum. Full details are available in the Ideal Care brochure.

3
Mexico Super FF - Users
Mexico Super 40 FF G.C. No. 41 349 78
Mexico Super 50 FF G.C. No. 41 349 79
Mexico Super 60 FF G.C. No. 41 349 80
Mexico Super 70 FF G.C. No. 41 349 81
Mexico Super 80 FF G.C. No. 41 349 82
Mexico Super 100 FF G.C. No. 41 349 83
Mexico Super 125 FF G.C. No. 41 349 84
Mexico Super (Natural Gas Models Only)
Certified - P.I. No. 87 AU 83 Destination Countries: GB, IE
THE LOG BOOK SHOULD BE COMPLETED AFTER
EACH SERVICE AND KEPT WITH THESE
INSTRUCTIONS.

4Mexico Super FF - Users
Safety
It is essential that the instructions in this booklet are
strictly followed, for safe and economical operation of
the boiler.
Gas Safety (Installation & Use) Regulations 1994
and Amendments 1996. In your own interest, and
that of safety, it is the law that this boiler must be
installed by a registered installer, in accordance with
all national and local regulations.
Electricity Supply
This appliance must be efficiently earthed.
Supply: 230 V ~ 50 Hz.
The fusing should be 3A.
Connection must be made in a way that allows complete
isolation of the electrical supply such as a double pole switch
having a 3mm (1/8") contact separation in both poles, or a
plug and socket, serving only the boiler and system controls.
The means of isolation must be accessible to the user after
installation.
NOTE TO THE INSTALLER: LEAVE THESE INSTRUCTIONS ADJACENT TO THE GAS METER
1 BOILER CLEARANCES
Important Points
a. If the boiler is installed in a compartment then the
compartment MUST NOT be used for storage purposes.
b. The ventilation provided for the boiler during installation MUST
NOT be blocked, and a check should be made periodically
that the ventilation areas are free from any obstruction.
c. If it is known or suspected that a fault exists on the boiler then
it MUST NOT be used until the fault has been corrected by a
CORGI registered installer.
d. Inflammable materials must not be placed in close proximity
to the appliance. Materials giving off flammable vapours
must not be stored in the same room as the appliance.
e. Under NO circumstances should any of the sealed
components on this appliance be used incorrectly or tampered
with.
In cases of repeated or continuous shutdown a CORGI registered
person should be called to investigate and rectify the condition
causing this and carry out an operational test after each
intervention on the device. Only the manufacturer's original parts
should be used for replacement.
Minimum Clearances
A clearance of 533mm (21") MUST be available at the front of the
boiler for servicing.
The minimum clearances given in Table 1 MUST be complied
with, in order to maintain the safe running of the boiler.
Table 1
Boiler Flue Dimension A
Model Length Rear Flue Side/Top flue
mm (in.) mm (in.) mm (in.)
40 FF, 50 FF Up 10 35
60 FF, 70 FF to (3/8) (1 3/8)
80 FF, 100 FF 600
125 FF (23 5/8) 55 (2 1/4) 55 (2 1/4)
40 FF, 50 FF 600 to
60 FF, 70 FF 3000 35 35
80 FF (23 5/8 to (1 3/8) (1 3/8)
118)
100 FF 600 to 2000 35 35
(23 5/8 to (1 3/8) (1 3/8)
78 3/4)
125 FF 600 to
1000 55 55
(23 5/8 to (2 1/4) (2 1/4)
39 1/4)

5
Mexico Super FF - Users
To light the boiler. Refer to Frame 2
If a programmer is fitted refer to separate instructions for the
programmer before continuing.
1. Check that the electricity supply to the boiler is OFF.
2. Open the control panel drop-down door and ensure that the
thermostat knob (G) is in the OFF position.
3. Switch ON the electricity supply to the boiler and check that
all external controls, e.g. room thermostat etc., are ON.
4. Set the boiler thermostat knob (G) to position 6. The fan will
start. After the fan has run for a few seconds the pilot
solenoid valve should open and the intermittent spark
commence, continuing until the pilot is established. The
main burner will then cross-light smoothly.
Winter conditions (i.e. central heating and domestic hot water).
The thermostat should be positioned at setting 5 or 6.
Summer conditions (i.e. domestic hot water only). The
thermostat should be positioned at setting 2.
These settings are offered for general guidance only and other
settings may be found preferable, dependent upon the type of
system installed or as recommended by the installer.
To shut down the boiler
1. For short periods
Turn the boiler thermostat knob (G) to OFF. When heating is
again required, restore the knob to its original setting.
2. For longer periods
a. Turn the boiler thermostat knob (G) to OFF.
b. Switch the electricity supply to OFF.
Frost protection
If no frost protection is provided and frost is likely during a short
absence from home, leave the heating controls (if fitted) at a
reduced temperature setting.
For longer periods, the entire system should be drained -
including the domestic water supply.
If the system includes a frost thermostat then, during cold
weather, the boiler should be turned OFF at the time switch (if
fitted) ONLY. The mains supply should be left switched ON,
with the boiler thermostat left in the normal running position.
Control of water temperature
1. Set the boiler thermostat knob (G) to give the required
temperature for central heating.
2. The boiler thermostat automatically switches the main
burner OFF and ON to maintain the selected temperature.
To relight the boiler
Repeat the procedure 1 - 4 detailed in 'To light the boiler'.
Boiler Overheat Thermostat
(Fitted for sealed systems only)
For a boiler fitted with a safety 'cutout' thermostat: this
thermostat will shut down the boiler in the event of overheating.
Should this occur, allow the boiler to cool, press the reset
button (J) on the overheat thermostat then relight as detailed in
steps 1-4 under 'To light the boiler'.
If the 'cutout' condition persists turn off the boiler and consult a
CORGI registered installer.
Loss of system water pressure
(Boilers fitted with the Overheat Thermostat Kit only)
If the red arrow on the system pressure gauge is set above zero
and the system pressure is seen to fall below this value over a
period of time then a water leak is indicated. In this event a
CORGI registered installer should be consulted.
DO NOT FIRE THE BOILER IF THE PRESSURE HAS
REDUCED TO ZERO FROM THE ORIGINAL SETTING
Note. Grille assembly not shown, for clarity

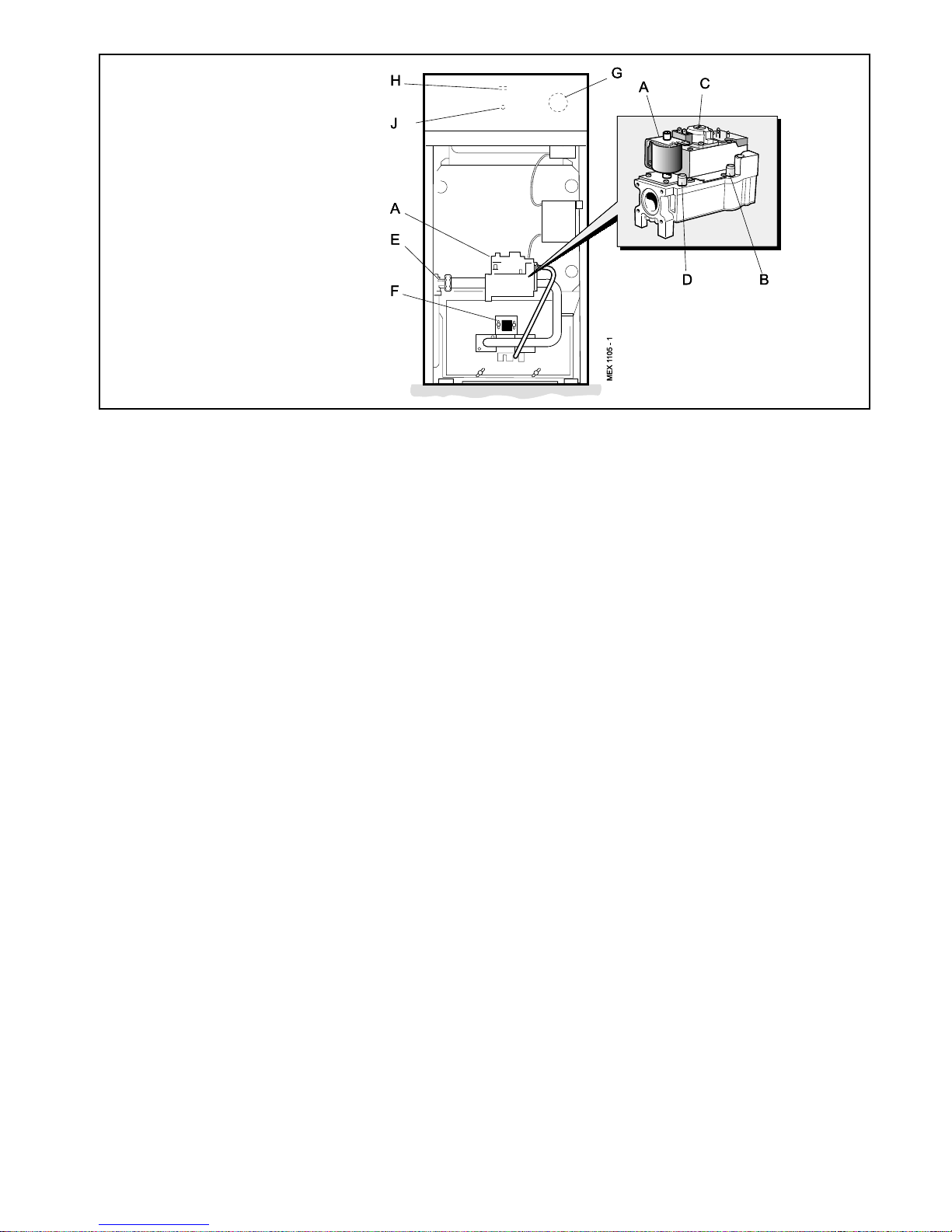

2 BOILER CONTROLS
LEGEND
A. Gas control valve.
B. Burner pressure test point.
C. Main burner pressure adjuster.
D. Inlet pressure test point.
E. Gas service cock.
F. Sightglass.
G. Boiler thermostat knob.
H. Main burner 'On' neon.
J. Overheat thermostat reset button
(optional).

6Mexico Super FF - Users
Escape of gas
Should a gas leak or fault be suspected, contact your gas supplier
without delay.
Do NOT search for gas leaks with a naked flame.
Cleaning
For normal cleaning simply dust with a dry cloth.
To remove stubborn marks and stains, wipe with a damp cloth
and finish off with a dry cloth.
Do NOT use abrasive cleaning materials.
Maintenance
The appliance should be serviced at least once a year by a
CORGI registered installer.
Note. The appliance model is given on the data plate, located on
the front of the boiler base plate, behind the grille assembly.
THIS SYMBOL IS YOUR
ASSURANCE OF QUALITY
These appliances are designed for use with Natural
Gas only. They have been tested and conform with
the provisions of BS. 6332 and BS. 5258.
CERTIFIED PRODUCT
Manufactured under a BS EN ISO 9001:1994
Quality System accepted by BSI
Caradon Plumbing Ltd. pursues a policy of continuing improvement in the design and performance of its products. The right is
therefore reserved to vary specification without notice.
Caradon Plumbing Ltd., P.O. Box 103, National Ave, Kingston upon Hull, HU5 4JN. Telephone: 01482
492 251 Fax: [phone]. Registration No. London 322 137. Registered Office: National Avenue,
Kingston upon Hull, HU5 4JN. A subsidiary of Caradon plc.
July 1999 153421 A02
Ideal Care Helpline: 01482 498610
The code of practice for the installation,
commissioning & servicing of central heating systems
Caradon Plumbing Ltd. is a member of the Benchmark
initiative and fully supports the aims of the programme.
Benchmark has been introduced to improve the standards
of installation and commissioning of central heating
systems in the UK and to encourage the regular servicing of
all central heating systems to ensure safety and efficiency.

7
Mexico Super FF - Users
Your feedback
and your chance to win a free boiler
At Ideal we've been leaders in the design and engineering of robust and
reliable boilers for over 90 years. We want to continue as leaders by
listening to your suggestions for how to improve our boilers and our service.
We'll be giving away a free boiler for the five best ideas every year (to be
selected by our Technical Director). Please complete this form, using
extra sheets if required, and post it or fax it to us on 01482 498699.
Boiler details
Model / Size (e.g. Classic RS 230, Mexico CF 3/60 etc. Details on control panel door)
Date of Installation
Installer details
Name
Address
Post Code Telephone (Please include STD code)
How I would improve this boiler: :
My general comments for Ideal:

Ideal Care Helpline: 01482 498610

UIN 153 421 A0
Caradon Plumbing Ltd., PO Box 103, National Avenue, Kingston upon Hull, HU5 4JN. Telephone: [phone] Fax: [phone].
I deal Care Helpline: 01482 498610
Further information
If you would like information about Ideal Boilers please complete this sheet
and fax it to us on 01482 498699 or post it to Caradon Plumbing Limited,
PO Box 103, National Avenue, Kingston upon Hull, HU5 4JN.
Installer details
Name
Address
Post Code Telephone (Please include STD code)
General information required
Please send me details of Ideal Training Courses.
Please arrange for a technical representative to contact me.
Please arrange for me to join an Ideal factory tour.
Range guides required
The Ideal Guide: a specifier's and installer's introduction to the
Ideal domestic boiler range.
The Ideal Householders Guide: to assist the installer when
presenting to his/her customers.
Technical manuals required
The Ideal C class combi boiler
The Ideal Classic wall hung boiler
The Ideal Classic System wall hung boiler
The Ideal Classic LX Deluxe wall hung boiler
The Ideal Mexico floor standing boiler
The Ideal Minimiser heat-saving boiler
The Ideal Response combi boiler
The Ideal Response SE super efficiency combi boiler
The Ideal Systemiser SE super efficiency system boiler
The Ideal Concord high output boiler
The Ideal Buccaneer oil fired boiler

