IFM CR3114 User manual

Installation instructions
CANremote
CR3114
80226849 / 00 06 / 2018
UK

Installation instructions CANremote CR3114
2
Content
1 Preliminary note � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
1�1 Symbols used� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
1�2 Warnings used � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
2 Safety instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�1 General� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�2 Target group � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�3 Electrical connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�4 Tampering with the device � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�5 Air traffic � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�6 Explosive substances� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
2�7 Electronic devices � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
2�8 Antennas � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
2�9 FCC (USA) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
3 Functions and features � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
3�1 Overview of the functions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
3�2 SIM card � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
4 Installation� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
4�1 Fixing the device � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
4�2 Mounting the antennas� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
5 Electrical connection� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
5�1 Connectors � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
5�2 Operating voltage and CAN interface� � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
5�3 Antennas � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
5�3�1 GSM antenna� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
5�3�2 GPS antenna � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
6 Indicators � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
6�1 LEDs� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
7 Set-up � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
7�1 Necessary components � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
7�1�1 Hardware � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
7�1�2 Software� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
7�1�3 Documentation� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
7�2 Device configuration using the ifm maintenance tool � � � � � � � � � � � � � � � � 15
7�2�1 Software installation� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
7�2�2 Connect the unit� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
7�2�3 Configure the device � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
7�3 Insert the SIM card � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
7�3�1 Remove the SIM card � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
8 Operation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
9 Technical data� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
9�1 CR3114 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24

UK
Installation instructions CANremote CR3114
3
10 Maintenance, repair and disposal� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
10�1 Servicing� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
10�2 Cleaning the housing surface� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
10�3 Repair� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
10�4 Disposal � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
11 Approvals/standards � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
This document is the original instructions�
Licences and trademarks
All trademarks and company names are subject to the copyright of the respective companies�

Installation instructions CANremote CR3114
4
1 Preliminary note
This document applies to devices of the type "CANremote" (art� no�: CR3114)�
Read this document before use to familiarise yourself with operating conditions,
installation and operation� Keep this document during the entire duration of use of
the device�
Adhere to the safety instructions�
1.1 Symbols used
►Instructions
> Reaction, result
[…] Designation of keys, buttons or indications
→Cross-reference
Important note
Non-compliance may result in malfunction or interference�
Information
Supplementary note
1.2 Warnings used
WARNING
Warning of serious personal injury�
Death or serious irreversible injuries may result�
CAUTION
Warning of personal injury�
Slight reversible injuries may result�
NOTE
Warning of damage to property�

UK
Installation instructions CANremote CR3114
5
2 Safety instructions
These instructions are an integral part of the device� They contain texts and figures
concerning the correct handling of the device and must be read before installation
or use�
2.1 General
Follow the operating instructions� Non-observance of the instructions, operation
which is not in accordance with use as prescribed below, wrong installation or
incorrect handling can affect the safety of operators and machinery
Disconnect the device externally before handling it�
In case of malfunction of the unit or queries please contact the manufacturer�
Any tampering with the device can seriously affect the safety of operators and
machinery� This is not permitted and leads to an exclusion of liability and warranty�
2.2 Target group
These instructions are intended for authorised persons according to the EMC and
low-voltage directives� The device must only be installed, connected and put into
operation by a qualified electrician�
2.3 Electrical connection
The device is designed for supply via a mobile on-board system (12/24 V DC
battery operation)�
The connection terminals may only be supplied with the signals indicated in the
technical data and/or on the device label and only the approved accessories of ifm
electronic may be connected�
2.4 Tampering with the device
In case of malfunctions or uncertainties please contact the manufacturer� Any
tampering with the device can seriously affect the safety of operators and
machinery� This is not permitted and leads to the exclusion of any liability and
warranty claims�
2.5 Air traffic
The device must not be operated on board aircraft�
Using it in an aircraft can affect the navigation and communication systems� An
offence can lead to legal action against the offender�
2.6 Explosive substances
In general, radio equipment must not be used in the vicinity of petrol stations, fuel
depots, chemical plants or blasting operations�
Do not transport and store any flammable gases, liquids or explosive substances
in the part of the vehicle where the device is installed�

Installation instructions CANremote CR3114
6
2.7 Electronic devices
Operation can affect the function of electronic devices that are not correctly
shielded�
Disconnect the unit in the vicinity of medical equipment� Please contact the
manufacturer of the corresponding device or equipment in case of problems�
2.8 Antennas
Operation without antennas can lead to destruction of the device�
2.9 FCC (USA)
This device complies with Part 15 of the FCC Rules�
Operation presupposes the two following conditions:
(1) This device must not cause harmful interference, and
(2) this device must tolerate interference including interference possibly causing
undesired operation�
Cautionary Information:
Any changes made to this device without express consent of ifm electronic gmbh
may invalidate FCC approval to operate this device�

UK
Installation instructions CANremote CR3114
7
3 Functions and features
CANremote is a GSM/GPRS/UMTS modem with integrated CAN gateway for
direct connection to a controller�
Machine data is either transferred to the programming or diagnostic system of the
machine manufacturer or is buffered on a server� There it is available for 3 months
via a web portal�
WARNING
The device is not approved for safety-related tasks in the field of operator
protection�
CANremote
Controller
CAN bus
1
GPS antenna
GPS signal
GSM antenna
2
4
3
Internet
SMS
Mobile
phone
network
provider
1: Application
2: Send and receive SMS
3: Real-time diagnostics and visualisation on the PC
4: PROEMION web portal and internet service
3 and 4 can be implemented with concluded ifm CANremote Licence (art� no� ZC00xx)

Installation instructions CANremote CR3114
8
3.1 Overview of the functions
●Integration into a machine network via CAN interface
●Real-time diagnostics via CODESYS programming system
●Data indication and storage via configurable web portal
●Indication and processing of geographical and route data
●ServiceTool (visualisation tool)
●Send and receive SMS
3.2 SIM card
Important device functions can only be operated with a valid SIM card�
Device function, application SIM card with
telephony
contract
SIM card with data contract
and ifm CANremote licence
Local recording of the GPS data for position,
speed or height determination
– –
Send and receive SMS ●–
Real-time diagnostics via CODESYS
programming system (real-time-mode)*
–●
*) delay ≥ 3 s ● needed / – not needed
Obtain the SIM card as well as your personal identification number (PIN) from your
network operator or GSM service provider�
With the SIM card and the PIN you can access the GSM net and save texts (SMS)
and telephone numbers�
The SIM card only functions with a valid PIN�
The PIN is an integral part of the device configuration�
If the device has a SIM card, never switch on the device with a wrong PIN
or without PIN� That would block the SIM card�

UK
Installation instructions CANremote CR3114
9
4 Installation
4.1 Fixing the device
►Use screws to fix the device on an even surface�
NOTE
To prevent any penetration of moisture install the device as illustrated� Position
of the connectors: bottom�
42
111,5
109
126
107
120,5
12
3
Mounting variants
1: 4 points (back of the device lies flat)
2: 2 points (side of the device lies flat)
3: Mounting surface
Required fixing material
4 points 4 M4 x 40 cylinder screws with hexagon socket (to DIN 912)
2 points 2 socket head cap screws M5 x 25 (to DIN 931)
2 washers Ø 5�3 mm (to DIN 125)
The fixing accessories are not included�

Installation instructions CANremote CR3114
10
4.2 Mounting the antennas
►When mounting the antennas in vehicles avoid the vicinity of fuel tanks,
vessels with explosives or insufficiently screened electronic components (→ 2
Safety instructions)�
►Position the antennas so that a permanent distance of min� 0�2 m from people
is ensured during operation�
►Do not install the antennas in closed metal constructions such as the driver's
cab�
►To reliably receive the GPS signals, position the GPS antenna with unrestricted
access to the sky�
►Please observe the antenna manufacturer’s notes�
Stable data transmission requires a good antenna signal� In case of pro-
blems change the position of the antennas or the mobile equipment if
necessary�
A loosely tightened antenna connector also causes signal loss�
5 Electrical connection
5.1 Connectors
321
4
1: Operating voltage and CAN interface
2: GSM antenna
3: GPS antenna
4: SIM card (in the device)
NOTE
IP 65 can only be guaranteed if all connectors are connected�

UK
Installation instructions CANremote CR3114
11
5.2 Operating voltage and CAN interface
M12 connector (5 poles) Pin Potential
4
2 1
3
5
Operating voltage 1 GND
2 6���32 V DC
3 Clamp 15
Digital input
CAN interface 4 CAN_H
5 CAN_L
►Connect GND of the M12 connector to CAN_GND�
NOTE
Reverse polarity protection is no longer ensured if the housing is externally
grounded�
NOTE
To avoid damage to the device, connect/disconnect the M12 connector only if
the device is disconnected from power�
5.3 Antennas
NOTE
Only connect or remove antennas if the device is disconnected from power� Put
the device into operation with connected antennas only�
►Do not extend or shorten the antenna cable�
►Please observe the antenna manufacturer’s notes�
5.3.1 GSM antenna
FME connector Pin Potential
Signal 1 GSM
GND 2 Screen/housing
5.3.2 GPS antenna
SMA socket Pin Potential
Signal 1 GPS
GND 2 Screen/housing

Installation instructions CANremote CR3114
12

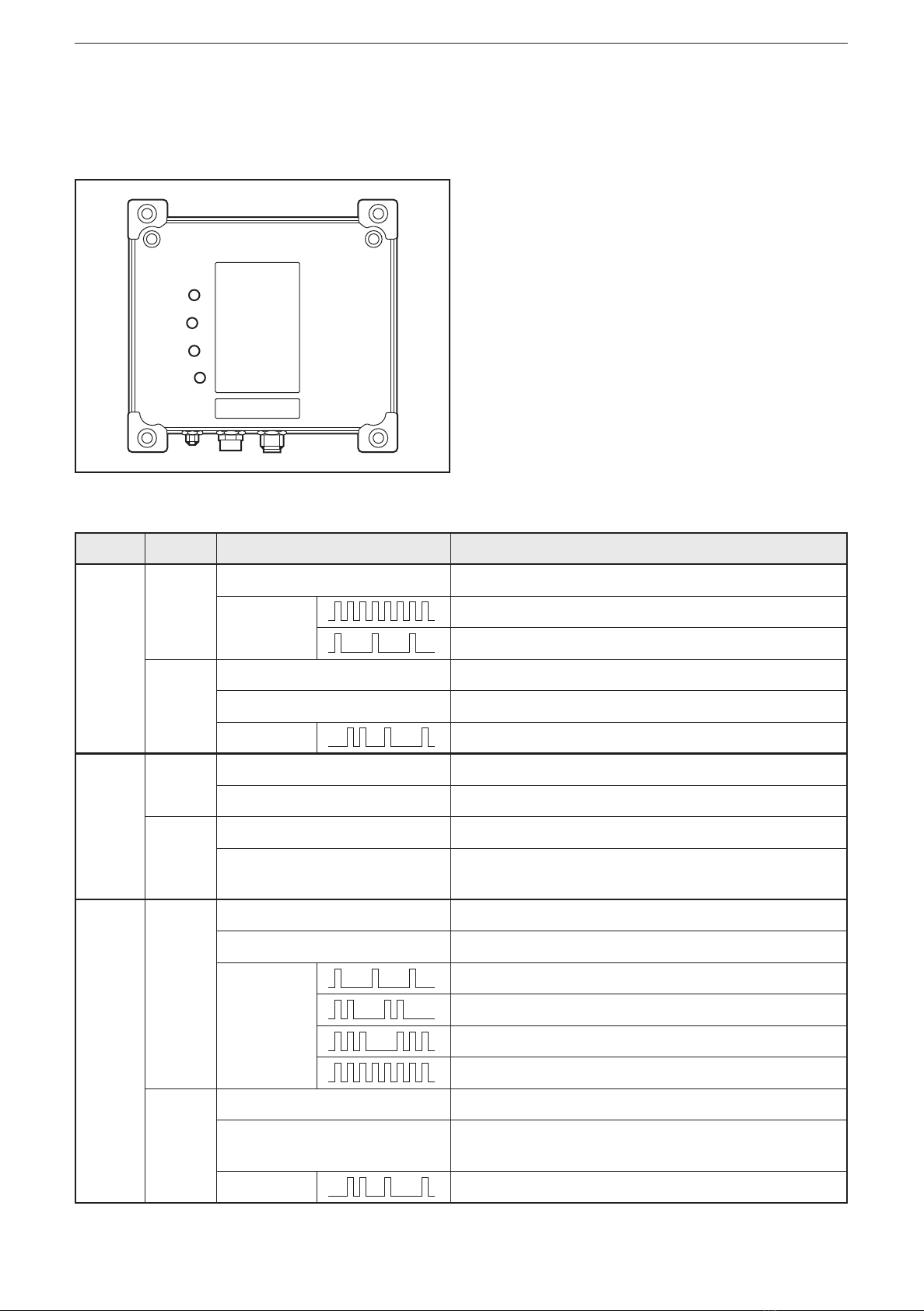

6 Indicators
6.1 LEDs
GPS
GSM
ON
CAN
CR3114
LED Colour Status Description
CAN Green On Operational
Flashing Preoperational
Stopped
Red Off –
On Error
Flashing Receiving/sending data
ON Green Off No operating voltage
On Operating voltage OK
Red Off –
On Operating voltage outside the specification
(→ 9 Technical data)
GSM Green Off –
On Connection to the server established, TCP/IP active
Flashing Connection to the server being established
GSM initialisation
GSM reset status
Device is ready for a connection to the server
Red Off TCP/IP data transmission not active
On GSM fault, e�g� no SIM card inserted, wrong or no
PIN
Flashing TCP/IP data transmission active

UK
Installation instructions CANremote CR3114
13
LED Colour Status Description
GPS Green Off GPS function off
On GPS function active
Flashing Finding GPS signal
Red Off GPS antenna OK
On GPS antenna fault, e�g� faulty, not or only loosely
connected or short circuit
2-colour LEDs (green/red)
During the initialisation phase (approx� 5 s) the LEDs do not indicate any defined status� If the colours green
and red are activated simultaneously, the colour orange is displayed�
If all green LEDs are constantly "on" and if all red LEDs are flashing
synchronously, the device is in the firmware update mode�
Do not switch off the device�

Installation instructions CANremote CR3114
14
7 Set-up
7.1 Necessary components
The following components are needed to configure and set up the device:
7.1.1 Hardware
●CANremote CR3114
Ensure that all components necessary for the device configuration are used (→
7�2�2 Connect the unit)�
Remote configuration of the device is not possible�
●GSM and GPS antenna (e�g� GSM/GPS combined antenna, art� no�: EC2116)
●Valid SIM card
●PC
●CAN/PC interface (e�g� CAN/RS232 USB interface CANfox, art� no�: EC2112)
and adapter cable for CANfox (art� no�: EC2113)
● CAN bus terminating resistors (2 x 120 Ω)
7.1.2 Software
Device configuration
●ifm maintenance tool as from version V02�02�13
●CANremote AddIn for ifm maintenance tool
Device integration into the application program
●Programming system CODESYS V2�3
●CANremote CODESYS client/gateway (optional)
●Function libraries for remote maintenance and diagnostic functions (optional)
●Electronic data sheet (EDS) (optional)
●ServiceTool (optional)
●CANremote Licence ZC00xx (optional)
7.1.3 Documentation
●Programming manual CODESYS V2�3
(alternatively as online help)
●System manual of the controller used
(alternatively as online help)
The manuals are available on the internet as PDF files by entering the
corresponding article number:
www.ifm.com → Data sheet search → Article number → More information
Software, function libraries and manuals (as online help):
www.ifm.com → Service → Download → Systems for mobile machines*
*) Download area with registration

UK
Installation instructions CANremote CR3114
15
7.2 Device configuration using the ifm maintenance tool
The device is configured without SIM card�
Insert the SIM card after the device has been configured�
Since the device is configured via the CAN interface (SDOs), connection
problems may occur with simultaneous use of CAN by a controller� In this
case "STOP" the controller and separate other participants from the bus�
Software installations and changes to the system settings of the PC require
extended user rights� Contact your system administrator�
7.2.1 Software installation
►Install the maintenance tool�
ifm maintenance tool - info window
►Install the CANremote AddIn for the ifm maintenance tool�
– Start the maintenance tool�
– Activate the main menu [Tools] → [Install AddIn...].
– Select the "CANremoteAddIn_vnnnnnn�addin" file�
– Confirm with [OK]�

Installation instructions CANremote CR3114
16
7.2.2 Connect the unit
CANremote
CAN bus
1
GPS
GSM
3
Power supply
4 5
Components for the device configuration
1: CANremote CR3114
2: GSM and GPS antenna (e�g� GSM/GPS combined antenna, art� no�: EC2116)
3: Adapter cable for the CAN/PC interface (e�g� art� no�: EC2113)
4: CAN/PC interface (e�g� CAN/RS232 USB interface CANfox, art� no�: EC2112)
5: PC
►Connect the GPS and GSM antennas to the device�
► Provide the CAN bus with 120 Ω terminating resistors.
►Connect the CAN/PC interface with the CAN adapter cable to the device and
connect it to the PC�
►Apply the supply voltage�

UK
Installation instructions CANremote CR3114
17
7.2.3 Congure the device
►Start the ifm maintenance tool�
►Define the interface�
– Right-click on [ecomat mobile] in the "Maintenance Navigation" window
section�
– Select [Add] in the context menu�
– Select [CAN] in the pop-up window
– Add "ecomat mobile interface CAN"�
►Configure the CAN interface�
– Select the interface (here e�g� "CanFOX0 (Channel1)")�
– Select the baud rate�
Default setting = 250 Kbits
ifm maintenance tool - CAN settings

Installation instructions CANremote CR3114
18
►Define the target device�
– Right-click on [CAN] in the "Maintenance Navigation" window section�
– Select [Add] in the context menu�
– Select [CANremote] in the pop-up window�
– Add "CANremote configuration AddIn"�
►Select [Connection settings]�
Target device node ID: 29 (default setting)
ifm maintenance tool - CANremote AddIn - Connection settings
►Select [Communication settings]�
Device node ID: 29 (default value)
CAN baud rate: 250 Kbits (default setting)
"CAN online objects" is not needed for the device configuration and is not
supported�

UK
Installation instructions CANremote CR3114
19
►Enter the security parameters�
ifm maintenance tool - CANremote AddIn - Security parameters
●Remote access password
Is needed for the real-time mode (real-time mode = direct access to the PLC
with CODESYS 2�3)�
●SIM PIN
PIN number of the SIM card
●GSM roaming handling
0 = roaming OFF
1 = roaming ON
●GPRS remote server address
Server DNS: gateway�proemion�com or maybe server IP: 62,206,129,131

Installation instructions CANremote CR3114
20
●GPRS remote server port
Default: 60200
●Online mode handling
Restore the data connection after an interruption:
0 = not automatically
1 = automatically
●GSM operator selection mode
Mobile network provider selection:
0 = manually
1 = automatically
A mobile network provider must be specified with a country-specific "GSM
Operator Network Code" and a "Service Center Number (SCN)"�
