iFog COVIX User manual

Cordless electrostatic nebuliser kit
for eective surface disinfection
user manual
EN

This instruction manual is protected by copyright. We reserve all rights,
especially the rights to produce, translate and prepare it using electronic systems
©

introduction
Training service
Technical service
Thank you for placing your trust in a quality product from TEINNOVA.
This product has been made using modern manufacturing techniques and
thorough quality assurance measures.
We do everything possible to ensure that you are satisfied with this product
and can operate it without any issues.
Should you have any questions about this product, please contact your dealer
or contact the company directly.
Before use, carefully read the operating instructions for your equipment.
Treat this manual as part of the product and always keep it nearby for future
reference.
We offer companies optional training that is specific to our products and
also teaches their operators how to provide the best service and thus
contribute to the success of their end customers. Aspects such as knowing
how to prepare a fair and objective quote, to respond to specific problems
that may arise, or to offer a more professional and efficient service.
Because we produce our own cleaning equipment, we are able to
continuously monitor the quality and performance of every machine we
manufacture, and it is this that has allowed us to maintain very low repair
rates which have always been quickly resolved by our own Technical
Support Service, who are managed by the same team as our factory.
We have all kinds of spare parts for your equipment, as well as related
accessories.
Dear Customer,

table of contents
symbols used 1
9
7
12
2-6
10
8
8
13
know your equipment
troubleshooting guide
accessories and consumables
safety warnings
technical specifications
guarantee conditions
operating instructions
maintenance and care
declaration of conformity
11

1
symbols used
DANGER!
WARNING!
CAUTION!
IMPORTANT!
All the symbols used in this manual, as well as those on the equipment itself, are explained in this section. It is
important to read the text associated with these symbols carefully, since it is about personal safety and
equipment safety.
This symbol warns of a potentially dangerous situation that could result in
serious injury or even death if the given instructions are not followed
appropriately. Make sure you read all the instructions in the “Safety
Information” section.
This symbol warns of a potentially dangerous situation which could result in
minor or moderate injuries, or property damage resulting in personal injury if
the instructions are not followed appropriately.
This symbol warns of a situation that may cause damage to property, without
causing injury, if the instructions provided are not followed properly.
This symbol highlights information on the best way to use the equipment
while avoiding any possible improper operation.

2
know your equipment
DESCRIPTION AND CONTENTDESCRIPTION AND CONTENT
iFOG is an advanced system for applying biocides and pesticides to indoor and outdoor
surfaces in an economical, fast and efficient way.
It includes all the most advanced technologies; electrostatic induction allows a 360º
wraparound coating of all surfaces with a 60% reduction in the amount of product used
and with the shortest application time.
The lithium-ion batteries provide the user with total cordless autonomy for several hours,
the nebulisation is done by a 5-nozzle injection pump located in the high volume air
cannon, it sprays very fine particles that cover up to 8 metres, the electrostatic charge
allows the solution to adhere to surfaces in the hardest to reach places.
APPLICATIONS
Disinfection
of spaces
ELECTROSTATIC INDUCTION
TECHNOLOGY
LOW PRODUCT USE
BUT HIGHLY EFFECTIVE
ERGONOMIC AND LIGHTWEIGHT
FOR USE AS BACKPACK
FULL COVERAGE OF THE
SURFACE TO BE DISINFECTED
CORDLESS SYSTEM
WITH Li-ION BATTERY
Disinfection
of air ducts
Application of
pesticides in
farming

3
know your equipment

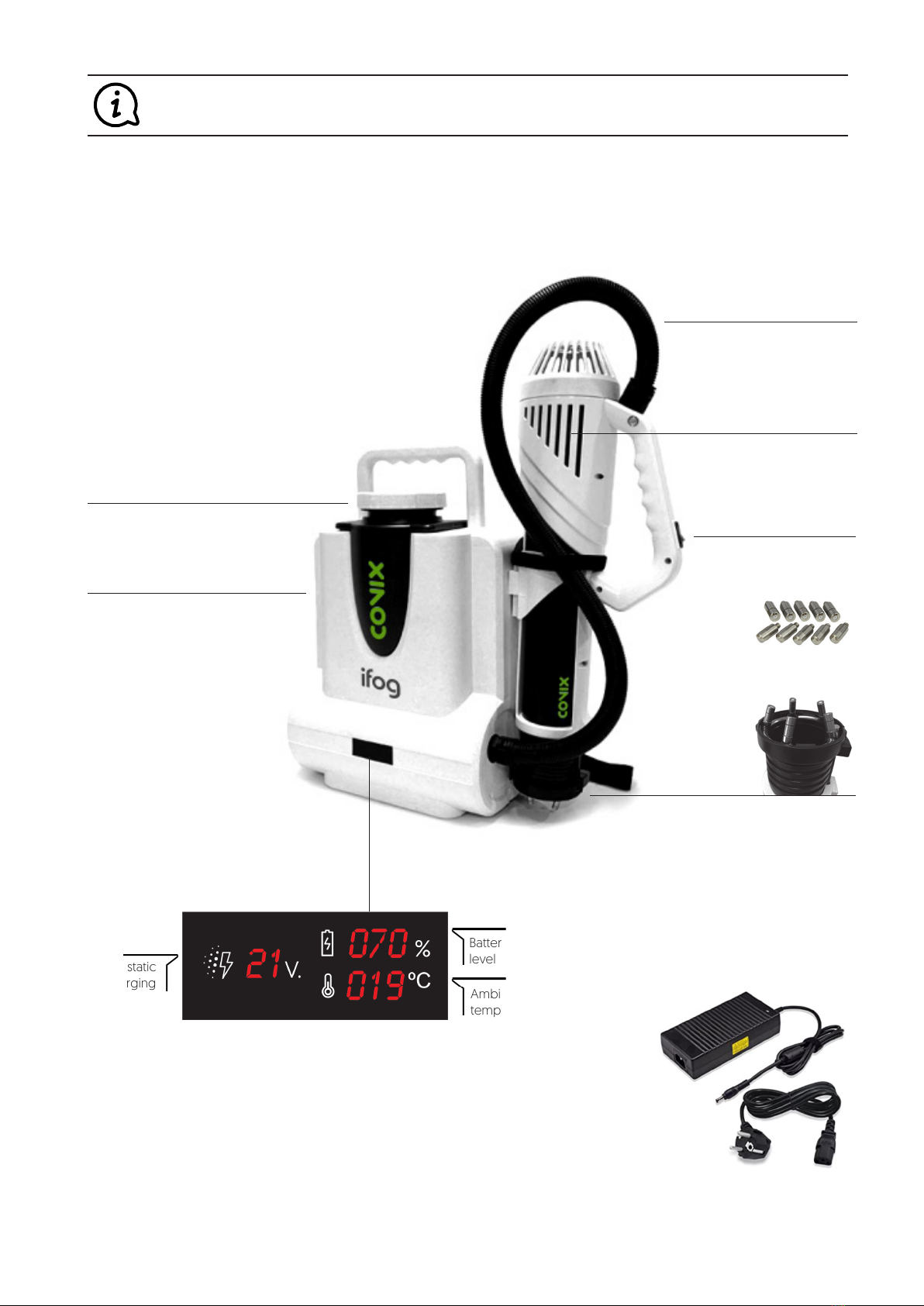

EQUIPMENT PARTS AND CONTENTSEQUIPMENT PARTS AND CONTENTS
Transport handle
Tank cap with
particle filter
10 litre ABS Tank
Electrostatic
charging
voltage
LCD Display Screen
Battery
level
Ambient
temperature
RECHARGEABLE
Li-ION BATTERY
Flexible hose
360º blower intake
On/off switch
for blower
5 interchangeable nozzles
for 10, 30 and 60 microns
Outlet nozzles
Battery charger

4
know your equipment
EQUIPMENT PARTS AND CONTENTSEQUIPMENT PARTS AND CONTENTS
Socket for plugging in
the battery charger
Equipment ON/OFF switch
Adjustable strap to use
it as a backpack
Rear view of the system for
carrying as backpack
Side view of the equipment
Blower air intake
Transport handle
Adjustable strap to hold
the nebuliser cannon

5
know your equipment
CHANGING THE NEBULISERCHANGING THE NEBULISER
HEAD NOZZLESHEAD NOZZLES
Remove nozzle, unscrew it
counterclockwise
using your fingers
Fit nozzle, screw it clockwise
hand tight.
DO NOT change the nozzles with the equipment turned on, it may cause an electric shock.
CLOSED NOZZLE
If you want to cover one or two of the outlet nozzles, remove the nozzle and screw this cap on.
Use it with water soluble chemical solutions.
Come as standard with the equipment
INTERCHANGEABLE NOZZLESINTERCHANGEABLE NOZZLES
NOZZLE
0.5 mm 10 microns
1.0 mm 30 microns
1.5 mm 60 microns
SIZE REF No.
BFW-1
BFW-2
BFW-3
2
1

6
know your equipment
HOW ELECTROSTATICHOW ELECTROSTATIC
NEBULISATION WORKSNEBULISATION WORKS
11
22
33
The disinfectant solution is ionised using a high voltage negative
electrode. The injection pump generates the microparticles throu-
gh the 5 nozzles which move with the air produced by the high
volume blower.
The negatively charged nanoparticles
repel each other, keeping them
uniformly spaced acting against gravity, to
cover the hardest to reach surfaces.
The surfaces are positively charged,
therefore the disinfectant solution is
electrostatically attracted, ensuring a
uniform 360º coverage of the whole surface.

7
safety warnings

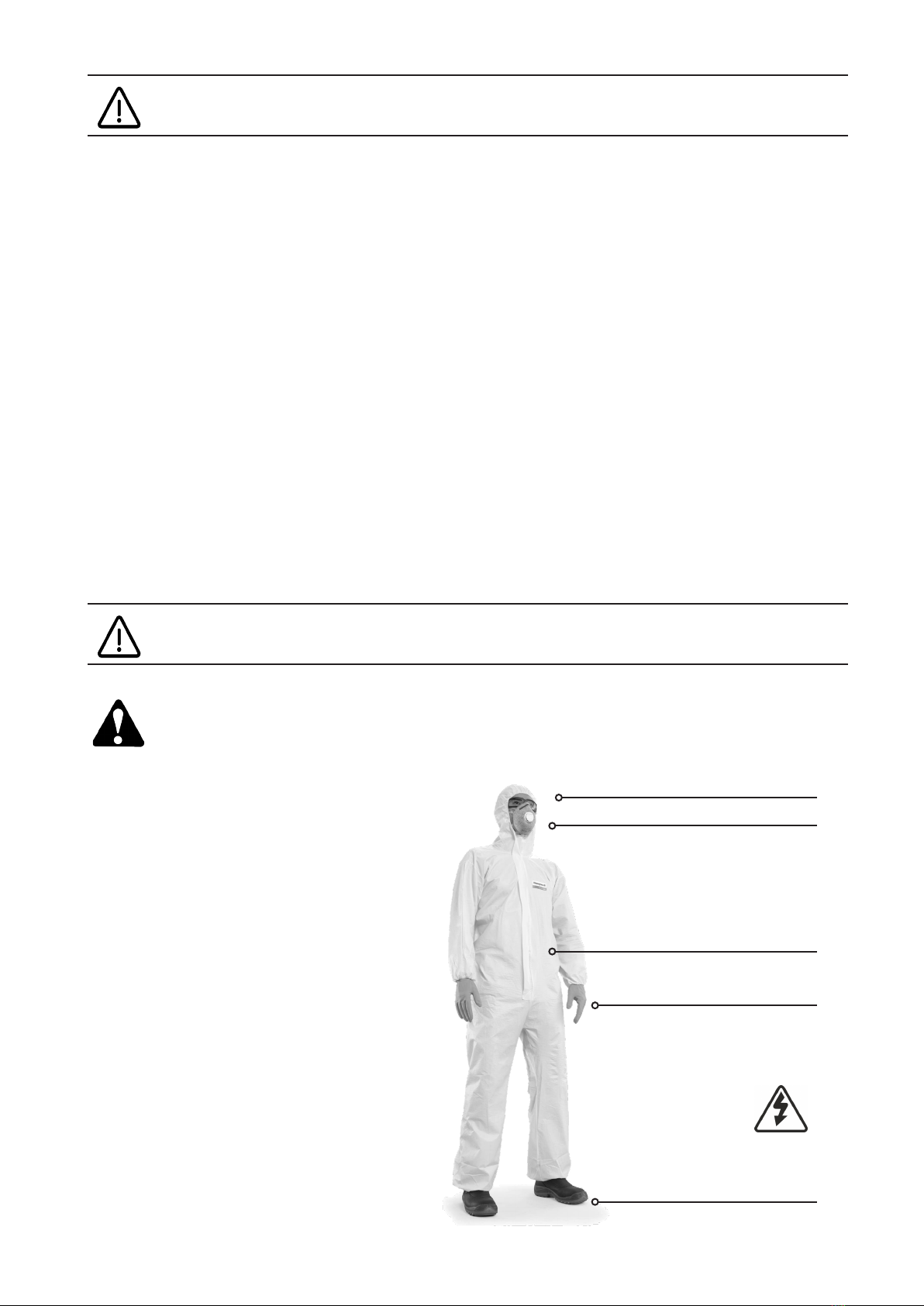

Personal Protective Equipment
>This equipment contains an electrostatic device that can interfere with sensitive medical
devices such as pacemakers, defibrillators, or similar devices. DO NOT use this machine or be
within 3 metres of it if you use one of these medical devices.
>DO NOT use this equipment in explosive atmospheres, or where there are flammable liquids,
gases or powders.
> DO NOT spray people or animals, it could cause damage to health, check the safety sheet
for the chemical used.
> DO NOT touch or introduce foreign objects into the nebulisation nozzles, this may cause
an electric shock when the equipment is turned on.
> DO NOT use the equipment outdoors when it is raining, or store it in humid or very hot areas.
> DO NOT leave the unit charging for an extended period of time unattended.
Self-filtering mask
for activated carbon
gases.
Type 4 chemical
protection suit.
Butyl gloves.
Safety footwear with
a conductive sole to discharge
any electrostatic charge.
Watertight safety goggles
for eye protection.
WARNING
This equipment contains an electrostatic device that can
interfere with sensitive medical devices such as
pacemakers, defibrillators, or similar devices. DO NOT use
this machine or be within 3 metres of it if you use one of
these medical devices.

8
operating instructions
Before use:Before use:
Read this user manual carefully, following all the safety measures indicated. Fill the tank, to no
more than the maximum level, with a water-based chemical solution, charge the battery to 100%
capacity.
Operation:Operation:
Use the nozzles for the particle size you want 10, 30 or 60 microns, place the equipment on your
back and adjust the straps to fit you, turn on the equipment and point the nebulisation cannon
in the direction of the surfaces and objects to be sprayed, keeping a suitable spacing. Use the
switch on the cannon to turn on the blower and blow air over the nozzles up to a range of 8
metres.
During use:During use:
Turn the machine off and put the air cannon in the equipment side housing, fixing it with the elas-
tic strap. Empty what’s left from the tank, add a litre of water and spray for 5 minutes, until the tank
is empty.
Clean the nozzles and the rest of the equipment of any debris that may be left. Store in a dry
place with low humidity. After a complete cycle, leave the equipment charging the battery. If you
are working in a small area, do not run the equipment for more than 30 minutes.
The amount of liquid misted will depend on the type of nozzle fitted.
troubleshooting guide
The power of the fog is low.
The equipment does not produce the mist. The tank may be empty, fill it
with the chemical solution.
The nebuliser is behaving erratically, turning
itself on and off.
The nebuliser heats up during normal
usage.
Check the battery is sufficiently charged,
charge the battery.
Check the equipment temperature on the control
panel and let it rest for a while before turning it on
again.
Activate the cannon blower.
problem solution

9

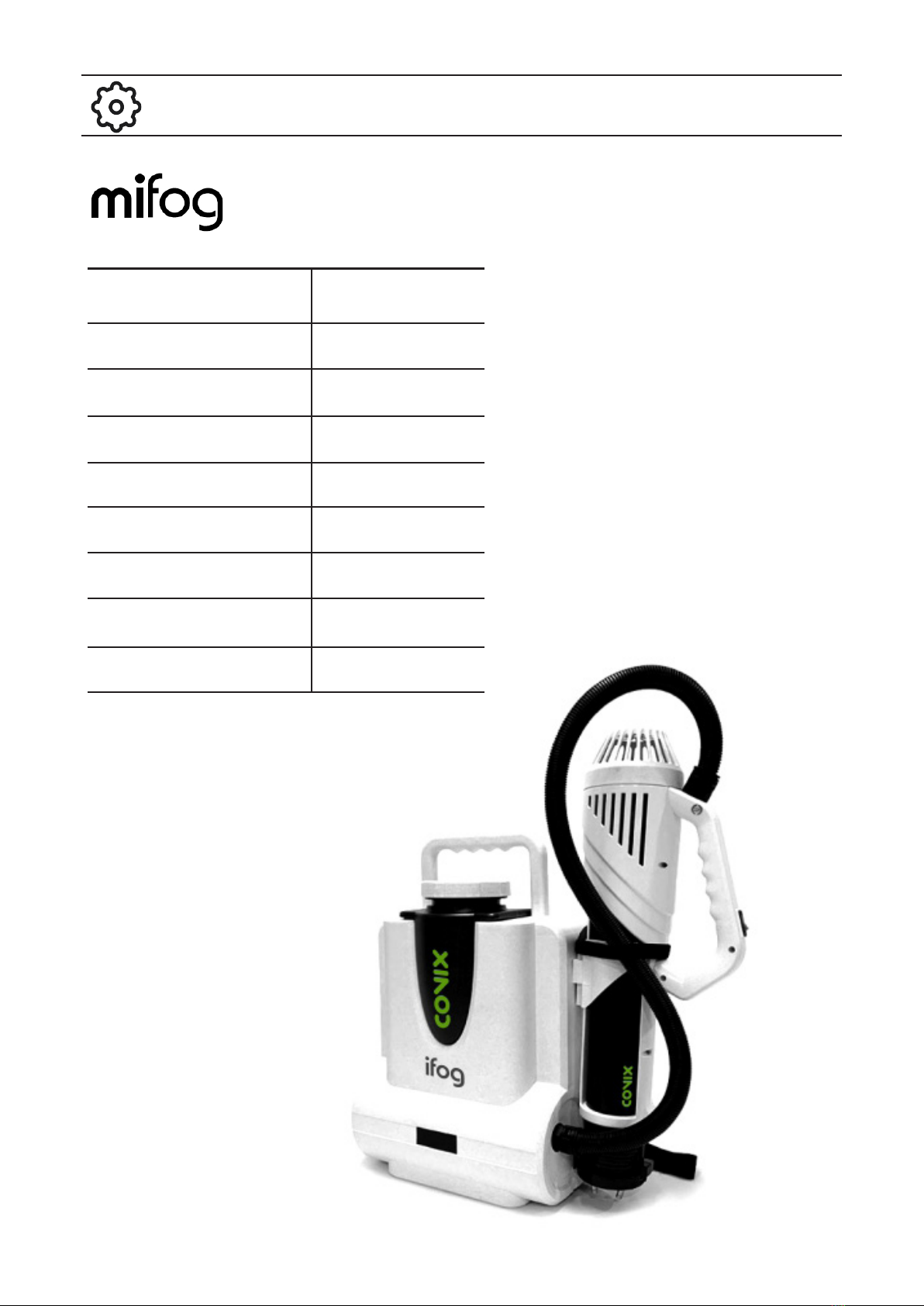

technical specifications
TECHNICAL FEATURES
Nominal voltage
Motor power
24 V- 30 Ah
200 W
Droplet size 10, 30 and 60 microns
3 types of nozzle
Dimensions (L x W x H) 740 x 280 x 670 mm
29 x 11 x 26.3 inch
Battery operating time 4 h with blower
10 h without blower
Tank capacity 10 litres/2.6 gal
Coverage
Rechargeable battery type
Sound level
8 m with blower
4 m without blower
Lithium 24V. 30 Ah.
4 hour charging time
60 dB
Empty weight 11 kg/24 lb

10
maintenance and care
> Always use the charger provided when charging the battery.
> Regularly check soft parts such as hoses and gaskets to check for wear. If they are broken or
damaged, they should be replaced.
> Like any apparatus for the application of chemical products, you will need to clean all the parts
of your unit to avoid the accumulation of residues which may affect its performance.
> Clean the equipment's nebulising nozzles frequently.
Spare Parts:
TEINNOVA has spares for all the equipment parts.
If you need any part or consumable, please contact
TEINNOVA Customer Service on [phone].

11
accessories and consumables
CONSUMABLES
AK-GERMA 100
Super concentrated disinfectant
for germs, fungi and viruses. Box
of 6 1-litre containers.
CODE PQ8400113

12
guarantee conditions
1. “TEINNOVA" guarantees its products for a period of 15
days for aesthetic defects or product faults which are
noticeable at first sight, and for a period of 1 year when
dealing with all other manufacturing defects or product
faults.
The “Buyer” must report the existence of any defect as
soon as they become aware of it and, in any case, within
the maximum period of 5 days from when it becomes
apparent. Any notification outside of this deadline shall
lead to the non-application of the guarantee.
"TEINNOVA" will collect and send the products to the
factory or to the closest official Technical Support
Service for inspection. At this point, it will be determined
whether the guarantee can be applied or whether it falls
under the guarantee exclusions.
If the guarantee is applicable, the transport fees, both
those for collecting the product from the client's facilities
and for returning it there will be paid by TEINNOVA. If it
is excluded from the guarantee (section 2), the transport
fees, both those for collecting the product from the
client's facilities and returning it there will be paid by the
client. "TEINNOVA" reserves the right to dismiss the
application of the guarantee in the event that there is no
evidence of the product’s non-conformity, and it shall not
apply said guarantee until coverage has been expressly
approved. Should the product be covered, "TEINNOVA"
can replace it or determine the necessary repair method.
All repair works that are carried out under the product
guarantee must be carried out in "TEINNOVA" facilities
or in those of the party it designates. The guarantee co-
vers the materials and labour required to repair or repla-
ce the parts or elements considered as defective from
origin. The maximum guaranteed amount or value
shall be the maximum price of the sale of the product to
the "Buyer". Any claims made under the coverage
of the guarantee shall not grant the right to delay and/or
withhold payment of the corresponding invoice
and/or any other pending invoices.
2. Guarantee Exclusions: The following are excluded
from the guarantee: Usage of, alterations to or handling
of the product done without the express prior
permission of the Vendor, indirect and/or
consequential damage, intentional damage, damage
caused by negligence or by improper use or by a use
not covered by the product’s instructions, faults due to
changes made to the product or the use of parts that
were not previously certified or expressly authorised by
the Vendor; fault detection costs, costs of collection or
replacement (the latter two unless the non-conformity is
proven and within the limits set out in section 1).

TECAI INNOVA S.L. certifies that the referenced product meets the essential health and safety requirements rela-
ted to design and manufacture provided in the European Directive.
The company has the following Quality Certificates: Management System ISO 9000:2015 and Environmental
Management ISO 14.001:2015.
The company is registered in the Registro Oficial de Establecimientos y Servicios Biocidas (Official Registry of
Biocidal Establishments and Services).
ROESB registration number: 026-CAR-110
Product details:
iFOG Electrostatic Nebuliser
Manufacturer information:
Manufacturer name: TECAI INNOVA S.L.
Address: C/ Las Balsas 16-B,
Pol. Ind. Cantabria 26009,
Logroño (La Rioja), España
Telephone: [phone]
Website: www.teinnova.net
Under its sole responsibility, TECAI INNOVA S.L. certifies that the machine model described above complies
with all the essential requirements of the following directives:
- Directive machines 2006/42/CEE
- Electromagnetic Compatibility (EMC) Directive - 2014/30/CEE
- Low Voltage Directive - 2014/35/CEE
The following standards have been followed in its design:
EN ISO 12100:2010/EN ISO 13850:2008
EN 60204-1:2006/EN 614-1:2006+A1:2009
Product
certificate
SIGNATURE: Armando Sáenz Angulo
CEO
teinnova.net

© This instruction manual is protected by copyright. We reserve all rights, especially the right to produce, trans-
late and prepare it using electronic systems.

teinnova.net
