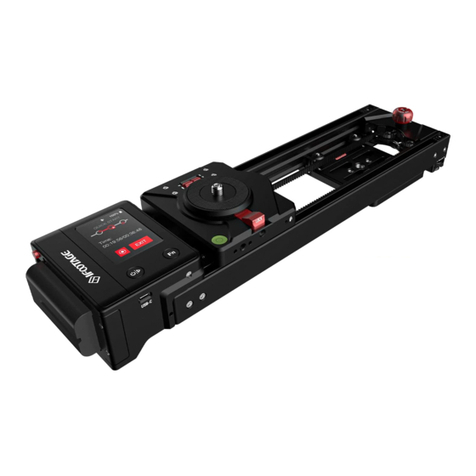

iFootage Shark Slider Nano User manual

Shark Slider Nano
Instruction Manual

TECHNICAL INFORMATION
FEATURES
PRECAUTIONS
COMPONENT DESCRIPTION
INSTALLATION GUIDE AND FUNCTIONS
SET UP
SCENARIOS
03
01
02
02
04-09
10
11-13
Thank you for purchasing this iFootage product.The Shark Slider Nano is
compact,lightweight,easy to carry and is ideal for time-lapse,stop-motion
and interior or exterior location camera movement.To get the most from
your Shark Slider Nano,please read the following instructions carefully
before operating the equipment.Please keep the manual safe for future
reference.
This instruction manual supports the following:
1.Shark Slider Nano Standard
2.Shark Slider Nano Bundle
CONTENTS

-01-
TECHNICAL INFORMATION
Rated voltage
Battery model
7.4VDC
750 lithium battery
Rated current
Tripod horizontal payload
1.2A
2.5kg
Table mounted: 200±1.5mm Tripod mounted: 400±3mm
Shark Slider Nano
Weight
Working temperature
Slider endurance time
Humidity
Vertical payload
2.15kg
-25 ℃-+65 ℃
4H
Track Specifications 421x108x71 mm
≤80%
2.0kg
Useable Length
Material Aluminum alloys + SUS304 Stainless steel + Polymer composite
Table horizontal payload 3.5kg
!Note: Please read the following information:
1.Whilst every care has been taken to ensure that this manual supports the
product and our customers,some ambiguity or description omissions may
exist.We always welcome customer feedback on how we can improve the
product manual.
2.Please note that customers who have purchased the following will need to
download the iFootage App which currently supports iPhone IOS9.3 and
Android 6.0.
3.Please check all components and packaging for any damage.In the case of
missing or defective parts,please contact your distributor as soon as
possible.
4.For Shark Slider Nano first time use,please read the 'precautions' section.
5.Please install the battery prior to using this equipment.When the battery
level is low,power can be supplied via the Micro USB port whilst
simultaneously charging the battery during operation.
6.Please note that the camera, head,tripod, smart phone,vertical shoot quick
release plate and battery are not included in the package and are used for
illustrative purposes only.

FEATURES
PRECAUTIONS
-02-
1.Lightweight, compact,portable and easy to deploy.
2.Provides USB power supply whilst simultaneously charging battery.
3.Reliable,wireless control using Bluetooth BLE 5.0 and 2.4 GHz.
4.Instant automatic connectivity via Smartphone Bluetooth BLE 5.0.
5.iFootage motion control App with free firmware updates allowing you to experience the
very latest functionalility.
6.Ultra silent,brushless, servo drive technology providing accurate positioning:super smooth
and super quiet.
7.Unique 2 in 1 dual axis motion control design combines slide movement with 360 degree
pan movement.
8.Lightweight and supremely compact Bi-directional maximum movement achieved with
minimum body length.
9.Enjoy total slider functionality and control via the innovative highlight IPS touchscreen or
Smartphone App.
10.iFootage Moco App interface simultaneously supports control of the slider carriage and the
recording.
1. Prior to opening the App please ensure that your Smartphone's Bluetooth is activated. If
using an Android device please ensure that the Smartphone's GPS is activated.
2. Please use only F750 batteries. Alternative batteries may damage the unit.
3. As a result of lithium battery discharge characteristics and the overall power requirements
for the Shark Slider Nano to operate, should the battery power be 20% or less, the
operation time may be reduced to less than 10 minutes. Please ensure the battery is fully
charged so that there is sufficient power for sustained operation. When battery power is
low, it is possible to switch to a USB power supply which will also recharge the battery in
addition to powering the unit.
4. The output current for the charging power adapter should be above 2A in order to charge
effectively.
5. Once activated,the Nano automatically moves to the initial status/zero point.Please ensure
that the track is clear of obstacles prior to starting. It is recommended that users keep their
hands clear of the tracks to avoid damage or injury.
6. Always protect the equipment when working in dusty, damp or wet environments. Failure
to ensure adequate protection from elements may result in equipment failure.
7. Do not use this motion control unit in environments above 65°C and below-25°C degrees.
8. Any disassembly or modification without authorization or improper use of the equipment
may result in damage and affect the warranty.
9. In order to operate the Nano via the iFootage Moco App please follow the download
instructions below:
IOS users: search “iFootage Moco” /“iFootage” in the Apple App Store and then download,
or scan the QR code to download.
Android users: search “iFootage Moco” /“iFootage” in the Andriod App Store and then
download, or scan the QR code to download.

-03-
COMPONENT DESCRIPTION
2
3
14
13
11 12
10
4
9
7
5
6
8
15
16
1Carriage lock button
2
3
4
Carriage tightness adjustment button
Fn gesture control button
5
9
13
On/Off switch & Confirm button
USB-C port
2.5mm Shutter port
Bottom carriage tightness adjustment control
6
10
14
7
11
15
8
12
16
Touchscreen
Spirit level
Left side height adjustment control
Battery
1/4”switch port
Battery release button
Pan axis lock button
Right side height adjustment control
Shark Slider Nano
1
1/4”& 3/8”connection screw

-04-
INSTALLATION GUIDE AND FUNCTIONS
Note:
1.If the carriage is in the locked position, please press the button and rotate towards the
unlock mark and release.
It is important that prior to operating the Shark Slider Nano the carriage must be in
the 'unlocked' position.
(Press down and rotate the button until it will no longer rotate - it is then in place)
The white dot aligned with the lock mark
indicates that the carriage is in the locked
position.
The white dot aligned with the unlock mark
indicates that the carriage is in the unlocked
position.

-05-
Note:
2. Adjustment can be found underneath the carriage.
INSTALLATION GUIDE AND FUNCTIONS
Note:Do not over tighten.
1. Please check if the
track is clear of obstacles.
1. Please ensure that the track is clear of obstacles prior to starting.
2. Please check that the carriage movement is 'firm'.You can adjust the carriage using the
carriage tightness adjustment button.

-06-
Installation and removal of the battery
*Please install the battery prior to starting.
INSTALLATION GUIDE AND FUNCTIONS
Installation:Carefully place the battery in the receiving port and gently push to the
right.An audible click indicates that the battery is correctly installed.
Removal:To remove the battery,press the battery release button,slide the
battery left and lift out.

-07-
INSTALLATION GUIDE AND FUNCTIONS
On/Off switch
Start up
3
2
1
To turn on, please press and hold the 'ON' switch for 3 seconds
until the boot animation appears.
Prior to attaching any equipment, level
the slider and await the 'dynamic
calibration process' to indicate
100%.Avoid any contact with the slider
during this procedure.
Install the device and place the camera
lens perpendicular to the track.After the
setting is completed,press "calibrated"
to confirm before normal use.
APP download:
Scan the QR code or search iFootage Moco directly.
Please visit www.ifootagegear.com
for more information.
Note: Auto calibration takes place after each restart.
Please follow the procedure below.Step 1:

-08-
Shut down
Press and hold the On/Off switch for 3 seconds to turn off the screen.
INSTALLATION GUIDE AND FUNCTIONS
Step 2: When using the Nano on a table top or on the ground,you can adjust the
legs to required height.
USB-C QC port: allows for battery to be
charged whilst Nano is in operation. Rotate here to adjust the
height of legs.
Start up

-09-

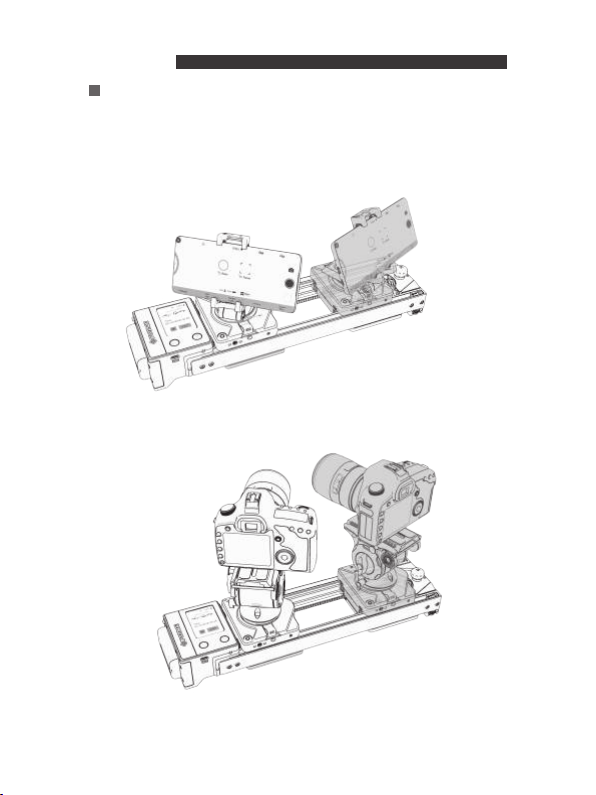

Installation of phone holder and head
Installing the phone holder
Installing the head
INSTALLATION GUIDE AND FUNCTIONS
When installing the head or phone holder,
please press the Pan Axis Lock button first,
then tighten the head or phone holder.

Quick start
SET UP
8
-10-
Press and hold for several
seconds,await the 'dynamic
calibration process' to indicate
100%,enter the home page.
Press to to confirm carriage
location and press again to
start run.
Press both buttons at the
same time for key frame
mode.
Press to set key frames.
*For more information on functions please download the iFootage Moco
App or visit the website: www.ifootagegear.com for access to the software
user manual.
1. Press and hold the On/Off switch for several seconds, level the slider and await the'dynamic
calibration process' to indicate 100%, then enter the home page.
2. Press the On/Off switch and Fn gesture control button at same time, to initiate the quick
start mode.
3. Press the Fn gesture control button to set key frame point A and point B.
4. Press the button a second time and the carriage will return to zero point to start its run.

SCENARIOS
-11-
Use in horizontal position
When using the Nano on the ground or on a table top please ensure that
the track is free from any obstacle prior to start up.

SCENARIOS
-12-
Mounting the Nano on a tripod for bi-directional movement.
When using the Nano slider on a tripod please ensure that the tripod legs are spread
sufficiently to fully support the carriage and camera movement.

SCENARIOS
-13-
Use in vertical position
Carry out a trial run first to
ensure L plate clearance.
Safety note:When using the Nano in the vertical position please ensure that
you initially mount the slider to the tripod, then install the battery and lastly,
after setting the carriage in the start position, attach the camera.

Please scan the QR code to download the iFootage Moco
App.More information on functions and the software
user manual can be found at:www.ifootagegear.com
STATEMENT
iFootage and its associates will not be held responsible for the use or misuse of
any of the iFootage products or any direct, indirect, punitive, incidental, special
consequential property or life damage responsibility.The risk of users or any other
person using this product shall be borne by the user. This will not affect your legal
rights.
MANUFACTURER INFORMATION
IFOOTAGE INTERNATIONAL (HK) LIMITED
UK Design & Made in China
Origin: China
Website: www.ifootagegear.com
-14-

Shark Slider Nano
滑軌安裝使用說明書
-15-

非常感謝您購買iFootage品牌的產品。Shark Slider Nano系列產品是壹款非常便
攜、靈活的攝像產品，適用於延時拍攝、定格動畫、視頻拍攝。為了讓Shark Slider
Nano系列產品發揮最大功效，請務必仔細閱讀所有使用說明，並妥善保管說明書
以便本產品所有使用者可隨時參閱。本手冊為Nano系列的通用手冊。
規格參數
重點注意事項
部件名稱
安裝方法及功能拓展
使用操作
應用場景
19
17
18
18
20-25
26
27-29
-16-

-17-
規格參數
額定電壓
電池類型
7.4VDC
750鋰電池
額定電流
水平腳架承重
1.2A
2.5Kg
桌面上：200±1.5mm 腳架上：400±3mm
Nano滑軌
重量
使用溫度
軌道規格
濕度
垂直承重
2.15Kg
-25 ℃-+65 ℃
421x108x71 mm
≤80%
2.0Kg
使用長度
材質 航空级铝合金+SUS304不锈钢+高分子复合材料
水平桌面承重 3.5Kg
滑軌續航時間 4H
!注意事項：
1. 本説明書在編寫過程中已力求內容正確與完整， 但仍然可能發生文字錯誤與技術描述疏漏
的情形， 懇請消費者及業界不吝賜教指正， 以利於本手冊之修正工作，力保手冊內之正確
性。
2. 本產品需下載APP使用，目前支持iPhone iOS9.3及以上版本,支持Android 6.0以上系統版本。
3. 購買產品時， 請您檢查包裝是否完整， 如果發現配件有損壞或者短缺的情況，請及時和原
購買經銷商聯繫以獲得援助。
4. 初次使用本產品之前，請先閲讀“重點註意事項”。
5. 當開始使用本產品前必須先安裝電池，當電池電量不足時，可通過USB接口使用外接電源，
實現正常使用，同時給電池充電的效果。
6. 説明書內相機、雲臺、腳架、手機、豎拍板、電池等非實物，僅供參考。

1、產品小巧、輕便，極其方便攜帶。
2、USB-C充電，長時間續航拍攝無壓力。
3、使用藍牙BLE5.0與2.4GHz無線控制，擺脫傳統接線控制的束縛。
4、通過手機APP藍牙BLE5.0 手動連接導軌，無需攜帶額外的控制端，使拍攝
更加輕松、靈活、快捷。
5、手機應用程序推送底層固件更新，第壹時間體驗最新功能。
6、無刷伺服驅動技術，定位精準，平穩超靜音。
7、獨創平移與水平360°雙軸壹體式電控設計。
8、輕巧緊湊的雙向行程設計，達到短機身，長行程的效果。
9、機身自帶控制系統，IPS高亮觸摸屏，實現獨立控制設備，完成拍攝。
10、iFootage Moco APP裏的Nano使用界面，拍攝與控制壹體，實現拍攝和操控滑
塊同壹界面，快速拍攝，快速分享。
產品特點
重點注意事項
1、Shark Slider Nano滑軌與手機連接基於藍牙BLE5.0技術，打開APP連接設備前
請確認手機藍牙是否已開啟；如使用Android系統的手機，需再確認定位已打
開方可使用；
2、請使用F750電池為Nano滑軌供電，請勿使用其他型號電池供電；
3、由於鋰電池的放電特性和 Shark Slider Nano滑軌的功率要求，當電池電量小
於等於20%時，滑軌的可運行時間將急劇減少(小於10分鐘)，所以使用設備
時請確認電池有足夠電量完成拍攝；當電池電量不足時，不拆卸電池，可使
用USB外接電源充電;
4、充電電源適配器輸出電流要求在2A以上，以達到最佳的充電效果；
5、開機後將直接回零，保證軌道內無障礙物，更不可將手指放置在回零行程內，
以防夾傷；
6、請勿讓本設備受潮或在淋雨、多沙、多塵環境中使用，以免設備故障；
7、請不要在高於65℃低於零下25℃環境下使用本電控產品；
8、嚴禁私自拆卸、改裝或粗暴使用，嚴禁物理性撞擊本產品。
9、使用Shark Slider Nano時需要同時使用iFootageMoco App，請通過以下方法下載。
iOS用戶在Appstore上直接搜索iFootage Moco 或者搜索iFootage下載安裝，也可以
通過掃描二維碼的方法下載。
Android用戶在應用市場上直接搜索iFootage Moco 或者搜索iFootage下載安裝，也可
以直接通過掃描二維碼的方法下載。
-18-
