iGenix DF1655 User manual

Please read these instructions carefully before use and retain for future reference
Before switching on your appliance,
always check for any damage which may have been caused in transit
DF1655
PO Number:
16 Inch White Pedestal Fan
USER MANUAL

2
CONTENTS
Important Safety Instructions...............................................3-4
Specication .................................................................................5
Assembly Instructions............................................................6-8
Operating Instructions...............................................................9
Cleaning and Maintenance ..................................................... 10
Fuse Replacement.................................................................... 10
Trouble Shooting Guide.......................................................... 11
Disposal Information............................................................... 11
Igenix Warranty Terms and Conditions......................... 14-15

3
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all of the instructions even if you feel you are
familiar with the product, and nd a place to keep this manual handy
for future reference.
Important: This appliance is intended for use in a domestic
environment only.Any other use is not recommended by the
manufacturer and may cause re, electrical shocks or other injury
to user or property.When using electrical appliances, basic safety
precautions should always be followed:
• Before plugging in the appliance, check that the voltage indicated
on the rating label corresponds with the main voltage in your
home.
• Do not operate the unit with a damaged cord or plug, after it
malfunctions or has been dropped or damaged in ant way. Return
to an authorised service facility for examination and repair.
• Ensure that the air inlets and outlets are not blocked or covered.
• Do not place the unit too close to curtains or other objects -
min 30cm.
• Make sure there are no objects near the unit which can prevent
it from oscillating.
• Never insert ngers pencils or other objects into the unit if the
power cord is plugged in, and especially not during the operation.
Warn your children against these dangers.
• This appliance can be used by children aged from 8 years
and above if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand
the hazards involved.
• Cleaning and user maintenance shall not be made by children
unless they are older than 8 years and supervised.
• Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical,

4
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved.
• Unplug the unit from the socket when not in use. Do not pull on
the cord.
• Do not use the unit near bath, shower, swimming pool or
anywhere it could be splashed with water.
• Do not expose the unit to direct sunlight.
• Do not immerse the appliance or the electrical cord or plug in
any type of liquid.
• Do not use the appliance near a source of heat.
• Do not use the unit near ammable or explosive gases.
• Before cleaning the unit, switch it off and unplug the power cord.
• Do not leave the unit unattended during operation.Always
unplug the power cord when not in use.
• To repair the unit, take it to a qualied service engineer. Repairs
carried out by unqualied people may cause damage to the unit
or injury to persons or property and void the warranty.

5
SPECIFICATION
Model No: DF1655
Brand Igenix
Colour White
Wattage (W) 40 W
Frequency (Hz) 50 Hz
Voltage (V) 220-240 V
Product Dimensions (mm) H 1250 x W 700 x D 700 mm
Net Weight (kg) 2.93 kg
Oscillation Function Ye s
Class
II
Speeds Low, Medium, High

6
ASSEMBLY INSTRUCTIONS
Front Grill
Fan Blade
Plastic Nut
Motor Shaft
Motor
Housing
Tighten
Loosen
Fan Blade Nut
Rear Grill
Fasten
Internal
Pole
Extension
Pole
Height Adjustment Nut
Cross Base Connector
Stand

7
1. Take the unit out of the box, removing any packaging.
2. Insert the base of the extension pole into the top of the cross base
connector (the side without the grooves). (Fig.1)
3. Insert the 4 stand feet into the cross base connector.The feet should have
the at edge facing the oor. Ensure that these are securely tted. (Fig.2)
4. Loosen the height adjustment nut on the extension pole and extend (pull up)
the internal pole to the desired height. (Note: If the internal pole has slid into
the extension pole, gentle tilt the assembly until it slides out. Seek assistance
when doing this.) Fasten the height adjustment nut. (Fig.3 & 4)
5. To attach the head unit to the internal pole, loosen the thumb screw at
the base (the opposite end to the motor shaft). Place the head unit on the
internal pole and tighten the thumb screw when it is aligned with the groove
on the internal pole. (Fig.5)
Fig.1 Fig.2
Fig.3 Fig.4 Fig.5
The extension
pole correctly
inserted into the
cross base connector
Height
Adjustment Nut
Pole
Cross Base
Connector
Cross Base
Connector
Stand
Tighten Tighten
Extend
Thumb
Screw
Internal Pole
Groove

8
Grill and Fan Blade Assembly
1. Either unscrew the fan blade nut and plastic nut (if attached to the unit) or
remove them from the packaging. Fix the rear grill to the motor shaft and
secure it by screwing the plastic nut. (Fig.6)
2. Slide the fan blade onto the motor shaft. Ensure that the pin of the motor
shaft is securely slotted into the groove on the fan blade.Attach the fan blade
nut and turn counterclockwise to tighten. (Fig. 7)
3. Align the front and rear grill and press down all the buckles so that they
fasten the two together. (Fig.8)
Fig.6 Fig.7 Fig.8
Fan
Blade
Nut
Tight
Loose
Plastic
Nut
Fan Blade Nut
Fan Blade
Tight
Groove
Motor
Shaft
Pin
Buckle

9
OPERATING INSTRUCTIONS
On/Off and Speed Control
Speed is controlled by the knob on the motor housing:
0 = Off
1 = Low
2 = Medium
3 = High
Oscillation Adjustment
Push the oscillation knob down to start oscillation. Pull the oscillation knob up to
stop oscillation.
Angle Adjustment
To change the angle of the airow gently tilt the head of the fan.
Height Setting
The height of the fan can be adjusted by loosening the height adjustment nut.
Carefully either extend or lower the upper half of the fan and tighten the height
adjustment nut once done.

10
CLEANING AND MAINTENANCE
• Turn off the fan and remove the plug from the power supply before cleaning.
• Use a dry, soft cloth to remove any dust from the fan.
• If the fan is particularly dirty, use a soft damp cloth and wipe dry.
• Do not use any chemicals or detergents as they will damage the fan.
• It is recommended to cover the fan with a plastic bag before storage to
prevent dust collecting on fan blades.
• Store the fan in a ventilated and dry area.
• Do not allow water to get inside the body of the fan.

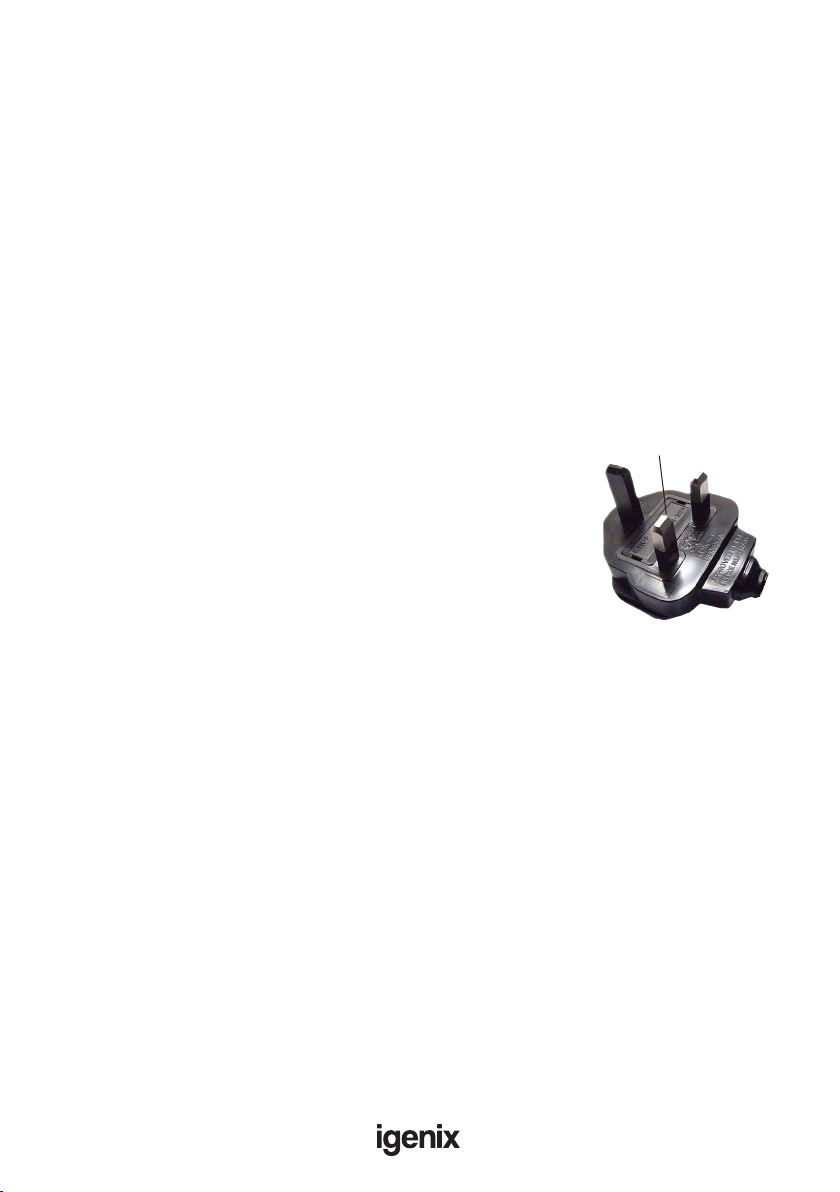

MAINS PLUG FUSE REPLACEMENT
Fuse Replacement (Class II)
Remove the fuse cover with a small at head screw
driver. Take out the fuse and replace with a new fuse of
the same Amp. Replace the fuse cover and push back into
place.
Fuse Cover

11
TROUBLE SHOOTING GUIDE
If you experience difculties with the appliance, please check the suggestions below before contacting
customer services on 01473 271272:
Problem Possible Cause Possible Solution
The appliance does not
work.
The appliance is not
properly plugged into the
wall socket.
Plug the appliance in rmly.
The appliance is not
switched on.
Make sure the appliance is
switched on.
There is no electricity
running through the mains
wall socket.
Check the fuse or breaker.
DISPOSAL INFORMATION
The European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE), requires that old household
electrical appliances must not be disposed of in normal unsorted
municipal waste.
Old appliances must be collected separately in order to optimise
the recovery and recycling of the materials they contain and reduce the impact
on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your
obligation, that when you dispose of the appliance it must be separately collected.
Consumers should contact their local authority or retailer for information
concerning the correct disposal of their old appliance.

12

13

14
lgenix Warranty Terms & Conditions
This product is guaranteed for a period of 12 months as standard from the date of purchase
against mechanical and electrical defects.You can extend your warranty for a further 12 months by
registering your product.
Upon registration we will cover your product for a period of 24 months from the original purchase
date against any mechanical or electrical defects.
To qualify for the guarantee, the product must be used for domestic household use only and in
accordance with the instructions in the user manual.Any misuse of the product will result in the
warranty being void.
The guarantee does not cover accidental damage, misuse, neglect, tampering or incorrect
adjustment or installation.
The guarantee will be rendered invalid if the product is resold, has had its serial number removed
(or has an invalid serial number), or if an unauthorised person has carried out any repairs or
alterations.
The warranty does not cover accessories or consumable parts that require replacement under
normal use. This includes shelving, dials, lters, belts and trays etc.
In the unlikely event of a breakdown please refer to the Troubleshooting guide in your user manual
and check all plugs, fuses and the electricity supply.
If you still require assistance please contact our Customer Service department on
01473 271 272 or write to us at the following address:
Customer Service Department
38 Bluestem Road, Ransomes Europark
Ipswich, IP3 9RR
Please quote the Product Code which begins ‘IG’ or ‘DF’ and the “PO Number” on the front of
the instruction manual and give details of the exact fault.We will then decide whether to repair or
replace the item.
Before we arrange the repair or replacement you will be required to return a copy of your proof
of purchase. Please retain your original.
If an item is replaced within the agreed guarantee period, the guarantee for the replacement item
will be calculated from the purchase date of the original.
In the event that the product is inspected and no fault is found or the product is not within the
guarantee period you will be charged for the repair and any carriage costs.

15
Thank you for choosing lgenix
As a valued customer we would like to offer you a FREE 2 year warranty to cover your product
against any electrical or mechanical defects.
This means that in the unlikely event you develop a fault or problem with your product we will
happily repair or replace the item free of charge.
To qualify for the 2 year warranty you must register your product within 30 days of purchase.The
full Terms & Conditions of our warranty policy are shown on the opposite page. They are also
available on our website. www.igenix.co.uk

38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR
Tel. [phone]
Disclaimer: Igenix operate a policy of continual improvement and development.
We therefore reserve the right to change/alter the specication and appearance of our appliances without prior notice.
All diagrams and images shown in this manual are for illustration purposes only.
