Igloo Kegorator IBK49BK User manual

All products are trademarks of Nostalgia Products LLC.
Worldwide design & utility patented or patents pending.
© 2019 Nostalgia Products LLC.
www.nostalgiaproducts.com
(rev. 05/15/19 MD)

IBK49BK
Igloo®Kegorator™
Instruction Manual
Manuel d’instructions
Manual de instrucciones

ENGLISH
2
CONTENTS
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ADDITIONAL IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INSTALLING THE CASTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ASSEMBLY OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TAP TOWER INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ATTACHING COUPLER TO TAP TOWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
ATTACHING COUPLER TO REGULATOR . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ATTACHING REGULATOR TO CO2TANK . . . . . . . . . . . . . . . . . . . . . . . . . . 10
COMPLETED CO2TANK INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . 11

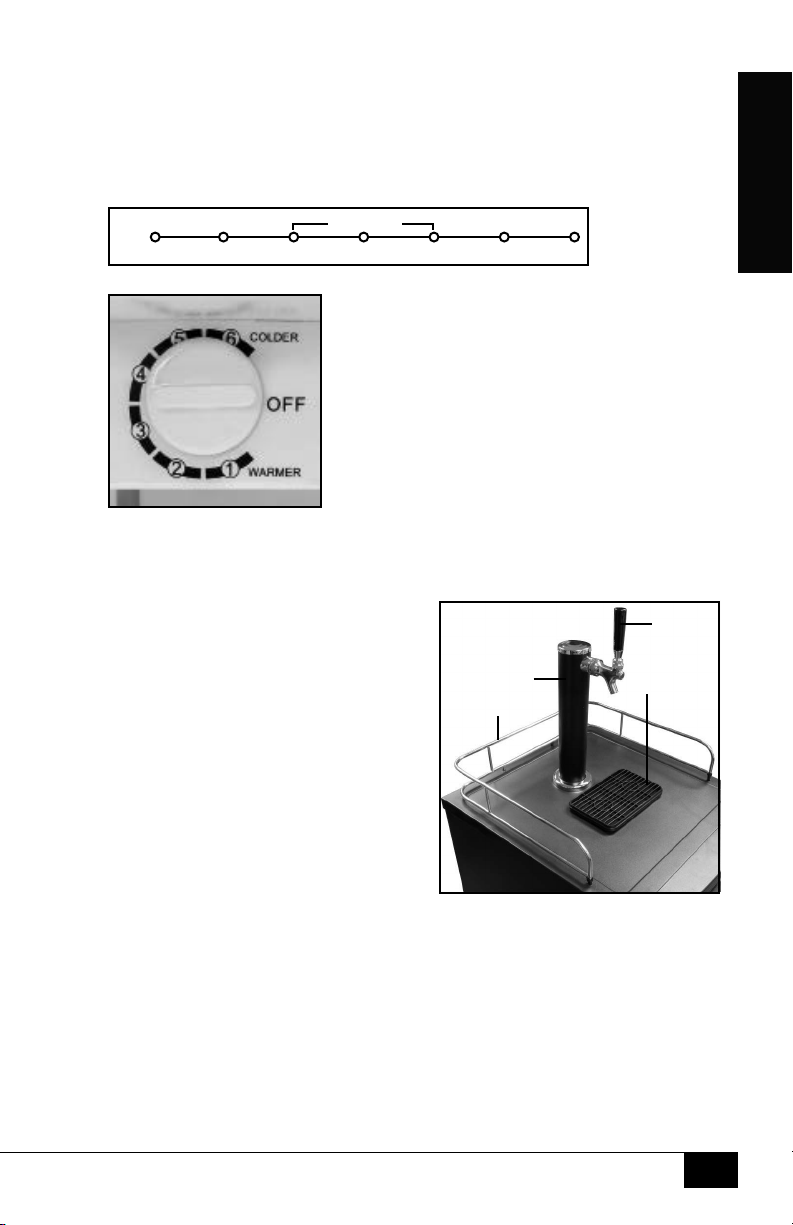

TEMPERATURE GAUGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
INSTALLING THE GUARDRAIL / DRIP TRAY . . . . . . . . . . . . . . . . . . . . . . . . 12
TAPPING THE BEER KEG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

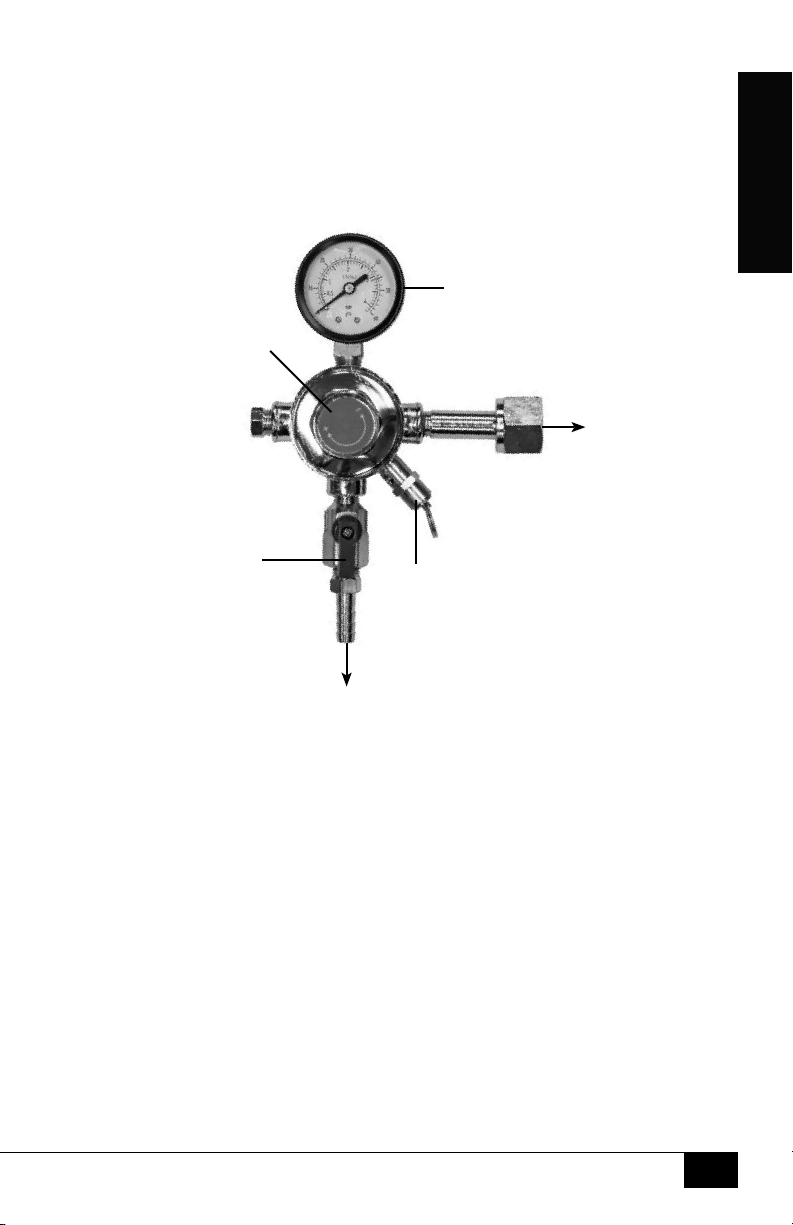

SETTING THE REGULATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
HOW TO OPERATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

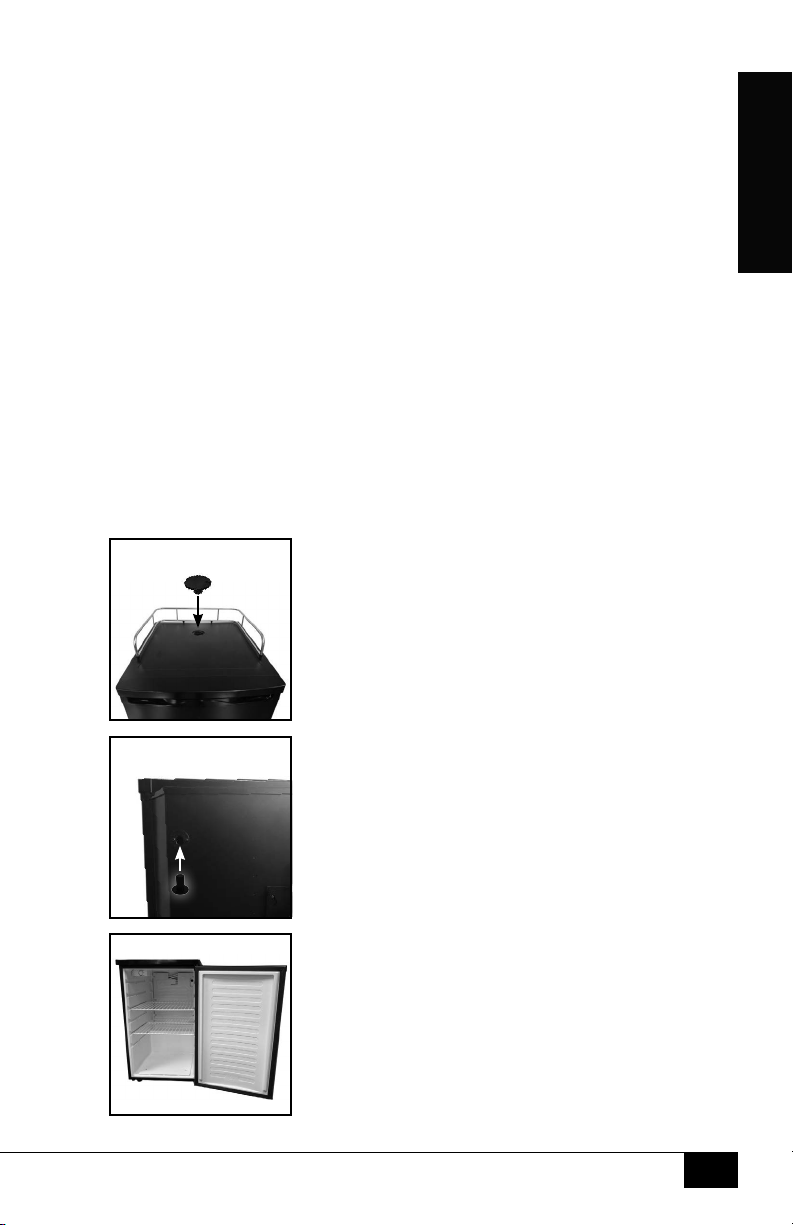

CONVERT TO REFRIGERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
HELPFUL TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CLEANING & MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
RETURNS & WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SAFETY
Appliance Specications:
90 W, 115 V, 60 Hz
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can
cause serious injury to you and others.
All safety messages will follow the safety alert symbol.
All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.

ENGLISH
3
IMPORTANT SAFEGUARDS
A person who has not read and understood all operating and safety instructions
is not qualied to operate this appliance. All users of this appliance must read and
understand this Instruction Manual before operating or cleaning this appliance.
When using electrical appliances, basic safety precautions
should always be followed, including:
1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs.
3. This appliance is NOT A TOY.
4. Keep out of reach of children.
5. Unsupervised young children and cognitively challenged
individuals should never operate this appliance.
6. Close supervision is necessary when any appliance is used by or near children.
7. To protect against electrical shock do not immerse cord, plug
or any part of this unit in water or other liquids.
8. Do not operate this appliance when parts are missing or broken.
9. Unplug from outlet when not in use, before removing parts and before cleaning.
Allow to cool before putting on or taking o any parts, and before cleaning.
10. DO NOT operate any appliance with a damaged cord or plug, or after the appliance
malfunctions, or if the appliance has been damaged in any manner. Return the
appliance to the nearest repair shop for examination, repair or adjustment.
11. The manufacturer does not recommend the use of accessory attachments other than
what is provided by the manufacturer. Use of attachments may cause injuries.
12. DO NOT use the appliance for other than its intended use.
13. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
14. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
15. DO NOT put any parts of this appliance in dishwasher.
16. DO NOT let cord hang over edge of table or counter, or touch not surfaces.
17. NEVER leave unit unattended while in use or when plugged into an outlet.
18. Extreme caution must be used when moving an appliance containing hot food.
19. Always attach plug to appliance rst, then plug cord in the wall outlet. To
disconnect, turn any control to "o," then remove plug from wall outlet.
ADDITIONAL IMPORTANT SAFEGUARDS
Operating Safety Precautions
1. Before discarding your old appliance, remove the door from its
hinges so that children may not easily become trapped inside.
2. DO NOT roll the KEGORATOR™ with loaded beer kegs onto carpet oor.
3. The appliance door must be closed during operation. DO
NOT leave the door open when children are near.
4. This appliance should not be recessed or built into an enclosed
cabinet. It is designed for freestanding assembly only.

ENGLISH
4
5. Do not operate your appliance in the presence of explosive fumes.
6. Do not tamper with the controls.
Instructions for the Electrical Cord and Plug
1. ELECTRICAL SHOCK HAZARD: Failure to follow these instructions
can result in death, re, or electrical shock.
• Plug into a grounded 3 prong outlet.
• DO NOT remove ground prong.
• DO NOT use an adapter.
• DO NOT use an extension cord.
2. This unit MUST be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current.
This unit is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
3. WARNING: Improper use of the grounding plug can result in a risk of electric
shock. If the plug does not t fully into the outlet, contact a qualied
electrician. Do not attempt to modify the plug in any way.
4. A short power supply cord is provided to reduce the risk resulting
from becoming entangled or tripping over a long cord.
5. The manufacturer does not recommend using this machine in countries that do not
support 120V AC even if a voltage adapter, transformer, or converter is in use.
CO2(Carbon Dioxide) Gas
1. CO2gas can be dangerous! CO2cylinders contain high-pressure compressed
gas, which can be hazardous if not handled properly. Make sure you read and
understand all the procedures for the CO2cylinders before installation.
2. Always connect the CO2cylinder to a regulator! Failure to do so may cause an
explosion resulting in possible death or injury when the cylinder valve is opened,
3. Never connect the CO2cylinder directly to the beer keg.
4. Always follow the correct procedures when changing the CO2 cylinder.
5. Never drop or throw a CO2cylinder.
6. Always keep CO2cylinders away from heat. Store extra cylinders in a cool place
(preferably 70° F). Secure fasten with a chain in an upright position when storing.
7. ALWAYS ventilate and leave the area immediately if CO2leakage has occurred.
8. There are two safety devices in the pressure system in the form of a valve. One
safety feature is on the CO2bottle. The second is on the regulator.
9. Never attempt to rell CO2cylinder yourself.
10. IMPORTANT! If the refrigerator has been placed in a horizontal or tilted
position for any period of time wait 8 hours before plugging in the unit.
SAVE THESE INSTRUCTIONS!

ENGLISH
5
INTRODUCTION
Great for serving even the thirstiest crowd, the Igloo®KEGORATOR™ keeps the beer
owing and the good times rolling. This unit adds a unique element to backyard
barbecues, garage hangouts, recreation rooms, or simply relaxing at home.
Proper Location
To ensure that your KEGORATOR™ works to the maximum eciency for which it was
designed, keep it in a location where there is proper air circulation and electrical outlets.
Choose a location where the KEGORATOR™ will be away from
heat and will not be exposed to direct sunlight.
• Indoor use only. It should not be used outdoors.
• Designed to be freestanding and should not be placed in a built-in or recessed area.
• Unit includes a 2.5 lb. CO2bottle, which should be able to
dispense two to four 15 gallon kegs of beer.
• Capacity: 4.9 cu. ft.
• Unit dimensions: L 24.80" x W 20.08" x H 33.50"
• The following dimensions are recommended for clearances around the KEGORATOR™:
Sides …………………… ¾”(19 mm)
Back ……………………. 1”(25 mm)
• Unit weight: 90.4 lbs
Compatible Keg Types
The KEGORATOR™ can hold one BarrelFull Size Keg, or one Pony Keg,
or two 5-Gallon Kegs. DOES NOT t non-standard keg sizes.
NOTE: Keg Coupler only ts D-Sankey Keg Valves. Attaching
the Keg Coupler will add height to the Keg.
Kegs / Barrel ¼ Barrel Short ¼ Barrel Slim ½ Barrel
Gallons 5.23 7.75 7.75 15.50
Keg Capacity 1 1 1 1
12 oz. Beers 55 82 82 165
Weight (Full
in lbs.)
58 87 87 161
½ Barrel
(Full Size)
Slim Quarter Barrel
(Tall Keg)
Sixth Barrel Quarter Barrel
(Pony Keg)
9 1/4" 16 1/8" 11 1/8" 16 1/8"
23 3/8" 23 3/8" 23 3/8"13 7/8"

ENGLISH
6
PARTS
Read all instructions carefully before assembling the KEGORATORTM.
IMPORTANT! Stand the KEGERATORTM in an upright position for 8-10
hours before plugging into an electrical outlet. This will allow the coolant
in the refrigeration unit to stabilize before turning on the power.
If still unsure whether your KEGORATOR™ has been properly assembled,
it is recommended that you contact customer service, or a qualied
installer, such as a brewery or wherever kegs are sold.
Washers / Beer Line Adapter Parts
NOTE: Most washers are already attached to the KEGORATORTM. Extra parts
are included in a plastic bag. Refer to the parts diagram and corresponding
part numbers to understand where each washer / extra parts belong.
CO2Hole Plug
(Exterior Cabinet)
CO2Directional
Washer
(Part 5)
Backow Stopper
(Part 5)
Hose Clamps
(Part 4)
Metal Washer
Qty. 2
(Part 11)
Tap Tower Washer
(Part 1)
Tap Tower Washer
(24 mm)
(Part 1)
Spigot Handle Washer
(15 mm)
(Part 2)
Tap Tower Spigot
Washer (13 mm)
(Part 3)
Regulator High Pressure
Washer (18 mm)
(Part 6)
Body Seal Coupler
Washer (38 mm)
(Part 5)
Probe Seal Coupler
Washer (22 mm)
(Part 5)
Inner Probe Seal
Coupler Washer
(23 mm)
(Part 5)
Top Coupler
Washer (20 mm)
(Part 5)

ENGLISH
7
Parts
(1)
Tap Tower
Qty. 1
(2) Spigot Handle
Qty. 1
(3) Tap Tower Spigot
Qty. 1
(4) CO2 Line
Qty. 1
(5) Keg Coupler
(US Sankey D-System)
Qty. 1
(6) Regulator
Qty. 1
(7) CO2 Tank Holder
Qty. 1
(8) CO2 Tank (unlled)
Qty. 1
(9) Top Cabinet Plug
Qty. 1
(10) Tap Tower Wrench
Qty. 1
(11) Front Locking
Casters
Qty. 2
(12) Rear Non-
Locking Casters
Qty. 2
(13)
Wire Shelf
Qty. 2
(14) Guard Rail
Qty. 1
(15) Drip Tray
Qty. 1
1
3
4
2
5
8
6
7
9
10
11
13
15
14
12

ENGLISH
8

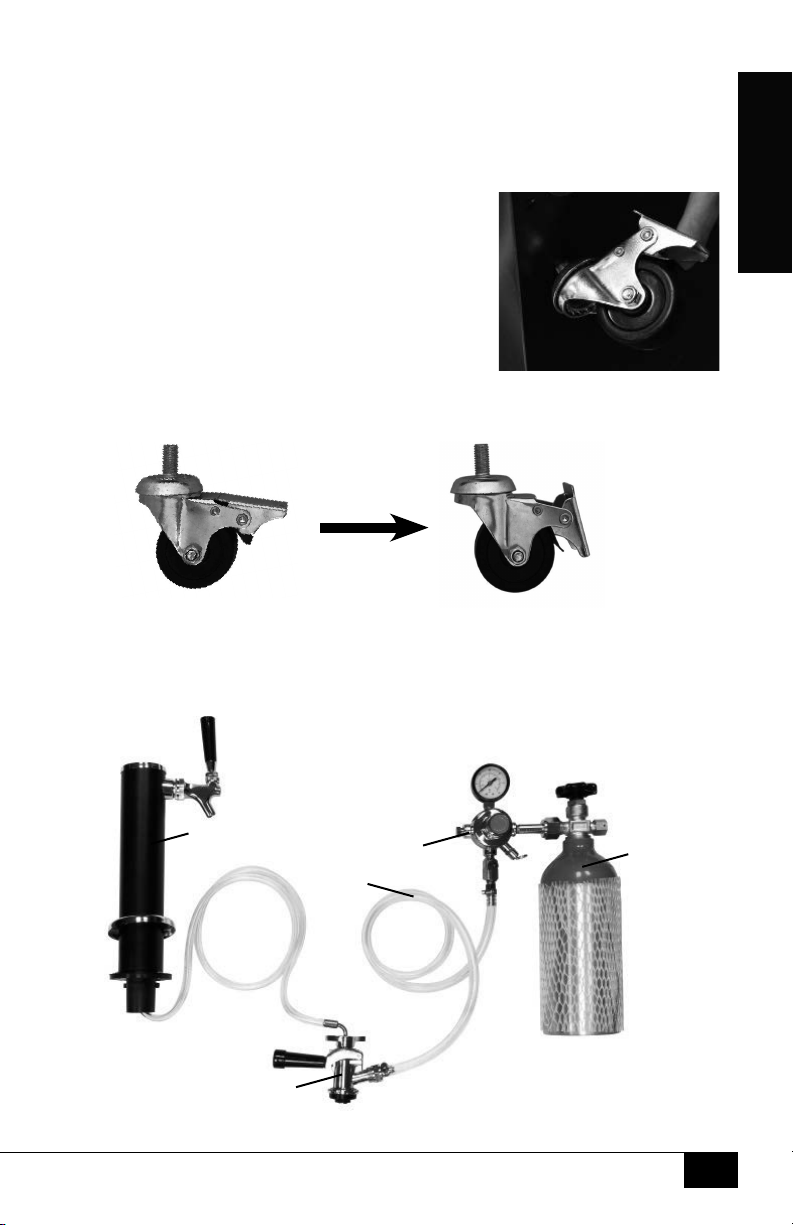

INSTALLING THE CASTERS
NOTE: Each of the Front Casters include a locking mechanism to ensure the unit
does not roll on hard oors. The Front Casters should be fastened at the front
end of the unit, with the Non-Locking Rear Casters fastened on the rear end.
1. Empty the inside of the cabinet and lay the
unit down on it’s side. To prevent dents or
scratches, we recommend placing a piece of
cardboard or cloth underneath the cabinet.
2. For the Front Casters, place Metal Washers over the
Caster bolts, then insert the Casters into the holes
on the bottom corners of the cabinet. (The Rear
Casters do not require Metal Washers.) Tighten each
Caster by turning each metal bracket clockwise.
3. Once all four Casters have been tightened, stand the cabinet in the upright position.
Locking The Front Casters
ASSEMBLY OVERVIEW
Unlocked Locked
Regulator
CO2 Tank
Keg Coupler
Tap Tower
CO2 Line

ENGLISH
9
TAP TOWER INSTALLATION
Remove all packing tape from the Tap Tower.
ATTACHING COUPLER TO TAP TOWER
Remove the packing spring and Backflow
Stopper from inside the Keg Coupler,
then reinsert the Backflow Stopper into
the Keg Coupler (rounded side down).
Remove the black packing cap from
the top of the Coupler, then place the
Top Coupler Washer ush and centered
on the top of the Keg Coupler.
1. 2.
Remove & discard
Insert (rounded
side down)
1.
Tap Tower
Tap Tower
Washer
2.
Guide the Tap Tower Washer up the tap
tower hose and let it sit on the top of the
cabinet. Then feed the tap tower hose
through the hole in the top of the cabinet.
Align the notches at the bottom
of the tower with the hole in the
top of the cabinet, then insert and
twist the tower clockwise to lock
it into place (about a ¼ turn).
3.
After the Tap Tower has been placed
on top the cabinet and the hose line
feeds through the bottom, attach
the wing nut to the Keg Coupler.
3.

ENGLISH
10
ATTACHING COUPLER TO REGULATOR
ATTACHING REGULATOR TO CO2 TANK
IMPORTANT! When you purchase your first keg of beer, you must also have
your CO2 Tank filled by a local supplier. CO2 Tanks can be filled at locations such
as welding supply shops, party stores, and wherever kegs are purchased.
Use an adjustable wrench (not included)
to attach the Regulator to the CO
2
Tank.
3.
Make sure the white nylon High
Pressure Washer (already installed)
is attached to the Regulator.
2.
4.
Place the CO2 Tank into the
CO2 Tank Holder.
1.
Align and hook the 4 holes of the
CO2 Tank Holder with the screws
on the back of the unit.
2.
If not already inserted, insert the
CO2 Directional Washer into the
Keg Coupler. Then screw the CO2
Line onto the Keg Coupler.
1.
Push the other end of the CO2 Line
through the hole in the rear of the cabinet.
Slide a Hose Clamp onto the end of the
CO2 Line, then attach the hose to the barb
tting on the bottom of the regulator.
Secure the CO2 Line by tightening the
Hose Clamp with a athead screwdriver.
Hose
Clamp

ENGLISH
11
COMPLETED CO2TANK INSTALLATION
Below is an overview of how the interior and back panel of your
KEGERATOR™ should look at this point of assembly.
DANGER! CO2can be dangerous! CO2cylinders contain
high-pressured gas, which can be hazardous if handled
improperly. They must be handled with care.
CO2
Line
Keg
Coupler
Connects
to Keg
Tap Tower
Hose
Interior Cabinet Back Exterior
CO2
Tank
Regulator
CO2
Line

ENGLISH
12
TEMPERATURE GAUGE
The temperature gauge is located in the interior cabinet of
the KEGORATOR™ in the upper left-hand corner.
NOTE: Before purchasing a beer keg, allow the unit to cool for 48 hours.
INSTALLING THE GUARDRAIL / DRIP TRAY
1. Place the Guardrail on top of the unit
and align all pegs of the Guardrail
with the holes on top of the unit.
2. Secure the Guardrail to the unit by pushing
the pegs inside the corresponding holes.
3. Place the Drip Tray at the base of the Tap Tower.
Tap Tower
Handle
Tap Tower
Assembly
Guardrail
Drip Tray
OFF 1234567
Warmer ColderNormal Use

ENGLISH
13
TAPPING THE BEER KEG
(SINGLE VALVE-TYPE KEG)
1.
3.
Make sure the black pull handle
of the Coupler is in the open (up)
position, then insert the Coupler into
the locking neck of the beer keg.
Make sure the Tap Tower is in the closed
(handle pointing straight up) position.
Secure the connection by pulling the
Coupler handle out and pushing down
until it locks into position. The pull handle
will "click" when it shifts into the nal
downward position. This will open the beer
and CO2gas valves. The Keg is now tapped.
Turn the Coupler clockwise until
it locks securely into position.
2.

ENGLISH
14
SETTING THE REGULATOR
The Regulator connects the CO2 Tank to the CO2 Line, while measuring
PSI (pounds per square inch) and the volume of CO2 in the tank. Set the
Output Pressure Gauge between 8-12 PSI for a nice, frothy head.
Overview
Connects to
CO2 Tank
Connects to
CO2 Line
Pressure Dial: Adjusts
the output pressure
(loosen set screw
with Allen Wrench)
Output Pressure Gauge:
Measures PSI of CO2
outow from CO2 Tank
to Keg (0-60 PSI)
CO2 Shut O Valve:
(shown in open position) Pressure Relief Valve
(PRV): Allows gas to
ow through Regulator
to obtain an accurate
pressure reading.

ENGLISH
15
How To Set Regulator
Once desired pressure is reached, tighten the inner
Locking Ring. Pull the PRV to assure the correct
setting. If necessary, readjust your settings.
Next, open the CO2 Shut O Valve on the Regulator to
allow gas to ow from the Regulator to the Keg Coupler.
You will hear the keg pressurizing. The output needle
will drop momentarily until the pressure has equalized.
Then the needle will return to the point you set it at.
Finally, we suggest you re-check the output pressure on the Regulator, and if
necessary re-adjust starting at step #1 until the desired pressure is reached.
3.
4.
Slowly turn Pressure Dial all the way to the negative
( - ), then pull the Pressure Relief Valve (PRV) to ensure
an accurate reading. Then very slowly turn the Pressure
Dial clockwise until the desired pressure is shown on the
Output Pressure Gauge (8-12 PSI is recommended).
» Turning clockwise will increase the
output pressure (higher PSI).
» Turning counter-clockwise will decrease
the output pressure (lower PSI).
2.
1. Close the Shut O Valve on the Regulator, and open the
CO2 Tank valve completely by turning it counterclockwise.

ENGLISH
16
HOW TO OPERATE
Follow the steps below to dispense beer from your KEGORATOR ™.
1. Make sure the unit is plugged into a properly grounded AC outlet.
2. Place the Drip Tray under the beer faucet to avoid messes from excess beer.
3. To dispense beer pull the Tap Handle towards you. Refer to the section
on Tapping the Beer Keg if the beer does not dispense.
4. When pouring, hold the glass steady at a 45° angle. When it is ⁄ full,
straighten the glass. Ideally, foam should have a tight creamy head
and the collar on an average glass should be ¾”to 1” high.
5. Increase the pressure if the beer runs too slowly (see Setting the
Regulator section). Generally, 8-10 PSI is recommended.
6. Cheers!
CONVERT TO REFRIGERATOR
Follow these steps to easily convert your KEGERATOR™ into a refrigerator.
1. Remove all parts and hoses from the interior and exterior of the
unit, including all hoses, the CO2 Tank and Tap Tower.
2. To seal off the unit, insert the Top Cabinet Plug
into the opening on the top of the cabinet.
4. Arrange the included Wire Racks in the cabinet
interior to t your refrigeration needs.
3. Then insert the CO2Hole Plug into the CO2 Line hole located
in the upper left corner on the back exterior of the cabinet.

ENGLISH
17
HELPFUL TIPS
• IMPORTANT! If the refrigerator has been placed in a horizontal or tilted
position for any period of time wait 8 hours before plugging the unit in.
• It is recommended that you ush the hoses with water prior to
rst use to remove any dust and debris from shipping.
• Open the CO2 Tank with a ¼ turn to start, then use the regulator to
adjust to desired pour. If it is not enough, continue to open the CO2 Tank
by a ¼ turn and use regulator until desired setting is reached.
• It is normal to see condensation form on the faucet. It is caused by
the dierence in temperature between the cold beer and the inside
of the faucet when beer is owing through the line.
• Humidity can cause ice to build up inside the unit, so you will need to periodically
defrost it. A hole in the back of the unit will allow water to drain out of the KEGORATOR™.
NOTE: Do not use sharp objects to remove ice build up as this may damage the unit.
Foamy Beer
Follow these steps to prevent foamy beer:
1. Conrm the packing spring in the Keg Coupler is removed and discarded. It
is not to be placed inside the Keg Coupler when unit is assembled.
2. Make sure there is only one Backow Stopper inserted and it falls out easily if the
Keg Coupler is ipped over. If you have to force it out with a screwdriver, it is getting
lodged in the Keg Coupler. Try exchanging it with the included replacement.
3. Conrm the beer lines are not kinked and are clean.
4. You may need to adjust down your pressure, even if it is below the recommended 8-12 PSI:
• Before lowering the pressure, close the CO
2
Shut O Valve (turn to 9 o’clock
position) and use a 1.5 mm Allen Wrench to loosen the Allen Set Screw on the
red +/- adjustment dial. This will restrict excess CO
2
from entering the keg.
• Adjust the pressure down to 8 PSI or below. Lock the red +/- dial
back in place by tightening with the Allen Wrench.
• Pull the Release Valve on the Regulator to get an accurate reading of CO
2
pressure.
• With the Shut O Valve still closed, move down to your Coupler.
• Pull the release valve on the Coupler to remove any excess CO
2
that may have been pushed into the keg at another point.
• Once most or all has released, open the Shut O Valve (6
o’clock position) and attempt to pour a beer.
5. Keep in mind that jostling a keg can create foamy beer.
6. Temperature also may aect the beer, so be sure it is not too
warm or too cold. 37°F is an ideal temperature.
7. A faulty valve on the keg itself may cause the Keg Coupler to not seal well. Make sure all
connections are secure and well tightened. Ensure all Washers are intact and correctly
placed. Conrm the Directional Washer has a hole in it when pinched between the ngers.

ENGLISH
18
CLEANING & MAINTENANCE
To prevent the buildup of yeast, mold and bacteria, it's recommended that you clean your
KEGORATOR™ every time you switch a keg or every ve weeks, whichever is shorter.
NEVER use an abrasive sponge, cloth or scouring pad on this appliance.
Clean Beer Lines
For best results, we recommend purchasing a beer line cleaning kit. There are
several dierent methods for cleaning beer lines, including hand pump cleaning
kits, pressurized cleaning kits, and recirculating cleaning pumps. Follow the
directions included in each kit to clean your KEGORATOR™ beer lines.

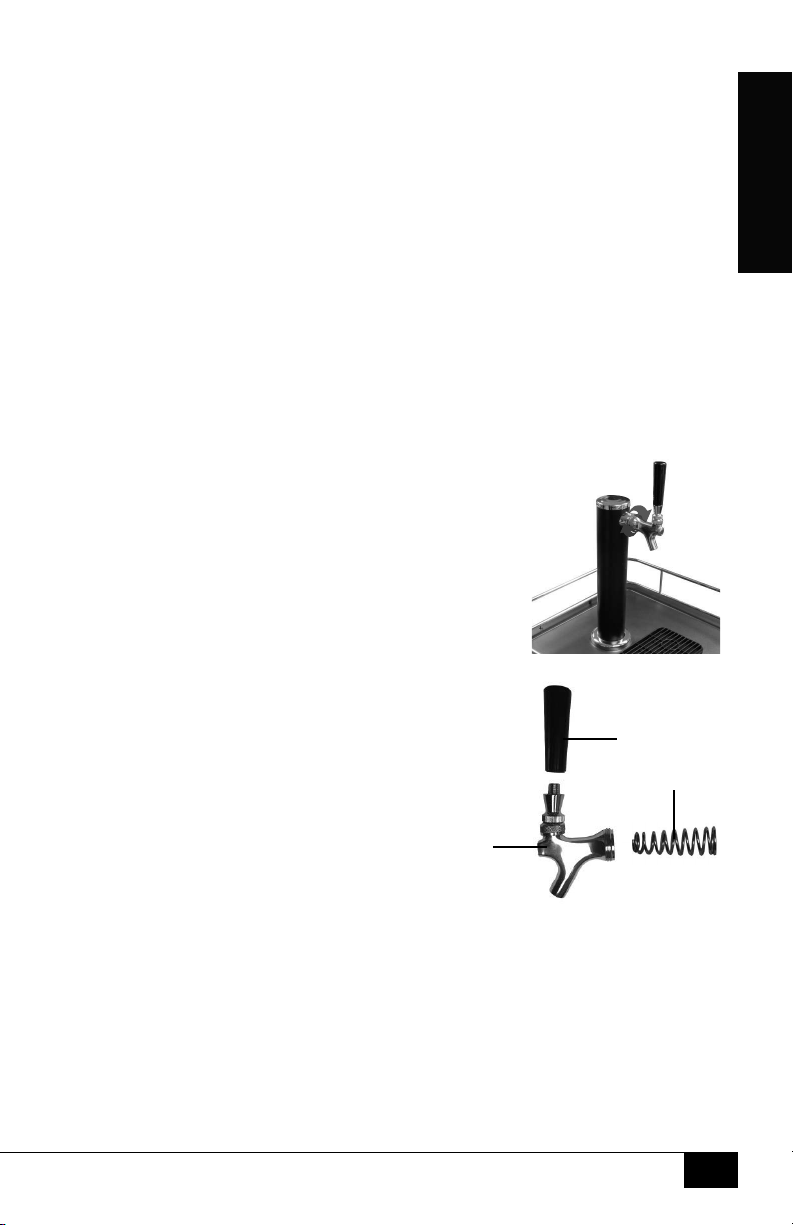

Clean Tap Tower Spigot
As beer residue left behind on the Tap Tower Spigot evaporates, it leaves behind sticky
sugars that can make the handle hard to pull. To avoid this, clean the Tap Tower Spigot after
every use.
IMPORTANT! Be sure to untap your keg before removing the Tap Tower Spigot.
1. Remove the Spigot Handle, then use the Tap Tower
Wrench to remove the Tap Tower Spigot. Be sure to not
lose the interior spring when removing the Tap Tower
Spigot.
NOTE: The Tap Tower Spigot has a reverse thread and can
be removed by turning clockwise.
2. Wash the Spigot Handle, Tap Tower Spigot
and interior spring in hot, soapy water. Allow
parts to dry before reassembling.
When Unit Is Not In Use
Adjust the temperature dial to "Warmer", especially when in colder environments as this unit
does not self-defrost and ice may build up inside the unit.
NOTE: To avoid permanent damage to the unit, never use
sharp objects to remove built up ice inside the unit.
Tap Tower
Spigot
Spigot Handle
Spring
