Ignis SMART FIREBOX Manual

User’s Manual
Installation Instructions
SMART FIREBOX

www.ignisproducts.com
What’s in the box:
Firebox 1pc
Smart Burner 1pc
Remote Control 1pc
Power Supply 1pc
Filling Hose 1pc
Glass 1pc
Glass Brackets 4pcs
User’s Manual 1pc
Preparations
Remove all packaging materials prior to installing the burner.
Power adapter connects from the left side of the burner. Please make all
preparations for electrical wiring prior to installation.

www.ignisproducts.com
Smart Firebox - User’s Manual
Installation Instructions

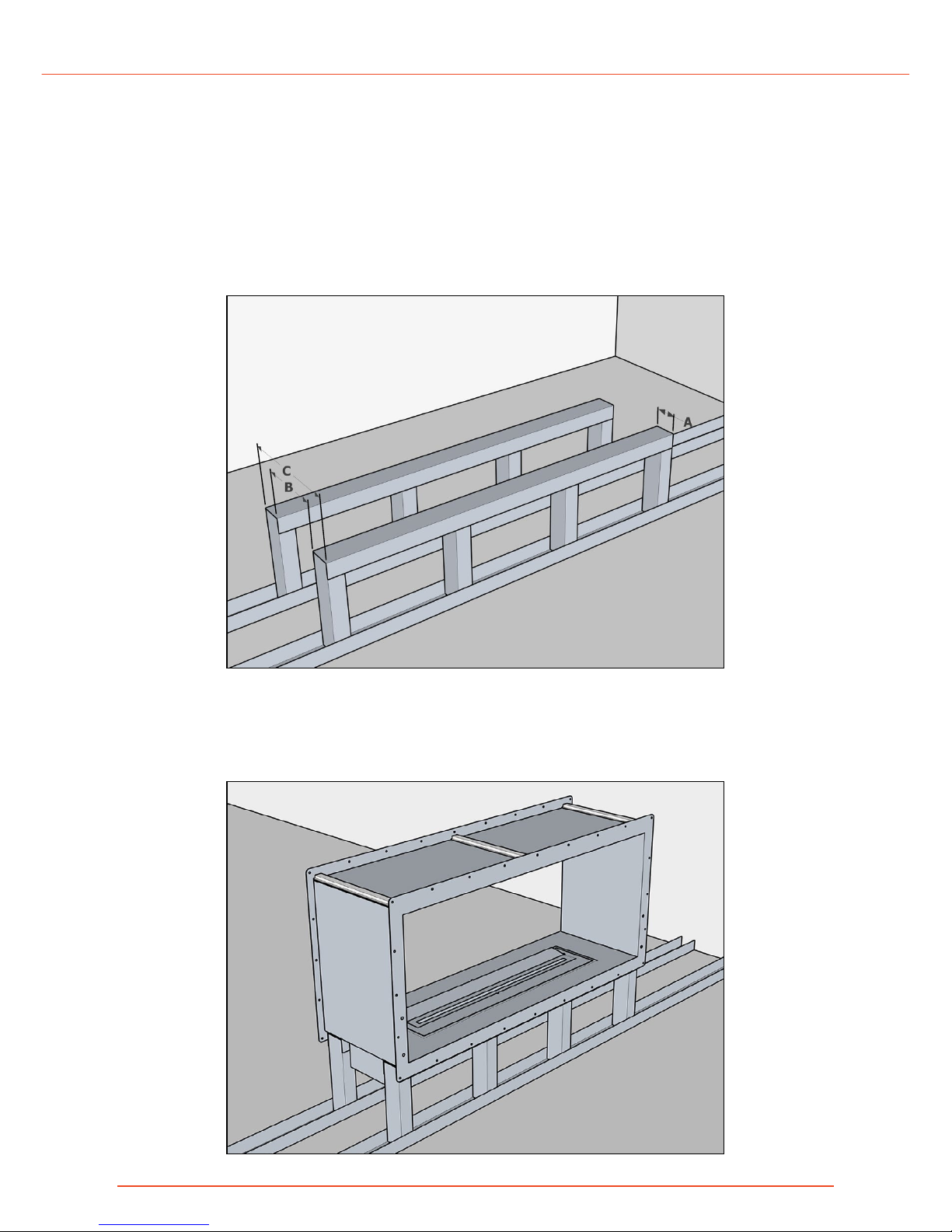

1. Build a base for the Firebox to sit on. (use 2x3 studs)
2. Base may be built of any material.
3. Make sure base is level on all sides.
4. Insert your Firebox into the base.
5. Make sure the Firebox is centered.
Size “A” - not more than 3 inches
Size “B” - not less than 8-1/4 inches
Size “C” - 15-5/8 inches

www.ignisproducts.com

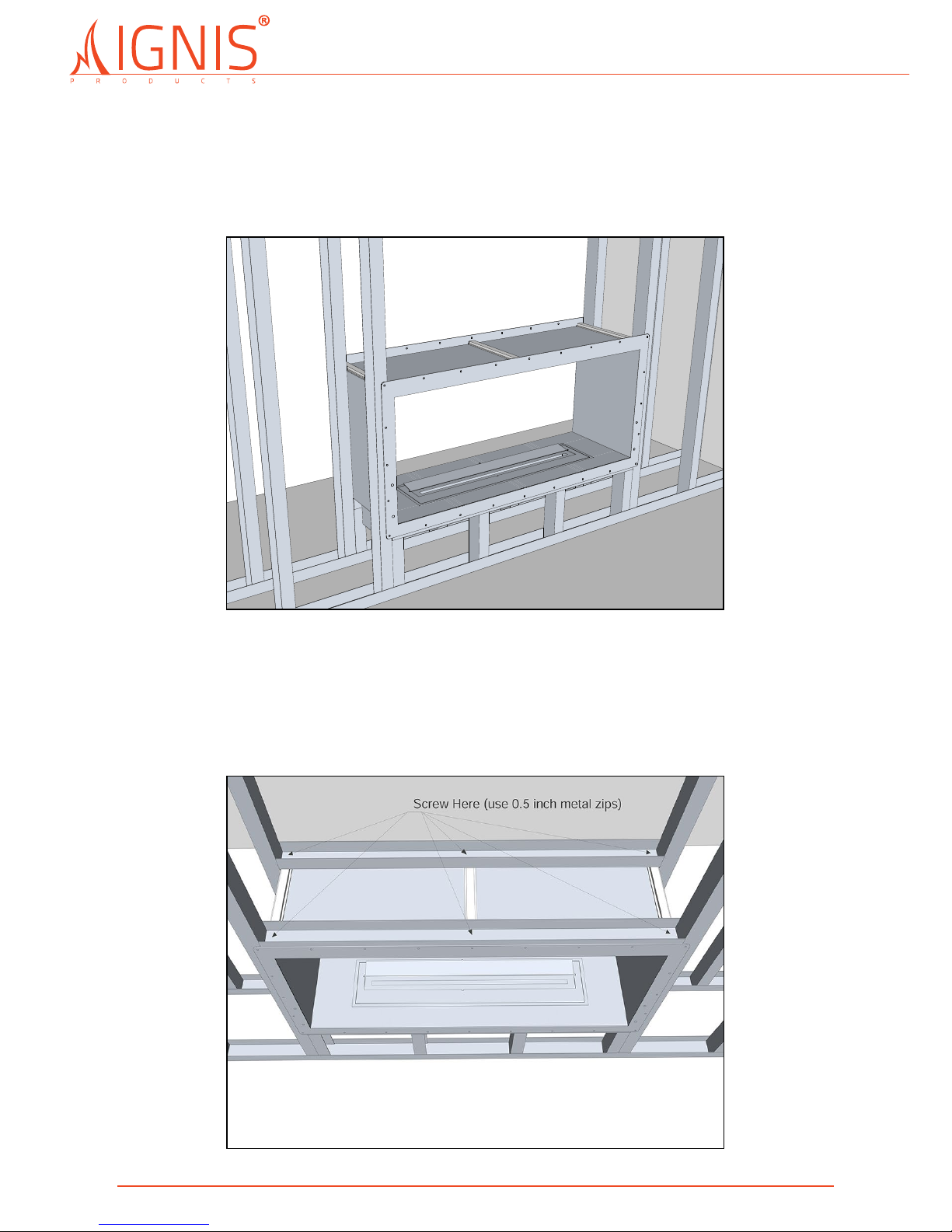

6. Continue building the wall.
7. First stud on either side of the Firebox must be flush with
the Firebox and flange.
8. Install a stud horizontally on top of the firebox to be able to
continue with the wall.
9. Screw the top horizontal stud directly to the Firebox bracket.
(use 0.5 inch metal zip)

www.ignisproducts.com
Smart Firebox - User’s Manual

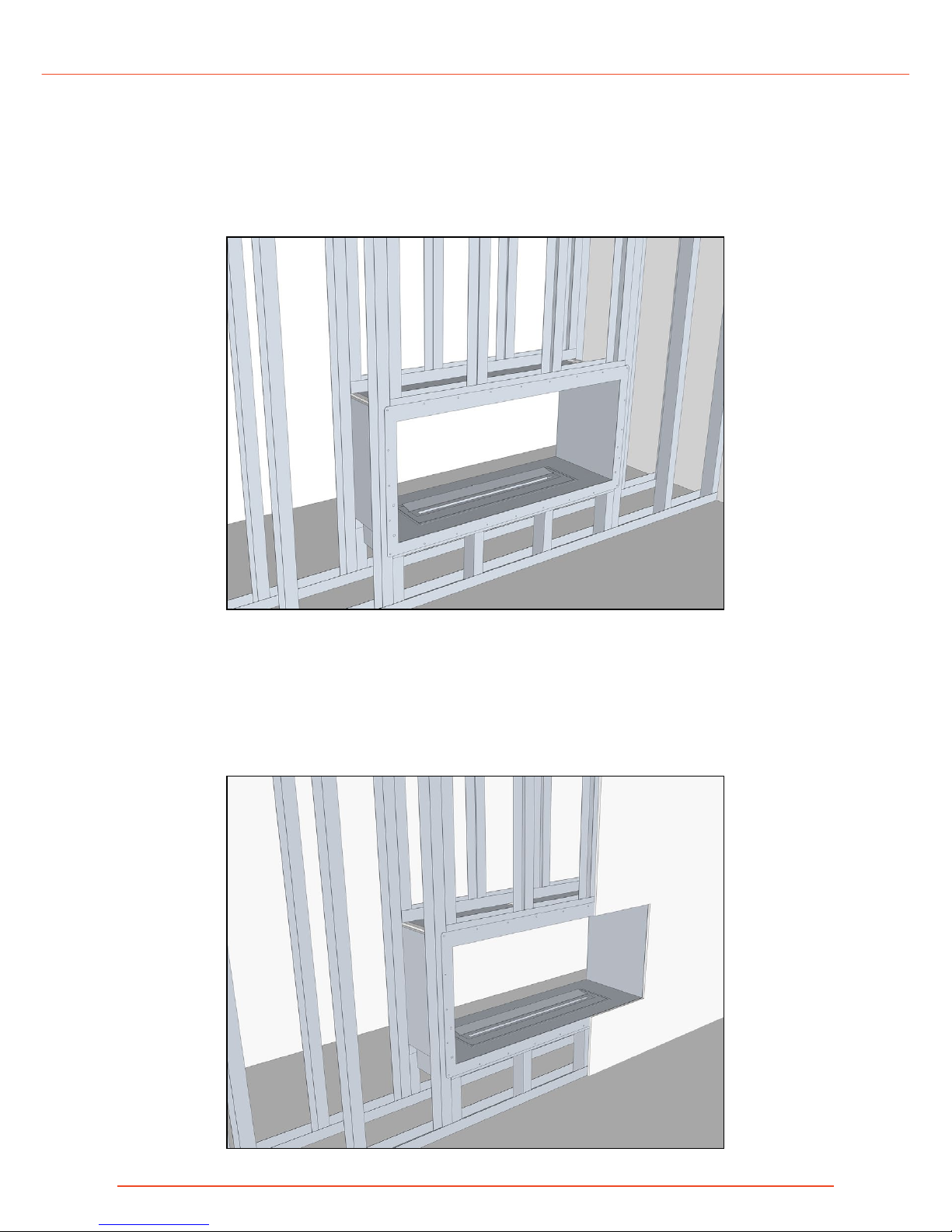

10. Continue building the wall.
11. Support the Firebox with screws around the flange into the
studs.
12. Measure and mark placement of glass brackets.
13. Cover the Firebox with sheetrock, wonderboard, stone, etc...
14. Drill in finish materials for glass installation.

www.ignisproducts.com
Operation Instruction
1. Press the “On/Off” button on the burner or the remote control. Beep will sound,
indicating the system is in ready to use state.
2. Open the fuel door.
3. Connect the fuel hose to the burner.
4. Insert the other side of the hose into fuel container.
5. Press the fuel fill button. The light will turn on and burner will start fueling. Make
sure to fill at least 4 liters.
6. When fuel reaches maximum capacity it will automatically shut off fueling.
7. Press the “Fuel” button again to turn off fueling cycle. Make sure the light on the
button is off.
8. Close the fuel door.
(alternatively fuel can be added manualy.)
9. Press the “On/Off” button on fireplace or on the remote control again to initiate
ignition.
10. To change flame intensity, use UP and Down button on the burner or + and - but-
tons on the remote control.
11. To start the burner after it was extinguished, press ON/OFF button on the burner
or on the remote control once and after the beep press the button again.
A - Fuel Door B - Auto Filling Hose Connector C - Manual Filling Hole D - Fuel Fill Button
For Burners with WiFi Option
1. To install the app on your phone search for Ignis Smart Burner in App Store.
2. After installing the app search for “IGNIS SMART BURNER” wifi network and con-
nect to it. When promted enter following password: “0123456789”.
3. Click the ON/OFF button twice to ignite the fireplace.
4. To extinguish the burner click the ON/OFF button once.
5. To change flame intensity use “+” and “-” buttons.
A
B C D

www.ignisproducts.com
Smart Firebox - User’s Manual
CAUTION: Any spilled ethanol must be immediately removed with an absorbent tissue
and cleaned with water to prevent ignition outside the burner reservoir.
Fuel must be kept in safe distance (min. 1 meter / 40 inches) from the fireplace. Do
not place fuel in front of the fireplace. Do not fuel the burner while in use. Shut off
burner and let it cool down for at least 30 minutes prior to refueling.
CAUTION: Fuel will burn low at first. Please allow 10-15 minutes to reach the optimal
temperature and flame height.
Always maintain a safe distance of at least 40 inches from the fireplace when lit.
It is prohibited to use any fuel other than
Bio Ethanol Fireplace Fuel for Indoor Fireplaces.
Using any other fuel will put you at risk and will void the warranty!
Extinguishing
1. Press ON/OFF button on the burner or on the remote control. The light on the
burner will go off and the fuel supply to the burner chamber will cut off.
2. The flame will be extinguished after the fuel in the burner chamber has complete-
ly burn out.
If the fuel tank is almost empty, the light on the burner will flash and the buzzer will
beep every minute for an hour. If you continue to use it, the burner will automatically
shut off after 1 hour. If you will try to start it without refilling, the maintenance light
will continue to flash and the burner will not start correctly. Turn off the burner, refill
and start the burner again.
Refilling
Allow the burner to cool down for at least 30 minutes before refilling.
Warning: Never refill the burner when the fireplace is operating or still hot. Never
pour fuel into a burning flame.

www.ignisproducts.com
Cleaning
1. The burner surface must be cleaned regularly. Use warm water and soap.
2. Check the cover of burner for warping or damage before using.
3. Marks can be best removed with a soft cloth and a mixture of lukewarm water
and a small amount of cleaning liquid (ph-neutral). We recommend cleaning
the stainless steel items regularly to prevent contamination.
CAUTION: Never use chemical, steel-wool or scrubbing sponges to clean the fire-
place. It can damage the surface.
The manufacturer cannot be held responsible for any damages resulting out of
improper use and/or cleaning of the products.
Safety Instructions
•When burning ethanol, water-vapor and carbon dioxide are produced.
•Never leave an open fire unattended at any time!
•In a house of typical construction, that is, one that is not of unusually tight
construction due to heavy insulation and tight seals against air infiltration,
an adequate supply of air for combustion and ventilation is provided through
infiltration.
•The fireplace should not be used in a small room where less than 5.7m3
(200ft3) of air space is provided for each 1000 Btu per hour of fireplace (con-
sidering the maximum burner adjustment).
•Do not use the fireplace in a bathroom, a room where sleeping accommoda-
tion is provided or any other small room.
•Never fill fuel while unit is still burning or hot.
•Insert burner into fireproof materials only.
•Never install burner into plastic or wood.
•Using a burner with flammable materials is at your own risk.
•Keep out of reach of children.
•This fireplace will produce heat, but should not be used as a main source of
heat.
•The fireplace must only be installed on a solid surface of non-flammable ma-
terial. Be sure to keep any flammable materials such as drapes/curtains and
any decorations at least 4 feet away from fireplace.
•Do not place any items on top of or inside fireplace.
•Do not touch the fireplace while lit or still hot.

www.ignisproducts.com
Smart Firebox - User’s Manual
•It is extremely dangerous and forbidden to use bio-ethanol car fuel or any
other unapproved fuel.
•Always use a funnel if manually refilling the fireplace.
•Never add fuel to the burner while fire is burning or unit is still hot. Allow at
least 30 minutes for fuel tray to cool down before refueling.
•Do not ingest bio-ethanol fuel and avoid contact with eyes and skin.
•Spilled alcohol must be removed with an absorbent tissue and cleaned with
water to prevent ignition outside the burner reservoir.
•Be sure to have a fire-extinguishing device in the proximity of the fireplace in
case of emergencies.
•Never leave a lit fireplace unattended.
•Keep children and pets away from the fireplace. Do not cover the fireplace.
•Do not place any flammable materials or clothing on the fireplace.
•Do not smoke when filling the burner with fuel.
•Store your fuel containers away from any heat source.
•Be sure to store and keep your fuel away and out of reach of children and pets.
•Never blow out the flame in order to put it out; this will only increase the
flame.
•If you wish to extinguish the flame before the fuel has completely burned out,
please follow instructions in this manual.
•It is forbidden to modify this burner in any way.
Fuel Information
•USE ONLY APPROVED BIO-ETHANOL LIQUID FUEL FOR INDOOR FIREPLACES.
•Bio-Ethanol Liquid Fuel for fireplaces burns clean without emitting any toxins
into the air. Only harmless water vapor and CO2 are produced as byproducts.
•Choose a location 4 feet away from flammable objects or materials (drapes,
fabrics, furniture, etc.).
•Be sure to remove all packing materials, cardboard, etc. except for white cloth-
like material in burner.
•The fireplace is intended to be placed on a floor or sturdy surface.
•If you choose to leave fireplace outside, wait until fireplace and burner are cool
and either cover the burner or bring the burner indoors to avoid water, leaves,
and debris from getting into it.

www.ignisproducts.com
Warnings
1. Risk of Explosion
i. Never use any fuel other than Bio Ethanol that is specifically intended for use
with indoor vent less ethanol fireplaces. Never use gasoline.
ii. Never use the appliance in areas where flammable vapors or gas may be
present.
iii. Never store or transport the fuel in other than a metal or plastic container that
is acceptable for use with the specified fuel in accordance with the Consumer
Chemicals and Containers Regulations 2001 and is the original container for
the specified fuel.
iv. Never store fuel in the living space or in the same location as the appliance.
2. Do not use the appliance to heat or boil water or use as a cooking appliance.
3. Due to high surface temperatures, keep children, clothing, and furniture away.
4. Risk of Indoor Air Pollution - Use ethanol fireplace only in well-ventilated
areas and with doors of adjacent room open. Do not obstruct air flow to the
burner by piling logs over the burner, but only around it and do not obstruct
the burner in any other way or with any other material. People with breathing
problems should consult a physician before using the ethanol fireplace.
5. THIS APPLIANCE HAS NOT BEEN TESTED WITH DOORS OR AN UNVENTED-
GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO NOT INSTALL DOORS
OR AN UNVENTED GAS LOG SET INTO THIS APPLIANCE.
Warranty
1. Our fireplaces are guaranteed 3 year, parts and labor. Warranty begins on the
date of purchase.
2. Warranty will be applied on presentation of a dated cash receipt and is strictly
limited to factory service repair of the piece or pieces that are found to be
defective.
3. Installations costs will not be reimbursed in any case as damages for any
reason whatsoever.
4. Manufacturer will not be held responsible for any incidental or consequential
defects, on goods or individuals.
5. The warranty will not be applied if devices have been subjected to abnormal
use or if used under other conditions of use than the ones they were intended
for.
6. The warranty will not apply in case of deterioration or accident due to negli-
gence, damages caused by failing to maintain and service the device or result-
ing from an alteration of material.

www.ignisproducts.com
Smart Firebox - User’s Manual
Warranty Claim
You can use any of the following options to file a claim:
1. Fill out all the fields on the previous page and mail it to the following address:
Ignis Products - Warranty Department
409 Joyce Kilmer Avenue, Unit 3
New Brunswick, NJ 08901
2. Fill out all the fields on the form below, scan it and email it to:
[email protected]om
3. Submit claim form online at:
www.ignisproducts.com/warranty-and-returns
If you have any questions please don’t hesitate to contact us
by phone: 1-855-MY-IGNIS
1-855-694-4647
By email: general questions: [e-mail]
technical support: [email protected]
warranty questions: [email protected]om
return questions: [e-mail]
Warranty Claim Form
*Please fill out all the fields
Name
Address:
Purchased from: Order Number:
Model Name / Number: Date of Purchase:
Description of Your Claim:
