Ignis LIMA Manual

User’s Manual
Installation Instructions

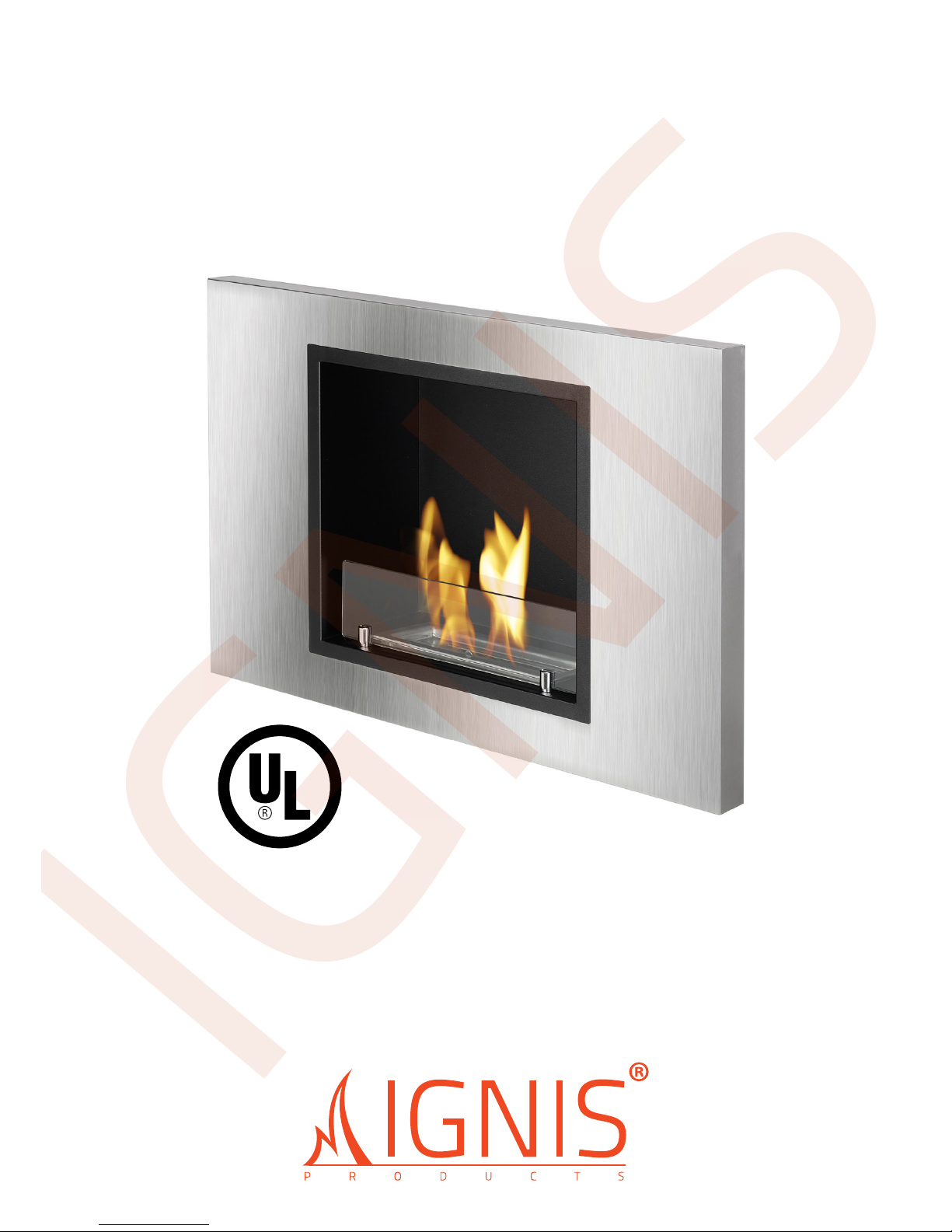

LIMA
Ventless Ethanol Fireplace
IGNIS

www.ignisproducts.com
What’s in the box:
Fireplace Body 1pc
Burner 1pc
Mounting Bracket 1pc
Wall Plugs & Screws 4pcs
Control Tool 1pc
Tempered Glass 1pc
User’s Manual 1pc
Installation Instructions
The fireplace must only be installed on a solid wall of non combustible material.
The Lima Fireplace can be installed directly on the wall simply by mounting the
bracket and hanging the fireplace on it. For recess insatallation please follow
instructions below.
1. Unpack the fireplace and check for damage incurred in transit and missing
parts make sure to remove the mounting bracket prior to discarding the box.
2. Cut the opening in the wall according to sizes on Diagram 1.
3. The depth of the finished opening should be no greater then 6-5/8 inches, but
could be less.
4. Inside walls of the recess opening should be made of or lined with a fireproof
material such as cement board, wonder board, steel sheet. Use metal studs
for framing.
5. Install the bracket exactly 4 inches from the bottom of the opening and evenly
centered.
6. Insert fireplace into opening. Align pins on the back of the fireplace to the top
of the bracket mounted on the wall to slide and lock in place.
7. Place the burner into the opening of the fireplace body.
IGNIS

www.ignisproducts.com
Lima - User’s Manual
Diagram 1
Recessed Opening Sized for Lima Fireplace
A = 19” B = 19.5” C = 6-5/8” D = 4”
Diagram 2
Lima Fireplace Dimensions
CENTER
B
A
C
D
IGNIS

www.ignisproducts.com
Operation Instructions
Step 1: Open the burner with the tool provided. Fill the burner with the ethanol, watch
carefully untill you reach under the level of the “Max” line. Do not overfill or spill.
CAUTION: Please ensure your pebbles or logs are not covering the opening in case of
accidental spillage.
Any spilled ethanol must be immediately removed with an absorbent tissue and
cleaned with water to prevent ignition outside the burner reservoir.
Fuel must be kept in safe distance (min. 1 meter / 40 inches) from the fireplace. Do
not place fuel in front of the fireplace.
Step 2: Use a long lighter to ignite. When igniting, keep a safe distance at arm’s
length. Do not stand directly over the burner.
CAUTION: Fuel will burn low at first. Please allow 10-15 minutes to reach the optimal
temperature and flame height.
Always maintain a safe distance of at least 1 meter (40 inches) from the fireplace
when the flame is lit.
IGNIS

Extinguishing
CAUTION: Never extinguish the flame with water!
1. Let the fuel burn out completely if possible. This prevents alcohol left in the burn-
er and deflagration when reigniting.
2. If you wish to extinguish the fire before the fuel has completely burned out.
Please use the control tool to close the cover of the burner in a fast motion,
completely extinguish the flame.
3. In case the flame is not extinguished immediately. Repeat the above instructions
until the flame is fully extinguished.
4. Do not touch the fireplace while burning. Please allow at least 15 minutes to cool
down before touching the fireplace after flame is extinguished.
5. It is urgently recommended that you keep a Class B fire extinguisher at hand close
to the device in case of fire.
Refilling
Allow the burner to cool down for at least
20 minutes before refilling.
Warning: Never refill the burner when
the fireplace is operating or still hot.
Never pour fuel into a burning flame.
Cleaning
1. The burner surfaces must be cleaned regularly. Use warm water and soap.
2. Check the sliding cover of burner for warping or damage before using.
3. Marks can be best removed with a soft cloth and a mixture of lukewarm water
and a small amount of cleaning liquid (ph-neutral). We recommend cleaning the
stainless steel items regularly to prevent contamination.
CAUTION: Never use chemical, steel-wool or scrubbing sponges to clean the fireplace.
These can scratch the surface.
The manufacturer cannot be held responsible for any damages resulting out of im-
proper use and/ or cleaning of the products.
www.ignisproducts.com
Lima - User’s Manual
IGNIS

www.ignisproducts.com
Safety Instructions
•When burning ethanol, water-vapor and carbon dioxide are produced.
•Never leave an open fire unattended at any time!
•In a house of typical construction, that is, one that is not of unusually tight
construction due to heavy insulation and tight seals against air infiltration,
an adequate supply of air for combustion and ventilation is provided through
infiltration.
•The fireplace should not be used in a small room where less than 44m3
(1550ft3) of air space is provided for each 1000 Btu per hour of fireplace (con-
sidering the maximum burner adjustment).
•Do not use the fireplace in a bathroom, a room where sleeping accommoda-
tion is provided or any other small room.
•Never fill fuel while unit is still burning or hot.
•Fill no more than ¾ full.
•Use only long lighter to ignite. Initial ignition may have a high flame close lid
half way to light.
•Insert burner into fireproof materials only.
•Never install burner into plastic or wood.
•Using a burner with flammable materials is at your own risk.
•Keep out of reach of children.
•This fireplace will produce heat, but should not be used as a main source of
heat.
•The fireplace must only be installed on a solid surface of non-flammable ma-
terial. Be sure to keep any flammable materials such as drapes/curtains and
any decorations at least 4 feet away from fireplace.
•Do not place any items on top of or inside fireplace.
•Do not touch the fireplace while lit or still hot.
•It is extremely dangerous and forbidden to use bio-ethanol car fuel or any
other unapproved fuel.
•Always use a funnel to fill the fireplace with fuel.
•Never add fuel to the burner while fire is burning or unit is still hot. Allow at
least 20 minutes for fuel tray to cool down before refueling.
•Do not ingest bio-ethanol fuel and avoid contact with eyes and skin.
•Spilled alcohol must be removed with an absorbent tissue and cleaned with
water to prevent ignition outside the burner reservoir.
•Be sure to have a fire-extinguishing device in the proximity of the fireplace in
case of emergencies.
IGNIS

www.ignisproducts.com
Lima - User’s Manual
•Never leave a lit fireplace unattended.
•Keep children and pets away from the fireplace. Do not cover the fireplace.
•Do not place any flammable materials or clothing on the fireplace.
•Do not smoke when filling the burner with fuel.
•Store your fuel containers away from any heat source.
•Be sure to store and keep your fuel away and out of reach of children and pets.
•To adjust flame height, use extinguisher tool to open/close burner lid.
•Please use the extinguisher tool provided in the kit. Never blow out the flame
in order to put it out; this will only increase the flame.
•If you wish to extinguish the flame before the fuel has completely burned out.
Please use the extinguisher tool to fully close the burner lid, and wait until the
flame is extinguished.
•It is forbidden to modify this fireplace in any way.
Fuel Information
•USE ONLY APPROVED BIO-ETHANOL LIQUID FUEL FOR FIREPLACES.
•Bio-Ethanol Liquid Fuel for fireplaces burns clean without emitting any toxins
into the air. Only harmless water vapor and CO2 are produced as byproducts.
•Choose a location 4 feet away from flammable objects or materials (drapes,
fabrics, furniture, etc.).
•Be sure to remove all packing materials, cardboard, etc. except for white cloth-
like material in burner.
•The fireplace is intended to be placed on a floor or sturdy surface.
•If you choose to leave fireplace outside, wait until fireplace and burner are cool
and either cover the burner or bring the burner indoors to avoid water, leaves,
and debris from getting into it.
IGNIS

www.ignisproducts.com
Warnings
1. Fireplace and burner get hot while in operation. Do not touch the fireplace
while burning. Please allow at least 20 minutes to cool down before touching
the product after flame is extinguished.
2. Risk of burns. Do not operate the ethanol fireplace without completed assem-
bly.
3. Never pour fuel into an open flame or into the burner reservoir unless it has
cooled down for at least 20 minutes after use.
4. Do not place any flammable material within 1 meter/ 40 inches around the
fireplace. A safety distance of at least 2 meters/80 inches should be kept from
any window or curtain.
5. Do not burn under over hanging items.
6. Do not smoke while handling the fuel.
7. Avoid heavy airflow ( fans high breeze…) in the room where the fireplace is
operated.
8. Risk of Explosion
i. Never use any fuel other than Bio Ethanol that is specifically intended for use
with indoor vent less ethanol fireplaces. Never use gasoline.
ii. Never use the appliance in areas where flammable vapors or gas may be
present.
iii. Never store or transport the fuel in other than a metal or plastic container that
is acceptable for use with the specified fuel in accordance with the Consumer
Chemicals and Containers Regulations 2001 and is the original container for
the specified fuel.
iv. Never store fuel in the living space or in the same location as the appliance.
2. Do not use the appliance to heat or boil water or use as a cooking appliance.
3. Due to high surface temperatures, keep children, clothing, and furniture away.
4. Risk of Indoor Air Pollution - Use ethanol fireplace only in well-ventilated
areas and with doors of adjacent room open. Do not obstruct air flow to the
burner by piling logs over the burner, but only around it and do not obstruct
the burner in any other way or with any other material. People with breathing
problems should consult a physician before using the ethanol fireplace.
5. THIS APPLIANCE HAS NOT BEEN TESTED WITH DOORS OR AN UNVENTED-
GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO NOT INSTALL DOORS
OR AN UNVENTED GAS LOG SET INTO THIS APPLIANCE.
IGNIS

www.ignisproducts.com
Lima - User’s Manual
Warranty
1. Our fireplaces are guaranteed 3 year, parts and labor. Warranty begins on the
date of purchase.
2. Warranty will be applied on presentation of a dated cash receipt and is strictly
limited to factory service repair of the piece or pieces that are found to be
defective.
3. Installations costs will not be reimbursed in any case as damages for any
reason whatsoever.
4. Manufacturer will not be held responsible for any incidental or consequential
defects, on goods or individuals.
5. The warranty will not be applied if devices have been subjected to abnormal
use or if used under other conditions of use than the ones they were intended
for.
6. The warranty will not apply in case of deterioration or accident due to negli-
gence, damages caused by failing to maintain and service the device or result-
ing from an alteration of material.
IGNIS

www.ignisproducts.com
Warranty Claim
You can use any of the following options to file a claim:
1. Fill out all the fields on the previous page and mail it to the following address:
Ignis Products - Warranty Department
498 Columbia Street
Brooklyn, NY 11231
2. Fill out all the fields on the form below, scan it and email it to:
[email protected]om
3. Submit claim form online at:
www.ignisproducts.com/warranty-and-returns
Warranty Claim Form
*Please fill out all the fields
Name
Address:
Purchased from: Order Number:
Model Name / Number: Date of Purchase:
Description of Your Claim:
IGNIS

www.ignisproducts.com
Lima - User’s Manual
Contact Us
If you have any questions please don’t hesitate to contact us
phone: 1-855-MY-IGNIS
1-855-694-4647
email: general questions: [e-mail]
technical support: [email protected]
warranty questions: [email protected]om
return questions: [e-mail]
address: Ignis Development, Inc.
498 Columbia Street
Brooklyn, NY 11231
IGNIS

498 Columbia Street
Brooklyn, NY 11231
1-855-MY-IGNIS
1-855-694-4647
[e-mail]
www.ignisproducts.com
IGNIS
