Rinnai SS850 User manual

Gas Fireplace
Installation Manual
MODELS:
RINNAI SS850 (SS850FCAN) NG
RINNAI SS850 (SS850FCAL) LPG

Rinnai 2 SS850 Freestanding IM
Congratulations on the purchase of your room-sealed Rinnai SS850 Freestanding Gas Fire. We trust you will have
many years of comfort and enjoyment from your appliance.
IMPORTANT
BEFORE USING THIS APPLIANCE
Before proceeding with the installation read this manual thoroughly and gain a full understanding
of the appliance, to ensure safe and correct use.
For details on how to operate this appliance safely and correctly refer the 'Operation Manual'
supplied with the engine (Part Number: 13722).
This appliance must be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601
• Local Regulations and Municipal Building Codes
including local OH&S requirements
This appliance must be installed, maintained and removed
ONLY by an Authorised Person.
For continued safety of this appliance it must be installed
and maintained in accordance with the manufacturer’s
instructions.
All Rinnai gas products
sold in Australia are
A.G.A. certified.

Rinnai 3 SS850 Freestanding IM
WARNING
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturers instructions.
Warnings & Important Information 4
Before Using or Installing this Appliance ......................................................................................................................... 4
Regulatory Information ....................................................................................................................................................... 4
Notice to Victorian Consumers .......................................................................................................................................... 4
Dress Guard Warnings ........................................................................................................................................................ 4
Mandatory Inspection Prior to Installation ........................................................................................................................ 4
Modications ........................................................................................................................................................................ 5
General Safety Warnings .................................................................................................................................................... 5
Before You Start 6
Installation Requirements ................................................................................................................................................... 6
Certication .......................................................................................................................................................................... 6
General Installation Information 7
Location ................................................................................................................................................................................ 7
Flooring and Hearth Material Selection ............................................................................................................................. 8
Material Selection Calculations .......................................................................................................................................... 9
Installation Examples ........................................................................................................................................................ 10
Supply Connections 11
Gas Supply ..........................................................................................................................................................................11
Gas Supply Locations ....................................................................................................................................................... 12
Electrical Supply ................................................................................................................................................................ 13
Installation 14
Freestander Installation .................................................................................................................................................... 14
Aeration Plates ................................................................................................................................................................... 15
Cabinet Installation ............................................................................................................................................................ 16
Plinth Installation ............................................................................................................................................................... 19
Burner Media Installation 22
Burner Media Placement ................................................................................................................................................... 22
Flueing 24
General Flueing Guidelines .............................................................................................................................................. 24
Freestanding Flueing Options ......................................................................................................................................... 25
General Flue Assembly Layout and Clearance Requirements ..................................................................................... 26
Flue Kits and Components ............................................................................................................................................... 27
Commissioning 30
General Information ........................................................................................................................................................... 30
Commissioning the Appliance for Di󰀨erent Gas Type ................................................................................................... 33
Attaching Fascia Assembly .............................................................................................................................................. 34
Abnormal Flame Pattern ................................................................................................................................................... 35
Installation Checklist 36
Specications 38
Appliance Details ............................................................................................................................................................... 38
Dimensions ........................................................................................................................................................................ 39
Wiring Diagram .................................................................................................................................................................. 40
Contacts 44
TABLE OF CONTENTS

Rinnai 4 SS850 Freestanding IM
IMPORTANT
BEFORE USING OR INSTALLING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct use.
Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, re or explosion, property damage, personal injury and/or death.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
personal injury or death.
WARNINGS: Indicates a potentially hazardous situation which, if not avoided, could result in
personal injury or death.
CAUTIONS: Indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury or damage to the appliance. It may also be used to alert against unsafe
practices.
WARNING
REGULATORY INFORMATION
This appliance shall be installed in accordance with:
Manufacturer’s Installation Instructions.
Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601.
Local Regulations and Municipal Building Codes including local OH&S requirements.
This appliance has been certied by the Australian Gas Association. The A.G.A. Certication
Number is shown on the data plate.
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturer's instructions.
NOTICE TO VICTORIAN CONSUMERS
This appliance MUST be installed by a person licensed with the Victorian Building Authority.
ONLY a licensed person will have insurance protecting their workmanship.
So make sure you use a licensed person to install this appliance and ask for your Compliance
Certicate. For further information contact the Victorian Building Authority on 1300 815 127.
WARNING
DRESS GUARD WARNINGS
The guard is tted to this appliance to reduce the risk of re or injury from burns and
no part of it should be permanently removed. For protection of young children or the
inrm, a secondary guard is required.
The glass guard supplied with this appliance MUST NOT be permanently removed as it fulls
an operational safety function. Additional dress guards including free standing types may be
used in conjunction with, but NOT replace, the guard supplied with this appliance.
WARNING
MANDATORY INSPECTION PRIOR TO INSTALLATION
Immediately report any damage or discrepancies to the supplier of the appliance. This appliance
was inspected and tested at the time of manufacture and packaging, and released for transportation
without known damage. Upon receipt, inspect the exterior for evidence of rough handling in
shipment. Ensure that the appliance is labelled correctly for the gas and electrical supply, and/or
other services it is intended to be connected to.
For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be
installed or operated under ANY circumstances. Installation of damaged or incorrect appliances
may contravene local government regulations. Rinnai disclaims any liability or responsibility
whatsoever in relation to the installation or operation of damaged or incorrect appliances.
Take care when opening or unpacking this appliance. Failure to do so may result in serious injury
or product failure.
Check the label for the correct gas type (refer rating plate, inside the appliance). Refer to local gas
authority for conrmation of the gas type if you are in doubt.
WARNINGS & IMPORTANT INFORMATION

Rinnai 5 SS850 Freestanding IM
WARNING
MODIFICATIONS
DO NOT MODIFY THIS APPLIANCE,modifying from original specications may create a
dangerous situation and will void your warranty. Failure to comply with these instructions could
result in a re or explosion, which could cause serious injury, death or property damage.
DO NOT modify the electrical wiring of this appliance.
If the power cord is damaged or deteriorated it MUST be replaced by an authorised person.
Failure to do so may result in electric shock, re, serious injury or product failure.
Improper installation, adjustments, service or maintenance can cause serious injury, death or
property damage. Such work MUST ONLY be performed by an authorised person.
WARNING
GENERAL SAFETY WARNINGS
This appliance is HEAVY, during installation the use of a mechanical lifting aid is recommended,
noting that improper lifting may result in serious injury.
WARNING: This heater MUST NOT be used if any of the glass panels are damaged.
Flue terminal MUST always vent directly to outdoors. DO NOT extend the ue vertically
or horizontally in ways other than prescribed in this appliance manufacturer’s installation
instructions. ONLY the ue components specied by Rinnai MUST be used.
When considering installation ensure the minimum clearances on page 7 are adhered to.
Heat radiating from the front of this heater may over time a󰀨ect the appearance of some materials
used for ooring such as carpet, vinyl, cork or timber. This e󰀨ect may be amplied if the air in the
room contains cooking vapours, candle vapours and cigarette smoke, etc. Refer to "Location" on
page 7 for mantle clearances, additional installation information and warnings.
This appliance MUST NOT be installed where curtains or other combustible materials could
come into contact with it. In some cases curtains may need restraining.
This appliance is NOT intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
The appliance is NOT intended for use by young children or inrm persons without supervision.
Young children and the inrm SHOULD be supervised at all times when in the vicinity of this
heater while it is in operation.
The heater MUST NOT be located immediately below a power socket outlet.
A dedicated 230 V earthed 10 Amp power point must be used with this appliance.
Refer to local gas authority for conrmation of the gas type if you are in doubt.
Suitable ONLY for indoor installation.
DO NOT operate this appliance before leak checking hoses and gas cylinder connection.
This heater MUST NOT be used if either of the glass panels are damaged.
NOT to be connected to an LP gas cylinder located indoors.
Please keep this instruction booklet in a safe place for future reference. All dimensions referred
to in these instructions are in millimetres, unless otherwise specied.
WARNINGS & IMPORTANT INFORMATION

Rinnai 6 SS850 Freestanding IM
INSTALLATION REQUIREMENTS
This heater MUST be installed ONLY by an authorised person.
The installation MUST conform to local regulations.
The installation MUST also comply with the instructions supplied by Rinnai.
Service and removal MUST be carried out ONLY by an authorised person.
CERTIFICATION
The Rinnai SS850 Room-Sealed Freestanding Gas Fire has been certied by the Australian Gas Association.
The AGA Certication Number is shown on the appliance data plate.
No parts or functions should be modied or permanently removed from the heater.
Please keep these instructions in a safe place for future reference.
CARTON CONTENTS / ITEM CHECKLIST
The following table lists the components for the Rinnai SS850 Freestanding Gas Fires. Ensure that all the relevant
components for the model being installed are present before proceeding.
IMPORTANT
DO NOT install any damaged items. Check all components have been supplied.

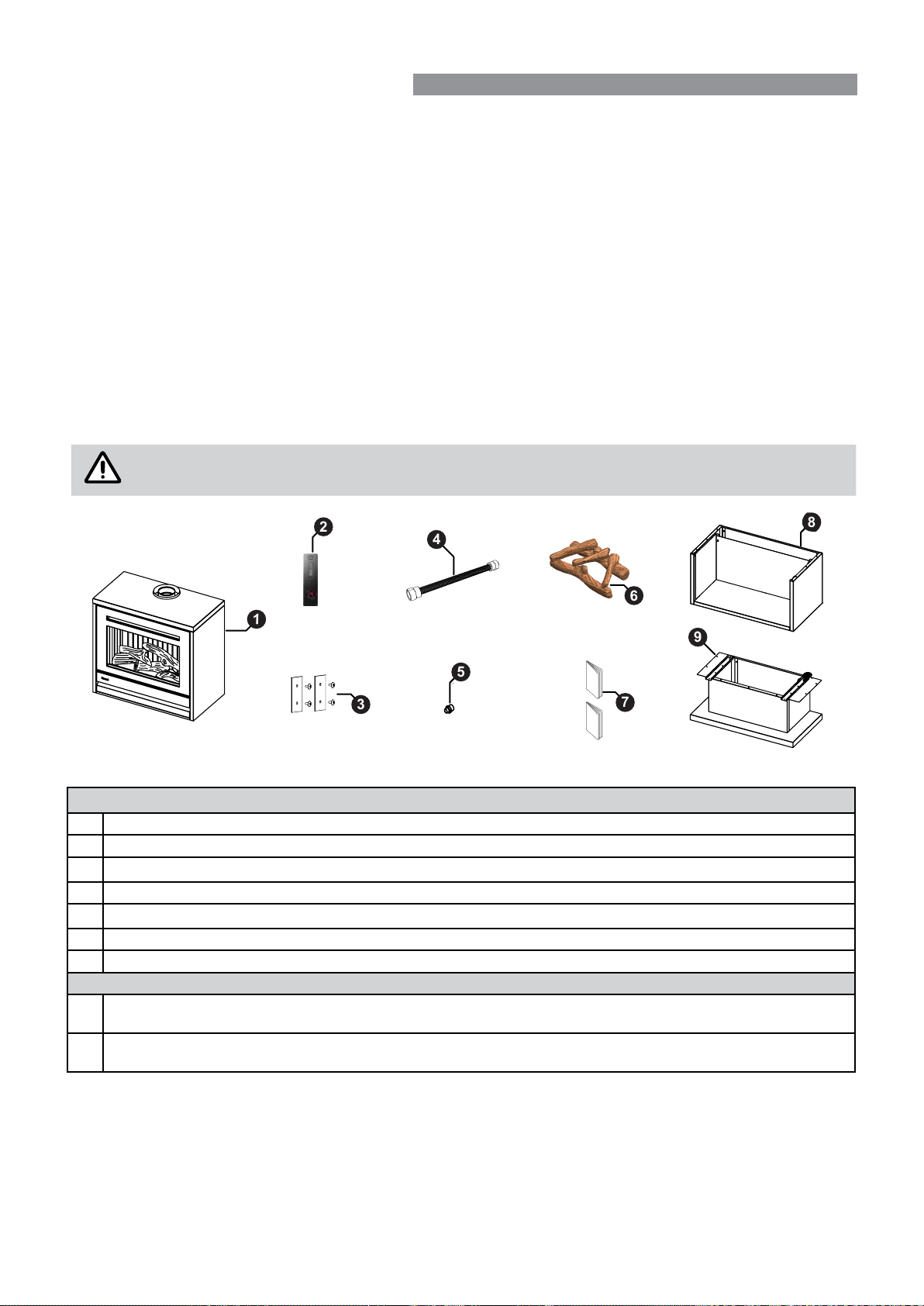

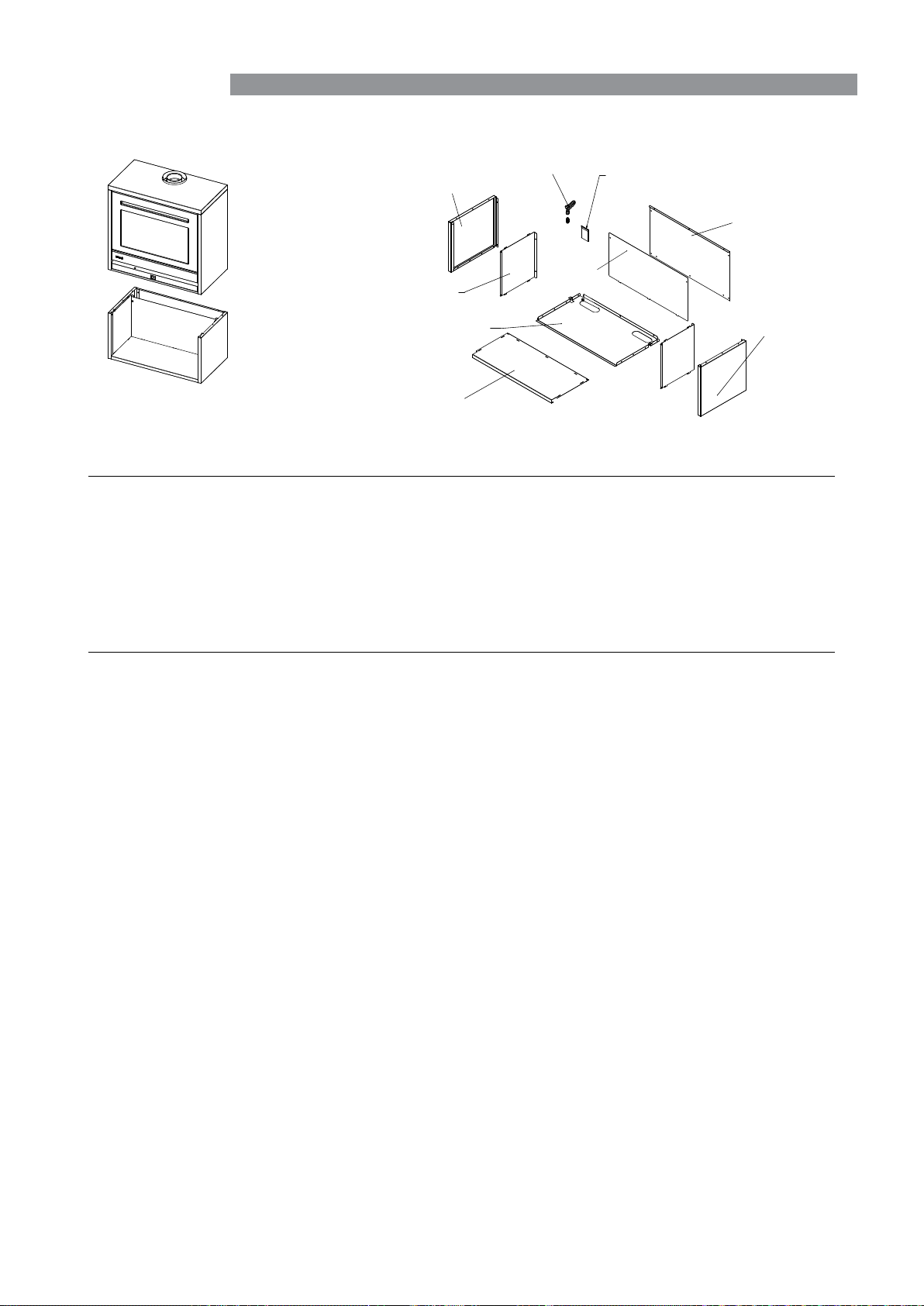

Major Component Descriptions and Carton Contents
➊Rinnai SS850 Freestander including Engine, Wrap and Outer Frame
➋Remote Control, Infra Red (IR)
➌Aeration Plate and Screws.- Two are factory tted on the engine, two are supplied in the accessory pack
➍Semi rigid stainless steel gas pipe with 5/8” connections (x1).
➎½” BSP - 5/8” UNF ared brass adaptors (x1).
➏Ceramic log set and granules.
➐Operation and Installation manual
Optional Accessories
➑Freestanding Cabinet Base (SS850FSBC) - The cabinet comes as a at pack. An additional exi-pipe and connector is also provided
as a longer gas connection is needed.
➒Freestanding Plinth Base (SS850FSBP) - The plinth comes as a at pack. An additional exi-pipe and connector is also provided as
a longer gas connection is needed
9
6
4
5
7
3
8
1
2
BEFORE YOU START

Rinnai 7 SS850 Freestanding IM
LOCATION
When positioning the heater, the main variables governing the location are Flueing and Warm Air Distribution.
The Rinnai SS850 freestanding models have an additional metal wrap which signicantly reduces unwanted heat
transfer. This means the unit can be installed into tight spaces, can be built-in, and can be positioned close to walls
if the building materials are suitable. For further information on material selection refer pages 8 and 9.

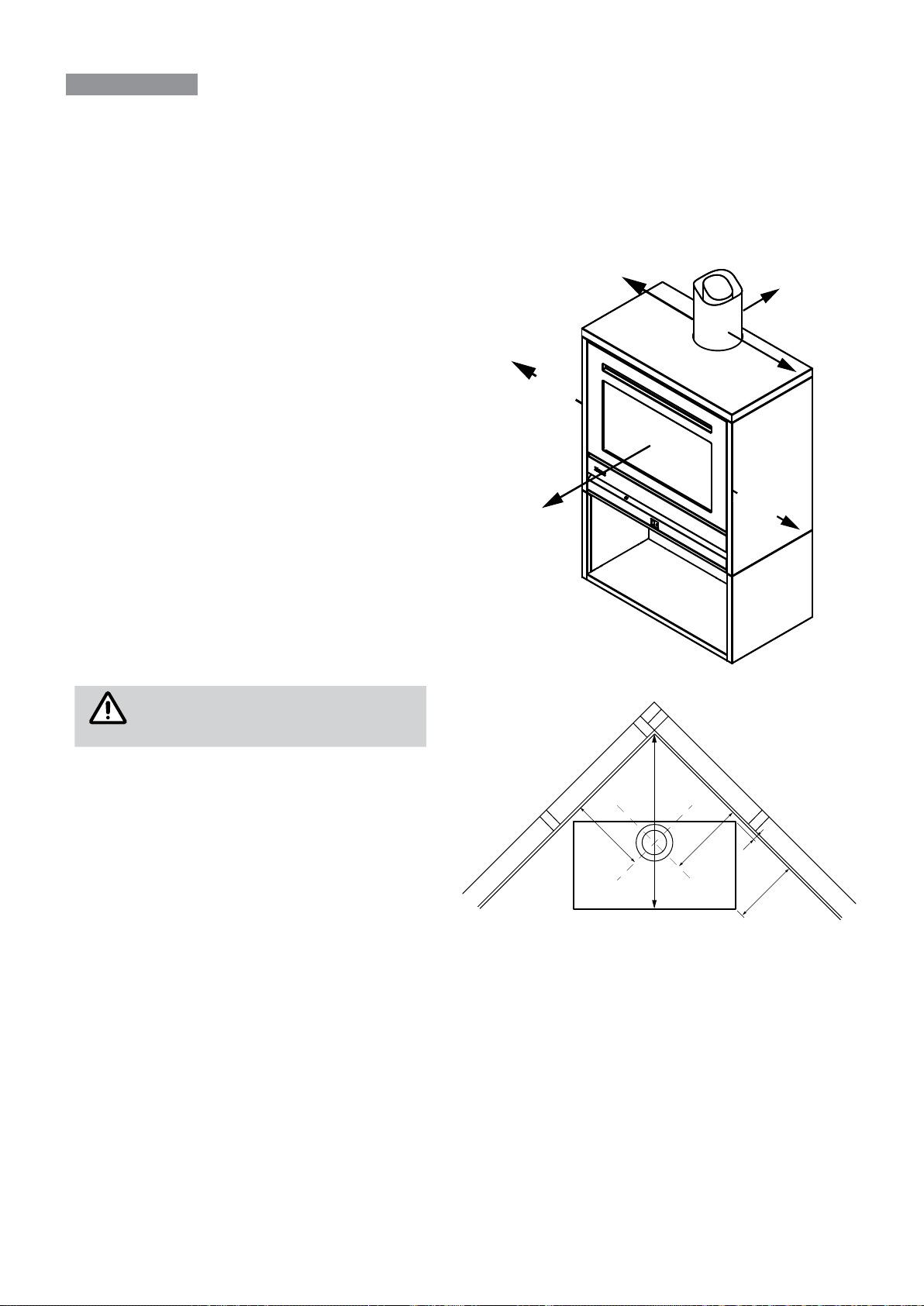

Combustible clearances
The heater MUST NOT be installed where
curtains, furniture or other combustible materials
could come into contact with the re while it is
operating. The side clearance, measured from the
edge of the cabinet, includes side walls. The 1000
mm clearance is in front of the re.
The general clearances shown in the adjacent
diagrams (with cabinet base) apply to all the Rinnai
SS850 Freestanding models.
Hearths
A hearth is not necessary but can be used for
decorative purposes. It MUST NOT obscure the
front of the re or obstruct the re in any way. For
more information refer page 8.
Floor protection
Heat radiating from the re may a󰀨ect the
appearance of some materials used for ooring
such as vinyl planks, carpet, cork, or timber. To
avoid this occurring it is recommended a mat be
placed in front.
IMPORTANT
Carpet MUST NOT be tted hard
up against the re as it will a󰀨ect
operation.
Surrounds
Combustible surrounds require clearance from the
unit to minimise the risk of re. They are allowed
providing they are outside the minimum clearances
shown.
50 mm
50 mm 50 mm
25 mm
25 mm
1000 mm
795 mm
301 mm
22
350 mm
350 mm
GENERAL INSTALLATION INFORMATION

Rinnai 8 SS850 Freestanding IM
FLOORING AND HEARTH MATERIAL SELECTION
The temperature in front of the re (200-350 mm x 400 mm wide) can reach up to 40 °C above ambient, therefore
material selection is important. Some guidelines are detailed below. For example, vinyl planks are often only rated
for ambient temperatures. Consequently, the heater would not be suitable for installation directly on that ooring
type.
E
D
F
F
G
I
50 mm (min)
H
C
A B
Non-combustible
hearth
B
A
Front
Side view
Dim. Description Non-combustible materials or
materials rated to 60 °C or higher
above ambient
Materials rated to a
maximum of 50 °C
above ambient
Unrated materials,
anything up to 20 °C
above ambient
AOverhang No restriction as long as materials
within 400 mm to the side (D) are of
the same rating
• Not suitable if B is under 250 mm
• No restrictions if B is greater than 1000 mm
• If B is 300-1000, refer page 9
BClearance above 50 mm min. 100 mm min. 200 mm min
CSide overhang No restrictions No restrictions if D is greater than 400 mm
DSide clearance 50 mm min. 50 mm min. 100 mm min.
EIn front No restrictions 150 mm max. 100 mm max.
FClearance to oor No restrictions 150 mm min. 240 mm min.
GHearth depth No restrictions 400 mm min. of non-
combustible material
450 mm min. of non-
combustible material
HDirectly on oor No restrictions Not suitable for heat sensitive materials
IFlue clearance 25 mm min. 50 mm min.
The shaded cells above denote measurements A, B, C, and D. These gures are dependent on each other and the type
of installation. These dimensions may be rened with some specic calculations. These calculations are based on gures
obtained during in-house temperature testing. For more information refer to the next page.
Even if a material is rated above 60 °C it may still be subject to deterioration when exposed to heat cycles. Always
refer to the materials supplier for suitability. The temperatures given assume the heater is operating in a room
temperature of 25 °C or less. Operation in higher ambient temperatures may result in higher surface temperatures.
WARNING
RINNAI DOES NOT TAKE ANY RESPONSIBILITY FOR ANY DAMAGE OCCURRING
TO ANY ITEMS INSTALLED IN THE VICINITY OF THE HEATER.
GENERAL INSTALLATION INFORMATION

Rinnai 9 SS850 Freestanding IM
MATERIAL SELECTION CALCULATIONS
The following provides further detail on the relationship between various clearance dimensions and gives examples
of what specic dimensions may be if other clearances are adjusted.
Dim. Description Material temperature rated above ambient
Materials rated to a max. of 50 °C Unrated materials, up to a max. of 20 °C
AOverhang Not suitable if B is under 250 mm
No restrictions if B is greater than 1000 mm
If B is 300-1000 mm then the calculation is: A = B - 250
If B = 300 and A = 300-250, the overhang can be 50 mm max.
If B = 350 and A = 350-250, the overhang can be 100 mm max.
If B = 400 and A = 400-250, the overhang can be 150 mm max.
If B = 450 and A = 450-250, the overhang can be 200 mm max.
BClearance above 100 mm min.
If recessed with an overhang B =A+250
200 mm min
If recessed with an overhang B =A+250
If A = 50 and B = 50+250, clearance above needs to be 300 mm min.
If A = 100 and B = 100+250, clearance above needs to be 350 mm min.
If A = 150 and B = 150+250, clearance above needs to be 400 mm min.
If A = 200 and B = 200+250, clearance above needs to be 450 mm min.
CSide overhang No restrictions if D is greater than 400 mm
If D is less than 400 mm, C = D+50
C = 50 +50, side overhang 100 mm max.
C = 100+50, side overhang 150 mm max.
C = 150+50, side overhang 200 mm max.
C = 200+50, side overhang 250 mm max.
No restrictions if D is greater than 400 mm
If D is less than 400 mm, C = D
C = 50, side overhang 50 mm max.
C = 100, side overhang 100 mm max.
C = 150, side overhang 150 mm max.
C = 200, side overhang 200 mm max.
DSide clearance 50 mm min.
No restrictions if D is greater than 400 mm
If D is less than 400mm = C-50
150-50, side clearance must be 100 mm min.
200-50, side clearance must be 150 mm min.
250-50, side clearance must be 200 mm min.
300-50, side clearance must be 250 mm min.
350-50, side clearance must be 300 mm min.
400-50, side clearance must be 350 mm min.
100 mm min.
No restrictions if D is greater than 400 mm
If D is less than 400mm = C
150, side clearance must be 150 mm min.
200, side clearance must be 200 mm min.
250, side clearance must be 250 mm min.
300, side clearance must be 300 mm min.
350, side clearance must be 350 mm min.
400, side clearance must be 400 mm min.
CAUTION
Please note the recommended clearances in the tables above. Wall surface temperature may be
elevated directly above the appliance and may discolour paint nishes or distort vinyl coverings.
B
A
Front
Side view
D
C
Top view
Front
E
non-combustible hearth
Un-rated material floor
In this case, F can be reduced using
F = 450 - E mm min.
Side view
Front
C
D
A
B
A =100, so
B = 350 (A + 250)
C = 100, so
D = 50 (C-50)
F
GENERAL INSTALLATION INFORMATION

Rinnai 10 SS850 Freestanding IM

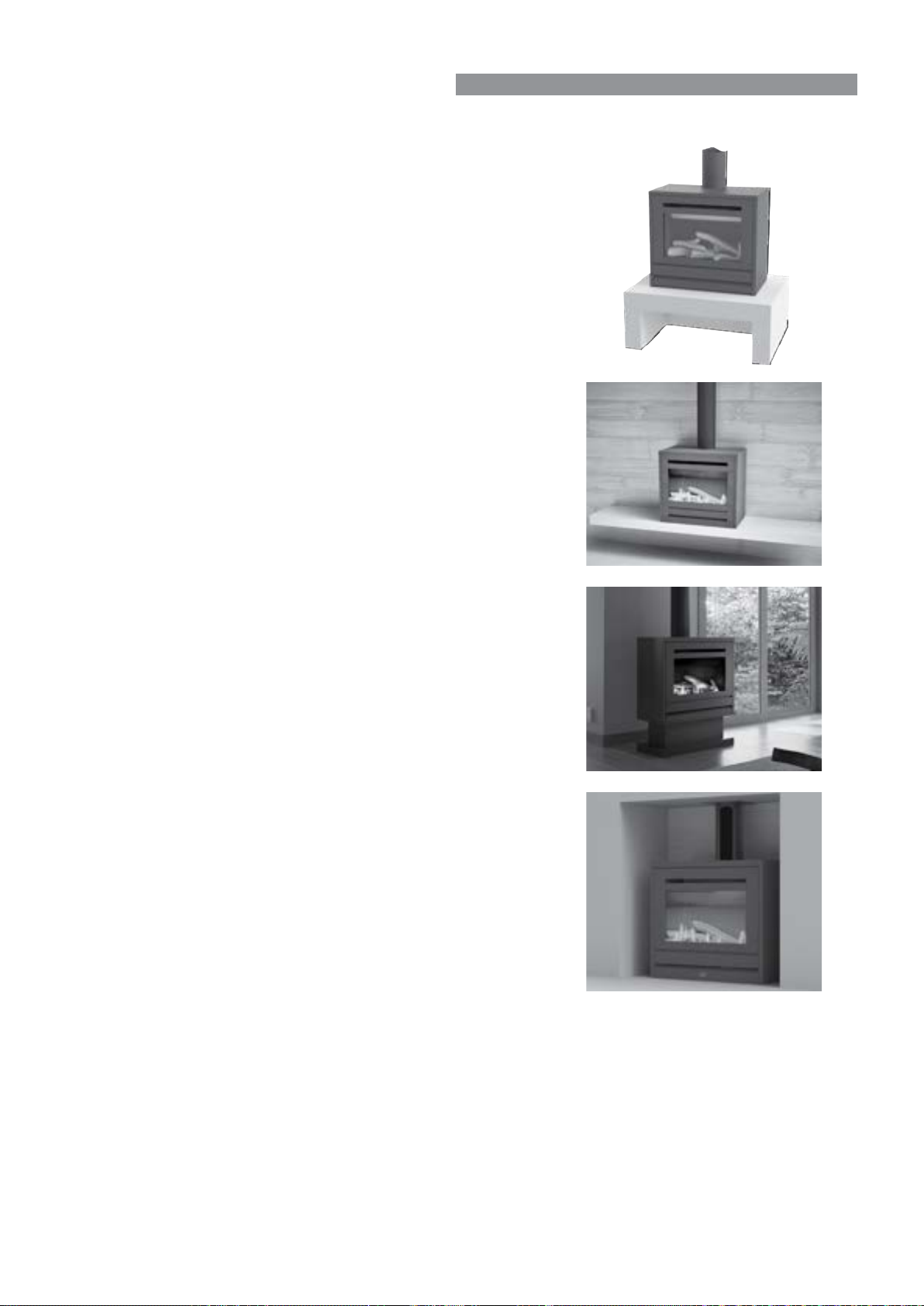

INSTALLATION EXAMPLES
Freestander installed on a combustible platform.
Depending on material, refer table on page 8. The platform could
extend 150 mm or 100 mm maximum in front of the re. This is
dimension E in the table.
The height of the platform would need to be at least 150 mm or 240
mm high. This is dimension F in the table.
Freestander installed on a non-combustible oating
hearth.
Only requirement for non-combustible material is a 50 mm clearance
from the back of the re to the wall.
If the material is rated 50 °C or less (above ambient) then:
• 50 mm clearance from the back of the re to the wall and 50
mm side and top clearance.
• In front, hearth could extend 100 mm or 150 mm maximum,
this is dimension E in the table on page 8.
Freestander with plinth base installed on wooden oor.
Using the table on the page 8 there would be no restrictions except
a 50 mm clearance from the back of the re to the wall. The plinth
automatically gives the 240 mm minimum clearance from the bottom of
the re to the wooden ooring—this is dimension F in the table.
Freestander installed in an alcove.
If all materials are non-combustible then the only restrictions are:
• 50 mm clearance from the back of the re to the wall
• 500 mm minimum clearance above and to the sides, and
that the material above the re is the same as the material to
the sides of the re.
• The ue requires a 25 mm clearance.
If the material is rated 50 degrees Celsius or below then the
parameters in the table and the material selection calculations, on
the previous pages apply.
GENERAL INSTALLATION INFORMATION

Rinnai 11 SS850 Freestanding IM
GAS SUPPLY
Gas pipe sizing MUST consider the gas input to this appliance as well as all other gas appliances
in the premises. The gas meter and regulator MUST be specied for the total gas rate.
A suitable sizing chart such as the one in AS/NZS 5601 should be used.
The use of rubber hose for any gas connection to a xed appliance is NOT authorised by the
manufacturer.
Conrm correct gas type (see labels located on top or rear panels). Refer to local gas authority
for conrmation of gas type if you are in doubt.
Installation of Consumer Piping
The gas supply position will vary slightly based on whether a SS850 Freestander has been ordered or with a
cabinet or plinth. Refer to the installation diagrams on page 12, and 17 to 20 for more information on appropriate
service supply positions.
NOTE
The gas and power supply can be brought in through the base of the re.
Once the consumer piping has been terminated the supplied exible gas connection may then be tted.
Gas Connection
Firmly grasp the stainless steel exi pipe ①and bend to line up with the gas control valve inlet ②, then attach the
pipe to the gas control valve and tighten.
Purging Gas Supply
Foreign materials and debris such as swarf, lings, etc. MUST be purged/removed from the gas supply, failure to
do so may cause damage to the gas control valve causing it to malfunction.
Leak Testing the Connection
With the supplied plug inserted into the end of the exible gas connection, leak test all joints.
CAUTION
Use a soapy solution to test all gas connections. If a leak is present bubbles will form.
When nished remove residue with a rag. Prevent soapy solution from contacting electrical
components.
WARNING
1
2
IMPORTANT
SUPPLY CONNECTIONS

Rinnai 12 SS850 Freestanding IM
GAS SUPPLY LOCATIONS
310 mm
75 mm
50 mm min.
distance from wall
144 mm min.
368 mm
95 mm
300 mm
25 mm
230 mm
64 mm
25 mm
310 mm
75 mm
Appliance
Centreline
Fire
Footprint
Gas supply
entry options
Gas connection
Note: fire is supplied
with a 200 mm flexi pipe
Power
cord entry
245 mm
Alternate power
cord position
298 mm
Alternate gas pipe
knockout position
Ø54 mm
54 mm
70 mm
Rear View
Fixing screws
Inlet pipe
Front Back
Mounting plate
Front
Back

Rinnai 13 SS850 Freestanding IM

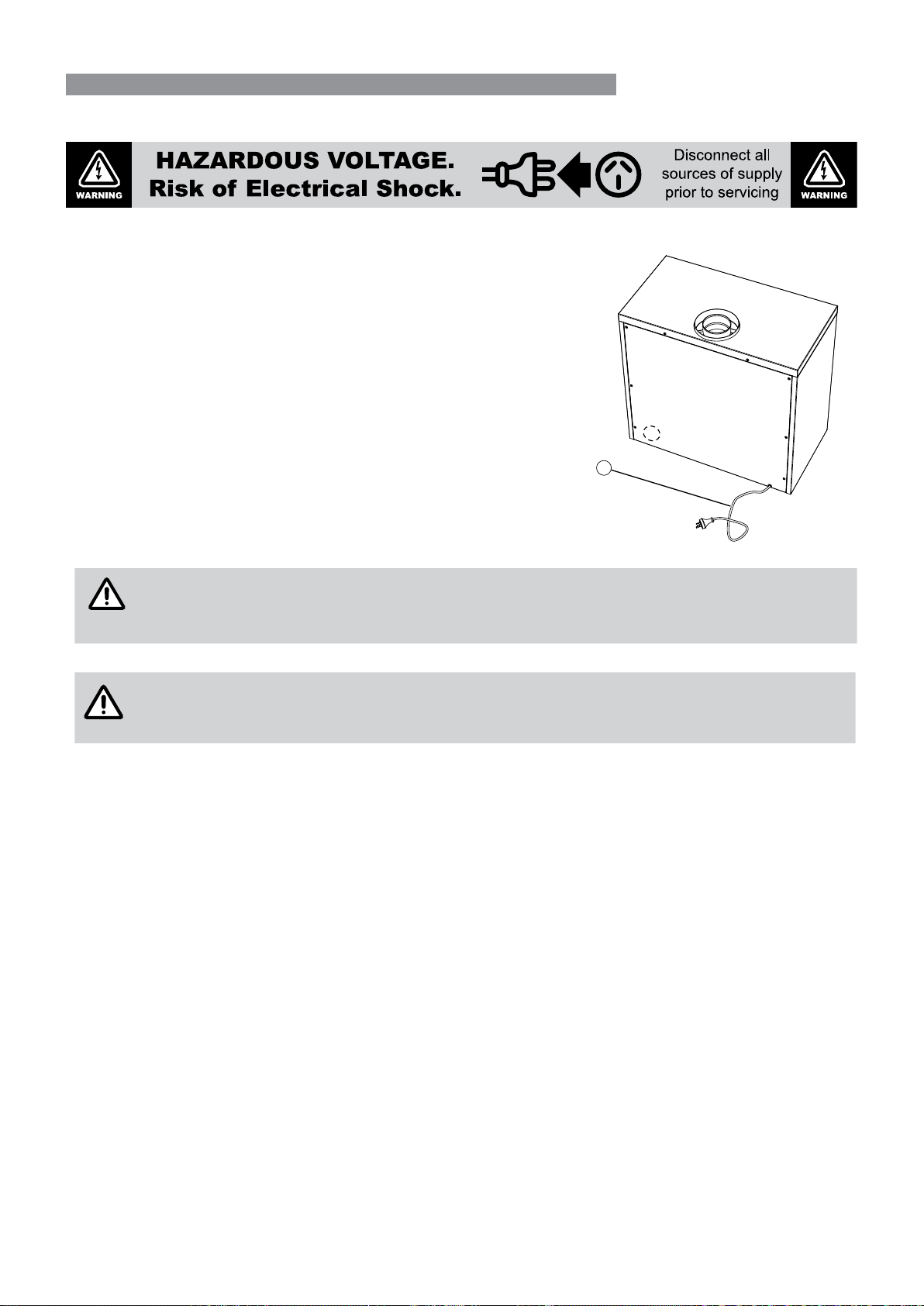

ELECTRICAL SUPPLY
Socket Outlet
Where a power point is used it MUST be 230 V, rated at 10A and MUST
be earthed. This power point MUST NOT be located above the heater.
Alternatively the appliance can be direct wired if the power supply is to be
concealed.
The heater engine is tted with a 1.5 m power cord and three pin plug
⑨ which exits the appliance from the rear panel at the lower right when
viewed from the rear.
Direct Wired Installations
Alternatively the appliance can be direct wired with an isolation switch if so
required.
A qualied electrician will need to be consulted where a direct wired installation is required.
Any such installation MUST comply with the requirements of AS/NZS 5601, AS/NZS 3000 and
any other relevant local regulations.
IMPORTANT
9
WARNING
The power cord is not re rated and MUST NOT come into contact with the unit. If the power
cord is damaged, it MUST be replaced by a licensed tradesperson. This must be a genuine
replacement part available from Rinnai.
SUPPLY CONNECTIONS

Rinnai 14 SS850 Freestanding IM
FREESTANDER INSTALLATION

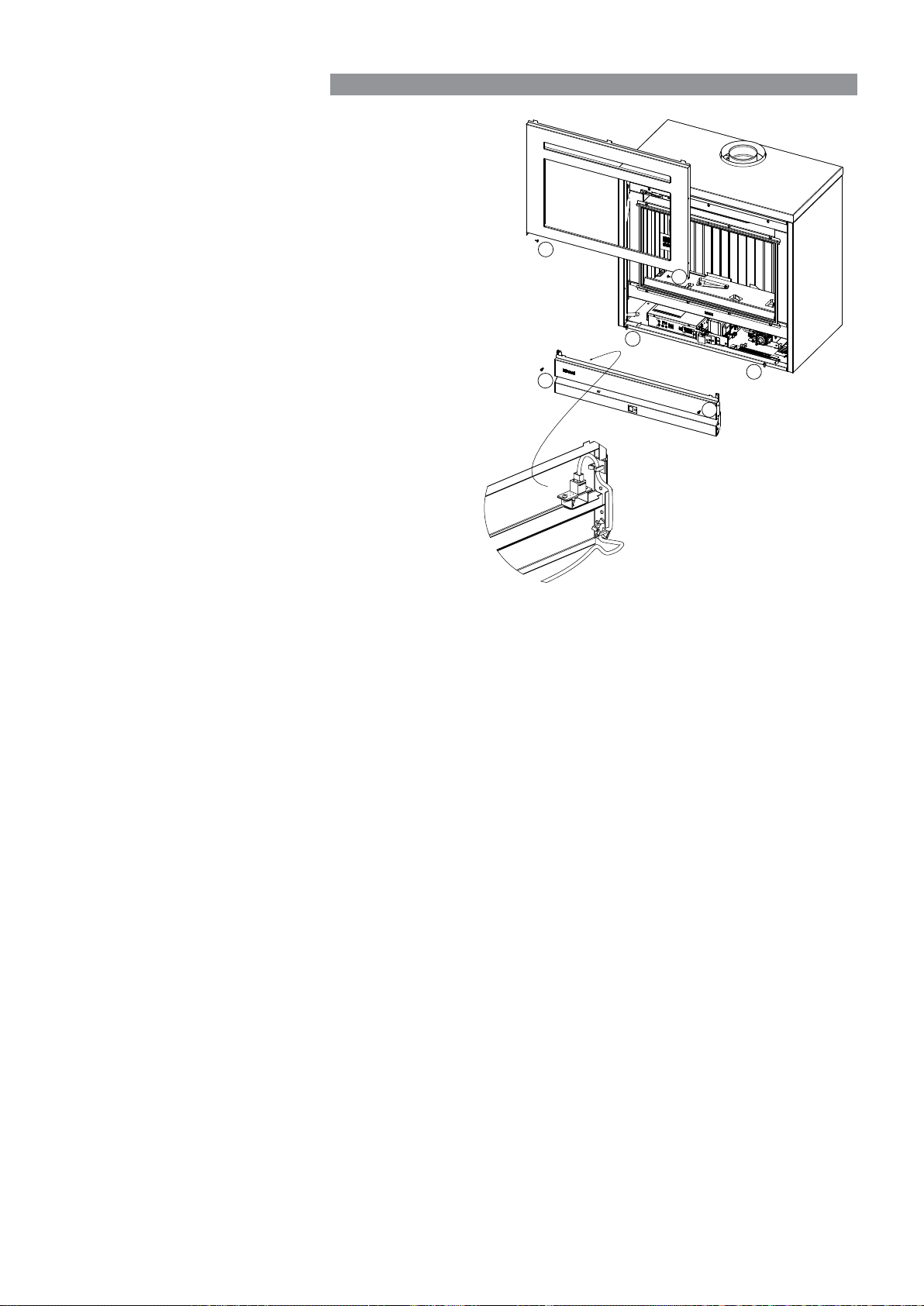

Unpack the re.
1. Remove the frame (two screws).Ⓐ
2. Remove the control panel (two screws) and unplug the
ON/OFF switch.Ⓑ
Prepare location of gas and power.
1. Mark the position of the ue centreline on the oor.
Note the minimum distance from the wall (50 mm).

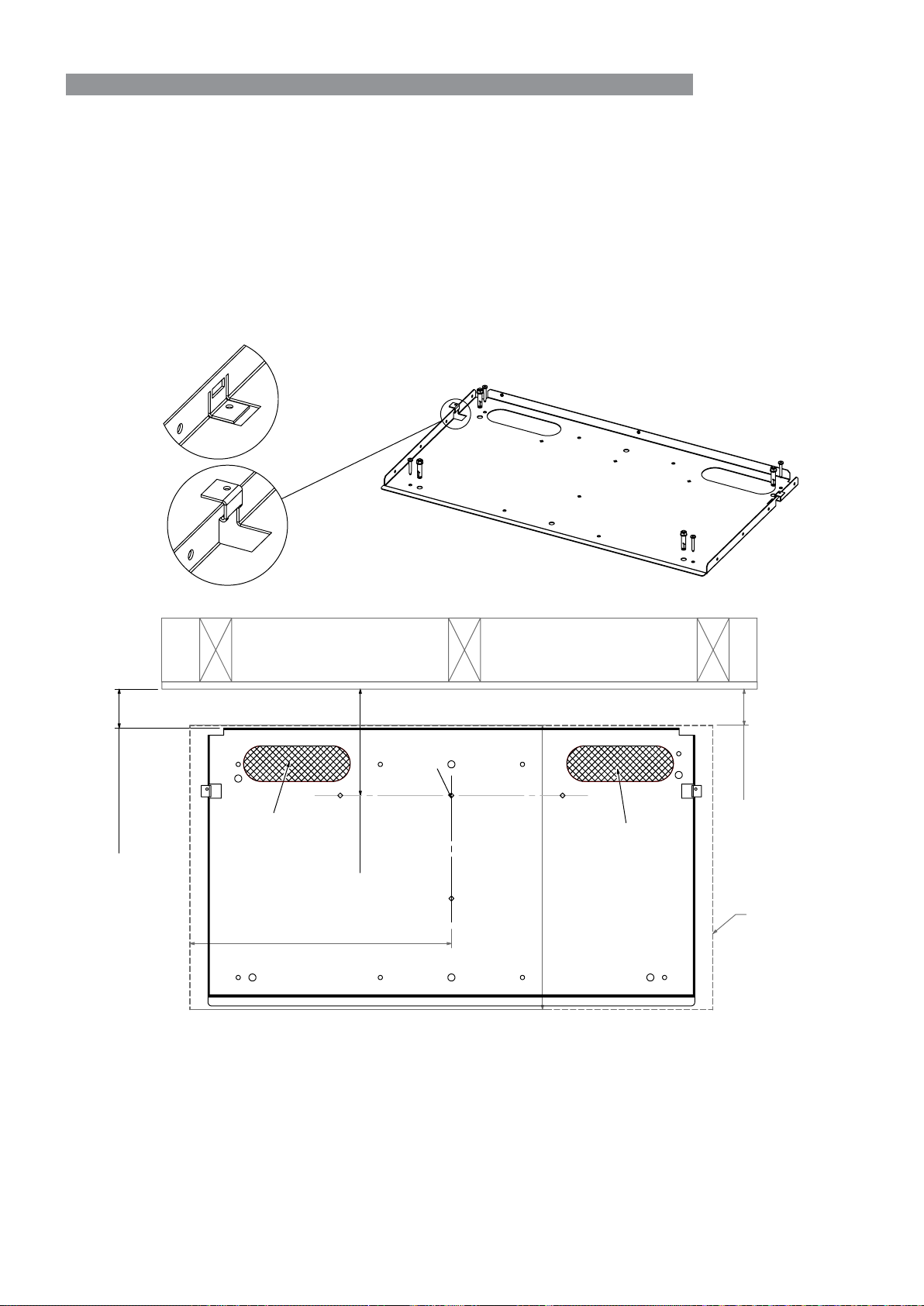

2. The gas and power supply can be brought in through the base of the re. The pipe/power cord must enter
within the shaded area shown on page 12. The hole must not extend beyond the re footprint. If the power
is to be brought in from the back, there is a knockout in the bottom right corner (viewed from the back of the
re) of the back panel that can be removed with pliers. There is also a knockout for the gas on the back panel.
Check the ue conguration.
Check the ue conguration. Check if the aeration plates need adjusting or additional plates that may need to be
added. Refer to page 15 for more information.
Reassemble and secure.
Follow the reverse steps for unpacking the re. Secure the re to oor using mounting holes Ⓒ
Install ue system.
Install coaxial ue system. Refer to pages 24 through 29.
Complete gas connection.
Install gas connection. Refer page 11.
Install the burn media and commission.
Install the burn media, refer page 22. Ret the glass and the inner and outer frames.
A
A
C
C
B
B
INSTALLATION

Rinnai 15 SS850 Freestanding IM

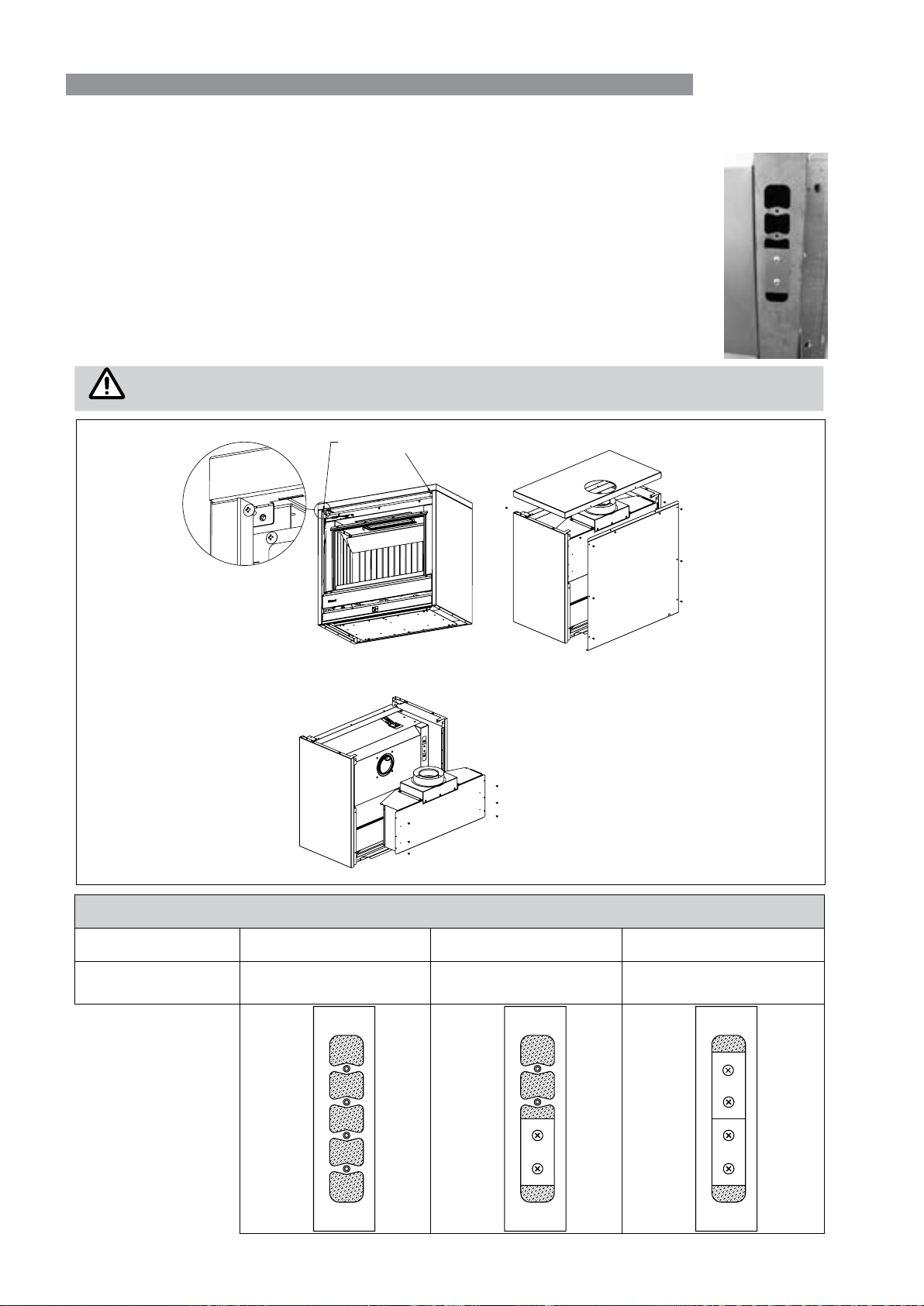

AERATION PLATES
The SS850 comes with two aeration plates that are factory tted, in a position for ues
between 3-5.5 m, refer image below. There are a further two aeration plates supplied in the
accessory pack (for ues 5.6-8 m).
To control ame lift and e󰀩ciency on long ues (anything over 3 m) it is important the
aeration plates are congured correctly. Refer chart below.
To maintain balance within the combustion chamber, it is important to t the plates equally
to both sides. The chart below shows the plates required for any given ue length. Fitting
more plates than shown may have a detrimental e󰀨ect on startup performance, especially
in very cold areas.
If the ue length is less than 3 m the factory tted aeration plates need to be removed.
IMPORTANT
Avoid sliding the ue adapter assembly around too much when tting. This may
cause the gaskets to be incorrectly sealed.
Aeration Plate Conguration
Vertical ue height
< 3 m 3 - 5.5 m 5.6-8 m
Action required Remove factory tted
aeration plates. Factory default. Fit additional plates supplied in accessory pack.
Remove 2 screws
from front of fire
Remove 8 screws from back panel and remove,
then the 2 screws for the top panel and lift off
Remove 6 screws holding
flue adapter in place
INSTALLATION

Rinnai 16 SS850 Freestanding IM
CABINET INSTALLATION
There are two ways to install the cabinet to the SS850 Freestanding:
Complete assembly. Build up (requires two people).
1. Prepare mounting area for xing and services.
2. Lay the re on its back.
3. Fix the partially assembled cabinet to the re.
4. Fix the re in place and connect power and
gas supplies.
1. Prepare mounting area for xing, power and
gas supplies.
2. Fix partially assembled cabinet base to the
oor.
3. Lift re onto the cabinet and x together.
4. Connect power and gas supplies.
Mounting area.
1. Mark the ue centre on the oor.
2. Fold the base panel locator tabs up as
shown on the next page.
3. Check there is su󰀩cient timber under the
screw mounting holes to provide adequate
retention. If necessary, underoor blocking
may be required. A minimum of four screws,
two front and back, are required.
Do not x the re in place yet unless there is
su󰀩cient room behind the re to get a screwdriver
in to x the back panel in place.
Make the cabinet.
Working on a at surface, assemble the outer
cabinet panels as shown on the next page. Make
sure the cabinet is square and that the top surfaces
are ush with each other.
Fix the cabinet to the re and check aer-
ation.
Unpack the re as per instructions on page 14.
To make the re lighter and easier to manage,
remove the glass front, log set, and ceramic panels
from the inside of the combustion chamber.
Before doing anything else, check the aeration
plate setting, refer previous page.
Fix the cabinet (make sure panels are ush,
especially on the front and sides) to the re, either:
• Lay the re on its back and t the cabinet
using nine screws, stand it up and x in
place, or
• Fix the cabinet to the oor, t the cube onto
the cabinet, and x in place.
Connect services and commission.
Before adding the cabinet cover panels (see
next page), connect the power and gas. There
is a second stainless steel exi tube connector
supplied with the cabinet kit to make connection
easier. Commission as per the commissioning
instructions on page 30.
SS850 Fresstander
Cabinet
Accessory
LH outer side panel
Flexi tube & connector Screw pack (30 screws)
Back outer panel
RH outer side panel
Base cover plate
Base mounting plate
Back cover
Inner side panels x 2
INSTALLATION

Rinnai 17 SS850 Freestanding IM
CABINET INSTALLATION CONT.
Fit the base cover panel
Ensure the lower front edge of the panel is hooked
under the front edge of the base mounting panel
as shown below. The front faces MUST be ush.
Fix the panels in place using two screws.
Fit side panel covers
Fit tabs into slots. Slide panels forward so the leading
edge is behind the side panel. Fix in place, one screw
per side.
Fit back panel
Fit tabs into slots. Fix in place with two screws.
55 mm min.
distance from wall
150 mm min
400
368 mm
50 mm min.
Flue centre
Power supply
entry
Gas supply entry
Fire
footprint
INSTALLATION

Rinnai 18 SS850 Freestanding IM
7 screws in back panel
4 screws each side
3 screws each side
and back
Power
Gas
Lower front edge
hooked under base panel
Front faces FLUSH
Fix in place - 2 screws
Fit tabs in slots
Leading edge panel
BEHIND side panel
Fix in place
- 1 screw
Fit tabs in slots
Fix in place
- 2 screws

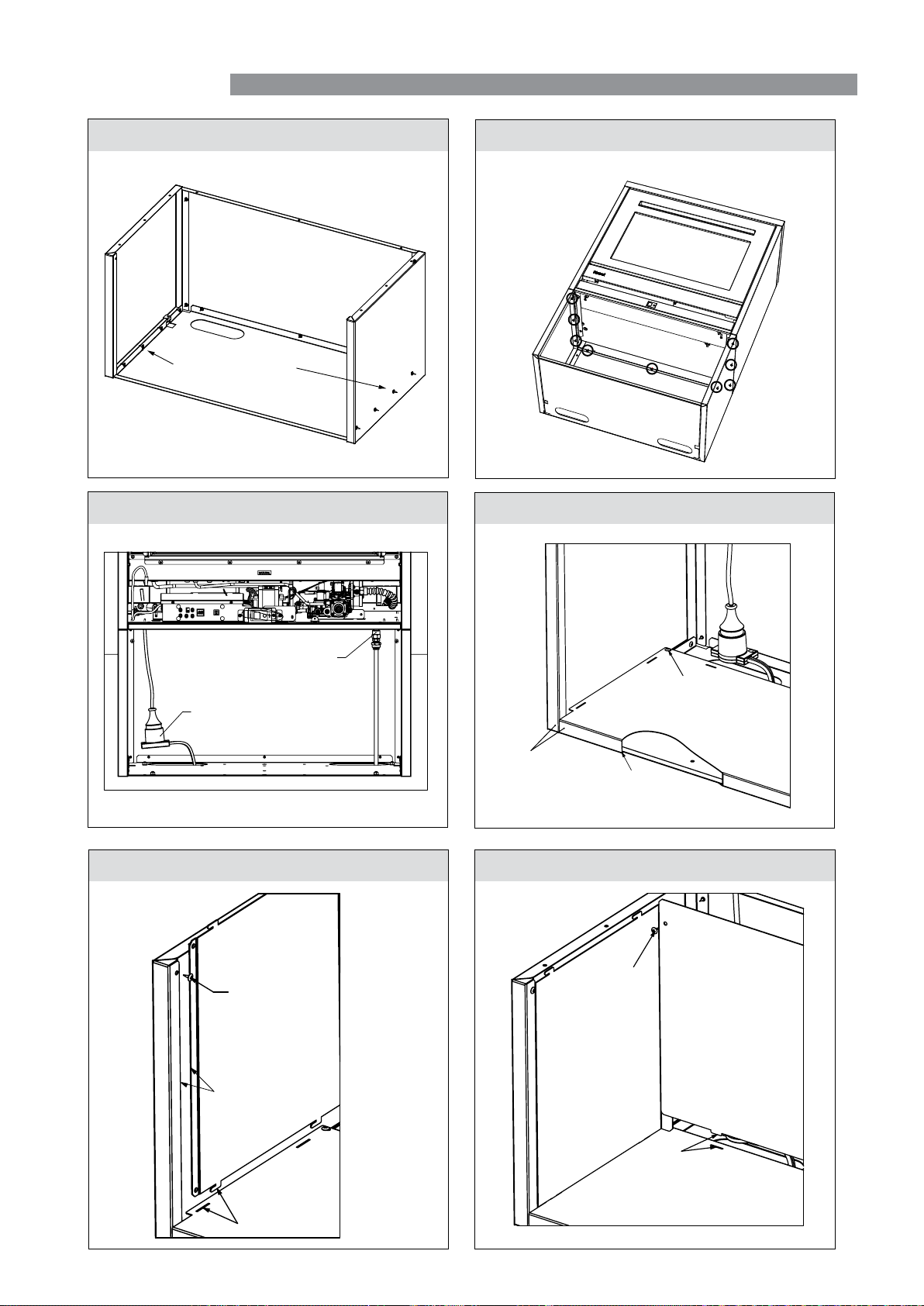

Cabinet assembly Fixing the re to the cabinet
Power and gas supply Fitting base cover panel
Fit side panel covers Fit back panel
INSTALLATION

Rinnai 19 SS850 Freestanding IM
PLINTH INSTALLATION
Mounting area and mounting plate
1. Mark the ue centre on the oor.
2. Place the base mount panel on the oor and line up with the centre marks, and mark the area for power and
gas to enter. The alternate power and gas options shown in the cube installation also apply here.
3. Check there is su󰀩cient timber under the screw mounting holes to provide adequate retention. If necessary,
underoor blocking may be required. A minimum of four screws, two front and back, are required.
Prepare Services
For best results the gas and power can be supplied
through the plinth and into the base of the re. The
power will need to be hard wired.
Bring enough cable through the oor to reach at least
100 mm above the top of the plinth. Bring the gas
supply through to within approximately 50 mm of the
top of the plinth, are the pipe, and t the supplied
exi tube. This should be leak tested now as access
through the back panel is limited once the re is
installed. The alternative is to drill a hole in the back
of the re for the gas supply and to remove the notch
for the power cord.
Base mount plate
Base cover plate
Underside cover x2
Side panel x2
Back outer panel
Tube connector
Flexi tube
Support rail x2
Screw pack (36 screws)
Front panel
55 mm min.
distance from wall
150 Min
400 mm
368 mm
50 min
Flue
centre
Power
supply entry
Gas
supply entry
Fire
Footprint
Approx. 400 mm
Ap
pr
o
x
. 270
m
m
INSTALLATION

Rinnai 20 SS850 Freestanding IM
Assemble outer plinth panels
Working on a at surface assemble the outer plinth panels as shown. Take care to ensure the plinth is square and
that the top surfaces are ush with each other.
Fit panels to the base mounting plate
Fit the plinth to the base mounting plate by lifting the back edge of the plinth and sliding the front edge under the
front lip of the base plate, then setting the edge back down. Hold in place with three screws.
Fix re base plate to plinth
Fix the re base plate to the top of the plinth assembly using the sti󰀨ening rails as shown. Fit the second exi pipe
supplied with the re if required.
Check aeration setting
Check that the correct aeration shutter plates are tted, (refer to page 15). It is still possible to change the
aeration setting once the re is installed, however it is much easier to do this beforehand.
INSTALLATION
