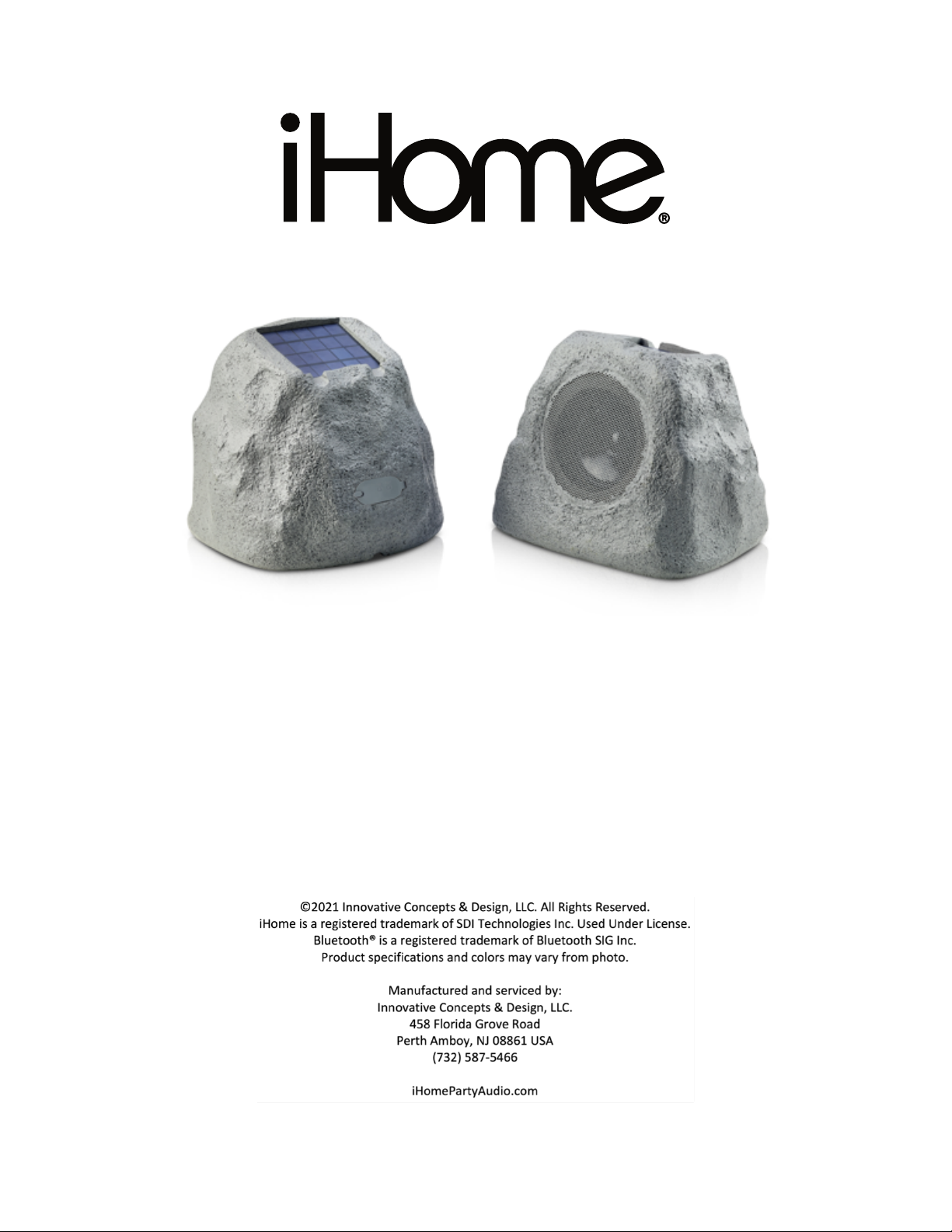

iHome iHRK-500LTMS User manual

iHRK-500LTMS (Single Speaker)
iHRK-500LTMS-PR (Boxed Pair)
Waterproof Outdoor Bluetooth® LED Multi-Link
Solar Rock Speakers

2

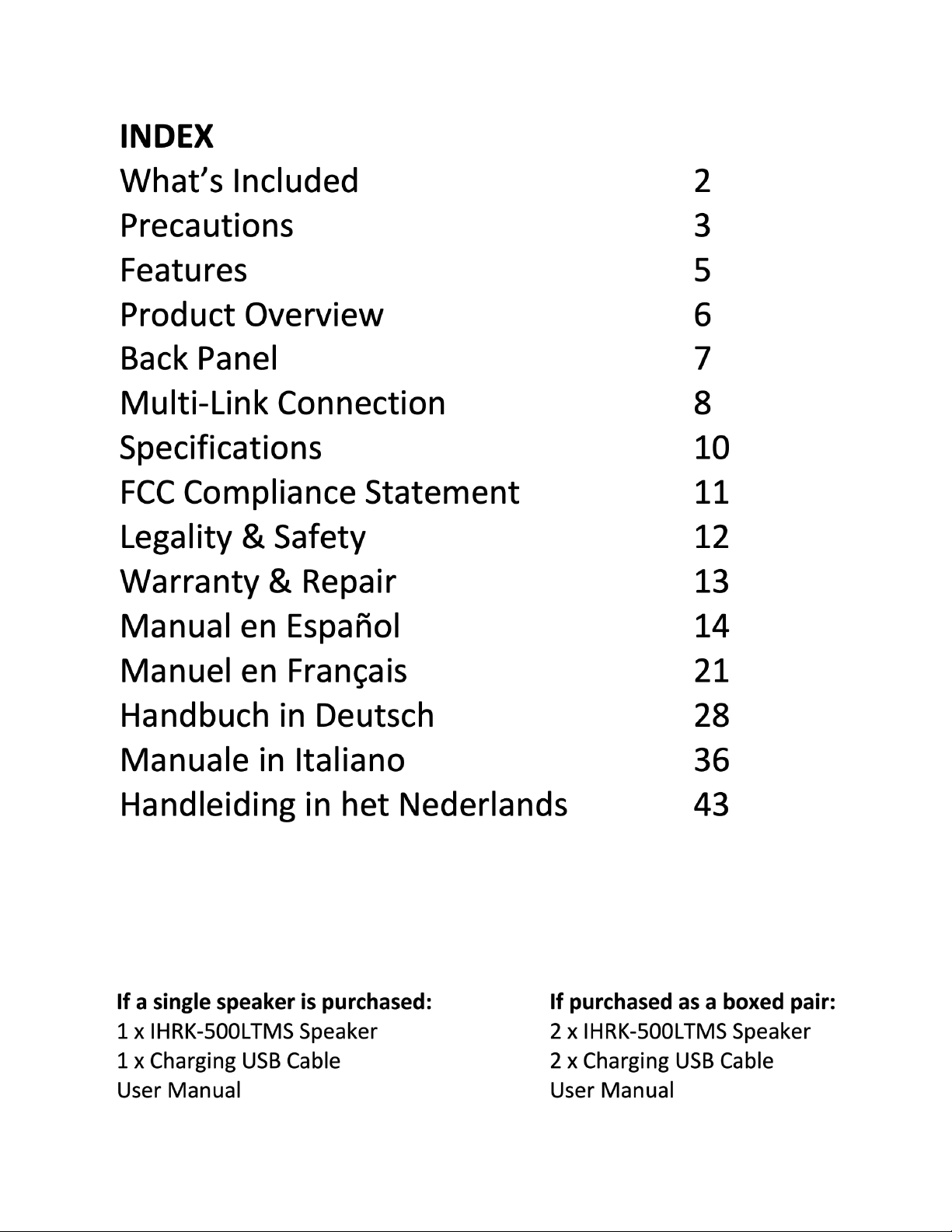

What’s Included
Please ensure that you find these accessories with your IHRK Bluetooth Speakers

3
PRECAUTIONS
PLEASE READ THESE INSTRUCTIONS GIVEN IN THIS MANUAL AND
THOSE MARKED ON THE UNIT
This set has been designed and manufactured to assure personal
safety. Improper use can result in electric shock or fire hazard. The
safeguards incorporated in this unit will protect you if you observe the
following procedures for installation, use and servicing. This unit is fully
transistorized and does not contain any parts that can be repaired by
the user.
WARNINGS
Fire and electric shock hazard
1 - Do not place any open flame sources, such as lighted candles, on or
near the apparatus.
2 - Do not attempt to service the apparatus yourself.
3 - Opening or removing covers may expose you to dangerous voltages
or other hazards and will void the manufacturer’s warranty.
4 - To prevent risk of fire or electric shock, avoid overloading wall
outlets, extension cords, or integral convenience receptacles.
5 - Lightning storms Unplug this apparatus during lightning storms.
6- Object and liquid entry: Never insert objects of any kind through the
openings of this apparatus, as it may touch dangerous voltage points
or short-circuit parts that could result in a fire or electric shock. Care
should be taken so that objects do not fall and liquids are not spilled
into the apparatus through openings in the enclosure

4
Battery charging
1 -To reduce the risk of fire or electric shock, do
not expose the apparatus to rain or moisture while charging.
2 - The apparatus should not be exposed to
dripping or splashing; and objects filled with liquids, such as vases,
should not be placed on or near it while being charged.
3- Do not continue charging the battery if it does
not reach full charge within the specified charging time. Overcharging
may cause the battery to become hot, rupture, or ignite.4 - Do not
attempt to charge the battery in
temperatures outside the range of 32°-104°F(0°-40°c).
5 - lf you see any heat deformation or leakage,
properly dispose of the battery.
6 - lf the battery begins to leak, do not allow the
liquid to come into contact with your skin or eyes. lf contact has been
made, wash the affected area with plenty of water and seek medical
attention immediately.
Disclaimer:
For optimal charging speed and playtime, please ensure that the speakers solar
panel is in direct sunlight and free of dust, dirt and pollen. lf you are wanting to
place these speakers in shaded areas - read further.
Solar Panel Maintenance:
Please clean your solar panel at least every 6 months. Most detergents are
safe. For the best results, use the same supplies that you use to clean your
vehicle at home.
1.Please do not allow the battery to get below 20%. Doing so dramatically
increases the recharging time unless you use the included USB charging cable.
2.When you are approaching the 20% capacity thresh-hold, a warning will be
played every 30 seconds reminding you to allow the speaker time to recharge.
3.These speakers automatically turn off after not being used for 10minutes.

5
FEATURES
Need to outfit your outdoor deck, garden, or patio with high quality wireless
sound? Look no further! This 5” rock speaker is the perfect solution. The gray slate
colored rock will blend right in with the natural surroundings of your yard or
garden. With a weatherproof rating of IPX5, it is resistant to water splashes from
any angle so you can leave it outside without worrying about the weather. Specially
tuned for outdoor use, this Rock Speaker will project big clear sound perfect for
open air environments. The solar panel on top keeps your speakers charged when
set in the sunlight and there is a USB charging cable included as well. Built in LED
lighting illuminates the speaker with a lovely glow, creating a beautiful ambiance.
Stream music wirelessly from any Bluetooth® enabled device. Multi-link feature
allows you to link multiple speakers wirelessly, up to 50 at a time! Place speakers
all around your outdoor space and play them all at the same time with ease. The
iHRK-500LTMS is the perfect solution for your outdoor wireless audio needs and is
sure to impress your friends and neighbors.
ALL WEATHER OUTDOOR SPEAKER
With a rating of IPX5, the iHRK-500LTMS is water resistant, specially designed to
withstand most environments.
ACTIVE MULTI-LINK SPEAKER PAIR
Easy to link one active master speaker and multi slave speakers together for wide
area sound coverage.
BLUETOOTH®
Super simple wireless connection. Once you connect your preferred device via
Bluetooth®, it will automatically connect in the future. LED indicator displays
connection status.
BIG SOUND, COMPACT PACKAGE
D Class amplifier specifically tuned for outdoor use and custom cabinet tooling
design.
RECHARGEABLE BATTERY
The iHRK-500LTMS is equipped with a 2000mAh rechargeable Lithium-ion battery.
Charge via microUSB cable or the speaker’s built-in solar panel.

6
VOICE PROMPTS:
Broadcast Audio Enabled
Broadcast Mode Enabled
PAIRING
Bluetooth Connected
Bluetooth Disconnected
About 40 percent battery remain
About 60 percent battery remain
About 80 percent battery remain
100 percent battery remain
Battery Low

7

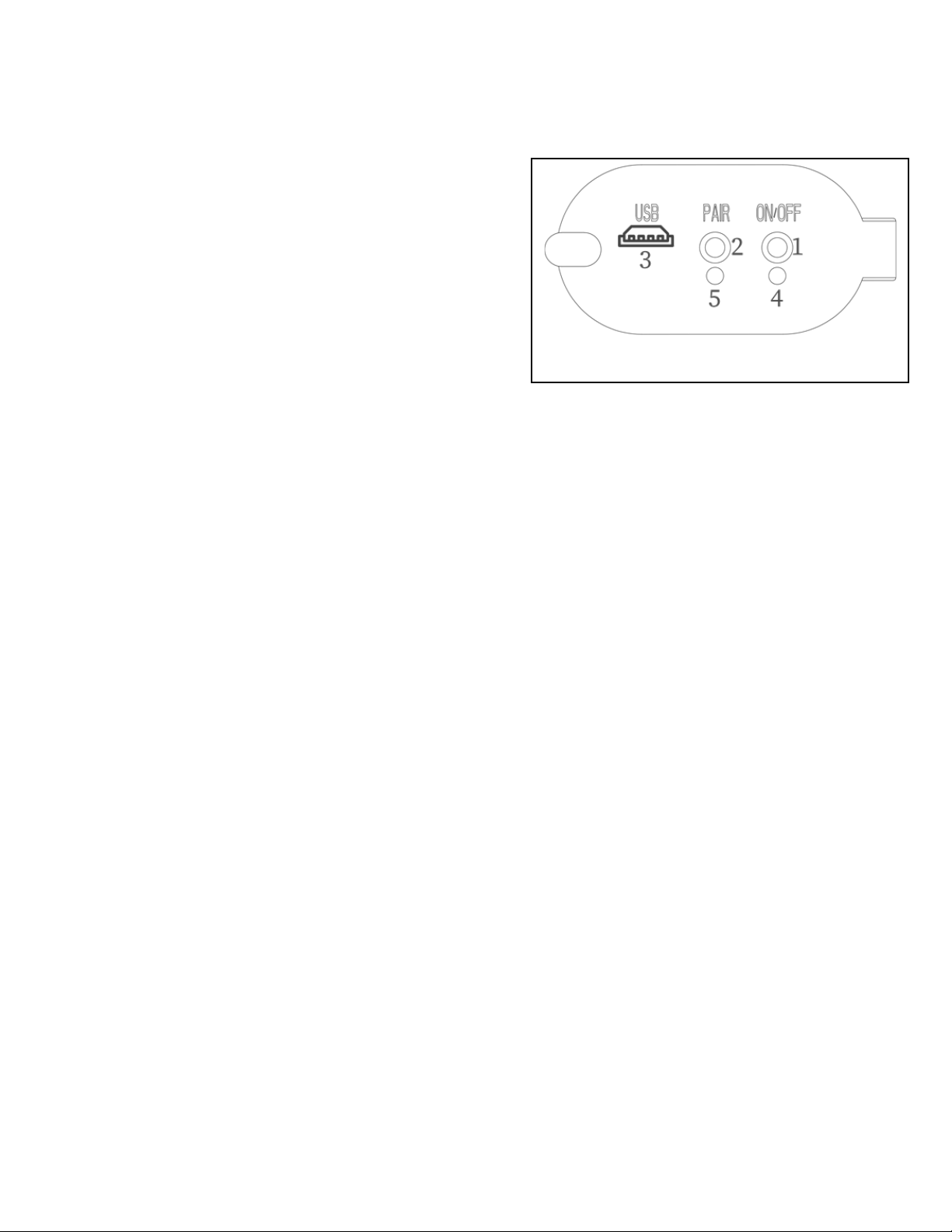

Back panel
BLUETOOTH PAIRING NAME:
iHome iHRK-500LTMS
1.Power ON/OFF
Long press to power on and off
Double press the power button to change
LED light mode.
Mode 1: Off
Mode 2: Solid 7 Colors to be selected.
Mode 3: Beat to Music Changing colors.
When On, Hold the power button for 3
Seconds for battery notification.
2.Pair (Multi-Link)
Short press PAIR button to be linking
speaker, LED in white.
Double press PAIR button to be master
speaker, LED in Blue-white.
Hold the PAIR button 3 Seconds for to
disconnect Bluetooth®. You will hear
“Bluetooth disconnected”.
Note: will automatically power off after 10
minutes if no audio is playing.
3.Micro-USB charging
4.Charging LED
RED - Speaker Battery is charging.
Off - Speaker Battery fully charged.

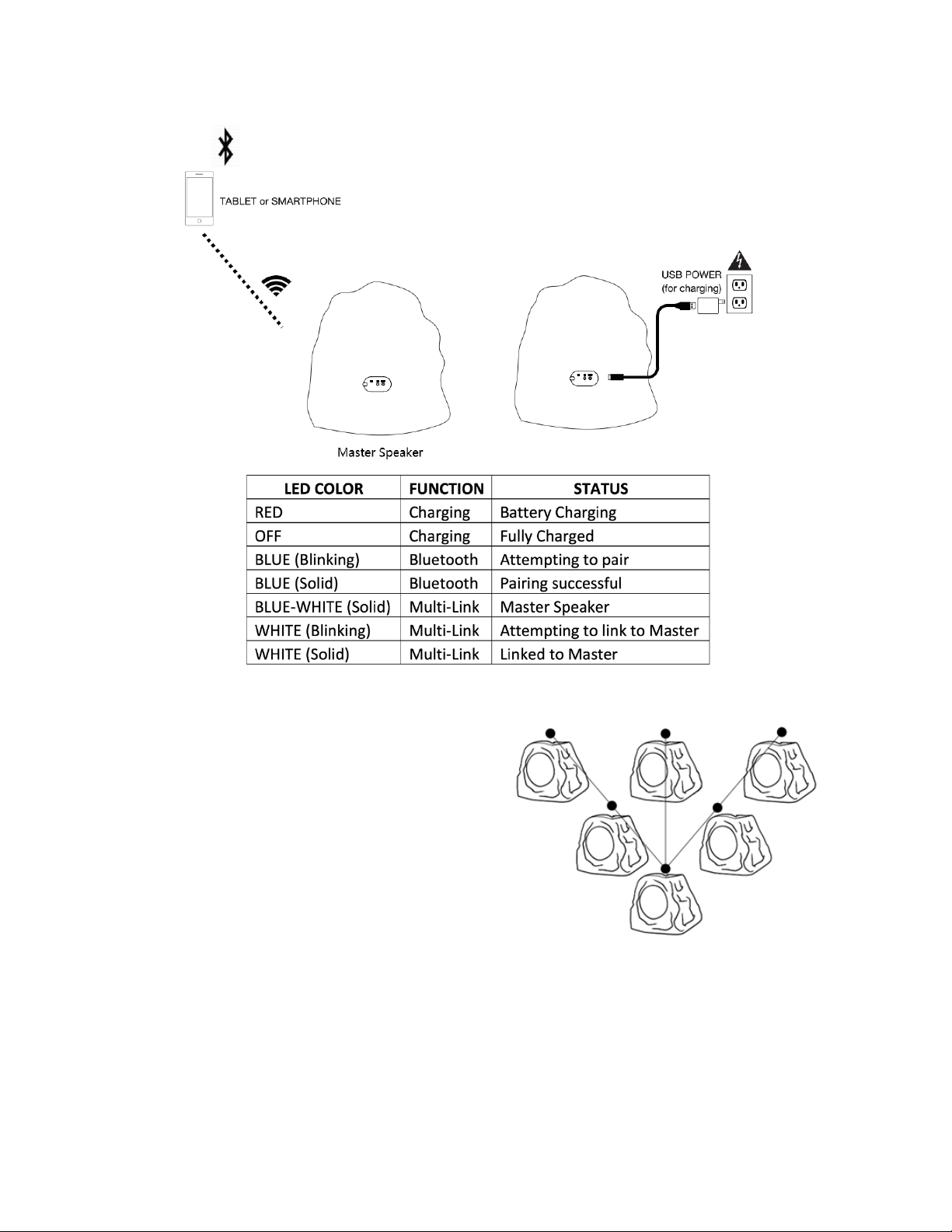

5.Bluetooth /Multi-Link LED
5.1 Bluetooth LED
BLUE BLINKING - Attempting to Bluetooth
pair.
SOLID BLUE- Speaker has successfully
paired via Bluetooth.
5.2 Multi-Link LED
Master speaker:
SOLID BLUE-WHITE – Master
Speaker has successfully paired via
Bluetooth / Multi-link. and speaker
is playing.
Additional linking speakers:
WHITE BLINKING - Attempting to
Multi-link pair.
SOLID WHITE - Speaker has
successfully paired via Multi-link.
and Speaker is playing.

8

9

10
SPECIFICATIONS
PRODUCT:
iHRK-500LTMS
Active/Passive
Active
Amplifier Type (CLASS)
D
Driver Size
5”
Total Power (PEAK)
30W
Bluetooth
BT5.0 – Range >10 Meters with Multi-Link
Frequency Response
90Hz-12kHz
Lighting
YES
Sensitivity & Impedance
86dB, 4Ω
Waterproof Grade Rating
IPX5
Enclosure Material
Resonant-absorbing resin cabinet
Power Adapter
5V USB + Solar Charging
Battery Specs
2000mAH Lithium-Ion Rechargeable Battery
PRODUCT:
iHRK-500LTMS-PR
Active/Passive
Active
Amplifier Type (CLASS)
D
Driver Size
5” x 2
Total Power (PEAK)
30W x 2
Bluetooth
BT5.0 – Range >10 Meters with Multi-Link
Frequency Response
90Hz-12kHz
Lighting
YES
Sensitivity & Impedance
86dB, 4Ω
Waterproof Grade Rating
IPX5
Enclosure Material
Resonant-absorbing resin cabinet
Power Adapter
5V USB + Solar Charging
Battery Specs
2 x 2000mAH Lithium-Ion Rechargeable Batteries

11
Responsible Party Name:
Innovative Concepts & Designs LLC
Company address:
458 Florida Grove Road
Perth Amboy, NJ, 08861 USA
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. The operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These equipment
generates uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause interference to radio or
television reception, which can be determined by turning the equipment off and
then on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to a different outlet so that the equipment and
receiver are on different branch circuits.
• Consult the dealer or an experienced radio/TV technician for help.
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment. For
Mountable Outdoor Bluetooth Speakers this equipment complies with FCC
radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
FCC ID: 2AWFXIHRK500LTMS

12
LEGALITY & SAFETY
The device is not intended for use by people (including children) with reduced physical,
sensory or mental capacity. People who have not read the manual, unless they have
received an explanation by someone responsible for their safety, should not use this unit.
Children should be monitored to ensure that they do not play with the device. The device
should always be readily accessible. The device should not be exposed to water. No
objects filled with liquids, such as vases, shall be placed on the device. Always leave a
minimum distance of 10 cm around the unit to ensure sufficient ventilation. Open flame
sources, such as candles, should not be placed on top of the device. The device is intended
for use only in a temperate climate. At full volume, prolonged listening may damage your
hearing and cause temporary or permanent deafness, hearing drone, tinnitus, or
hyperacusis. Listening at high volume is not recommended. One hour per day is not
recommend either. Danger of explosion if battery is incorrectly replaced or not replaced
by the same type or equivalent. The battery should not be exposed to excessive heat such
as sunshine or fire. Different types of batteries, or new and used batteries, should not be
mixed. The battery must be installed according to its polarity. If the battery is worn, it
must be removed from the product. The battery must be disposed of safely. Always use
collection bins to protect the environment. The battery can only be replaced by the maker
of this product, the sales department, or a qualified person. Switch the device off where
the use of the device is not allowed or where there is a risk of causing interference or
danger - for examples: on an aircraft, or near medical equipment, fuel, chemicals or
blasting sites. Check the current laws and regulations regarding the use of this device in
the areas where you drive. Do not handle the device when driving. Concentrate fully on
driving. All wireless devices are susceptible to interference which may affect their
performance. All our devices conform to international/national standards and
regulations, and we aim to limit user exposure to electromagnetic fields. These standards
and regulations were adopted after the completion of extensive scientific research. This
research established no link between the use of the mobile headset and any adverse
effects on health if the device is used in accordance with standard practices. Only qualified
people are authorized to install or repair this product. Only use batteries, chargers and
other accessories which are compatible with this equipment. Do not connect
incompatible products. This equipment is not waterproof. Keep it dry. Keep your device
in a safe place, out of the reach of young children. The device contains small parts which
may present a choking hazard to kids

13
WARRANTY
A. Innovative Concepts & Designs LLC guarantees its products to be free from
defects in materials and workmanship for one (1) year from the original purchase
date. Exceptions: Laser assemblies on CD Players, batteries, cartridges, and
crossfaders are covered for 90 days.
B. This limited warranty does not cover damage or failure caused by abuse,
misuse, abnormal use, faulty installation, improper maintenance or any repairs
other than those provided by an authorized Innovative Concepts & Designs LLC
Service Center.
C. There are no obligations of liability on the part of Innovative Concepts &
Designs LLC for consequential damages arising out of or in connection with the
use or performance of the product or other indirect damages with respect to loss
of property, revenues, of profit, or costs of removal, installation, or reinstallation.
All implied warranties for Innovative Concepts & Designs LLC, including implied
warranties for fitness, are limited in duration to one (1) year from the original
date of purchase, unless otherwise mandated by local statutes.

14
iHRK-500LTMS (altavoz único)
iHRK-500LTMS-PR (par en caja)
Altavoces de roca solar impermeables para exteriores Bluetooth® LED
Multi-Link
¿Qué está incluido?
Asegúrese de encontrar estos accesorios con sus altavoces Bluetooth IHRK
Si un solo altavoz nos compró:
1 x iHRK0500LTMS Altavoz
1 x cable de carga USB
Manual de usuario
Si se purchased como un par en caja:
2 x iHRK0500LTMS Altavoces
2 x cables de carga USB
Manual de usuario

15
FUNCIONES
¿Necesita equipar su terraza, jardín o patio al aire libre con sonido inalámbrico de alta
calidad? ¡No busques más! Este altavoz de roca de 5" es la solución perfecta. La roca gris de
color pizarra se mezclará con el entorno natural de su patio o jardín. Con una clasificación
resistente a la intemperie de IPX5, es resistente a las salpicaduras de agua desde cualquier
ángulo, por lo que puede dejarlo afuera sin preocuparse por el clima. Especialmente
sintonizado para uso en exteriores, este Rock Speaker proyectará un gran sonido claro
perfecto para entornos al aire libre. El panel solar en la parte superior mantiene sus altavoces
cargados cuando se colocan a la luz del sol y también hay un cable de carga USB incluido. La
iluminación LED incorporada ilumina el altavoz con un brillo encantador, creando un hermoso
ambiente. Transmita música de forma inalámbrica desde cualquier dispositivo habilitado
para Bluetooth®. La función de enlace múltiple le permite vincular varios altavoces de forma
inalámbrica, ¡hasta 50 a la vez! Coloque altavoces alrededor de su espacio al aire libre y
reprodúzcalos todos al mismo tiempo con facilidad. El iHRK-500LTMS es la solución perfecta
para sus necesidades de audio inalámbrico al aire libre y seguramente impresionará a sus
amigos y vecinos.
ALTAVOZ EXTERIOR TODO TIEMPO
Con una clasificación de IPX5, el iHRK-500LTMS es resistente al agua, especialmente
diseñado para soportar la mayoría de los entornos.
PAR DE ALTAVOCES MULTIENLACE ACTIVO
Fácil de vincular un altavoz maestro activo y altavoces esclavos múltiples para una amplia
cobertura de sonido.
BLUETOOTH®
Conexión inalámbrica súper simple. Una vez que conecte su dispositivo preferido a través
de Bluetooth®, se conectará automáticamente en el futuro. El indicador LED muestra el
estado de la conexión.
GRAN SONIDO, PAQUETE COMPACTO
Amplificador de clase D específicamente sintonizado para uso en exteriores y diseño de
herramientas de gabinete personalizado.
BATERÍA RECARGABLE
El iHRK-500LTMS está equipado con una batería recargable de iones de litio de 2000 mAh.
Cargue a través de un cable microUSB o el panel solar incorporado del altavoz.

16
LED COLOR
FUNCIÓN
ESTADO
ROJO
Carga
Carga de la batería
APAGADO
Carga
Totalmente cargado
AZUL (Parpadeante)
Bluetooth
Intentar emparejar
AZUL (Sólido)
Bluetooth
Emparejamiento exitoso
AZUL-BLANCO
(Sólido)
Multienlace
Ponente Maestro
BLANCO
(Parpadeante)
Multienlace
Intentar vincular a Master
BLANCO (Sólido)
Multienlace
Vinculado a Master

17
1.Encendido / APAGADO
Mantenga presionado para encender y
apagar
Presione dos veces el botón de
encendido para cambiar el modo de luz
LED.
Modo 1: Desactivado
Modo 2: 7 colores sólidos para
seleccionar.
Modo 3: Ritmo al ritmo de la música
Cambio de colores
Cuando esté encendido, mantenga
presionado el botón de encendido
durante 3 segundos para recibir una
notificación de la batería.
2.Pair (Multi-Link)
Presione brevemente el botón PAIR
para vincular el altavoz, LED en blanco.
Presione dos veces el botón PAIR para
ser el altavoz maestro, LED en azul-
blanco.
Mantenga pulsado el botón PAIR 3
segundos para desconectar Bluetooth®.
Escuchará "Bluetooth desconectado".
Nota: se apaga automáticamente
después de 10 minutos si no se
reproduce audio.
3.Carga micro-USB
4.LED de carga
RED - La batería del altavoz se está
cargando.
Apagado - Batería del altavoz
completamente cargada.
5.Bluetooth / Multi-Link LED
5.1 LED Bluetooth
PARPADEO AZUL - Intentando
emparejar Bluetooth.
SOLID BLUE- El altavoz se ha
emparejado con éxito a través de
Bluetooth.
5.2 LED multienlace
Altavoz Master:
SOLID BLUE-WHITE – Master
Speaker se ha emparejado con
éxito a través de Bluetooth / Multi-
link. y el altavoz está sonando.
Oradores de enlace adicionales:
PARPADEO BLANCO - Intento de
emparejamiento de enlaces
múltiples.
SOLID WHITE - El altavoz se ha
emparejado con éxito a través de
Multi-link y Speaker está sonando.
NOMBRE DE EMPAREJAMIENTO
BLUETOOTH:
iHome iHRK-500LTMS

18

19

20
CARACTERÍSTICAS TÉCNICAS
PRODUCTO:
iHRK-500LTMS
Activo/Pasivo
Activo
Tipo de amplificador (CLASS)
D
Tamaño del controlador
5"
Potencia total (PICO)
30 W
Bluetooth
BT5.0 – Alcance >10 metros con MULTI-LINK
Respuesta de frecuencia
90Hz-12 kHz
Iluminación
SÍ
Sensibilidad e impedancia
86dB, 4Ω
Clasificación de grado
impermeable
IPX5
Material de la carcasa
Gabinete de resina absorbente de resonancia
Adaptador de corriente
5V USB + Carga solar
Especificaciones de la
batería
Batería recargable de iones de litio de 2000mAH
PRODUCTO:
iHRK-500LTMS-PR
Activo/Pasivo
Activo
Tipo de amplificador (CLASS)
D
Tamaño del controlador
5" x 2
Potencia total (PICO)
30W x 2
Bluetooth
BT5.0 – Alcance >10 metros con MULTI-LINK
Respuesta de frecuencia
90Hz-12 kHz
Iluminación
SÍ
Sensibilidad e impedancia
86dB, 4Ω
Clasificación de grado
impermeable
IPX5
Material de la carcasa
Gabinete de resina absorbente de resonancia
Adaptador de corriente
5V USB + Carga solar
Especificaciones de la
batería
2 x 2000mAH Baterías recargables de iones de
litio
