QUICK SETUP
Draco Video
(Media/DVI) Converter
(Series 238)
KVM & BEYONDQUICK SETUP CONTACT
Draco Video Converter Series 238 Draco Video Converter Series 238 Customized KVM Solutions for each application
4. Download
We continue to develop and improve our products, adding new
functions and features on a regular basis, so we want you to
always have the latest manual. For this reason, we do not include
a manual in an electronic or printed form but kindly ask you to
download the latest manual using the following link:
ihse.com/manuals
tel. +1 732 738 8780
fax +1 732 631 0121
[email protected]om
www.ihseusa.com
EST
9.00 am to 5.00 pm
tel. +65 6841 4707
sales@ihseapac.com
www.ihseapac.com
SGT
9.00 am to 6.00 pm
tel. +49 7546 9248-43
fax +49 7546 9248-48
[email protected]
Skype: ihse.support
www.ihse.de
CET
8.00 am to 6.00 pm
8.00 am to 5.00 pm
IHSE USA (AMERICAS)
IHSEUSA LLC
1 Corporate Drive
NJ 08512 Cranbury
USA
Support hours:
Monday - Friday
IHSE ASIA (APAC)
IHSE GmbH Asia Pacic Pte Ltd
158 Kallang Way, #07-13A
349245 Singapore
Singapore
Support hours:
Monday - Friday
IHSE Headquarters (EUROPE)
IHSE GmbH
Benzstrasse 11
88094 Oberteuringen
Germany
Support hours:
Monday - Thursday
Friday

3. Technical Support
Prior to contacting support please ensure you have read the
manual, and then installed and setup your KVM matrix as
recommended.
Support Checklist
To eiciently handle your request it is necessary to complete our
checklist for support and problem cases:
ihse.com/checklist
Please have the following information available before you call:
■Company, name, phone number and e-mail
■Type and serial number of the device (see bottom of
device)
■Date and number of sales receipt, name of dealer if
necessary
■Issue date of the existing manual
■Nature, circumstances and duration of the problem
■Involved components (such as graphic source/CPU, OS,
graphic card, monitor, USB-HID/USB 2.0 devices,
interconnect cable) including manufacturer and model
number
■Results from any testing you have done
Shipping Checklist
1. To return your device, please contact your dealer to obtain
a RMA number (Return-Material-Authorization).
2. Package your devices carefully, preferably using the
original box. Add all pieces which you received originally.
3. Please note your RMA number visibly on your shipment.
Please understand that devices which are sent in without
a RMA number cannot be accepted.
QUICK SETUPQUICK SETUP QUICK SETUP
Series 238 Draco Video Converter Series 238 Draco Video Converter
2.3 Optimization of Picture Settings
All common video modes are pre-installed in an internal table of
the Draco Video Converter. If the input signal corresponds to one
of these video modes, the signal will be automatically detected
and the picture will be displayed. If picture quality is not satisfying
or no picture is displayed, proceed as follows:
1. Optimize the output settings (see Chapter 6.1.1, Page 37 in
the manual). Thus, the picture display will be adapted to the
properties of the monitor.
2. Optimize the input settings (see Chapter 6.1.2, Page 38 in the
manual). Check if the automatically detected video mode
corresponds to your input signal. Alternatively, you can
manually select the most suitable video mode, even if you
have an unknown input signal.
3. Optimize the picture settings for your input signal (see
Chapter 6.1.3, Page 39 in the manual).
3. Download of DDC Information
Loading DDC information is only relevant if you want to connect
a DVI or VGA source. By default, the factory DDC information is
reported to the source (computer, CPU). If these settings do not
lead to a satisfying result, the DDC information of the connected
monitor can be downloaded and stored internally.
3.1 Download of DDC by Infrared Remote Control
1. Press the <DDC> button on your infrared remote control.
2. Save the DDC as DVI or VGA DDC matching the input video
signal. The DDC information of the connected monitor is
saved in the Draco Video Converter in the selected format. The
source (computer, CPU) can read the DDC information of the
monitor and display the available video resolutions.
3.2 Download of DDC via OSD
1. Open the OSD with the infrared remote control.
2. Select‚ General Settings‘ in the main menu (see Chapter 5.3.5,
Page 33 in the manual).
3. Select the menu item ‚Read DDC‘ in the submenu ‚DDC‘.
4. Save the DDC as DVI or VGA DDC matching the input video
signal. The DDC information of the connected monitor is
saved in the Draco Video Converter in the selected format and
is displayed at the bottom of the OSD menu under ‚DEV:‘. The
source (computer, CPU) can read the DDC information of the
monitor and display the available video resolutions.
2. Specications
2.1 Package Contents
You should receive the following items in your package:
■Draco Video Converter device
■5VDC international power supply unit
■Country specic power cord
■Quick Setup
■VGA cable (1.8 m, VGA connector to DVI-I connector
■Infrared remote control
1. System Setup
First time users are recommended to carry out a test
placement by setting up the system in a single room. This
will allow you to identify and solve any cabling problems,
and experiment with your system more conveniently.
Please verify that interconnect cables, interfaces and
handling of the devices comply with the requirements
(see Chapter 7, Page 42 in the manual).
1. Switch o all devices
2. Connect the monitor to the Draco Video Converter.
3. Connect the source (e.g. computer, video camera or
control unit) to the Draco Video Converter with the
provided cables.Please ensure the cables are not strained.
4. Connect the provided 5VDC power supply to the Draco
Video Converter.
5. Power the system.
To power up the system, the following sequence is
recommended: Monitor – CON Unit – CPU Unit – source.



Additional content for K238-5VE:
■EGA cable (1.8 m, D-Sub 9 connector)
■Component video cable (1.5 m, 3x RCA connector)
■S-Video (3.0 m, Mini-DIN connector, 4 pole)
Additional content for K238-5VS:
■SDI cable (2.0 m, BNC connector)
■Component video cable (1.5 m, 3x RCA connector)
■S-Video (3.0 m, Mini-DIN connector, 4 pole)
Additional content for K238-5FBNC:
■RGB cable (2.0 m, 5x BNC connector)
If anything is missing, please contact your dealer.

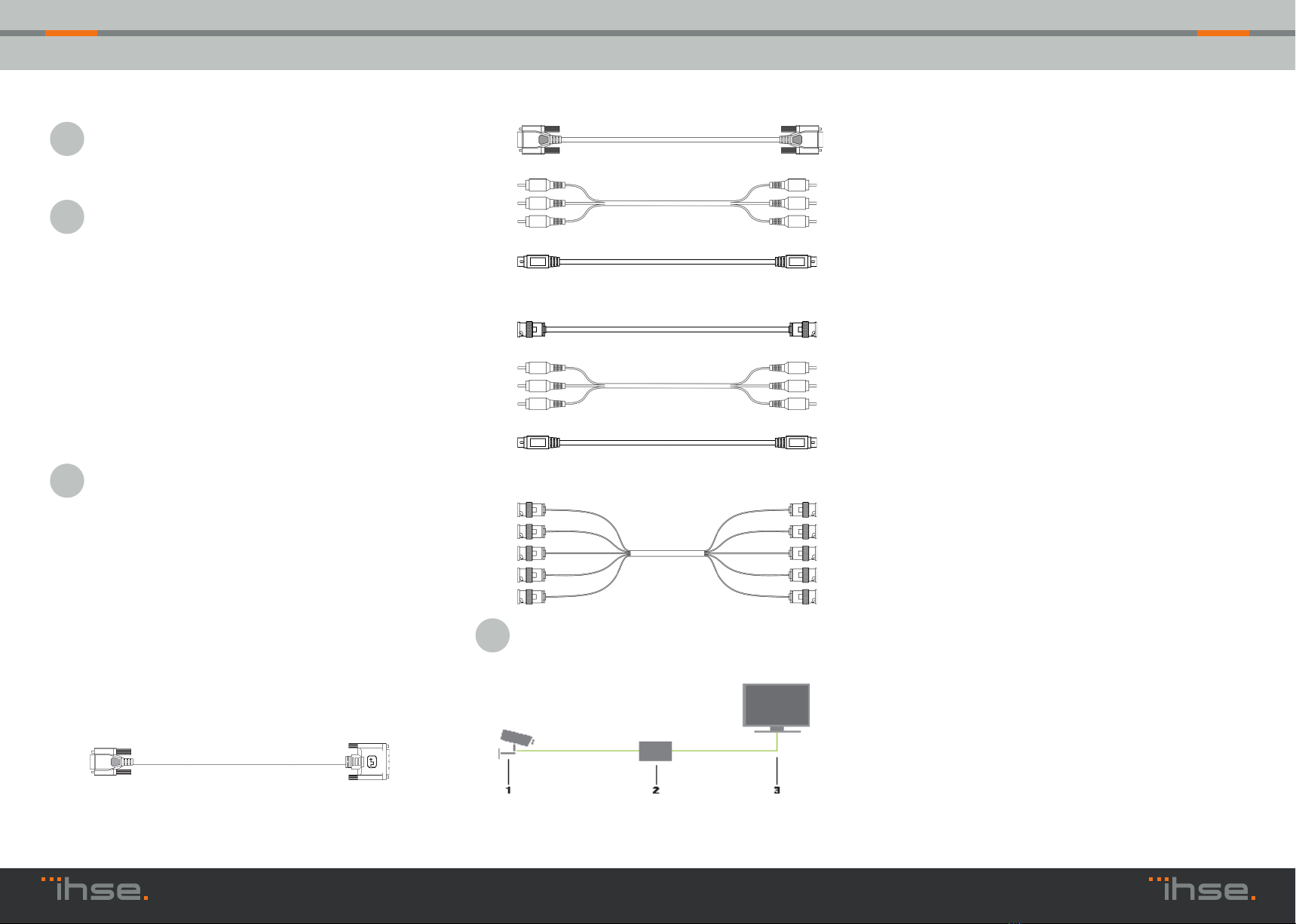

2.2 System Overview
1. Source (e.g. observation camera)
2. Draco Video Converter
3. Monitor

