Iiyama ProLite E2710HDS User manual

DEUTSCH
FRANCAIS
ENGLISH
NEDERLANDS
USER MANUAL
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through this
brief but comprehensive manual before
installing and switching on the monitor.
Please keep this manual in a safe
place for your future reference.
POLSKI

ENGLISH

ENGLISH
Congratulations,
Your display is designed for both you and
the planet!
This display carries the TCO Certified label. This ensures that the display is designed for minimal
impact on the climate and natural environment, while offering all the performance expected from top
of the line electronic products. TCO Certified is a third party verified program, where every product
model is tested by an accredited independent test laboratory. TCO Certified represents one of the
toughest certifications for displays worldwide.
Some of the Usability features of the TCO Displays 5.0 requirements:
Visual Ergonomics
Good visual ergonomics in order to improve the working environment for the user and to reduce sight
and strain problems. Important parameters are:
●Light levels without color tint, Uniform color and luminance, Wide color gamut
●Calibrated color temperature and gamma curve
●Wide luminance level, Dark black levels, Low monitor blur
Electrical Safety
●Product fulfills rigorous safety standards
Emissions
●Low alternating electric and magnetic fields emissions
●Low acoustic noise emissions
Some of the environmental features of the TCO Displays 5.0 requirements:
●The brand owner demonstrates corporate social responsibility and has a certified environmental
management system (EMAS or ISO14001)
●Very low energy consumption both in on- and standby mode
●Restrictions on chlorinated and brominated flame retardants, plasticizers and polymers
●Restrictions on heavy metals such as cadmium, mercury and lead (RoHS compliance)
●Both product and product packaging is prepared for recycling
●The brand owner offers take-back options
The requirements included in this label have been developed by TCO Development in co-operation
with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s
TCO has been involved in influencing the development of IT equipment in a more user-friendly
direction.
Our labeling system started with displays in 1992 and is now requested by users and IT-
manufacturers all over the world.
For more information, please visit: www.tcodevelopment.com
Technology for you and the planet

ENGLISH
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC Directive 2004/108/EC “EMC
Directive” , 2006/95/EC “Low Voltage Directive” and 2005/32/EC “EuP Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.
We reserve the right to change specifications without notice.
All trademarks used in this user manual are the property of their respective owners.
As an ENERGY STAR® Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the address:
http://www.iiyama.com
You can access the Web page of different countries from there.
For displays with glossy bezels the user should consider the placement of the display as the bezel
may cause disturbing reflections from surrounding light and bright surfaces.

ENGLISH
FOR YOUR SAFETY.............................................................................................. 1
SAFETY PRECAUTIONS ................................................................................ 1
SPECIAL NOTES ON LCD MONITORS.......................................................... 3
CUSTOMER SERVICE.................................................................................... 3
CLEANING....................................................................................................... 3
BEFORE YOU OPERATE THE MONITOR............................................................ 4
FEATURES ...................................................................................................... 4
CHECKING THE CONTENTS OF THE PACKAGE......................................... 4
FITTING AND REMOVAL OF BASE.................................................................. 5
CONTROLS AND CONNECTORS .................................................................. 6
CONNECTING YOUR MONITOR.................................................................... 7
COMPUTER SETTING.................................................................................... 8
ADJUSTING THE VIEWING ANGLE............................................................... 8
OPERATING THE MONITOR................................................................................. 9
ADJUSTMENT MENU CONTENTS ................................................................10
SCREEN ADJUSTMENTS...............................................................................16
POWER MANAGEMENT FEATURE ...............................................................19
TROUBLE SHOOTING ..........................................................................................20
RECYCLING INFORMATION.................................................................................21
APPENDIX ............................................................................................................22
SPECIFICATIONS : ProLite E2710HDS ........................................................22
SPECIFICATIONS : ProLite E2710HDSD ......................................................23
DIMENSIONS .................................................................................................24
COMPLIANT TIMING.......................................................................................24
TABLE OF CONTENTS

ENGLISH
1 FOR YOUR SAFETY
FOR YOUR SAFETY
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor
and contact your dealer or iiyama service center immediately. Further use may be dangerous and can
cause fire or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire
or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any
object inside may cause fire, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric
shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will
cause malfunction and may cause fire or electric shock.
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objects on the cables. If damaged, the cables may cause fire or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may
cause electric shock.
SAFETY PRECAUTIONS

ENGLISH
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky
areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun
shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not pull
the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire.
To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet
will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage.
Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also
cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable
is disconnected. If you do not disconnect them, it may cause fire or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid
accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself
as this may cause fire or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage
your computer.
DO NOT PUT FLOPPY DISKS NEAR THE SPEAKERS
Magnetically recorded data, such as on a floppy disk, may become corrupted by the magnetic field
produced by the speakers if the disks are placed on or near the speakers.
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is
recommended as looking at the screen continuously can cause eye strain.
OTHERS
FOR YOUR SAFETY 2

ENGLISH
The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE When you first turn on the LCD monitor, the picture may not fit in the display area
because of the type of computer that is used. In this case, adjust the picture position
to the correct position.

Due to the nature of the LCD screen, an afterimage of the previous screen may
remain after switching the image, when the same image is displayed for hours. In this
case, the screen is recovered slowly by changing the image or turning off the Power
Switch for hours.

You may find slightly uneven brightness on the screen depending on the desktop
pattern you use.

SPECIAL NOTES ON LCD MONITORS
Contact your dealer or iiyama service center for the backlight replacement when the
screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.

Due to the nature of the backlight, the screen may flicker during initial use. Turn off
the Power Switch and then turn it on again to make sure the flicker disappears.

NOTE The fluorescent light used in the LCD monitor may have to be periodically replaced.
For the warranty coverage on this component, please check with local iiyama service
center.
If you have to return your unit for service and the original packaging has been
discarded, please contact your dealer or iiyama service center for advice or
replacement packaging.


WARNING If you drop any materials or liquids such as water into the monitor when cleaning,
unplug the power cable immediately and contact your dealer or iiyama service center.

CAUTION For safety reasons, turn off the power switch and unplug the monitor before you clean
it.

NOTE To protect the LCD panel, do not scratch or rub the screen with a hard object.

Never use any of the following strong solvents. These will damage the cabinet and the
LCD screen.

Thinner
Benzine
Abrasive cleaner
Spray-type cleaner
Wax
Acid or Alkaline solvent
Touching the cabinet with any product made from rubber or plastic for a long time may
cause degeneration or loss of paint on the cabinet.

CABINET Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then
wipe the cabinet with a soft dry cloth.
LCD
SCREEN
Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.
CUSTOMER SERVICE
CLEANING
3 FOR YOUR SAFETY

ENGLISH
The following accessories are included in your package. Check to see if they are enclosed with the monitor.
If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.
*The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
a power supply higher than this rating, then a power cable with a rating of 10A/
250V must be used.However, all guarantees and warranties are void for any
problems or damage caused by a power cable not supplied by iiyama.
Power Cable* 
D-Sub Signal Cable DVI-D Cable

USB Cable  Audio Cable Stand-Base
Quick Start Guide
BEFORE YOU OPERATE THE MONITOR
CHEKING THE CONTENTS OF THE PACKAGE
CAUTION
BEFORE YOU OPERATE THE MONITOR 4
FEATURES
Supports Resolutions up to 1920 × 1080
High Contrast 1000:1 (Typical), ACR Function Available / Brightness 400cd/m2
(Typical), Quick Response Time 5ms (Black, White, Black)
Digital Character Smoothing
Automatic Set-up
Stereo Speakers
2 × 2W Stereo Speakers

Plug & Play VESA DDC2B Compliant
Windows®95/98/2000/Me/XP/Vista/7 Compliant
Power Management (ENERGY STAR®VESA DPMS Compliant)
Ergonomic Design TCO 5.0
VESA Mounting Standard (100mm×100mm) Compliant
Keyhole for Security Lock

ENGLISH
5 BEFORE YOU OPERATE THE MONITOR
Put the monitor on a stable surface. The monitor may cause injury or damage if it
falls or is dropped.

Do not give a strong impact to the monitor. It may cause damage.

Unplug the monitor before removal or installation to avoid electric shock or damage.

The monitor is supplied complete with a stand. If you prefer to wall mount the monitor, please follow
the instructions below to remove the stand. Be sure to include the stand with the monitor if it is
necessary to return the unit.
CAUTION
FITTING AND REMOVAL OF BASE
<Installation>
Put a piece of soft cloth on the table
beforehand to prevent the monitor from being
scratched. Lay the monitor flat on a table with
front face down.
Hold the monitor and push the Stand-Base.
<Remove>
Put a piece of soft cloth on the table
beforehand to prevent the monitor from being
scratched. Lay the monitor flat on a table with
front face down.
Press and hold the hooks inside, and pull the
Stand-Base.
Stand-Base
Hooks

ENGLISH
BEFORE YOU OPERATE THE MONITOR 6
CONTROLS AND CONNECTORS
Power Switch ( )
Menu / Select Button (MENU)
+ / Volune Button ( + )
Power Indicator
Blue: Normal operation
Orange: Power Management
- / ECO Mode Button ( - )
Auto Button (AUTO)
Speakers
USB Connector ( )
USB Connector ( )
AC Connector (AC IN)
Keyhole for Security Lock
You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.
Headphone Connector (HEADPHONE)
USB Connector ( )
USB Connector ( )
Audio Connector (AUDIO)
D-SUB mini 15pin Connector (D-SUB)
DVI-D 24pin Connector (DVI-D)
HDMI Connector (HDMI)*
NOTE
<Front> <Back>
NOTE
HDMI DVI-D D-SUB HEADPHONE
AUDIO IN
* Available for ProLite E2710HDS only.

ENGLISH
CONNECTING YOUR MONITOR
Ensure that both the computer and the monitor are switched off.
Connect the computer to the monitor with the signal cable.
Connect the monitor to the audio equipment with the Audio Cable for computer when using the
audio features.
Connect the Power Cable to the monitor first and then to the power supply.
Turn on your monitor and computer.
NOTE The signal cables used for connecting the computer and monitor may vary with the type of
computer used. An incorrect connection may cause serious damage to both the monitor and
the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If
a special cable is required please contact your local iiyama dealer or regional iiyama office.
For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama
office for a suitable adaptor.
Make sure you tighten the finger screws at each end of the signal cable.
[Example of Connection]
<Back>
Power Cable
(Accessory)
Audio Cable (Accessory)
Computer
D-Sub Signal Cable
(Accessory)
DVI-D Cable (Accessory)
HDMI Cable (Not Included) AV Equipment
USB Cable (Accessory)
Mouse Keyboard
* Available for ProLite E2710HDS only.
7 BEFORE YOU OPERATE THE MONITOR

ENGLISH
Signal Timing
Change to the desired signal timing listed on page 24: COMPLIANT TIMING.
Windows 95/98/2000/Me/XP/Vista/7 Plug & Play
The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on
Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with
the Signal Cable supplied.
For installation on Windows 95/98/2000/Me/XP: The monitor Information File for iiyama monitors
may be necessary for your computer and obtained via the Internet, using the address:
http://www.iiyama.com

Monitor Drivers are not required in most cases for Macintosh or Unix operating systems.
For further information, please contact your computer dealer first for advice.

For additional information on how to download the driver for your touch screen monitor,
please access the internet site noted above.
COMPUTER SETTING
NOTE
ADJUSTING THE VIEWING ANGLE
For optimal viewing it is recommended to look at the full
face of the monitor.
Hold the stand so that the monitor does not topple when
you change the monitor’s angle.
You are able to adjust the monitor’s angle up to 20
degrees upward, 5 degrees downward.
In order to ensure a healthy and relaxed body position
when using the monitor at visual display workstations, it
is recommended that the adjusted tilt angle should not
exceed 10 degrees. Adjust the monitor’s angle to your
own preference.
NOTE Do not touch the LCD screen when you change
the angle. It may cause damage or break the
LCD screen.
Careful attention is required not to catch your
fingers or hands when you change the angle.
20
5
BEFORE YOU OPERATE THE MONITOR 8

ENGLISH
9 OPERATING THE MONITOR
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT
TIMING shown on page 24. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS.
Press the MENU Button to start the On Screen Display feature. There are additional
Menu items which can be switched by using the + / - Buttons.
BSelect the Menu item which contains the adjustment icon relating to the adjustment
you want to make. Press the MENU Button. Then, use the + / - Buttons to highlight
the desired adjustment icon.
CPress the MENU Button again. Use the + / - Buttons to make the appropriate
adjustment or setting.
Adjustments for H. / V. Position, Clock and Phase are saved for each signal timing. Except for these
adjustments, all other adjustments have only one setting which applies to all signal timings.
When button operations are aborted during adjustment, On-Screen Display disappears when the
time set for the Timeout has passed. Also, the AUTO button can be used to return previous menu
and turn off the On-Screen Display.

NOTE

For example, to correct for vertical position, select Menu item of Image Setup and then press the
MENU Button. Then, select V.Position by using the + / - Buttons.
An adjustment page appears after you press the MENU Button. Then, use the + / - Buttons to
change the vertical position settings. The vertical position of the overall display should be changing
accordingly while you are doing this.
Press the AUTO Button lastly, it ends, any changes are saved in the memory.
Any changes are automatically saved in the memory when the On Screen Display
disappears.
Turning off the power should be avoided while using the Menu.
DPress the AUTO Button to leave the menu, and the settings you just made would
be automatically saved.
Luminance
Contrast
Brightness
Eco
Picture Mode
50
50
Off
Standard
ACR ON
Image Setup
Clock
Phase
H.Position
V.Position
50
50
50
50
Aspect Full

ENGLISH

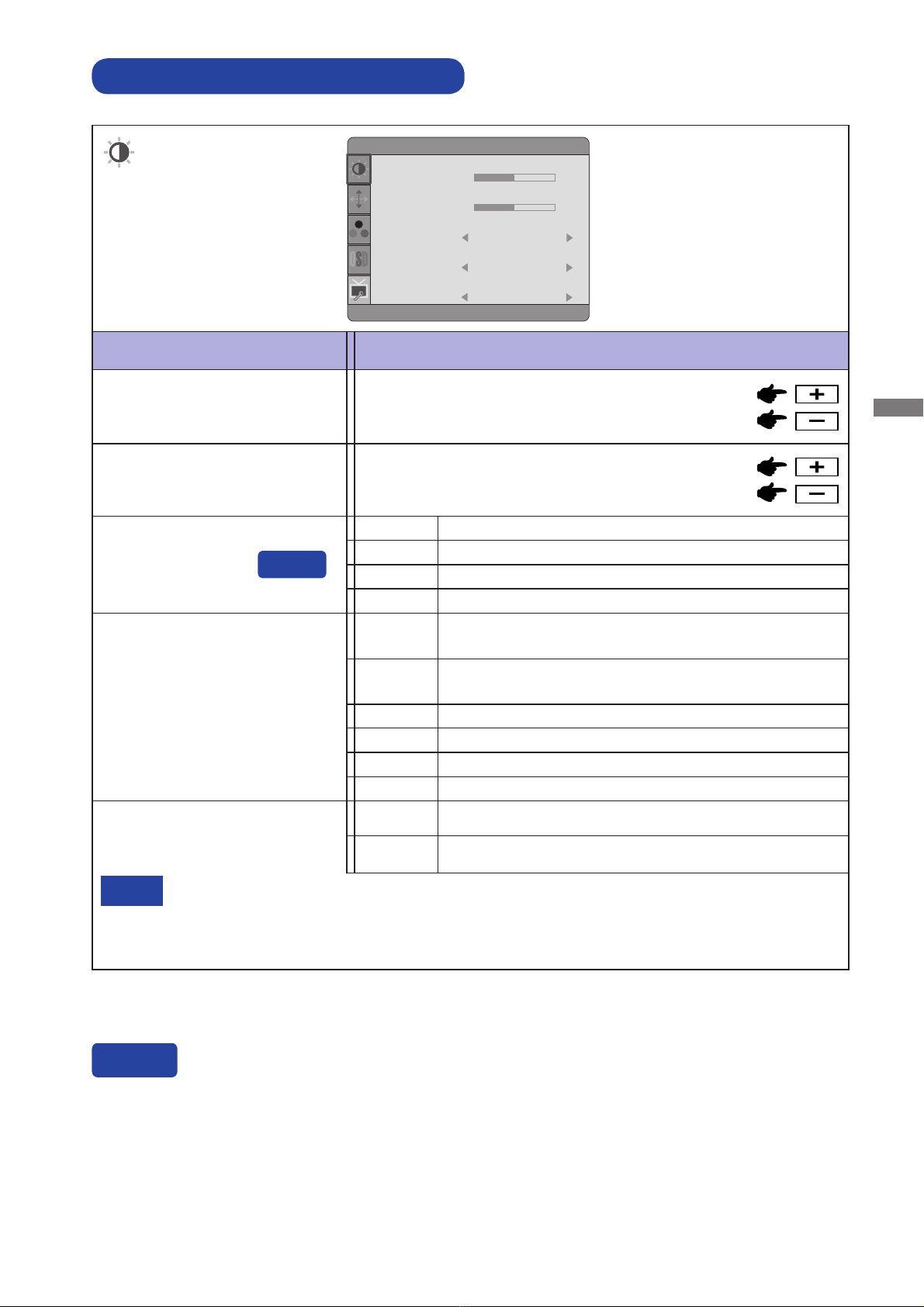

ADJUSTMENT MENU CONTENTS
Adjustment Item Problem / Option Button to Press
Luminance
Too dark
Too bright
Brightness *
Contrast Too dull
Too intense
*Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too
bright.
OPERATING THE MONITOR 10
Luminance
Contrast
Brightness
Eco
Picture Mode
50
50
Off
Standard
ACR ON
Mode1 Brightness of back-light is reduced.
Mode2 Brightness of back-light is reduced more than Mode1.
Off Normal
Eco
Mode3 Brightness of back-light is reduced more than Mode2.
Picture Mode
Standard For general windows environment and monitor
default setting.
Text For text editing and viewing in a word processing
environment.
Internet For internet environment.
Game For PC game environment.
Movie For movie and video environment.
Sport For sport environment.
ACR Increased Contrast Ratio
On
Off Typical Contrast Ratio
ACR adjusts brightness according to the image, and improve the contrast ratio during
move playing.
Contrast, Brightness, sRGB, Eco and Picture Mode cannot be adjusted and selected while
ACR is active.
NOTE
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

ECO: Press the - Button when the Menu is not displayed.
Direct
Direct

ENGLISH
Adjustment Item Problem / Option Button to Press
Image Setup
Phase*1,2
Clock*1,2
Too left
Too right
Too low
Too high
H. Position*2
V. Position*2
Too narrow
Too wide
To correct flickering text or lines
Image Setup
Clock
Phase
H.Position
V.Position
50
50
50
50
Aspect Full
*1See page 16 for SCREEN ADJUSTMENTS.
*2Only Analog Input.
Expansion display
Full
Aspect Expansion display of Aspect
Aspect
11 OPERATING THE MONITOR

ENGLISH
Adjustment Item Problem / Option Button to Press
Color Temp.
Yellowish white
Bluish white
User-G
User-R
User-B
Too weak
Too strong
User
Greenish white
NormalMode1
Mode2
High contrast
Dark
Mode3
Color Temp.
Gamma
User-R
User-G
User-B
50
50
Mode1
50
Color Temp. Warm
Gamma
Color Temp.
Normal
Warm
Cool
sRGB
sRGB
NOTE 
sRGB is an international standard which defines and unifies the difference of color
appearance between equipment.
You can not adjust the Brightness, Contrast, Gamma and Eco during sRGB mode
because those settings are locked.
OPERATING THE MONITOR 12

ENGLISH
Language
English
Deutsch
English
German
Français French
Japanese
Portuguese
Italiano Italian
Russian
Simplified Chinese
Español Spanish
Portuguese
Timeout
H.Position OSD is too left
OSD is too right
OSD is too low
OSD is too high
You can set the OSD display duration time
between 5 and 60 seconds.
Adjustment Item Problem / Option Button to Press
OSD Setup
V.Position
OSD Setup
H.Position
V.Position
Timeout
Language
50
50
English
50
13 OPERATING THE MONITOR

ENGLISH
See your graphic card user guide for more information
about changing the resolution and refresh.
NOTE
Displays information regarding the current input signal coming
from the graphic card in your computer.
Information
Adjustment Item Problem / Option Button to Press
Others
Reset Factory-preset data is restored.
No Return to Menu.
Yes
Signal Select
At selected Auto, you can switch the input source by pressing and holding of the AUTO
Button for 2-3 seconds, However it will automatically be selected when just one source is
using.
In Power Management Mode input switching is disabled.
Input source is fixed, not selected automatically when D-sub, DVI-D and HDMI which are
selected.
NOTE
Select the D-SUB input.
Select the DVI-D input.
D-sub
DVI-D
Others
Reset
Information
V.Frequency : 60Hz
Yes
Signal Select Auto
HDMI audio LINE IN
Input : Auto
Resolution : 1920(H)㧖1080(V)
H.Frequency : 68KHz
OD Mode3
Auto Select the signal input automatically.
Select the HDMI input.
LINE IN Select the LINE IN input.
HDMI
HDMI audio
Select the HDMI input.HDMI
* When OD is activated, some level of image retention will be caused.
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

Signal Select: Pressing and holding of the AUTO Button for 2-3 seconds when the Menu is not
displayed.
Direct
Direct
OD*
OFF/Mode1/Mode2/Mode3/Mode4/Mode5
It will improve the gray level response time of the
LCD panel.
A higher level results in a faster response time.
OPERATING THE MONITOR 14

ENGLISH
Adjustment Item Problem / Option Button to Press
Volume Too soft
Too loud
Adjustment Item Problem / Option Button to Press
Auto Adjust *
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.
Direct
Adjust H. / V. Position, Clock and Phase automatically.
* For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 16 for
SCREEN ADJUSTMENTS.
Only Analog Input

Auto Adjust: Press the AUTO Button when the Menu is not displayed.

Volume: Press the + Button when the Menu is not displayed.
15 OPERATING THE MONITOR
