Iiyama DPX110 User manual

DLP PROJECTOR
USER’S GUIDE
Thank you for purchasing the DLP Projector.
Please read this user’s guide to ensure correct use of the device. Save this user’s
guide for future reference.
OUTLINE
This DLP Projector can display various computer signals and NTSC/PAL/SECAM video
signals.
FEATURES
1. High Brightness
2. High Resolution
3. Compact Size, Feather Weight for Portability
4. Durable Magnesium Alloy Body
5. RGB Output Terminal
6. One Touch Auto-Adjustment Function (i - key)
7. Easy Keystone Adjustment

Table of Contents
ii DLP Personal Projector
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Shipping Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Projector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
External Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Adjuster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Projector Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Remote Control Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Control Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing or Replacing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting to Various Equipment . . . . . . . . . . . . . . . . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

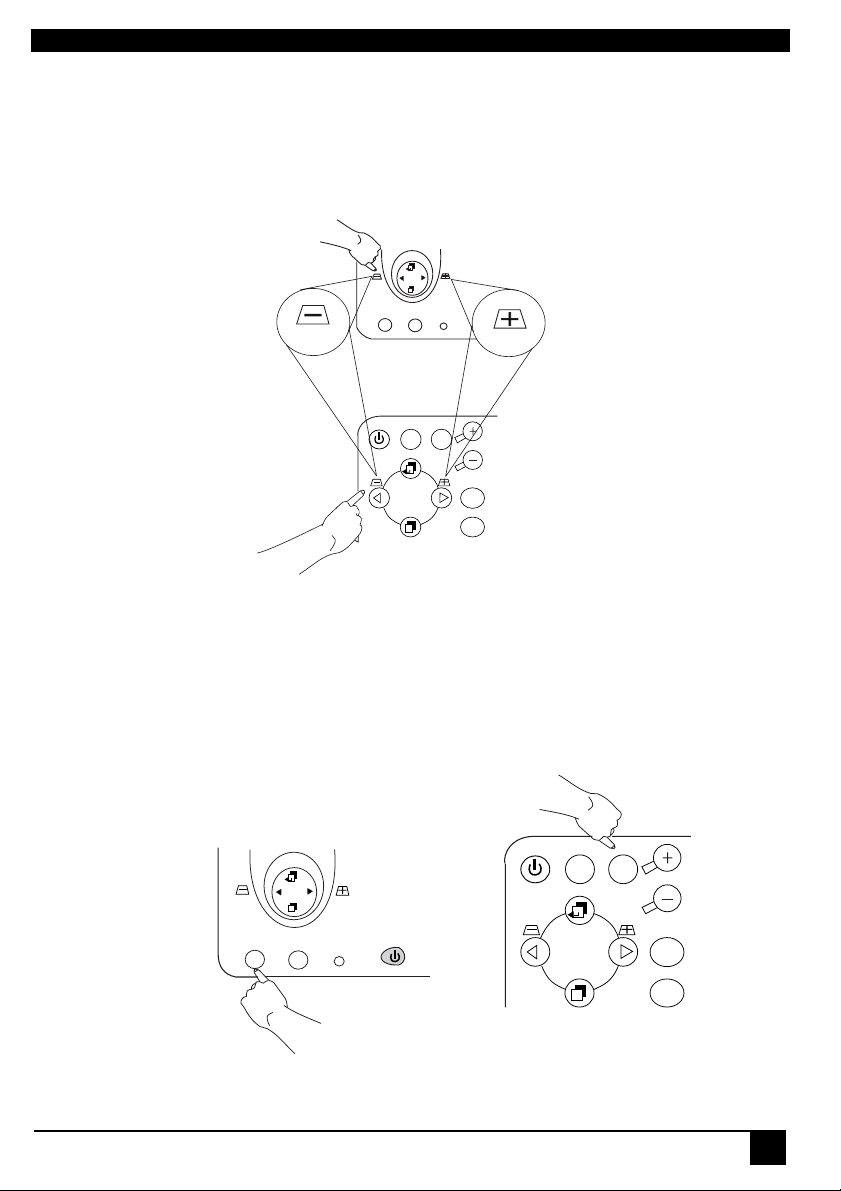

Digital Keystone Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Source Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1. Display Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2. Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3. Source Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.Control Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5. PIP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Lamp Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Use and Replacement of Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
LED Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Lamp Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Resetting Lamp Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 21
Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 23
Projector Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Timing Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

DLP Personal Projector 1
INTRODUCTION
Caution
TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER –SERVICE-
ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSON-
NEL. PLEASE READ THIS USER’S GUIDE BEFORE YOU OPERATE YOUR
PROJECTOR. SAVE THIS USER’S GUIDE FOR FUTURE REFERENCE .
Safety Instructions
1. Read this user’s guide before you operate your projector and save it for future
reference.
2. The lamp becomes extremely hot during operation. Allow the projector to cool
for approximately 45 minutes prior to removing the lamp assembly for
replacement. Do not operate lamps beyond the rated lamp life. Excessive
operation of lamps beyond the rated life could cause them to explode on rare
occasions.
3. Never replace lamp assembly or any electronic components unless the
projector is unplugged.
4. To reduce the risk of electric shock, do not disassemble this appliance. Take it
to a qualified technician when service or repair is required. Incorrect
reassembly can cause electric shock when the appliance is subsequently used.
5. Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage to the product.
6. This product is capable of displaying inverted images for ceiling mount
installation. Please use suitable equipment for mounting the unit and ensure it
is securely installed.
7. To prevent lamps from bursting, change the lamp after changing the mounting
position of projectors (desktop to ceiling mount or ceiling mount to desktop
mount).
Caution
• Always open the lens shutter or remove the lens cap when the projector
lamp is on.
• Do not look straight at the projector lens during operation. The intense
light beam may damage your eyesight.
• In some countries, the line voltage is NOT stable. This projector is
designed to operate safely within a bandwidth of 110 to 230 volts, but
could fail if power cuts or surges of ±10 volts occur. In these high-risk
areas, it is recommended to install a power stabilizer unit.

2DLP Personal Projector
Save this user’s guide: The information contained in this manual will assist you in operating
and maintaining your Personal Projector.
Shipping Contents
The Projector is shipped with the necessary cables required for standard PC,
Macintosh or laptop computer connections.Carefully unpack and verify that you
have all the items shown below. If any of these items are missing, please contact
your place of purchase.
Optional Accessories
1. Spare lamp kit
2. Mac Adapter
Projector User’s Manual Remote Control
Batteries
3-2 Converter
Audio Cable
220V 240V
Power Cord
110V
HDTV Cable VGA Cable
S-Video Cable Video Cable Deluxe Soft Carry Case
Quick Start Guide

DLP Personal Projector 3
Projector Description
Projector
1. External control panel
(see next page)
2. Projection lens
3. Front adjustment feet
4. IR remote sensor
5. Ventilation grill
6. Kensington lock
7. AC power cord input
8. S-video connector
9. Video connector
10. D-sub connector
(for computer/ input)
11. Audio input
12. Rear adjustment feet
13. Lamp access door
(underneath unit)
gen-e.fm Page 3 Tuesday, March 5, 2002 10:29 AM

4DLP Personal Projector
External Control Panel
•TheInfrared Remote Receiver (Front and Rear) allows the projector to
accept signals from the remote control. For best results, be sure to aim the
control toward the sensor without any obstructions between the two, and at a
distance no greater than 6 meters.
•Menu will display the menu system on screen. Press Menu again to access the
sub-menus. Left and Right help you navigate among choices and settings in
the menus and sub-menus. However, when the onscreen menu is not
activated, the Left and Right buttons will function as Keystone +/- hot keys.
• Press the Exit button to go back to the main menu. Press Exit again to leave
the menu system.
•TheStatus Indicator will blink or light up when the lamp needs service, cooling
or replacement. See “Lamp Information” on page 18. for more detailed
information.
• When the projector is on, back-lit Power will blink during warm-up and turn to
solid green to indicate the projector is ready for use.
• Press Power for 1 second to turn the projector on or off.
•Auto key: Automatically sense the best picture quality for current received
signals.
•Source key: Select signal sources, PC, Video, S-video and YPbPr.
Auto Source Power
Keystone/ Left
Menu
Exit
Keystone/ Right
Lamp status indicator

DLP Personal Projector 5
Adjuster
The projector is equipped with a quick-release adjuster foot and button for adjusting
its tilt angle.
1. Lift the projector up and press the adjuster button to release the adjuster.
2. The adjuster will drop into position and be locked.
Projector Features
The Projector integrates high performance optical engine projection and user-
friendly design to deliver high reliability and ease of use experience.
The Projector offers the following features:
• Compact and portable unit
• Full-function remote control
• Manual zoom lens
• One key auto-adjustment to display the best picture quality
• Easy digital keystone correction through hot keys to correct tilted pictures
• Adjustable color balance control for data/video
• Ultra-high brightness projection lamp
• Ability to display high quality 16.7 million colors
• On screen menus in 7 languages: English, French, German, Italian, Spanish,
Simplified Chinese, and Traditional Chinese.
• Powerful AV function to provide high AV picture results.
• HDTV compatibility (YPbPr)
Note: The brightness of your machine will vary depending on the ambient
room conditions and contrast/brightness settings.

6DLP Personal Projector
Remote Control Description
Remote Control Features
The remote control sensors are located in the front/ back of the projector. The
distance between the sensor and the remote control should not exceed 6 meters.
Keystone
Power Source
Volume -
PIP Video
PIP S-video
Return
Exit
Auto
Menu
Mute
Zoom +
Freeze
Zoom -
Blank

DLP Personal Projector 7
FREEZE
The image can be frozen when FREEZE is pressed. A “Pause” icon will appear in
the lower right corner of the screen for three seconds. To release the freeze
function, again press the FREEZE button, RETURN button or SOURCE button
(when the input source is switched over during display). A “Play” icon will appear in
the lower right corner of the screen for three seconds when the freeze function is
released.
ZOOM IN/OUT
By pressing ZOOM IN +, the center of the picture will be magnified. When the +
button is pressed again, the picture is further magnified, up to four times the original
size. By pressing ZOOM OUT -, the size of the image is reduced. When the -button
is pressed again, the picture is further reduced until it is restored to its original size.
To return to the normal display mode, press the RETURN button. (This function can
be used in combination with FREEZE. )
A
A
Zoom In

8DLP Personal Projector
Installing or Replacing Batteries
• Push and slide the battery compartment lid in the direction shown.
• Install battery as indicated by the diagram inside the compartment.
• Position the lid over the compartment and snap it back into place.
Caution
Avoid excessive heat and humidity. Danger of explosion may happen if bat-
tery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to
the manufacturer’s instructions.

DLP Personal Projector 9
INSTALLATION
Screen Size
Place the projector at the required distance from the screen according to the desired
picture size (see the table below).
Connecting to Various Equipment
It only takes a few seconds to connect your projector to your computer/notebook,
VCR or other systems. However, a Mac adapter (an optional accessory) is needed
for connection for Macintosh users.
Screen Size (Max.) L. Projection
distance (cm)
Screen Size (Min.)
Diagnal A. Width (cm) C. Height (cm) B. Width (cm) D. Height (cm)
30.4 61.8 46.3 100 50.7 38.0
60.8 123.65 92.7 200 101.3 76.0
91.2 185.3 138.9 300 151.9 113.9
121.5 247.0 185.2 400 202.5 151.9
151.9 308.7 231.6 500 253.2 189.9
182.3 370.5 277.9 600 303.8 227.9
213.1 432.2 324.18 700 354.4 266.2
243.1 494.0 370.5 800 405.1 303.8
L Projetion Distance
Audio
Video
S-video
Computer/
HDTV
S-Video/
Video

10 DLP Personal Projector
OPERATION
Start Up
1. Plug the power cord into a wall socket.
2. Press POWER for 1 second.
• The back-lit POWER key blinks green and stays green when the power is
turned on.
(When the power is turned off, there is a 60-second cooling period before the
projector can be re-started.)
3. Switch on all connected equipment.
Power
Power
Projector Remote Control

DLP Personal Projector 11
Digital Keystone Correction
Keystoning is when the projected image is noticeably wider on either the top or
bottom. To correct this, press KEYSTONE +/- (hot key) on the control panel of the
projector or on the remote control, then adjust the sliding bar labeled Keystone, as
needed. Press + to correct keystoning at the top of the image. Press -to correct
keystoning at the bottom of the image.
Auto Adjustment
In some cases, you may have to optimize the picture quality manually. To do this,
press the AUTO key on the control panel of the projector or on the remote control.
Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust to
the best picture quality.
Auto Source
Projector
Remote control
Auto Source
Auto
Projector Remote control

12 DLP Personal Projector
Source Selection
When several input sources are available, press the SOURCE key to make a
selection from the control panel of the projector or the remote control.
Menu System
Press Menu for the main menu and press 3or 4to select a sub-menu. Press
Menu again to select items in the sub-menu.
Auto Source
Source
Power
Power
Projector Remote control
Menu Bar
Sub-menu Display Image Source Control PIP
PC
Keystone
Brightness
Contrast
Phase
H.Size
Auto resize
H-position
V-position
Color Temp
Information
Mirror
Source
Volume
Treble
Bass
Mute
Langauge
OSD
OSD Time
Auto Off
Reset
Lamp hour
Main page:
PIP Source
PIP size
PIP Pos.
H. Position
V.P osit ion
More Options
Sub Page:
Brightness
Contrast
Color
Tint
Sharpness
System
Y/Pb/Pr
Auto resize
H-position
V-position
Color
Tint
Color Temp
Video
Keystone
Brightness
Contrast
Color
Tint
Ratio
System
Sharpness
Color temp
Information

DLP Personal Projector 13
1. Display Menu
Keystone
Corrects the keystone of the image.
Brightness
Adjusts the brightness of image.
Contrast
Adjusts the degree of difference between darkness and lightness of
image.
Phase
Adjusts to fit in the desired image size.
*This function is not available when the input mode are Video,
S-video.
H.Size
Adjusts to avoid the occurrence of flicker.
*This function is not available when the input mode are Video,
S-video.
Color Adjusts to increase or decrease the colors (R, G, B) of image.
*This function is not available when the input mode is PC.
Tint Adjusts to make the image look more red or blue.
*This function is not available when the input mode is PC.

14 DLP Personal Projector
2. Image Menu
Auto resize
Makes the best fit of the image to the screen,
H-position
Adjusts the horizontal position of image.
V-position
Adjusts the vertical positon of image.
Color Temp. Adjusts the color templerature to fit your preference.
Information Shows the current resolution.
Ratio
Users have 2 options for the image ratio.
1. 4:3 (Normal) 2. 16:9 (Wide)
*This function is not available when the input mode are PC, YPbPr.
System
4 modes can be selected.
1. Auto 2. PAL-M 3. PAL-N 4.SECAM
*The default setting of System is Auto.
*This function is not available when the input mode are PC, YPbPr.
Sharpness Adjusts to make the image look sharper or softer.
*This function is not available when the input mode are PC, YPbPr.
Color Adjusts to increase or decrease the colors (R, G, B) of image.
*This function is not available when the input mode is PC.
Tint Adjusts to make the image look more red or blue.
*This function is not available when the input mode is PC.

DLP Personal Projector 15
3. Source Menu
Mirror
1. Default
2. Ceiling -
mounted projection
3. Rear screen
projection
4. Ceiling -
mounted and rear
screen projection
Source Selects sources between PC, Video, S-video, and YPbPr.
Volume
Adjusts the volume level.
Treble
Adjusts the treble level.
Bass
Adjusts the bass level.
Mute
1. 2.
3. 4.
Off On

16 DLP Personal Projector
4.Control Menu
5. PIP Menu
These functions are valid only when the input mode is PC and the PIP source is
Video or S-video.
Language
Language sets the OSD to display in one of 7 languages.
Use Left/Right key to select the languages: English, French, Ger-
man, Italian, Spanish, Simplified Chinese and Traditional Chinese.
OSD Selects a desired OSD position.
OSD Time
Sets the length of time the OSD will remain active after the last time
you pressed a button. The range is from 5 to 60 seconds in 5-sec-
ond increments.
Auto Off Sets the length of time to shut off the system when no input is
detected.
Reset Returns all settings to those set at the time of manufacturing.
Lamp hour Shows lamp used time.
PIP Source Selects the source from which the PIP picture comes.
PIP Size Uses 3/ 4key to scroll through the 4 alternatives: Off, Small,
Medium, Large.
PIP Position Selects a desired PIP position.
H Position Adjusts the horizontal position of PIP image.
V Position Adjusts the vertical position of PIP image.
More Options Uses 3/ 4key to select more PIP functions including Brightness,
Contrast, Color, Tint, Sharpness and System.
Brightness Adjusts the brightness of PIP image.
Contrast Adjusts the degree of difference between darkness and lightness of
PIP image.
Color Adjusts to increase or decrease the colors (R, G, B) of image.
Tint Adjusts to make the image look more red or blue.
Sharpness Adjusts to make the image look sharper or softer
System Selects PIP image systems: Auto, NTSC, PAL, SECAM

DLP Personal Projector 17
Shutdown
1. Press POWER and a warning message will prompt up. To turn off the projector,
press POWER again.
2. The fan will continue to run for approximately 60 seconds.
3. Disconnect the power cord from the wall socket.
Caution
Please do not unplug the power cord before POWER is shut down or during
the 60-second cooling process.
Power
Power
Remote controlProjector
